D-Link DSL-G604T Manuel utilisateur

• ADSL Cable (standard telephone cable)

• DSL-G604T

shown with antenna and stand

• Ethernet Cable

(CAT5 UTP Straight-Through)

• 12V, 1.2A

Power Adapter

Before You Begin

1. If you purchased this Router to share your high-speed Internet connection with other

computers, you must have an established Internet account from an Internet Service

Provider (ISP).

2. It’s best to use the same computer that is connected to your router for configuring the

DSL-G604T Wireless ADSL Router. The DSL-G604T acts as a DHCP server and will

assign all the necessary IP address information on your network. See atthe Quick

Installation Guide or the Manual on the CD-ROM for setting each network adapter to

automatically obtain an IP address.

Check Your Package Contents

If any of the above items is missing, please contact your reseller.

This product can be set upusing

any current web browser, i.e.,

InternetExplorer6orNetscape

Navigator 6.2.3. DSL-G604T

Wireless ADSL Route

Using a power supply with

a different voltage rating

will damage and void the

warranty for this product.

property of their respective holders. Software and specifications subject to change without notice.

DSL-G604T Wireless ADSL Router

• CD-Rom

containing Manual and Warranty

Connecting the Router to your Computer

A. First, connect the power adapter to the power input at the back

panel of the DSL-G604T and then plug the other end of the

power adapter to a wall outlet or power strip. On the front of the

device, the Power LED will turn ON to indicate proper operation.

B. Insert one end of the cable into an Ethernet (LAN) port on the

back panel of the DSL-G604T and the other end of the cable to

an Ethernet Adapter or available Ethernet port on your computer.

C. Insert the telephone cable included with the Router into the

ADSL port, then connect the cable to your telephone line.

D. Check the LED display on the front of the Router to confirm that

the connections have been made.

Power Input

Connect to AC

Adapter

Reset

Push to return to

factory settings

LAN Ports

Connect to the

LAN and other

computers

DSL Port

Connect to your

ADSL provider

ntenna

Ensures good

wir

ess

ecep

Configure IP Settings

For Microsoft Windows XP

To connect to the network, make sure the network adapter in

your computer is configured properly. Here’s how to configure

the network adapter to obtain an IP address automatically for

the DSL-G604T Wireless ADSL Router.

Go to Start > select

Settings > click

Control Panel >

Double-click on the

Network

Connections icon

Double-click on

Network Connections

Right-click the

Local Area

Connection icon,

and then select

Properties.

Select Properties

The dialog box displays with a

list of currently installed

network items.

Click Internet Protocol

(TCP/IP)

Make the choice to get IP

settings assigned

automaticall

Select Obtain an IP address

automatically

Click O

Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-

equipped computers to the LAN ports on the back panel of the DSL-

G604T.

When you have completed the steps in this Quick Installation Guide,

your connected network should look similar to this:

Connecting Additional Computers

To The DSL-G604T

Wireless ADSL Router

Web Configuration Utility

Open your Web browser

and type http://192.168.1.1

into the URL address box.

Press Enter orReturn.

The Home/Login page

appears.

When you first log in,

your Login Name is

admin;

your password is also

admin. These may be

chan

ed later.

Click Login

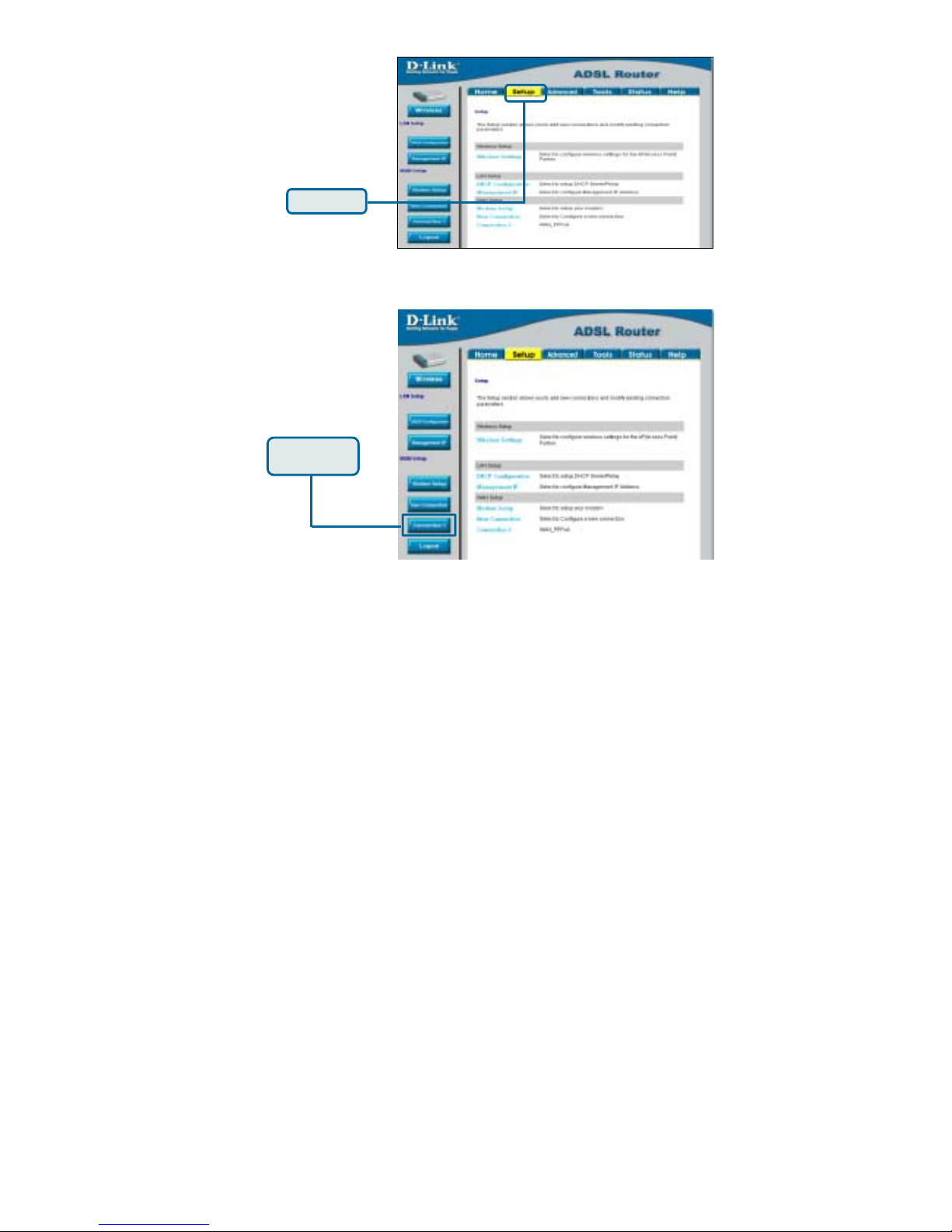

The Home screen

appears. Click on

the Setup tab to

bring up the Setup

menu.

Click Setup

Click the

Connection 1

button to go to the

configuration menu

to make the Internet

connection.

Click

Connection 1

Configuring the WAN

Connection

Configure Connection 1 for PPPoE

PPP or Point-to-Point protocol is a standard method of establishing a

network connection/session between networked devices. It may be

worthwhile for the user to change the default name of Connection 1 to

something that states what connection type is being used, for example,

WAN_PPPoA, the name used in the example below. Notice the VPI and

VCI values are included in the name. It is not functionally necessary to

change the name of the connection, this is done merely to provide

descriptive reference.

In the Connection 1

window, type the

Username and

Password used to verify

the identity of your ISP

account. Click the Apply

button when you have

entered the information.

Enter the Username

and Password

assigned by your ISP.

Click Apply

To configure Connection 1 for PPPoE, follow the steps listed below.

Some of the settings do not need to be changed the first time the device

is set up, but can be changed later if you choose.

1. Click the Connection 1 button under WAN Setup to view the

default PPPoA Connection Setup configuration menu.

2. Select PPPoE from the Type: pull-down menu. The menu will

blink momentarily

3. Type in a Name: for the connection or use the default name in

the space provided (WAN_PPPoA used in the above example).

4. Under Options, enable NAT and/or Firewall by selecting the

corresponding selection box.

5. If you are told to change the VPI or VCI values, type in the values

given to you by your service provider. Many users will be able to

use the default settings.

6. Leave the default QoS values if you are unsure or the ISP did not

provide this information.

7. Do not change the PCR or SCR values unless you are required

to do so. If you are told to change these, type in the values given

to you by your service provider.

8. Type the Username and Password used to verify the identity of

your account. Typically, the Username is an account number

assigned by your ISP and appears in the form

account#@serviceprovider.com, while the Password may have

been chosen by the account holder. For most users, the

remaining settings will not need to be changed. See your ISP for

further information.

9. Click the Apply button when you have entered all the information.

The web browser will briefly go blank. You are now finished

changing setting for the primary WAN connection known as

Connection 1. It is now necessary to save the changes you just

made and restart the Router.

10. To save the changes made to Connection 1, click the Tools tab

and then click on the System Commands button. Click on the

Save All button to store the configuration settings. Click on Back

button to return to the System Commands menu.

Check the WAN connection status. Click the Status tab and then the

Connection Status button. Look under WAN to view the State of

Connection 1, it should read Connected. If the WAN connection state

does not appear to Connected after a few minutes, go back to the

Connection 1 Setup menu, check the settings and make sure they are

correct.

Configure Connection 1 for PPPoA

PPP or Point-to-Point protocol is a standard method of establishing a

network connection/session between networked devices. Different forms

of PPP include PPPoA and PPPoE (discussed below) involve an

authentication process that requires a username and password to gain

access to the network. PPPoA (PPP over ATM) as described in RFC

2364, is a method of using PPP on an ATM network. ATM is used for

many types of telecommunications services including ADSL.

To configure the WAN connection for PPPoA, perform the steps listed

below. Some of the settings do not need to be changed the first time the

device is set up, but can be changed later if you choose.
