D-Link DIR-882 Manuel utilisateur
Quick Installation Guide
DIR-882
AC2600 Wave 2 MU-MIMO Wi-Fi Gigabit Router
with 3G/ TE Support and 2 USB Ports
DIR-882 Quick Installation Guide
BEFORE YOU BEGIN
Delivery Package
•Router DIR-882
•Power adapter DC 12V/2.5A
•Ethernet cable
•“Quick Installation Guide (brochure).
If any of the items are missing, please contact your reseller.
The “User Manual and “Quick Installation Guide documents are available
on D-Link website (see www.dlink.ru).
!Using a power supply with a different voltage rating than the one
included will cause damage and void the warranty for this product.
2
DIR-882 Quick Installation Guide
Default Settings
Domain name of device dlinkrouter.local.
I address of device 192.168.0.1
Username (login) admin
assword admin
Name of wireless network
(SSID)
2.4GHz DIR-882
5GHz DIR-882-5G
Network key ( SK password)
see WPS PIN on the barcode
label on the bottom panel of
the device
!
Router DIR-882 with default settings cannot connect to the Internet. To
get started, please set your own password for access to the web-based
interface and change the WLAN name (SSID); then, if needed,
configure other settings recommended by your ISP.
3
DIR-882 Quick Installation Guide
System Requirements and Equipment
•An Android or iPhone mobile device (smartphone or tablet) or a
computer with any operating system that supports a web browser.
•A PC web browser to access the web-based interface:
◦Apple Safari 8 and later
◦Google Chrome 48 and later
◦Microsoft Internet Explorer 10 and later
◦Microsoft Edge 20.10240 and later
◦Mozilla Firefox 44 and later
◦Opera 35 and later.
•A NIC (Ethernet or Wi-Fi adapter) to connect to the router.
•An 802.11a, b, g, n, or ac Wi-Fi adapter to create a wireless network.
•A USB modem (when it is necessary to connect to the Internet via mobile
operators' networks).1
!
Your USB modem should be equipped with an active SIM card of your
operator.
Some operators require subscribers to activate their USB modems prior
to using them. Please, refer to connection guidelines provided by your
operator when concluding the agreement or placed on its website.
For some models of USB modems, it is required to disable the PIN
code check on the SIM card prior to connecting the USB modem to the
router.
1 Contact your operator to get information on the service coverage and fees.
4
DIR-882 Quick Installation Guide
CONNECTING TO C
PC with Ethernet Adapter
1. Connect an Ethernet cable between any of LAN ports located on the back
panel of the router and the Ethernet port of your PC.
2. To connect via USB modem: сonnect your USB modem to one of two
USB ports2.
!In some cases you will need to reboot the router after connection of the
USB modem.
3. Connect the power cord to the power connector port on the back panel of
the router, then plug the power adapter into an electrical outlet or power
strip.
4. Turn on the router by pressing the POWER button on its back panel.
Then make sure that your PC is configured to obtain an IP address
automatically (as DHCP client).
2 It is recommended to use a USB extension cable to connect a USB modem to the
router.
5
DIR-882 Quick Installation Guide
Obtaining P Address Automatically
(OS Windows 7)
1. Click the Start button and proceed to the Control anel window.
2. Select the Network and Sharing Center section. (If the Control Panel
has the category view (the Category value is selected from the View by
drop-down list in the top right corner of the window), choose the View
network status and tasks line under the Network and Internet
section.)
3. In the menu located on the left part of the window, select the Change
adapter settings line.
4. In the opened window, right-click the relevant Local Area Connection
icon and select the roperties line in the menu displayed.
5. In the Local Area Connection roperties window, on the
Networking tab, select the Internet rotocol Version 4 (TC /I v4)
line. Click the roperties button.
6
DIR-882 Quick Installation Guide

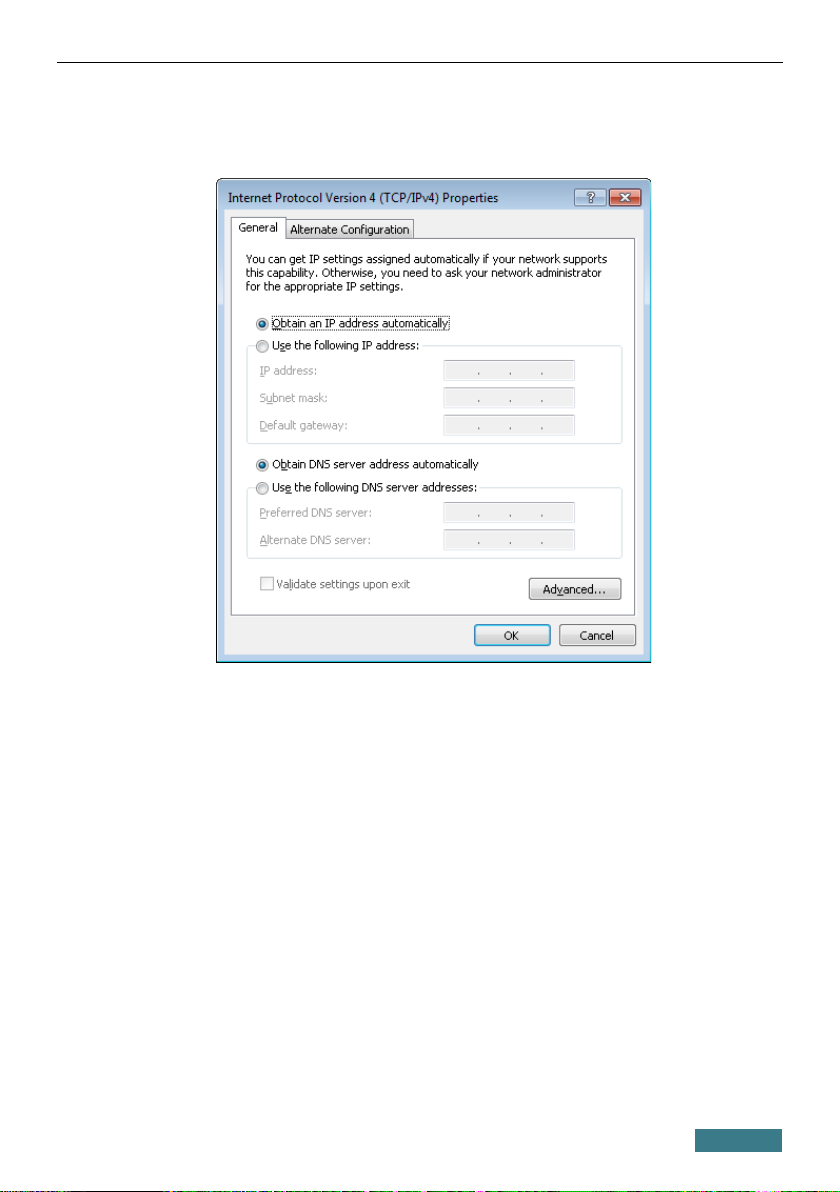

6. Make sure that the Obtain an I address automatically and Obtain
DNS server address automatically choices of the radio buttons are
selected. Click the OK button.
7. Click the OK button in the connection properties window.
7
DIR-882 Quick Installation Guide
Obtaining P Address Automatically
(OS Windows 10)
1. Click the Start button and proceed to the Settings window.
2. Select the Network & Internet section.
3. In the Change your network settings section, select the Change
adapter options line.
4. In the opened window, right-click the relevant Local Area Connection
icon and select the roperties line in the menu displayed.
5. In the Local Area Connection roperties window, on the
Networking tab, select the Internet rotocol Version 4 (TC /I v4)
line. Click the roperties button.
8
DIR-882 Quick Installation Guide
6. Make sure that the Obtain an I address automatically and Obtain
DNS server address automatically choices of the radio buttons are
selected. Click the OK button.
7. Click the Close button in the connection properties window.
9
DIR-882 Quick Installation Guide
PC with Wi-Fi Adapter
1. To connect via USB modem: сonnect your USB modem to one of two
USB ports3.
!In some cases you will need to reboot the router after connection of the
USB modem.
2. Connect the power cord to the power connector port on the back panel of
the router, then plug the power adapter into an electrical outlet or power
strip.
3. Turn on the router by pressing the POWER button on its back panel.
4. Make sure that the Wi-Fi adapter of your PC is on. As a rule, modern
notebooks with built-in wireless NICs are equipped with a button or
switch that turns on/off the wireless adapter (refer to your PC
documents). If your PC is equipped with a pluggable wireless NIC, install
the software provided with your Wi-Fi adapter.
Then make sure that your Wi-Fi adapter is configured to obtain an IP address
automatically (as DHCP client).
3 It is recommended to use a USB extension cable to connect a USB modem to the
router.
10
