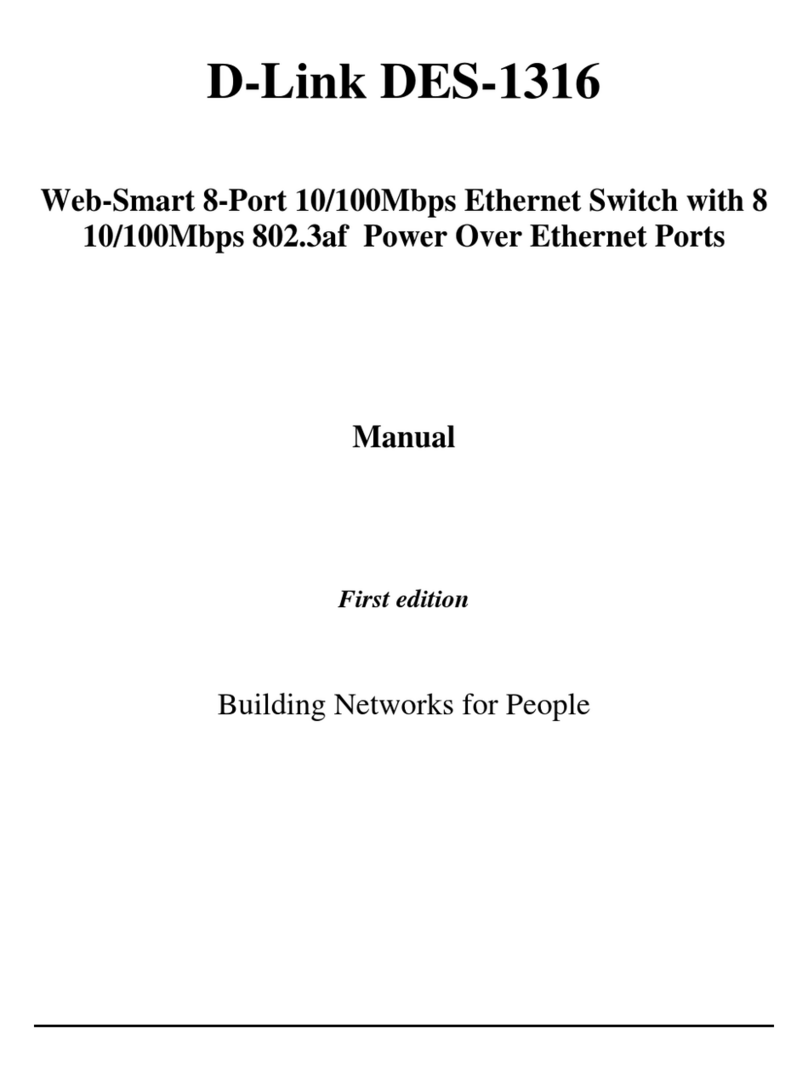

D-Link DES-1316 - Switch Manuel utilisateur

D-Link

D-Link DI-808HV Manuel utilisateur

D-Link

D-Link DIR-651 Manuel utilisateur

D-Link

D-Link DIR-652 Manuel utilisateur

D-Link

D-Link DVG-6008S Manuel utilisateur

D-Link

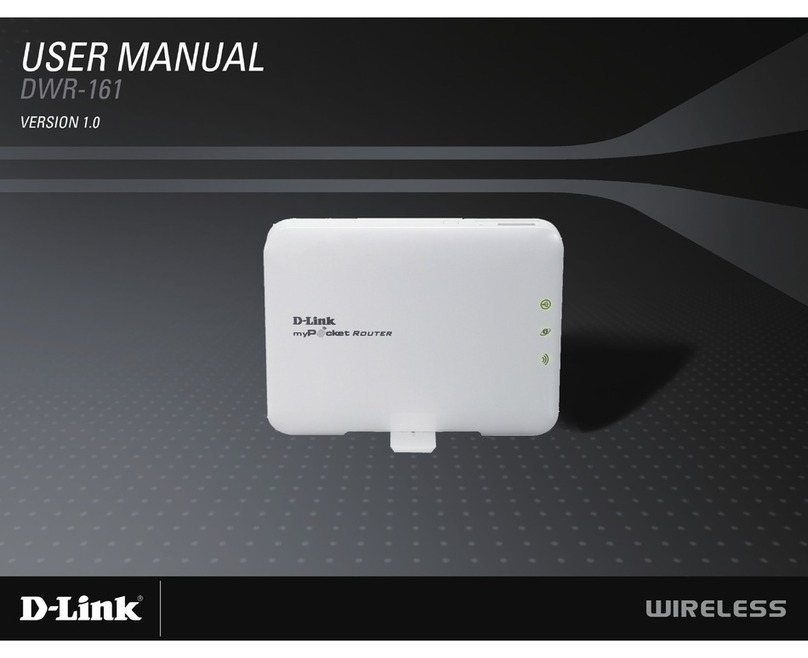

D-Link DWR-161 Manuel utilisateur

D-Link

D-Link Amplifi DIR-657 Manuel utilisateur

D-Link

D-Link XTREME N DIR-655 Manuel utilisateur

D-Link

D-Link DES-3010F Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité

1

How to setup and to install?

How to setup and to install?

Step 1: Unplug the power to your cable/DSL Internet modem

Step 2: Connect an Ethernet cable from your computer to a LAN port (Port 1,2,3 or 4) on the

DIR-850L

Step 3: Connect your cable/DSL modem to the Internet port on the DIR-850L

Step 4: Plug in the power for your cable or DSL broadband modem and wait for two minutes

Step 5: Power on both the DIR-850L and your Internet cable/DSL modem

2

How to setup and to install?

Step 6: Open your web browser and enter http://dlinkrouter or http://dlinkrouter.local or

http://192.168.0.1 into the address bar

Step 7:

If this is your first time logging in to the router, the Setup Wizard will start automatically.

This wizard is designed to guide you through a step-by-step process to configure your new D-

Link router and connect to the Internet. Click Next to continue.

Please wait while your router detects your Internet connection type. After the router detects

your Internet connection, you may need to enter information such as a username and pass-

word. To obtain these, you will need to speak to the company that provides your Internet, also

known as an Internet Service Provider (ISP).

3

How to setup and to install?

If the router detects an Ethernet connection but does not detect the type of Internet connection

you have, the below screen will appear. Click “Guide me through the Internet connection set-

tings” to display a list of connection types to choose from.

Select your Internet Connection type: Dynamic or PPPoE

DHCP –Select this if you have cable Internet service. You will likely not need to type

in any extra information

PPPoE –Select this if you have DSL Internet service. You will likely need to input

some information to get Internet access

oUsername: Your Internet username (Provided by your Internet Service Provid-

er)

oPassword: Your Internet password (Provided by your Internet Service Provid-

er)

4

How to setup and to install?

For both the 2.4GHz and 5GHz wireless frequencies, create a name (SSID) for your Wi-Fi

network. Each Wi-Fi network will also need a password of at least 8 characters. Your wireless

clients will need to have this passphrase or key entered to be able to connect to your wireless

network. Click Next to continue. (Password suggestion: please use a password that is easy for

you to remember but obscure for others to guess. Strong passwords include letters and num-

5

How to setup and to install?

bers in various positions.)

In order to secure your router, please create a password to access the router firmware. This

should be different from the password to connect to the Wi-Fi network.

Click Next to continue.

You can check the Enable Graphical Authentication box to enable CAPTCHA authentication

for added security. CAPTCHA is demonstrated by the arrow in the login screen as below and

6

How to setup and to install?

helps protect against automated attacks:

Select your time zone from the drop-down menu and click Next to continue.

The Setup Complete window is followed by your Wi-Fi settings. Click Next and Connect to

continue.

If you want to create a bookmark to the router management page, click OK. Click Cancel if

you do not want to create a bookmark.

7

How to setup and to install?

If you clicked Yes, a window may appear (depending on what web browser you are using) to

create a bookmark.

mydlink Cloud Services registration:

With mydlink Cloud Services you can remotely manage, control and monitor your home net-

work from anywhere by using the mydlink Lite mobile app or mydlink web portal. Now, par-

ents can view sites kids are visiting and what devices are connected to your network. And if

you use the mydlink SharePort app, you can also access content on a USB drive connected to

your router.

You may choose Next to register this device with mydlink for free. Or you may choose Skip

to register later.

To get started with mydlink Cloud Services, you are required to have a mydlink account and

need to register this router to the mydlink account. Select “Yes, I have a mydlink account” if

you have previously registered a mydlink account; Select “No, I want to register and login

with a new mydlink account” if you would like to create a new mydlink account.

8

How to setup and to install?

a) If you selected “Yes, I have a mydlink account,” please enter your existing mydlink ac-

count name and password. Then choose Login.

b) If you selected “No, I want to register and login with a new mydlink account,” please fulfill

the required information in order to create a new mydlink account.

Note: The mydlink password is the password to log in to the mydlink web portal and mydlink

mobile apps. This is NOT the same as your router’s Password.
