D-Link AirPlus

2.4GHz Ethernet-to-Wireless Bridge

Manual

Contents

1. Package Contents ............................................. 3

2. Introduction........................................................ 4

3. Wireless Basics ................................................. 7

4. Getting Started ................................................ 10

5. Web Configuration........................................... 12

6. Troubleshooting............................................... 18

8. Technical Specifications .................................. 24

9. Contacting Technical Support.......................... 26

10. Warranty and Registration............................... 27

1. Package Contents

Contents of Package:

• D-Link AirPlus DWL-810+ Ethernet-to-Wireless Bridge

• AC Power Adapter – 5V; 2.5A

• Manual and Warranty on CD

• Ethernet Cable (the DWL-810+ Auto MDI/MDIX Ethernet port works

with straight-through or crossover cable)

• Quick Installation Guide

If any of the above items are missing, please contact your reseller.

System Requirements for Configuration:

• A computer with an Ethernet adapter. (We recommend that you use

an Ethernet connection to configure the DWL-810+.)

• A current web-browser (e.g., Internet Explorer 6.0 or Netscape

Navigator 6.0 or later) for configuration

For Use: You will need an Ethernet-enabled device such as a game

console, laptop or desktop computer, network printer or set top box. The

DWL-810+ will transform virtually any Ethernet device into a wireless device,

enabling wireless communication over your network or in an ad-hoc/peer-to-

peer mode.

2. Introduction

The D-Link AirPlus DWL-810+ Ethernet-to-Wireless Bridge is a device that

can be implemented in a variety of ways to provide wireless access by

converting an Ethernet connection. For devices with a built-in Ethernet port,

the DWL-810+ provides a cost effective way to gain wireless connectivity,

virtually transforming wired devices into wireless units! Connect any

Ethernet-enabled device to an existing 802.11b wireless network using the

DWL-810+.

Typical applications include connecting a printer to a wireless network and

connecting Ethernet-enabled devices such as game consoles or set top

boxes to a Wireless Local Area Network (WLAN). Simply connect the DWL-

810+ to the Ethernet (RJ-45) port of a network device, such as a network

storage device, Internet camera, network printer, network scanner, or other

similar device. Using the DWL-810+ allows the flexibility of placing network

devices in remote locations while maintaining a high-speed connection.

You can use the convenient Setup Wizard for the easy installation of your

DWL-810+. Whether you are using it in Ad-Hoc mode or Infrastructure mode,

you can begin with the Setup Wizard. Please refer to the Quick Installation

Guide that is included with your purchase for instructions on how to use the

Setup Wizard.

This manual provides a quick introduction to wireless technology and its

application as it relates to networking. Please take a moment to read through

this manual if you need to get acquainted with wireless technology.

Features and Benefits

• Transforms an Ethernet device into a wireless device

• Up to 22Mbps transfer rates*

• Fully compatible with standard 802.11b-compliant devices

• Equipped with one 10/100 Ethernet port, Auto-MDI/MDIX

• Quick and Simple connectivity via Ethernet

• Supports Ad Hoc or Infrastructure modes

• Easy web-based configuration when changing settings

• Encryption to provide a level of security for data transfers

LEDs

LED stands for Light-Emitting Diode. The DWL-810+ has two LEDs:

* When used with other D-Link AirPlus (Texas Instruments®chip-based)

products, when used with standard 802.11b products transfer rates can be

up to 11Mbps.

Power – a steady Green light indicates a

proper connection to a power source.

Wireless Link/Act – a steady Yellow light

indicates a wireless connection. A blinking

light indicates that the DWL-810+ is

receiving/transmitting from/to the wireless

network.

Connections

Reset Button – press this button to revert to the factory default settings of

the DWL-810+

Power Receptor – connect one end of the 5V DC Power Adapter (included)

to the power receptor on the DWL-810+ and connect the other end of the

Power Adapter to a power outlet.

Default Settings

Operating Mode Infrastructure

SSID default

Channel 6

Transmission rates Auto

Encryption Disabled

IP Address 192.168.0.30

IP Subnet 255.255.255.0

User Name admin (all lower case)

Password None (leave field blank)

Ethernet Port

Reset Button

Power Receptor

Category 5 is the most reliable grade of twisted-pair cable. It is available as

either Straight-Through cable or Cross-Over cable. Always check your

installation instructions to make sure that you have selected the correct type of

Category 5 cable for your other networking devices. The DWL-810+ will accept

either kind of cable and will automatically sense the cable that you are using.

Ethernet Port

–

this RJ-45

uto

MDI/MDIX port provides

connection to a network device

using a Cat 5 Ethernet cable.

(The auto MDI/MDIX port

accommodates either Straight-

Through or Cross-Over cable and

is auto-sensing.)

3. Wireless Basics

With the DWL-810+ you can provide instant wireless access to the LAN

(Local Area Network) for Ethernet-enabled devices. With an Ethernet (CAT5)

cable simply connect the DWL-810+ to the Ethernet port of a network device

(such as a printer or web camera) to establish a wireless connection with

another device equipped with a wireless network adapter set to Ad-Hoc

mode.

If you are planning a larger wireless network, D-Link offers a wide array of

products for most of your wireless local area network (WLAN) needs. In this

section, we discuss typical WLANs and their components. Much of the

advice given here may be helpful in setting up the DWL-810+. It may also

give you some ideas, if you plan to expand your wireless network.

D-Link wireless products are based on industry standards to provide easy-to-

use and compatible high-speed wireless connectivity within your home,

business or wherever a wireless network is available. D-Link wireless

products will allow you access to the data you want, when and where you

want it. No longer will you be limited to one location or forced to run new

wiring through your home or office. You will be able to enjoy the freedom that

wireless networking brings.

A WLAN is a cellular computer network that transmits and receives data with

radio signals instead of wires. WLANs are used increasingly in both home

and office environments, and public areas such as airports, coffee shops and

universities. Innovative ways to utilize WLAN technology are helping people

to work and communicate more efficiently. Increased mobility with the

absence of cabling and other fixed infrastructure has proven to be beneficial

for many users.

Wireless users can use the same applications they use on a wired network.

Wireless adapter cards used on laptop and desktop systems, support the

same protocols as Ethernet adapter cards. For most users, there is no

noticeable functional difference between a wired Ethernet computer and a

wireless computer equipped with a wireless adapter other than the added

benefit of the ability to roam within a wireless-cell. Under many

circumstances, it may be desirable for mobile network devices to link to a

conventional Ethernet LAN in order to use servers, printers or an Internet

connection supplied through the wired LAN. A Wireless Access Point (AP) is

one device used to provide this link.

Wireless Basics

People use WLAN technology for many different purposes.

Mobility - Productivity increases when people have access to data in any

location within the operating range of the WLAN. Management decisions

based on real-time information can significantly improve worker efficiency.

Low Implementation Costs – WLANs are easy to set up, manage, change

and relocate. Networks that frequently change, both physically and logically,

can benefit from WLANs ease of implementation. WLANs can operate in

locations where installation of wiring may be impractical.

Installation and Network Expansion - Installing a WLAN system can be

fast and easy and can eliminate the need to install cable through walls and

ceilings. Wireless technology allows the network to go where wires cannot

go - even outside the home or office.

Inexpensive Solution – Wireless network devices are as competitively

priced as conventional Ethernet network devices.

Scalability - WLANs can be configured in a variety of ways to meet the

needs of specific applications and installations. Configurations are easily

changed and range from peer-to-peer networks suitable for a small number

of users to full infrastructure networks of thousands of users that allow

roaming over a broad area.

The DWL-810+ is compatible with the D-Link Air Wireless family of products,

and other 802.11b products, including:

 DWL-650 2.4GHz Wireless Cardbus Adapter for laptop PCs

 DWL-520 2.4GHz Wireless PCI card for desktop PCs

 DWL-120 Wireless USB Adapter

Wireless Basics

The DWL-810+ is also compatible with the following D-Link AirPlus family of

products:

 DWL-650+ Enhanced 2.4GHz Wireless Cardbus Adapter for laptop

PCs

 DWL-520+ Enhanced 2.4GHz Wireless PCI card for desktop PCs

 DWL-900AP+ Wireless Access Point

 DI-614+ Wireless Router

Standards - Based Technology

The IEEE standard-based technology assures that this product is

interoperable with existing compatible wireless technology. This means you

will be able to transfer large files quickly or even watch a movie in MPEG

format over your network without noticeable delays. The technology works

by using multiple frequencies in the 2.4GHz range. This D-Link AirPlus

product will automatically sense the best possible connection speed to

ensure the greatest speed and range possible with the technology.

Installation Considerations

Designed to go up to 984 feet (300 meters) outdoors and up to 328 feet (100

meters) indoors, the D-Link AirPlus DWL-810+ lets you access your network

devices wirelessly from virtually anywhere within its operating range. Keep in

mind, however, that the number, thickness and location of walls, ceilings or

other objects that the wireless signal must pass thru may limit range. Typical

ranges vary depending on the types of materials and any background RF

(radio frequency) noise in your home or business. The key to maximizing

range is to follow these basic guidelines:

1. Keep the number of walls and ceilings between the DWL-810+ and your

receiving device (e.g., the DWL-520+) to a minimum - Each wall or

ceiling can reduce your D-Link AirPlus Wireless product’s range from 3-

90 feet (1-30 meters.) Position your DWL-810+, Access Points,

Residential Gateways, and computers so that the number of walls or

ceilings is minimized.

2. Be aware of the direct line between the DWL-810+ and the device with

which it communicates, as well as between Access Points, Residential

Gateways (routers), and computers. A wall that is 1.5 feet thick (.5

Wireless Basics

meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick.

At a 2-degree angle it looks over 42 feet (14 meters) thick! Position

Access Points and Adapters so that the signal will travel straight through

a wall or ceiling (instead of at an angle) for better reception.

3. Building Materials can impede the wireless signal - A solid metal door or

aluminum studs may have a negative effect on range. Try to position the

DWL-810+, the Access Points, and computers with wireless adapters so

that the signal passes through drywall or open doorways and not other

materials.

4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical

devices or appliances that may generate extreme RF noise.

Using radio frequency (RF) technology, the DWL-810+ transmits and

receives data over the air, eliminating the need for a wired connection.

4. Getting Started

Setup #1:

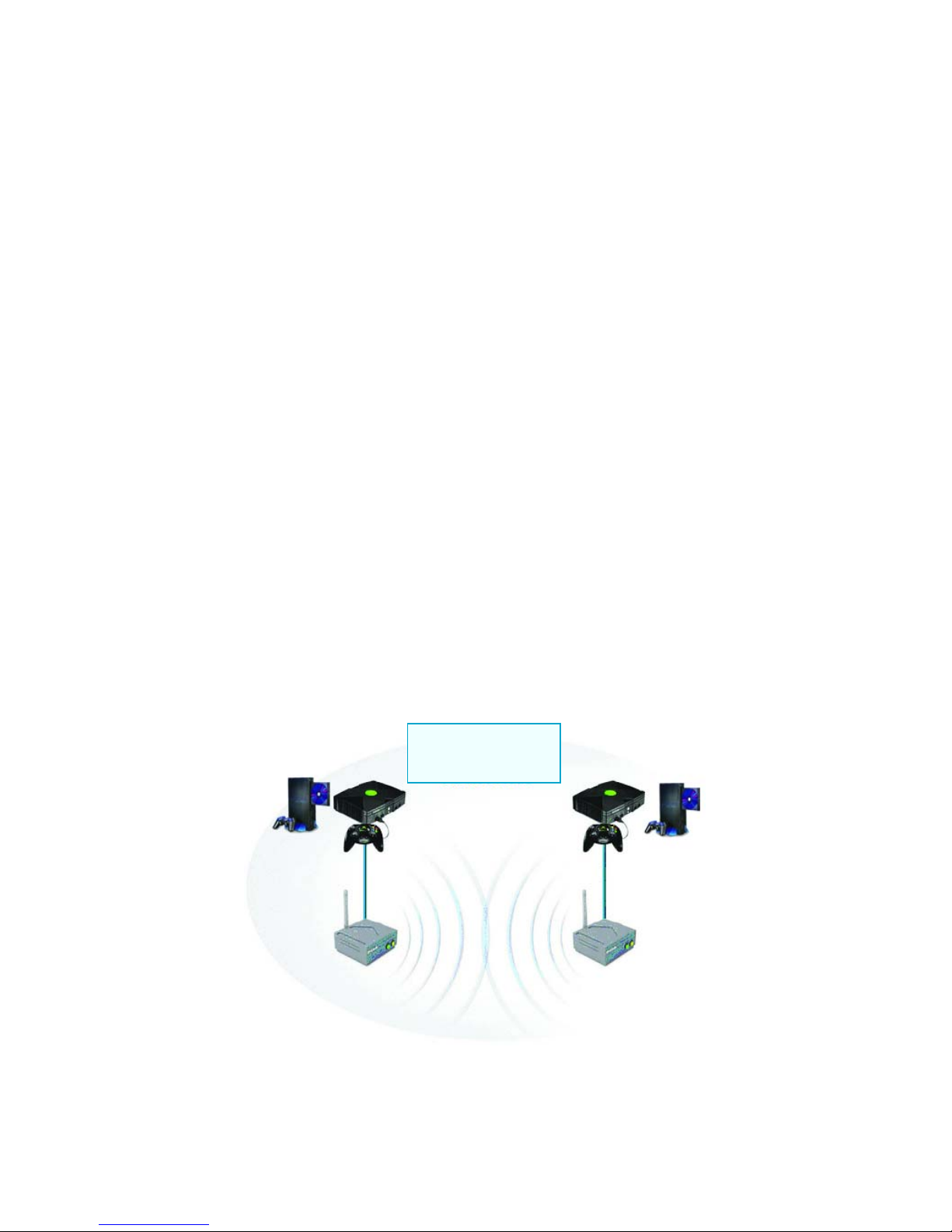

This example illustrates an Ad-Hoc setup. Simply connect the DWL-810+

(refer to the Quick Installation Guide) to your Ethernet-capable network

device (in this case, a gaming console) and you will be able to connect

wirelessly with other gaming consoles also connected to DWL-810+’s.

Setup #1

Autres manuels pour AirPlus DWL-810+

Table des matières

Autres manuels D-Link Routeur réseau

D-Link

D-Link DES-3226L Manuel utilisateur

D-Link

D-Link DSL-2741B Manuel utilisateur

D-Link

D-Link DSL-3580L Series Manuel utilisateur

D-Link

D-Link DSL-2750E Manuel

D-Link

D-Link DIR-300 - Wireless G Router Manuel utilisateur

D-Link

D-Link DSL-2750U Fiche d'information produit

D-Link

D-Link DSL-2730E Manuel utilisateur

D-Link

D-Link DIR-505 Manuel utilisateur

D-Link

D-Link IR850LA1 Manuel utilisateur

D-Link

D-Link xStackTM DGS-3300 Manuel utilisateur

D-Link

D-Link DES-3225G Series Manuel utilisateur

D-Link

D-Link DIR-882 Manuel utilisateur

D-Link

D-Link DSL-3785 Instructions d'utilisation et d'entretien

D-Link

D-Link DIR-815/AC Manuel utilisateur

D-Link

D-Link M32 Manuel utilisateur

D-Link

D-Link DI-2000 Series Manuel utilisateur

D-Link

D-Link DIR-615 - Wireless N Router Manuel utilisateur

D-Link

D-Link DIR-300 - Wireless G Router Manuel utilisateur

D-Link

D-Link GO-SW-5E Manuel utilisateur

D-Link

D-Link 2Voice + 4SW VoIP Router DVG-1402S Manuel utilisateur

D-Link

D-Link DIR-860L Manuel utilisateur

D-Link

D-Link DSL-2542B Manuel utilisateur

D-Link

D-Link AirPlus XtremeG Ethernet-to-Wireless Bridge... Manuel utilisateur

D-Link

D-Link DIR-841 Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
