DNS-120 User’s Manual

D-Link Systems, Inc.

Table of Contents

Package Contents ............................................................................ 3

Introduction ..................................................................................... 4

Features and Beneﬁts ....................................................................... 5

Hardware Overview .......................................................................... 6

Getting Started ................................................................................. 8

Hardware Installation ....................................................................... 9

Mapping a Drive ............................................................................. 10

Using the Easy Search Utility ......................................................... 13

Using the Conﬁguration Utility ....................................................... 14

Setup Wizard ............................................................................ 15

IP Settings ................................................................................ 18

Device Settings ......................................................................... 19

User Creation ............................................................................ 20

Network Access ........................................................................ 21

FTP Server ................................................................................ 23

Admin Password ....................................................................... 27

Time Server .............................................................................. 28

System Settings ........................................................................ 29

Upgrade Firmware .................................................................... 30

Device Information ................................................................... 31

Help Screen .............................................................................. 32

Download Scheduling ............................................................... 33

Scheduling Status ..................................................................... 36

Networking Basics ......................................................................... 37

Troubleshooting ............................................................................. 43

Technical Speciﬁcations ................................................................. 44

Contacting Technical Support ........................................................ 45

Warranty ........................................................................................ 46

Registration ................................................................................... 50

DNS-120 User’s Manual

D-Link Systems, Inc.

Package Contents

Note: Using a power supply with a different voltage than the one included with

the DNS-120 will cause damage and void the warranty for this product.

If any of the above items are missing, please contact your reseller.

Package Contents

 D-Link DNS-120

Network Storage Adapter

 CD-ROM with Manual and Software

 Ethernet (CAT5 UTP/Straight-Through) Cable

 5V 2.5A Power Supply

Minimum System Requirements

 Computer with Windows® XP or 2000

 Internet Explorer version 6.0 or Netscape Navigator version 7.0 and above

 USB Hard Drive(s)

 An available Ethernet port on the network

DNS-120 User’s Manual

D-Link Systems, Inc.

Introduction

The D-Link DNS-120 Network Storage Adapter connects USB drives* to the network,

and provides authorized users access to their ﬁles. You can connect up to two standalone

USB 2.0 hard drives or ﬂash drives and instantly have access to all stored ﬁles.

The DNS-120 Network Storage Adapter can be conﬁgured so that your USB 1.1 or

USB 2.0 drives are accessible over the Internet, making it convenient to access your

ﬁles, even when you’re away.

With its built-in backup function, schedule full or incremental backups of important

information on the network. You can set up PC-to-drive or drive-to-drive backups. Either

way, an extra copy of your data remains on the USB drive connected to the DNS-120

and ready to take on the road at anytime.

The DNS-120 Network Storage Adapter does not require you to reboot the system

when adding USB drives to the network, thus eliminating downtime. You can also

prevent any data loss by safely removing the USB drives using the “Disconnect” button

on the back of the DNS-120.

Through plug and play setup, installing the DNS-120 Network Storage Adapter into

your network has never been easier. Simply connect the DNS-120 to a Fast Ethernet

port on your network router or switch, and plug in USB hard drives or ﬂash drives.

Additional setup options can be conﬁgured using the built-in Web-based admin

utility including ﬁrmware upgrade, user account management, folder management,

scheduled downloads, and DHCP/manual network settings. Using the Easy Search

utility, discover all DNS-120 units on the network and easily create shortcuts to their

USB drives.

The DNS-120 Network Storage Adapter is a fast, simple, and cost-effective way to

connect and share storage on the network.

* USB drives sold separately.

DNS-120 User’s Manual

D-Link Systems, Inc.

Features and Beneﬁts

Connect USB 2.0/1.1

Drives on the Network

Built-in FTP Server

Backup Function

Safely Add and

Remove USB Drives

Plug & Play

Web-based

Conﬁguration Utility

Add extra storage space to your network! Connect up to

two stand-alone USB 1.1 or 2.0 hard drives or ﬂash drives

to the DNS-120 and easily have access to all stored ﬁles.

The DNS-120 can be conﬁgured so that your USB drives

are accessible over the Internet, making it convenient to

access your ﬁles, even when you’re away.

You can schedule the DNS-120 to automatically create full

or incremental backups of important information on the

network.

The DNS-120 does not require you to reboot the system

when adding USB drives to the network, thus eliminating

downtime. You can also prevent any data loss by safely

removing the USB drives using the Disconnect button on

the back of the DNS-120.

Through plug and play setup, installing the DNS-120 into

your network has never been easier. Simply connect the

DNS-120 to a 10/100 Fast Ethernet port on your network

router or switch, plug in USB hard drives or ﬂash drives,

and conﬁgure additional setup options using the

Web-based conﬁguration utility.

Additional setup options can be conﬁgured using the

built-in Web-based conﬁguration utility including ﬁrmware

upgrade, user account management, folder management,

scheduled downloads, and DHCP/manual network settings.

DNS-120 User’s Manual

D-Link Systems, Inc.

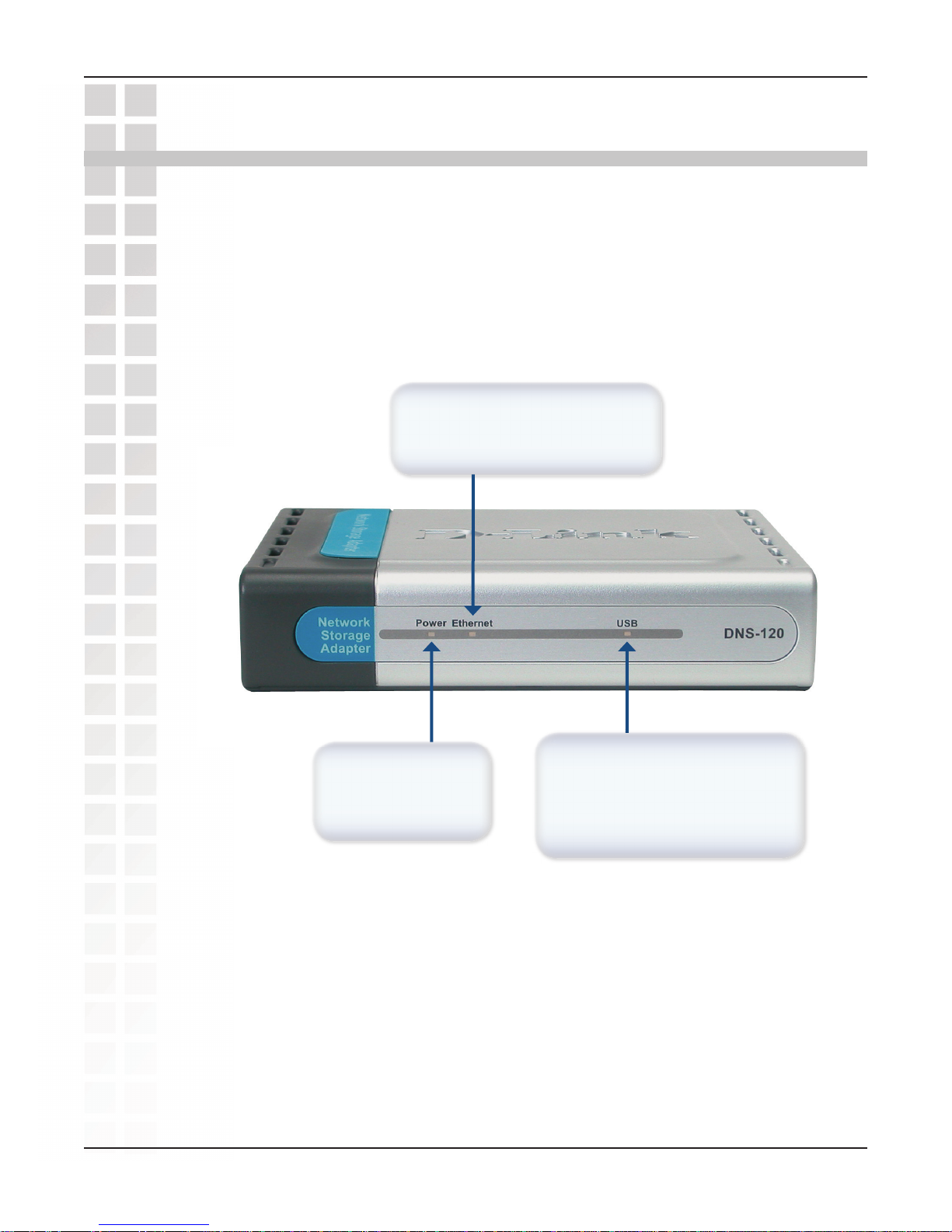

Hardware Overview

Front Panel

Ethernet LED

Solid green indicates an Ethernet

connection. Blinking green indicates

activity on the Ethernet network.

Power LED

Solid green indicates

a good power source

connection.

USB LED

Blinking green indicates when an

USB drive is initially connected to the

DNS-120. Solid green indicates the

USB drive is ready for use.

Hardware Overview

DNS-120 User’s Manual

D-Link Systems, Inc.

Hardware Overview

Rear Panel

Disconnect Button

Press this button to safely

disconnect USB drives

from the DNS-120.

Ethernet Port

Connects to your router or

switch using the included

Ethernet cable.

Power Receptor

Receptor for the provided

power adapter.

Reset Button

This button will restore the

factory default settings.

USB Ports

Connects your USB

1.1 or 2.0 drives to the

DNS-120.

Hardware Overview

DNS-120 User’s Manual

D-Link Systems, Inc.

Getting Started

When you have completed the steps in this Quick Installation Guide, your connected

network may look similar to this:

Getting Started

DNS-120 User’s Manual

D-Link Systems, Inc.

Hardware Installation

Attach the provided Ethernet cable to the Ethernet port on the rear panel.

Attach the other end of the Ethernet cable to an available Ethernet port on

your router or switch.

Plug the AC adapter into the receptor located on the back of the device. Plug

the other end of the AC Adapter into a power strip or wall outlet.

Attach your USB drive(s) to the USB port(s) on the rear panel of the DNS-120.

The USB LED on the front panel will blink until the drive has been installed.

Once the USB LED is solid green, your USB drive is ready for use.

Hardware Installation

DNS-120 User’s Manual

D-Link Systems, Inc.

Mapping a Drive

You can use the D-Link Easy Search Utility to map drives to your computer.

Insert the DNS-120 CD into your

CD-ROM drive.

Click Launch D-Link

Easy Search Utility.

Highlight an available DNS-120.

Available shares will be displayed

under Link Info. Highlight the share

you want to map.

Select an available drive letter from the

drop-down menu and click Connect.

Click Disconnect to remove the selected mapped drive.

Once connected, your mapped drive(s) will appear in My Computer. From your

desktop, double-click the My Computer icon and then double-click your mapped

drive to access the ﬁ les and folders.
