Building Networks for People

DWL

G810

D-Link AirPlus XtremeG

802.11g High-Speed Ethernet-to-Wireless Bridge

Manual

Contents

1. Package Contents............................... 3

2. Introduction......................................... 4

3. Wireless Basics................................... 7

4. Getting Started ................................. 10

5. Web Configuration............................. 12

6. Troubleshooting ................................ 18

8. Technical Specifications................... 25

9. Contacting Technical Support .......... 28

10. Warranty and Registration............... 29

1. Package Contents

Contents of Package:

•D-Link AirPlus XtremeG DWL-G810 Ethernet-to-Wireless Bridge

•AC Power Adapter – 5V; 2.5A

•Manual and Warranty on CD

•Ethernet Cable (the DWL-G810 Auto MDI/MDIX Ethernet port

works with straight-through or crossover cable)

•Quick Installation Guide

If any of the above items are missing, please contact your reseller.

System Requirements for Configuration:

•A computer with an Ethernet adapter. (We recommend that you use

an Ethernet connection to configure the DWL-G810.)

•A current web-browser (e.g., Internet Explorer 6.0 or Netscape

Navigator 6.0 or later) for configuration

For Use: You will need an Ethernet-enabled device such as a game

console, laptop or desktop computer, network printer or set top box. The

DWL-G810 will transform virtually any Ethernet device into a wireless device,

enabling wireless communication over your network or in an ad-hoc/peer-to-

peer mode.

2. Introduction

The D-Link AirPlus XtremeG DWL-G810 Ethernet-to-Wireless Bridge is a

device that can be implemented in a variety of ways to provide wireless

access by converting an Ethernet connection. For devices with a built-in

Ethernet port, the DWL-G810 provides a cost effective way to gain wireless

connectivity, virtually transforming wired devices into wireless units! Connect

any Ethernet-enabled device to 802.11g wireless network and legacy

802.11g wireless network using the DWL-G810.

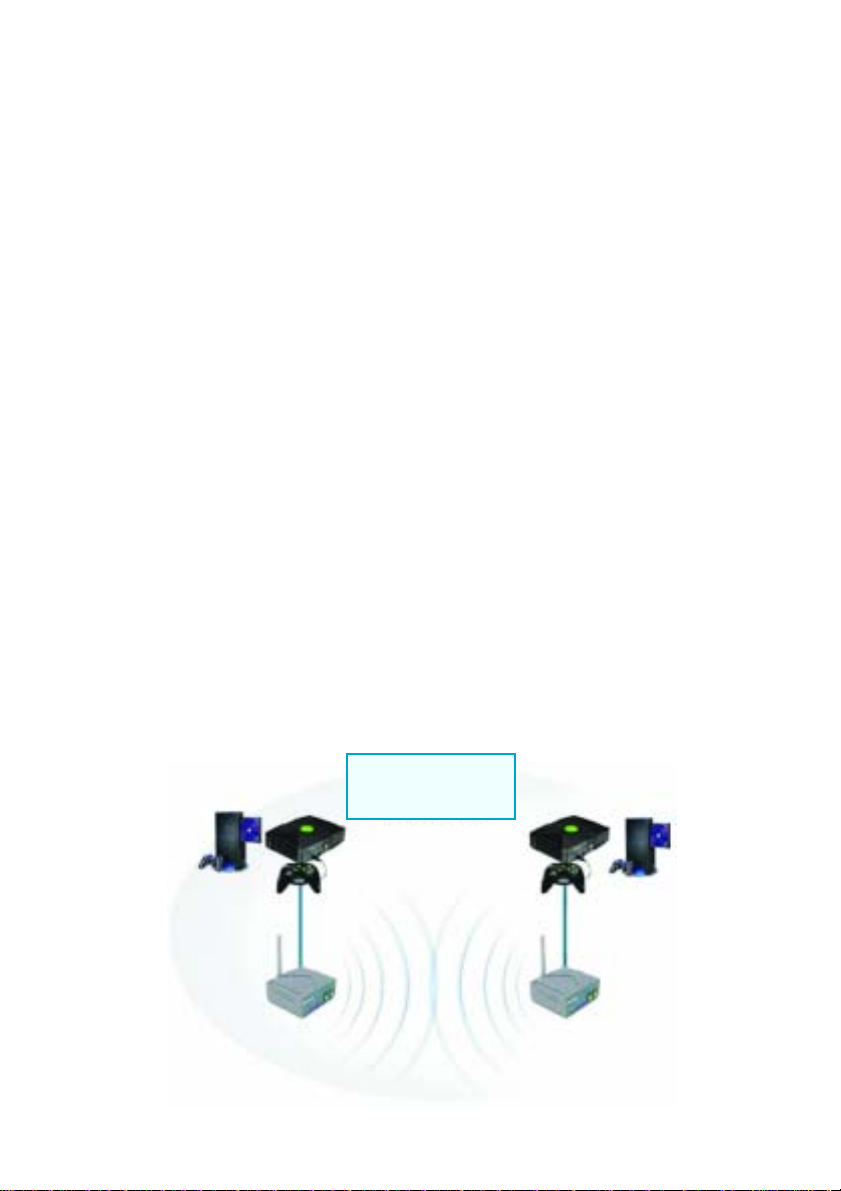

Typical applications include connecting a printer to a wireless network and

connecting Ethernet-enabled devices such as game consoles or set top

boxes to a Wireless Local Area Network (WLAN). Simply connect the DWL-

G810 to the Ethernet (RJ-45) port of a network device, such as a network

storage device, Internet camera, network printer, network scanner, or other

similar device. Using the DWL-G810 allows the flexibility of placing network

devices in remote locations while maintaining a high-speed connection.

You can use the convenient Setup Wizard for the easy installation of your

DWL-G810. Whether you are using it in Ad-Hoc mode or Infrastructure mode,

you can begin with the Setup Wizard. Please refer to the Quick Installation

Guide that is included with your purchase for instructions on how to use the

Setup Wizard.

This manual provides a quick introduction to wireless technology and its

application as it relates to networking. Please take a moment to read through

this manual if you need to get acquainted with wireless technology.

Features and Benefits

•Transforms an Ethernet device into a wireless device

•Up to 54Mbps transfer rates*

•Fully compatible with standard 802.11g/b-compliant devices

•Equipped with one 10/100 Ethernet port, Auto-MDI/MDIX

•Quick and Simple connectivity via Ethernet

•Supports Ad Hoc or Infrastructure modes

•Easy web-based configuration when changing settings

•Encryption to provide a level of security for data transfers

LEDs

LED stands for Light-Emitting Diode. The DWL-G810 has two LEDs:

Power – a steady Green light indicates a

proper connection to a power source.

Wireless Link/Act – A blinking light

indicates that the DWL-G810 is

receiving/transmitting from/to the wireless

network.

Connections

Reset Button – press this button to revert to the factory default settings of

the DWL-G810

Power Receptor – connect one end of the 5V DC Power Adapter (included)

to the power receptor on the DWL-G810 and connect the other end of the

Power Adapter to a power outlet.

Default Settings

Operating Mode Infrastructure

SSID default

Channel 6

Transmission rates Auto

Encryption Disabled

IP Address 192.168.0.30

IP Subnet 255.255.255.0

User Name admin (all lower case)

Password None (leave field blank)

Ethernet Port

Reset Button

Power Receptor

Category 5 is the most reliable grade of twisted-pair cable. It is available as

either Straight-Through cable or Cross-Over cable. Always check your

installation instructions to make sure that you have selected the correct type of

Category 5 cable for your other networking devices. The DWL-G810 will accept

either kind of cable and will automatically sense the cable that you are using.

Ethernet Port

–

this RJ-45 Auto

MDI/MDIX port provides

connection to a network device

using a Cat 5 Ethernet cable.

(The auto MDI/MDIX port

accommodates either Straight-

Through or Cross-Over cable and

is auto-sensing.)

3. Wireless Basics

With the DWL-G810 you can provide instant wireless access to the LAN

(Local Area Network) for Ethernet-enabled devices. With an Ethernet (CAT5)

cable simply connect the DWL-G810 to the Ethernet port of a network device

(such as a printer or web camera) to establish a wireless connection with

another device equipped with a wireless network adapter set to Ad-Hoc

mode.

If you are planning a larger wireless network, D-Link offers a wide array of

products for most of your wireless local area network (WLAN) needs. In this

section, we discuss typical WLANs and their components. Much of the

advice given here may be helpful in setting up the DWL-G810. It may also

give you some ideas, if you plan to expand your wireless network.

D-Link wireless products are based on industry standards to provide easy-to-

use and compatible high-speed wireless connectivity within your home,

business or wherever a wireless network is available. D-Link wireless

products will allow you access to the data you want, when and where you

want it. No longer will you be limited to one location or forced to run new

wiring through your home or office. You will be able to enjoy the freedom that

wireless networking brings.

A WLAN is a cellular computer network that transmits and receives data with

radio signals instead of wires. WLANs are used increasingly in both home

and office environments, and public areas such as airports, coffee shops and

universities. Innovative ways to utilize WLAN technology are helping people

to work and communicate more efficiently. Increased mobility with the

absence of cabling and other fixed infrastructure has proven to be beneficial

for many users.

Wireless users can use the same applications they use on a wired network.

Wireless adapter cards used on laptop and desktop systems, support the

same protocols as Ethernet adapter cards. For most users, there is no

noticeable functional difference between a wired Ethernet computer and a

wireless computer equipped with a wireless adapter other than the added

benefit of the ability to roam within a wireless-cell. Under many

circumstances, it may be desirable for mobile network devices to link to a

conventional Ethernet LAN in order to use servers, printers or an Internet

connection supplied through the wired LAN. A Wireless Access Point (AP) is

one device used to provide this link.

Wireless Basics

People use WLAN technology for many different purposes.

Mobility - Productivity increases when people have access to data in any

location within the operating range of the WLAN. Management decisions

based on real-time information can significantly improve worker efficiency.

Low Implementation Costs – WLANs are easy to set up, manage, change

and relocate. Networks that frequently change, both physically and logically,

can benefit from WLANs ease of implementation. WLANs can operate in

locations where installation of wiring may be impractical.

Installation and Network Expansion - Installing a WLAN system can be

fast and easy and can eliminate the need to install cable through walls and

ceilings. Wireless technology allows the network to go where wires cannot

go - even outside the home or office.

Inexpensive Solution – Wireless network devices are as competitively

priced as conventional Ethernet network devices.

Scalability - WLANs can be configured in a variety of ways to meet the

needs of specific applications and installations. Configurations are easily

changed and range from peer-to-peer networks suitable for a small number

of users to full infrastructure networks of thousands of users that allow

roaming over a broad area.

The DWL-G810 is compatible with the D-Link Wireless family of products,

and other 802.11g/b products, including:

DWL-624 High-Speed 802.11g Wireless Router

DWL-624+ Enhanced 802.11g Wireless Router

DWL-2000AP High-Speed 802.11g Access Point

DWL-2000AP+ Enhanced 802.11g Access Point

Wireless Basics

The DWL-G810 is also compatible with the following D-Link AirPlus family of

products:

DWL-650+ Enhanced 2.4GHz Wireless Cardbus Adapter for laptop

PCs

DWL-520+ Enhanced 2.4GHz Wireless PCI card for desktop PCs

DWL-900AP+ Wireless Access Point

DI-614+ Wireless Router

Standards - Based Technology

The IEEE standard-based technology assures that this product is

interoperable with existing compatible wireless technology. This means you

will be able to transfer large files quickly or even watch a movie in MPEG

format over your network without noticeable delays. The technology works

by using multiple frequencies in the 2.4GHz range. This D-Link AirPlus

XtremeG product will automatically sense the best possible connection

speed to ensure the greatest speed and range possible with the technology.

Installation Considerations

Designed to go up to 984 feet (300 meters) outdoors and up to 328 feet (100

meters) indoors, the D-Link AirPlus XtremeG DWL-G810 lets you access

your network devices wirelessly from virtually anywhere within its operating

range. Keep in mind, however, that the number, thickness and location of

walls, ceilings or other objects that the wireless signal must pass thru may

limit range. Typical ranges vary depending on the types of materials and any

background RF (radio frequency) noise in your home or business. The key to

maximizing range is to follow these basic guidelines:

1. Keep the number of walls and ceilings between the DWL-G810 and your

receiving device (e.g., the DWL-2000AP+) to a minimum - Each wall or

ceiling can reduce your D-Link AirPlus XtremeG Wireless product’s

range from 3-90 feet (1-30 meters.) Position your DWL-G810, Access

Points, Residential Gateways, and computers so that the number of

walls or ceilings is minimized.

2. Be aware of the direct line between the DWL-G810 and the device with

which it communicates, as well as between Access Points, Residential

Gateways (routers), and computers. A wall that is 1.5 feet thick (.5

Wireless Basics

meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick.

At a 2-degree angle it looks over 42 feet (14 meters) thick! Position

Access Points and Adapters so that the signal will travel straight through

a wall or ceiling (instead of at an angle) for better reception.

3. Building Materials can impede the wireless signal - A solid metal door or

aluminum studs may have a negative effect on range. Try to position the

DWL-G810, the Access Points, and computers with wireless adapters so

that the signal passes through drywall or open doorways and not other

materials.

4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical

devices or appliances that may generate extreme RF noise.

Using radio frequency (RF) technology, the DWL-G810 transmits and

receives data over the air, eliminating the need for a wired connection.

4. Getting Started

Setup #1:

This example illustrates an Ad-Hoc setup. Simply connect the DWL-G810

(refer to the Quick Installation Guide) to your Ethernet-capable network

device (in this case, a gaming console) and you will be able to connect

wirelessly with other gaming consoles also connected to DWL-G810’s.

Setup #1

Autres manuels pour AirPlus XtremeG Ethernet-to-Wireless Bridge...

Table des matières

Autres manuels D-Link Matériel réseau

D-Link

D-Link DAP-3711 Manuel utilisateur

D-Link

D-Link MYDLINK DNR-322L Manuel utilisateur

D-Link

D-Link DSL-2750U Manuel

D-Link

D-Link DAP-3760 Manuel utilisateur

D-Link

D-Link DWL-2700AP - AirPremier Outdoor Wireless Access... Manuel utilisateur

D-Link

D-Link mydlink DNR-202L Manuel utilisateur

D-Link

D-Link ShareCenter Pulse DNS-320 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

D-Link

D-Link DNR-2020-04P Manuel utilisateur

D-Link

D-Link xStack Storage DSN-4000 Series Manuel d'utilisation et d'entretien

D-Link

D-Link DHP-343 Manuel utilisateur

D-Link

D-Link DWC-2000 Manuel utilisateur

D-Link

D-Link DNR-2060-08P Manuel utilisateur

D-Link

D-Link DNS-313 Manuel utilisateur

D-Link

D-Link ShareCenter Pulse DNS-320 Manuel utilisateur

D-Link

D-Link DLB-1200 Manuel utilisateur

D-Link

D-Link GO-PLK-200 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-340L Manuel utilisateur

D-Link

D-Link DWL-2700AP - AirPremier Outdoor Wireless Access... Manuel utilisateur

D-Link

D-Link MYDLINK DNR-322L Manuel utilisateur

D-Link

D-Link DNS-1200-5 Manuel utilisateur

D-Link

D-Link DHP-200 Manuel utilisateur

D-Link

D-Link xStack Storage DSN-4000 Series Manuel utilisateur

D-Link

D-Link ShareCenter Shadow DNS-325 Manuel utilisateur

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur

Lanner

Lanner NCA-1525 Manuel utilisateur

Cantek

Cantek NR310-4 Manuel utilisateur
