D-Link DWM-311 Manuel utilisateur

This document will guide you through the

basic installation process for your new D-Link

4G LTE M2M Modem.

DWM-311

Quick Installation Guide

4G LTE M2M Modem

Ethernet Power

D W M - 3 11

ENGLISH

Before You Begin

This Quick Installation Guide gives you

step-by-step instructions for setting up

your DWM-311 4G LTE M2M Modem. The

model you have purchased may appear

slightly dierent from the one shown in the

illustrations. For more detailed information

about the router, please refer to the User

Manual.

Package Contents

This DWM-311 package should

include the following items:

• DWM-311

• AC adapter with 5.5 mm DC

connector (optional)

• RJ-45 cable

• 2 x external LTE antennas

• Quick Installation Guide

• Warranty Card

If any of the above items are

damaged or missing, please contact

your local D-Link re-seller.

Hardware Overview

Front Panel

Ethernet Power

Figure 1

#Item Description

1Ethernet

Port

This is a standard 10/100

Mbps Ethernet port to

connect any device via

Cat 5/5e/6 RJ-45 cables.

Power

Input

5.5 mm barrel connector

for power.

Table 1

Top Panel

Ethernet Power

Figure 2

#Item Description

SMA

Connector

Main

SMA female connector

- Primary antenna.

SMA

Connector

AUX

SMA female connector

- Auxiliary Antenna.

5Power

A green LED indicates

the DWM-311 is

receiving power.

6Internet A green LED indicates

Internet connectivity.

1Included antennas are interchangeable, but third

party antennas may not be.

Table 2

D W M - 3 11 3

ENGLISH

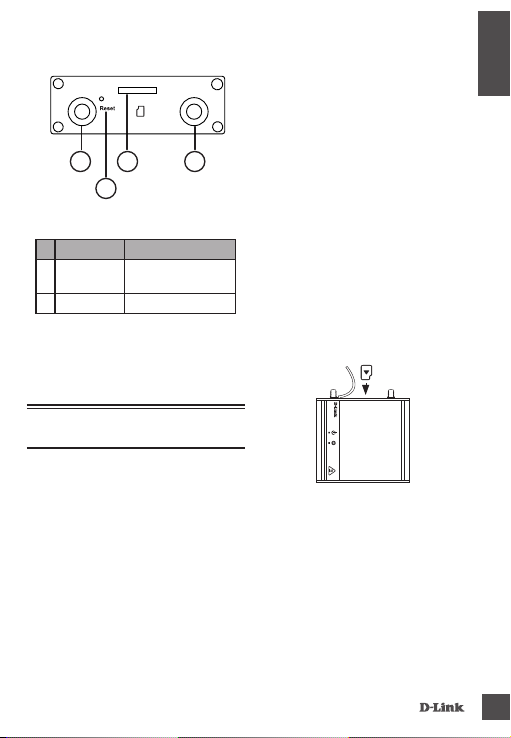

Rear Panel

Figure 3

#Item Description

7Reset Press and hold for 3

seconds to reset

8SIM SIM card slot

1Included antennas are interchangeable, but third

party antennas may not be.

Table 3: Back Panel

Hardware Installation

Before You Begin

Observe the following precautions to help

prevent shutdowns, equipment failures, and

personal injury:

• Install the DWM-311 in a cool and dry place.

Refer to the technical specications in the

user manual for the acceptable operating

temperature and humidity ranges.

• Install the router in a site free from strong

electromagnetic sources, vibration, dust,

excessive moisture, and direct sunlight.

8 4

• Place antennas in an unobstructed area

with clear mobile signal. Avoid metal boxes,

brick walls, and other dense materials. It is

recommended to use the web interface to

conrm signal strength before permanent

installation.

• Visually inspect the power connector and

make sure that it is fully secure.

• Do not stack any devices on top of the router.

Installing SIM card(s)

The DWM-311 is equipped with dual-SIM

slots. At least one active SIM card with Internet

access is required for proper operation.

1. Remove the security plate to get access to

SIM card slot

2. Insert a micro-SIM card into the slot with the

contacts facing down.

Figure 4: Installing a micro-SIM card

1. Gently press the micro-SIM into the slot until

it locks into place. To remove, press again

and the SIM card will be ejected.

2. Screw the security plate back on using the

two screws removed earlier in order to

protect the SIM card slots.

Note: SIM behavior must be congured from

the web UI before an Internet connection can

be established.

D W M - 3 11

ENGLISH

Attach the External Antennas

Ethernet Power

Figure 5: Attaching External Antennas

The DWM-311 requires two external antennas

to function correctly.The included antennas are

interchangeable, but third party antennas may

require connection to specic ports.

1. Attach the antennas to the SMA connectors

on the back of the router to the ports labelled

“Main”and“Aux.”Turn clockwise to fasten the

antenna.

2. Place antennas where they will receive

optimal signal. Arrange them so they point

upward.

Ethernet Power

Figure 6: Attaching Antenna to Modem

Note: The included antennas are

interchangeable. Third party antennas may

require connection to specic ports.

Powering the Router

The router features a power input of 5 volts/2

amps. A minimum of 10 watts total power is

recommended.

Using the Included AC Adapter

1. Attach the barrel connector of included AC

adapter to the DWM-311 power port on the

front panel.

2. Attach the AC adapter to an appropriate AC

socket.

Connecting Devices

After the DWM-311 has been successfully

installed, the router can be connected to the end

device via the following connection method:

Over Ethernet

The Ethernet port can be connected to an end

device. Use a standard Category 5/5e/6 RJ-45

Ethernet cable to connect the end device to

the router. The port will auto-negotiate to

the highest possible port speed based on the

connected device. Note that the DWM-311

supports a maximum transfer speed of 150

Mbps over Ethernet.

Management Options

Before You Begin

The D-Link router can be managed by using

the Web User Interface (Web UI), Telnet,

or D-Link Edge Cloud Solution (D-ECS)

management interfaces. If you wish to

manage a single D-Link router, the Web UI

may be the best option. Each router must

D W M - 3 11 5

ENGLISH

be assigned its own IP address, which

is used for communication with the

management PC. Please refer to the

following installation instructions to get

started with the Web UI interfaces.

Web User Interface

Once the router has been successfully

installed, you can begin configuration,

monitor the LED panel, and display

graphical statistics using a web browser.

Supported browsers include: Microsoft®

Internet Explorer , Firefox, Chrome, and

Safari.

You need the following equipment to

access the Web UI of your device:

• A PC with a RJ-45 Ethernet port

• A standard Ethernet cable

1. Connect the Ethernet cable to the

router’s Ethernet port and to the Ethernet

port on the PC.

2. Congure the PC’s IP address to be in

the network segment as the router. The

router’s default IP address is 192.168.0.1,

with subnet mask 255.255.255.0.

3. For example, to connect to the router

using the default settings, your PC

should have an IP address in the range:

192.168.0.2-.254 and a subnet mask of

255.255.255.0.

4. Open the web browser and enter

http://192.168.0.1/ in the address box.

5. Log in to the router. The default user

name is adminand the default password

is admin.

Additional Information

If you are encountering problems setting up

your network, please refer to the user manual.

It contains much more detailed information to

get you up and running with your network.

Additional help is available through our oces

listed at the back of the user manual or online.

To nd out more about D-Link products or

marketing information, please visit the D-Link

website at: http://www.dlink.com/.

TECHNICAL SUPPORT dlink.com/support

D W M - 3 11

ENGLISH

Maximum radio-frequency power transmitted in the frequency bands

Maximale Funkfrequenzleistung, die in den Frequenzbandbreiten übertragen wird

Puissance de radiofréquence maximale transmise dans les bandes de fréquence

Potencia máxima de radiofrecuencia transmitida en las bandas de frecuencia

Potenza di radio-frequenza massima trasmessa nelle bande di frequenza

Frequency band

Frequenzbandbreite

Bande de fréquence

Banda de frecuencia

Banda di frequenza

Maximum transmit power

Maximale Übertragungsleistung

Puissance d'émission maximale

Potencia máxima transmitida

Potenza di trasmissione massima

GSM TX 880.2 MHz - 914.8 MHz

RX 925.2 MHz - 959.8 MHz 33.02 dBm

DCS TX 1710.2 MHz - 1784.8 MHz

RX 1805.2 MHz - 1879.8 MHz 26.45 dBm

WCDMA FDD I TX 1922.4 MHz - 1977.6 MHz

RX 2112.4 MHz - 2167.6 MHz 23.87 dBm

WCDMA FDD VIII TX 882.4 MHz - 912.6 MHz

RX 927.4 MHz - 957.6 MHz 23.22 dBm

LTE Band 1 TX 1922.5 MHz - 1977.5 MHz

RX 2112.5 MHz - 2167.5 MHz 22.81 dBm

LTE Band 3 TX 1710.7 MHz - 1784.3 MHz

RX 1805.7 MHz - 1879.3 MHz 22.80 dBm

LTE Band 7 TX 2502.5 MHz - 2567.5 MHz

RX 2622.5 MHz - 2687.5 MHz 23.64 dBm

LTE Band 8 TX 880.7 MHz - 914.3 MHz

RX 925.7 MHz - 959.3 MHz 24.09 dBm

LTE Band 20 TX 834.5 MHz - 859.5 MHz

RX 793.5 MHz - 818.5 MHz 23.71 dBm

LTE Band 38 TX/RX 2572.5 MHz - 2617.5

MHz 24.02 dBm

LTE Band 40 TX/RX 2302.5 MHz - 2397.5

MHz 22.98 dBm

D W M - 3 11 7

Ver. 1.00(DI)_90x130 2020/12/15
