D-Link DU-560M Manuel utilisateur

3050 Ver.CPUTEK-PK-MAN-0223

USBModem

QuickInstallationGuide

TableofContents

Introduction

Features

SystemRequirements

LEDsofFrontPanel

SocketsofRearPanel

PackageChecklist

Installation

HardwareInstallation

Installation ProcedureforWindows2000

Installation ProcedureforWindows98

Installation ProcedureforWindowsME

Installaiton ProcedureforWindowsXP

ModemDailingLocation

ForWIN2000/XP

ForWIN98/ME

Voice

Voice/Audiomode.

Full-Duplexspeakerphone

SystemRequirements

Windows98,Windows2000,

WindowsME,WindowsXP

USBPort

Introduction

Features

Thismodemsupportsthefollowing communication

standards.ITU-TisalsoknownasCCITT.

Data

V.92

V.90,V.34,V.32bis,V.32,V.22bis,V.21,V.22

Bell 103 &212A

V.44,V.42bis&MNP5(Datacompression)

V.42 &MNP2-4(Errorcorrection)

Fax

V.17 (14400bpsFAX)

V.29 (9600bpsFAX)

V.27 (4800bpsFAX)

DATA DataTransmission indicator

CDCarrierDetectindicator

OH Off Hook

MRModemReady

PWRPowerReady

SocketsofRearPanel

PHONEPhonejack

LINE Telephonelinejack

USBUSBConnector

MICMicrophonejack

SPKSpeaker(forStereoonly)jack

LEDsofFrontPanel

PackageChecklist

OneUSBmodem/OneUSBcable/OnePhoneCable

OneCDDriver/User’smanual

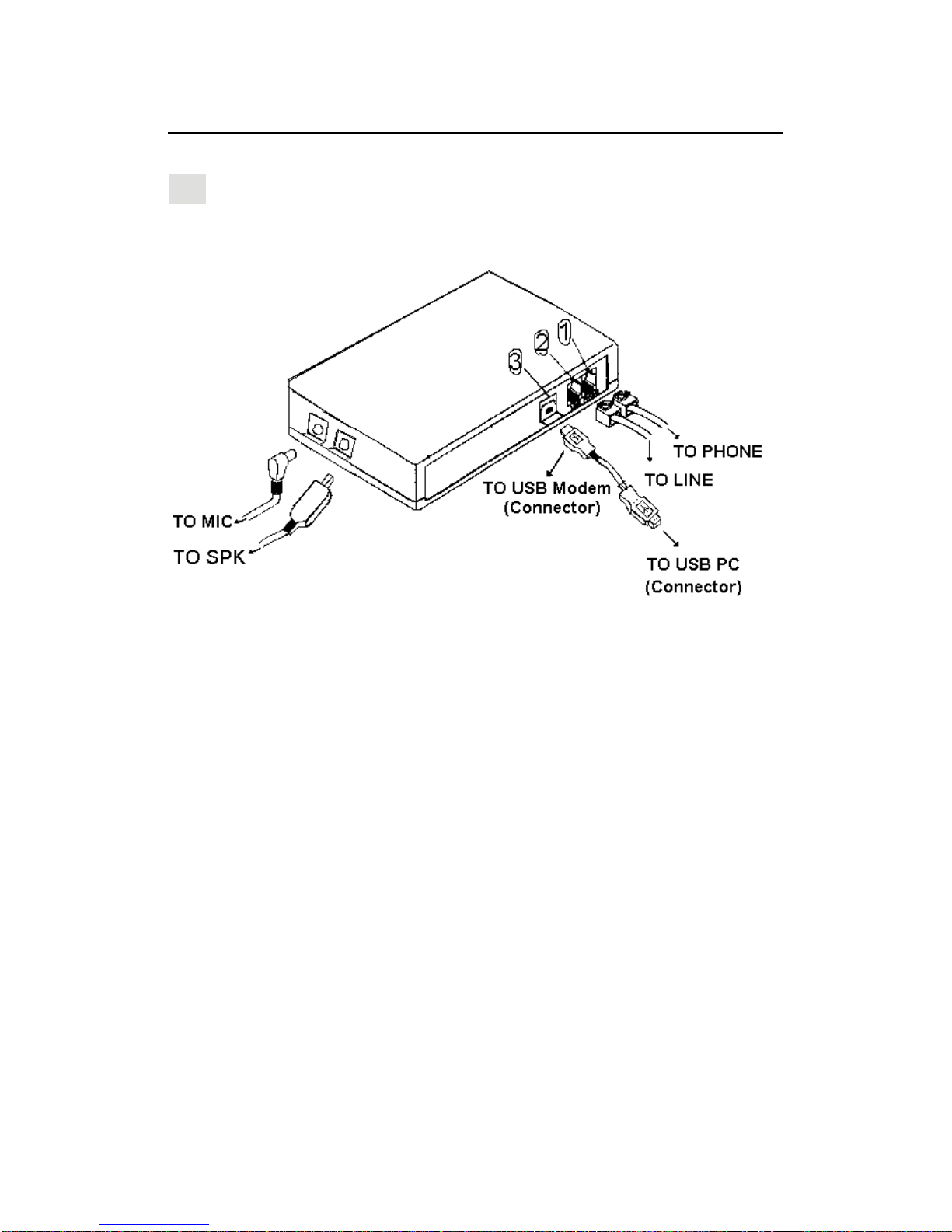

Installation

1.Plugthedevice terminaloftheUSBcableintotheconnector

marked(3)on thebackofthemodem.

2.Plug theotherend ofthiscableintotheUSBporton the

backofyourcomputer.

3.Plug oneend ofthephonecableintothemodem’sLINE

jack(2).Plug theotherend intothephoneoutlet.

4.Tousetelephoneand themodemon thesameline,plug one

end oftheoptionalphonecableintothePHONEjack(1)on

themodem;plug theotherend intothephone.Liftthe

telephonehandsetand listenforaDIALTONEtocheckthe

connection.

Hardware Installation

InstallationProceduresforWindows98

InstallationProceduresforWindows2000

1.Once you havecompletedthehardwareinstallation,switch

on yourcomputerand puttheCDintotheCD-ROM.The

wizardsearchesfornewhardware.ClickNext.

2.SelectSearchforasuitabledriverformydevice

(recommended)and clickNext.

4.ClickBrowsetosearchfordriverfilesand openit.

e.g., D:\DRIVER\win2000.CilckOK.

5.Windowsfound thedriverofthismodem.ClickNext.

3.SelectSpecifyalocation and clickNext.

6.ClickYesforDigitalSinature.

7.ClickFinishtocompletetheinstallation .

3.SelectSpecifyalocation (PleaseclickBrowsetosearch

fordriverfilesand openit.e.g.,D:\DRIVER\win98)and click

Next.

4.Windowsfound thedriverofthismodem.ClickNext.

2.SelecttheSearchforthebestdriverforyourdevice

(Recommended)and clickNext.

1.Once you havecompletedthehardwareinstallation,switch

on yourcomputerand puttheCDintotheCD-ROM.The

wizardsearchesfornewhardware.ClickNext.

5.ClickFinishtocompletetheinstallation .

InstallationProceduresforWindowsXP

InstallationProceduresforWindowsME

1.Once you havecompletedthehardwareinstallation,switch

on yourcomputerand puttheCDintotheCD-ROM.The

wizardsearchesfornewhardware.Selectinstall fromalist

orspecificlocation (Advanced).ClickNext.

2.SelectSearchforthebestdriverintheselocationsand

Includethislocation inthesearch:(PleaseclickBrowseto

searchfordriverfilesand openit.e.g., D:\DRIVER\WinXP)

and clickNext.

3.ClickContinueAnyway.

4.ClickFinish.

4.ClickFinishtocompletetheinstallation.

3.Windowsfound thedriverofthismodem.ClickNext.

2.SelectSearchforthebestdriverforyourdevice

(Recommended)and Specifyalocation.(PleaseclickBrowse

tosearchfordriverfilesandopenit.e.g.,D:\DRIVER\winme)

and clickNext.

1.Once you havecompletedthehardwareinstallation,switch

on yourcomputerand puttheCDintotheCD-ROM.The

wizardsearchesfornewhardware.SelectSpecifythelocation

ofthedriver(Advanced)and clickNext.

ForWIN98/ME

Please click Control

Panel->Modems->Under

General click Dialing

Properties , and then you

can change your location.

ForWIN2000/XP

PleaseclickControl

Panel->PhoneAn d

ModemOptions->Under

Dialing RulesclickEdit ,

and thenyou canchange

yourlocation.

**Ifyouwanttochangeyourdialinglocation,please

followtheinstructions:

ModemDialingLocation
