D-Link DPH-100H Manuel utilisateur
Manual
Building Networks for People
D-Link DPH-100H
IPPhone
Version 1.10
2
Contents
PackageContents ................................................................................3
Introduction............................................................................................4
Features andBenefits ...........................................................................5
GettingStarted......................................................................................6
Configuration ......................................................................................10
AdditionalFeatures.............................................................................25
TechnicalSpecifications ......................................................................28
Waranty...............................................................................................30
Registration ........................................................................................33
ContactingTechnicalSupport ..............................................................34
3
Package Contents
Operation Requirements:
Contents of Package:
D-Link DPH-100H IP Phone
Handset
Handset cord
Power adapter (12V DC at 1A)
If any of the above items are missing, please contact your reseller.
Local power outlet
Internet connection (via ISP)
4
Introduction
The DPH-100H is a fully featured IP telephone that allows both business and
residential customers to benefit from IP telephony services. It reduces costs
by providing access to local and long-distance voice and data services over a
single network connection.
Thiseasy-to-useIP phoneplugsdirectlyinto alocalareanetwork (LAN)through
a standard Ethernet jack. The IP phone utilizes 10/100-Mbps Ethernet for
connectivityandsupports afullrangeof telephonenetworkfeatures.In addition,
it provides access to a host of features for business applications, including
hold, mute, and speakerphone operation. The DPH-100H is equipped with a
LCD panel for easy configuration and use.
5
Features and Benefits
Designed for versatility and performance, the DPH-100H IP Phone provides
the following features:
Connects directly to 10/100-Mbps Fast Ethernet ports
Compliant with H.323v2
Operates as an Internet IP phone
DHCP (Dynamic Host Configuration Protocol) client or static IP
addressing
Large LCD panel (2 lines x 16 characters)
Configurable through LCD-driven menu prompts
Speakerphone function with automatic echo cancellation
Supports QoS to ensure voice quality
DTMFtonegeneration
Remote software upgrade and support
Visual status indicators
Communication interface:
PC jack: RJ-45 for Ethernet (MDI-X)
LANjack:RJ-45forEthernet(MDI-II)
User-adjustable volume control
Communications protocols: TCIP/IP, UDP
Voice compression: complies with 6.711 -law,G.711A-law, G.723 and
G.729 µ
6
Getting Started
Identifying External Components
Parts of the Phone
HOOK SWITCH: Switches the phone off/on hook.
LCD Screen: Presents on-line messages and configuration settings.
HOLD INDICATOR: On when the HOLD function is in effect.
FUNCTION: Selects configuration menus.
REVIEW UP/DOWN: Movefowardand backwardthroughmenuitems;
move the cursor up and down.
DELETE: Deletes the character to the left of the cursor.
1
2
3
4
5
6
7
Getting Started
Identifying External Components
REDIAL: Dials the last number you called.
MEMO: Shifts the state to editing the name and number of the Speed
Dial and Address Book, or stores the configuration in non-volatile
memory.
MUTE: Turns sound pickup off and on.
FLASH: Transfers the call or clears the input string.
HOLD: Turns sound transmission and reception off and on.
DIAL PAD: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, *, #.
RING/SPEAKER VOLUME CONTROL: Increases or decreases ring
volume or speakerphone volume during a call.
SPEAKER PHONE: Enables/disables the speakerphone function.
ENTER: Confirms input or goes to the displayed submenu.
ESC: Cancels input or returns to the previous menu.
Handset Controls
HANDSET VOLUME CONTROL: Adjusts listening volume on a call
to Low, Medium, or High (default setting is Medium).
7
8
9
10
11
12
13
14
15
16
17
8
Getting Started
Identifying External Components
Connectors
HANDSET CONNECTOR: Connector for the handset cord.
POWER: Power adapter receptor
LAN ETHERNET: 10/100BASE-TX LAN to ITSP Internet connection.
PC ETHERNET: 10/100BASE-TX connection to PC.

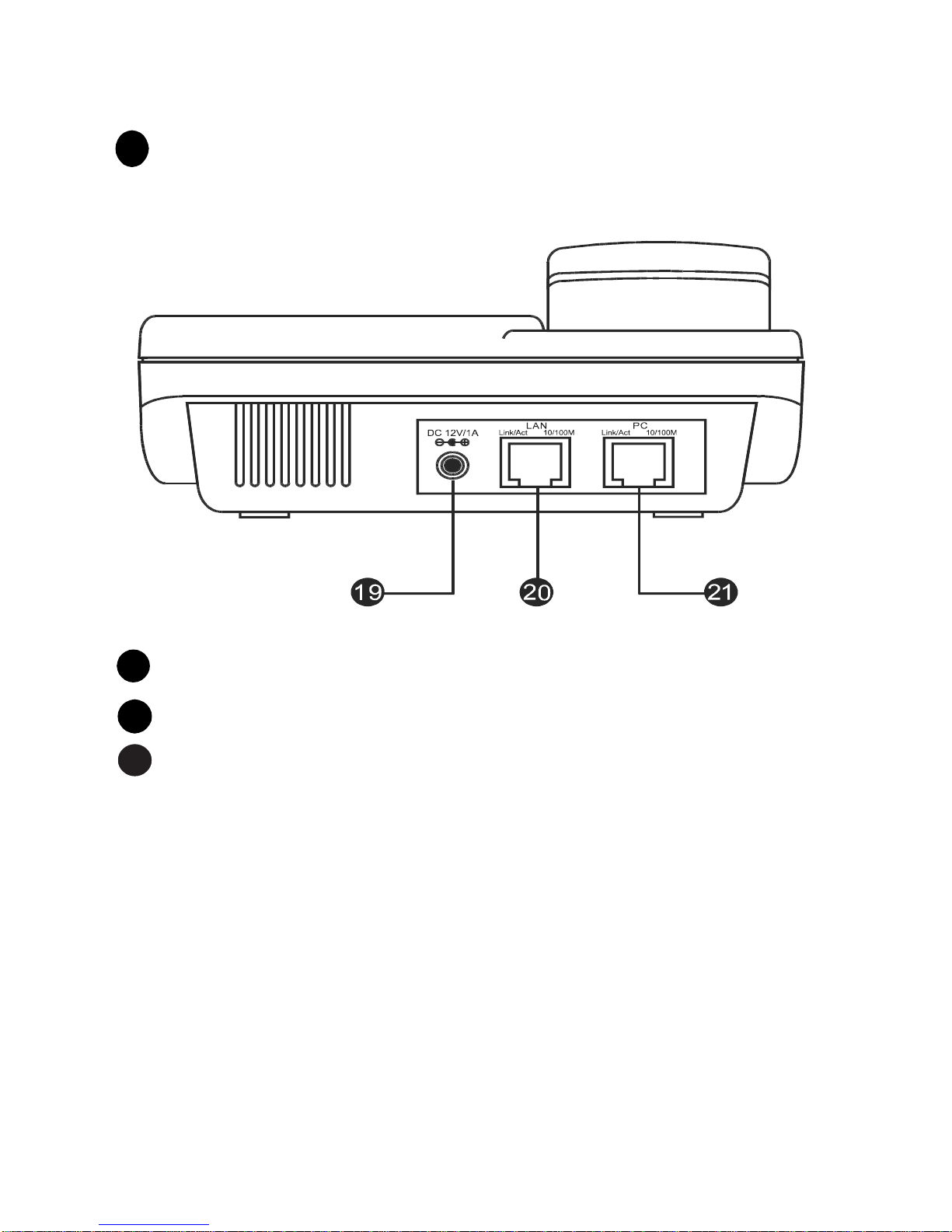

Installation
The following are steps to install and power on your DPH-100H IP Phone:
Plug the RJ-45 Ethernet cable into the LAN jack.
Plug the power adapter into the appropriate wall outlet.
Plug the power adapter plug into the power jack (DC 12V/1A).
18
19
20
21
9
Getting Started
Installation
Installation Connections
LED Indicators
ON: 100 Mpbs
OFF: 10 Mbps
Condition Color
LAN Port LED
PC Port LED
Link OK
Link OK
Green
Green
Green
Green
Green
Green
Activity (Link in Use)
Activity (Link in Use)
Speed 10/100 Mbps
Speed 10/100 Mbps ON: 100 Mpbs
OFF: 10 Mbps
ON: 100 Mbps
OFF: 10 Mbps
Timing
Steady
Steady
Flashing
Flashing
10
Configuration
Configuring the Phone Using a Web Browser
Setting up the Connection
In order to use a Web browser to configure the DPH-100H IP phone, you must
make sure the phone has a valid Ethernet connection to a PC or LAN via its
Ethernet port. We recommend using a recent version of any widely used
browser. The browser must have JavaScript enabled.
ThephonecomeswithadefaultIPaddress of 10.1.1.100.Youmustmakesure
the computer is in the same IP domain as the IP phone. You can do this by
changing the IP address of the computer as shown below.
Oncethisisdone, run anyrecent,JavaScript-enabledbrowseron the computer
and point it to the default IP address of the phone as shown below:
