D-Link DPH-120S Manuel utilisateur

These are the items included with your DPH-120S IP Phone purchase：

If any of the above items are missing, please contact your reseller.

holders. Software and specifications subject to change without notice. DPH-120S.12232004

This product can be set up using

Keypad and Web browser, such as IE

(Internet Explorer).

H-

-1

• DPH-120S VoIP Phone

• CD-ROM (containing Manual and

Installation program)

• Ethernet cable

• Power cord

Usingapowe

supplywitha

different voltage rating

will damage and void the

warranty for this product.

Front view and keypad function:

(6) Redial/Call History

(7) Hold

(5) Transfer

(4) Mute/Function

(16) Numeric

Keypad

(1) 2 x 16 Characters

LCD Display

(14) 3-Way

Conference

(13) Voice Message

(2) OK / Right

(12) Cancel / Left

(15) Phone Book

(

)

(8) Speaker Phone

(9) Speaker Phone

Indicator

(11) Up

(10) Down

Keys Functions

(1) LCD Display Displays menu, time, clock, name, phone number,

call status

(2) OK/Right Confirm setting change, exit menu, dial, save

changes

(3) Menu Access the phone menu

(4) Mute/Function Disable user’s microphone so that the person on the

other line can not hear anything, access the

language selection, access the time format

(5) Transfer Transfer the person you are currently having a

conversation to another line

(6) Redial/Call History Redial last dialed number, access redial menu

(7) Hold Place the person on the other line on hold, answer

call waiting

(8) Speaker Phone Enable user to use the phone without using the

handset

(9) Speaker Phone

Indicator

Indicates that phone is currently in speaker phone

mode

(10) Down Cycle through the phone menu, adjust volume

(11) Up Cycle through the phone menu, adjust volume

(12) Cancel/Left Deny changes, cancel phone calls, ignore phone

calls, backspace

(13) Voice Message Check voice message

(14) 3-Way Conference Enable 3-way conference

(15) Phonebook Access the phonebook

(16) Numeric Keypad Input IP/phone number/alphabet characters

Text entry

You use alphanumeric characters to enter details in to the ADSL ID and ADSL

Password from phone as your ISP provide. This text entry is also available for phone

book setting.

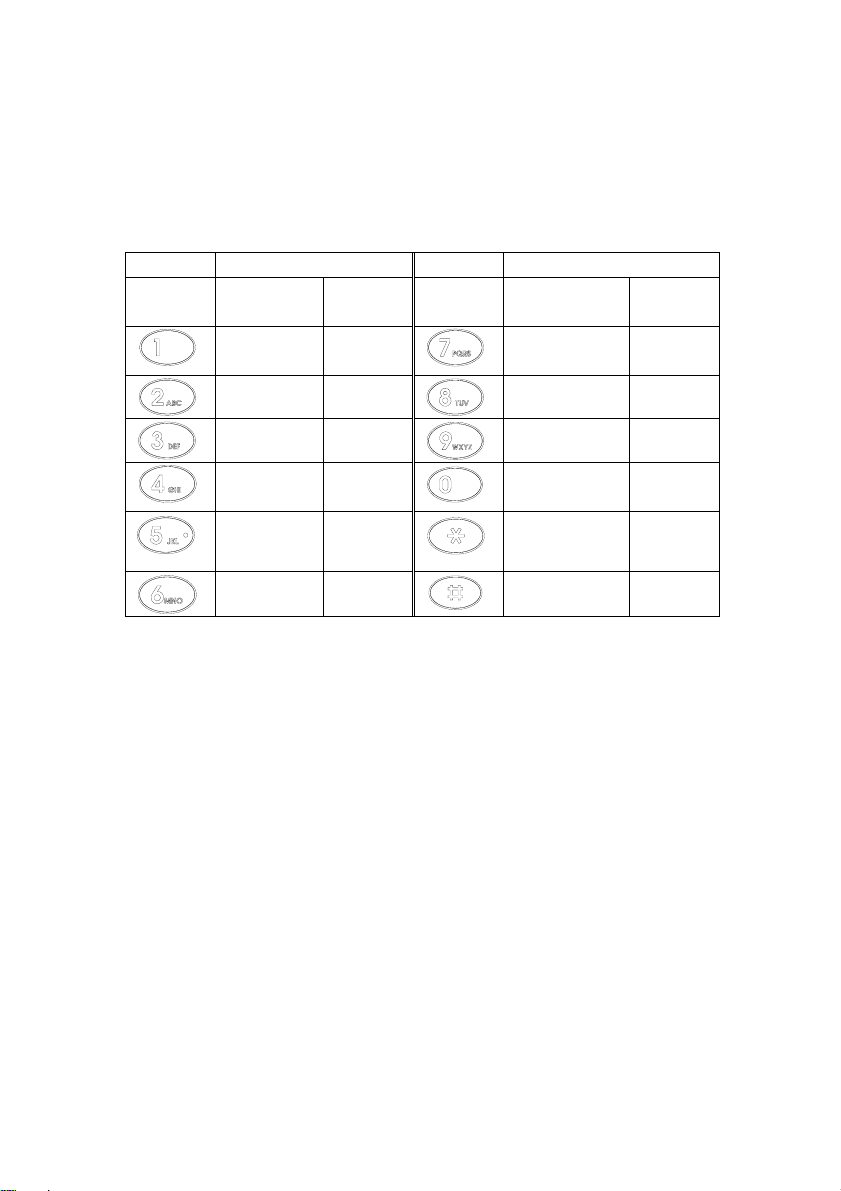

Text Mode Text Mode

Key Normal

(ABC)

Numeric

(0-9)

Key Normal

(ABC)

Numeric

(0-9)

1 PQRSpqrs 7

ABCabc 2 TUVtuv 8

DEFdef 3 WXYZwxyz 9

GHIghi 4

@ . _ －* #

( ) % & + / $ , 0

JKLjkl 5

MNOmno 6 #

Connector:

NOTE 1:If you made any modifications, you may

quit setup at any time by pressing +

save and exit or + to quit

without saving. The phone will automatically exit

the menu screen if there are no inputs from the

user.

NOTE 2: Use up and down arrow

on the direction pad to switch among stages.

NOTE 3: Use left and right arrow

on the direction pad to select ENABLE or

DISABLE.

NOTE 4: Left arrow key can be used as

Backspace key.
