D-Link DCS-5000L Manuel utilisateur

Pan & TilT Wi-Fi Day/nighT Camera

DCS-5000l

QUICK

INSTALLATION

GUIDE

КРАТКОЕ РУКОВОДСТВО ПО УСТАНОВКЕ

GUÍA DE INSTALACIÓN RÁPIDA

GUIA DE INSTALAÇÃO RÁPIDA

快速安裝指南

PETUNJUK PEMASANGAN CEPAT

クイックインストールガイド

快速安裝指南

DCS-5000l

ENGLISH

CONTENTS OF PACKAGING

PAN & TILT WI-FI DAY/NIGHT CAMERA

DCS-5000L

POWER ADAPTER

MOUNTING KIT

ETHERNET CABLE (CAT5 UTP)

CONNECTS THE CAMERA TO YOUR ROUTER DURING SETUP

If any of these items are missing from your packaging, contact your

reseller.

INSTALLATION CD

INCLUDES SETUP WIZARD & TECHNICAL MANUALS

DCS-5000l 3

ENGLISH

If you have a D-Link Cloud Router, you can take advantage of Zero Conguration Setup. This

feature automatically congures your camera’s settings for you and adds it to your mydlink account

automatically.

If you do not have a D-Link Cloud Router, you can use the mydlink Lite app or the downloadable

Setup Wizard to install and congure your camera, as described in the following section.

Step 2:

Connect the other end of the Ethernet cable to your D-Link Cloud

Router and connect the camera’s power adapter to a power outlet.

Step 3:

From any computer, open a web browser, go to

http://www.mydlink.com and log in to your account.

Click on the device name when the new device notication appears

to add the camera to your account. You can adjust the focus by

turning the ring on the front of the camera.

If you wish to connect your camera to your router with a wireless

connection, you can simply disconnect the Ethernet cable and move

the camera to its intended location.

DCS-5000L

Step 1:

Connect the power cable and Ethernet cable to your Cloud Camera.

PRODUCT SETUP

ZerO COnFigUraTiOn SeTUP

SYSTEM REQUIREMENTS

• 802.11n/g router (a D-Link Cloud Router is recommended)

• A broadband Internet connection

• Computer with:

• Microsoft Windows®8/7/Vista/XP, or Mac with OS X 10.6 or higher

• PC with 1.3 GHz or above and at least 128 MB RAM

• Internet Explorer 7, Firefox 12, Safari 6, or Chrome 20 or higher version with Java installed and

enabled

• iPhone, iPad, Android, or Windows smartphone or tablet (for remote viewing using mobile device)

DCS-5000l

ENGLISH

USing The mOBile aPP

If you do not have a D-Link Cloud Router, you can use the mydlink Lite mobile app to set up your

camera.

Step 1:

Download the free mydlink™ Lite app by searching for mydlink Lite

in the App Store (iOS) or Google Play (Android).

Step 3:

On the next screen, select Ethernet Cameras. Follow the on-screen

instructions. The wizard will guide you through the conguration

process for your DCS-5000L.

Step 2:

Launch the app, tap on the Local tab at the bottom-left, then tap the

Add Camera button when it appears.

USing The SeTUP WiZarD

If you do not have a D-Link Cloud Router, you can simply use any Windows or Mac computer to

go through the Setup Wizard from the CD, which will guide you through the installation process from

connecting your hardware to conguring your camera.

If you do not have a CD-ROM drive, or the CD is missing, please download the Setup Wizard from

http://www.mydlink.com/support

• Windows Users: Insert the CD. If the Setup Wizard program does

not automatically start on your computer, go to Start > Run. In the

run box type D:\autorun.exe (where D: represents the drive letter

of your CD-ROM drive) and click OK.

• Mac Users: Insert the CD. On the desktop, open your CD drive,

and double-click on the SetupWizard le. Wait about 20-30

seconds, and follow the instructions on screen.

DCS-5000l 5

ENGLISH

• Ensure that your browser supports both Java and ActiveX, and that these features have been

installed and enabled.

• Windows does not have Java installed by default. You can download the latest version from

http://www.java.com

• In Mac OS X 10.7.x, Java applets are disabled by default. To enable Java applets, click the Finder

> Applications > Utilities > Java Preferences and check the Enable applet plug-in and Web

Start applications option.

• The ActiveX®controls in IE will install automatically if needed. We suggest that you make sure that

you have enabled the related options in Tools > Internet Options > Security > Custom Level.

GETTING STARTED WITH mydlink

mydlink is a web-based service which allows you to view and control your mydlink-enabled devices

through any computer connected to the Internet. If you have cameras linked to your mydlink account,

you will be able to see their live views using the mydlink website. Follow the instructions below to

access your mydlink account.

• Open a web browser on any computer connected to the Internet.

• Type http://www.mydlink.com in the address bar and press

Enter.

• Sign in using your mydlink account.

• From the home screen, you will be able to view all devices which

have been linked to your mydlink account.

DCS-5000l

ENGLISH

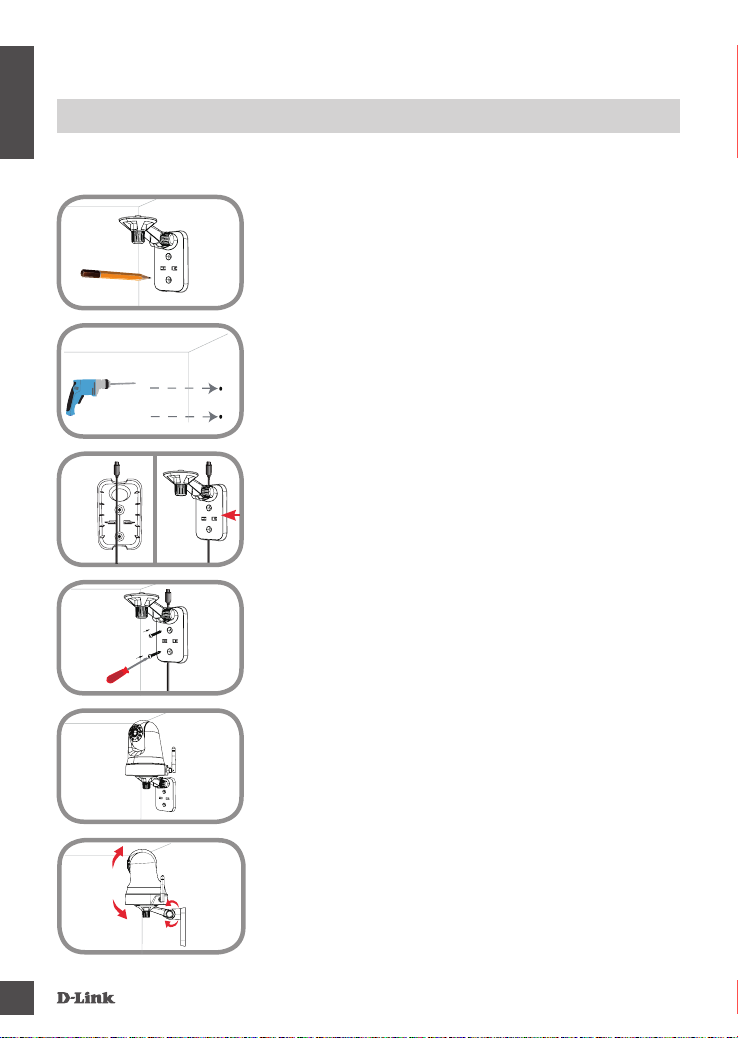

MOUNTING THE CAMERA

Please refer to the steps below to assist you with mounting the camera using the arm mount. We

suggest that you congure the camera before mounting.

Step 1:

Place the arm mount where you want to position the camera and

use a pencil to mark the holes. Ensure the arm mount is oriented

correctly with adequate space for the camera to be mounted and

necessary cables to be routed.

Step 2:

Depending on the material of the wall or ceiling, use proper tools to

drill two holes 25mm deep with a 6mm drill bit where you marked.

After drilling the holes, insert the plastic anchors to support the

screws.

Step 4:

Fasten the mounting bracket to the wall using the screws provided.

Step 5:

Using the supplied thumbscrew, fasten the camera to the mounting

bracket. Connect the power cable to the camera.

Step 3:

If desired, the cable can be concealed behind the mounting bracket.

Run the cable through the back of the mounting bracket, securing

it with the built-in guides. Be sure to leave enough cable length

protruding to allow connection to the camera.

Step 6:

Adjust the angle of the arm on the mounting bracket as required.

Tighten the thumbscrew to lock the arm in place.

DCS-5000l 7

ENGLISH

TROUBLESHOOTING

SeTUP anD COnFigUraTiOn PrOBlemS

1. HOW DO I CONNECT MY CAMERA USING WPS?

We recommend that you use either the Zero Conguration or Setup Wizard method described earlier

in this guide as they will automatically congure your camera for your wireless network.

If you wish to use WPS to connect your camera, follow these steps:

• Press and hold the WPS button on the back of the camera for 5 seconds. The blue WPS status

LED will blink.

• Press the WPS button on your wireless router or access point within 60 seconds. On some

routers, you may need to log into the web interface and then click an onscreen button to activate

the WPS feature. If you are not sure where the WPS button is on your router or access point,

please refer to your router's user manual.

2. THE IMAGE IS OUT OF FOCUS.

You can turn the focus ring on the front of the camera to adjust the focus.

3. WHY IS THE CAMERA VIEW HAZY OR BRIGHT WHEN USING NIGHT VISION MODE?

The IR night vision lights on the camera may be reecting off of a nearby surface or window. Try

repositioning your camera to avoid reections or glare.

DCS-5000l

ENGLISH

TeChniCal SUPPOrT

Australia:

Tel: 1300-766-868

24/7 Technical Support

Web: http://www.dlink.com.au

E-mail: [email protected]

India:

Tel: +91-832-2856000

Toll Free 1800-233-0000

Web: www.dlink.co.in

E-Mail: [email protected]

Singapore, Thailand, Indonesia,

Malaysia, Philippines, Vietnam:

Singapore - www.dlink.com.sg

Thailand - www.dlink.co.th

Indonesia - www.dlink.co.id

Malaysia - www.dlink.com.my

Philippines - www.dlink.com.ph

Vietnam - www.dlink.com.vn

Korea:

Tel : +82-2-2028-1810

Monday to Friday 9:00am to 6:00pm

Web : http://d-link.co.kr

E-mail : [email protected]

New Zealand:

Tel: 0800-900-900

24/7 Technical Support

Web: http://www.dlink.co.nz

E-mail: [email protected]

South Africa and Sub Sahara

Region:

Tel: +27 12 661 2025

08600 DLINK (for South Africa only)

Monday to Friday 8:30am to 9:00pm South

Africa Time

Web: http://www.d-link.co.za

E-mail: [email protected]

D-Link Middle East - Dubai, U.A.E.

Plot No. S31102,

Jebel Ali Free Zone South,

P.O.Box 18224, Dubai, U.A.E.

Tel: +971-4-8809022

Fax: +971-4-8809066 / 8809069

Technical Support: +971-4-8809033

General Inquiries: [email protected]

Tech Support: [email protected]

Egypt

1, Makram Ebeid Street -

City Light Building - oor 5

Nasrcity - Cairo, Egypt

Tel.: +2 02 23521593 - +2 02 23520852

Technical Support: +2 02 26738470

General Inquiries: [email protected]

Tech Support: [email protected]

Kingdom of Saudi Arabia

Ofce # 84 ,

Al Khaleej Building ( Mujamathu Al-Khaleej)

Opp. King Fahd Road, Olaya

Riyadh - Saudi Arabia

Tel: +966 1121 70008

Technical Support:

+966 1121 70009

General Inquiries: info.sa@ dlinkmea.com

Tech Support: support.sa@ dlinkmea.com

Pakistan

Islamabad Ofce:

61-A, Jinnah Avenue, Blue Area,

Suite # 11, EBC, Saudi Pak Tower,

Islamabad - Pakistan

Tel.: +92-51-2800397, 2800398

Fax: +92-51-2800399

Karachi Ofce:

D-147/1, KDA Scheme # 1,

Opposite Mudassir Park, Karsaz Road,

Karachi – Pakistan

Phone: +92-21-34548158, 34326649

Fax: +92-21-4375727

Technical Support: +92-21-34548310, 34305069

General Inquiries: [email protected]

Tech Support: [email protected]

You can nd software updates and user documentation on the D-Link website.

Tech Support for customers in

DCS-5000l 9

ENGLISH

TeChniCal SUPPOrT

Iran

Unit 5, 5th Floor, No. 20, 17th Alley , Bokharest

St. , Argentine Sq. ,

Tehran IRAN

Postal Code : 1513833817

Tel: +98-21-88880918,19

+98-21-88706653,54

General Inquiries: [email protected]

Tech Support: [email protected]

Morocco

M.I.T.C

Route de Nouaceur angle RS et CT 1029

Bureau N° 312 ET 337

Casablanca , Maroc

Phone : +212 663 72 73 24

Email: [email protected]

Lebanon RMA center

Dbayeh/Lebanon

PO Box:901589

Tel: +961 4 54 49 71 Ext:14

Fax: +961 4 54 49 71 Ext:12

Email: [email protected]

Bahrain

Technical Support: +973 1 3332904

Kuwait:

Technical Support: + 965 22453939 / +965

22453949

Türkiye

Büyükdere Cad. Ferro Plaza No:155

D: 1 K: 1 Zincirlikuyu / Istanbul

Tel: +90 (212) 289-56-59

Email: [email protected]

DCS-5000l

NOTES

Autres manuels pour DCS-5000L

Table des matières

Autres manuels D-Link Caméra IP

D-Link

D-Link WIRELESS G DCS-950G Manuel utilisateur

D-Link

D-Link DCS?6010L Manuel utilisateur

D-Link

D-Link DCS-5222L Manuel utilisateur

D-Link

D-Link SECURICAM Network DCS-950 Manuel utilisateur

D-Link

D-Link SECURICAM Network DCS-2120 Manuel utilisateur

D-Link

D-Link DCS-5211L Manuel utilisateur

D-Link

D-Link DCS-G900 - SECURICAM Wireless G Internet Camera... Manuel utilisateur

D-Link

D-Link DCS-2330L Manuel utilisateur

D-Link

D-Link DCS-2530L Manuel utilisateur

D-Link

D-Link DCS-1000 Manuel utilisateur

D-Link

D-Link DCS-1130 - mydlink-enabled Wireless N Network... Manuel utilisateur

D-Link

D-Link DCS-2310L Manuel utilisateur

D-Link

D-Link SECURICAM Network DCS-2120 Manuel utilisateur

D-Link

D-Link DCS-5610 Manuel utilisateur

D-Link

D-Link DCS-5030L Manuel utilisateur

D-Link

D-Link SECURICAM Network DCS-3220G Manuel utilisateur

D-Link

D-Link SECURICAM Network DCS-2100 Manuel utilisateur

D-Link

D-Link DCS-1110 - Network Camera Manuel utilisateur

D-Link

D-Link DCS-6620G - Network Camera Manuel utilisateur

D-Link

D-Link DCS-5020L Manuel utilisateur

D-Link

D-Link DCS-2132L Manuel utilisateur

D-Link

D-Link DCS-2102 Manuel utilisateur

D-Link

D-Link DCS-1110 - Network Camera Manuel utilisateur

D-Link

D-Link SECURICAM Network DCS-2100 Manuel utilisateur

Manuels Caméra IP populaires d'autres marques

FLIR

FLIR Exx series Manuel utilisateur

Avigilon

Avigilon H4A-BO1-IR Manuel utilisateur

Digital Watchdog

Digital Watchdog DWCA-C128-64 Manuel utilisateur

ShareTech

ShareTech AV1 Manuel utilisateur

Ezviz

Ezviz C6C Manuel utilisateur

Melchioni

Melchioni UCAM 2015 Manuel utilisateur

Geutebruck

Geutebruck G-Cam/ESD-4630 Manuel utilisateur

Arecont Vision

Arecont Vision MegaBall AV3146DN-3310-D-LG Manuel utilisateur

Mitel

Mitel 6800i Series Manuel de service

Vitek

Vitek VTC-IR403-212NP Manuel utilisateur

THOMSON

THOMSON DSC - 323W Manuel utilisateur

AVer

AVer FB2027 Manuel utilisateur

ENFORCER

ENFORCER EV-T5105-N2SQ Manuel utilisateur

Wansview

Wansview NC543 Manuel utilisateur

Eneo

Eneo MCB-64A0003M0A Manuel utilisateur

deView electronics

deView electronics CBDNI36F Manuel utilisateur

Swann

Swann SwannEye Manuel utilisateur

LevelOne

LevelOne IP CamSecure Manuel utilisateur
