Manual Overview

iiD-Link DUB-E100 User Manual

Table of Contents

Product Overview ......................................................................1

Package Contents ......................................................................... 1

System Requirements ................................................................. 1

Introduction ...................................................................................2

Features ............................................................................................2

Hardware Overview .....................................................................3

Software Installation ................................................................... 4

Windows® 7/Vista®/XP ........................................................4

Mac OS X .................................................................................. 8

Linux 2.6.14 ...........................................................................12

Troubleshooting ..................................................................... 13

Technical Specications ........................................................ 15

Warranty ................................................................................... 16

Registration ............................................................................. 22

Table of Contents

1D-Link DUB-E100 User Manual

Section 1 - Product Overview

• DUB-E100 USB 2.0 Fast Ethernet Adapter

• CD-ROM with Drivers and Manual

• Quick Installation Guide

If any of the above items are missing or damaged, please contact your reseller.

Package Contents

System Requirements

Computer with the following:

• Computer with Microsoft Windows® 7, Vista®, XP (Service Pack 2), or 2000 (Service Pack 4);

Mac OS® 10.4 and above, Linux 2.6 and above

• Available USB Port

• At least 32 MB of memory

• CD-ROM Drive

Product Overview

2D-Link DUB-E100 User Manual

Section 1 - Product Overview

Introduction

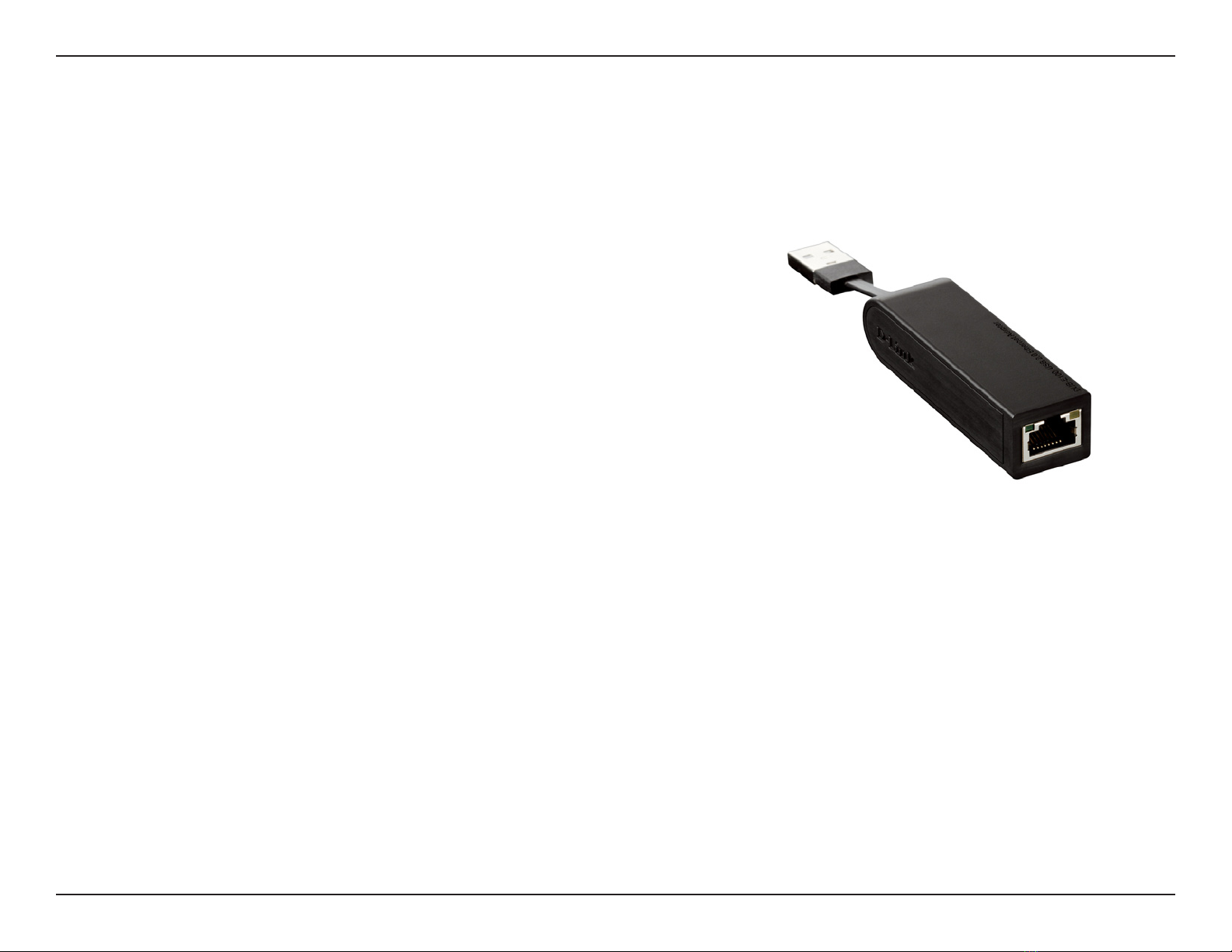

The DUB-E100 is a high-speed USB 2.0 Fast Ethernet adapter for Windows/Mac/Linux desktop and notebook PCs. This adapter

is designed to simply plug into an available USB port on your computer to connect you to a Fast Ethernet network without

using a PCI or CardBus slot to add LAN connectivity. Its Plug-and-Play design makes installation and use straight forward. It

also supports USB energy saving suspend and resume function to minimize power consumption, which is especially useful for

laptop users. Power is provided directly by the USB bus, eliminating the need for an external AC power adapter.

Features

Designed for versatility and performance, the DUB-E100 USB 2.0 Fast Ethernet Adapter provides the following:

• Compliant with USB 2.0 and USB 1.1 specications

• True 10/100Mbps network connectivity

• Compliance with IEEE 802.3u Fast Ethernet standards and IEEE 802.3 Ethernet standards

• Plug-and-Play installation

• Auto 10/100Mbps speed detection

• Supports half and full-duplex at 10Mbps, half and full-duplex at 100Mbps

• One built-in RJ-45 Port

• Auto-negotiation to the highest available speed

• Two LED indicators: Speed, Tx/Rx

• Driver support:

• Windows® 7 (x86, x64)

• Windows Vista® (x86, x64)

• Windows® XP (x86/x64 Edition)

• Linux

3D-Link DUB-E100 User Manual

Section 1 - Product Overview

Hardware Overview

1Speed LED Lights solid green when the network connection is at 100 Mbps and remains o when

connected to a 10 Mbps network.

2Ethernet Port Plug an Ethernet cable from a switch or router into this port.

3Tx/Rx LED Flashes amber when data is being transmitted or received.

4USB Connector Plug this connector into a USB port on your PC.

4D-Link DUB-E100 User Manual

Section 2 - Installation

Software Installation

Insert the DUB-E100 CD into your computer’s DVD or CD drive, then proceed to the appropriate installation section on the

following pages for your operating system.

1. After you insert the CD into the CD drive, the DUB-E100 menu screen

will appear. Click Install to begin the DUB-E100 driver installation. The

InstallShield Wizard will appear and run automatically.

Note: If the CD Autorun function does not automatically start on your computer,

go to Start > Run. In the run box type D:\autorun.exe (where D: represents the

drive letter of your CD-ROM drive).

Windows® 7/Vista®/XP

5D-Link DUB-E100 User Manual

Section 2 - Installation

2. When the Installation is complete, plug the DUB-E100 ‘s USB cable into an

available USB port on your PC.

Windows will detect the new hardware and prompt you for the drivers.

For Windows® 7 and Vista®

The driver software installation will start automatically.

For Windows® XP

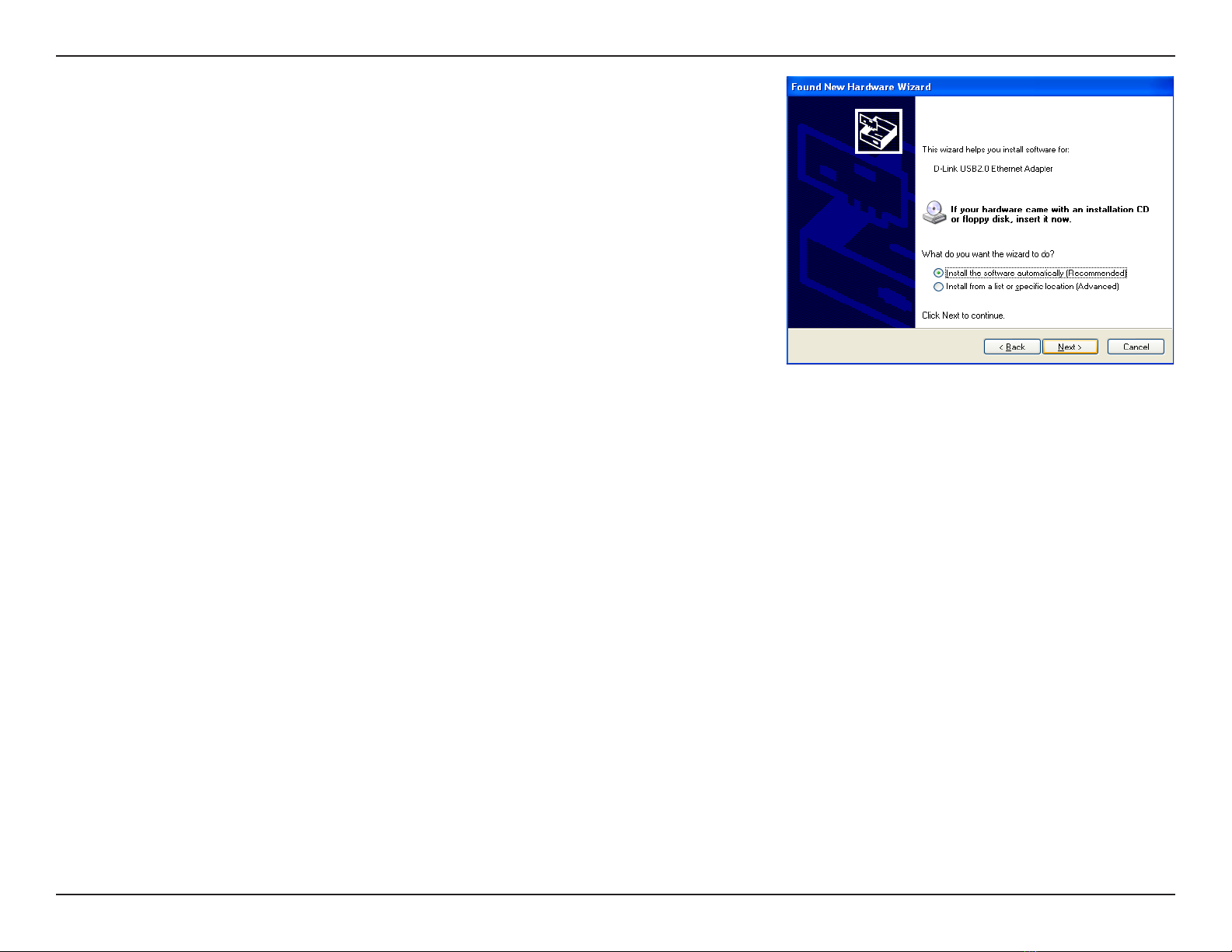

The Found New Hardware Wizard box will appear. Select Yes, this time only

and click Next to continue.

6D-Link DUB-E100 User Manual

Section 2 - Installation

Select the option to install the software automatically and click Next to

continue. The driver software installation will then start automatically.

7D-Link DUB-E100 User Manual

Section 2 - Installation

3. When the Windows driver installation is complete, attach an Ethernet cable to the Ethernet port on the DUB-E100.

4. Attach the other end of the Ethernet cable to your network switch or router.

5. When the installation of the DUB-E100 is complete, the Speed LED will illuminate solid green when the DUB-E100 is

connected to a 100 Mbps network and remains o when connected to a 10 Mbps network. The Tx/Rx LED will ash amber

when data is being transmitted or received. If both LEDs are unlit, there may be a problem with the physical connection.

Check the cables between your DUB-E100 and your switch or router. Verify that your network switch or router is powered

on.
