Operation Manual

DCT-9D

Universal Digital / Analog

Audio Converter with

Dolby Digital Decoder

Disclaimers

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes

no commitment to update or to keep current the information

contained in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer ﬁle, in any form or by any means

- electronic, mechanical, magnetic, optical, chemical, manual,

or otherwise - without express written permission and consent from

Cypress Technology.

Version 1.0 January 2011

Trademark Acknowledgments

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

Manufactured under license from Dolby Laboratories. “Dolby”and

the double-D symbol are trademarks of Dolby Laboratories.

Safety Precautions

Please read all instructions carefully before installing or operating

this product.

 Always follow basic safety precautions to reduce the risk of

ﬁre, electrical shocks and injuries.

 To prevent ﬁres or shocks do not expose this product to rain,

moisture or install it near water.

 Never spill liquid of any kind on or into this product.

 Never push an object into this device through any openings or

empty slots, as this may damage parts.

 Do not attach the power supply to building surfaces.

 Do not allow anything to rest on the power cables or put it in a

place where it might be stepped on .

 To protect the equipment from overheating, do not block the

slots and openings in the casing that provide ventilation.

Revision History

Version No Date Summary of Change

RDV1 20110117 Preliminary Release

RDV2 20110802 Add Dolby Logo

RDV3 20110902 Section 6.2

RDV4 20111020 Section 6.2

Table of Contents

1. Introduction ............................................................................................ 1

2. Applications ........................................................................................... 1

3. Package Contents ................................................................................ 1

4. System Requirements ............................................................................ 1

5. Features .................................................................................................. 1

6. Specications ........................................................................................ 2

6.1 Input Audio Reference Level ....................................................... 2

6.2 Input Audio with Output Audio Comparison Chart .................. 2

7. Operation Controls and Functions ...................................................... 3

7.1 Top Panel ........................................................................................ 3

7.2 Right Panel ...................................................................................... 4

7.3 Left Panel ........................................................................................ 4

7.4 Back Panel ...................................................................................... 4

8. Connection and Installation ................................................................. 5

9. Acronyms ............................................................................................... 6

1. Introduction

The Universal Digital/Analog Audio Converter with Dolby Digital Decoder is a

gadget that can convert Optical, Coaxial and L/R audio signals with output

sound guarranty. With the ability to convert digital signals into analog and

analog signals into digital, this gadget supports the simultaneous conversion

of audio formats so when you are converting Optical into L/R audio you

can also convert it into Coaxial and enjoy it without pop sound or suddend

disappear. Therefore, if you ﬁnd yourself limited by multiple audio formats,

why not consider the Universal Digital/Analog Audio Converter with Dolby

Digital Decoder and ﬁnd out what pure audio sounds like.

2. Applications



Analog audio to digital audio signal conversion



Digital audio to analog audio signal conversion with Dolby Digital

Decoder



Simultaneously digital and analog audio output

3. Package Contents

 Universal Digital / Analog Audio Converter with Dolby Digital Decoder

 Power Adaptor

 User Manual

4. System Requirements

Input audio source(s) equipments with connection cable(s) and output signal

with connection cables.

5. Features



Dolby Digital Decoder technology embedded



Integrated digital interpolator ﬁlter and Digital-to-Analog Converter

(DAC)



Integrated Analog –to-Digital Converter (ADC)



Supports sampling frequencies from 32 to 96kHz



Provides electromagnetic-noise-free transmission



Easy to install and operate



Compact and elegant design

Input Ports Optical, Coaxial and L/R

Input Format LPCM 2CH and Dolby Digital from Optical/Coaxial

Sample Frequency 32kHz, 96kHz

Output Ports Coaxial, Optical and L/R

L/R Input Impedance 47KΩ

L/R Output Impedance 600Ω

ESD Protection Human body model: ±10kV (air-gap discharge)

±6kV (contact discharge)

Power Supply 5V / 1A DC (US/EU standard, CE/FCC/UL certiﬁed)

Dimensions(mm) 97(W) x 85(D) x 35(H)

Weight(g) 120

Chassis Material Plastic

Silkscreen Color White

Operating Temperature 0ºC~40ºC / 32ºF~104ºF

Storage Temperature -20ºC~60ºC / -4ºF~140ºF

Power Consumption 1W

Relative Humidity 20~90% RH (non-condensing)

6.1 Audio Specications

OUT

IN Output Output T.H.D+N

(A-Weight)

Frequency

Response SNR Crosstalk

Optical

0dBFS

Optical 0 dBFS <0.00001% 0 dBFS >144 dB <-161 dB

Coaxial 0 dBFS <0.00001% 0 dBFS >144 dB <-161 dB

Line-Out 1.8Vrms+-0.1 <0.01% <0.5 dB >109 dB <-100 dB

Coaxial

0dBFS

Optical 0 dBFS <0.00001% 0 dBFS >144 dB <-161 dB

Coaxial 0 dBFS <0.00001% 0 dBFS >144 dB <-161 dB

Line-Out 1.8Vrms+-0.1 <0.01% <0.5 dB >108 dB <-100 dB

Line 2Vrms

Optical 0 dBFS <0.00001% <0.5 dB >96 dB <-113 dB

Coaxial 0 dBFS <0.00001% <0.5 dB >96 dB <-113 dB

Line-Out 1.8Vrms+-0.1 <0.01% <1 dB >95 dB <-100 dB

6.2 Input Audio to Output Audio Chart

Audio Input Input Format Audio Output

Analog L/R COAXIAL OPTICAL

Analog L/R Analog 2CH Analog 2CH LPCM 2CH

COAXIAL

OPTICAL

LPCM 2CH Analog 2CH LPCM 2CH

Dolby Digital Decoding Lt/Rt Bypass

6. Specications

7. Operation Controls and Functions

7.1 Top Panel

POWER L/R COAX OPTICAL

UNIVERSAL

Dolby DIGITAL / ANALOG

AUDIO CONVERTER

① ② ③ ④ ⑤

① When the device is turned on the LED is green, and when turned off the

devices LED is red. When the power plug us connected with AC wall

outlet the device will automatically turn on.

② Dolby Digital LED indicator: When the input source is with Dolby Digital

signal the LED will illuminate in red and if its without the LED will not

illuminat.

③Input Analog 2CH LED indicator: When selecting L/R input, the blue LED

will turn on.

④Input Coax LED indicator: When selecting Coaxial input, the blue

LED will switch on.

⑤Input Optical LED indicator: When selecting Optical input, the blue LED

will turn on.

7.2 Right Panel

OPTICALCOAXL R

① ② ③

① OPTICAL: The audio sources optical cable connects here.

② COAX: Connect audio sources Coaxial cable in this socket.

③ L/R: This is where you insert the audio sources L/R cable.

7.3 Left Panel

OUT

LRCOAX OPTICAL

③②①

① L/R: Connect to a compatible audio device, such as a TV or amplifier

with an L/R audio cable.

② COAX: Connect to an audio sources (TV or amplifier) coaxial input.

③ OPTICAL: This is used to connect with a TV or amplifiers optical jack.

7.4 Back Panel

POWER

L/ROPTICAL

COAX

INPUT

SELECT

DC 5V

③① ②

① DC 5V Power Jack: Plug the 5V 1A DC power supply into the unit and

connect the adaptor to an AC wall outlet.

② INPUT SELECT: Use this switch to select the current audio source, either

optical, coaxial or L/R.

③ Power Switch: Push the button to turn on or switch off the device.

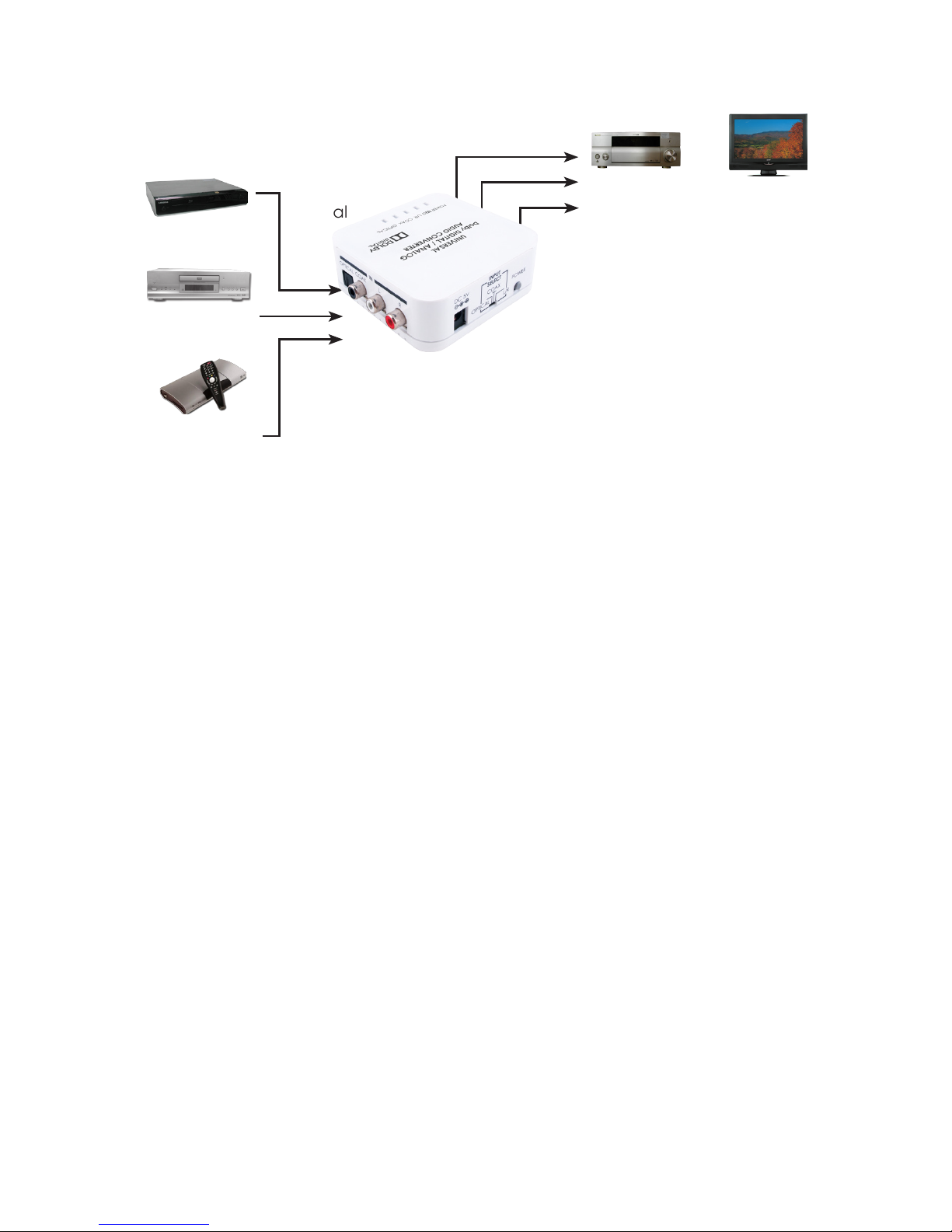

8. Connection and Installation

Set-top-Box

Optical

Ampliﬁer

Blue Ray

DVD

L/R

Coaxial

Optical L/R

Acronyms A

Acronym Complete Term
