Cypress CDL-160ETH Manuel utilisateur

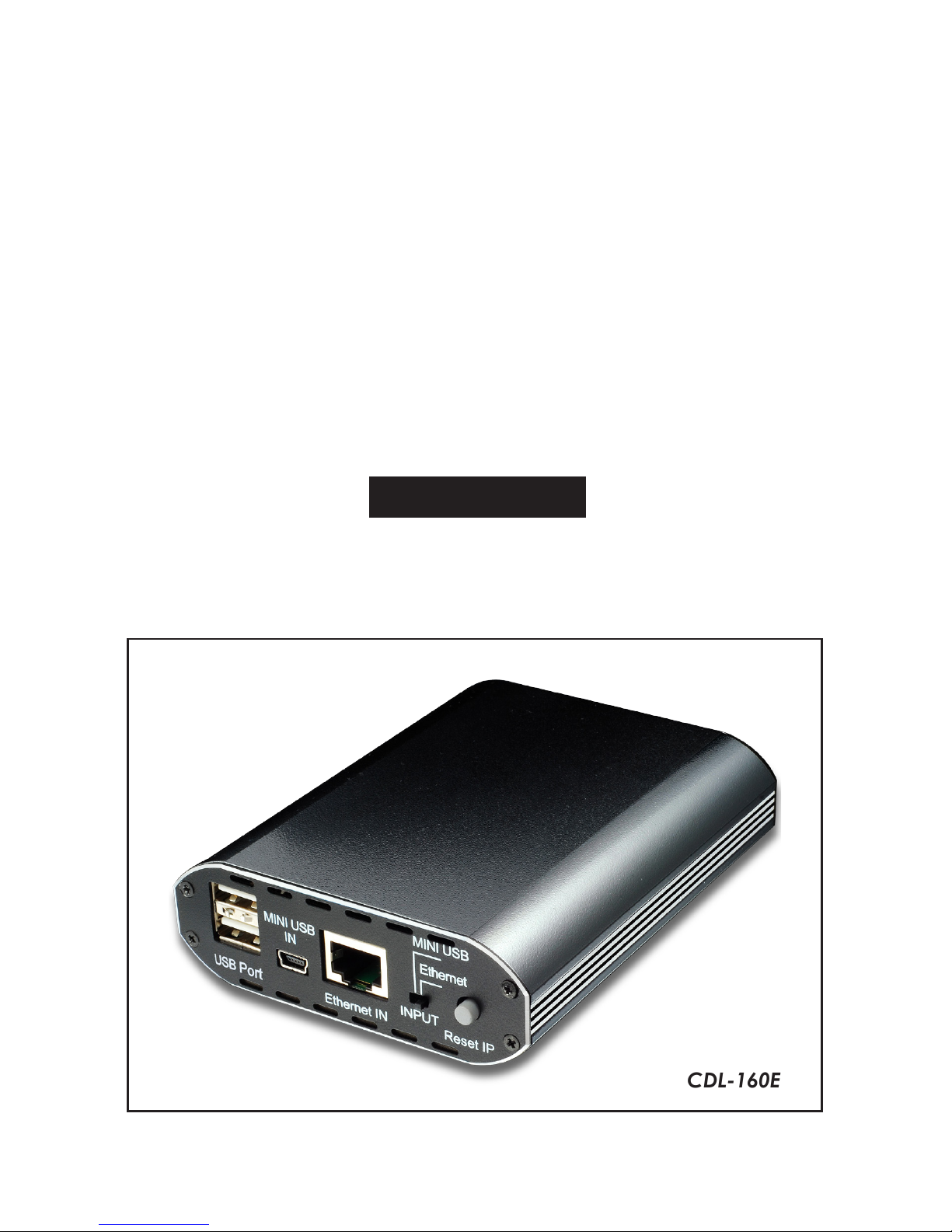

CDL-160ETH

Ethernet and USB to

HDMI Converter

Operation Manual

CDL-160ETH

Disclaimers

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes

no commitment to update or to keep current the information

contained in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer ﬁle, in any form or by any means

- electronic, mechanical, magnetic, optical, chemical, manual,

or otherwise - without express written permission and consent from

Cypress Technology.

Version 1.0 July 2009

Trademark Acknowledgments

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

Safety Precautions

Please read all instructions before attempting to unpack or install or

operate this equipment, and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

 Always follow basic safety precautions to reduce the risk of

ﬁre, electrical shock and injury to persons.

 To prevent ﬁre or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

 Never spill liquid of any kind on or into this product.

 Never push an object of any kind into this product through

module openings or empty slots, as you may damage parts.

 Do not attach the power supply cabling to building surfaces.

 Do not allow anything to rest on the power cabling or allow it to

be abused by persons walking on it.

 To protect the equipment from overheating, do not block the

slots and openings in the module housing that provide

ventilation.

Version No Date Summary of Change

V1 20090625 Preliminary Release

Revision History

Table of Contents

1. Introduction…………………………………………................................

2. Applications...........................……………………………………………

3. Package Contents.............……………………………………………….

4. System Requirements..................………………………………………..

5. Features.............................………………………………………………..

6. Specications......................................................................................

7. Hardware Description.........................................................................

7.1 Product overview...........................................................................

7.2 Front Panel......................................................................................

7.3 Rear Panel.......................................................................................

8. Software Installation...............………………………………….………..

8.1 USB to HDMI Software....................................................................

8.2 USB device driver...........................................................................

9. Launch USB Server...............................................................................

10. Using the DisplayLink Manager..........................................................

10.1 Using DisplayLink Manager.........................................................

10.2 Using More DisplayLink Manager................................................

10.3 Firmware Update.........................................................................

11. Uninstall the Device Driver..................................................................

12. Connection and Installation...............................................................

13. Troubleshooting...................................................................................

14. Acronyms..............................................................................................

1. Introduction

The Ethernet and USB to HDMI Converter allows you to use a TV as your

laptop/desktops primary display. Simply connect the TV to the device and

then plug the device into the Ethernet network and your TV will instantly

become the PC’s principal display. This Converter also has two USB ports, for

a mouse and keyboard, allowing you to control any networked computer .

Aside from enabling a TV to be your primary PC display this device also

removes the problem of running expensive audio and video cabling over

long distances, all that is needed is an Ethernet network.

Because everyone can access a TV, they gain the ability to use a computer

without being physically connected to it, so they can perform PC tasks like

browsing the internet, use Microsoft Ofﬁce and access any music or movies

you may have on iTunes, a truly easy and cost effective solution for sharing

AV among computers.

2. Applications

 Ethernet to HDMI Displays

 USB to HDMI Display

 Long distance PC display and control

 PC application sharing

 Docking stations

 Projectors display

3. Package Contents

 Ethernet to HDMI device x 1

 Operational Manual x 1

 Driver CD x 1

 Power adaptor x 1

4. System Requirements

 System Hardware Requirements: 2.4 GHz single core CPU with at least

1GB RAM for optimal performance

 Operating Systems:

Windows 2K SP4

Windows XP Home or Professional 32 bits SP2

Windows Vista 32 bits

 USB Port Extension:

An available USB 2.0 port with USB to mini USB cable

 Network Extension:

An available Ethernet port at home or a commercial network with RJ-

45 cable

 Keyboard and Mouse for using PC applications

Note:

•The converter supports an Ethernet transfer bandwidth of

60 Mbits/s

•480p/576p resolutions work best for an Ethernet connection, with a

maximum operating distance of 100m.

•720p resolution works best with an USB connection up to 2M long

•The Ethernet interface does not support Mac OS whereas the USB

can support Mac OS X v10.4.11 and v10.5.6

 Upgrade the graphics drivers, Display Link software and the mother

board's chip set driver to their latest versions.

5. Features

 Experience the complete PC environment on a TV from 100 meters

away. Content on the original PC monitor can be different from the TV

content.

 Allows a TV to act as the primary PC display, and when using a keyboard

and mouse this allows you to browse the internet, use Microsoft Ofﬁce

and watch and listen to music/movies, from any networked computer.

 Extend or mirror video through network or USB cable to HDMI display,

including both video and audio output signals.

 Share HDMI displays with multiple users through your existing ofﬁce or

home IP network.

 Add an HDMI display to your computer through a USB 2.0 port.

 Supports mirror and extended video modes.

 A friendly interface for easy installation and use.

6. Specications

Input port 1 x Mini USB; 1 x Ethernet

Output ports 1 x HDMI

Extender Ports 2 x USB

Power Supply 5VDC/2.6A (US/EU standards, CE/FCC/UL certiﬁed)

ESD Protection Human body model: ±10kV (air-gap discharge)

±6kV (contact discharge)

Core chipset: ±2kV

Dimensions (mm) 90(W) x 120(D) x 30(H)

Weight(g) 220

Chassis Material Aluminum

Silkscreen Color Metal Black

Power Consumption 8W

Operating Temperature 0˚C~40˚C / 32˚F~104˚F

Storage temperature -20˚C~60˚C/ -4˚F ~ 140˚F

Relative Humidity 20~60% RH (non condensing)

7. Hardware Description

The following sections describe the hardware components of the unit.

Note: Install the device driver of your Ethernet/USB to HDMI converter before

operating the device.

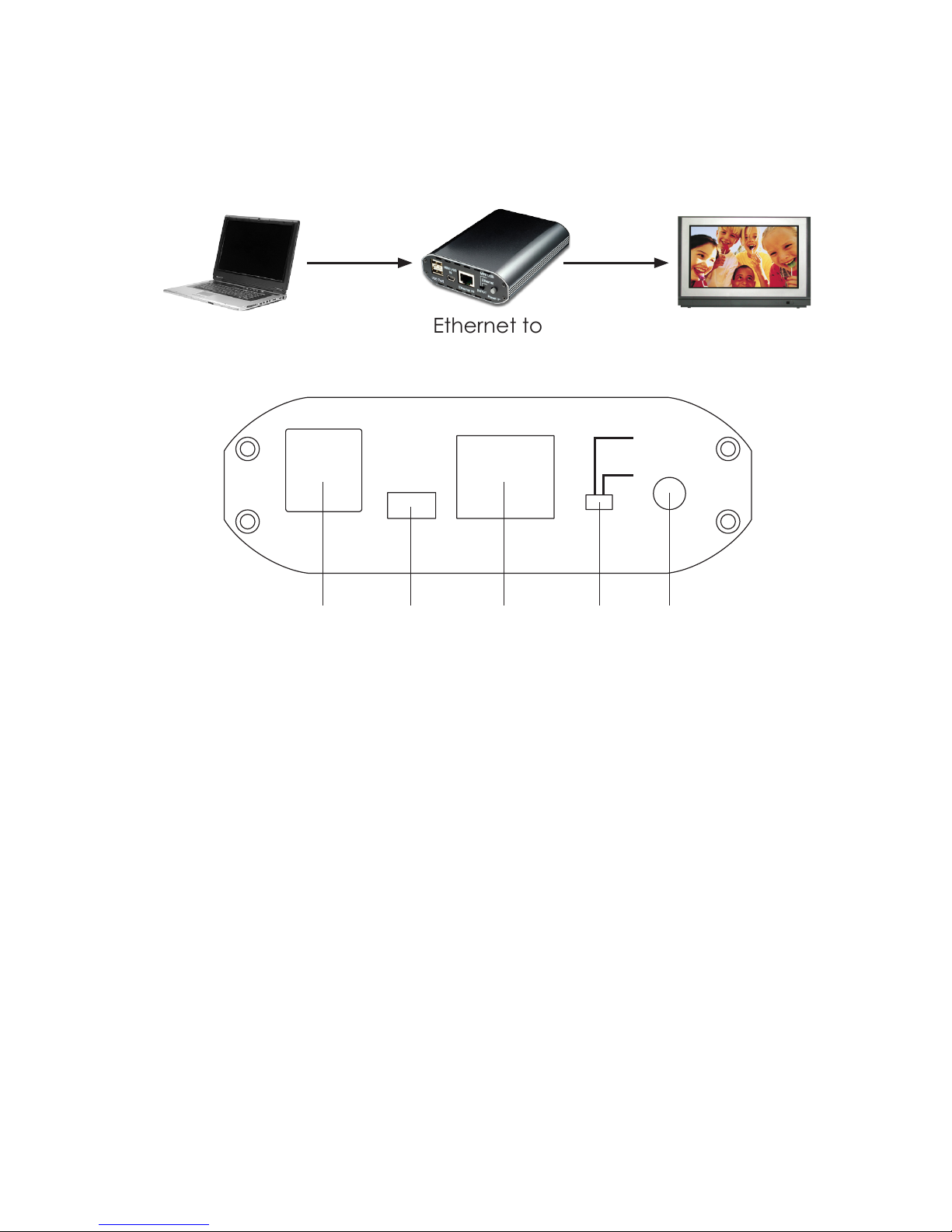

7.1 Product overview

Ethernet or

mini USB HDMI

Monitor

PC/NB Ethernet to

HDMI device

7.2 Front Panel

Ethernet IN

INPUT

MINI USB

Reset IP

Ethernet

MINI USB

USB Port

① ② ③ ④ ⑤

① USB Port: These ports are the converter's USB Hub that allows you

to connect a USB Hard Drive, USB web camera, Keyboard or Mouse.

Note:

•These two USB ports cannot be connected to a USB Hub.

Doing so will trigger the system to detect the external USB Hub and

thereby cause a system failure.

•Before removing a USB device, you must follow the USB device's

hardware removal procedure when removing the device. Failure to

do so will cause the system to crash.

② Mini USB IN: This port supports extension or mirror of video (via USB cable)

to your HDMI display, including both video and audio output signals.

③ Ethernet IN: This slot lets you connect a RJ-45 CAT5 cable to home IP

router or PC Ethernet port.

•When connected to a PC Ethernet port, the user needs to

manually set the Internet Protocol (TCP/IP) to “169.254.10.1”.

•If connected to an IP router, the system will automatically be

connected without the user setting up its Internet Protocol.

④ Input connection switch: This switch allows you to select the PC source

either via Mini USB port or through Ethernet port.

⑤ Reset IP: This button is only pressed to reset the Ethernet IP address when

the system's IP address is incorrect.

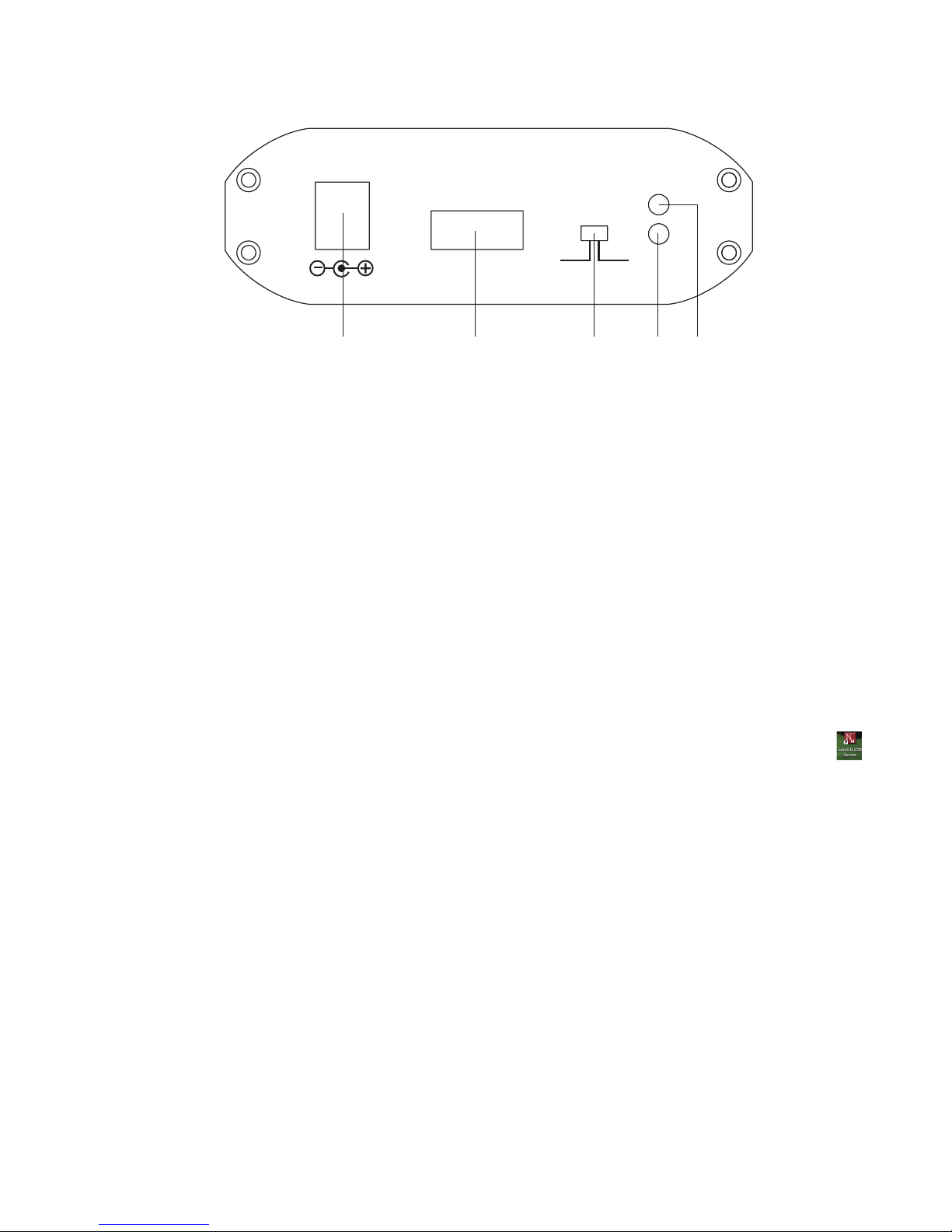

7.3 Rear Panel

DC 5V HDMI OUT

EDID

OFF ON

POWER

LINK

① ② ③ ④ ⑤

① Power: This slot is where you plug in the 5V DC power supply of the unit

before connecting the adaptor to an AC outlet.

② HDMI OUT: The display output port of the converter that is only compatible

with an HDMI display.

③ EDID control switch: The default setting of this switch is on.

Leave as is if the display is working properly. If the display has a built-in

EDID, the screen will show the display’s resolution, and users can choose

the desired screen resolution(available in extended mode). When

switched off, the screen will show internal EDID, and users can select the

screen resolution from the provided resolutions.

NOTE:

When switching from on to off, users need to go to “Launch USB Server

”to disconnect DisplayLink USB to HDMI and reconnect it again. If not,

the system will remain on. However, from off to on, the user does not

need to reconnect the DisplayLink USB to HDMI device,

the system will automatically switch to on mode.(See section 9 for details)

④ LINK LED Indicator: When input switches to MINI USB mode the blue LED

will turn on when the source is connected. When input is switched to

Ethernet a blinking blue LED means its trying to connect.

⑤ Power LED Indicator: Red LED will switch on when the power is connected

to the converter.

8. Software Installation

The following sections list the procedures to follow when installing the USB to

HDMI and USB device drivers.

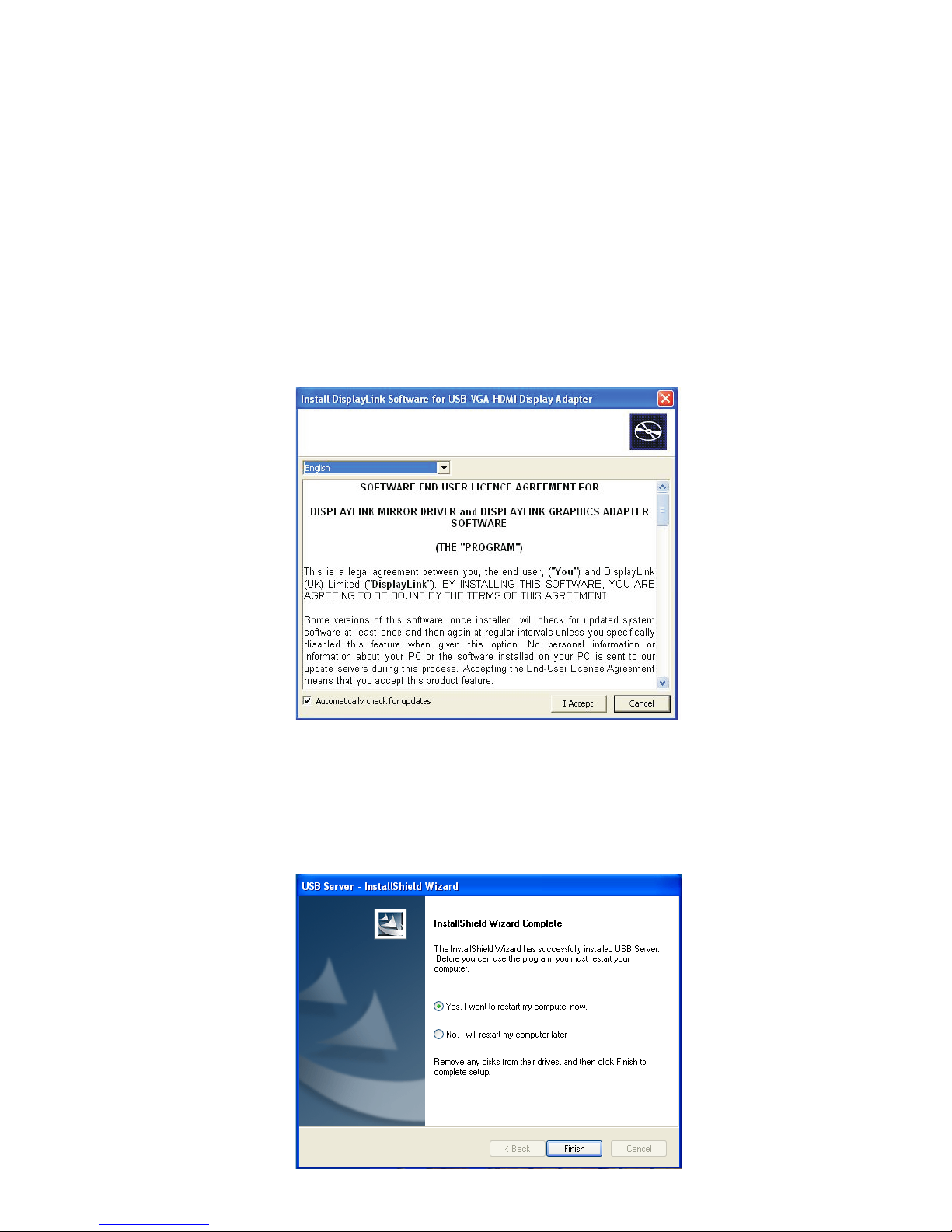

8.1 USB to HDMI Software

Insert the provided driver CD into your CD-ROM drive. Using the Program

Manager, select and double-click on the “USB to HDMI Software”folder.

Locate and then execute the “Setup.exe”ﬁle to start installation. Once

prompted with the display message below, choose your preferred

language and click the "Automatically check for updates" item before you

click on the "I Accept" button. The program will install automatically and

complete in seconds, without prompting you to do any further actions.

8.2 USB device driver

From the root directory of your driver CD, double-click on "XP_VS_Setup.

ext" to install the USB device driver. After installation is complete, select

"Yes" from the display message below to restart the computer.

Table des matières

Autres manuels Cypress Convertisseur de média

Cypress

Cypress OSM-2400 Manuel utilisateur

Cypress

Cypress CSLUX-300I Manuel utilisateur

Cypress

Cypress CP-293 Manuel utilisateur

Cypress

Cypress CLUX-14CEC Manuel utilisateur

Cypress

Cypress CSLUX-1080p Manuel utilisateur

Cypress

Cypress CP-VSRGB Manuel utilisateur

Cypress

Cypress CP-298D Manuel utilisateur

Cypress

Cypress CMDP-DL2DVI Manuel utilisateur

Cypress

Cypress OSM-1000-BRD Manuel utilisateur

Cypress

Cypress CH-501TX Manuel utilisateur

Cypress

Cypress CVSD-3A Manuel utilisateur

Cypress

Cypress CLUX-SDI2VS Manuel utilisateur

Cypress

Cypress CLUX-SDI2CSS Manuel utilisateur

Cypress

Cypress OSM-2400 Manuel utilisateur

Cypress

Cypress CP-254 Manuel utilisateur

Cypress

Cypress CMDPH-2C Manuel d'installation

Cypress

Cypress CP-280H Manuel utilisateur

Cypress

Cypress CSO-T2 Manuel utilisateur

Cypress

Cypress DCT-9 Manuel utilisateur

Cypress

Cypress OSM-1000-BRD Manuel utilisateur

Cypress

Cypress OSM-2400 Manuel utilisateur

Cypress

Cypress CV-401D Manuel utilisateur

Cypress

Cypress DCT-1D Manuel utilisateur

Cypress

Cypress CDL-165HUB Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
