Cypress DCT-4T Manuel utilisateur

Analog to Digital

Audio Converter

with Audio Delay

Operation Manual

DCT-4T

TABLE OF CONTENTS

1. Introduction.................................................................................1

2. Features.......................................................................................1

3. Package Contents..................................................................... 1

4. Operation Controls and Functions............................................2

4.1 Front Panel.............................................................................2

4.2 Rear Panel............................................................................. 2

5. Connection and Installation......................................................3

6. Specifications............................................................................. 3

1

1. Introduction

Analog to Digital Audio Converter is designed to convert analog stereo

audio signal from L/R input to Coaxial S/PDIF and Toslink Optical outputs

simultaneously, with additional audio delay (150 mini-seconds) function

selectable. The output digital audio signal is 2-channel uncompressed

LPCM (Linear Pulse Code Modulation) with sampling rate at 48 KHz. Both

Optical Fiber and Coaxial cables connected to the outputs of the unit can

run up to 5 meters while still provide reliable and lossless audio signal

transmission. The product is compact and easy to install, and that makes it

a very handy gadget recommended for either home or professional audio

switching.

2. Main Features

●Audio delay technology provides 150 min-seconds delay and no delay

options on audio output for user to adjust lip sync (or A/V sync) when

necessary.

●Supports uncompressed 2-channel LPCM (Linear Pulse Code Modulation)

digital audio signal output.

●Supports output sampling rate at 48 KHz.

●Provides electromagnetic-noise-free transmission.

●Easy to install and simple to operate.

3. Package Contents

●Analog to Digital Audio Converter box.

●5V DC power supply adaptor.

●Operation Manual.

1 Coaxial and TOSLink (Optical Fiber) Output Ports: Connect the output

ports to the Coaxial or TOSLink (Optical Fiber) input port of audio

equipments such as audio amplifier and AV receiver, using proper cable.

2 Audio Delay Selection: Use this mini switcher to turn ON/OFF the audio

delay function. When it’s turned on, the audio output will be 150 ms later

than the original audio source.

3 L/R Analog Audio Input Ports: Connect L/R RCA jacks to the audio output

ports of audio amplifier, AV receiver, LCD TV, or DVD player.

4 Power: Plug 5V DC power supply into the unit and connect the adaptor to

AC wall outlet.

2

1 2 3 4

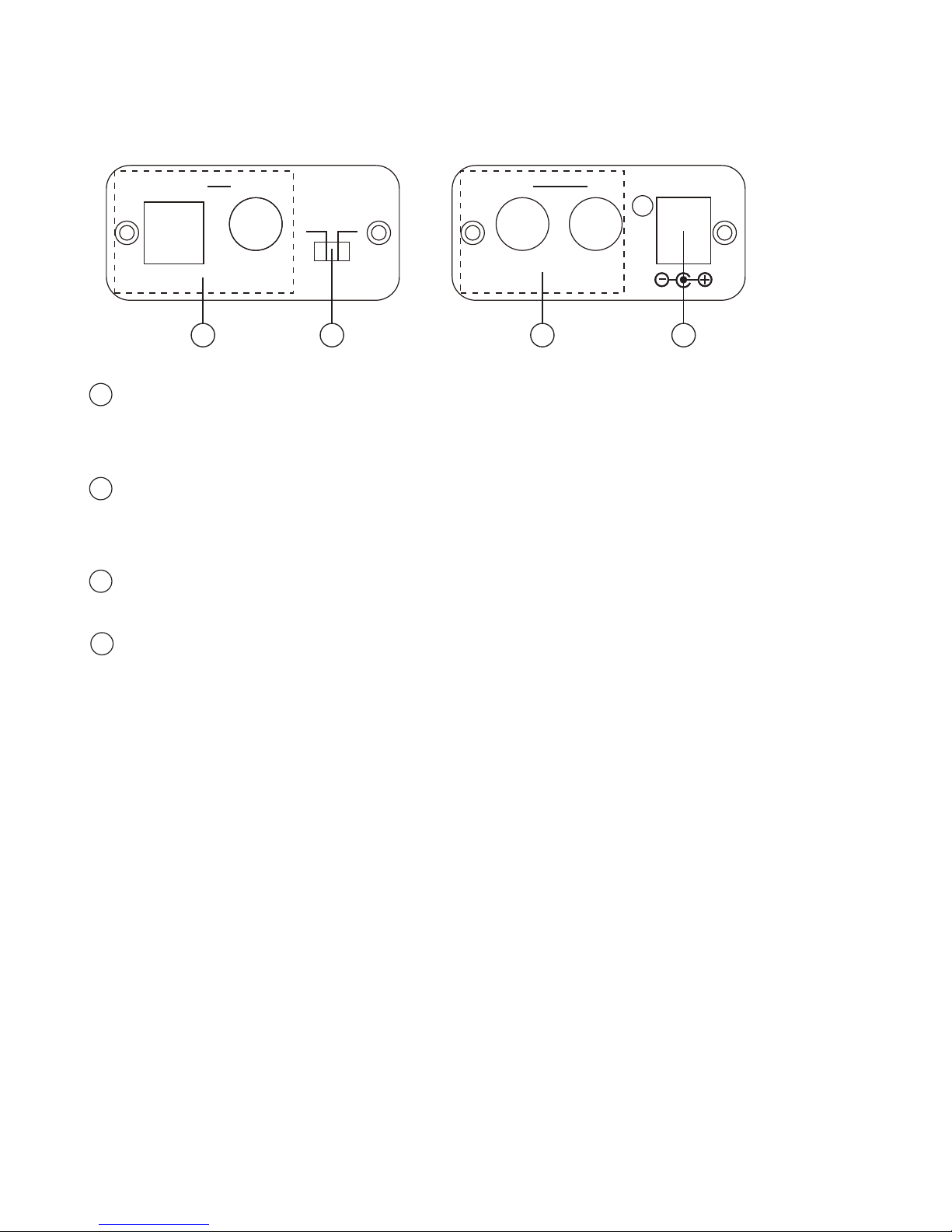

4. Operation Controls and Functions

4.1. Front Panel 4.2. Rear Panel

COAX

OFF ON

AUDIO DELAY 150ms

OFF ON

OUT OPTICAL DC 5V

IN R L

IN R L

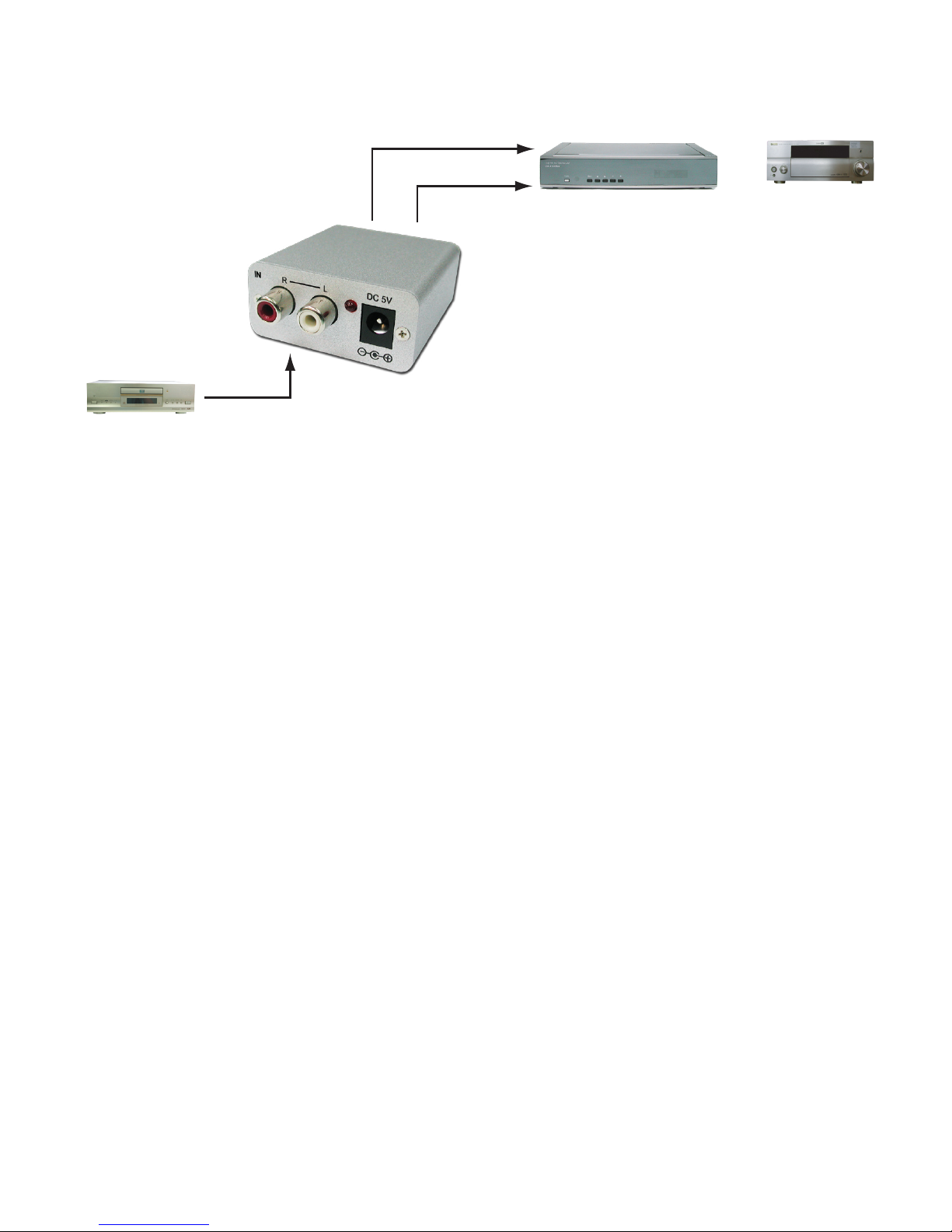

5. Connection and Installation

6. Specifications

Input ports Stereo R/L

Output ports 1 x TOSLink (Optical Fiber) , 1 x Coaxial

Power Supply 5V/0.36~0.5A DC (US/EU standards,

CE/FCC/UL certified)

Dimensions (mm) 67(W) x 50(D) x 23(H)

Weight(g) 30

Chassis Material Plastic

Silk Skin Color White

Operating Temperature Operating from 0°C ~ 40°C

3

COAXIAL

OPTICAL

R/L

DVD

A/V Receiver

or

Amplifier

2008.1.17 MPM-DCT4T

Home page: http://www.cypress.com.tw

CYPRESS TECHNOLOGY CO., LTD.
