CYP PU-1109KIT Manuel utilisateur
PU-1109KIT
v1.4 HDMI over Single CAT5e/6 HDBaseT 5Play, 3 x LAN,
PoE Receiver TXRX Set (up to 100m)
OPERATIONS MANUAL
3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
RDV1 11/11/2011 Preliminary Release
RDV2 13/12/2011 Power Supply Change
5
CONTENTS
1. Introduction ...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features ..................................................6
6. Operation Controls and Functions .......7
6.1 Front Panel ................................................... 7
6.2 Rear Panel ..................................................... 8
7. Connection Diagram .............................9
8. Specications ...................................... 10
9. Acronyms ............................................. 10
6
1. INTRODUCTION
The PU-1109-KIT features 5Play HDBaseT technology. This will allow the
user to distribute uncompressed HDMI, 2-Way IR, 2-Way RS-232, PoE
(Power Over Ethernet) and 3 individual LAN connections over a Single
CAT5e/6 cable, to lengths of up to 100m.
2. APPLICATIONS
Home entertainment media sharing and control
Lecture room display and control
Showroom display and control
Meeting room presentation and control
Classroom display and control
Any Smart AV Installation system
3. PACKAGE CONTENTS
HDMI to CAT5e/CAT6 with LAN/PoE/IR Transmitter
CAT5e/CAT6 to HDMI with LAN/PoE/IR Receiver
1× IR Blaster
1× IR Receiver
24 V DC Power Adaptor
Operation Manual
4. SYSTEM REQUIREMENTS
Input HDMI source equipment such as DVD/Blu-ray player and output
display with HDMI input.
RS-232 controlled device
Ethernet equipped device
7
5. FEATURES
HDMI 1.4 compliant with 3D formats and 4k 2k resolution support
Supports CEC bypass function
Simultaneous transmission of uncompressed video and audio
(1080p@60Hz/-Deep Color) over a single CAT5e/CAT6 type cable for up
to 100 m (300 ft.).
Audio support up to 7.1CH Dolby TrueHD and DTS-HD
Connect and share up to 6 Ethernet connections at speeds up to
100 Mbps
Various controls over HDMI: CEC, RS-232 and IR
5Play™ convergence: HD video, audio & Control ports (IR and RS-232)/
LAN/PoE
Installation friendly
Single power supply powers both units, receiver unit is powered via
the CAT5e/6 connection to the transmitter.
Note:
1. Tested with CAT-6E/23AWG cables, using cables of another specication
may result in a dierent operating distance.
2. The PoE function is designed for powering compatible receiver units
only—do not use with non-PoE receivers or receivers of another brand.
8

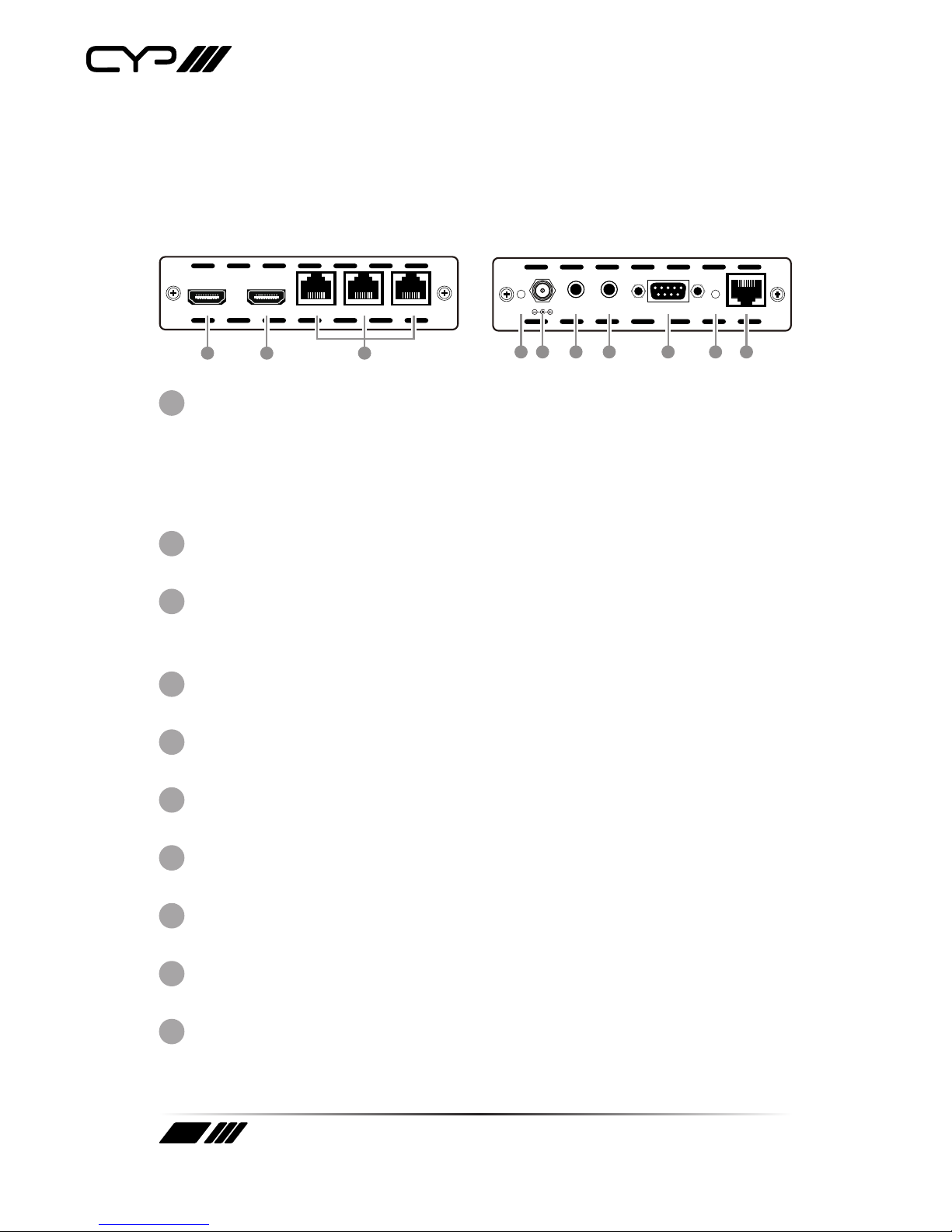

6. OPERATION CONTROLS AND FUNCTIONS
6.1 Transmitter
Rear
HDMI
Bypass HDMI In
LAN 1 LAN 2 LAN 3
1 2 3
Front
PowerDC 24V
Extender
Blaster RS232 In CAT5e/6 Out
Link
IR 2
IR 1
4 5 6 7 8 9 10
1
HDMI Bypass: Connect to a HDMI TV/monitor for instant display of
the HDMI input source signal.
Note: When the HDMI bypass is connected, no signals will be transmitted
to the receiver side. Therefore, unplug this connection after conrming
that the correct image is displayed
2
HDMI In: Connect to the HDMI equipped source equipment such as
DVD or Blu-ray player.
3
LAN 1/2/3: The LAN connections can be used to connect and share up
to 6 ethernet connections (3 at the receiver end, 3 at the transmitter
end), including computers, routers and media servers.
4
Power LED: The red LED will illuminate when the 24 V DC Adaptor is
connected to the AC outlet.
5
DC 24V: This slot is where you plug the 24 V DC power supply into the
unit and connect the adaptor to an AC outlet.
6
IR 1 Blaster: Connect the IR blaster cables included in the package for
IR signal transmission. The related IR receiver port is IR1 Extender.
7
IR 2 Extender : Connect the IR receiver cables included in the package
for IR signal reception.The related IR transmitter port is IR2 Blaster.
8
RS-232 In: This slot is to connect with PC/laptop /Control Device with
D-Sub 9-pin male cable for sending RS-232 commands.
9
Link LED: This yellow LED will illuminate when the both CAT5e/6
input and output signal is connected.
10
CAT5e/6 Out: Connect the transmitter and receiver via a single
CAT5e/6 type cable for all data transmission.
9
6.2 Receiver
Power
Extender Blaster
IR 2
IR 1 RS232 Out CAT5e/6 In
Link
LAN 1 LAN 2 LAN 3
HDMI Out
1 2 3 4 5 6 7
Front
Rear
8
1
Power LED: The red LED will illuminate when the 24 V DC Adaptor is
connected to the AC outlet.
2
IR 1 Extender: This slot is to connect with the IR receiver cables
included in the package for IR signal reception. The related IR
transmitter port is IR1 Blaster.
3
IR 2 Blaster: Connect the IR blaster cables included in the package for
IR signal transmission. The related IR receiver port is IR2 Extender.
4
RS-232 Out: Connect to a device that can be controlled (via D-Sub
9-pin female cable) by RS-232 commands.
5
Link LED: This yellow LED will illuminate when the both CAT5e/6
input and output signal is connected.
6
CAT5e/6 IN: Connect the transmitter and receiver via a single CAT5e/6
type cable for all data transmission.
7
HDMI Out: Connect to a HDMI equipped TV or monitor to display the
HDMI input source signal.
8
LAN 1/2/3: The LAN connections can be used to connect and share up
to 6 ethernet connections (3 at the receiver end, 3 at the transmitter
end), including computers, routers and media servers.
10
6.3 D-Sub 9 Pin Denitions
Pin Dene TX/RX
1N/C
2TxD / RxD
3RxD / TxD
4N/C
5GND
6N/C
7N/C
8N/C
9N/C
