CYP DCT-3 Manuel utilisateur

DCT-3

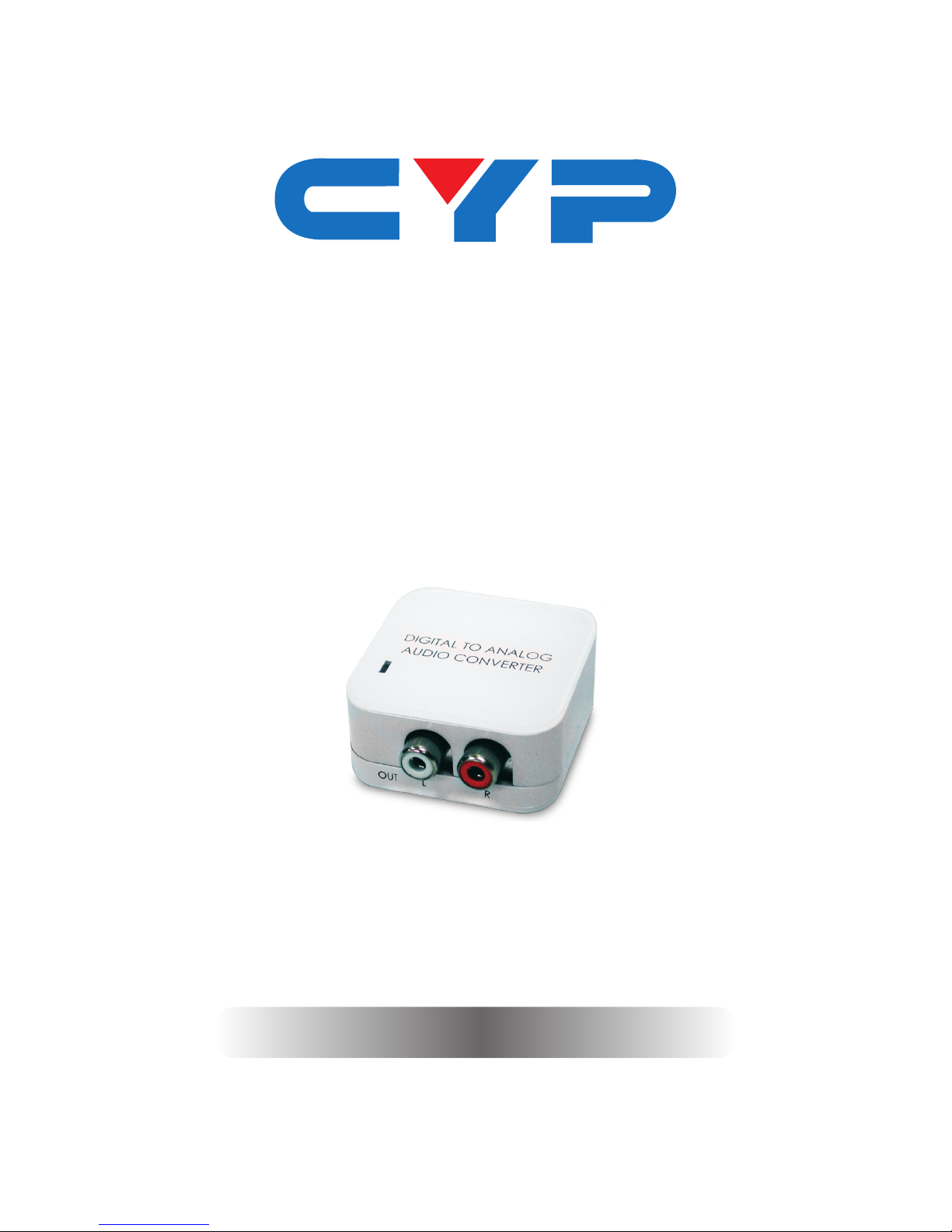

Digital to Analog Stereo Audio Converter

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

VS1 20/03/13 Updated format/diagrams

VS2 20/03/12 Updated connection diagram

CONTENTS

1. Introduction............................................ 1

2. Applications........................................... 1

3. Package Contents ................................ 1

4. System Requirements............................ 1

5. Features.................................................. 1

6. Operation Controls and Functions....... 2

6.1 Top Panel ...........................................2

6.2 Front Panel.........................................2

6.3 Rear Panel .........................................3

6.4 Left Panel ...........................................3

7. Connection Diagram ............................ 4

8. Specications ........................................ 5

9. Acronyms ............................................... 5

1. INTRODUCTION

The Digital to Analog Stereo Audio Converter (DAC) is an easy way

to convert coaxial or optical digital audio signals into analog stereo

audio. Accepting digital audio signals from either coaxial or optical

source devices, the unit can be switched to determine which digital

input signal is active and to be converted into an analog stereo

audio signal. It is the converter of choice for those wishing to convert

coaxial/optical audio signals to stereo audio in a small form factor.

2. APPLICATIONS

• HDTV with only digital audio output to analog amplier input

• Secondary digital audio output from an audio streamer for

distributing to a second zone

• Improving the digital to analog conversion quality from any stereo

digital audio source

3. PACKAGE CONTENTS

• Digital to Analog Stereo Audio Converter

• 5 V/1 A Power Adaptor

• Operation Manual

4. SYSTEM REQUIREMENTS

Digital audio source device such as DVD or CD players with optical or

coaxial cables and audio output device such as an amplier or AV

receiver with analog stereo input.

5. FEATURES

• Supports stereo digital audio input (coaxial/optical) and analog

audio output (L/R)

• Integrated digital interpolator lter and Digital to Analog Converter

(DAC)

• Supports uncompressed 2-Channel LPCM stereo digital audio input

• Supports S/PDIF 24-bit of data for the left and right channels at up to

96 kHz

• Compact size and easy to install

6. OPERATION CONTROLS AND FUNCTIONS

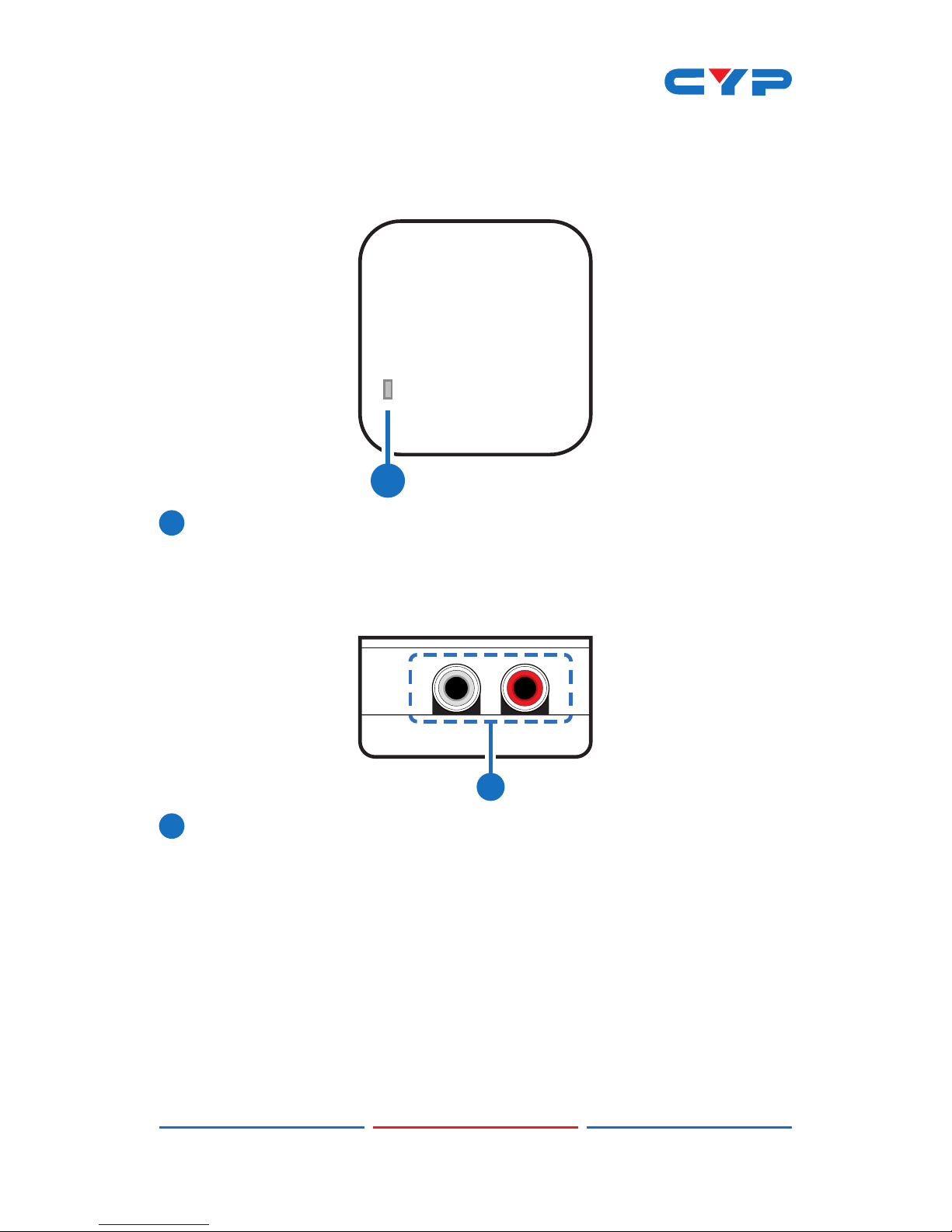

6.1 Top Panel

DIGITAL TO ANALOG

AUDIO CONVERTER

POWER LED: The LED will illuminate in red when the power is

connected.

6.2 Front Panel

OUT RL

1L/R OUT: Connect this output to the analog stereo input of an AV

Receiver or audio system.

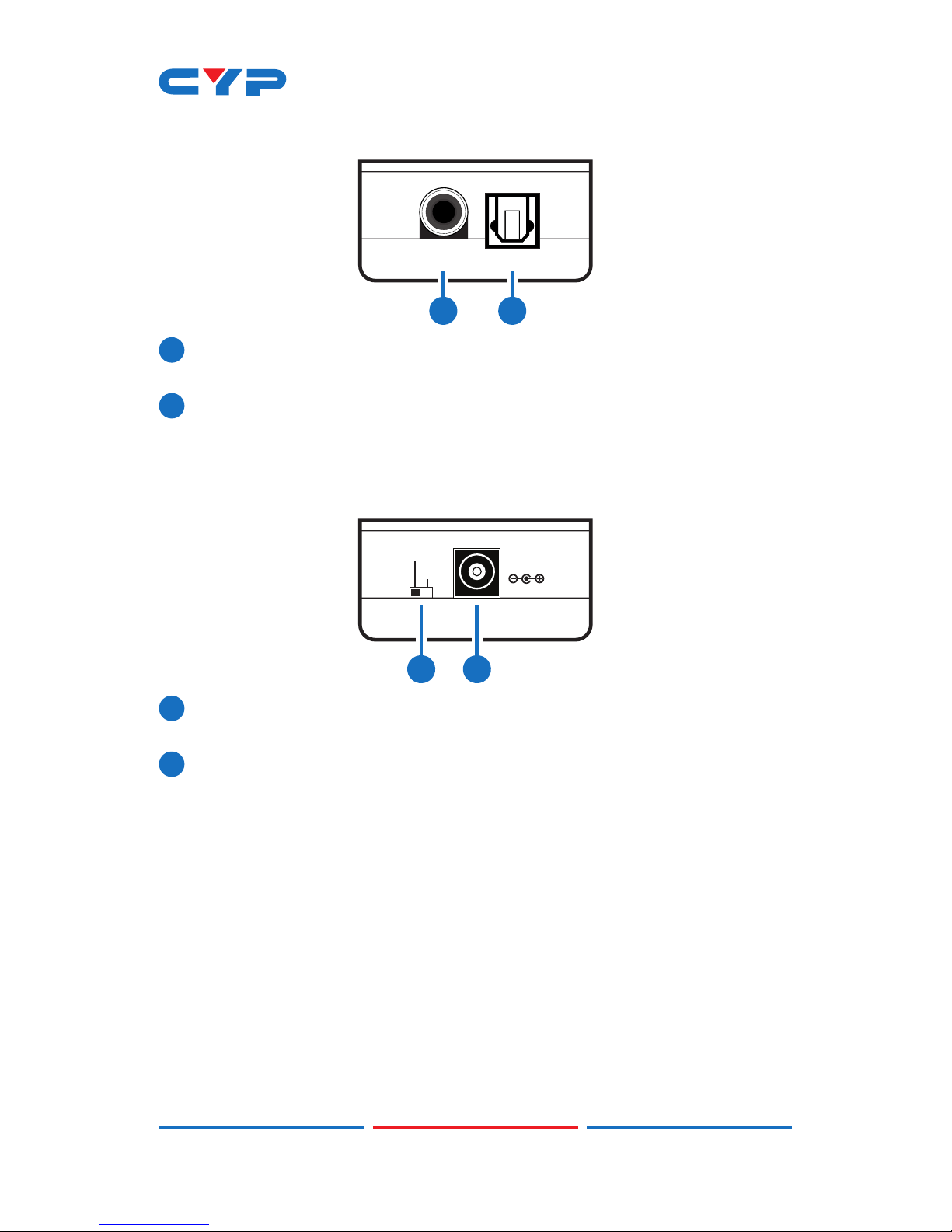

6.3 Rear Panel

COAX OPTICALIN

1 2

COAX IN: Connect this input to the Coaxial digital audio output of

a source device such as a DVD or CD player.

OPTICAL IN: Connect this input to the Optical digital audio output

of a source device such as a games console or Set-top Box.

6.4 Left Panel

DC 5V

OPTICAL

COAX

1 2

1OPTICAL/COAX Audio Switch: Select the current audio source,

either optical or coaxial.

2DC 5V: Plug the 5 V DC power supply to the unit and connect the

adaptor to an AC wall outlet.

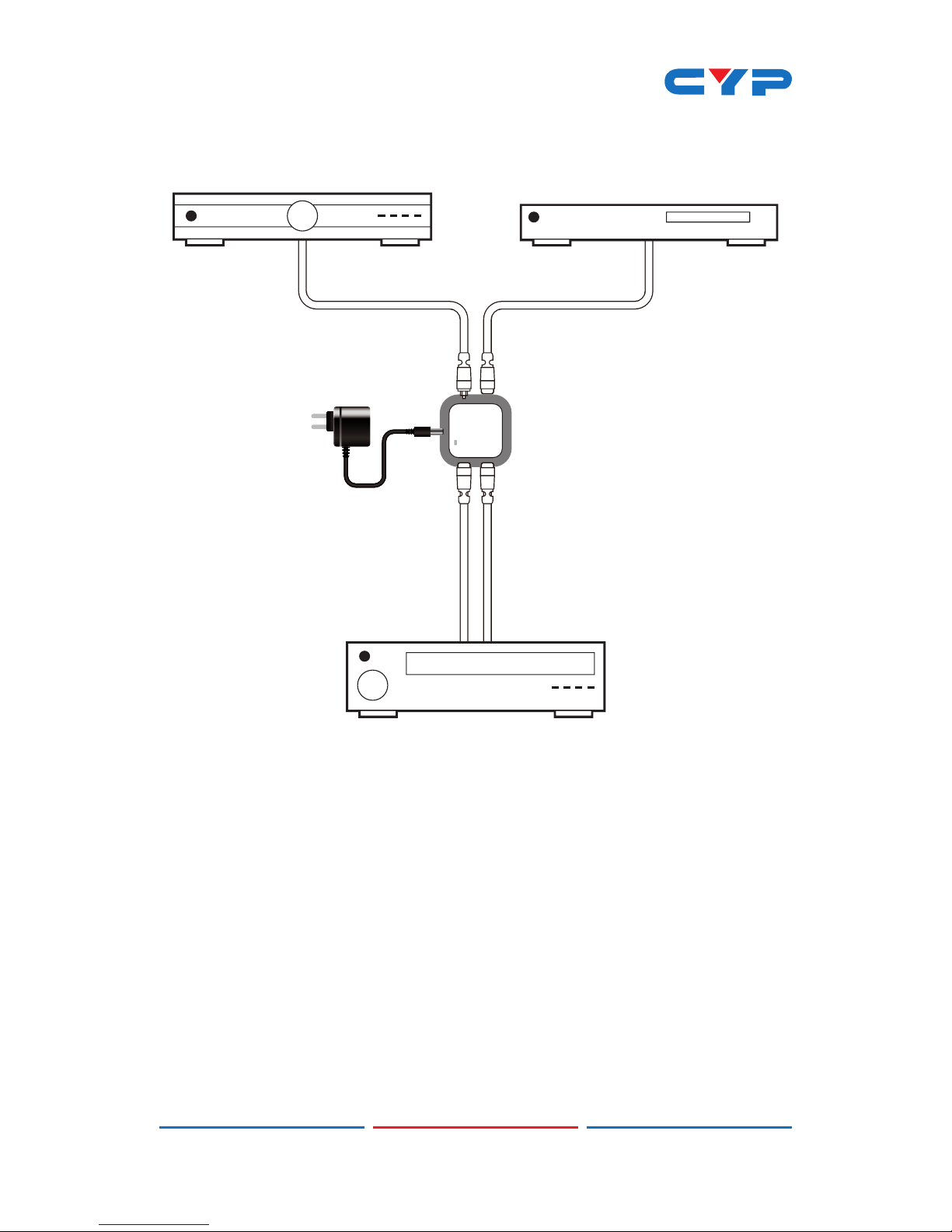

7. CONNECTION DIAGRAM

DIGITAL TO ANALOG

AUDIO CONVERTER

Set-top Box DVD Player

Digital Audio Input

(Coaxial)

Analog

Stereo

Output

Amplier

Digital Audio Input

(Optical)

Power

Supply

8. SPECIFICATIONS

Input Ports 1×Coaxial, 1×Optical

Input Format S/PDIF LPCM 2 CH, 24-bit

Sample Frequency 32 kHz, 44.1 kHz, 48 kHz, 96 kHz

Output Ports 1×Analog Stereo (RCA connectors)

Output Level 2 Vpp

Power Supply 5 V/1 A linear power adaptor (US/EU

standards, CE/FCC/UL certied) or

5 V/1.2 A switching power adaptor (with

universal plug, CE/FCC/UL certied)

Dimensions 42 mm (W)×40.5 mm (D)×22 mm (H)

Weight 25 g

Chassis Material Plastic

Silkscreen Color White

Operating Temperature 0˚C ~ 40˚C / 32 ˚F ~ 104 ˚F

Storage Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F

Relative Humidity 20 ~ 90% RH (non-condensing)

Power Consumption 0.5 W

9. ACRONYMS

ACRONYM COMPLETE TERM

DAC Digital to Analog Converter

S/PDIF Sony/Philips Digital Interconnect Format
