CyberView S220 Manuel utilisateur

User Manual

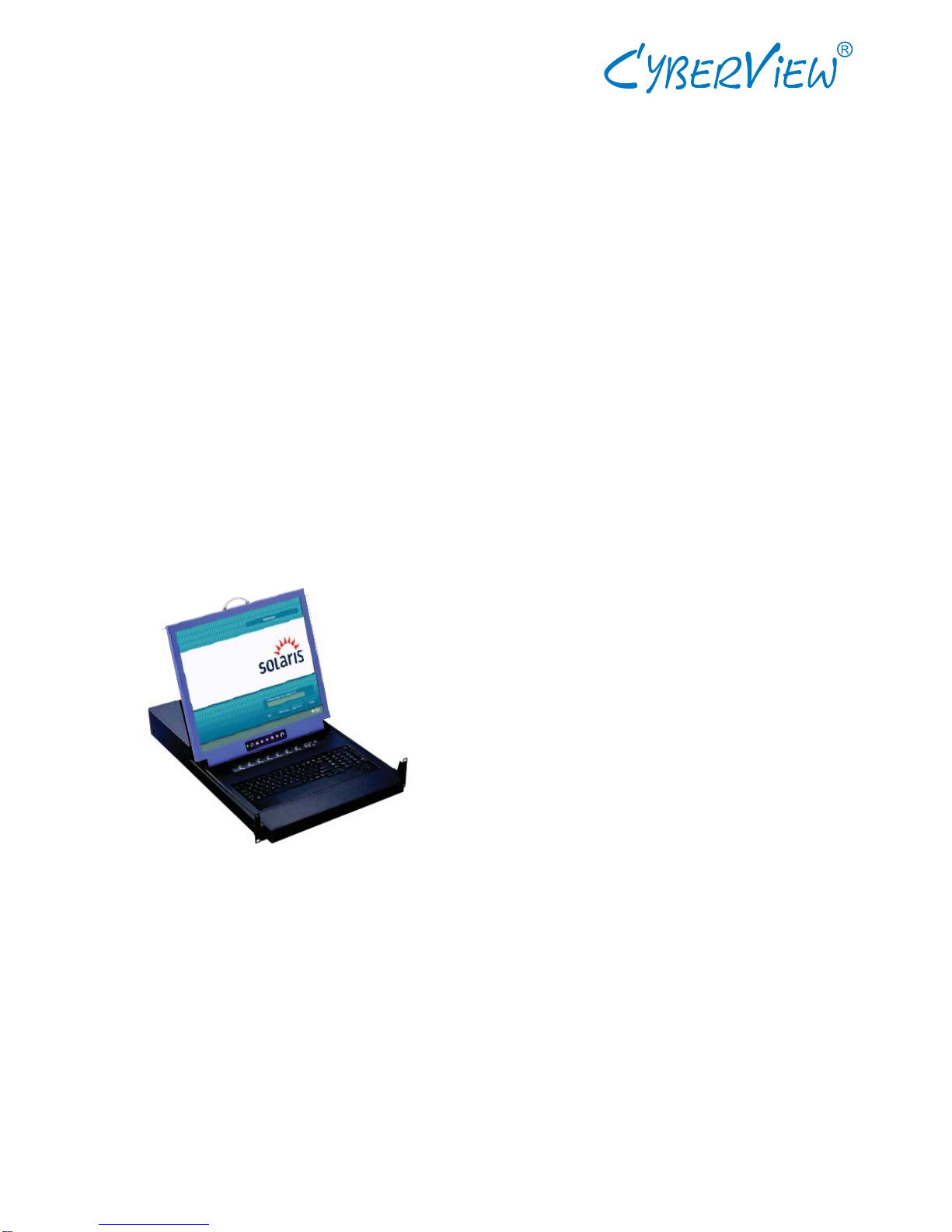

S220 2U LCD Keyboard Drawer

- With KVM options

- 20" screen size

- Ultra high resolution 1600 x 1200

- Designed for SUN Solaris

Chapter 1 Getting Started

1.1 Important Safeguards..........................................................1

1.2 Regulatory Notice................................................................2

1.3 Package Contents...............................................................3

1.4 Before Installation...............................................................4

1.5 Unpacking...........................................................................4

1.6 OptionalAccessories...........................................................4

1.7 Peripheral Products.............................................................5

1.8 Structure Diagram...............................................................5

1.9 Installation...........................................................................6

1.10 Connect to Server via USB Interface..................................7

1.11 Connect to KVM via USB Interface.....................................7

Chapter 2 Operation

2.1 On-screen Display Operation..............................................8

2.2 On-screenMenu.............................................................9-10

Chapter 3 Standard Speciﬁcation

3.1 Speciﬁcations....................................................................11

3.2 Keyboard & Mouse...........................................................12

3.3 How to Use “S” Keyboard.................................................13

Chapter 4 Optional Speciﬁcation

4.1 KVM Options.....................................................................14

4.2 DVI-D Input Option............................................................14

4.3 S-Video + RCA Input Option..............................................14

4.4 S-Video + BNC Input Option.............................................15

4.5 DC power Options.............................................................15

Chapter 5 Troubleshooting...........................................................16

Chapter 6 Dimensions.......................................................................17

Contents

1.1 Important Safeguards Chapter 1

P. 1

Please read all of these instructions carefully before you use the device. Save this manual for future

reference.

What the warranty does not cover

■Any product, on which the serial number has been defaced, modiﬁed or removed.

■Damage, deterioration or malfunction resulting from:

□Accident, misuse, neglect, ﬁre, water, lightning, or other acts of nature, unauthorized product modiﬁ-

cation, or failure to follow instructions supplied with the product.

□Repair or attempted repair by anyone not authorized by us.

□Any damage of the product due to shipment.

□Removal or installation of the product.

□Causes external to the product, such as electric power ﬂuctuation or failure.

□Use of supplies or parts not meeting our speciﬁcations.

□Normal wear and tear.

□Any other causes which does not relate to a product defect.

■Removal, installation, and set-up service charges.

P. 2

1.2 Regulatory Notice Chapter 1

Legal Information

First English printing, October 2002

Information in this document has been carefully checked for accuracy; however, no guarantee is given to the

correctness of the contents. The information in this document is subject to change without notice. We are not

liable for any injury or loss that results from the use of this equipment.

Safety Instructions

■Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.

■Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned enviro-

nment with temperatures not exceeding 40º Celsius (104º Fahrenheit).

■When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and

causing damage to other equipment or injury to persons nearby.

■When the drawer is in an open position, do not cover, block or in any way obstruct the gap between it and

the power supply. Proper air convection is necessary to keep it from overheating.

■Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.

■If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage

and current labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be

higher than the one listed on the equipment’s ratings label.

■Observe all precautions and warnings attached to the equipment.

■If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent

being damaged by transient over-voltage.

■Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to

the power supply or on other hardware may cause damage, ﬁre or electrical shock.

■Only qualiﬁed service personnel should open the chassis. Opening it yourself could damage the equip-

ment and invalidate its warranty.

■If any part of the equipment becomes damaged or stops functioning, have it checked by qualiﬁed service

personnel.

Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interfer-

ence in a residential installation.

Any changes or modiﬁcations made to this equipment may void the user’s authority to operate this equip-

ment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used

in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

■Re-position or relocate the receiving antenna.

■Increase the separation between the equipment and receiver.

■Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

1.3 Package Contents Chapter 1

P. 3

LCD keyboard drawer x 1 pc

Fasteners for rear L-bracket x 4 pcs

330mm rear mounting L-bracket x 1 pair

* mounting depth-adjustable from 310 to 880mm

CB-6 2-in-1 USB KVM cable x 1 pc

User manual x 1 pc

Power cord x 1 pc

Auto switch power adapter (for external power version) x 1pc

User

Manual

1.6 Optional Accessories

■It is very important to locate the LCD Keyboard Drawer in a suitable environment.

■The surface for placing and ﬁxing the LCD Keyboard Drawer should be stable and level or mounted

into a suitable cabinet.

■Make sure the place has good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat,

water, moisture and vibration.

■Position LCD Keyboard Drawer with respect to related facilities.

The LCD keyboard drawer comes with the standard parts shown on the package contents. Check and make sure they

are included and in good condition. If anything is missing, or damage, contact the supplier immediately.

1.5 Unpacking

1.4 Before Installation Chapter 1

P. 4

1. USB 2-in-1 KVM cable

1.1 CB-6 6 feet

1.2 CB-10 10 feet

1.3 CB-15 15 feet

2. Extended rear mounting L-bracket

2.1 430mm (16.9") extended rear L-bracket up to 980mm

*Extended rear L-bracket in tailor-made length on request

3. Power Cord

3.1 IEC power cord

3.2 NEMA 5-15 power cord (US)

3.3 BS 1363 power cord (UK)

3.4 CEE 7/4 power cord (German)

3.5 AS 3112 power cord (Australia)

P. 5

1.7 Peripheral Products Chapter 1

1.8 Structure Diagram

Item Model No. Description

DB-15 KVM CV-S801 / CV-S1601 8 / 16-port USB KVM

Cat5 KVM

UIP-1602 / UIP-3202

U-1602 / U-3202

U-1601 / U-3201

16 / 32-port IP Cat5 KVM

16 / 32-port two console Cat5 KVM

16 / 32-port high density Cat5 KVM

SAMSUNG Class A TFT LCD panel

Adjustable rear mounting L-bracket

Membrane switch (KVM option)

LCD membrane

Micro-switch for LCD auto ON /OFF

SUN-compatible keyboard incorporates SUN keys

P. 6

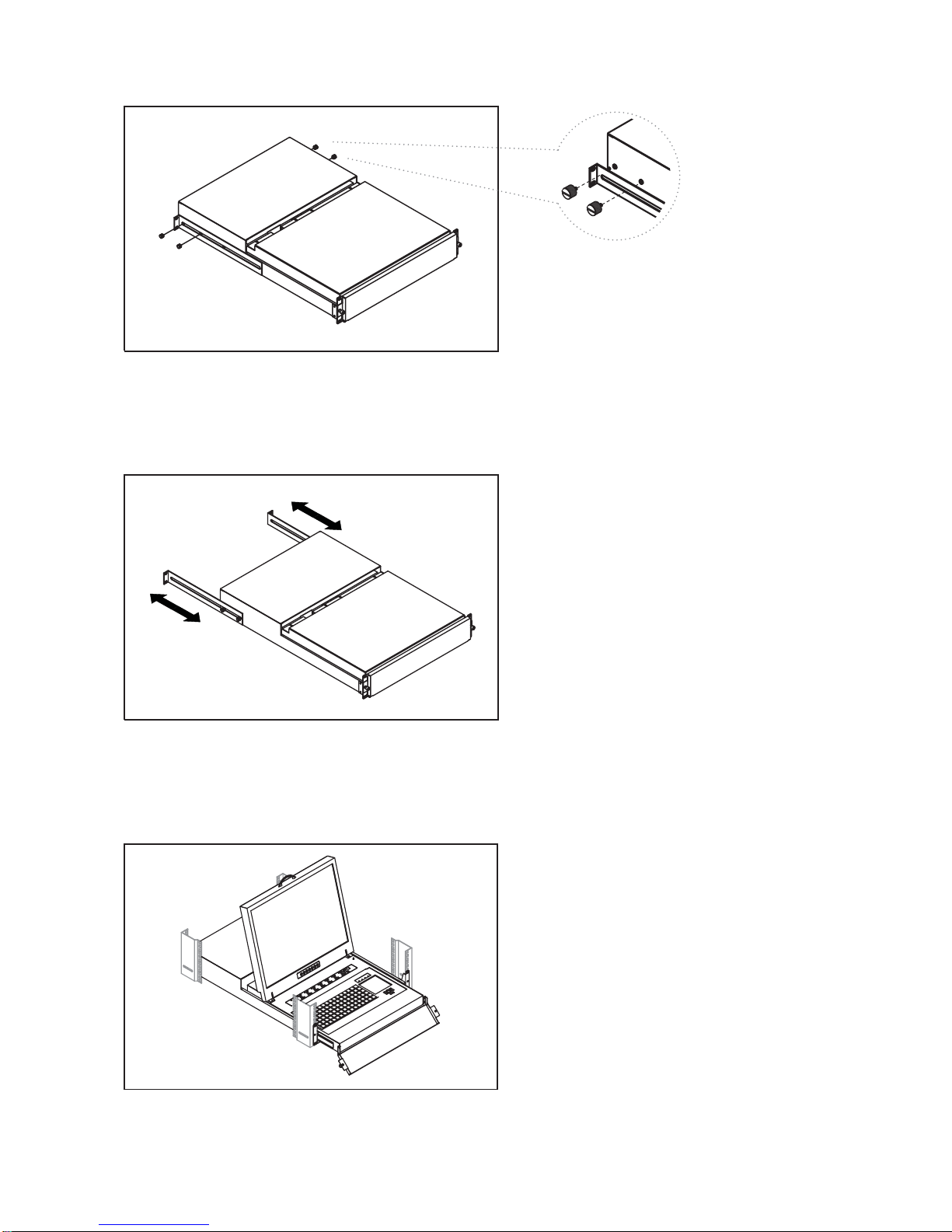

1.9 Installation Chapter 1

■Install each rear L-bracket using two fasteners shown

in Figure 1.

■Leaving the fasteners slightly loose.

Figure 1. Installing the rear L-bracket to the LCD keyboard drawer.

■Measure the front and rear mounting depth of the

rack.

■Align each rear L-bracket to a suitable length and

tighten the fasteners shown in Figure 2.

Figure 2. Aligning the rear L-brackets to a suitable length for the rack.

■Fixed the LCD keyboard drawer into the rack.

* Hardware (screws and cage nuts) for ﬁxing the

mounting bracket to the rack is not provided.

Figure 3. Fixing the LCD keyboard drawer into the rack.

P. 7

Remarks

■The above connection is only for the LCD keyboard without KVM switch built-in.

■For the LCD keyboard drawer with KVM switch built-in, please refer to attached KVM switch user manual.

1.10 Connect to Server via USB Interface Chapter 1

1.11 Connect to KVM via USB Interface

Figure 4. Example of connecting CB-6 2-in-1 USB KVM cable to server via USB interface

Figure 5. Example of connecting CB-6 2-in-1 USB KVM cable to KVM via USB interface

2.1 On-screen Display Operation Chapter 2

P. 8

LCD membrane

Exit the OSD screen

Shortcut key to auto adjustment by pressing the button for 5 seconds or

Toggle analog, digital & video connection (DVI-D and video options only)

Scrolls through menu options and adjusts the displayed control

Display the OSD menu

Power on / off LCD

Power light

Green = On

Orange = Power saving

Membrane Switch Function
