BPSE240V82A

User’s Manual

K01-C000100-00

This manual contains important instructions. Please read and follow all

instructions carefully during installation and operation of the unit. Read

this manual thoroughly before attempting to unpack, install, or operate

the Battery modules.

CAUTION! The UPS unit must be connected to a grounded AC

SAFETY

power outlet with fuse or circuit breaker protection. The Battery

modules grounded are through the UPS.

CAUTION! The battery can power hazardous components

inside the unit, even when the AC input power is disconnected.

CAUTION! To prevent the risk of fire or electric shock, install in

a temperature and humidity controlled indoor area, free of

conductive contaminants. (Please see specifications for

acceptable temperature and humidity range).

CAUTION! (No User Serviceable Parts): Risk of electric shock,

do not remove cover. No user serviceable parts inside. Refer

servicing to qualified service personnel.

CAUTION! (Non-Isolated Battery Supply): Risk of electric

shock, battery circuit is not isolated from AC power source;

hazardous voltage may exist between battery terminals and

ground. Test before touching.

CAUTION! Wiring must be done by qualified personnel.

CAUTION! DO NOT USE WITH OR NEAR AQUARIUMS!

To reduce the risk of fire, do not use with or near aquariums.

Condensation from the aquarium can come in contact with

metal electrical contacts and cause the machine to short out.

CAUTION! Do not dispose of batteries in fire as the battery

may explode.

CAUTION! Do not open or mutilate the battery, released

electrolyte is harmful to the skin and eyes.

CAUTION! A battery can present a risk of electric shock and

high short circuit current. The following precaution should be

observed when working on batteries

1. Remove watches, rings or other metal objects.

2. Use tools with insulated handles.

CAUTION! Make sure everything is turned off and

disconnected completely before conducting any maintenance,

repairs or shipment.

CAUTION! Connect the Protection Earth (PE) safety conductor

before any other cables are connected.

DO NOT INSTALL THE UNIT WHERE IT WOULD BE EXPOSED

TO DIRECT SUNLIGHT OR NEAR A STRONG HEAT SOURCE!

SERVICING OF BATTERIES SHOULD BE PERFORMED OR

SUPERVISED BY PERSONNEL KNOWLEDGE OF BATTERIES

AND THE REQUIRED PRECAUTIONS. KEEP UNAUTHORIZED

PERSONNEL AWAY FROM BATTERIES!

The box should contain the following:

Battery Module

Battery Cable

User’s manual

UNPACKING

SCHEMATIC

FRONT/REAR PANEL DESCRIPTION

BAT OUTPUT+

BAT INPUT+

Breaker

Battery String1 Battery String2

BAT OUTPUT-

BAT INPUT-

Breaker

Terminal Block

Self-locking frame

BASIC OPERATION

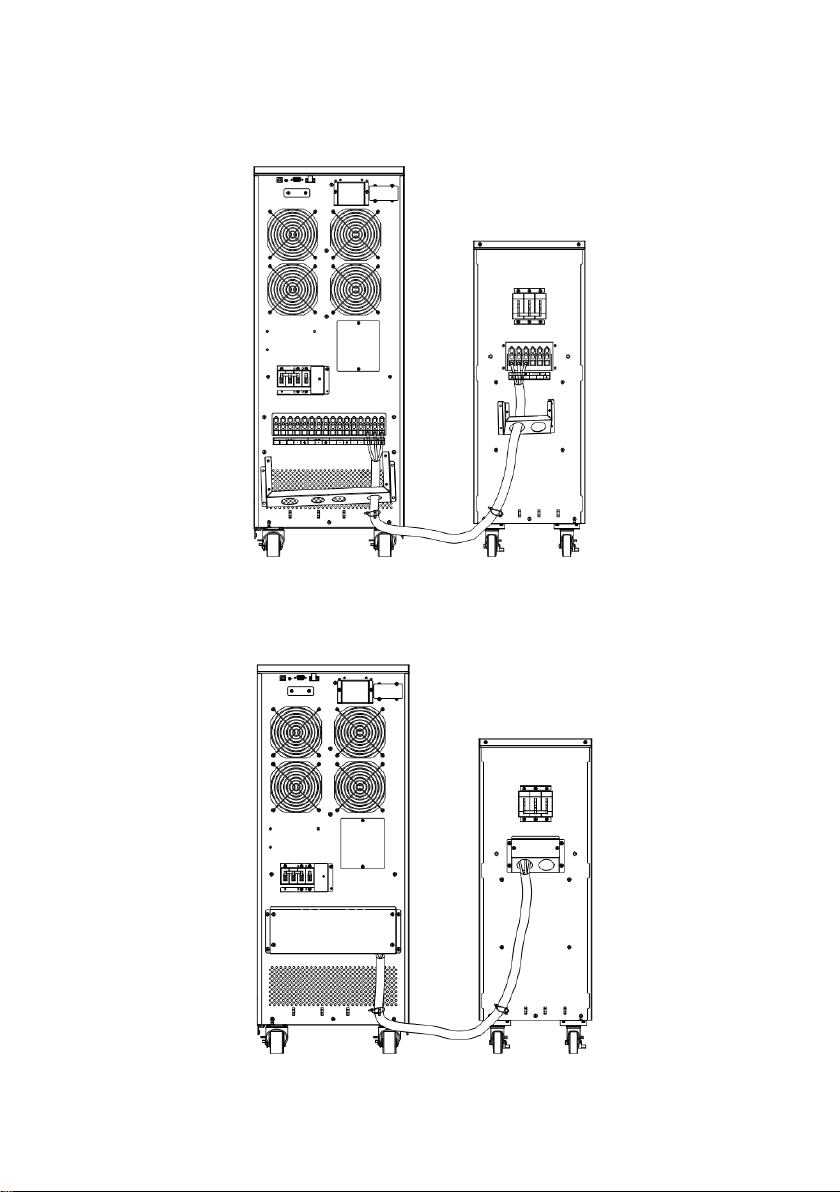

CONNECTION#1：POWER MODULE (UPS) WITH ONE BATTERY

MODULE

Step 1: First turn off the Breaker, then loosen the screws to remove

the Terminal block Cover of Battery Module.

Step 2: Connect the Battery Cable to Terminal block and ensure the

polarity is right.

Step 3: Connect the Battery Cable to UPS and ensure the polarity is

right.

Step 4: Retighten the Terminal Block Cover of Battery Module and

UPS.

CONNECTION#2：PARALLEL CONNECTION OF THE BATTERY

MODULE

In order to meet the requirement of the user on longer back-up time,

a special parallel connection of the battery pack is provided below

and the quantity of the battery pack for parallel connection can be

added at will.

Model

BPSE240V82A

Battery

Sealed Maintenance Free Lead Acid Battery

12V / 9Ah x20pcs x2sets

Rated Battery Voltage

240Vdc

Overload Protection

Breaker (100A 125Vdc 3P)

Physical

Maximum Dimensions (HxWxD) (mm)

718x260x550

Weight (kg)

124

Environment

Operating Temperature

0C to 40C

Relative Humidity

0 to 90%(Non-condensing)

For more information, visit www.cpsww.com

BATTERY OUTPUT BATTERY INPUT BATTERY OUTPUT BATTERY INPUT

TO UPS Battery Module 1 Battery Module 2

TECHNICAL SPECIFICATION
