Cuisinart SMK2036AS Manuel utilisateur

Oakmont

Pellet Grill and Smoker

Model SMK2036AS

ASSEMBLY INSTRUCTIONS

ASSEMBLY INSTRUCTIONS:

READ ALL SAFETY WARNINGS & ASSEMBLY INSTRUCTIONS CAREFULLY

BEFORE ASSEMBLING OR OPERATING YOUR GRILL.

WE RECOMMEND TWO PEOPLE WORK TOGETHER WHEN ASSEMBLING THIS UNIT.

The following tools are required to assemble this Cuisinart Oakmont 3-in-1 Pellet Grill:

• Phillips Screwdriver

• Pliers or Wrench

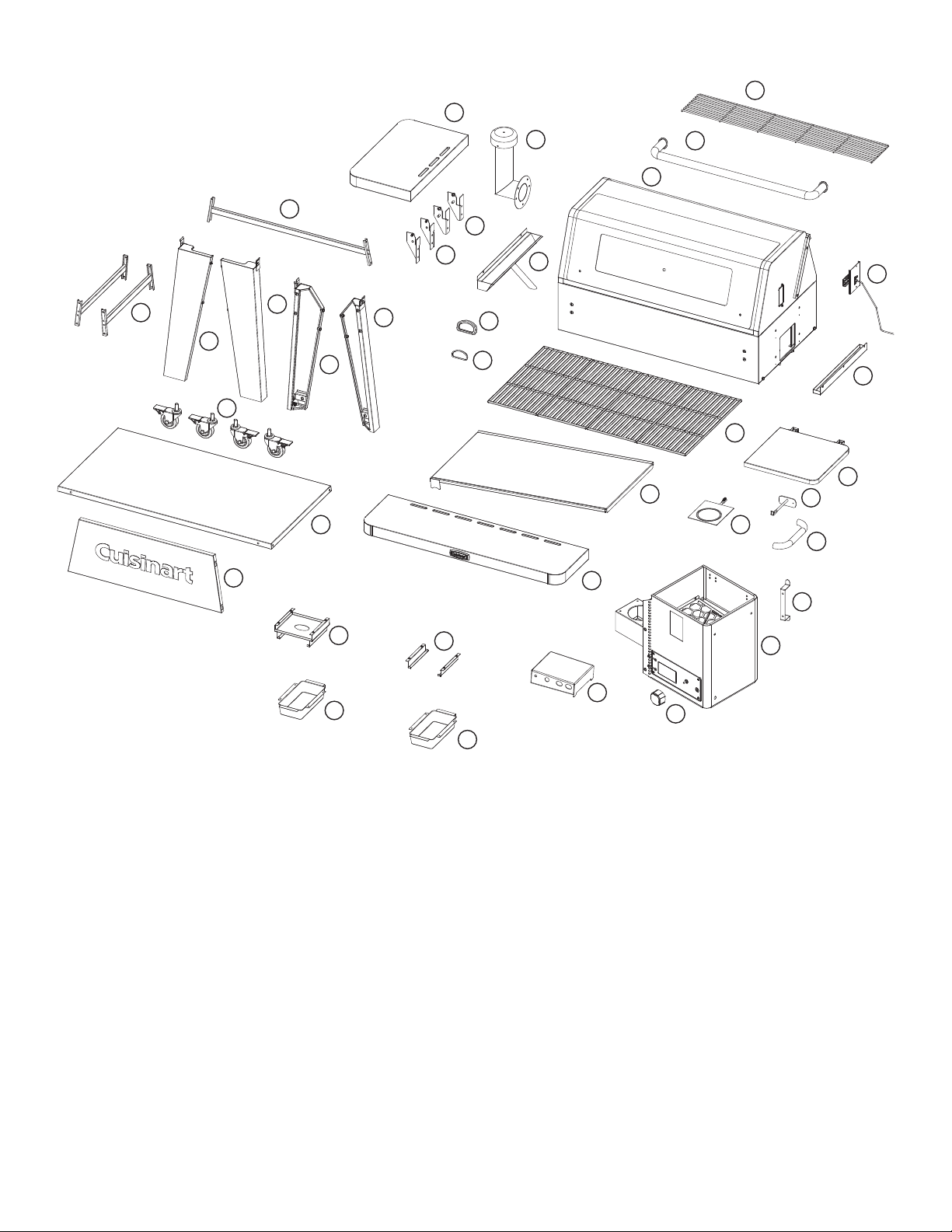

PARTS LIST:

1 Side Table

1 Chimney

1 Hood Handle

1 Warming Rack

1 Rear Cart Brace

2 Right Table Brackets

2 Left Table Brackets

1 Grease Channel

1 Grill Body

1 Thermocouple Assembly

2 Side Cart Braces

1 Left Front Leg

1 Right Front Leg

1 Left Rear Leg

1 Right Rear Leg

1 Temperature Gauge Bezel

1 Temperature Gauge

4 Cooking Grates

1 Heat Plate Bracket

1 Hopper Lid

4 Casters

1 Heat Plate

1 Ash Clean-out Plate

1 Ash Clean-out Handle

1 Side Handle

1 Cart Base

1 Front Table

1 Pellet Hopper Assembly

1 Cord Wrap

1 Cart Front Panel

1 Grease Cup Bracket

2 Ash Cup Brackets

1 Heat Baffle

1 Grease Cup

1 Ash Cup

1 Control Knob

Note: Most hardware is pre-attached to the grill. You may need to loosen some screws

partially while others may need to be removed in order to assemble parts. The screws that

you remove will be re-used so don’t misplace this hardware.

Extra screws are included in a small bag with the owners manual.

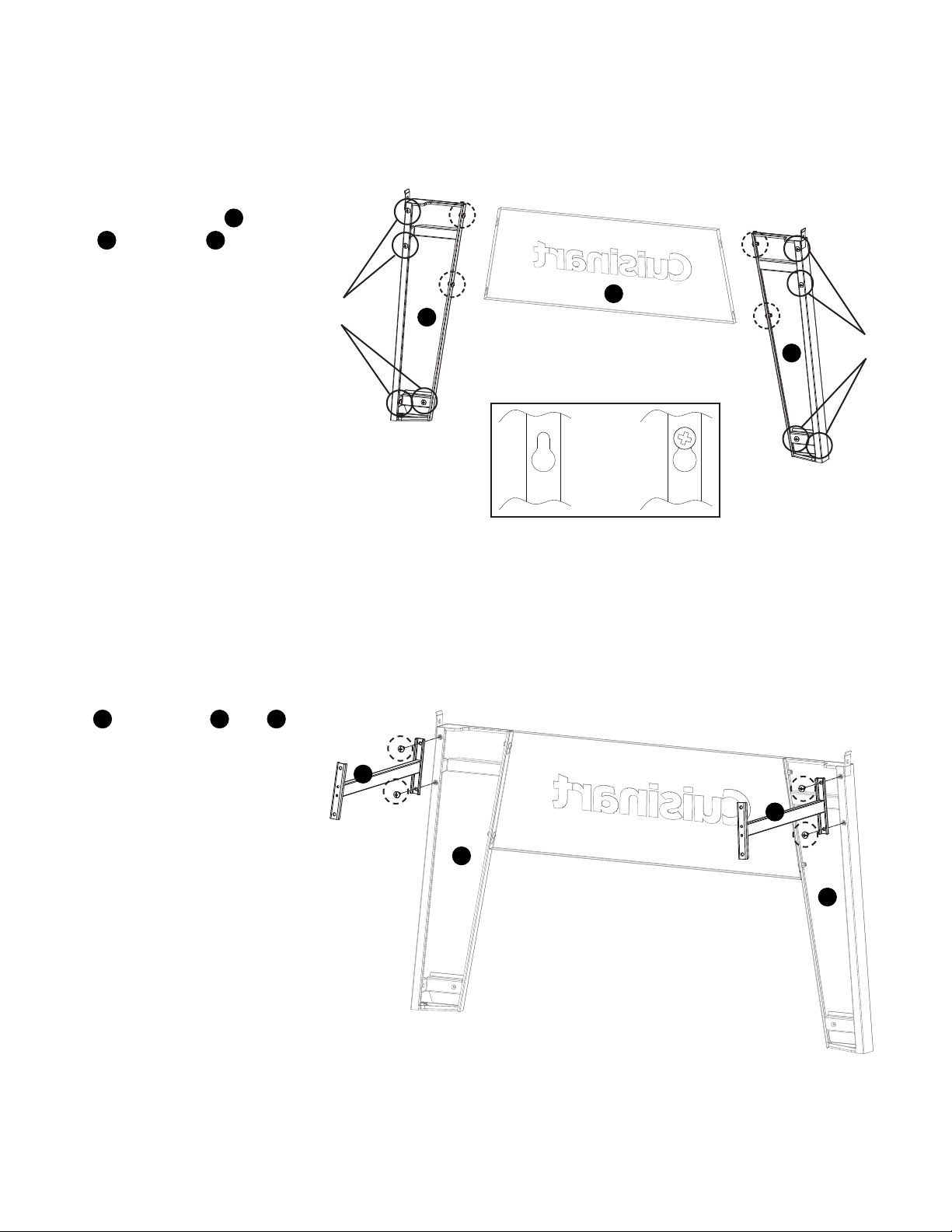

• Attach side cart braces

11 to front legs 12 and 13

using 4 screws removed

from Step 1.

NOTE: Before tightening keyhole

screws, make sure panels are aligned.

• Loosen 4 screws.

• Attach front legs 12 and

13 front panel 30 using

keyholes.

• Tighten 4 screws.

• Remove 8 screws.

Step 2

Step 1

Remove

Step 3

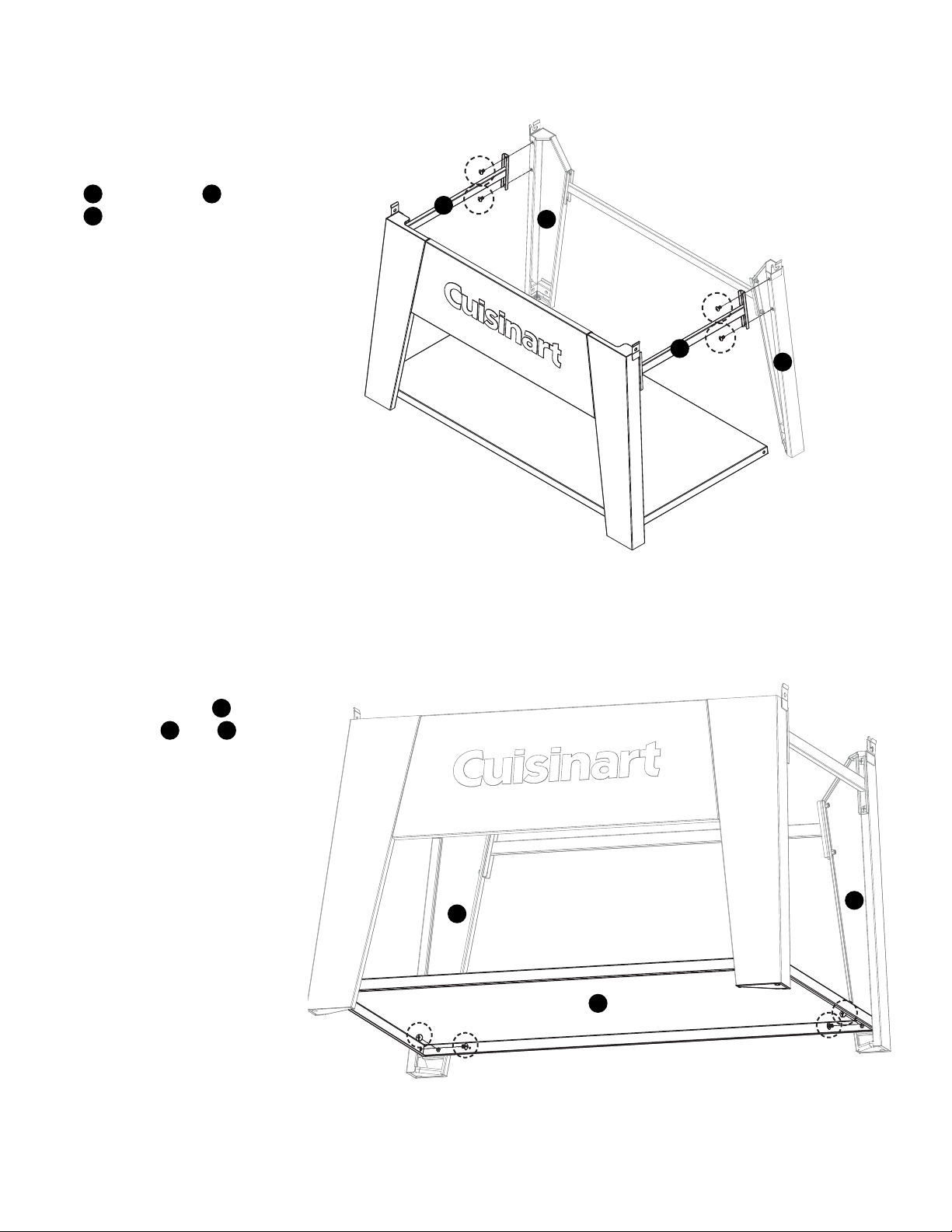

• Attach cart base 26 to

front legs 12 and 13 using

4 screws removed from

Step 1.

Step 4

• Remove 12 screws.

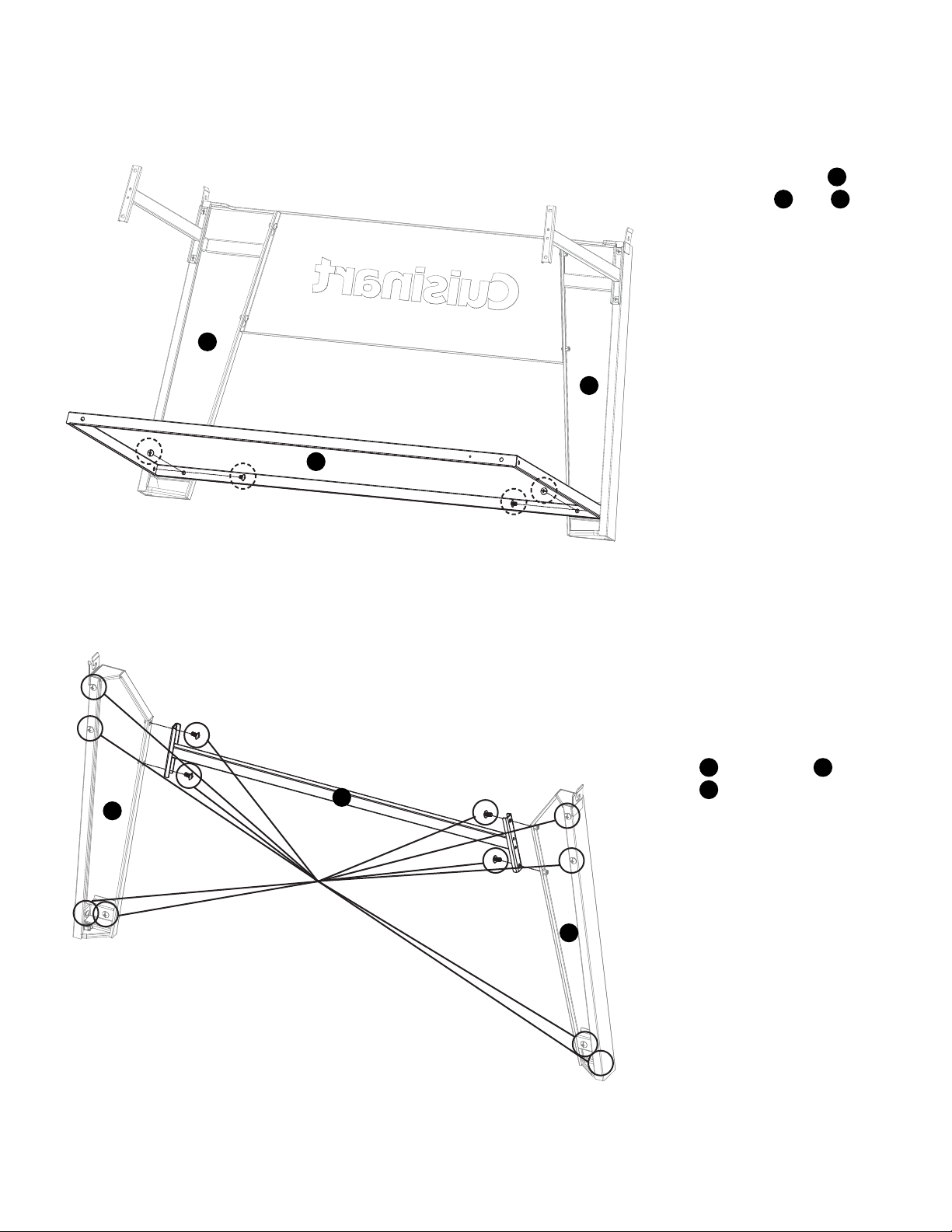

• Attach rear cart brace

5to rear legs(14 and

15 ) using 4 screws just

removed.

Remove

• Attach cart base 26 to

rear legs (14 and 15 )

using 4 screws removed

from Step 4.

• Tighten all screws.

• Attach side cart braces

11 to rear legs (14 and

15 ) using 4 screws

removed from Step 4.

Step 6

Step 5

Step 7

Step 8

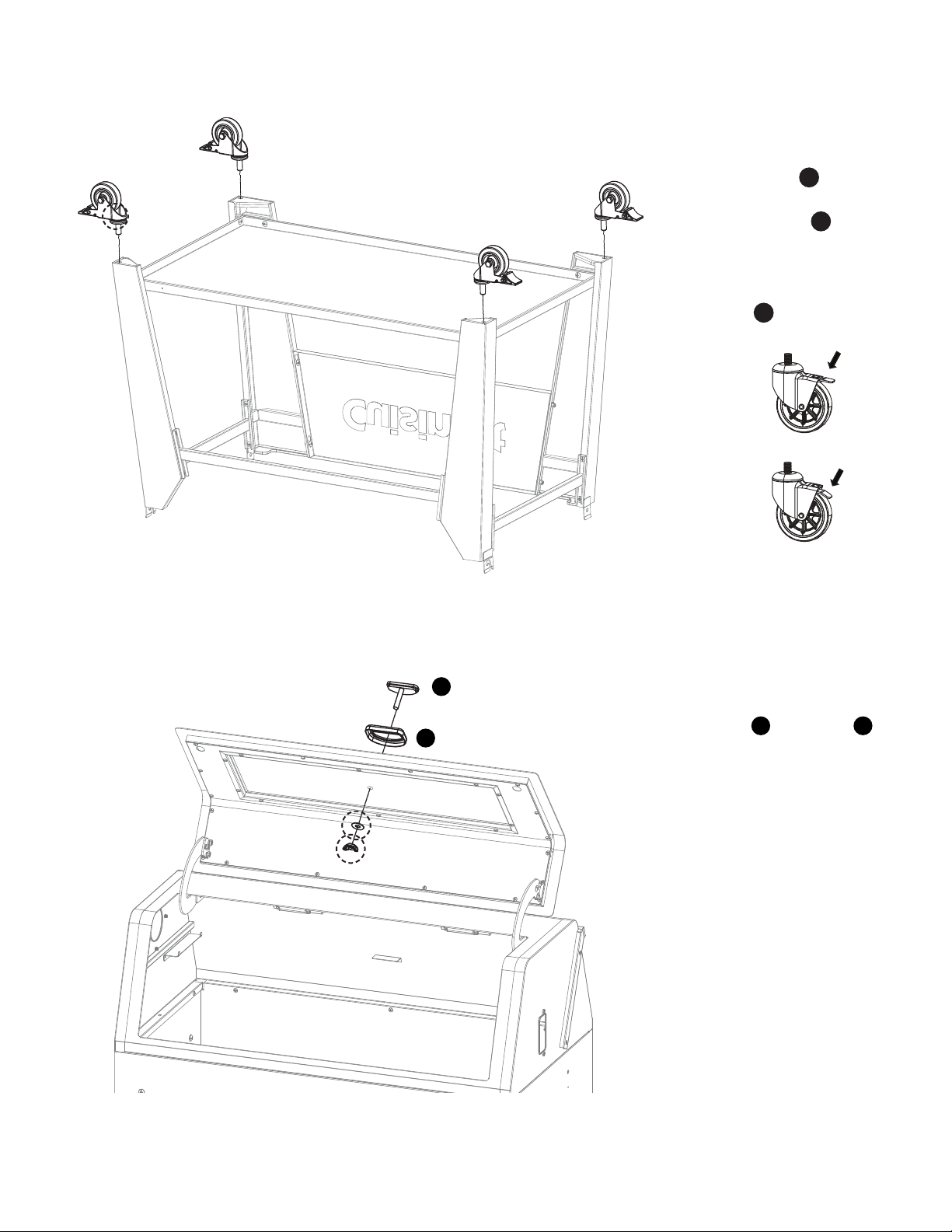

• Attach temperature

gauge 17 and bezel 16 to

hood using pre-attached

washer and wing nut.

• Lock casters 21 .

• Attach casters 21 to legs.

CASTERS

locked

unlocked

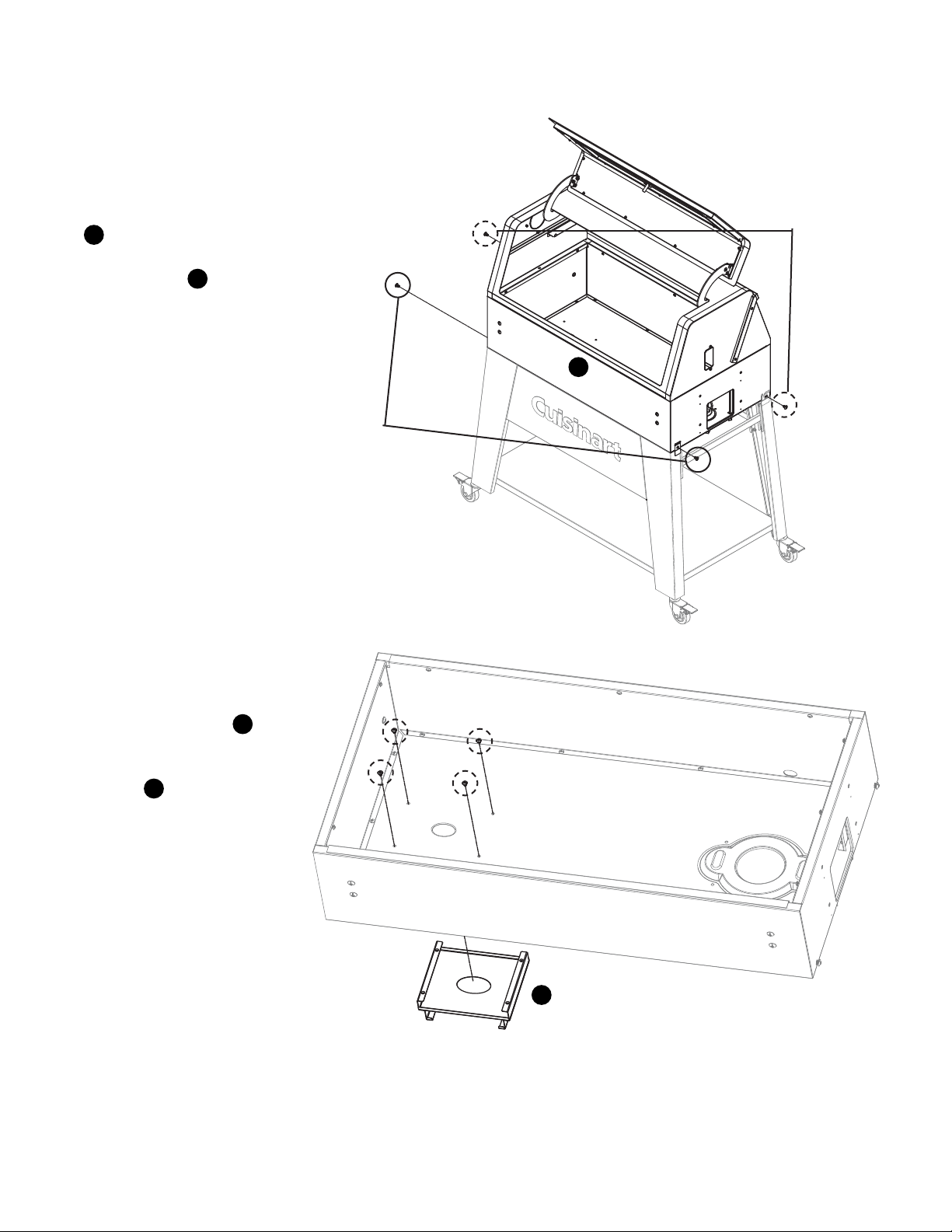

• Loosen 2 rear screws and

remove 2 front screws on

both sides of grill body

• Set grill body 9on cart.

Make sure rear screws

drop into cart brackets.

• Install front screws

through front brackets.

• Tighten 4 screws.

Step 10

Step 9

• Remove 4 screws from

grease cup bracket 31 .

• Attach grease cup

bracket 31 to bottom of

rebox using 4 screws

just removed.

Loosen

Remove

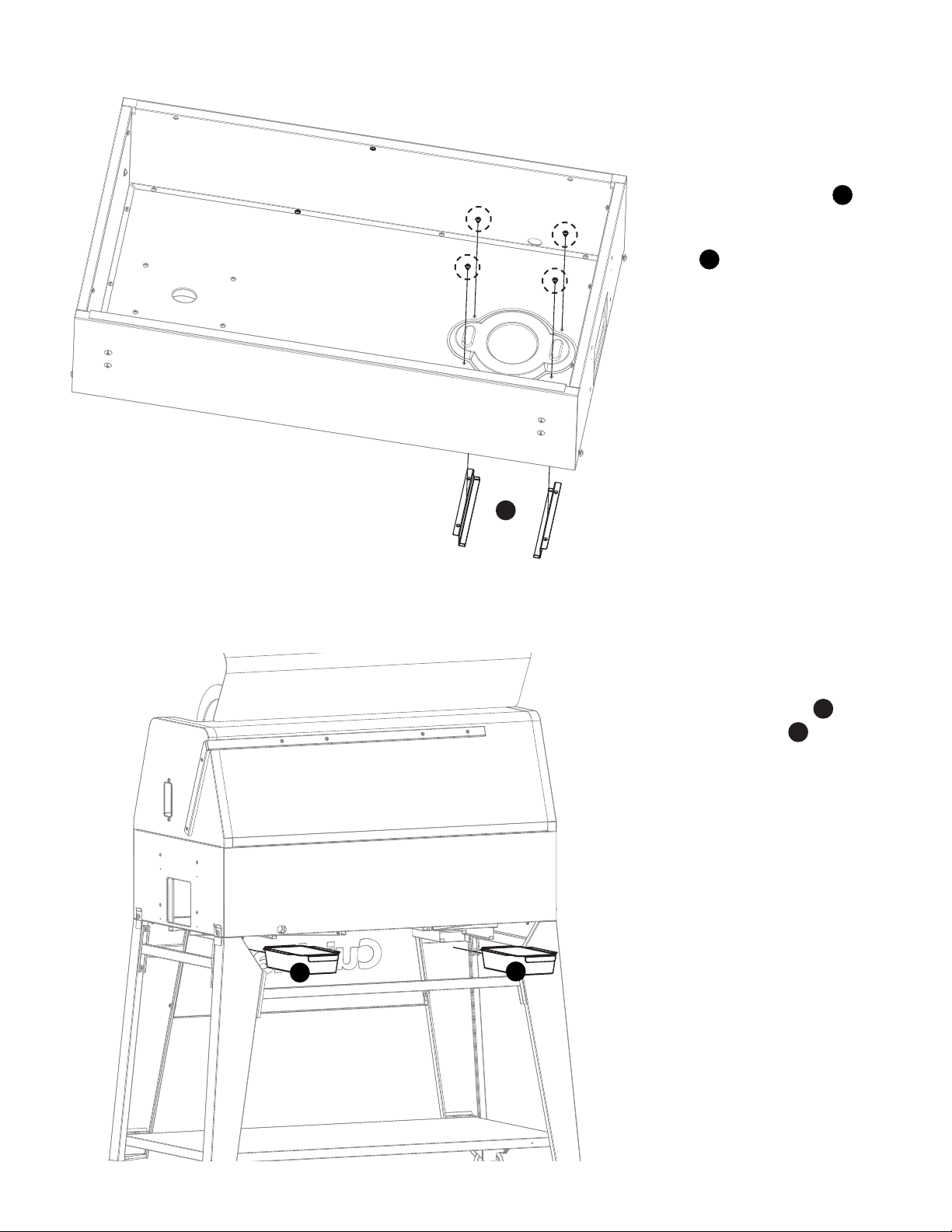

• Remove 4 screws from

ash cup brackets 32 .

• Attach ash cup brackets

32 to bottom of rebox

using 4 screws just

removed.

Step 11

Step 12

• Install ash cup 35 and

grease cup 34 .

35 34

Step 14

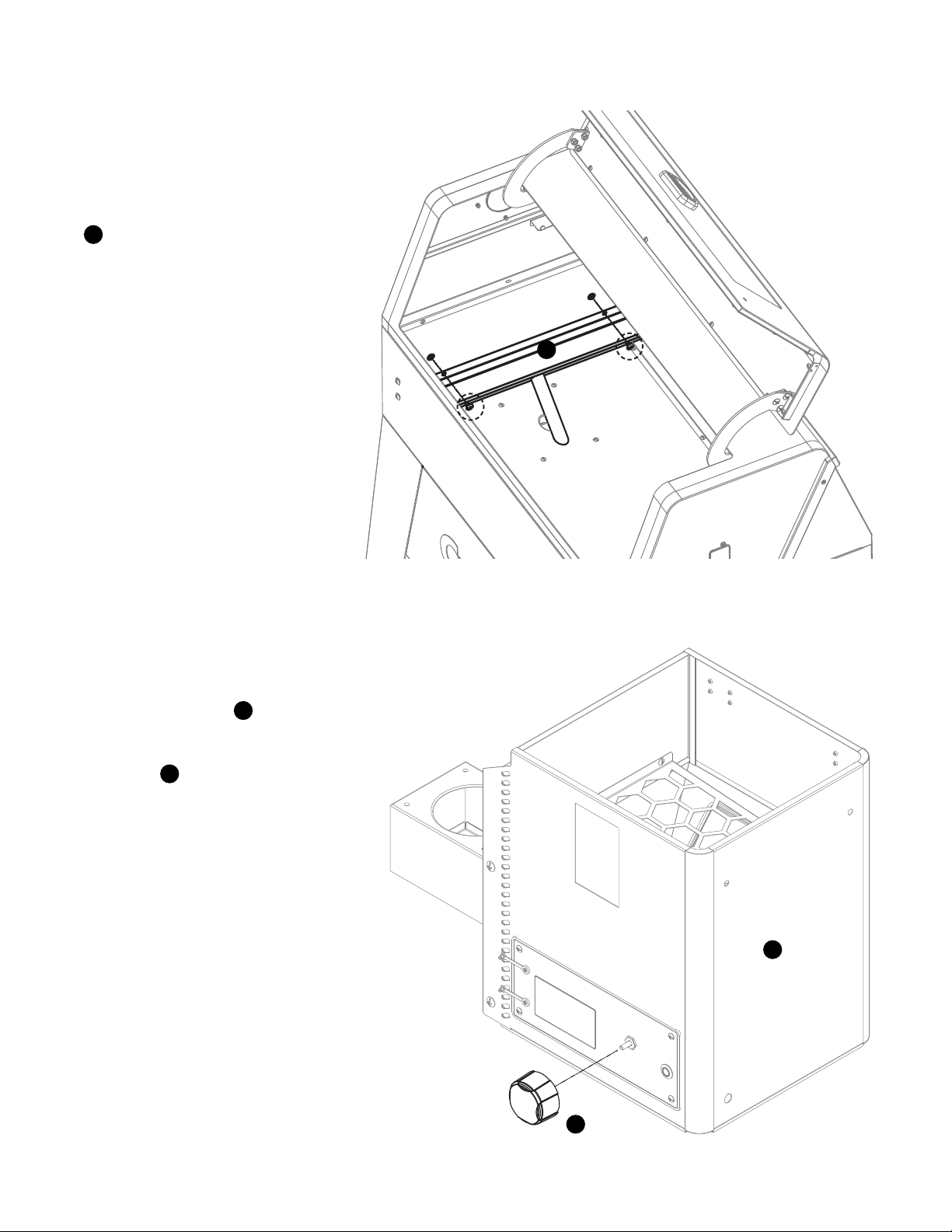

• Remove 2 screws.

• Attach grease channel

• Tighten 2 screws.

Step 13

• Attach control knob 36

to the controller located

on the pellet hopper

assembly 28.
