General instructions

 Use only the supplied pressure regulator.

 This appliance is suited for propane or butane gas.

 Check that there are no kinks in the gas hose.

 Keep the griddle away from (easily) flammable material.

 Do not move the gas griddle during use.

 Always close the tap on the gas cylinder if the griddle is no longer being used.

 Parts sealed by the manufacturer or his agent must not be altered by the user. It is

necessary to use protective gloves when handling particularly hot components.

 Any modification of the appliance may be dangerous. Turn off the gas supply at the gas

container after use.

GAS GRILL

INSTRUCTION MANUAL

MODEL: CGG2

WARNING: FOR OUTDOOR USE ONLY

PLEASE KEEP THE MANUAL FOR FUTURE REFERENCE!

- 1 -

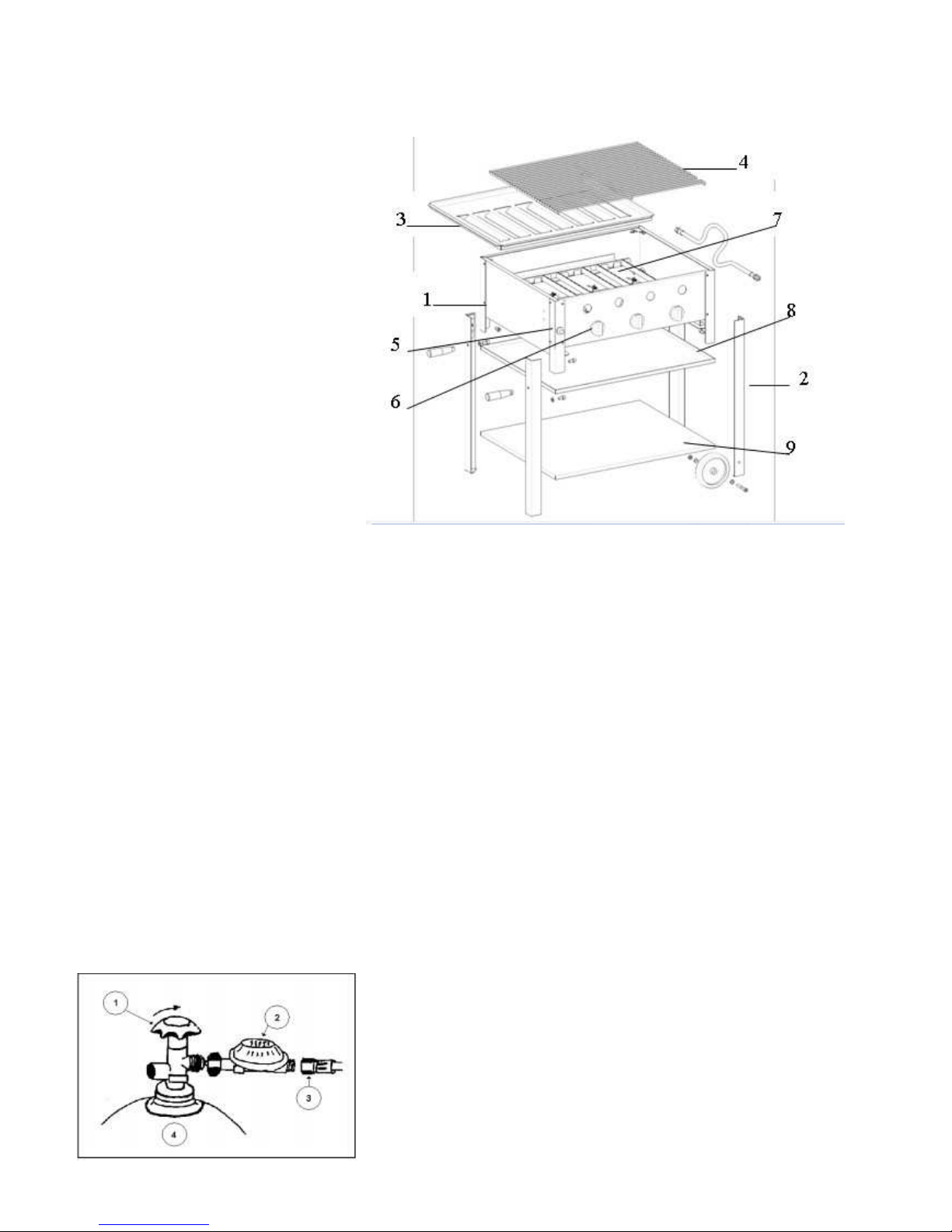

Grill part:

Item Description

Connecting the gas bottle

1 = main tap

2 = pressure regulator

3 = gas hose

4 = gas bottle

Attach the pressure regulator to the gas bottle using the large brass nut.

Always ensure that the rubber-sealing washer

is present in the nut.

Tighten the nut well. Note that the nut has a left-

hand thread. Check the

connections for leaks using a soap and water solution.

Pls note that the length of the hose do not more 1.5m. It is necessary to

change the flexible tube when the national conditions require it.

The gas bottle max 15kgs

Pls keep the gas cylinder at least 50cm away from grill when using.

1 Panel

2 Grill stand

3 Flame tamp

4 Grid

5 Ignitor

6 Knob

7 U-Burner

8 Drip pan

9 Stand pan

- 2 -

WARNING: Keep the gas cylinder away from the fire.

Leak Testing

Never use a naked flame to check for leaks

 The valve of the gas cylinder should be in the OFF position at this point of the leak test

Once the soapy solution is applied to the gas connections, the valve of the gas cylinder needs to be

turned to the ON position.

 Soap bubbles will begin to form is the soapy solution if a leak is present.

 In case of a leak, turn off the gas supply. Tighten any leaking fittings, then turn the gas supply

on and recheck.

Igniting the gas griddle

 Place the grill grid.

 Turn the knob to the “normal” position. Keep the knob pressed and press the ignition button a few times

until the burner is burning completely. Keep the knob pressed in for approximately a further 10 seconds.

The burner will continue to burn.(see pic.)

Turning off the gas griddle

 Turn the knob completely to the right. The burner will go out.

(Note! After turning off the burners, wait approximately 10 minutes before reigniting the burners.

After turning off the burners, always turn off the main tap on the gas cylinder!

Maintenance

To enjoy years of outstanding performance from your grill, make sure you perform the following maintenance

activities on a regular basis:

 Keep exterior surfaces clean

 Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents.

 While washing your unit, be sure to keep area around the burner and pilot assembly dry at all times. If

the gas control is exposed to water in any way. DO NOT try to use it. It must be replaced.

 Airflow must be unobstructed. Keep controls, burner and circulation air passageways clean.

 Carbon deposits may create a fire hazard. If any carbon deposits develop, clean and engine with warm

soapy water

- 3 -

Comment

 It is to be recommended to replace the gas hose after 3 or 4 years by one delivered by the

manufacturer (see date shown on hose). The gas hose becomes porous after a time.

 Only replace the pressure regulator by one delivered by the manufacturer.

 Consult the local regulations, these may differ.

 Always store gas bottles upright, even when empty.

Fault Possible cause Fault Possible cause

Defective igniter Gas cylinder is (almost) empty

Defective thermocouple Kink in gas hose

Dirty sparking plug

Defective pressure regulator

Empty gas cylinder

The main gas tap in the gas

cylinder is not fully open

Kink in gas hose Main jet clogged

Burner will not ignite:

Clogged jet

Burner dose not burn fully:

Defective gas tap

Gas Grill

K1102

Country

SE-DK-FI -IS-NO AT-CH-DE-ES-FR-GR

PL CZ-FR-GB-GR-IE-PT

AT-CH-DE-NL

Output

10KW 10KW 10KW 10KW 10KW

Category

3B/P(30)

3B/P(50)

3B/P(37)

3P(37)

3P(50)

Jet

φ0.94 mm φ0.80 mm φ0.88 mm φ0.94 mm φ0.88 mm

Consumption

728 g/h 728 g/h 728 g/h 728 g/h 728 g/h

Set up for

G30/G31-30 mbar G30/G31-50 mbar G30/G31-37 mbar G31-37 mbar G31-50 mbar

Disposal

At the end of its life span, dispose of the appliance in accordance with the then applicable rules and regulations.

Warnings: Use Outdoor Only!

Read the instructions before using this appliance.

Accessible parts may be very hot, keep young children away.
