Crystal Image Technologies RM-FD117A Manuel utilisateur

- 1 -

LCD Drawer User Manual

RM-FD117A

- 2 -

This manual, covering various aspects of the equipment such as installation, setup and

cascade, will help you make full use of this LCD Drawer. Please read this manual carefully

and install and operate the equipment according to the manual to avoid damage to this

product its accessories.

Product package includes following items:

1 * 17.3 inch LCD KVM Drawer;

1 * AC Power Cord

1 * Rack installation bracket ( one pair )

1 * USER’S manual (CD)

1 * 1.8 Meter VGA cable

1 * 1.8 Meter DVI cable

1 *1.8 Meter USB A Type cable

1 *1.8 Meter Audio cable

1 *1.8 Meter HDMI cable (option)

Please check items above. If any item is missing or damaged, please contact us at

800-542-2489 / [email protected]

- 3 -

Table of Contents

1 Introduction …………………………………………………………………………-4-

1.1Overview…………………………………………………………………...….

-4-

1.2 Functions & Features…………………………………… ……………...…..-4-

1.3 Hardware Requirement……………………………………………..….……-4-

1.3.1 Host Requirement………………………………………………....… -4-

1.3.2 Cables…………………………………………………………...….… -4-

1.4 Product Specifications………………………………………………..….…..-5-

1.5 LCD Specifications………………………………………………….…..……-5-

1.6 Front View………………………………………………………….…..……. -6-

1.7 Rear View……………………………………………………………..….…...-7-

2 Installation……………………………………………………………………...……-8-

2.1 Rack Installation……………………………………………………………… -8-

2.2 Standard Installation……………….………………………………….…… -9-

2.3 LCD KVM Console and KVM Cascade Installation…………… …….…. -10-

2.4 LCD OSD Menu Setup………………………………………………..….… -11-

3 Certificates………………………………………………………………..….….… -12-

- 4 -

1 Introduction

1.1 Overview

RM-DF117A LCD drawer integrates keyboard, LCD display and touch pad in a drawer type

worktable and provides a convenient space-saving operation mode. The cover is an LCD

display,while the base is keyboard and touchpad.

RM-DF117A console is a control device integrating 17.3” LCD, 104 keys keyboard and

touchpad mouse. Flexible dual rail design, capable LCD screen and keyboard tray

operated independently.

LCD console is the best choice to save time and efforts. Since all hosts can be

controlled from a single main control terminal, using the LCD Console:(1)avoids the

cost of keyboard, mouse and monitor of each host; (2) saves work space; (3) saves

power; (4) saves the trouble of moving from one computer to another.

* For Mac and Sun hosts, USB cable must be used for connection.

1.2 Function & Features

RM-DF117A is integrated to a drawer type worktable of 1U height to facilitate rack

installation. Supported resolution up to 1920 x 1200 , 75Hz. It meets the 1U height of

rack specifications and can be installed into 19 inch rack cabinet. Dual rail design allows

LCD screen and keyboard tray operated independently. No need to install additional

software or hardware.

1.3 Hardware Requirement

1.3.1 Hosts Requirement:

(1) DVI, VGA graphic card (HDMI graphic card for HDMI option)

Note: the max. resolution of the integrated LCD display is 1920x1200. Make sure the

resolution of any connected computer does note exceed this resolution.

(2) USB port for keyboard and mouse.

1.3.2 Cables

(1) DB-15 VGA cable male to male

(2) USB A Type Cable

(4) Audio Cable

(3) DVI-D Cable male to male

(3) USB 2.0 Hub for peripheral USB device

(5) HDMI Cable (option)

- 5 -

1.4 Product Specifications

Model RM-DF117A

Brightness 300cd/m2

Contrast 650:1

Angle of visibility 140°(H),120°(V)

Color display 262K

Keyboard

Mouse Keyboard/Mouse

DVI-D

VGA HD-15 female connector

Local Control

Terminal

USB 2.0 For USB peripheral device

Video resolution 1920 x 1200 @75Hz

Power supply

Housing Metal housing

Weight 15Kg

Dimension(W x H x D)

104 keys

touch pad mouse

100-240V AC 50/60Hz via IEC Type power cord

482 x 44 x 685(mm)

24 pin DVI-D female connector

USB 2.0

- 6 -

1.6 Front View

NO Part Function Description

1 Handle to adjust screen opsition

2 LCD display

3 Keyboard

4 Touchpad

4 6

5 LCD OSD button

6 Mounting bracket Install into rack cabinet

LCD button to control Screen Display position and

image setting.

7 USB2.0 HUB port

- 7 -

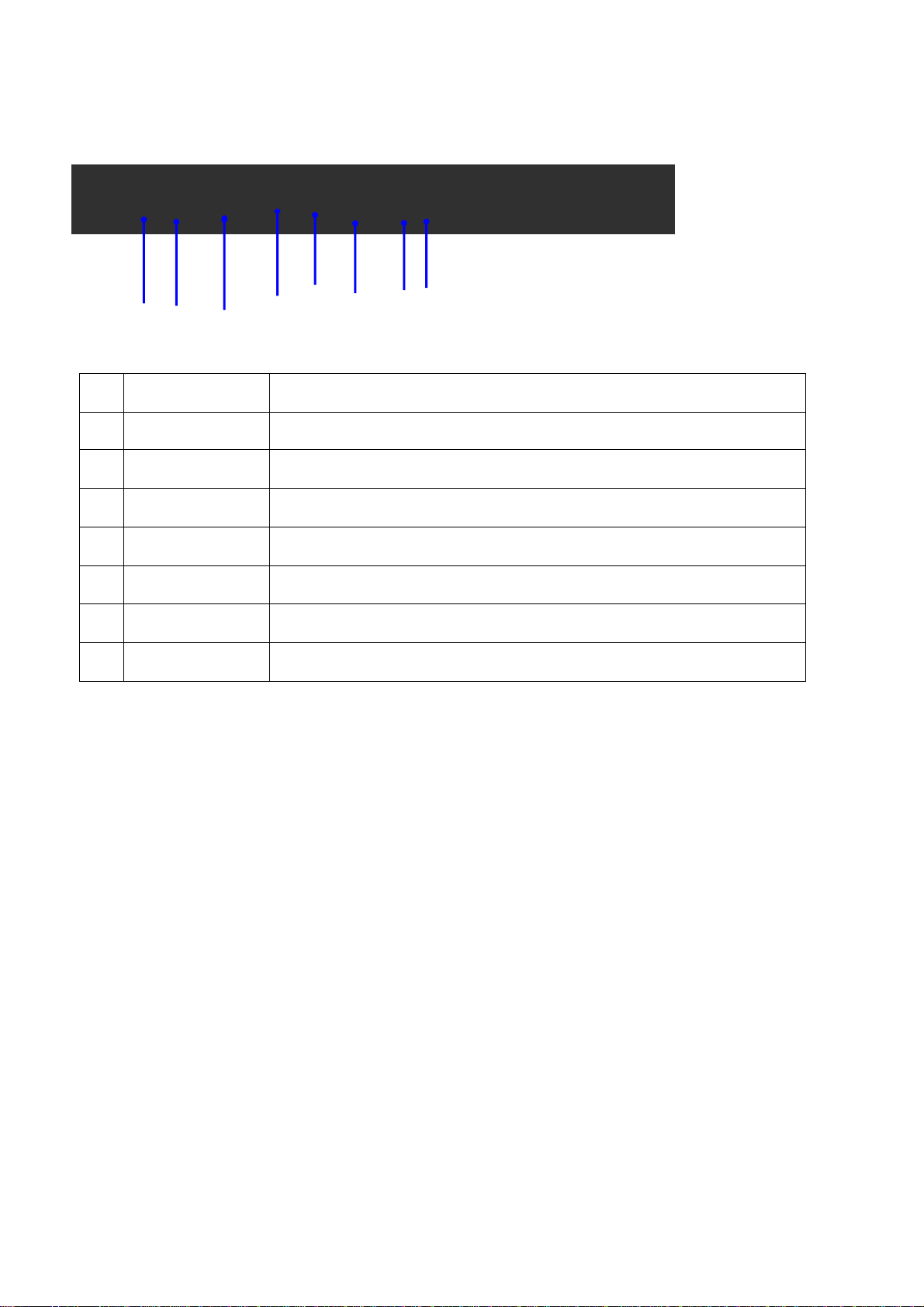

1.7 Rear View

No Component Function Description

1 AC Power port Standard IEC Type AC Inlet

2 Power Switch Rock switch, turn on/off equipment main power.

3 Audio port For audio function

4 VGA port Connect to server or KVM.

5 USB port

6 DVI port Connect to server or KVM.

7 USB 2.0

1 2 3 4

Connect to server or KVM.

677

For USB peripheral device

2 Installation

2.1 Rack Installation

- 8 -

Step 1

Step 2

Attach the two rear slide rails to the rear vertical mounting rails ofthe rack cabinet using

standard M6 cage nuts and screws.

Step 3

Position the LCD console drawer so the two rear slide rails will slide into the main body

of the LCD console drawer. Attach the mounting ears of the LCD console drawer to the

front vertical mounting rails of the rack cabinet using standard M6 cage nuts and screws.

Rear Cabinet Rails

Rear Slide Rails

Loosen screw Aon both sides to slide out and remove the two rear slide rails.

- 9 -

2.2 Standard Installation

Please follow the installation drawing and instructions below for standard installation:

* Please Shutdown the Power of Equipment Needs to be Connected

* Please Pay Attention to Earthing of Equipment

The standard installation is completed, and LCD KVM console can be powered on. Then

power on connected hosts.

RM-DF117A-REAR-CHASSIS

- 10 -

2.3 LCD KVM Console and KVM Cascade Installation

LCD KVM console port can be directly connector to another KVM Switch as cascade to

Perform unified management all connected hosts. Please follow the installation drawing

and instructions for standard installation:

(1) Make sure to power off all equipment to be connected and existing equipment.

(2) Switching slide switch on USB position

(3) Use an USB / VGA cable to connected the LCD and KVM switch console port.

(4) Turn on the KVM and LCD console power first and then power on hosts to prevent loss of

any keyboard or mouse.

Cascade connection drawing:

VGA USB VGA

USB
