BIMINI BUDDY

HYDRAULIC SEPARATOR

Designed to be installed with any

wall-mounted Bimini boiler.

The Bimini Buddy is designed to be installed with any

wall-mounted Bimini boiler and includes all near boiler

piping needed for good hydraulic separation and air

elimination in a compact factory assembled package. In

addition, some models include provisions for domestic

hot water production.

The BB100I and BB100C models utilize the circulator

that comes with a Bimini boiler, so a separate circulator

isn’t required. They also include a three way zone valve

for domestic hot water priority that is wired directly to

the Bimini without the use of any additional controls.

All Bimini Buddies come with an attractive jacket and

convenient connections for the boiler system, air vent,

and expansion tank.

Three Bimini Buddy Models

BB100H - For heat only applications.

BB100I - For connection of a Bimini boiler

to a heating system and an indirect water

heater like the Mega-Stor®

BB100C - Combi unit with a plate heat

exchanger and flow switch for domestic

hot water production in tight places.

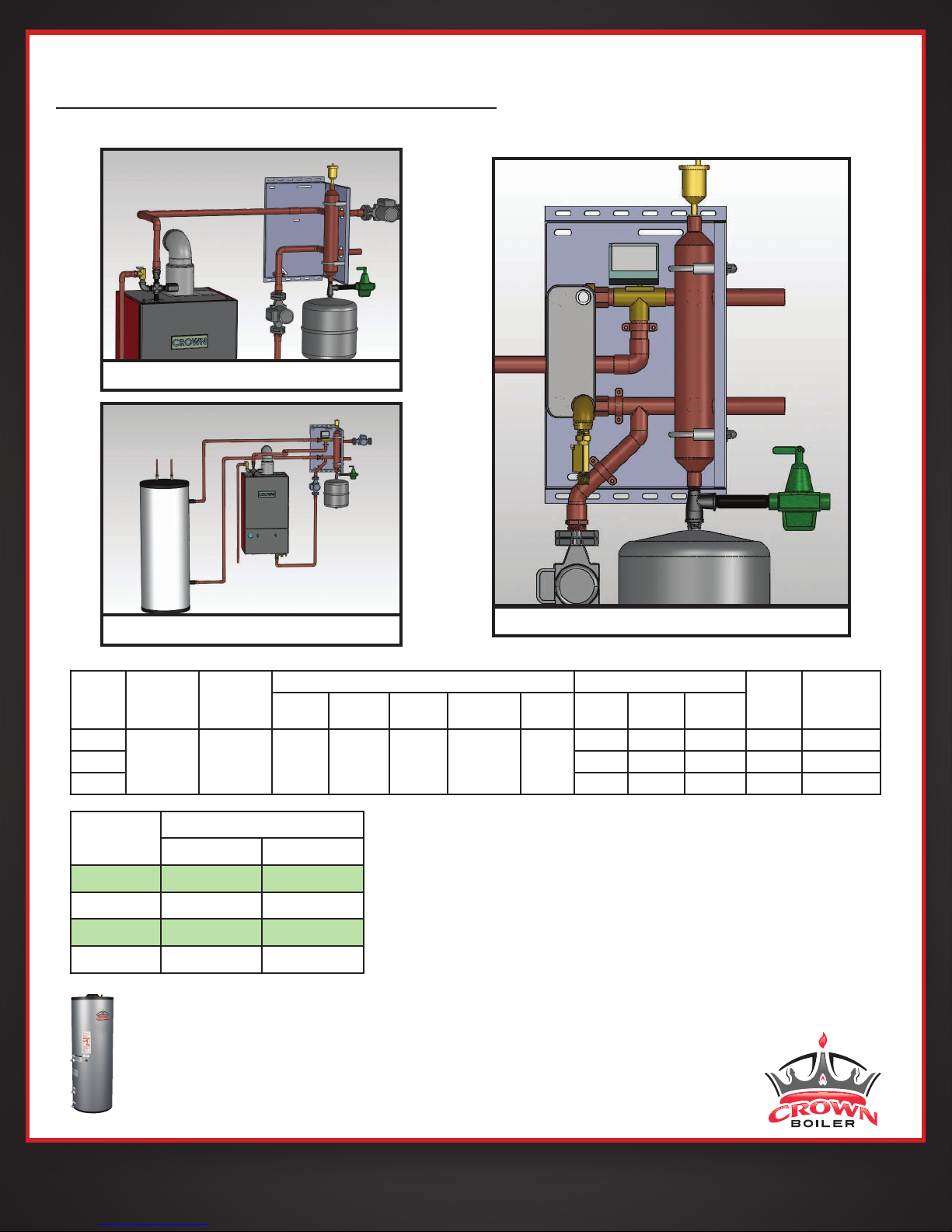

Introducing the New Bimini Buddy

www.crownboiler.com | Philadelphia PA

BIMINI BUDDY

TECHNICAL SPECIFICATIONS

Specifications are subject to change without notice.

BB100 - 12/12

PN 980099 - R1

MODEL

MAX.

OPERATING

PRESSURE

MAX.

OPERATING

TEMP.

CONNECTIONS DIMENSIONS

WEIGHT

MAX

EXPANSION

TANK DIA.

BOILER

SUPPLY

BOILER

RETURN SYSTEM EXPANSION

TANK

AIR

VENT WIDTH HEIGHT DEPTH

BB100H

50 PSI 200°F 1”

COPPER

1”

MPT

1”

COPPER

1/2”

FPT

1/2”

FPT

12” 19-3/4” 12-1/2” 24 LBS 11”

BB100I 12” 19-3/4” 12-1/2” 27 LBS 11”

BB100C 12” 19-3/4” 12-1/2” 30 LBS 11”

Standard Equipment on BB100H and All Bimini Buddy Models

• Factory assembled

• Deluxe painted cover with slots for wall mounting

• Hydraulic separator

BB100C includes standard equipment as well as:

• Brazed plate heat exchanger for domestic hot water

• 120 Volt three way zone valve

• Flow switch

• 1/2” MPT inlet, 3/4” MPT outlet connections

BB100I includes standard equipment as well as:

• 120 Volt three way zone valve for domestic hot water priority

• Indirect water heater connections (1” copper)

Bimini

Model

Continuous Draw (GPM)

77°F Rise 90°F Rise

BWC070 1.5 1.3

BWC090 2.1 1.8

BWC120 2.7 1.8

BWC151 2.9 1.9

The Mega-Stor® indirect water heater

utilizes the energy created by your boiler to

produce abundant hot water for your home.

Mega-Stor water heaters come in a variety

of sizes from 26 to 119 gallons to meet a

multitude of residential and commercial

needs.

BB100H*

BB100I* BB100C*

*Expansion tank, air vent, and fill valve not included.
