BIMINI SERIES

RESIDENTIAL HIGH EFFICIENCY,

CONDENSING, GAS-FIRED,

HOT WATER BOILER

Cast aluminum heat exchanger

Microprocessor based control system with:

- Digital touch pad and display

- Outdoor reset temperature sensor

- Domestic hot water priority

Multiple venting options

- CPVC/PVC

- PPs - concentric polypropylene

- PPs - chimney vent liner

- AL29-4C Stainless

Six sizes from 70 to 225 MBH

Natural or LP gas

See back side for piping configurations

Wall mount model shown above.

Bimini Buddy Hydraulic Separator

designed to be installed with any

wall-mounted Bimini boiler and in-

cludes all near boiler piping need-

ed for good hydraulic separation

and air elimination in a compact,

factory assembled package.

Three Models Available

BB100H - For heat only applications.

BB100I - For connection of a Bimini boiler to a heating sys-

tem and an indirect water heater like the Mega-Stor® .

BB100C - Combi unit with a plate heat exchanger and flow

switch for domestic hot water production in tight places.

www.crownboiler.com | Philadelphia PA

BWC SERIES - BIMINI

TECHNICAL SPECIFICATIONS

Specifications are subject to change without notice.

All Bimini boiler models include a full one-year warranty. A

15-year limited warranty is provided for the heat exchanger.

A 5-year and a 10-year extended warranty covering parts and

labor are also available. Visit CrownBoiler.com or see your

warranty for complete details.

The Mega-Stor® indirect water heater utilizes the

energy created by your boiler to produce abundant

hot water for your home. Mega-Stor water heaters

come in a variety of sizes from 26 to 119 gallons to

meet a multitude of residential and commercial

needs.

ADDITIONAL FEATURES/BENEFITS

• Available for use with natural or LP gas

• Wall mount and floor models available

• Optional pedestal base for wall mount model

• Approved for closet installation with clearances specified in the

installation manual

• Probe low water cut-off standard

• Commercial models available, consult factory

MODEL NO. OF

SECS.

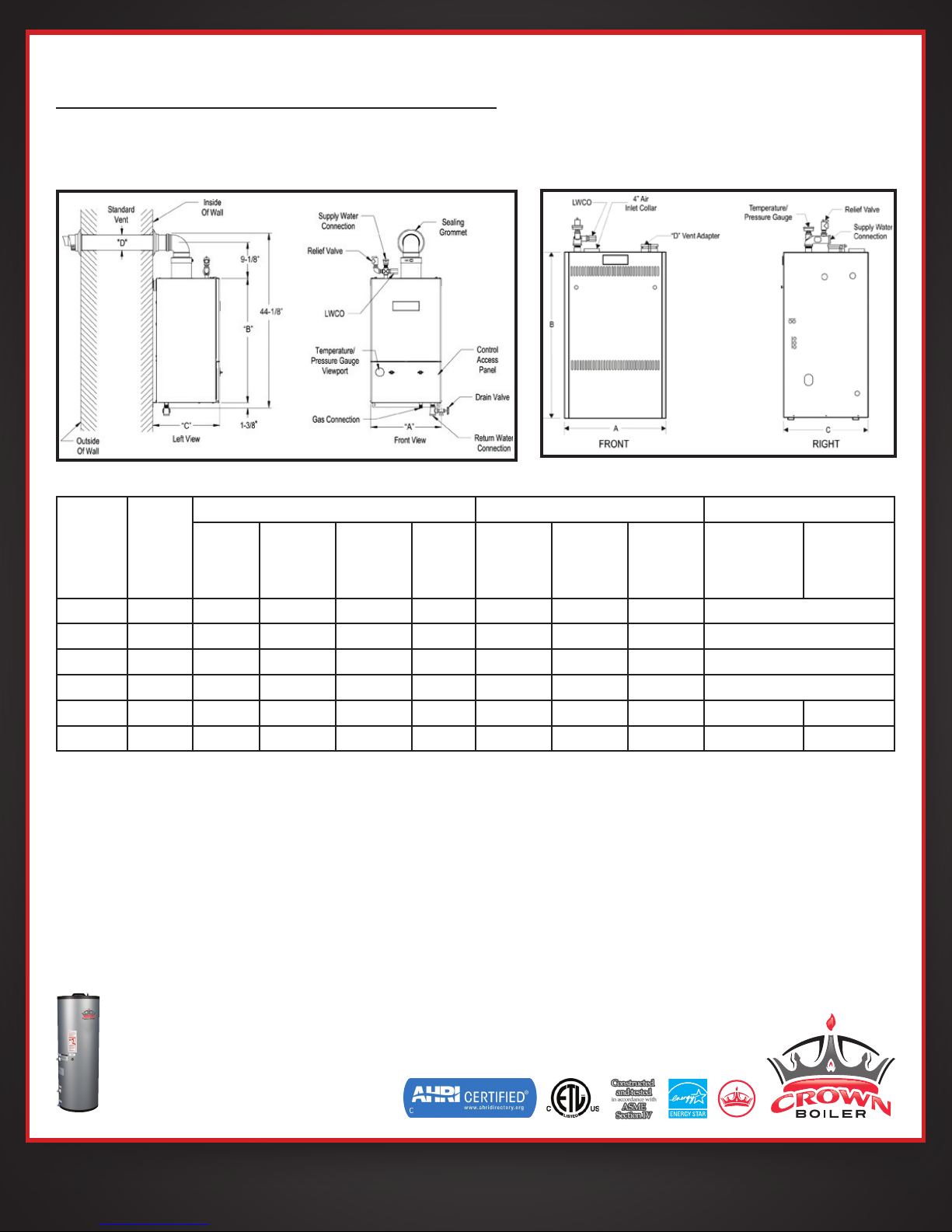

NATURAL AND LP GAS DIMENSIONS (INCHES) COLLAR DIAMETERS*

INPUT

MBH

HEATING

CAPACITY

MBH

NET

WATER

RATING

MBH

AFUE

%“A” “B” “C” AIR INLET D

BWC070 Mono 70 63 55 91.0 17-7/8 31-1/2 17 60/100mm Concentric Vent

BWC090 Mono 90 80 70 91.0 17-7/8 31-1/2 17 60/100mm Concentric Vent

BWC120 Mono 120 107 93 90.0 17-7/8 31-1/2 17 60/100mm Concentric Vent

BWC151 Mono 150 135 119 90.5 17-7/8 31-1/2 20-1/2 80/125mm Concentric Vent

BWC150 3 150 133 117 90.5 23-3/8 43-3/4 22-1/4 4” 3”

BWC225 4 225 202 176 91.0 27 43-3/4 22-1/4 4” 4”

IMPORTANT: THIS BOILER REQUIRES A SPECIAL VENTING SYSTEM. READ INSTRUCTIONS CAREFULLY BEFORE INSTALLING.

*See installation manual for other venting specifications.

1. Altitudes above 2,000 ft. - ratings should be reduced at a rate of 4% for each 1,000 ft. above sea level (US only)

2. The Net Water Ratings are based on a piping and pickup allowance of 1.15.

3. The manufacturer should be consulted before selecting a boiler for installations having unusual piping and pickup requirements, such as intermittent

system operation, extensive piping systems, etc.

4. Models BWC070/090/120/151 may be installed on non-carpeted combustible surfaces when mounted on optional pedestal base.

5. Models BWC150/225 may be installed on non-carpeted combustible surface.

BWC070 - BWC090 - BWC120 - BWC151 BWC150 - BWC225

BWC - 12/12

PN 980039 - R6
