Crestron TS-770-GV Manuel utilisateur

The Crestron® TS-770-GV and TS-1070-GV are tabletop touch screens

that feature web browsing, Smart Graphics® software and HTML5

UItechnology, custom-programmable virtual buttons, H.265/H.264

streaming video, and PoE+(Power over Ethernet Plus)network power.

The touch screens also provide built-in applications for room scheduling,

conferencing, and home control.

The TS-770-GV and TS-1070-GV are modified versions of the TS-770 and

TS-1070 series touch screens, which eliminate the microphone, the

Bluetooth® communications beacon, and Wi-Fi® network connectivity to

comply with government applications demanding extra privacy and

security.

NOTE:The TS-770-GV and TS-1070-GV are functionally similar. For

simplicity within this guide, the term "touch screen"is used except

where otherwise noted.

In the Box

1TS-770-GVor TS-1070-GV*, Tabletop Touch Screens

Additional Items

1 Grommet, Cable, Closed (2055455)

1 Grommet, Cable, Open (2055456)

1 Cover, Cable Compartment (2055457)

*Refer to the TS-770-GV-B-S and TS-1070-GV-B-S product pages at www.crestron.com

for a complete list of color variations.

Place the TouchScreen

The touch screen may be placed on any flat, level surface such as a desk,

conference table, lectern, or podium. The rubber strips on the bottom of

the touch screen prevent it from moving easily.

NOTE:To clean or disinfect a touch screen display, use a soft, clean,

damp (not wet) cloth with any commercially available non-ammonia

glass cleaner or disinfectant cleaner. Bezels do not provide a complete

watertight seal, so apply cleaning solution to the cloth rather than the

surface of the touch screen. Wipe the touch screen clean and avoid

ingress of moisture beneath the bezels.

TS-770-GV and TS-1070-GV QuickStart

7 in. and 10.1 in. Tabletop Touch Screens, Government Version

Connect the Touch Screen

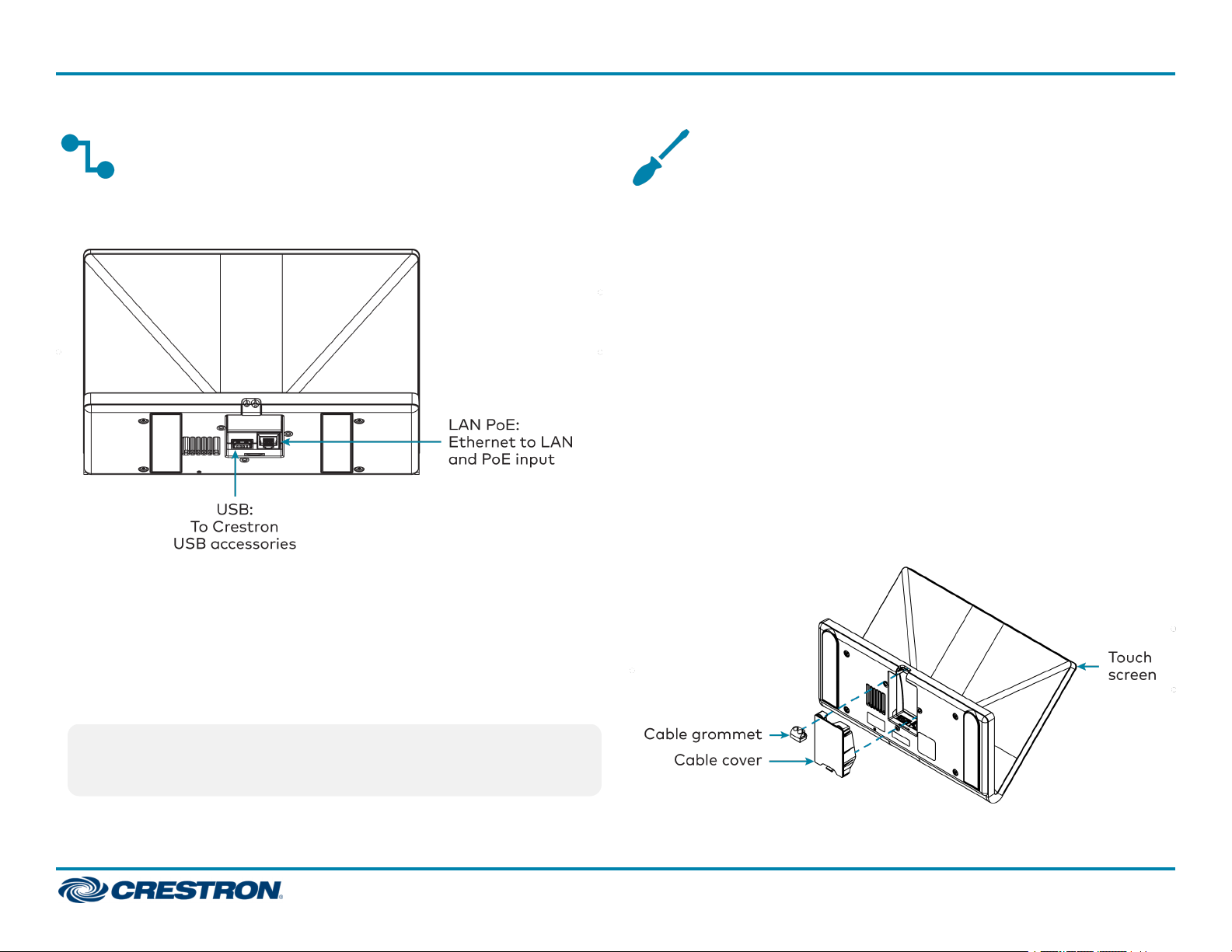

Route all necessary cables to the touch screen, and then make

connections to the bottom of the touch screen.

Observe the following when connecting the touch screen:

lPower and data connection is provided to the touch screen by a single

Ethernet cable. A Crestron PoE (Power over Ethernet) power supply,

such as the PWE-4803RU, or a PoE-capable network switch is

recommended (both not included).

lThe USB port is used to connect compatible Crestron LED accessories

to the touch screen.

NOTE: The TS-770-GV may use either PoE or PoE+ to supply power

to compatible LED accessories over USB; the TS-1070-GV must use

only PoE+ to supply power to LED accessories over USB.

lApply power after all connections have been made.

Install the Cable Grommet

The touch screen ships with two cable grommets that can used depending

on the planned cable route to the touch screen:

lUse the open grommet if cables will be routed out from the rear of the

touch screen. A cable compartment cover is also provided for this

installation.

lUse the closed grommet if cables will be routed from underneath the

touch screen.

To install the cable grommet:

1. If using the open grommet, push the cables into the openings in the

grommet.

2. Push the grommet into its slot on the bottom of the touch screen so

that the two tabs on either side of the grommet engage the slots in

the touch screen.

3. If using the open grommet, slide the cable compartment cover into its

slot on the bottom of the touch screen so that the front tab engages

the latch.

TS-770-GV and TS-1070-GV QuickStart

7 in. and 10.1 in. Tabletop Touch Screens, Government Version

Configure the Touch Screen

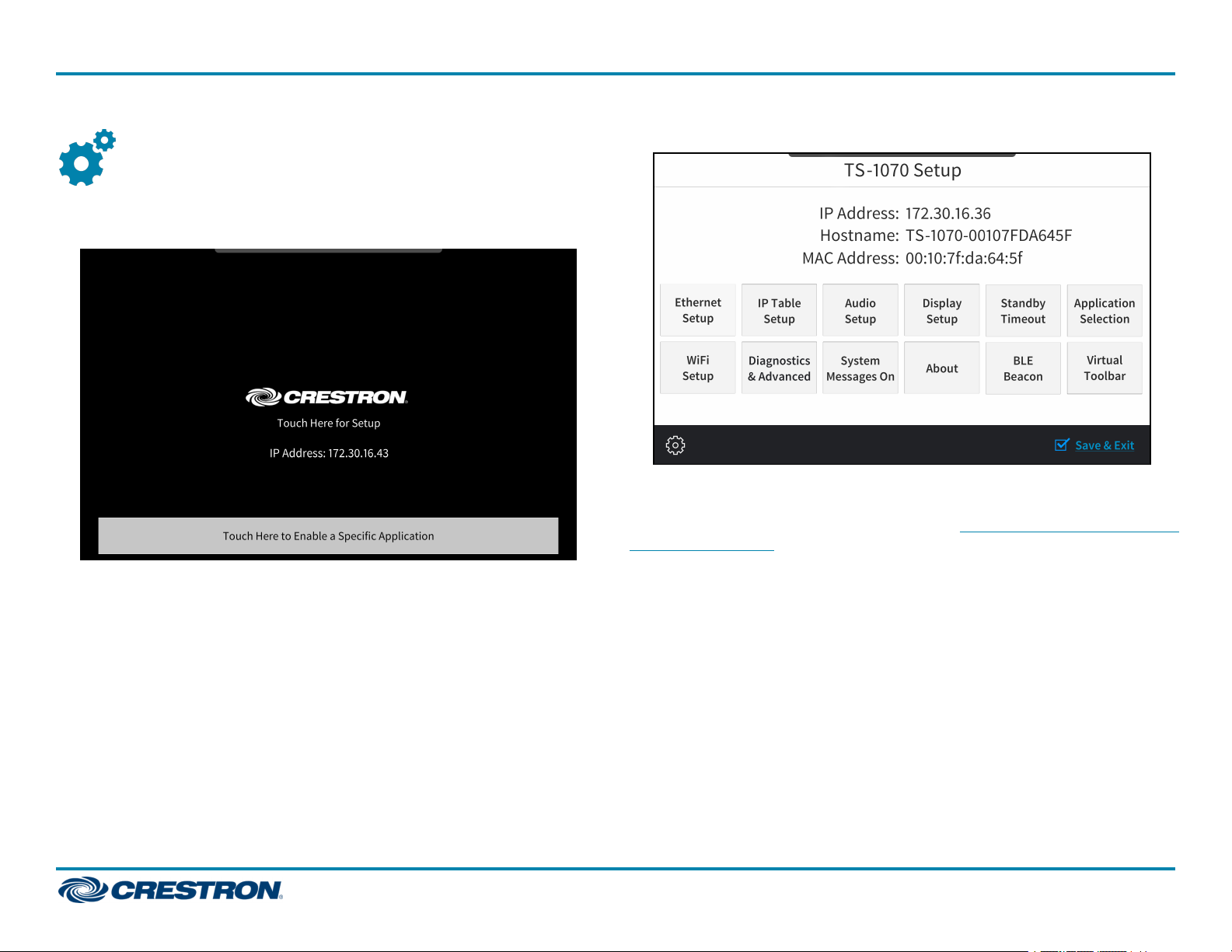

When power is applied for the first time, the following screen is displayed.

The touch screen may take up to two minutes to boot.

Touch the screen to display the main Setup screen (TS-1070 shown).

Device settings for the touch screen may be configured using the built-in

setup screens or the web configuration interface. For more information

on configuring the touch screen, refer to the TS-770 and TS-1070 Product

Manual (Doc.8555).

Access the Device Setup Screens

To access the built-in setup screens, place five fingers on the display and

hold for 15 seconds.

Use the setup screens to configure various settings for the touch screen,

including Ethernet setup, IP table setup, audio setup, display setup,

standby timeout, application selection, diagnostics, and the virtual

toolbar.

TS-770-GV and TS-1070-GV QuickStart

7 in. and 10.1 in. Tabletop Touch Screens, Government Version

Access the WebConfiguration Interface

The touch screen provides a web configuration interface that is used to

view and configure various touch screen settings and to select an

application. The interface can be accessed using the touch screen IP

address or the XiO Cloud® service.

Touch Screen IPAddress

To access the web configuration interface using the touch screen IP

address:

1. Ensure that the touch screen is connected to the network.

2. Use the Device Discovery tool in Crestron Toolbox™ software to

discover the touch screen and its IP address on the network.

3. Enter the control system IPaddress into a web browser.

XiOCloud Service

The XiO Cloud service allows supported Crestron devices across an

enterprise to be managed and configured from one central and secure

location in the cloud. Supported devices are configured to connect to the

service. Use of the service requires a registered XiOCloud account.

NOTE:The device may be disconnected from the service by navigating to

the Cloud Services tab in Crestron Toolbox software (Functions >

Device Info >Cloud Services). For details, refer to the Crestron Toolbox

help file.

To access the web configuration interface using the XiOCloud service:

1. Record the MAC address and serial number that are labeled on the

shipping box or rear panel of the device. The MAC address and serial

number are required to add the device to the service.

2. Do either of the following:

lFor existing accounts, access the XiO Cloud service at

https://portal.crestron.io.

lFor new accounts, register for a XiO Cloud account at

www.crestron.com/xio-cloud-registration.

3. Claim the device to the service as described in the XiO Cloud User

Guide (Doc. 8214).

4. Select the device from the cloud interface to view its settings.

Set the Time Zone

The time zone must be set on the touch screen if it will not be paired with

a control system IPtable.

To set the time zone:

1. Access the web configuration interface using either the touch screen

IP address or the XiO Cloud service.

2. Select the Settings tab.

3. Navigate to System Setup >Time/Date.

4. Select the time zone where the touch screen will be used from the Time

Zone drop-down menu.

5. Click Save Changes on the top right of the screen.

TS-770-GV and TS-1070-GV QuickStart

7 in. and 10.1 in. Tabletop Touch Screens, Government Version

Create an AdminAccount

The first time the web configuration interface is accessed, a dialog box is

displayed asking the user to create an admin account. A similar message

is displayed when connecting to the device in Crestron Toolbox software if

an admin account has not already been created.

To create an admin account:

1. Enter a username and password for the admin account in the

appropriate text fields.

CAUTION:Do not lose the username and password for the admin

account, as the device must be reset to factory settings to regain

access.

2. Click OK. A dialog box is displayed stating that enabling authentication

will restart the web session.

3. Click Yes to confirm and restart. The username and password created

in step 1 must be entered to regain access to the web configuration

interface.

NOTE:The username and password must also be entered when

connecting to CrestronToolbox or XPanel.

Select an Application

The touch screen ships with various built-in applications. An application

may be selected from the default project that ships with the touch screen.

NOTE:Applications can be selected and configured from the device

setup screens or from the web configuration interface at any time. For

more information, refer to the TS-770 and TS-1070 Product Manual

(Doc.8555).

To select a touch screen application:

1. Tap Touch Here to Enable a Specific Application on the device splash

screen. Refer to the first image in Configure the Touch Screen.

2. Select the desired touch screen application from the Choose

Application Below menu that is displayed.

3. Click Confirm. The touch screen reboots to display the user interface

for the selected application.

TS-770-GV and TS-1070-GV QuickStart

7 in. and 10.1 in. Tabletop Touch Screens, Government Version

If a custom user project will be used, tap User Project. Custom user

projects can be uploaded using the web configuration interface or

Crestron Toolbox software.

Visit the Product Pages

Scan the QR code to visit the product page.

TS-770-GV

www.crestron.com/model/6510832

TS-1070-GV

www.crestron.com/model/6510833

Additional Information

Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

Crestron product development software is licensed to Crestron dealers and Crestron

Service Providers (CSPs) under a limited nonexclusive, nontransferable Software

Development Tools License Agreement. Crestron product operating system software is

licensed to Crestron dealers, CSPs, and end-users under a separate End-User License

Agreement. Both of these Agreements can be found on the Crestron website at

www.crestron.com/legal/software_license_agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at

www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, visit

www.crestron.com/opensource.

Crestron, the Crestron logo, Crestron Toolbox, Crestron XiO Cloud, Rava, and Smart

Graphics are either trademarks or registered trademarks of Crestron Electronics, Inc. in

the United States and/or other countries. Bluetooth is either a trademark or registered

trademark of Bluetooth SIG, Inc. in the United States and/or other countries. Wi-Fi is

either a trademark or registered trademark of Wi-Fi Alliance in the United States

and/or other countries. Other trademarks, registered trademarks, and trade names may

be used in this document to refer to either the entities claiming the marks and names or

their products. Crestron disclaims any proprietary interest in the marks and names of

others. Crestron is not responsible for errors in typography or photography.

Doc ID 8776A

07/28/20

TS-770-GV and TS-1070-GV QuickStart

7 in. and 10.1 in. Tabletop Touch Screens, Government Version

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Crestron Écran tactile

Crestron

Crestron Isys i/O TPMC-15-CH-L Manuel utilisateur

Crestron

Crestron TSW-570PR Series Manuel utilisateur

Crestron

Crestron TSS-770 Manuel utilisateur

Crestron

Crestron TSW-560 Dessin dimensionnel

Crestron

Crestron TPS-6X Series Manuel utilisateur

Crestron

Crestron TST-902 Dessin dimensionnel

Crestron

Crestron Isys TPS-3000 Mode d’emploi

Crestron

Crestron TPMC-V12 & TPMC-V15 Manuel utilisateur

Crestron

Crestron CT-1600 Comment utiliser

Crestron

Crestron DualTouch DTT-15V3 Manuel utilisateur

Crestron

Crestron Isys TPS-4500 Manuel utilisateur

Crestron

Crestron Isys TPS-3000 Manuel utilisateur

Crestron

Crestron Isys TPMC-4SM Comment utiliser

Crestron

Crestron Isys TPS-6 Manuel utilisateur

Crestron

Crestron TPMC-3X Series Manuel utilisateur

Crestron

Crestron Isys TPS-4000L Manuel utilisateur

Crestron

Crestron FlipTop FT-TS600 Comment utiliser

Crestron

Crestron SmarTouch STX-1700CW Manuel utilisateur

Crestron

Crestron SmarTouch STS ST-1550C Manuel utilisateur

Crestron

Crestron Isys TPS-5000 Manuel utilisateur

Crestron

Crestron Isys TPS-3000L Manuel utilisateur

Crestron

Crestron Crestron Isys TPS 6000L Manuel utilisateur

Crestron

Crestron Isys TPS-4000 Manuel utilisateur

Crestron

Crestron Isys i/O TPMC-15-CH Manuel utilisateur

Manuels Écran tactile populaires d'autres marques

FlowLine

FlowLine Data loop Manuel utilisateur

ALPEX

ALPEX AEx-8 P Series Manuel utilisateur

Ltech

Ltech E5S Manuel utilisateur

Harman

Harman AMX MODERO S MSD-701-L2 Manuel utilisateur

Acnodes

Acnodes PC 1150 Manuel utilisateur

AIS

AIS IP10IA99 series Manuel utilisateur

IBASE Technology

IBASE Technology ASTUT-152-RE1S Manuel utilisateur

YASKAWA

YASKAWA TP 610C Manuel utilisateur

B&R

B&R Power Panel C Series Manuel utilisateur

Beijer Electronics

Beijer Electronics X2 control Manuel utilisateur

AXIOMTEK

AXIOMTEK GOT321W-521 Manuel utilisateur

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Manuel utilisateur

Qomo

Qomo QIT1386 Manuel utilisateur

DFI

DFI KS104-CD Manuel utilisateur

AMX

AMX AXP-PPC Mode d’emploi

Sartorius

Sartorius X3 PR 5410 Manuel utilisateur

AMX

AMX Modero X Series Manuel utilisateur

Advantech

Advantech TPC-30 Series Manuel utilisateur
