GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT

Introduction

CRESTRON GREEN LIGHT EXPRESS power switching cabinets come pre-configured with GLXP switching

modules already installed. The cabinets only require installation and wiring of feed and load circuits.

Regulatory Compliance

The cabinet and modules are Listed to applicable UL Standards and requirements by Underwriters Laboratories Inc.

Application

The following diagram shows CRESTRON GREEN LIGHT EXPRESS power switching cabinets in a lighting

application that is controlled by an IPAC system.

CRESTRON GREEN LIGHT EXPRESS Power Switching Cabinets in a Typical Lighting Application

Crestron Electronics, Inc. Installation Guide – DOC. 6888B

15 Volvo Drive Rockleigh, NJ 07647 (2025419)

Tel: 888.CRESTRON 06.10

Fax: 201.767.7576 Specifications subject to

www.crestron.com change without notice.

Power Switching Cabinet GLPX-HSW-FT CRESTRON GREEN LIGHT®EXPRESS

Physical Description

This section shows the dimensions of the CRESTRON GREEN LIGHT EXPRESS power switching cabinets.

Dimensions of GLPX-HSW-FT-8 , -12, -16 Power Switching Cabinets (Front, Side and Bottom View)

24 1/4"

(616 mm)

16 1/8”

(409 mm)

3 1/16”

(78 mm)

KNOCKOUT FOR 3/4”

(20 mm) CONDUIT

(TYPICAL BOTH

SIDES)

4 7/16”

(113 mm)

1/4” (7 mm)

3 1/4”

(83 mm)

2 1/2” (64 mm)

14 3/8"

(365 mm)

1 1/4” (32 mm)

2 •GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT Installation Guide – DOC. 6888B

CRESTRON GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT

Dimensions of GLPX-HSW-FT-8 , -12, -16 Power Switching Cabinets (Internal View)

23 1/2"

(597 mm) 18 15/16”

(481 mm)

(2X) Ø 7/16 ( 12 )

MOUNTING HOLES

Ømm

(2x) 11/16”

(19 mm)

2 1/8” (55 mm)

(2x) Ø 5/8”

(Ø 16 mm)

(2X) Ø 5/16”

(Ø 8 mm)

(58 mm)

2 1/4”

10 7/8” MOUNTING HOLES

(276 mm)

* TIE WRAP HOLDERS

(MAY BE MOVED TO OTHER

HOLES AS REQUIRED)

SERVICE

SCREWDRIVER

Installed GLXP modules come with additional tie wrap holders.*

Installation Guide – DOC. 6888B GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT •3

Power Switching Cabinet GLPX-HSW-FT CRESTRON GREEN LIGHT®EXPRESS

Dimensions of GLPX-HSW-FT-20, -24, -28, -32 Power Switching Cabinets (Front, Side and Bottom View)

16 1/8”

(409 mm)

39 5/8”

(1 m)

3 1/16”

(78 mm)

KNOCKOUT FOR 3/4”

(20 mm) CONDUIT

(TYPICAL BOTH

SIDES)

4 7/16”

(113 mm)

1/4” (7 mm)

3 1/4”

(83 mm)

2 1/2” (64 mm)

14 3/8"

(365 mm)

1 1/4” (32 mm)

4 •GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT Installation Guide – DOC. 6888B

CRESTRON GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT

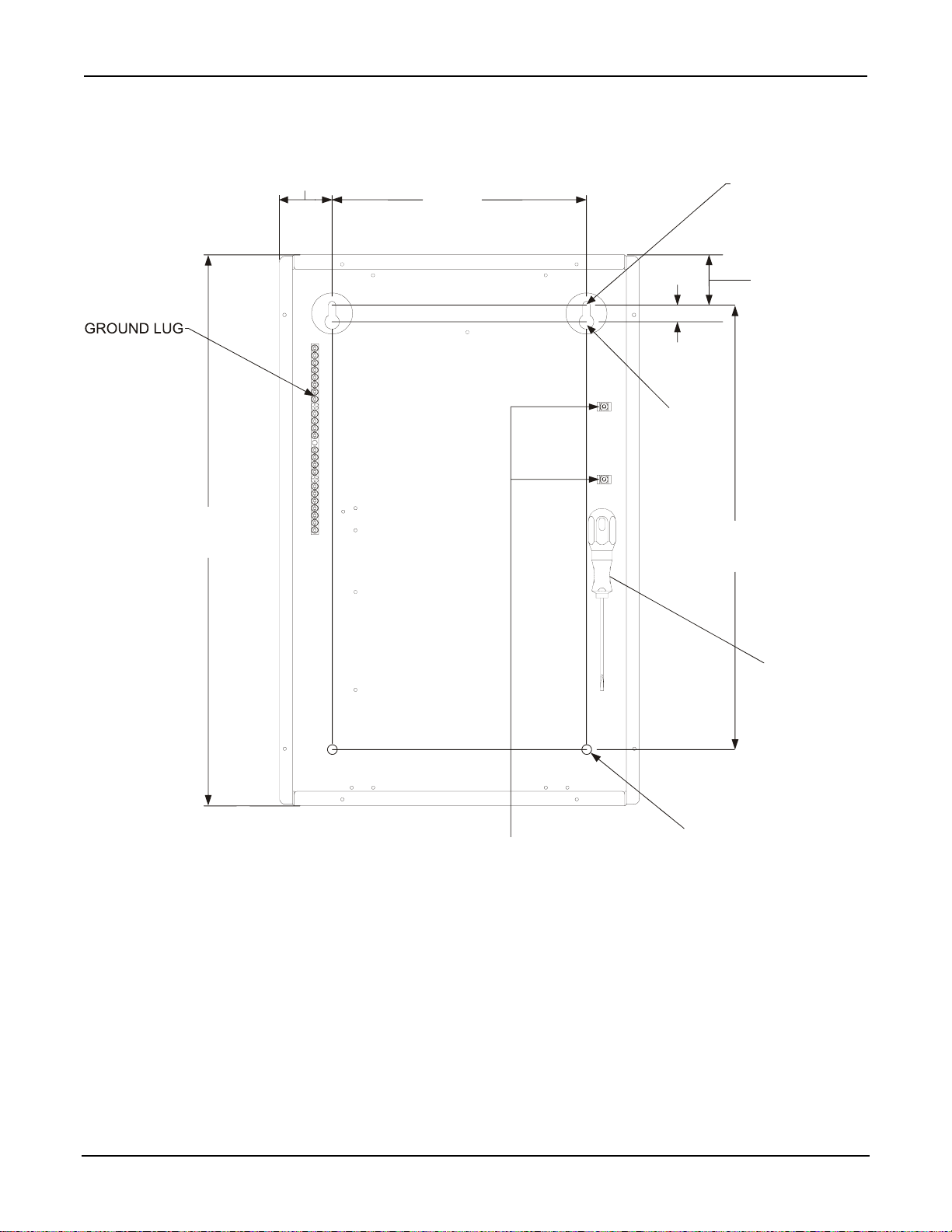

Dimensions of GLPX-HSW-FT-20, -24, -28, -32 Power Switching Cabinets (Internal View)

2 1/8” (55 mm)

(2X) Ø 5/16”

(Ø 8 mm)

MOUNTING HOLES

(2x) 11/16”

(19 mm)

10 7/8”

(276 mm)

2 1/4”

(58 mm)

GROUND LUG

38 7/8”

(998 mm) 34 3/8”

(873 mm)

(2X) Ø 7/16

(Ø 12 mm)

MOUNTING HOLES

(2x) Ø 5/8”

(Ø 16 mm)

SERVICE

SCREWDRIVER

* TIE WRAP HOLDERS

(MAY BE MOVED TO OTHER

HOLES AS REQUIRED)

Installed GLXP modules come with additional tie wrap holders.*

Installation Guide – DOC. 6888B GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT •5

Power Switching Cabinet GLPX-HSW-FT CRESTRON GREEN LIGHT®EXPRESS

Installation

Observe the following when installing the cabinet:

• The cabinet must be mounted by a licensed electrician in accordance with all national and local codes.

Refer to the diagram below for specific requirements.

• The cabinet is designed for surface mounting on a wall.

• Cabinets are intended for indoor use only.

• The ambient temperature range should be 32°F to 104°F (0°C to 40°C). The relative humidity should range

from 10% to 90% (non-condensing). Allow adequate clearance in front of the cover for servicing.

Mounting Location

3 ft

(0.9 m)

Minimum

Required

Clearance

Wall

6 •GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT Installation Guide – DOC. 6888B

CRESTRON GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT

Wiring

NOTE: All wiring must be installed in accordance with all local and national electrical codes.

NOTE: Refer to the torque settings specified on pages 8 and 9.

CRE GLXP low profile switching modules installed.

The follo e cabinet:

• and Ninput terminals and connect loads to SW output

• Connect control wiring (section Bof the following diagram)

STRON GREEN LIGHT EXPRESS cabinets are shipped with

wing must be performed after mounting th

Connect incoming feed conductors to the L

terminals (section Aof the following diagram)

FEEDS

CLASS 2

WIRING ONLY

FROM

BREAKER

PANEL TO

LOADS

FEEDS

FROM

BREAKER

PANEL TO

LOADS

SERVICE

SCREWDRIVER

Installation Guide – DOC. 6888B GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT •7

Power Switching Cabinet GLPX-HSW-FT CRESTRON GREEN LIGHT®EXPRESS

Feed-Through and Load Wiring (Section A)

ION: Bypass jumpers are provided on each output to allow testing and to protect the modules duringCAUT

installation. The jumper shorts the Land SW terminals so that the load circuit is energized when

is on. the branch breaker

NOTE: Do not remove the bypass jumper until all feed and load wiring has been completed, and the circuits

have been tested for electrical faults.

NOTE: Use copper conductors only – rated 75°C.

Wire

ORQUE STRIP

LENGTH

Gauge and Torque Values

TERMINAL CONNECTOR MAX

WIRE RANGE T

L AND N INPUTS 26-10 AWG 5.31 lb-in (0.6 Nm) to

7.08 lb-in (0.8 Nm) max 3/8”

(9 mm)

SW OUTPUTS 26-10 AWG 5.31 lb-in (0.6 Nm) to

7.08 lb-in (0.8 Nm) max 3/8”

(9 mm)

GROUND LUG 14-4 AWG 25-45 lb-in

(2.8-5.1 Nm) 3/4"

(19 mm)

Load Wiring for GLXP-HSW8 and GLXP-HSW12

TO NEUTRAL*

TO BRANCH BREAKER

TO LOAD

JUMPER

CIRCUIT BREAKER (20A MAX)

NEUTRAL

BUS TO LOADS

GROUND LUG

SW1

SERVICE

SCREWDRIVER

* A single NEUTRAL connection is required for each module.

1. Test the circuit for electrical faults by turning on each circuit breaker, checking that the breakers do not

trip, and that power is delivered to the proper loads.

2. Turn off the circuit breaker(s) and remove all jumpers.

3. Turn on the circuit breakers.

8 •GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT Installation Guide – DOC. 6888B

CRESTRON GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT

Control Wiring (Section B)

The bottom of the cabinet contains Cresnet connections for interfacing to the rest of the Crestron control system

and a power port to provide an alternate source of 24 volt power to the modules. It also provides an override input

which can be tied to devices such as the GLS-PLS-120/277 phase-loss sensor, or other devices that provide a dry

contact

® ® ,

closure (manual switch, fire alarm relay, etc.).

NOTE: Interface connectors for NET (x2), POWER (x1), and OVERRIDE (x3) ports are provided.

Wire Gauge and Torque Values

TERMINAL CONNECTOR MAX TORQUE STRIP

WIRE RANGE LENGTH

NET -12 AW 43 lb-in

.5 Nm)

26 G 4.

(0 1/4”

(6 mm)

POWER 26-12 AWG 4.43 lb-in

(0.5 Nm) 1/4”

(6 mm)

OVERRIDE 26-12 AWG 4.4

(0.5 Nm)

3 lb-in 1/4”

(6 mm)

Connector Wiring

RED

WHITE

BLUE

BLACK

NET:

TO CONTROL SYSTEM AND

OTHER CRESNET DEVICES

RED

WHITE

BLUE

BLACK

POWER:

PROVIDES CRESNET

LESPOWER TO THE MODU

OVERRIDE:

FROM OTHER CABINET;

FROM ALARM, ETC.

(OPTIONAL); TO OTHER

CABINET(S) IF NECESSARY

MODULES:

TO GLXP MODULES

(PREWIRED)

Installation Guide – DOC. 6888B GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT •9

Power Switching Cabinet GLPX-HSW-FT CRESTRON GREEN LIGHT®EXPRESS

NET Port Wiring

When wiring the supplied NET connectors for connection to a Crestron control system or other device on the

Cresnet network, use Crestron certified wire such as CRESNET-NP or CRESNET-P.

To ensure optimum performance over the full range of your installation topology, use Crestron certified wire.

Failure to do so may incur additional charges if support is required to identify performance deficiencies because

When daisy-chaining connections between NET ports, strip the ends of the wires carefully to avoid nicking the

the ends of the wires that share a pin on the network connector, insert the connection

s e retai epeat the procedure for the other three conductors.

WER Port Wiring

odule in the cabinet receives power via the line voltage connected to channel 1. In the event that line

is un module can recei a a backup ge supply. Low voltage (24 VDC)

ay be suppl he modules eithe a the NE externally via a Cresnet power

WER port.

To power the modules from the NET port, in per from th n on the supplied POWER

he EXT pin on the POWER connector as shown in the following diagram.

Providing Cresnet Power Via The Net Port

of using improper wire.

conductors. Twist together

into the Cre net connector, tighten th ning screw. R

Each m

voltage

power m available, the

ied to t ve power vi

r internally vi low volta

Tport or

supply connected to the PO

stall a jum e INT pi

connector to t

To power the modules externally from a Cresnet 24 VDC power supply, connect the external power supply to

the EXT and Gpins on the POWER supplied connector as shown in the following diagram.

Providing Cresnet Power Via Dedicated Power Supply

CRESTRON 24 VDC

POWER SUPPLY

G 24

When properly connected and receiving 24 VDC power, the green LED next to the MODULES port will light.

OVERRIDE Port Wiring

When a connection is applied between the override terminals, the modules will enter override mode. The

Crestron GLS-PLS-120/277 phase-loss sensor or any device that provides a dry contact closure can be

connected to the supplied OVERRIDE connector on the bottom of the cabinet.

10 •GREEN LIGHT®EXPRESS Power Switching Cabinet GLPX-HSW-FT Installation Guide – DOC. 6888B
