Crestron PC-350V-12 Manuel utilisateur
The PC-350V-12 and PC-350V-18 are vertical rack-mountable power
controllers. They provide 120VAC power distribution, switching, surge
protection, noise filtering, and energy monitoring for Crestron® control
systems, AV systems, computers, and other equipment.
In the Box
1 PC-350V-12 or PC-350V-18
Additional Items
1 Power cord, 9.8 ft (3 m)
2 Mounting brackets
4 Mounting screws
Install the Device
Rack Mounting Safety Precautions
Elevated Operating Ambient Temperature: If installed in a closed or
multi-unit rack assembly, the operating ambient temperature of the
rack environment may be greater than room ambient temperature.
Therefore, consideration should be given to installing the equipment in
an environment compatible with the maximum ambient temperature
(Tma) specified by the manufacturer.
Reduced Airflow: Installation of the equipment in a rack should be such
that the amount of airflow required for safe operation of the equipment
is not compromised.
Mechanical Loading: Mounting of the equipment in the rack should be
such that a hazardous condition is not achieved due to uneven
mechanical loading.
Circuit Overloading: Consideration should be given to the connection of
the equipment to the supply circuit and the effect that overloading of
the circuits might have on overcurrent protection and supply wiring.
Appropriate consideration of equipment nameplate ratings should be
used when addressing this concern.
Reliable Earthing: Reliable earthing of rack-mounted equipment should
be maintained. Particular attention should be given to supply
connections other than direct connections to the branch circuit (e.g., use
of power strips).
1
PC-350V-12 and PC-350V-18 QuickStart
Vertical Networked Power Controller & Conditioner with Surge Protection and Metering
Use one of the following procedures to mount the power controller into
a rack:
lToolless Mounting
NOTE: For toolless mounting, the rack must have keyhole slots on
the rack frame or accessory channels with keyhole slots.
lMounting the Device With Keyhole Mounts
lMounting the Device Without Keyhole Mounts
NOTE: Unless otherwise indicated in this guide, the installation
procedure is the same for PC-350V-12 and PC-350V-18.
Toolless Mounting
1. Align the keyhole mounts on the rear of the device to the keyhole
slots on the rack frame or the accessory channel.
2. Insert and slide the device down to lock firmly into position.
2
PC-350V-12 and PC-350V-18 QuickStart
Vertical Networked Power Controller & Conditioner with Surge Protection and Metering
Mounting the Device With Keyhole Mounts
1. Use the rack mounting screws (not included) and washers (not
included) to attach the two included brackets to the rack angle.
When attaching the brackets to the rack angle, ensure that the
distance between the bracket keyholes is aligned with the distance
between keyhole mounts on the rear of the device. As shown below,
this distance for PC-350V-12 and PC-350V-18 is 24.49 in. (622 mm)
and 36.73 in. (933 mm), respectively.
Distance between keyhole mounts for PC-350V-12 and PC-350V-18
Brackets can be attached to the rack angle using one of the following
three methods. Follow the method that is best for your rack
deployment to secure the device.
2. Align the keyhole mounts on the rear of the device to the keyhole
slots on the mounting brackets.
3. Insert and slide the device down to lock firmly into position.
3
PC-350V-12 and PC-350V-18 QuickStart
Vertical Networked Power Controller & Conditioner with Surge Protection and Metering
Method 1
Attaching brackets to the rack angle
Mounting the device onto the brackets
4
PC-350V-12 and PC-350V-18 QuickStart
Vertical Networked Power Controller & Conditioner with Surge Protection and Metering
Method 2
Attaching brackets to the rack angle
Mounting the device onto the brackets
5
PC-350V-12 and PC-350V-18 QuickStart
Vertical Networked Power Controller & Conditioner with Surge Protection and Metering
Method 3
Attaching brackets to the rack angle
Mounting the device onto the brackets
6
PC-350V-12 and PC-350V-18 QuickStart
Vertical Networked Power Controller & Conditioner with Surge Protection and Metering
Mounting the Device Without Keyhole Mounts
1. Remove the screws and keyhole mounts from the device.
2. Store the keyhole mounts and screws for future use.
3. Use the four included mounting screws to attach the two included
brackets to the rear of the device.
Brackets can be attached to the device using one of the following
three methods. Follow the method that is best for your rack
deployment to secure the device.
4. Use the rack mounting screws (not included) and washers (not
included) to attach the assembled device to the rack angle.
7
PC-350V-12 and PC-350V-18 QuickStart
Vertical Networked Power Controller & Conditioner with Surge Protection and Metering

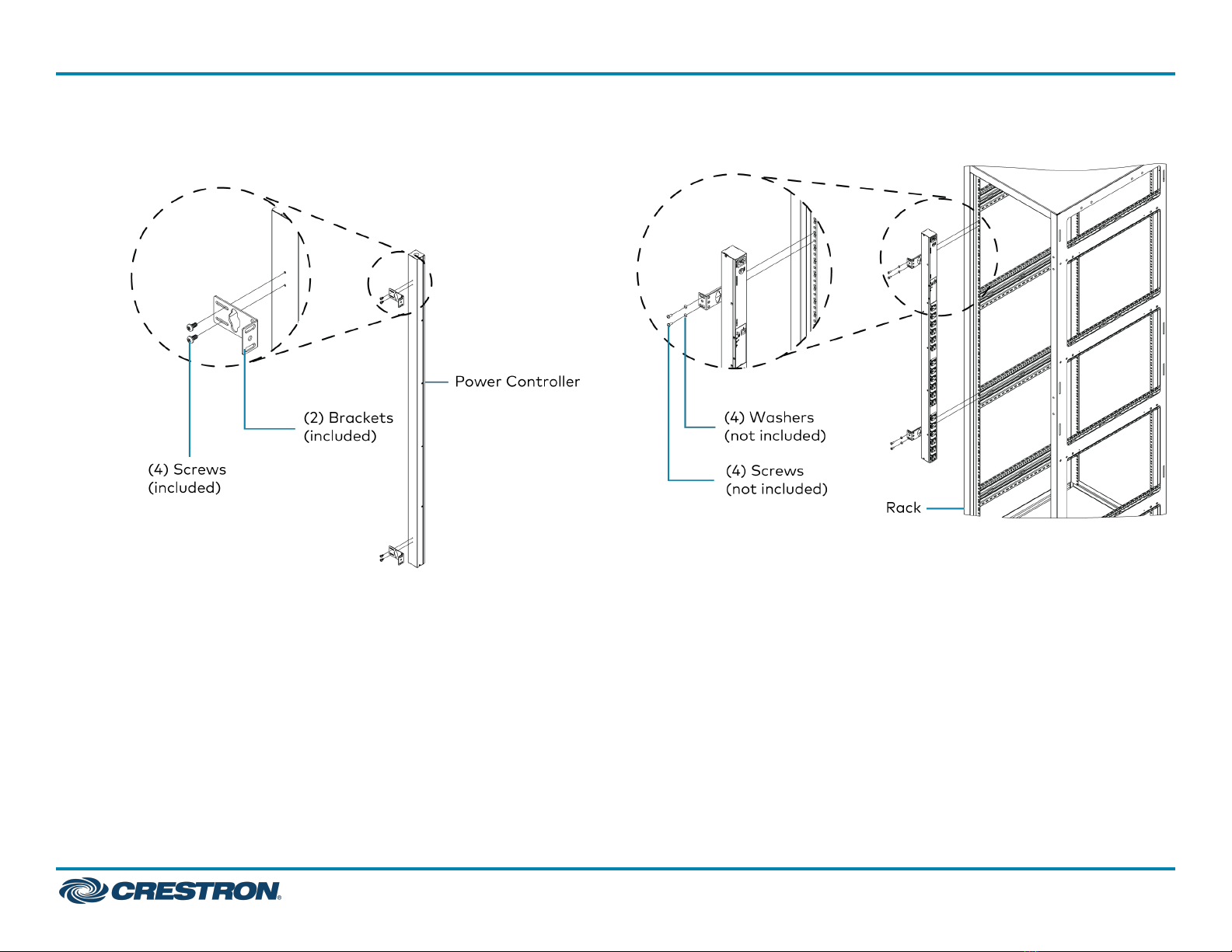

Method 1
Attaching brackets to the power controller
Attaching the assembly to the rack angle
8
PC-350V-12 and PC-350V-18 QuickStart
Vertical Networked Power Controller & Conditioner with Surge Protection and Metering
Method 2
Attaching brackets to the power controller
Attaching the assembly to the rack angle
9
PC-350V-12 and PC-350V-18 QuickStart
Vertical Networked Power Controller & Conditioner with Surge Protection and Metering
Method 3
Attaching brackets to the power controller
Attaching the assembly to the rack angle
10
PC-350V-12 and PC-350V-18 QuickStart
Vertical Networked Power Controller & Conditioner with Surge Protection and Metering
