The Crestron® RMC3 is a compact, cost-effective 3-Series® control

system designed to provide control and monitoring for a single display

device, a small AV system, lighting and shading, climate control, security,

energy management, and many other specialized applications. Its small

form factor allows it to be placed just about anywhere with the option to

attach it to a flat surface or DIN rail.

In the Box

1 RMC3, 3-Series® Media Room Controller

Additional Items

1 Bracket, Mounting, Integrated DINRail Clip (4510935)

2 Screw, 6-32, 3/8 in., Phillips(2007225)

1 Adapter, USB to USBMini (2037338)

2 Connector, 3-Pin (2003575)

2 Connector, 4-Pin (2003576)

1 Connector, 5-Pin (2003577)

Mount the Device

The RMC3 can be mounted onto a flat surface or a standard DIN rail

using the included mounting bracket.

CAUTION:To prevent overheating, do not operate the RMC3 in an area

that exceeds the environmental temperature range (32 to 104°F or

0to40°C) for this device.

Optional rack mount and pole mount kits (not included)are also available

for use with the extender. For more information, refer to the RMK-IFE-1U

Installation Guide (Doc. 7627) and the PLMK-IFE-101 Installation Guide

(Doc. 7615) at www.crestron.com/manuals.

SurfaceMounting

1. Detach the RMC3 from the mounting bracket by pulling the left and

right flanges of the bracket outward to release the tabs that hold the

RMC3 in place.

2. Attach the mounting bracket to the surface by using four appropriate

mounting screws (not included) through the four mounting holes on

the bottom of the bracket.

3. Align the slots on the bottom of the RMC3 with the tabs on the

mounting bracket.

4. Press the RMC3 into the bracket until it snaps into place.

RMC3 QuickStart

3-Series® RoomMedia Controller

5. (Optional) Secure the extender to the bracket using the two included

6-32 3/8 in. screws as shown in the following illustration. DINRail Mounting

1. Detach the RMC3 from the mounting bracket by pulling the left and

right flanges of the bracket outward to release the tabs that hold the

RMC3 in place.

2. Pull the DIN rail release tab downward using a flat-head screwdriver.

3. Position the DIN rail mounting tabs (located on the rear of the

bracket) over the top edge of the DIN rail.

4. Push the DIN rail release tab upward to lock the mounting bracket

onto the rail.

5. Align the slots on the bottom of the RMC3 with the tabs on the

mounting bracket.

6. Press the RMC3 into the bracket until it snaps into place.

NOTE:Do not use the included screws to secure the bracket to the

bottom of the RMC3 when mounting into a DINrail, as it will then not

be possible to remove the RMC3 from the DIN rail.

RMC3 QuickStart

3-Series® RoomMedia Controller

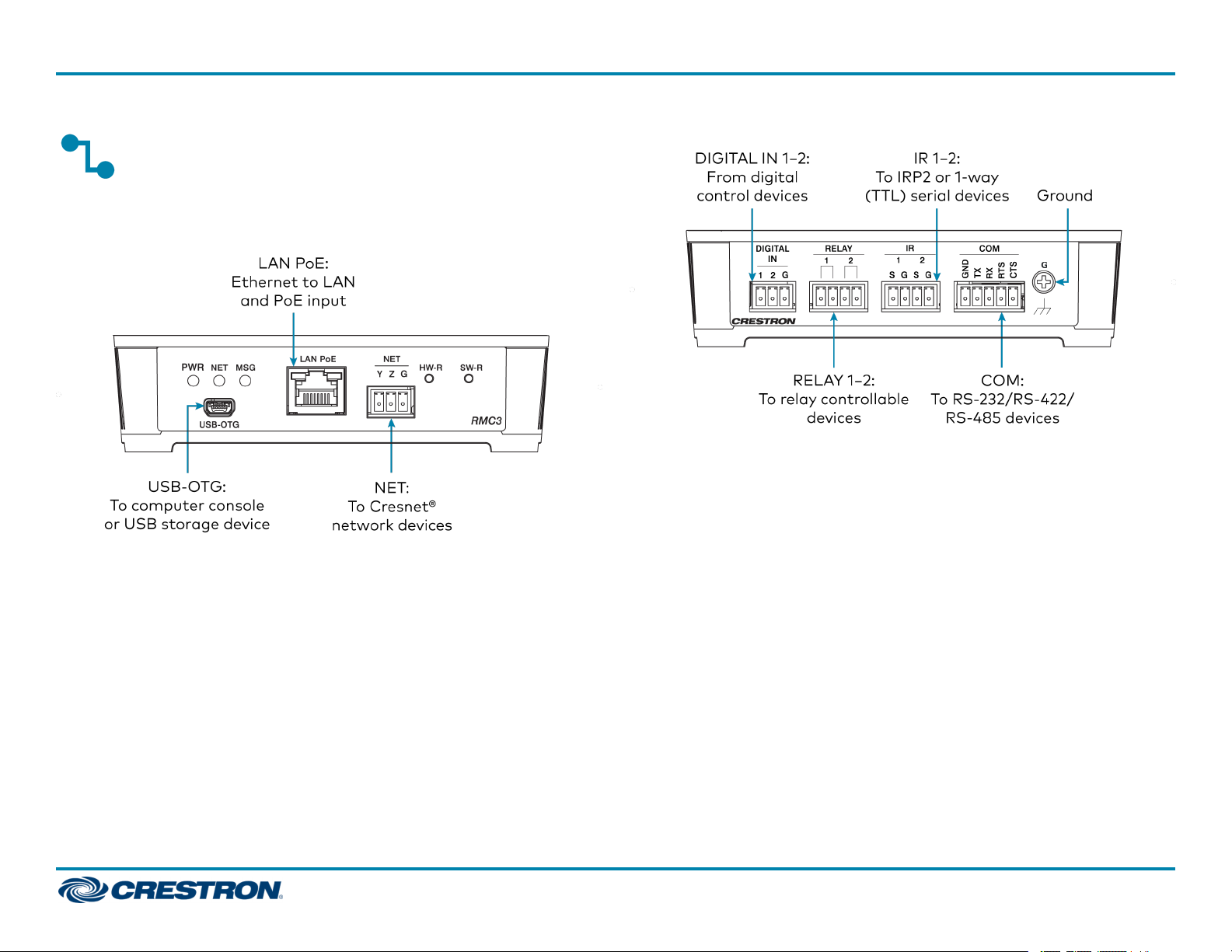

Connect the Device

Make all device connections as shown in the following illustrations.

Front Panel Connections

Rear Panel Connections

Observe the following when connecting the RMC3:

lPower is provided to the RMC3 by a single Ethernet cable. A Crestron

PoE (Power over Ethernet) power supply, such as the PWE-4803RU,

or a PoE-capable network switch is recommended (both not included).

lConnect the chassis ground lug to a known earth ground circuit (for

example, building steel) to ensure that the RMC3 is grounded properly.

lApply power after all connections have been made.

RMC3 QuickStart

3-Series® RoomMedia Controller

COM1 Connections

Port RS-232 RS-4221RS-485

GGND GND GND2

TX TX(from RMC3) TX- (from RMC3) TX-/RX-

RX RX(to RMC3) RX+(from RMC3) Not used

RTS RTS(from RMC3) TX+(from RMC3) TX+/RX+

CTS CTS(to RMC3) RX- (to RMC3) Not used

1. RS-422 transmit and receive are balanced signals that require two lines plus a ground

in each direction. RXD+ and TXD+ should idle high (going low at start of data

transmission). RXD- and TXD- should idle low (going high at start of data

transmission). If necessary, RXD+/RXD- and TXD+/TXD- may be swapped to maintain

correct signal levels.

2. A ground terminal connection is recommended but not required.

Configure the Device

The RMC3 may be configured using Crestron Toolbox™ software or the

included web-based configuration utility.

To configure the control system:

1. Use the Device Discovery tool in Crestron Toolbox to discover the

RMC3 and its IP address on the network.

2. Use Crestron Toolbox to set the time zone. For more information,

refer to the Crestron Toolbox help file.

3. Use a web browser to navigate to http://

xxx.xxx.xxx.xxx

/setup, where

xxx.xxx.xxx.xxx

is the device IPaddress. The 3-Series splash page is

displayed.

NOTE: If a security warning is displayed, click Install to continue.

RMC3 QuickStart

3-Series® RoomMedia Controller

4. Click Setup. The main Setup page is displayed.

The Setup page displays the IP address, hostname, and MAC address of

the RMC3. The Setup page also provides access to various setup and

programming pages.

lClick one of the setup selections to configure the applicable device

settings.

lClick the back button on any page to return to the previous page.

Visit the Product Page

Scan the QR code to visit the product page.

RMC3

www.crestron.com/model/6505761

RMC3 QuickStart

3-Series® RoomMedia Controller

Additional Information

Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

Crestron product development software is licensed to Crestron dealers and Crestron

Service Providers (CSPs) under a limited nonexclusive, nontransferable Software

Development Tools License Agreement. Crestron product operating system software is

licensed to Crestron dealers, CSPs, and end-users under a separate End-User License

Agreement. Both of these Agreements can be found on the Crestron website at

www.crestron.com/legal/software_license_agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at

www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, visit

www.crestron.com/opensource.

Crestron, the Crestron logo, 3-Series, Cresnet, and Crestron Toolbox are either

trademarks or registered trademarks of Crestron Electronics, Inc. in the United States

and/or other countries. Other trademarks, registered trademarks, and trade names

may be used in this document to refer to either the entities claiming the marks and

names or their products. Crestron disclaims any proprietary interest in the marks and

names of others. Crestron is not responsible for errors in typography or photography.

Doc. 7962B

03/09/20
