Crestron C2N-FT-TPS4/TPS4-U

FlipTop Touchpanel Control Center

Operations & Installation Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

Crestron C2N-FT-TPS4/TPS4-U FlipTop Control Center

Contents

FlipTop Touchpanel Control Center: C2N-FT-TPS4/TPS4-U 1

Introduction..........................................................................................................1

Features and Functions...........................................................................1

Specifications.........................................................................................2

Physical Description...............................................................................3

Industry Compliance..............................................................................7

Setup.....................................................................................................................8

Network Wiring .....................................................................................8

Crestron Toolbox ...................................................................................9

Identity Code..........................................................................................9

Installation............................................................................................11

Hardware Hookup................................................................................14

Configuring the Touchpanel.................................................................15

Programming Software.......................................................................................17

Earliest Version Software Requirements for the PC............................18

Programming with SystemBuilder.......................................................19

Programming with SIMPL Windows...................................................19

Example Program.................................................................................21

Programming with VT Pro-e................................................................21

Uploading and Upgrading ..................................................................................22

Communication Settings......................................................................22

Uploading a SIMPL Windows Program ..............................................24

Firmware Upgrade ...............................................................................26

Problem Solving.................................................................................................28

Further Inquiries...................................................................................28

Future Updates.....................................................................................28

Software License Agreement..............................................................................29

Return and Warranty Policies.............................................................................31

Merchandise Returns / Repair Service.................................................31

CRESTRON Limited Warranty ...........................................................31

Operations & Installation Guide – DOC. 6398 Contents •i

Crestron C2N-FT-TPS4/TPS4-U FlipTop Control Center

FlipTop Touchpanel Control

Center: C2N-FT-TPS4/TPS4-U

Introduction

Features and Functions

The C2N-FT-TPS4 and C2N-FT-TPS4-U FlipTop Touchpanel control centers

(TPS4) comprise a touchpanel housed in a flip top mechanical enclosure. The only

difference between the units is that the TPS4-U (universal) does not contain an AC

power outlet. All references to TPS4 apply to both units unless specified otherwise.

The TPS4 touchpanel is a compact Crestron 3.6-inch touchpanel that provides user

interface to a Crestron®remote control system (Cresnet®system).

Functional Summary

• Stylish FlipTop housing

• Integrated 3.6 in (9.15 cm) active matrix color display

• 16-bit Isys graphics

• 320x240 screen resolution

• Synapse image rendering algorithm

• 10 translucent white backlit pushbuttons*

• WAV file audio feedback

• Easy pull-out universal cable management

• AC power outlet (C2N-FT-TPS4 only)

• Cresnet and Ethernet communications

• 8 MB of flash (approx. 7MB for user display lists)

• 16 MB of DRAM (Dynamic RAM) for panel firmware

* As an option, a custom-engraved bezel can be designed and obtained by using the Crestron

Engraver software. Version 2.4 and Crestron Database 17.4 or later are available from the

Crestron website (www.crestron.com).

The bright, 3.6" active-matrix color touchscreen provides a fully customizable user

interface for control of AV, lighting, screens, volume and more. With 16-bit Isys

Operations & Installation Guide – DOC. 6398 FlipTop Touchpanel Control Center: C2N-FT-TPS4/TPS4-U •1

FlipTop Touchpanel Control Center Crestron C2N-FT-TPS4/TPS4-U

graphics, the TPS4 produces astounding 3D graphics, dynamic text, and full-motion

animations complete with WAV file audio feedback. Ten programmable pushbuttons

are also included featuring translucent buttons with white LED backlighting and an

engravable faceplate.

The units support both Cresnet and Ethernet protocols for communication with other

devices as well as uploading programs and firmware.

An AC power passthrough is provided with the C2N-FT-TPS4 unit only. Both units

provide for extensive connectivity through an easy pull-out cable storage

mechanism. Eight grommeted holes are provided in the bottom plate, allowing for

smooth pass-thru of virtually any type of AV, communication, control, or data cable

(cables not included). When not in use, the user end of each cable stows neatly

within the FlipTop compartment while excess cable simply drops out-of-sight below

the box.

To prevent any inadvertent screen presses, the TPS4 disengages the touchpanel

whenever the lid is not fully opened. The TPS4 mounts flush to any tabletop,

concealing all cables and connectors, providing a clean professional appearance to

any conference room or classroom.

The TPS4 is available in four different models.

Models

MODEL NUMBER COLOR

C2N-FT-TPS4-B/C2N-FT-TPS4-U-B Black

C2N-FT-TPS4/C2N-FT-TPS4-U-BALUM Brushed Aluminum

For simplicity within this guide, the TPS4-U designation and the color suffix are

omitted and C2N-FT-TPS4 is used except where noted.

NOTE: The TPS4 is compatible with 2-Series control systems only.

Specifications

Specifications for the TPS4 are given in the following table.

C2N-FT-TPS4/TPS4-U Specifications

SPECIFICATION DETAILS

Cresnet Power Usage 5 Watts (0.21 Amp @ 24 VDC)

Default Network ID 03

Firmware tps4_qm-ftcc-tps-tps4_c2n-ft-tps4_2.007.0161.csf or later

2-Series Control System

Update Files1,2 Version 3.137.CUZ or later

Connectors

LAN (1) 8-Wire RJ-45 with 2 LED indicators

Cresnet (2) 4-pin terminal blocks

Ground (1) Ground Terminal

Touchpanel Display

Display Type

Size

Resolution

Colors

Illumination

Contrast ratio

Viewing angle

Touchscreen

Active matrix color LCD

3.6 in (9.1 cm)

320 x 240 pixels maximum

64,000 (16 bits)

LED 300 cd/m²

300:1 typical

±80° typical horizontal, +80°/-50° typical vertical

Resistive membrane

Continued on next page

2 •FlipTop Touchpanel Control Center: C2N-FT-TPS4/TPS4-U Operations & Installation Guide - DOC. 6398

Crestron C2N-FT-TPS4/TPS4-U FlipTop Touchpanel Control Center

C2N-FT-TPS4/TPS4-U Specifications (continued)

SPECIFICATION DETAILS

Touchpanel Processor

CPU

Processing Speed

32-bit Freescale Coldfire Microprocessor

96 MIPS

Touchpanel Memory 8MB internal flash; 16MB DRAM

Touchpanel Ethernet

Support

10/100Base-T Full duplex, Link and Activity LEDs

Operating Temperature and

Humidity 41º to 104º F (5º to 40º C)

10 to 90% relative humidity

(non-condensing)

Dimensions and Weight Width: 7.67 in (19.49 cm)

Height: 5.67 in (14.40 cm)

Depth: 6.55 in (16.64 cm)

Weight: 4.05 lbs (1.84 kg)

1. The latest software versions can be obtained from the Crestron website. Refer to the NOTE following

these footnotes.

2. Crestron 2-Series control systems include the AV2 and PRO2. Consult the latest Crestron Product

Catalog for a complete list of 2-Series control systems.

NOTE: Crestron software and any files on the website are for Authorized Crestron

dealers and Crestron Authorized Independent Programmers (CAIP) only. New users

may be required to register to obtain access to certain areas of the site (including the

FTP site).

Physical Description

Refer to the physical views shown below and on subsequent pages.

NOTE: The AC outlet and line cord shown in the views that follow only appear on

the C2N-FT-TPS4.

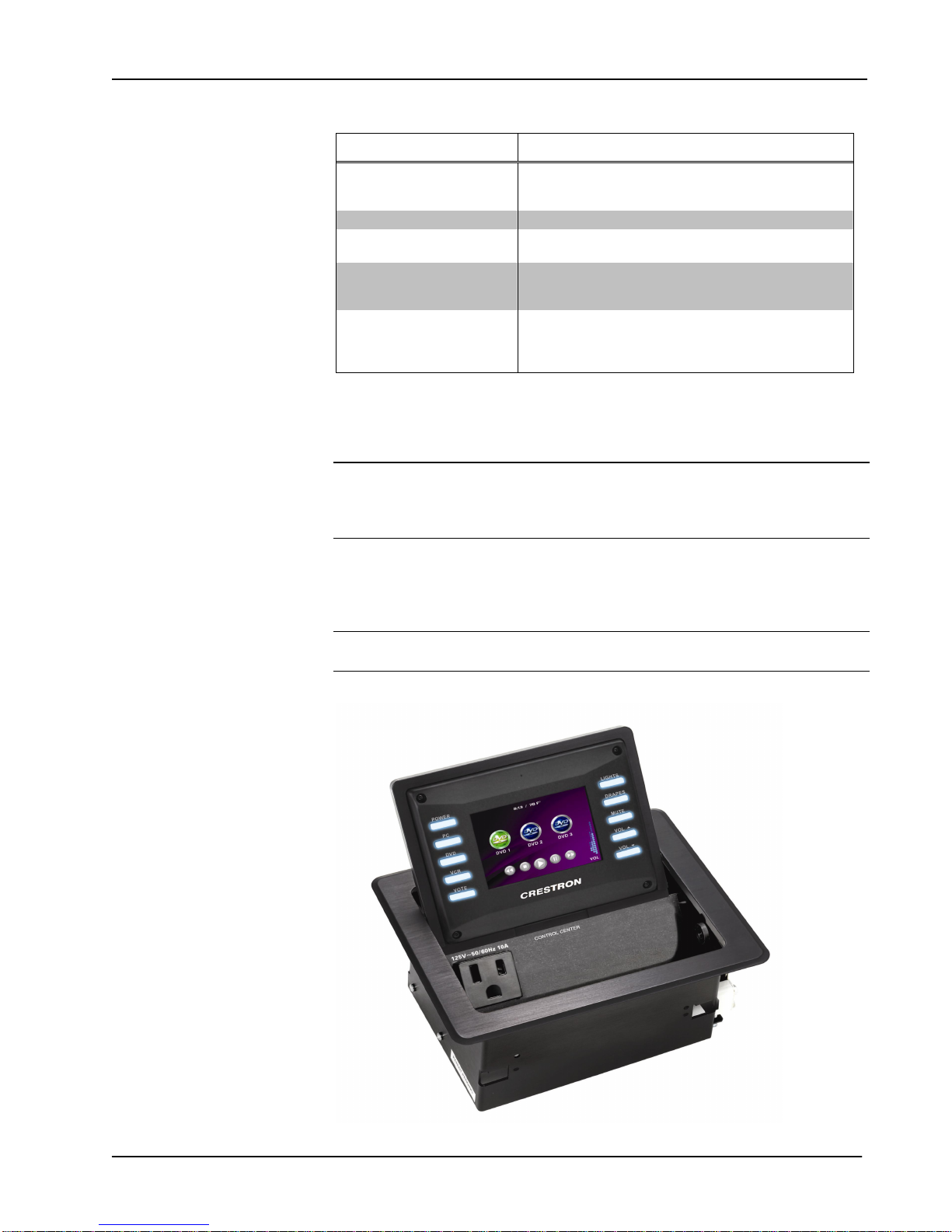

TPS4 Open View

Operations & Installation Guide – DOC. 6398 FlipTop Touchpanel Control center: C2N-FT-TPS4/TPS4-U •3

FlipTop Touchpanel Control Center Crestron C2N-FT-TPS4/TPS4-U

TPS4 Physical Dimensions – Top View

6.55 in

(16.64 cm)

7.67 in

(19.49 cm)

6.00 in

(15.24 cm)

CONTROL CENTERCONTROL CENTERCONTROL CENTERCONTROL CENTER

CONTROL CENTER

4 •FlipTop Touchpanel Control Center: C2N-FT-TPS4/TPS4-U Operations & Installation Guide - DOC. 6398

Crestron C2N-FT-TPS4/TPS4-U FlipTop Touchpanel Control Center

TPS-4 Physical Dimensions - Front View

6.28 in

(15.96 cm)

7.17 in

(18.22 cm)

TPS4 Bottom View

LAN

Operations & Installation Guide – DOC. 6398 FlipTop Touchpanel Control center: C2N-FT-TPS4/TPS4-U •5

FlipTop Touchpanel Control Center Crestron C2N-FT-TPS4/TPS4-U

TPS4 Physical Dimensions - Back View

2.75 in

(6.99 cm)

4.66 in

(11.84 cm)

5.67 in

(14.40 cm)

0.09 in

(0.23 cm)

TPS4 Physical Dimensions - Side View

5.51 in

(14.0 cm)

6.05 in

(15.37 cm)

6 •FlipTop Touchpanel Control Center: C2N-FT-TPS4/TPS4-U Operations & Installation Guide - DOC. 6398
