The UC-BX30-Z Crestron Flex advanced conferencing system provides

small room video conference solution for use with Zoom Rooms™

software. It supports up to three video displays and features a tabletop

touch screen, UC presentation transmitter, UC bracket assembly, and

smart soundbar and camera.

The latest firmware must be loaded onto the touch screen prior to

operation. Refer to the touch screen's product page (resources tab) to

download the latest device firmware. The latest UC-BX30-Z firmware is

installed using the auto update feature.

Minimum Requirements:

lA video display (not included) connected to the UC Engine. A second

or third display is optional.

lA Zoom Rooms account or activation code (not included)

In the Box

Tabletop Touch Screen Device

1 10.1 in. Tabletop Touch Screen (6510821)

1 Grommet, Cable, Closed (2055455)

1 Grommet, Cable, Open (2055456)

1 Cover, Cable compartment (2055457)

Smart Soundbar and Camera

1 Soundbar and Camera (6511283)

1 Power supply (2045873) with cord (2042043)

1 Cable, USB 3.0, A - B, 6 ft (1.8 m) (2053077)

Mounting hardware

UC Presentation Transmitter

1 Presentation transmitter (6510936)

1 Power pack (2056363) with cord (2001134)

1 Bracket, power supply (2056257)

1 Cable, USB to USB, 6.56 ft (2 m) (2056116)

1 Cable, HDMI®, 6.56 ft (2 m) (2056117)

1 Cable, USB 2.0, A to Micro B, 6.56 ft (2 m) (2055504)

8 Screw, 10-9 x 5/8 in. (15.9 mm), Pan Head, Phillips, Black

(2054365)

UC Bracket Assembly

1 UC Bracket Assembly with UC Engine and HDMI® or AV

over CAT5 content ingest (UC-BRKT-260-P-Z-ASSY,

6512692)

2 Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5mm x

12.7mm) (2052565)

1 Key, Anchor (4529654)

1 Power pack (2045870)

2 Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo

(2052567)

4 Tie Wrap (2047935)

Additional Items

1 Cable, CAT6a, RJ-45 - RJ-45, 20 ft (6.1 m) (6507640)

3 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)

1 Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)

1 Cable, HDMI, 6 ft (1.8 m) (6503565)

UC-BX30-Z QuickStart

Crestron Flex Advanced Small Room Conference System with Video Soundbar for Zoom Rooms™

Software

Mount Devices

Mount the UC Bracket Assembly

Mount the UC Bracket Assembly to VESA® compliant display devices, a

wall, or other building structure. Anchors and screws are supplied for

installation on walls 3/8 in. (9.5mm) to 3/4 in. (19mm) thickness.

CAUTION: Preinstalled screws may protrude from the back of the

UC Bracket Assembly. Exercise caution when handling the UC

Bracket Assembly to avoid scratching or damaging surfaces.

NOTE: The integrated cable tie wraps are reusable. Avoid damaging

the cable tie wraps.

Mount the UC Presentation Transmitter

Mount the UC Presentation Transmitter to the underside of a table

using the supplied screws. The supplied screws support installation on

tables with a thickness of 1 in. (25.4mm) minimum.

Mount the Soundbar and Camera

Mount the included smart soundbar and camera according to the

UC-SB1-CAM-FLEX Quick Start (Doc. 8473).

UC-BX30-Z QuickStart

Crestron Flex Advanced Small Room Conference System with Video Soundbar for Zoom Rooms™

Software

UC-BX30-Z QuickStart

Crestron Flex Advanced Small Room Conference System with Video Soundbar for Zoom Rooms™

Software

Connect

System Overview

When connections are complete, the system appears as shown below. The laptop connections shown below may vary based on the selected

connection method. Refer to Make Connections for detailed connection instructions.

UC-BX30-Z QuickStart

Crestron Flex Advanced Small Room Conference System with Video Soundbar for Zoom Rooms™

Software

Make Connections

1. Make UC Engine connections as shown in the following illustration.

UC-BX30-Z QuickStart

Crestron Flex Advanced Small Room Conference System with Video Soundbar for Zoom Rooms™

Software

2. Connect the power supply and the soundbar to the bottom of the content ingest device (HD-CONV-USB-260). Connect the power supplies to an

AC power outlet.

UC-BX30-Z QuickStart

Crestron Flex Advanced Small Room Conference System with Video Soundbar for Zoom Rooms™

Software

3. Connect power, the content ingest device (HD-CONV-USB-260), and LAN to the top of the UC Presentation Transmitter.

NOTE: If a longer cable between the UC Presentation Transmitter and the HD-CONV-USB-260 is needed, use a DigitalMedia™ Ultra cable only.

The maximum supported cable length is 300ft (91.4 m).

UC-BX30-Z QuickStart

Crestron Flex Advanced Small Room Conference System with Video Soundbar for Zoom Rooms™

Software

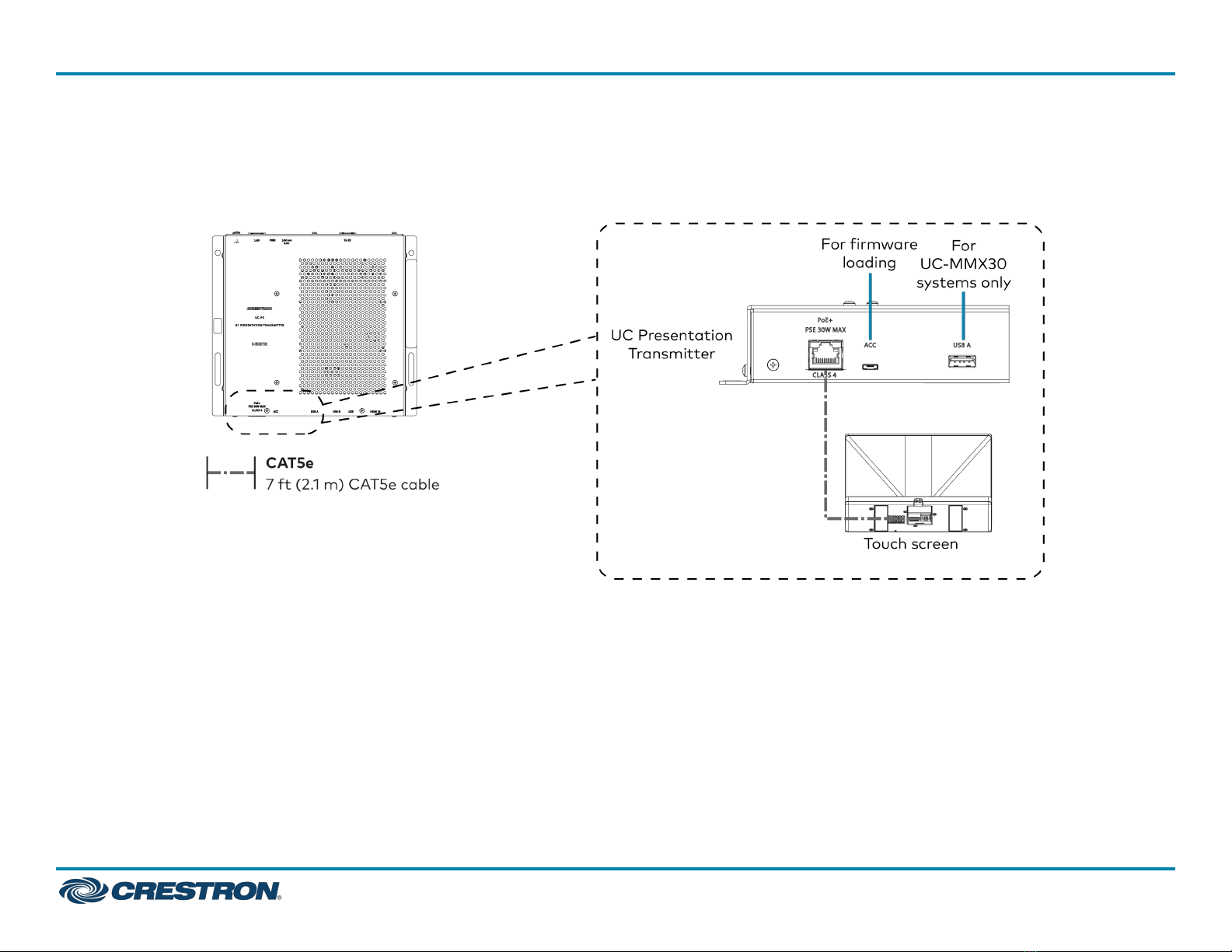

4. Connect the touch screen to the bottom of the UC Presentation Transmitter.

UC-BX30-Z QuickStart

Crestron Flex Advanced Small Room Conference System with Video Soundbar for Zoom Rooms™

Software

5. Connect a laptop to either the USB port or both the HDMI and USB B ports on the bottom of the UC Presentation Transmitter. Select a

connection type based on the available ports on the user's laptop.

6. Bundle the cables to the bracket assembly with the integrated cable tie wraps. The cable tie wraps are reusable.

Configure

Apply Power

Press the power button on the bottom of the UC Engine and apply

power to all of the other devices in the system. The connected display

device will show a pairing code.

1. Tap Touch Here to Enable a Specific Application on the bottom of the

screen. A list of applications is displayed.

2. Tap Zoom Rooms and then tap Confirm. The touch screen will reboot.

3. Enter the pairing code shown on the display to pair the touch screen

with the UC Engine. The Zoom Rooms controller app is displayed.

4. Log in to the Zoom Rooms service with an activation code or Zoom

Rooms Credentials (email and password).

lActivation Code:

a. Tap Enter Activation Code.

b. Enter the 16-digit activation code provided by the

administrator to activate the Zoom Room that is assigned to

the activation code. The Zoom Rooms Conference Room screen

is shown on the display.

lSign In:

a. Tap Sign In.

b. Enter the Zoom Room credentials and tap Sign In.

c. Select the conference room name from the list and tapNext.

The Zoom Rooms Conference Room screen is shown on the

display.

5. Tap Settings. If a password is required, enter the password (the

default password is "1234"). The Settings screen is displayed.

6. Tap Microphone and select the soundbar as the source.

7. Tap Speaker and select the soundbar as the source.

8. Tap Meet Now to exit.

Configure the System

Connect a USB keyboard and mouse (sold separately) to a USB port on

the UC Engine to configure system features. For detailed information on

using Zoom Rooms, refer to the Zoom Rooms Help Center.

UC-BX30-Z QuickStart

Crestron Flex Advanced Small Room Conference System with Video Soundbar for Zoom Rooms™

Software

Visit the Product Page

Scan the QR code to visit the product page.

UC-BX30-Z

www.crestron.com/model/6511612

Additional Information

Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

Crestron product development software is licensed to Crestron dealers and Crestron

Service Providers (CSPs) under a limited nonexclusive, nontransferable Software

Development Tools License Agreement. Crestron product operating system software

is licensed to Crestron dealers, CSPs, and end-users under a separate End-User

License Agreement. Both of these Agreements can be found on the Crestron website

at www.crestron.com/legal/software_license_agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at

www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information,

visit www.crestron.com/opensource.

Crestron, the Crestron logo, and DigitalMedia are either trademarks or registered

trademarks of Crestron Electronics, Inc. in the United States and/or other countries.

HDMI is either a trademark or registered trademark of HDMI Licensing LLC in the

United States and/or other countries. DisplayPort and VESA are either trademarks or

registered trademarks of Video Electronics Standards Association in the United

States and/or other countries. Zoom Rooms is either a trademark or registered

trademark of Zoom Video Communications, Inc. in the United States and/or other

countries. Other trademarks, registered trademarks, and trade names may be used in

this document to refer to either the entities claiming the marks and names or their

products. Crestron disclaims any proprietary interest in the marks and names of

others. Crestron is not responsible for errors in typography or photography.

Doc. 9283A

04/28/22
