Crestron TSW-1060-B-S Manuel utilisateur

The Crestron Flex UC Video Conference System Integrator Solution for

Microsoft Teams Rooms (UC-C160-T) delivers a powerful, professional

solution for knowledge workers who want the Microsoft Teams software

experience in small to midsize meeting and conference rooms.

The UC-C160-T allows the installer to select audio and camera hardware

dictated by the room while offering optional direct or network connection

methods between the included system components.

MinimumRequirements

lA video display, connected to the UC-ENGINE.The system supports a

second display if desired.

lA Microsoft Teams or Skype® for Business software account

NOTE: The account should be prepared two to three weeks in

advance of hardware installation.

lAn environment running Microsoft Exchange Server® software (2013

SP1 or later for on-premises installation or Microsoft 365™ software

for Cloud) for scheduling and/or Skype for Business 2015

(on-premises installation or Microsoft 365 software for Cloud)

lUSBCamera

lAEC-enabled USB speakerphone or DSP device

View the Crestron Flex Pre-Deployment Checklist to help plan your

Crestron Flex installation.

In the Box

UC Engine Bracket Assembly

1 UC-BRKT-100-ASSY (6510636)

1 Power cord

Mounting Hardware

Touch Screen, 10.1 in., Black

1 TSW-1060-B-S (6507651)

1 Security Latch (4525305)

Mounting Hardware

Tabletop Kit for Touch Screen, Black

1 TSW-1060-TTK-B-S (6507729)

1 Template

Mounting Hardware

Accessories

1 PWE-4803RU, PoEInjector (6502429)

2 CBL-CAT5E-7, CAT5e cable, RJ-45-to-RJ-45, Black,

7 ft (2.1 m) (6509924)

1 CBL-HD-THIN-HS-6, Thin HDMI® cable,

6 ft (1.8 m) (6510946)

1 CBL-HD-20, HDMI cable, 20 ft (6.1 m) (6503567)

1 CBL-USBC-HD-9, USB 3.0 to HDMI Converter cable,

9 ft (2.7 m) (6510718)

1 DM-CBL-ULTRA-PC-20, DigitalMedia™ Ultra Patch cable,

20 ft (6.1 m) (6507640)

UC-C160-T QuickStart

Crestron Flex UC Video Conference System Integrator Solution for Microsoft Teams® Rooms

Overview

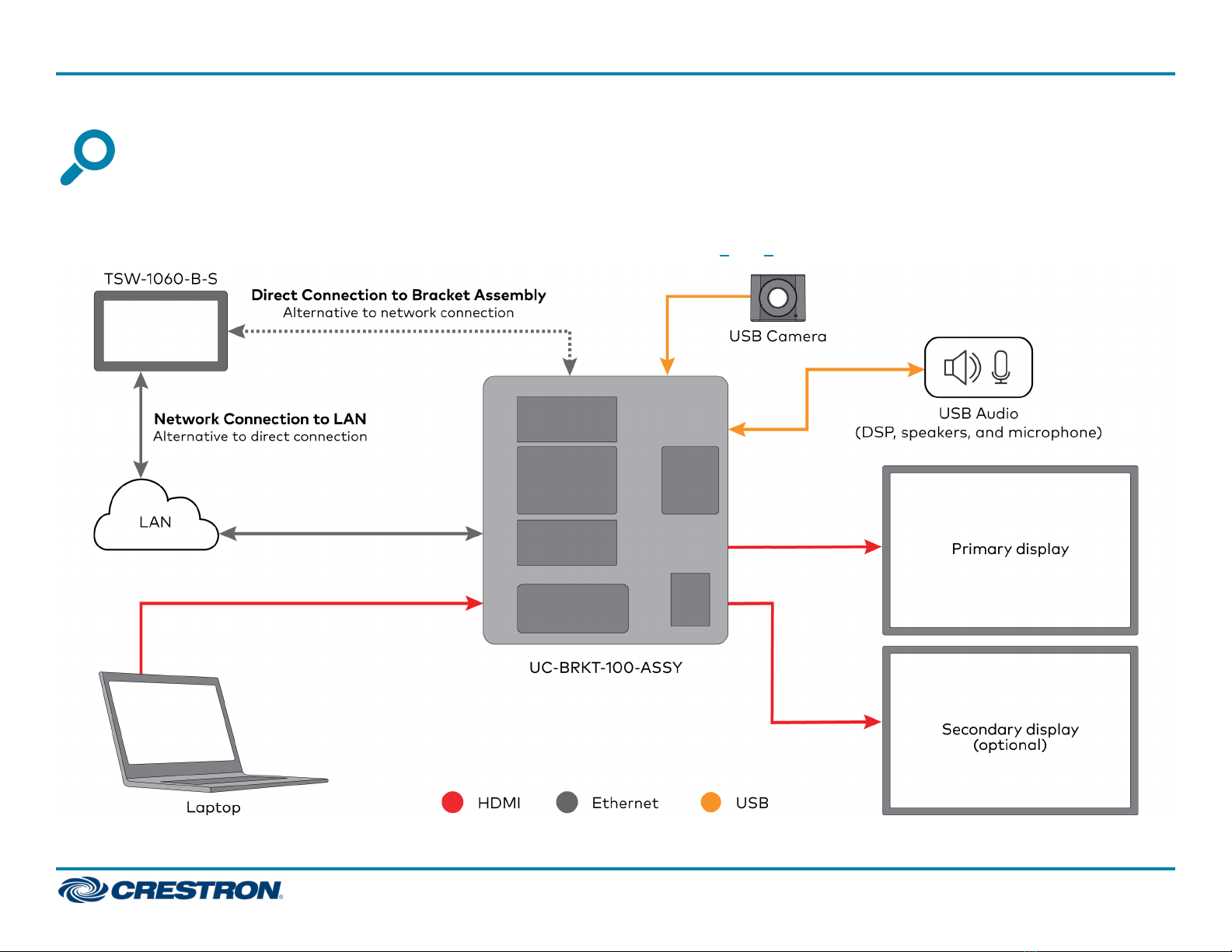

The following diagram illustrates standard system connections. Two optional connection methods are available — direct or network connection. Both

the direct connection and network connection methods are shown below to help determine the appropriate method for your solution. The room

display(s), camera, audio devices, and laptop are not included with this solution. See pages 4and 5for more information.

UC-C160-T QuickStart

Crestron Flex UC Video Conference System Integrator Solution for Microsoft Teams® Rooms

Connect

1. Remove the connector covers prior to making UC-ENGINE

connections on the UC-BRKT-100-ASSY bracket assembly.

2. Make connections to the TSW-1060-B-S touch screen and

UC-BRKT-100-ASSY bracket assembly as shown in the following

illustrations.

The TSW-1060-B-S touch screen can communicate with the

UC-ENGINE over a direct connection or a network connection.

Choose a direct connection to the UC-ENGINE for simple installation

and setup, or a network connection if the TSW-1060-B-S must be

installed on the network and managed by the Crestron XiO Cloud™

service.

UC-C160-T QuickStart

Crestron Flex UC Video Conference System Integrator Solution for Microsoft Teams® Rooms

Direct Connection

For simplified installation and configuration, use a direct Ethernet connection between the TSW-1060-B-S touch screen's PWE-4803-RU PoE

injector and the USB-to-RJ-45 Ethernet Adapter on the bottom of the UC-ENGINE.

NOTE:Direct Connection does not allow Crestron XiO Cloud management of the TSW-1060-B-S. A network connection must be made as

shown on the following page.

UC-C160-T QuickStart

Crestron Flex UC Video Conference System Integrator Solution for Microsoft Teams® Rooms

Network Connection

Use the network connection for full network control of the TSW-1060-B-S touch screen with the Crestron XiOCloud service. The LAN port on the

TSW-1060-B-S touch screen's PoE injector connects to the UC-ENGINE over the VLAN.

UC-C160-T QuickStart

Crestron Flex UC Video Conference System Integrator Solution for Microsoft Teams® Rooms

3. Connect the display devices and camera to the UC-ENGINE as shown below.

UC-C160-T QuickStart

Crestron Flex UC Video Conference System Integrator Solution for Microsoft Teams® Rooms

4. Bundle the cables with the integrated cable tie wraps. The cable tie

wraps are reusable.

Complete the Installation

After completing UC-ENGINE connections, secure the connector covers

using a #1 Phillips head screwdriver to replace the screws.

NOTE: For additional security, replace the screws with the spanner

screws included with the bracket assembly. A 1/4 in. bit is also supplied

with the bracket assembly to install the spanner screws.

UC-C160-T QuickStart

Crestron Flex UC Video Conference System Integrator Solution for Microsoft Teams® Rooms

Configure

Apply Power

Press the power button on the bottom of the UC-ENGINE and apply

power to all of the other devices in the system.

Configure the TouchScreen

NOTE:If the TSW-1060-B-S touch screen is directly connected to the

UC-ENGINE via the PWE-4803-RU, perform steps 1 and 2 below, and

skip to "Configure the System."Otherwise, continue below.

1. Tap Touch Here to Enable a Specific Application on the bottom of the

TSW-1060-B-S touch screen. A list of applications is displayed.

2. Tap Teams Video, and then tap Confirm. The TSW-1060-B-S touch

screen will reboot.

3. On a computer, open a web browser to the IP address of the

TSW-1060-B-S touch screen. Log in and navigate to Settings >

Applications.

NOTES:

lThe TSW-1060-B-S touch screen (via the PW-4803RU) and

computer must be on the same network switch and VLAN.

lA login with administrative rights for the TSW-1060-B-S

touch screen is required.

4. Enter the following information in the appropriate fields:

lTeams Video PC Address: Enter the IP address or hostname of

the UC-ENGINE.

NOTE: The hostname is printed on a label affixed to the

UC-ENGINE (mounted on the UC-BRKT-100-ASSY bracket

assembly).

lTeams Video PC Port: By default, port number 49500 is used. If

a different port number has been configured on the

UC-ENGINE, enter that port number instead.

lTeams Video Username: Enter the login username for the

UC-ENGINE. (The default username is “admin”.)

lTeams Video Password: Enter the login password for the

UC-ENGINE. (The default password is “sfb”.)

5. Click Save Changes.

For more information, refer to the TSW-560/TSW-760/TSW-1060

Supplemental Guide (Doc. 7927).

Configure the System

Use the TSW-1060-B-S and your Microsoft Teams or Skype account

credentials to configure the UC-ENGINE. Refer to the Crestron Flex UC

Video Conference Systems Supplemental Guide (Doc. 8360).

UC-C160-T QuickStart

Crestron Flex UC Video Conference System Integrator Solution for Microsoft Teams® Rooms

Visit the Product Page

Scan the QR code to visit the product page.

UC-C160-T

www.crestron.com/model/6510684

Additional Information

Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

Crestron product development software is licensed to Crestron dealers and Crestron

Service Providers (CSPs) under a limited nonexclusive, nontransferable Software

Development Tools License Agreement. Crestron product operating system software is

licensed to Crestron dealers, CSPs, and end-users under a separate End-User License

Agreement. Both of these Agreements can be found on the Crestron website at

www.crestron.com/legal/software_license_agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at

www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, visit

www.crestron.com/opensource.

Crestron, the Crestron logo, DigitalMedia, and Crestron XiOCloud are either

trademarks or registered trademarks of Crestron Electronics, Inc. in the United States

and/or other countries. HDMI and the HDMI logo are either trademarks or registered

trademarks of HDMI Licensing LLC in the United States and/or other countries.

Microsoft 365, Microsoft Exchange Server, Microsoft Teams, and Skype are either

trademarks or registered trademarks of Microsoft Corporation in the United States

and/or other countries. Other trademarks, registered trademarks, and trade names

may be used in this document to refer to either the entities claiming the marks and

names or their products. Crestron disclaims any proprietary interest in the marks and

names of others. Crestron is not responsible for errors in typography or photography.

Doc ID 8395E

04/27/20

UC-C160-T QuickStart

Crestron Flex UC Video Conference System Integrator Solution for Microsoft Teams® Rooms
