CREE LIGHTING LEDway Series Instructions d'installation

LEDway Series

Street Lights

Includes: LEDway Road, LEDway Multi, LEDway Tunnel

DISASSEMBLY INSTRUCTIONS

Tools:

Disassembly Instructions

Light Source (LS)

For End User (EU)

LS-EU

I.Follow points "a-b" of paragraph PS-EU

II.Unscrew screws 4 and remove optical

packets 1 from heatsink 2

III.Replace damaged optical packages 1

with new optical packages

IV.Screw back 4 with a torque of 2.7 Nm

V.Reconnect connectors 3

VI.Close the device by closing the appro-

priate clips 6

For Control Authority (CA) LS-CA

1.Follow points I - II of paragraph LS-EU

2.Remove gasket 5 from cover 1.1

3.Remove components 1.2 and 1.3 to remo-

ve the LED bar 1.4

N° DOC: DI114RLER0 Rev: 00 Latest release date: 19/11/2021

Models :

LEDway Road

LEDway Multi

LEDway Tunnel

Light Sources

codes

Power supply

codes

LYD#

LXD#

XA-Q# PH#

Warning: Before opening the appliance, remove voltage from the mains line.

1.1

1.2

1.3

1.4

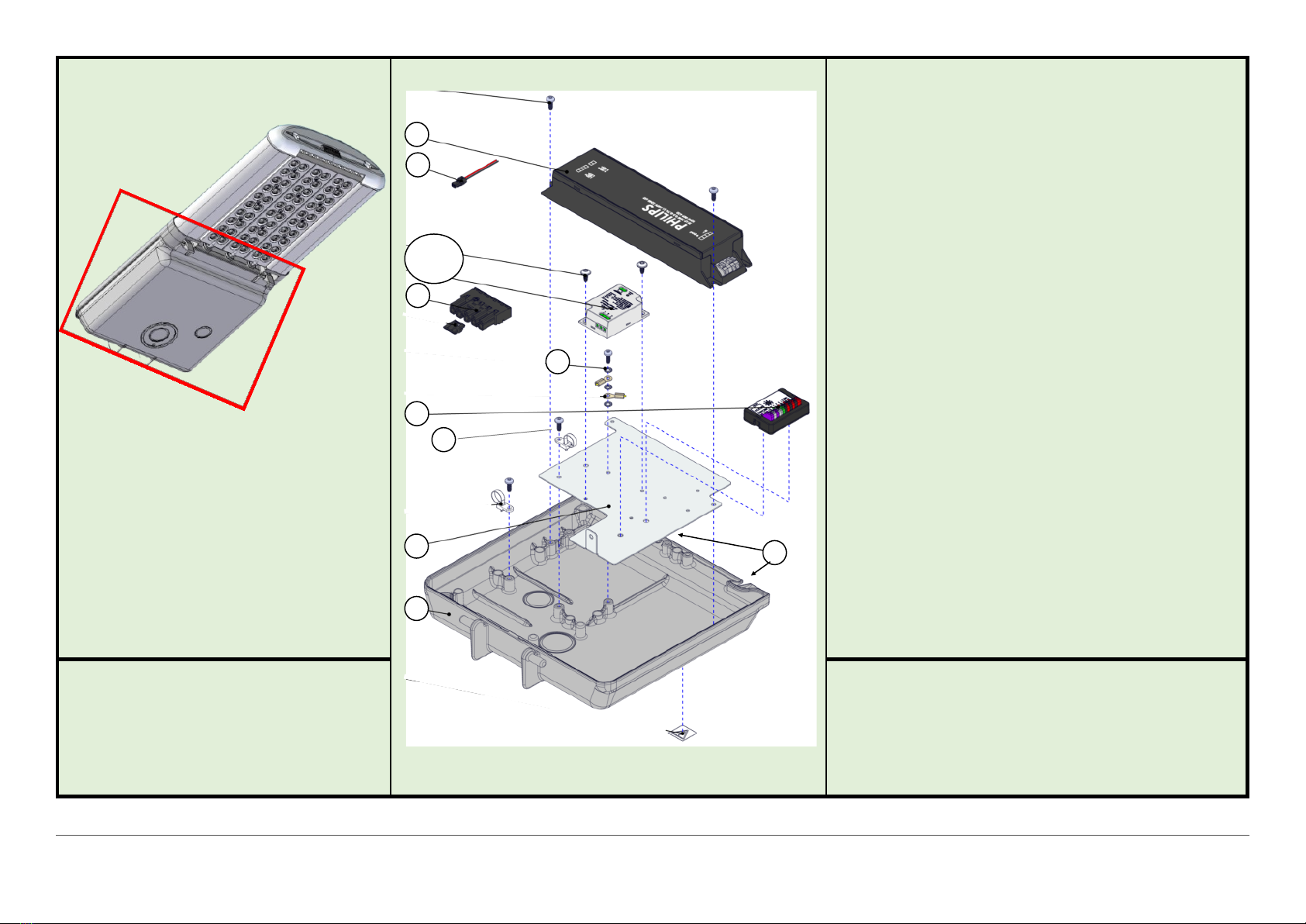

Disassembly Instructions

Power Supply (PS)

For End User (EU)

PS-EU

a.Access the wiring compartment by opening the appro-

priate clips 6

b.Disconnect the socket from the plug of connectors 7

on the LED bar cables

c.Unplug from terminal block socket 8 to disconnect the

general power supply

d.Unscrew the earth screw 9 paying attention to the not-

ched washers

e.Unscrew screw 10 that secures metal plate 11 on door

f.Remove the wiring plate 11 with the components on

board: driver 13, module 14 and surge protector 15

g.Replace the old wiring plate with a new one

h.Screw 10 on plate 11 and door 12 via a torque of 2.5

Nm, restoring the cable ties to lock the cables

i. Screw 9 back on plate 11 and door 12 by reapplying

the notched washers, using a torque of 2.5 Nm

j.Reconnect the LED bar cables and the outgoing cable

on connector 7 and terminal block 8 of driver 13 (see

attached wiring diagrams)

k.Close the door by hanging up the appropriate clips 6

For control Auhority (CA) PS-CA

A.Follow points "a-b" of paragraph PS-EU

B.Unscrew the screws that attach driver 13 to plate 11

C.Extract driver 13

D.Detach module 14 from plate 11

E.Unscrew the screws that attach module 15 to plate 11

N° DOC: DI114RLER0 Rev: 00 Latest release date: 19/11/2021

See www.creelighng.com/warranty for warranty and specicaons. Cree® and the Cree logo are registered trademarks of Cree, Inc.

www.creelighng-europe.com

Dissassembly instructions

End of Life (EL)

Light Source (LS) Follow instructions of the paragraph LS-CA

Power Supply (PS) Follow instructions of the paragraph PS-CA

DIRECTIVE 2012/19/EU (WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT – WEEE): Information for users.

This product complies with EU Directive 2012/19/EU. The crossed-out wastebasket symbol on the appliance means that at the end of its useful lifespan, the product must be dispo-

sed of separately from ordinary household wastes. The user is responsible for delivering the appliance to an appropriate collection facility at the end of its useful lifespan. Appropriate

separate collection to permit recycling, treatment and environmentally compatible disposal helps prevent negative impact on the environment and human health and promotes recy-

cling of the materials making up the product. For more information on available collection facilities, contact your local waste collection service or the shop where you bought this ap-

pliance.
