Safety instructions

Please read the following before using Creative products:

· To be completely disconnected from the power input, the mains plug has to be disconnected/

detached from the mains.

· Disconnect the mains plug when the device is expected to be unused for several days.

· Remove the batteries when not in use for an extended period of time.

Additional guidelines for

Bluetooth

devices

· The short wave radio frequency signals of a

Bluetooth

device may impair the operation of other

electronic and medical devices

· Switch off the device where it is prohibited. Do not use the device in medical facilities, aircraft,

refueling points, close to automatic doors, automatic ﬁre alarms or other automatically

controlled devices

· Keep this device at least 20 cm from pacemakers and other medical devices. Radio waves may

impair the operation of pacemakers and other medical devices

Safety information for battery

· The battery must be recycled or disposed of properly. Contact local agencies for recycling and

disposal information.

· Do not allow metal objects to touch the terminal of the battery.

· If there is leakage, an offensive odor, discoloration or deformation during charging or use, remove

the battery and do not use it again.

· Clean your hands well before touching food or sensitive areas, such as, your eyes.

· Do not expose to excessive heat such as sunshine, ﬁre or the like.

· The following statement only applicable to products containing “CR” type lithium coin cells:

Perchlorate material special handling may apply

see www.dtsc.ca.gov/hazardouswaste/perchlorate

CAUTION: Risk of explosion if battery is replaced by incorrect types.

English

Technical Speciﬁcations

• Input Rating: 100 - 240V

50/60Hz 400mA

•

Bluetooth

Version :

Bluetooth

2.1 + EDR (Enhanced Data Rate)

• Operating Frequency: 2402 - 2480 MHz

• Supported

Bluetooth

proﬁles* : A2DP (Wireless Stereo

Bluetooth

AVRCP (

Bluetooth

Remote Control)

• Operating Range: Up to 10 meters (Measured in open space. Walls and structures may affect

range of device.)

Compatibility Disclaimer

Wireless performance is dependent on your device’s

Bluetooth

wireless technology. Refer to your

device manufacturer’s manual.

Creative will not be liable for any loss of data or leakage resulting from the use of these devices.

Notes

* Refer to your

Bluetooth

device (notebook1, PC1, mobile device2) manufacturer’s documentation/

website for supported proﬁles.

1 Compatible with PC (Windows XP/Vista/7), Apple Macintosh equipped with

Bluetooth

wireless stereo

2 Compatible with most major brands of

Bluetooth

A2DP enabled mobile phones and A2DP enabled

mobile phones (including iPhone, Windows Mobile)

[

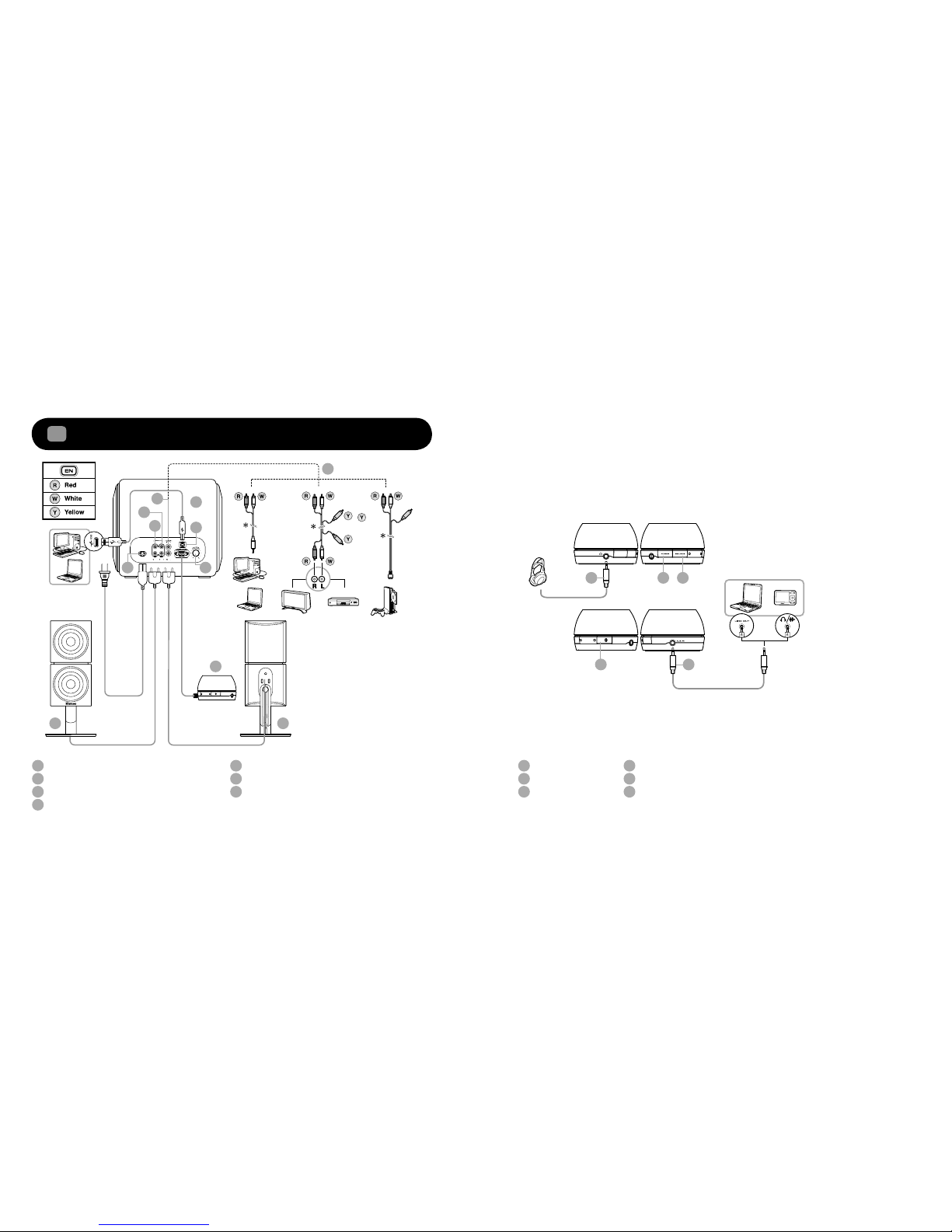

Product Overview / Connectivity Diagram

AC IN

Right Satellite Speaker

Left Satellite Speaker

Audio In - To analog audio in

8CONNECT Button –

Bluetooth

Pair and Connection

AUX In – Auxiliary line-in for Audio Devices

SLAM™ Subwoofer

Side views of the Audio Control Pod:

2 3

8910

Audio Control Pod LED status

indications:

GREEN – Line-In/ AUX In

AMBER – USB Audio

BLUE –

Bluetooth

Connection

* optional (sold separately)

USB – USB Audio

Audio Control Pod

Bass Level Control

Headphone

Power ON/OFF

Source

* optional (sold separately)

Installing

device . . .

Your new

hardware is

installed

and ready

to use.

. . .

. . . . . .

Bluetooth

Network

Connections

Operator

Internet

USB

ConnectivityConnectivity

Search results

ZiiSound T6

ZiiSound T6 ZiiSound T6

PASSCODE

0000

CONNECTED

i. ii. iii. iv.

Installing

device . . .

Your new

hardware is

installed

and ready

to use.

. . .

. . . . . .

Bluetooth

Network

Connections

Operator

Internet

USB

ConnectivityConnectivity

Search results

ZiiSound T6

ZiiSound T6 ZiiSound T6

PASSCODE

0000

CONNECTED

i. ii. iii. iv.

Installing

device . . .

Your new

hardware is

installed

and ready

to use.

. . .

. . . . . .

Bluetooth

Network

Connections

Operator

Internet

USB

ConnectivityConnectivity

Search results

ZiiSound T6

ZiiSound T6 ZiiSound T6

PASSCODE

0000

CONNECTED

i. ii. iii. iv.

Installing

device . . .

Your new

hardware is

installed

and ready

to use.

. . .

. . . . . .

Bluetooth

Network

Connections

Operator

Internet

USB

ConnectivityConnectivity

Search results

ZiiSound T6

ZiiSound T6 ZiiSound T6

PASSCODE

0000

CONNECTED

i. ii. iii. iv.

Installing

device . . .

Your new

hardware is

installed

and ready

to use.

. . .

. . . . . .

Bluetooth

Network

Connections

Operator

Internet

USB

ConnectivityConnectivity

Search results

ZiiSound T6

ZiiSound T6 ZiiSound T6

PASSCODE

0000

CONNECTED

i. ii. iii. iv.

Installing

device . . .

Your new

hardware is

installed

and ready

to use.

. . .

. . . . . .

Bluetooth

Network

Connections

Operator

Internet

USB

ConnectivityConnectivity

Search results

ZiiSound T6

ZiiSound T6 ZiiSound T6

PASSCODE

0000

CONNECTED

i. ii. iii. iv.

Your hardware

is installed and

ready to use.

Remote Control overview

Power

AUX Source

USB Audio

Bluetooth

Stereo Source

Volume +

Previous Track

Play/ Pause

Volume -

Next Track

To replace the battery in the remote control

• Depress (A) and pull out (B)

• Replace the battery with the positive polarity facing upward and push (B) back to remote control

Enjoy high performance wireless audio from ZiiSound T6 via

Bluetooth

® Audio Transmitter BT-D1

7 8

Bluetooth

® Audio BT-D1 is paired with ZiiSound

T6 at factory. Simply insert the BT-D1 into your

PC to enjoy the high quality wireless audio.

Wait for computer to install hardwareB

Power on the speaker and the LED status

indicator will show green.

Note: Allow the ﬂashing LED indicators to stop after

plugging the speaker system to the mains. This indicates

that the speaker system is initialized and ready to be

powered ON.

Press once and release the CONNECT button.

The LED will show blinking Blue then steady

Blue LED indicating ZiiSound T6 is ready to

stream music.

A: LED Status Indicator

Indicate the current status of the USB

Bluetooth

Transmitter

B: CONNECT button

A multi function button used to perform pairing

and disconnection

The remote control

uses a CR2025 3V

lithium coin battery

Reset to factory setting

Installing

device . . .

Your new

hardware is

installed

and ready

to use.

. . .

. . . . . .

Bluetooth

Network

Connections

Operator

Internet

USB

ConnectivityConnectivity

Search results

ZiiSound T6

ZiiSound T6 ZiiSound T6

PASSCODE

0000

CONNECTED

i. ii. iii. iv.

Installing

device . . .

Your new

hardware is

installed

and ready

to use.

. . .

. . . . . .

Bluetooth

Network

Connections

Operator

Internet

USB

ConnectivityConnectivity

Search results

ZiiSound T6

ZiiSound T6 ZiiSound T6

PASSCODE

0000

CONNECTED

i. ii. iii. iv.

Installing

device . . .

Your new

hardware is

installed

and ready

to use.

. . .

. . . . . .

Bluetooth

Network

Connections

Operator

Internet

USB

ConnectivityConnectivity

Search results

ZiiSound T6

ZiiSound T6 ZiiSound T6

PASSCODE

0000

CONNECTED

i. ii. iii. iv.

Installing

device . . .

Your new

hardware is

installed

and ready

to use.

. . .

. . . . . .

Bluetooth

Network

Connections

Operator

Internet

USB

ConnectivityConnectivity

Search results

ZiiSound T6

ZiiSound T6 ZiiSound T6

PASSCODE

0000

CONNECTED

i. ii. iii. iv.

Installing

device . . .

Your new

hardware is

installed

and ready

to use.

. . .

. . . . . .

Bluetooth

Network

Connections

Operator

Internet

USB

ConnectivityConnectivity

Search results

ZiiSound T6

ZiiSound T6 ZiiSound T6

PASSCODE

0000

CONNECTED

i. ii. iii. iv.

Pairing

To pair and CONNECT the ZiiSound T6 with other

Bluetooth

devices

4 Switching between Paired Devices

Action LED status Status

Press CONNECT button for 1 second ZiiSound T6 LED blinks and

stay lit in Blue

Ready to stream music

Action LED status Status

Power OFF the speaker.

Press and hold Power button for 7

seconds.

ZiiSound T6 will auto Power up. When

the Blue LED starts to blink, ZiiSound

T6 is ready for pairing.

Blue LED fast blinks Pairing mode. Ready to

accept connection from

other devices

Power on the speaker and the LED status indicator will show green.

Note: Allow the ﬂashing LED indicators to stop after plugging the speaker system to the mains. This indicates

that the speaker system is initialized and ready to be powered ON.

Press and hold CONNECT button for 3 seconds while ZiiSound T6 is ON.

BLUE LED will light up and fast blink.

i. Turn on the

Bluetooth

feature on your device

ii. Search for ZiiSound T6

iii. Pair and connect to ZiiSound T6. If prompted for passcode, enter 0000.

iv. Pairing successful, ready to stream music

Note: The above are generic steps to pair a

Bluetooth

device, for more speciﬁc instructions on

Bluetooth

connectivity for your device, please consult your manufacturer’s manual.

Switch between your current connected device to your previous connected devices by following

these steps:

Press the

Bluetooth

icon on the remote control to switch between paired devices.

Note: Ensure that your next paired devices’

Bluetooth

feature is ON and ready to accept connections.

Follow these steps to return to factory settings and to clear paired device memory in the ZiiSound T6:
