Creative Sound Blaster Roar SR20A Manuel utilisateur

Discover more ways

to experience your

Sound Blaster Roar!

http://soundblaster.com/roar-guides

Model No.: MF8170

Technical Speciﬁcation

Bluetooth

®Version:

Bluetooth

3.0

Operating Frequency: 2402 - 2480 MHz

Lithium Ion Battery: 6000mAh

USB Input: 5V 500 - 1000mA

DC Output: 5V 1000mA

Power consumption during standby/off : < 0.5 W

Power consumption during networked standby for each network port (

Bluetooth

, USB, 5.8 Ghz

linked speakers where applicable) : < 3.0 W

Power consumption during networked standby when all network ports are activated : < 3.0 W

When the device is powered on and connected to mains with no audio playback and not performing

other main functions,

- it enters into networked standby mode within 20 minutes

- it consumes <0.5 W after all network ports are deactivated/disconnected in 28 hours

How to activate and deactivate wireless ports / connections

- To activate, perform pairing (See page 6 of this guide)

- To deactivate, perform clear device list (See FAQ) on the speaker and press the multifunction button

Power Adapter Information

Brand: Creative

Model Number: GPE024W-150160-Z

Input: 100-240VAC 50/60Hz 0.75A

Output: 15VDC 1.6A

Operating Temperature range: 0ºC to 45ºC

Supported Bluetooth proﬁles*:

A2DP (Wireless Stereo

Bluetooth

), AVRCP (

Bluetooth

Remote Control), HFP

(Handsfree proﬁle)

Supported Codec: SBC, aptX, AAC

Operating Range: Up to 10 meters, measured in open space.

Walls and structures may affect range of device.

Supports microSD cards of Class 4 and above, up to 32GB in FAT16/32 format

Supported audio formats: MP3, WMA and WAV (16 bit 48Khz PCM)

Support Mp3 and WMA up to 320kbps. Does not support WMA Pro / Lossless

Records audio, voice or mobile calls at 16k, ADPCM WAV format.

Note: Compliance markings are located on the bottom of this product.

* Refer to your

Bluetooth

device (notebook¹, PC¹, or mobile device²) manufacturer’s

documentation/website for supported proﬁles.

¹ Compatible with PC (Windows XP/Vista/7/8/8.1), Apple Macintoshes equipped with

Bluetooth

wireless stereo.

² Compatible with most major brands of

Bluetooth

A2DP enabled mobile phones.

Compatibility Disclaimer

Wireless performance is dependent on your device’s

Bluetooth

wireless technology. Refer to your

device manufacturer’s manual.

Creative will not be liable for any lost of data or leakages resulting from the use of these devices.

Product Registration

Registering your product ensures you receive the most appropriate service and

product support available. You can register your product during installation or at

http://www.creative.com/register.

Please note that your warranty rights are not dependent on registration.

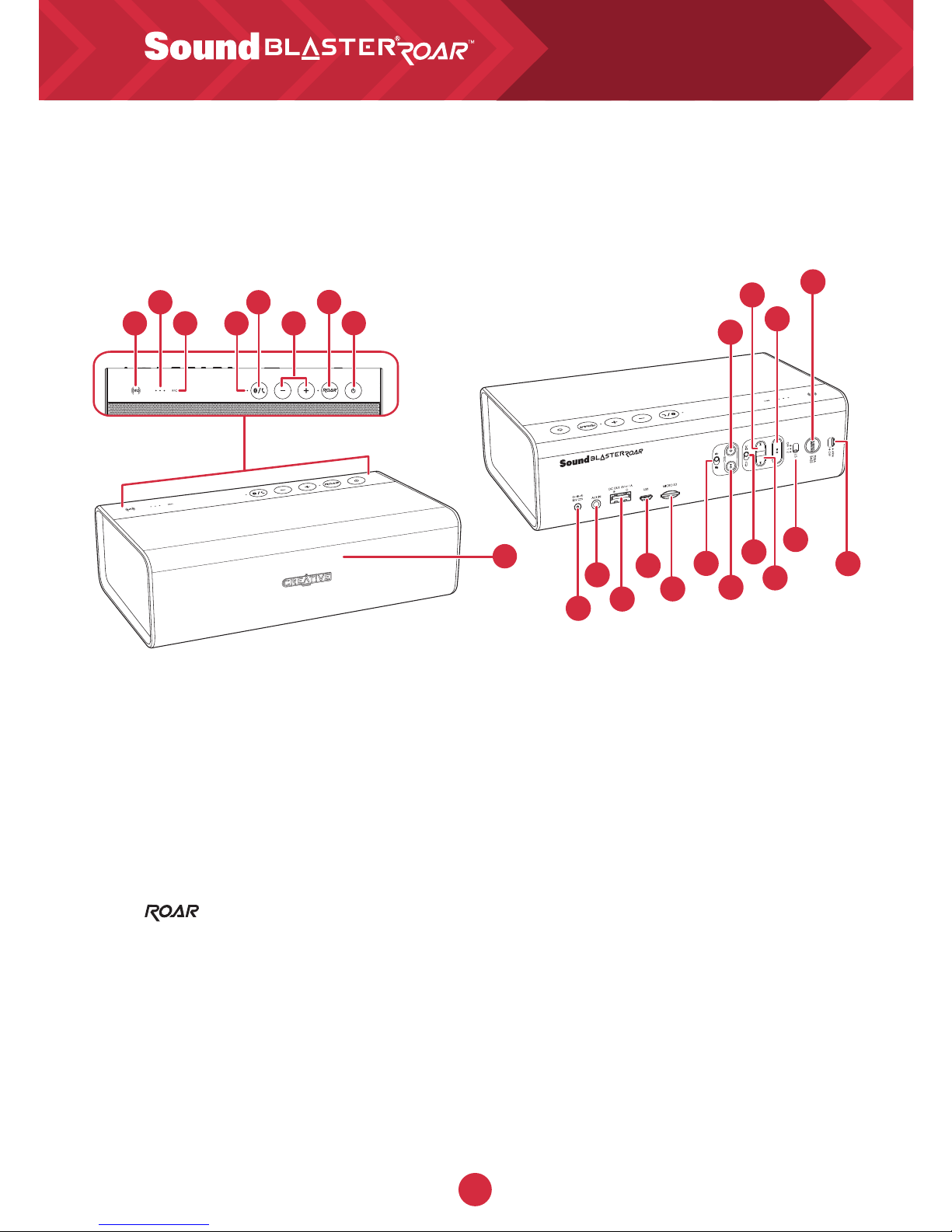

Overview

1. NFC Receptor

2. Battery Indicator

3. Record Indicator

4. Power /

Bluetooth

®Status Indicator

5. Multifunction Button

6. Volume Up / Down Button

7. Button

8. Power ON / Standby Button

9. Microphone

10. DC Input

11. Aux-in / MegaStereo Feature

12. DC Out (USB 1.0A)

13. Micro USB Connector

14. MicroSD Slot

15. Mic On / Mute Switch

16. Record Button

17. (Record) Play / Pause Button

18. Shufﬂe / Repeat All Switch

19. Previous Button

20. Next Button

21. (MP3 Playback) Play / Pause Button

22. Link Security Mode switch

23. Alarm / TeraBass Mode Button

24. (Alarm) Arm / Off Switch

Top Rear

1 3 4

2 5

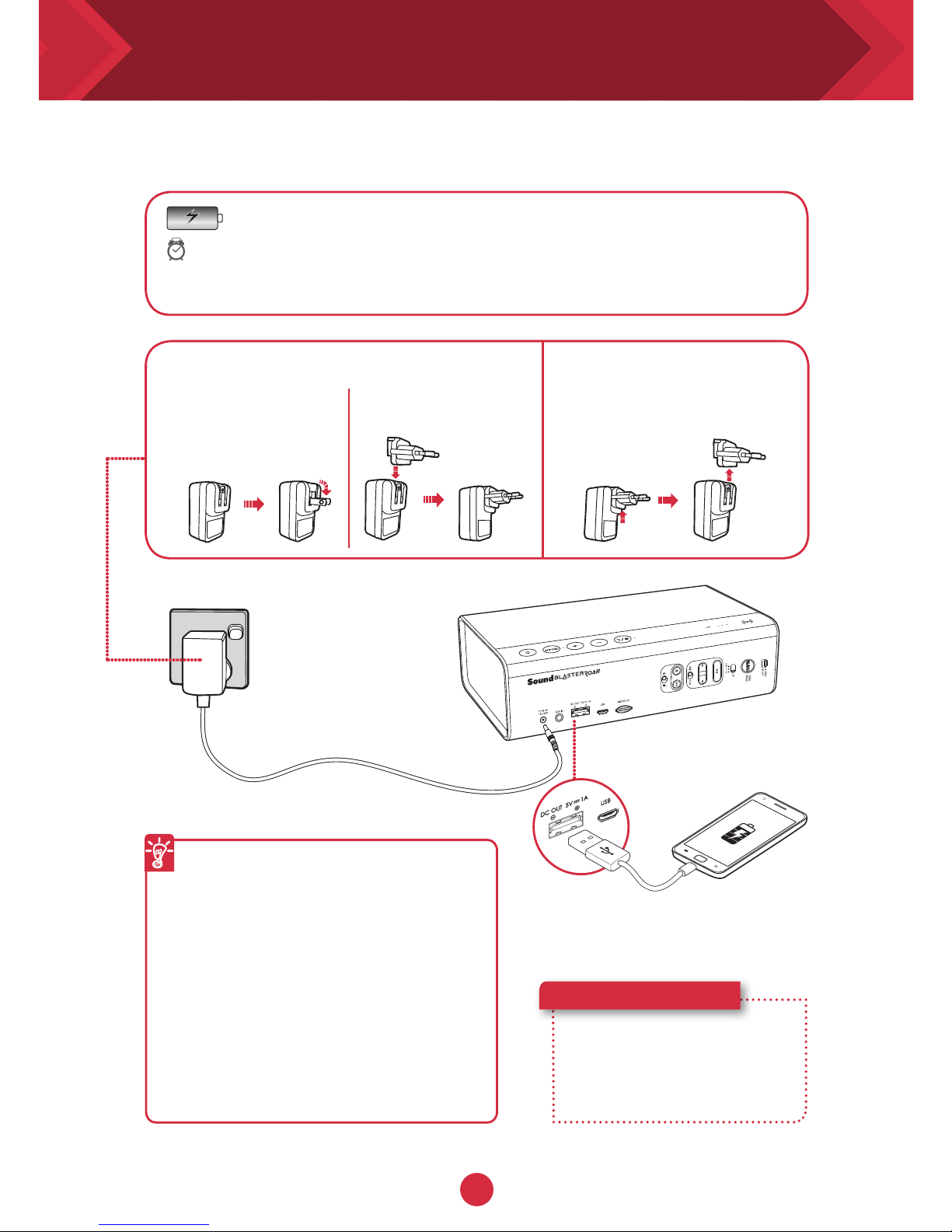

Charging your speaker - Power Adapter

The dual-purpose battery powers

your Sound Blaster Roar and also

charges your smartphone!

Here’s how you do it!

Simply connect a USB cable

to the Sound Blaster Roar’s

USB DC Out and the other

end to your smartphone.

Optimize your charging

lThe speaker will charge your

smartphones even when the speaker

is off.

lWhen turned on, some smartphones

require a higher charging rate than

battery banks can typically provide.

For the quickest charging time,

turn off your smartphone before

charging it.

Option 1 : Power Adapter

Charge the speaker with the supplied power adapter for at least

3 hours before use. Please ensure your speaker is powered off

for optimised charging.*

* Battery performance may degrade over time depending on

charge cycles.

3 Hours

US, Japan & Taiwan

Assembling the Power Adapter Removing Adapter Plug Head

Europe - Supplied interchangeable plugs

may vary to region and country

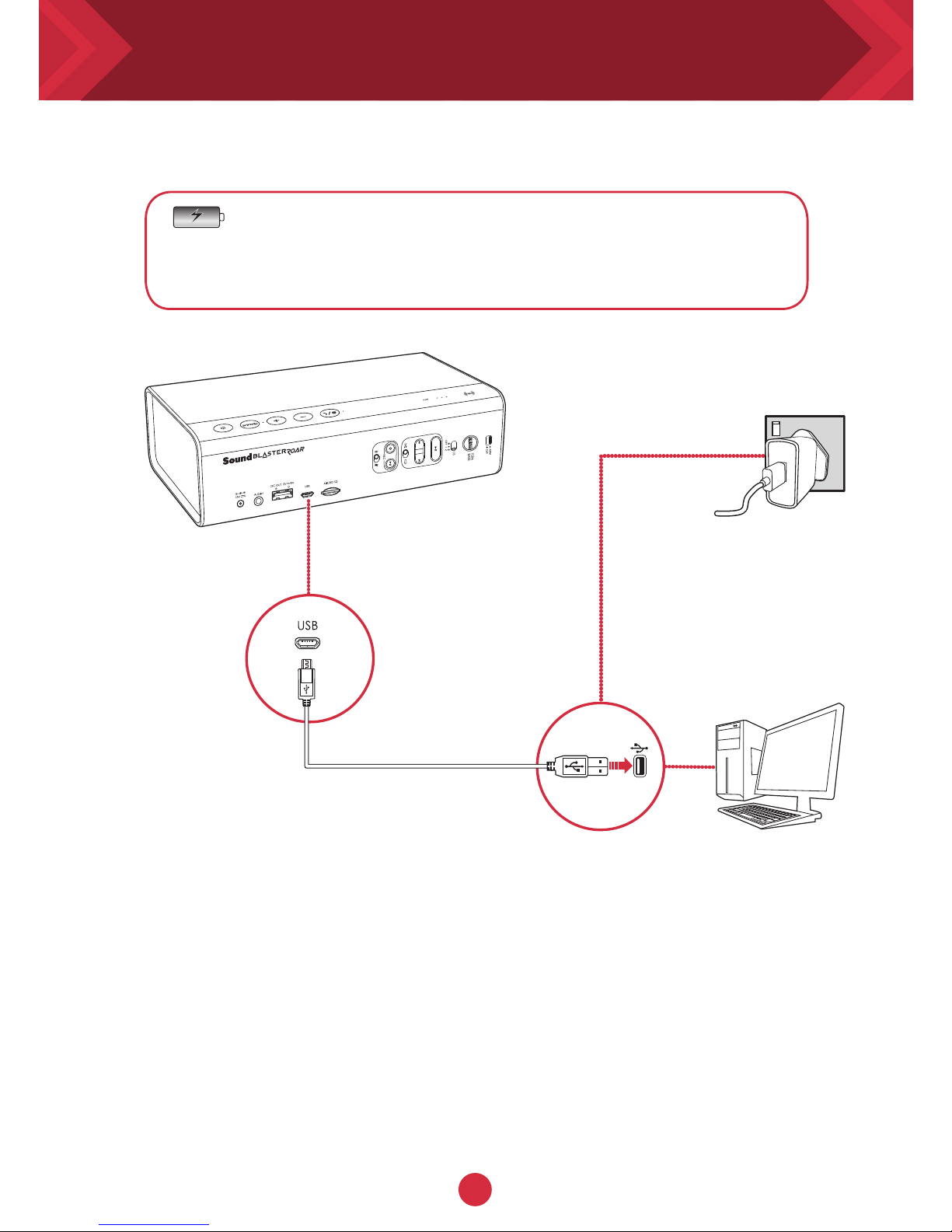

Charging your speaker - USB Power

Option 2 : USB

The Sound Blaster ROAR can also be charged using a

USB cable.

It may take longer to charge due to USB power limitation.

Switch off your speaker when charging.

TIP:

Lithium-ion battery life may suffer when it is constantly fully depleted or

overexerted at low voltage. It is a good practice to keep the battery well

charged.

For optimized charging: Creative recommends using the bundled USB

cable for optimized charging.

Mains

PC/Mac

* Not included, USB

adapter with DC 5V

and up to 1A output

rating can be used.

Power Saving

For better user connectivity experience, the Sound Blaster Roar will

now by default automatically enter power saving mode only after

approximately 28 hours of inactivity when the power adapter is attached

via a main outlet to the speaker. However, you have the option to keep

the power on permanently if needed.

To Disable Power saving mode with power adapter attached (For

keeping your speaker ON permanently):

1) Ensure that the speaker is powered ON and not connected to any

other devices.

2) Press the Power and Volume “+“ button together. The LED status

indicator will ﬂash once to indicate power saving feature is disabled.

To Enable Power saving mode with power adapter attached:

1) Ensure that the speaker is powered ON and not connected to any

other devices.

2) Press the Power and Volume “-“ button together. The LED status

indicator will ﬂash once to indicate power saving feature is enabled.

Note: The speaker automatically powers down when there is no

Bluetooth

connection, recording using microSD card, microSD card

playback or audio input for more than 15 minutes on battery mode. This

feature helps to protect the internal battery and cannot be disabled.

Whenever the speaker is ON and connected to a power source, the LED

status indicators will continually blink in sequence. To check the battery

capacity, power OFF the speaker or disconnect it from the power adapter.

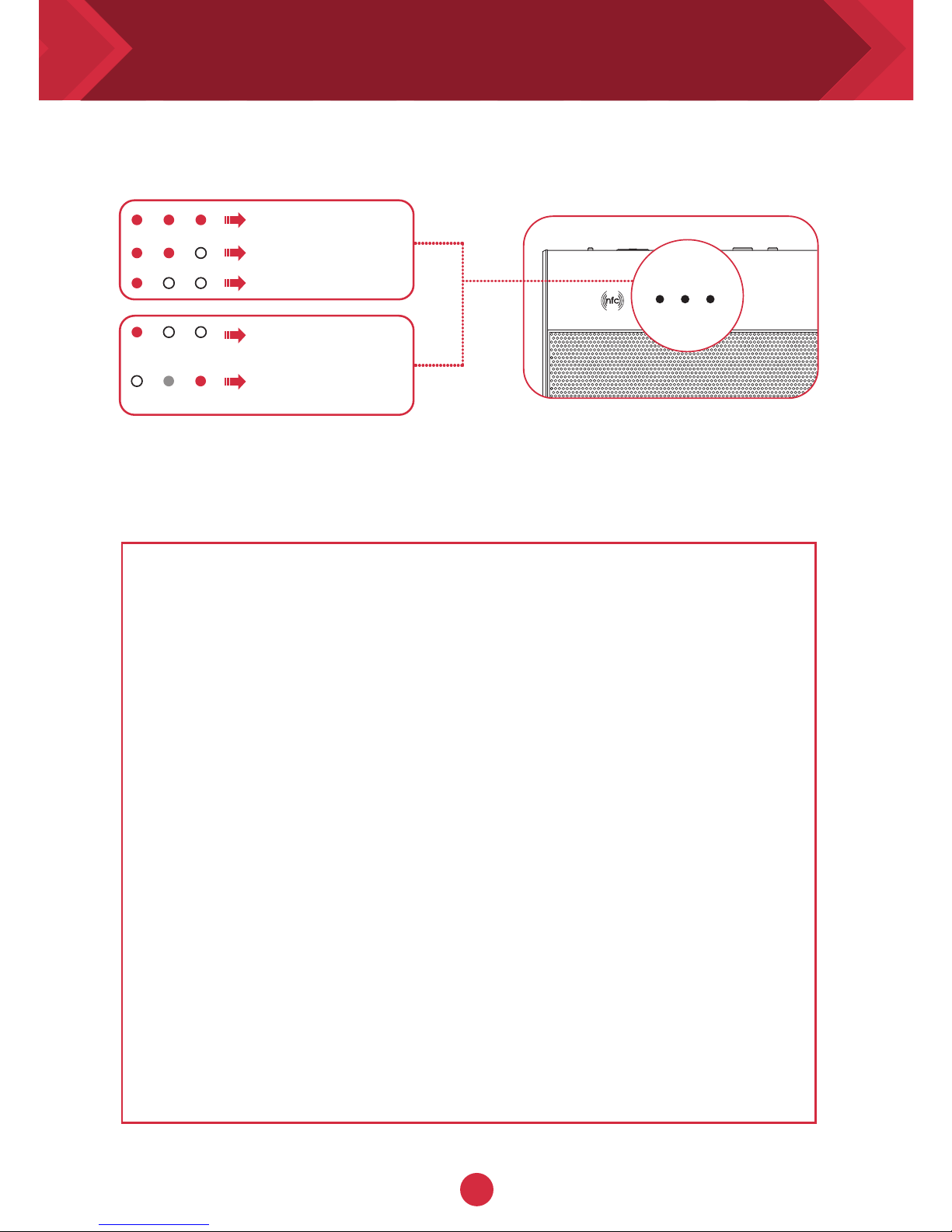

Battery Status Indication

Battery full

Battery at about 70%

Battery low

Battery extremely low

Battery charging*

Slow Blink

Running LED

Charging your speaker - LED Indications

The Sound Blaster Roar

connects to

Bluetooth

devices with robust

high-quality aptX®and

AAC music streaming.

NFC technology makes

connecting even easier

– just tap and play!

Here’s how you do it!

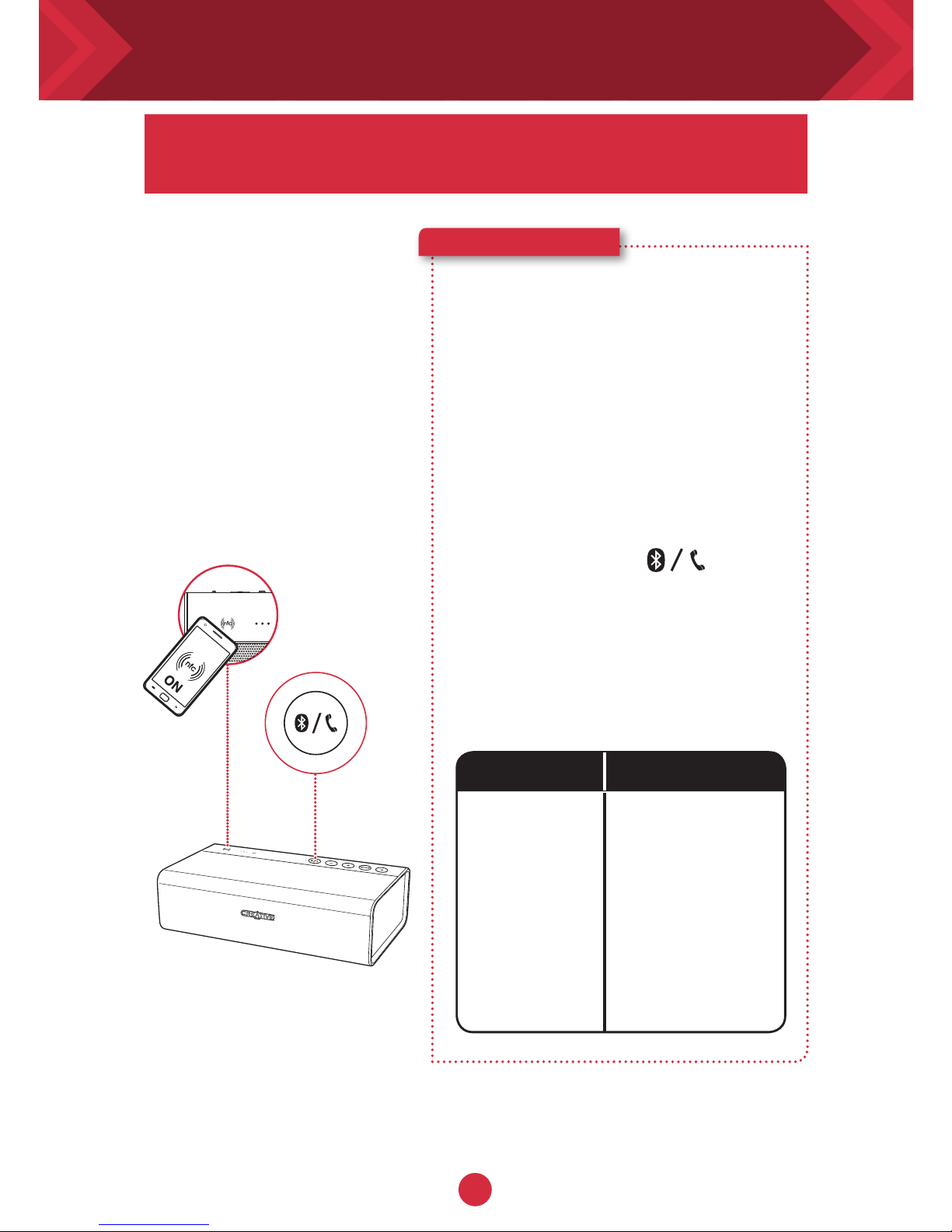

1A. One-touch pairing with NFC

2Start playback on your

connected device.

B. Manual

Bluetooth

pairing

(i) Press and hold until the

white LED blinks rapidly.

(ii) Select SB ROAR SR20A on your

device.

Turn on NFC on your NFC-enabled

device and tap your device on the

NFC logo to connect.

To disconnect, tap your device on

the Sound Blaster Roar again.

Powered ON but not

connected to any

Bluetooth devices

Bluetooth Pairing

Mode, waiting for

device to connect

Connected to a

Bluetooth device

Green LED

stays lit

White LED

blinking rapidly

White LED

stays lit

LED Indication Status

Connecting your speakers -

Bluetooth

/ NFC

The Sound Blaster Roar lets you stream music

wirelessly.

Connecting your speaker -

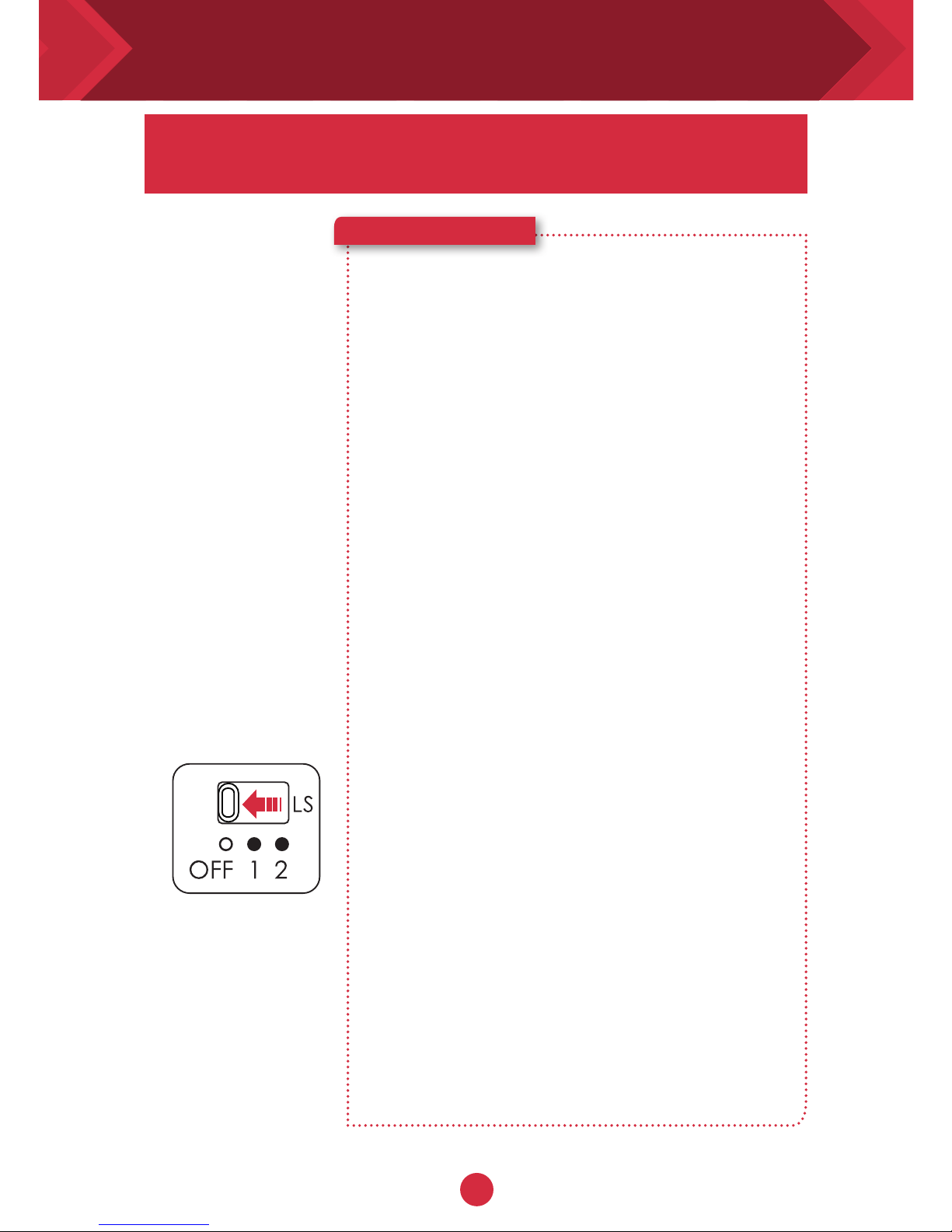

Link Security mode manages your

Bluetooth

security

the way you want it.

With Link

Security, you

can now set

the

Bluetooth

connection of

your Sound

Blaster Roar

to be selﬁshly

yours only, share

it amongst your

friends in a party

or a “Free For

All” mode where

anyone can use it.

Simply just slide

the LS switch

to your desired

security setting

and you are done!

Here’s how you do it!

LS Mode 2 : (Default) Creative

Bluetooth

Multipoint mode:

Allows you to connect up to 2

Bluetooth

devices

at the same time while playing music on one

device at any one time. Requires music to stop

playing for another device to pair or connect.

Great for single user with 2 or less

Bluetooth

devices who may not want to share the Sound

Blaster Roar.

LS Mode 1: ”Friendly” access mode:

Allows

Bluetooth

devices that have been paired

to the speaker before to takeover control of the

Sound Blaster Roar by simply initiating connect

on their

Bluetooth

device.

Great for single or multiple users with 2 or more

Bluetooth

devices who may want to wirelessly

connect to the Sound Blaster Roar and share

music.

LS OFF mode: “Free For All” access mode:

Leaves the Sound Blaster Roar in discoverable

mode even with 1 device connected via

Bluetooth

Great for sharing music with a group of friends

anywhere, even in the meeting room for

discussion and presentation without touching

the speaker.

Anyone can take over control of the Sound Blaster

Roar instantly.

Note:

- Creative

Bluetooth

Multipoint is only available

in LS mode 2 only.

Link Security (

Bluetooth

Connectivity) mode

Creative

Bluetooth

Multipoint lets you pair 2 devices

to the Sound Blaster Roar.^

With Creative

Bluetooth

Multipoint, you can

connect up to two

Bluetooth

devices

simultaneously. Toggle

easily between your

phone and tablet, or

share music playback

from your phone or a

friend’s phone.

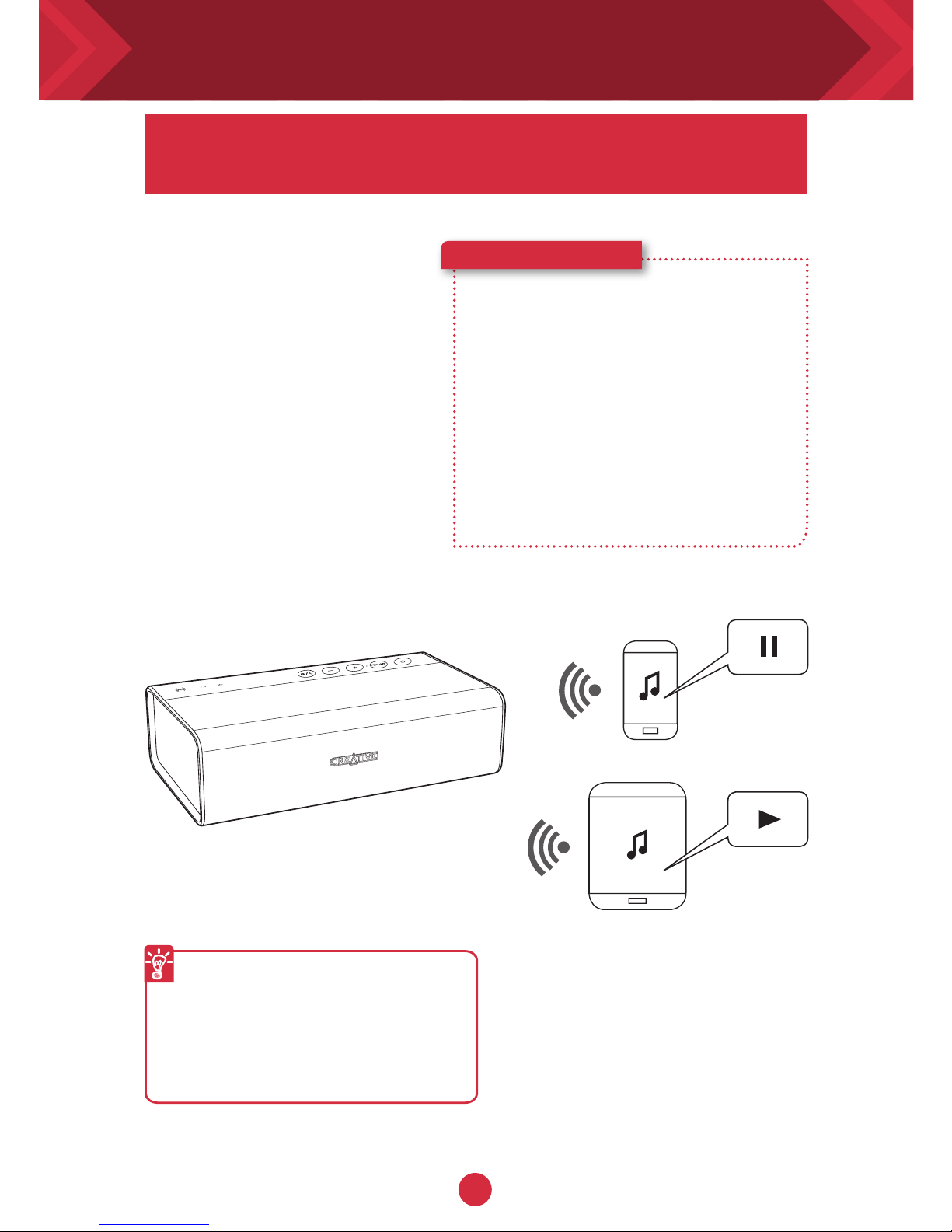

Here’s how you do it!

1Pause playback on the

connected device.

2Pair and connect a second

device.

3Start playback on either

one of the connected

devices.

To toggle between devices

Pause playback on the ﬁrst

connected device before

starting playback on the

second connected device.

^Only available in Link Security

mode 2

Connecting your speakers - Understanding Multipoint

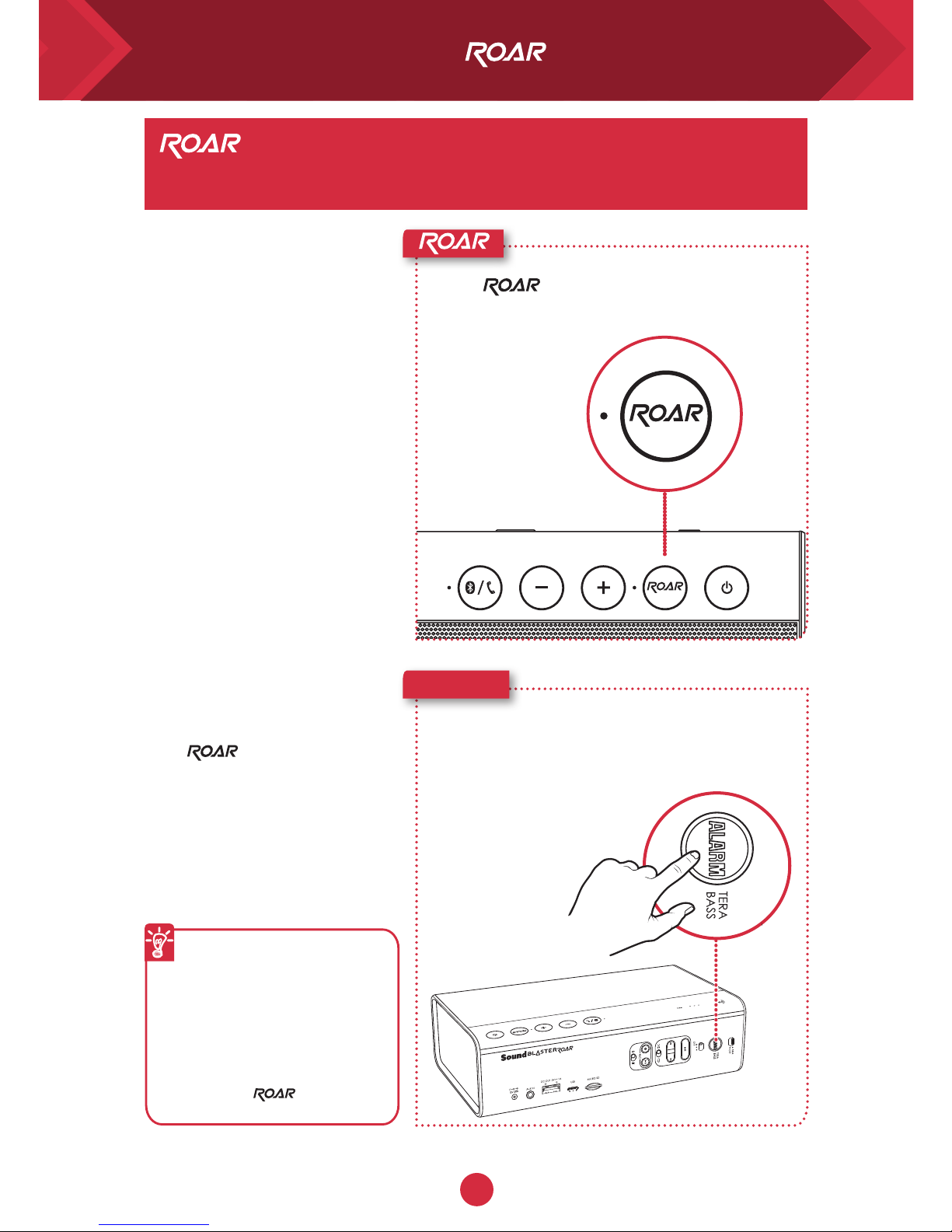

/ TeraBass button intelligently boost the bass

Like our in-house reference

systems, the Roar is tuned to

be accurate, balanced, and well

deﬁned, while delivering full

spectral output at maximium

levels with minimal or no

compression. (NOT common

in many battery operated

portables). At low level listening

conditions, some people may

perceive audio differently. Be

it being less sensitive to bass

reproduction, in less than

ideal environments or strictly

personal preference. The

TeraBass feature intelligently

compensates the loss of

perceived loudness in bass

during low level playback

without artiﬁcially over

accentuating bass levels.

However when sheer audio

power is needed – such as large

parties and social gatherings

– the mode instantly

boost the loudness, depth and

spaciousness of the audio.

For added boost

Connecting the Sound

Blaster Roar to the power

adapter gives your music

added volume boost. It

is recommended to use

a power adapter when

using the feature.

TeraBass

Understanding TeraBass / feature

and loudness of your music.

Press during music playback.

Press the Alarm / TeraBass button while your

music is playing and hear the difference!

Autres manuels pour Sound Blaster Roar SR20A

Table des matières

Autres manuels Creative Intervenants

Creative

Creative Inspire Digital 5700 Manuel utilisateur

Creative

Creative Pebble MF1680 Manuel du propriétaire

Creative

Creative Blaster Modem Manuel utilisateur

Creative

Creative MUVO Go Manuel utilisateur

Creative

Creative AIRWAVE MF8160 Manuel utilisateur

Creative

Creative ZIISOUND D5 - Manuel utilisateur

Creative

Creative Creative Sound BlasterX Katana Manuel utilisateur

Creative

Creative ZiiSound D5x Manuel utilisateur

Creative

Creative ZIISOUND T6 - Manuel utilisateur

Creative

Creative T15 Wireless Manuel utilisateur

Creative

Creative T100 - MuVo 2GB MP3 Player Manuel utilisateur

Creative

Creative D200 Manuel utilisateur

Creative

Creative MF1705 Manuel utilisateur

Creative

Creative Inspire S2 Wireless Manuel utilisateur

Creative

Creative Airwave Guide d'installation

Creative

Creative E-MU XM7 Manuel utilisateur

Creative

Creative A 320 Manuel utilisateur

Creative

Creative GIGAWORKS T40 Series II Guide de dépannage

Creative

Creative Sound Blaster Roar SR20A Guide d'installation

Creative

Creative Four Point Surround FPS1500 Manuel utilisateur

Creative

Creative DSxm Manuel utilisateur

Creative

Creative Gigaworks T40 series II Manuel utilisateur

Creative

Creative SB1660 Manuel utilisateur

Creative

Creative Pebble V3 Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
