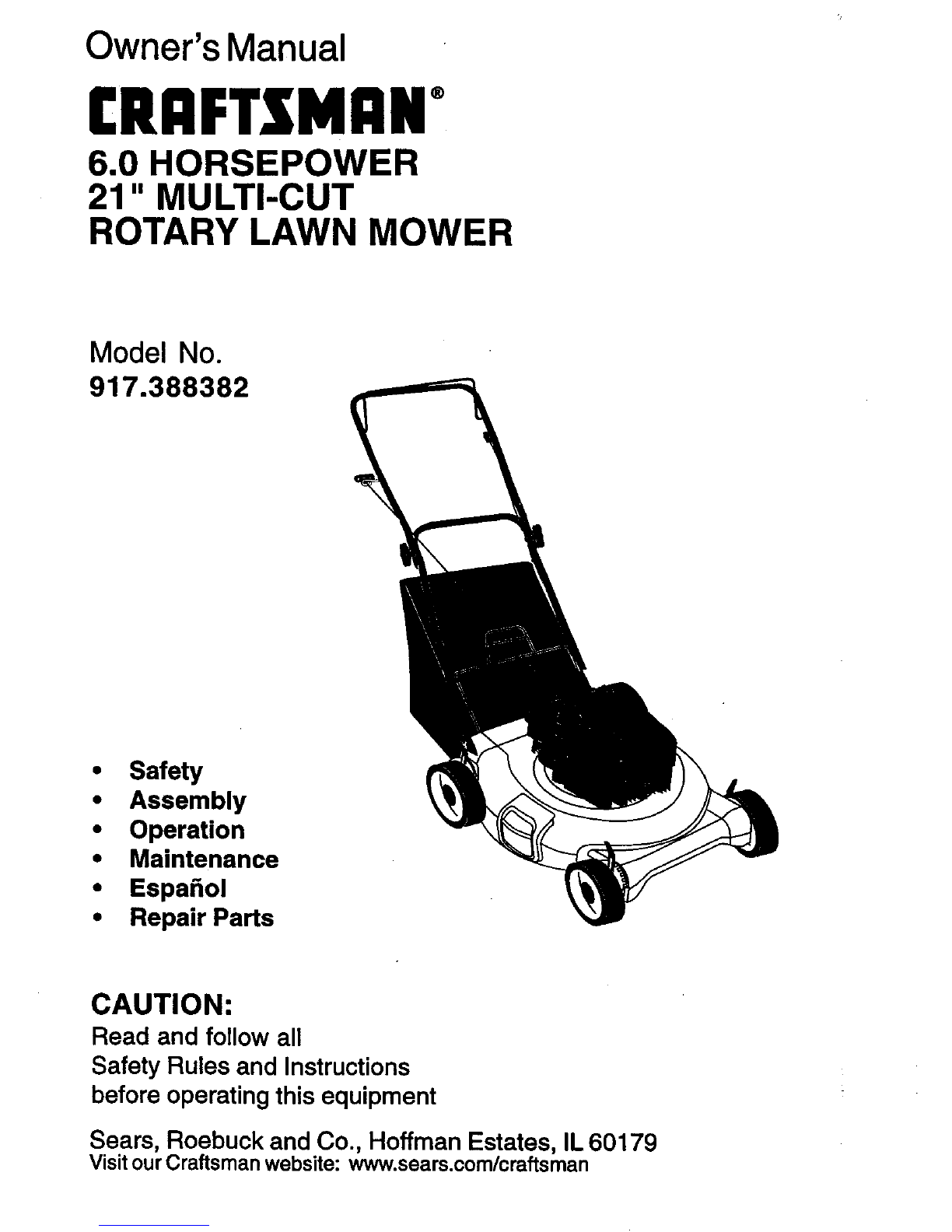

Craftsman 917.388382 Manuel utilisateur

Owner's Manual

(RRFTSMRN°

6.0 HORSEPOWER

21" MULTI-CUT

ROTARY LAWN MOWER

Model No.

917.388382

• Safety

•Assembly

•Operation

• Maintenance

•Espa_ol

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Sears, Roebuck and Co., Hoffman Estates, IL60179

Visitour Craftsman website: www.sears.com/craffsman

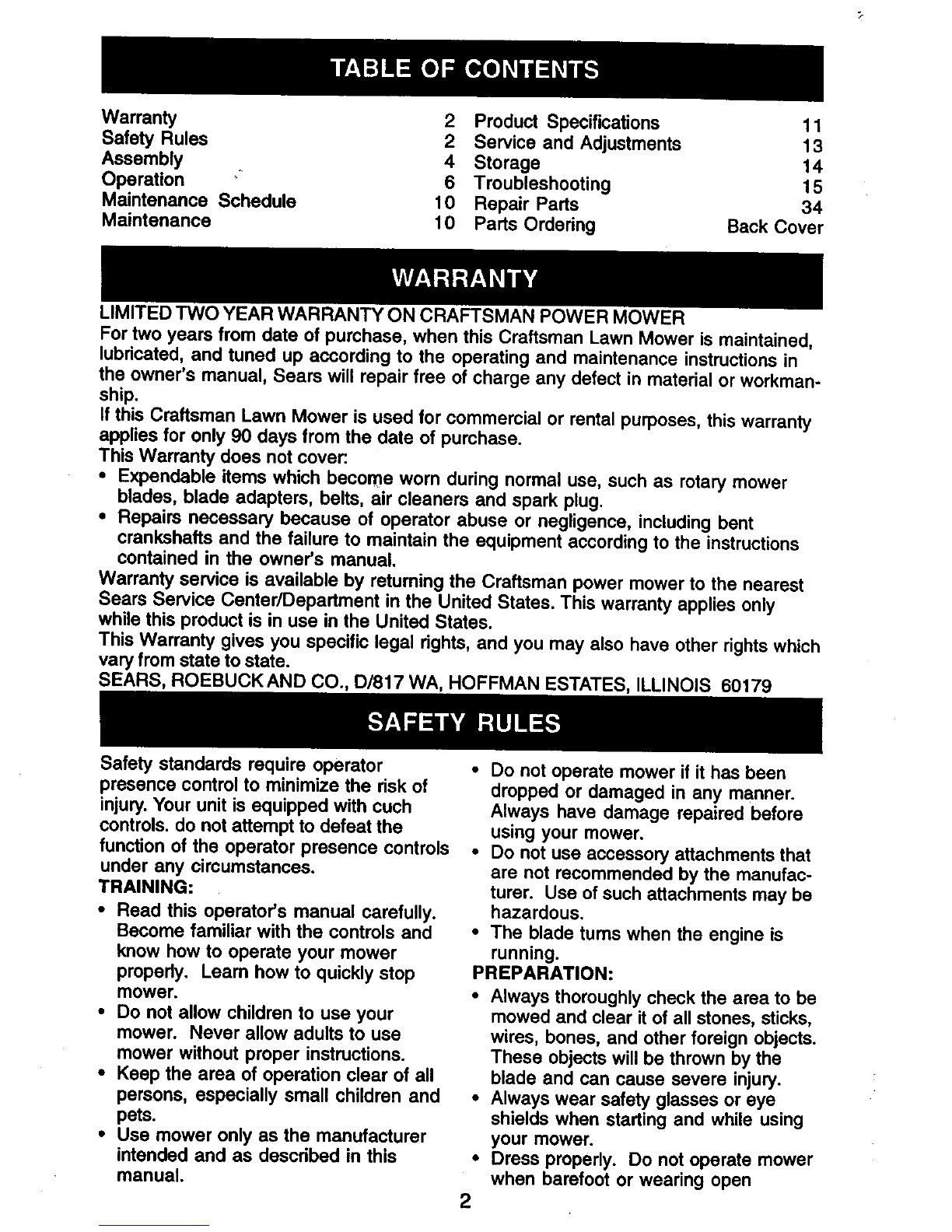

Warranty

Safety Rules

Assembly

Operation +

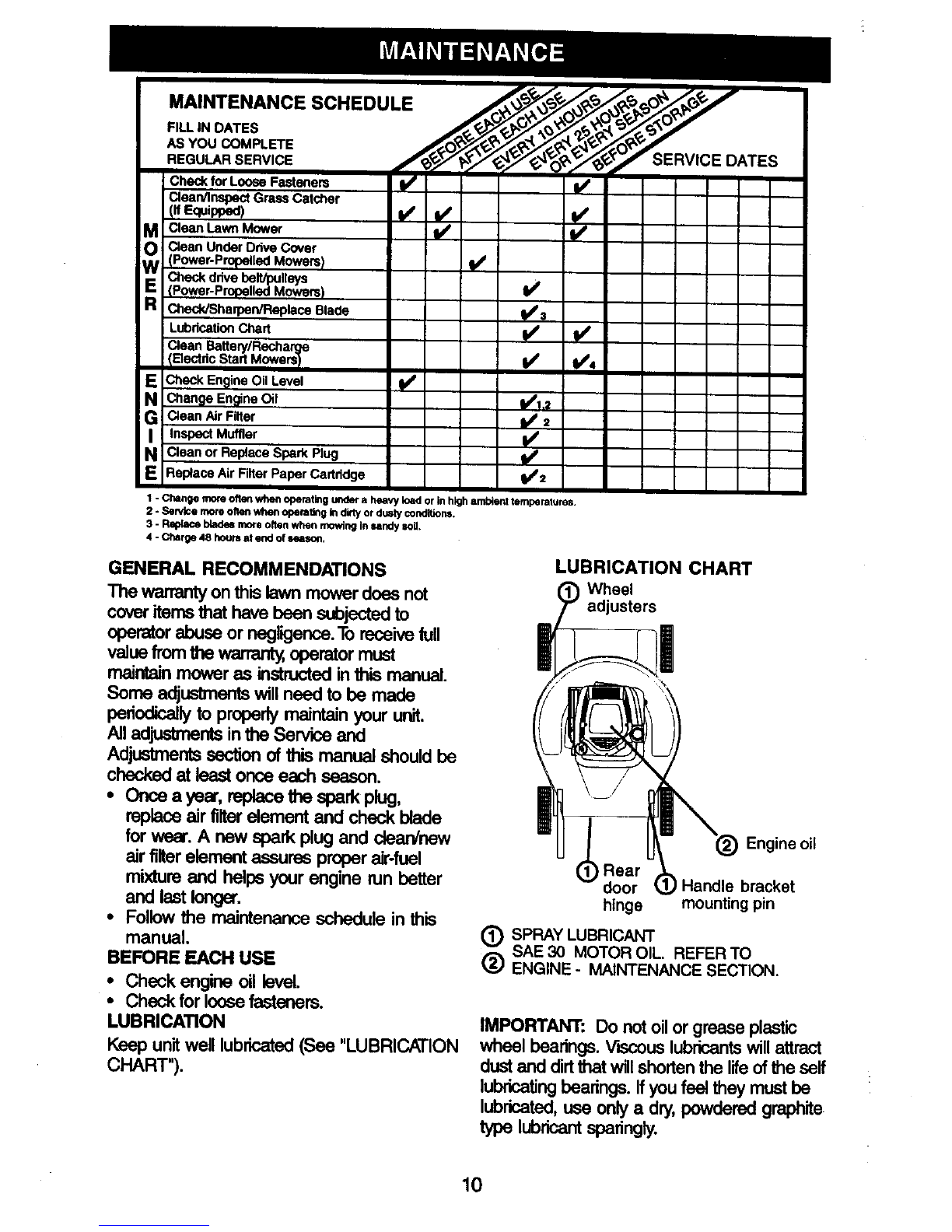

Maintenance Schedule

Maintenance

2 Product Specifications 11

2 Service and Adjustments 13

4 Storage 14

6 Troubleshooting 15

10 Repair Parts 34

10 Parts Ordering Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in

the owner's manual, Sears will repair free of charge any defect in material or workman-

ship.

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

This Warranty does not cover:.

•Expendable items which become worn during normal use, such as rotary mower

blades, blade adapters, belts, air cleaners and spark plug.

•Repairs necessary because of operator abuse or negligence, including bent

crankshafts and the failure to maintain the equipment according to the instructions

contained in the owner's manual.

Warranty service is available by returning the Craftsman power mower to the nearest

Sears Service Center/Department in the United States. This warranty applies only

while this product is in use in the United States.

This Warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

SEARS, ROEBUCKAND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179

Safety standards require operator

presence control to minimize the risk of

injury. Your unit is equipped with cuch

controls, do not attempt to defeat the

function of the operator presence controls

under any circumstances.

TRAINING:

•Read this operator's manual carefully.

Become familiar with the controls and

know how to operate your mower

propedy. Learn how to quickly stop

mower.

•Do not allow children to use your

mower. Never allow adults to use

mower without proper instructions.

•Keep the area of operation clear of all

persons, especially small children and

pets.

•Use mower only as the manufacturer

intended and as described in this

manual.

• Do not operate mower if it has been

dropped or damaged in any manner.

Always have damage repaired before

using your mower.

•Do not use accessory attachments that

are not recommended by the manufac-

turer. Use of such attachments may be

hazardous.

•The blade tums when the engine is

running.

PREPARATION:

•Always thoroughly check the area to be

mowed and clear it of all stones, sticks,

wires, bones, and other foreign objects.

These objects will be thrown by the

blade and can cause severe injury.

•Always wear safety glasses or eye

shields when starting and while using

your mower.

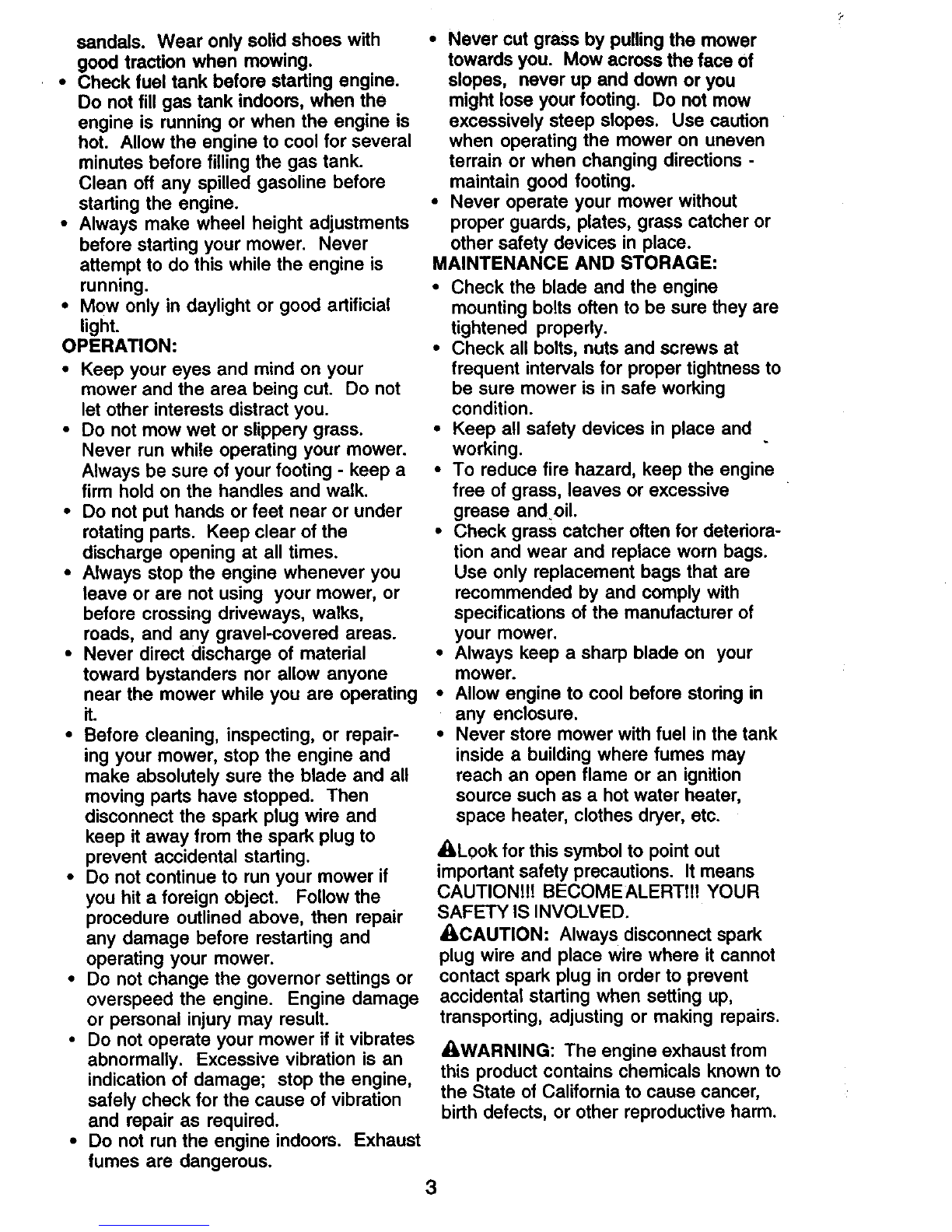

• Dress properly. Do not operate mower

when barefoot or wearing open

sandals. Wear only solid shoes with

good traction when mowing.

•Check fuel tank before starting engine.

Do not fill gas tank indoors, when the

engine is running or when the engine is

hot. Allow the engine to cool for several

minutes before filling the gas tank.

Clean off any spilled gasoline before

starting the engine.

•Always make wheel height adjustments

before starting your mower. Never

attempt to do this while the engine is

running.

*Mow only in daylight or good artificial

light.

OPERATION:

•Keep your eyes and mind on your

mower and the area being cut. Do not

let other interests distract you.

•Do not mow wet or slippery grass.

Never run while operating your mower.

Always be sure of your footing -keep a

firm hold on the handles and walk.

•Do not put hands or feet near or under

rotating pads. Keep clear of the

discharge opening at all times.

•Always stop the engine whenever you

leave or are not using your mower, or

before crossing driveways, walks,

roads, and any gravel-covered areas.

•Never direct discharge of material

toward bystanders nor allow anyone

near the mower while you are operating

it.

•Before cleaning, inspecting, or repair-

ing your mower, stop the engine and

make absolutely sure the blade and all

moving parts have stopped. Then

disconnect the spark plug wire and

keep it away from the spark plug to

prevent accidental starting.

•Do not continue to run your mower if

you hit a foreign object. Follow the

procedure outlined above, then repair

any damage before restarting and

operating your mower.

•Do not change the governor settings or

overspeed the engine. Engine damage

or personal injury may result.

•Do not operate your mower if it vibrates

abnormally. Excessive vibration is an

indication of damage; stop the engine,

safely check for the cause of vibration

and repair as required.

•Do not run the engine indoors. Exhaust

fumes are dangerous. 3

•Never cut grass by pulling the mower

towards you. Mow across the face of

slopes, never up and down or you

might lose your footing. Do not mow

excessively steep slopes. Use caution

when operating the mower on uneven

terrain or when changing directions -

maintain good footing.

•Never operate your mower without

proper guards, plates, grass catcher or

other safety devices in place.

MAINTENANCE AND STORAGE:

• Check the blade and the engine

mounting bolts often to be sure they are

tightened properly.

•Check all bolts, nuts and screws at

frequent intervals for proper tightness to

be sure mower is in safe working

condition.

•Keep all safety devices in place and

working.

•To reduce fire hazard, keep the engine

free of grass, leaves or excessive

grease and oil.

•Check grass catcher often for deteriora-

tion and wear and replace worn bags.

Use only replacement bags that are

recommended by and comply with

specifications of the manufacturer of

your mower.

•Always keep a sharp blade on your

mower.

•Allow engine to cool before storing in

any enclosure.

•Never store mower with fuel in the tank

inside a building where fumes may

reach an open flame or an ignition

source such as a hot water heater,

space heater, clothes dryer, etc.

ALook for this symbol to point out

important safety precautions. It means

CAUTION!!! BECOMEALERTT!! YOUR

SAFETY IS INVOLVED.

ACAUTION: Always disconnect spark

plug wire and place wire where it cannot

contact spark plug in order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs.

AWARNING: The engine exhaust from

this product contains chemicals known to

the State of California to cause cancer,

birth defects, or other reproductive harm.

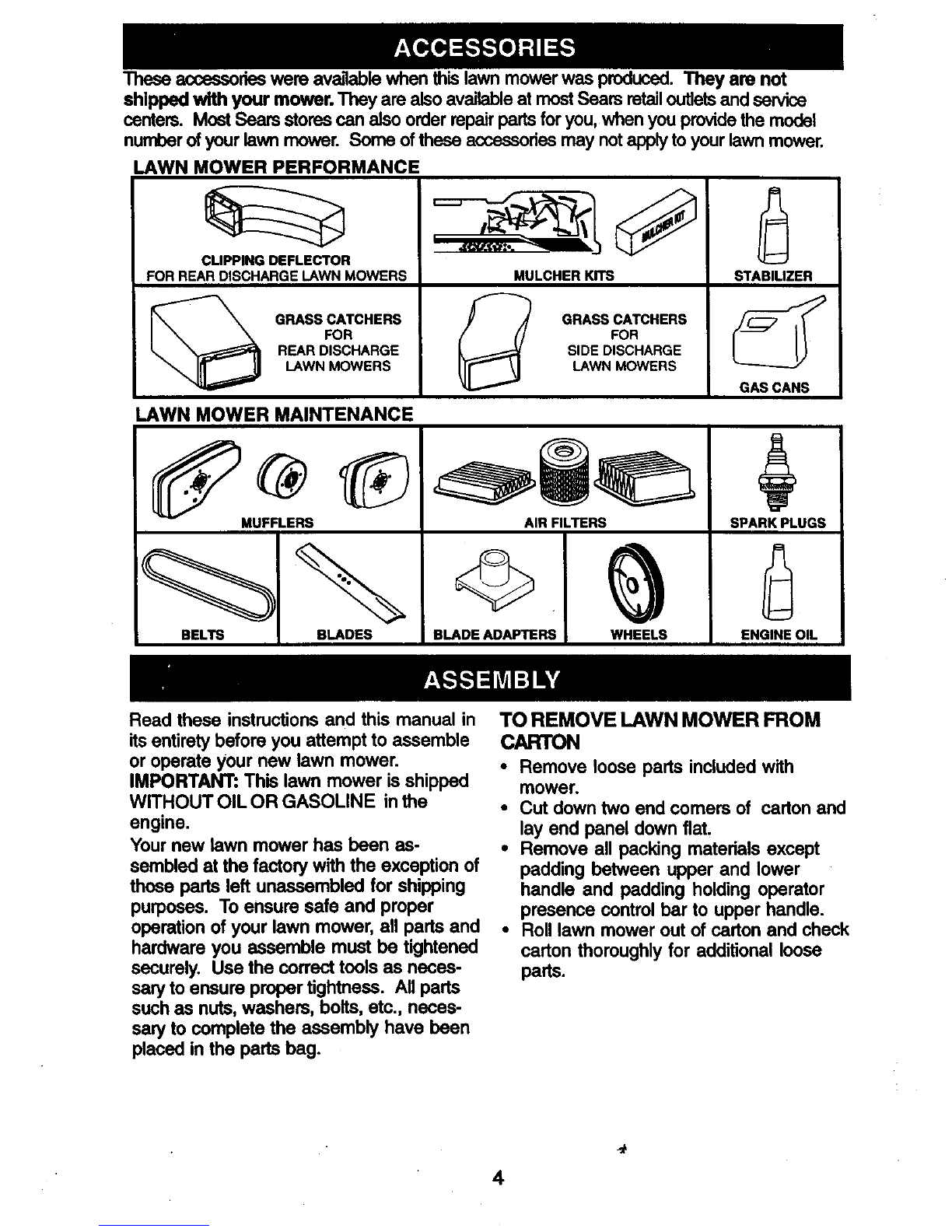

"rheseasceesodeswereavailablewhenthislawnmowerwas produced.They are not

shipped with your mower.They arealsoavailableat mostSearsretailoutletsandservice

centers. MostSearsstorescan alsoorderrepairpartsforyou,whenyouprovidethemodel

numberofyourlawnmower. Someofthese accessoriesmaynotapplytoyourlawnmower.

LAWN MOWER PERFORMANCE

_,£___.,0='o. ".I

CLIPPING DEFLECTOR

FOR REAR DISCHARGE LAWN MOWERS MULCHER KITS

GRASS CATCHERS

FOR

REAR DISCHARGE

LAWN MOWERS GRASS CATCHERS

FOR

I SIDE DISCHARGE

LAWN MOWERS

LAWN MOWER MAINTENANCE

MUFFLERS

BELTS BLADES BLADE ADAPTERS

AIR FILTERS

WHEELS

STABILIZER

GAS CANS

SPARK PLUGS

ENGINE OIL

Read these instructions and this manual in

its entirety before you attempt to assemble

or operate your new lawn mower.

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the

engine.

Your new lawn mower has been as-

sembled at the factory with the exception of

those pads left unassembled for shipping

purposes. To ensure safe and proper

operation of your lawn mower, all pads and

hardware you assemble must be tightened

securely. Use the correct tools as neces-

sary to ensure proper tightness. All parts

such as nuts, washers, bolts, etc., neces-

sary to complete the assembly have been

placed in the pads bag.

TO REMOVE LAWN MOWER FROM

CARTON

• Remove loose pads included with

mower.

•Cut down two end comers of carton and

lay end panel down flat.

•Remove all packing materials except

padding between upper and lower

handle and padding holding operator

presence control bar to upper handle.

•Roll lawn mower out of carton and check

carton thoroughly for additional loose

parts.

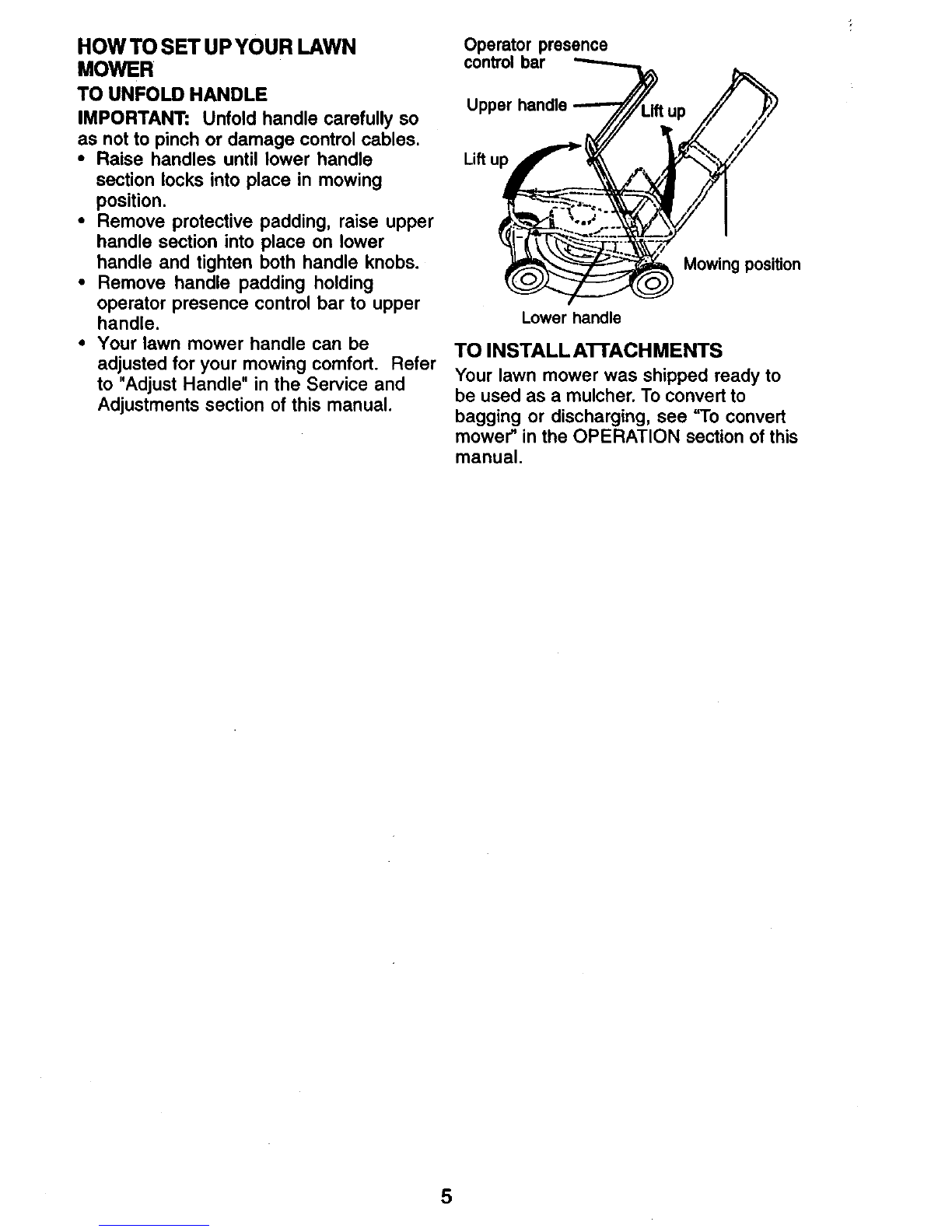

HOW TO SET UPYOUR LAWN Operatorpresence

MOWER control bar

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage control cables.

•Raise handles until lower handle

section locks into place in mowing

position.

•Remove protective padding, raise upper

handle section into place on lower

handle and tighten both handle knobs.

•Remove handle padding holding

operator presence control bar to upper

handle.

•Your lawn mower handle can be

adjusted for your mowing comfort. Refer

to "Adjust Handle" in the Service and

Adjustments section of this manual.

Upper handle

Lift up

Mowing position

Lower handle

TO INSTALL A'I-rACHMENTS

Your lawn mower was shipped ready to

be used as a mulcher. To convert to

bagging or discharging, see 'q'o convert

mower" in the OPERATION section of this

manual.

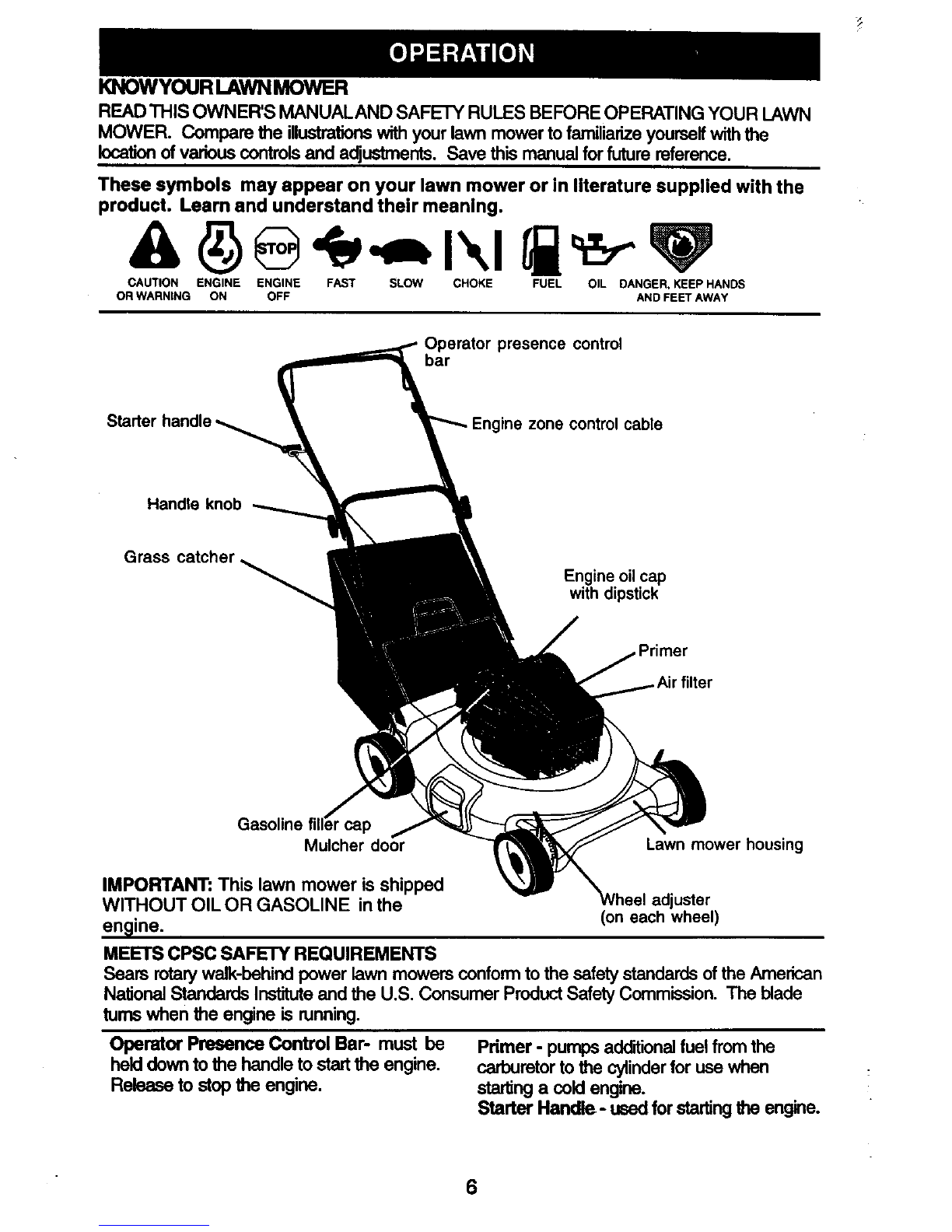

KNOWYOUR LAWNMOWER

READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR LAWN

MOWER. Compare the illustrationswith your lawn mower to familiarize yourselfwith the

locationof various controlsand adjustments. Save this manual for future reference.

These symbols may appear on your lawn mower or in literature supplied with the

product. Learn and understand their meanlng.

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS

OR WARNING ON OFF AND FEET AWAY

Operator presence control

bar

Engine zone control cable

Handle knob

Grass catcher Engine oil cap

with dipstick

Mulcher door Lawn mower housing

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the Jster

en_line. (on each wheel)

MEETS CPSC SAFETY REQUIREMENTS

Sears rotarywalk-behind power lawn mowers conform to the safety standards ofthe American

National Standards Institute and the U.S. Consumer Product Safety Commission. The blade

turns when the engine is running.

Operator Presence Control Bar- must be

held down to the handle to start the engine.

Release to stop the engine.

Pdmer -pumps additionalfuel fromthe

carburetor to the cylinderfor use when

starling a cold engine.

Starter Handle- used for startingthe engine.

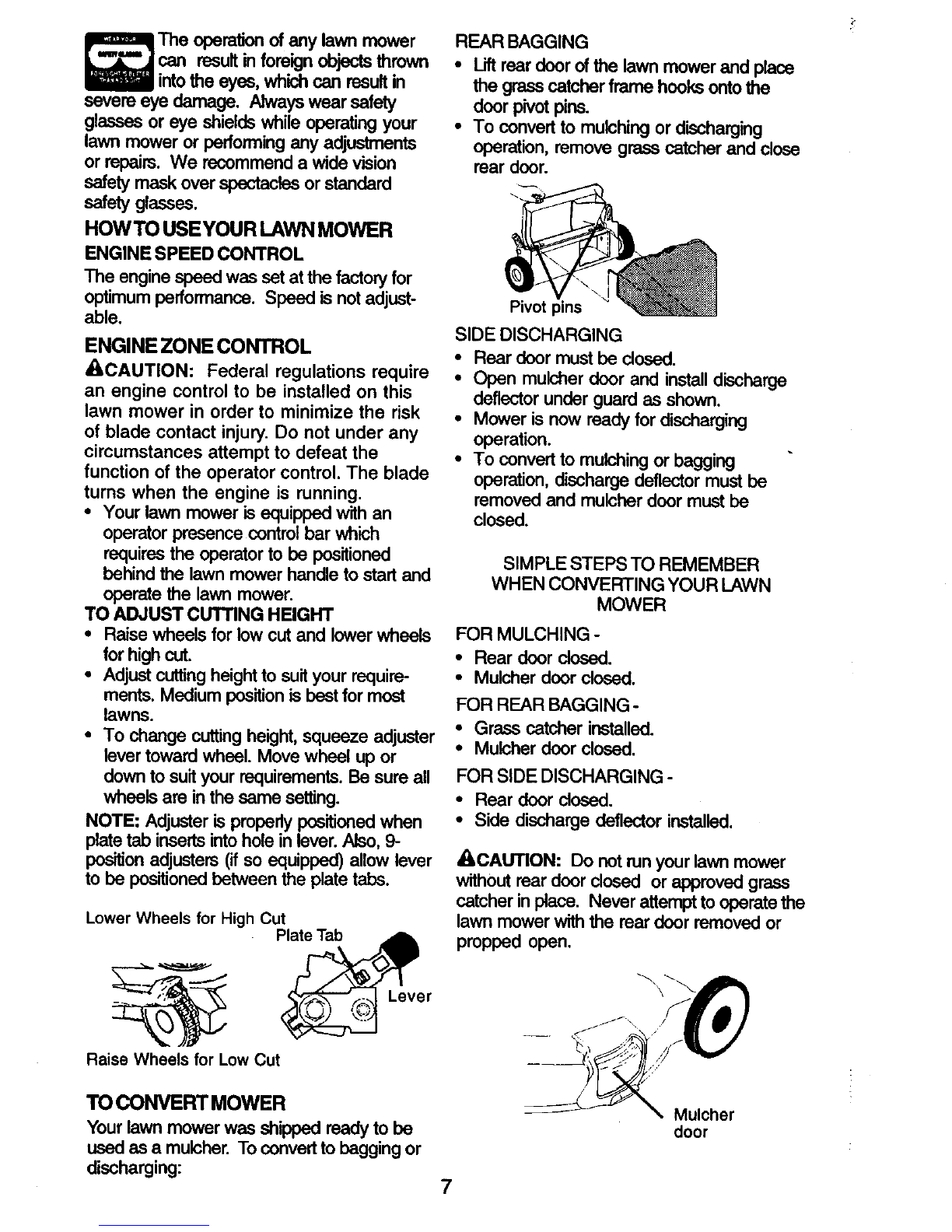

The operation of any lawn mower

can result in foreign objects thrown

intothe eyes, which can result in

severe eye damage. Always wear safety

glasses or eye shields while operating your

lawn mower or performing any adjustments

or repairs. We recommend a wide vision

safety mask over spectacles or standard

safety glasses.

HOWTO USEYOUR LAWN MOWER

ENGINE SPEED CONTROL

The engine speed was set at the factory for

optimum performance. Speed is not adjust-

able.

ENGINE ZONE CONTROL

_I=CAUTION: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the risk

of blade contact injury. Do not under any

cimumstances attempt to defeat the

function of the operator control. The blade

tums when the engine is running.

•Your lawn mower is equipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start and

operate the lawn mower.

TO ADJUST CUTTING HEIGHT

=Raise wheels for low cut and lower wheels

for high cut.

•Adjust cuttingheight to suityour require-

ments. Medium positionis best for most

lawns.

, To change cuttingheight, squeeze adjuster

lever toward wheel. Move wheel up or

down to suit your requirements. Be sure all

wheels are in the same setting.

NOTE: Adjuster is properly positioned when

plate tab inserts intohole in lever. Also, 9-

position adjusters (if so equipped) allow lever

to be positionedbetween the plate tabs.

LowerWheels for High Cut

Raise Wheels for Low Cut

TO CONVERT MOWER

Yourlawnmowerwas shipped readytobe

usedasa mulcher.Toconverttobaggingor

discharging:

REAR BAGGING

•Lift rear door of the lawn mower and place

the grass catcher frame hooks onto the

doorpivotpins.

•To convert to mulching or discharging

operation, remove grass catcher and close

rear door.

Pivot pins

SIDE DISCHARGING

• Rear door must be dosed.

• Open mulcher door and install discharge

deflector under guard as shown,

• Mower is now ready for discharging

operation.

•To convertto mulching or bagging

operation, discharge deflector must be

removed and mulcher door must be

closed.

SIMPLE STEPS TO REMEMBER

WHEN CONVERTING YOUR LAWN

MOWER

FOR MULCHING -

•Rear door closed.

• Mulcher door closed.

FOR REAR BAGGING -

•Grass catcher installed.

•Mulcher door closed.

FOR SIDE DISCHARGING -

• Rear door dosed.

•Side discharge deflector installed.

ACAUTION: Do not runyour lawn mower

without rear door closed or approved grass

catcher in place. Never attempt to operate the

lawn mower with the rear door removed or

prepped open.

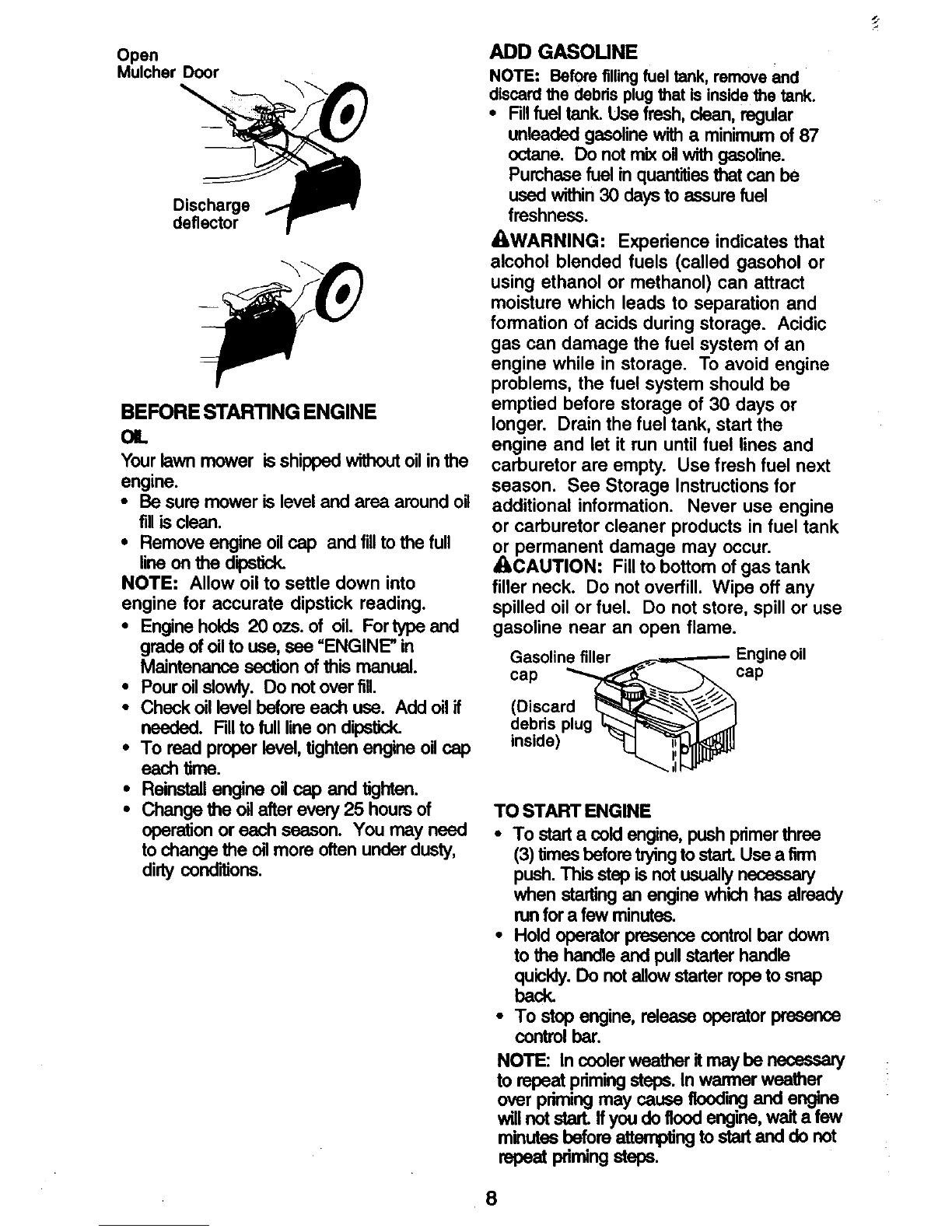

Mulcher

door

Open

Mulcher Door

Discharge

deflector

BEFORE STARTING ENGINE

OIL

Your lawn mower is shipped without oil in the

engine.

•Be sure mower is level and area around oil

fillis dean.

•Remove engine oil cap and fillto the full

line on the dipstick.

NOTE: Allow oil to settle down into

engine for accurate dipstick reading.

•Engine holds 20 ozs. of oil. Fortype and

grade of oilto use, see "ENGINE' in

Maintenance section of this manual.

• Pour oilslowly. Do not over till.

•Check oil level before each use. Add oil if

needed. Fill to full line on dipstick.

•To read proper level, tighten engine oil cap

each time.

•Reinstall engine oil cap and tighten.

•Change the oil after every 25 hours of

operation or each season. You may need

to change the ell more often under dusty,

dirty cond'fdons.

ADD GASOUNE

NOTE: Beforefillingfuel tank, removeand

discardthe debrisplugthat isinsidethe tank.

•Fillfuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of 87

octane. Do not mix oil with gasoline.

Purchase fuel in quantitiesthat can be

used within 30 days to assure fuel

freshness.

AWARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the fuel tank, start the

engine and let it run until fuel lines and

carburetor are empty. Use fresh fuel next

season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in fuel tank

or permanent damage may occur.

_]LCAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or use

gasoline near an open flame.

Gasoline filler _Engine oil

cap _cap

(Discard _I_'_._X_'j_ l

debris plug _..'_'T" _,_

Inside) "_._

TO START ENGINE

•To start a cold engine, push primerthree

(3) times before t_ing to start. Use a firm

push. This step is not usuallynecessary

when startingan engine which has already

runfor afew minutes.

•Hold operator presence control bar down

to the handle and pull starter handle

quickly.Do not allow starterrope to snap

back.

•To stop engine, release operator presence

control bar.

NOTE: In cooler weather it may be necessary

to repeat primingsteps. In wanner weather

over priming may cause flooding and engine

willnot start. If you do flood engine, wait a few

minutes before attempting to start and do not

repeatp mingsteps.

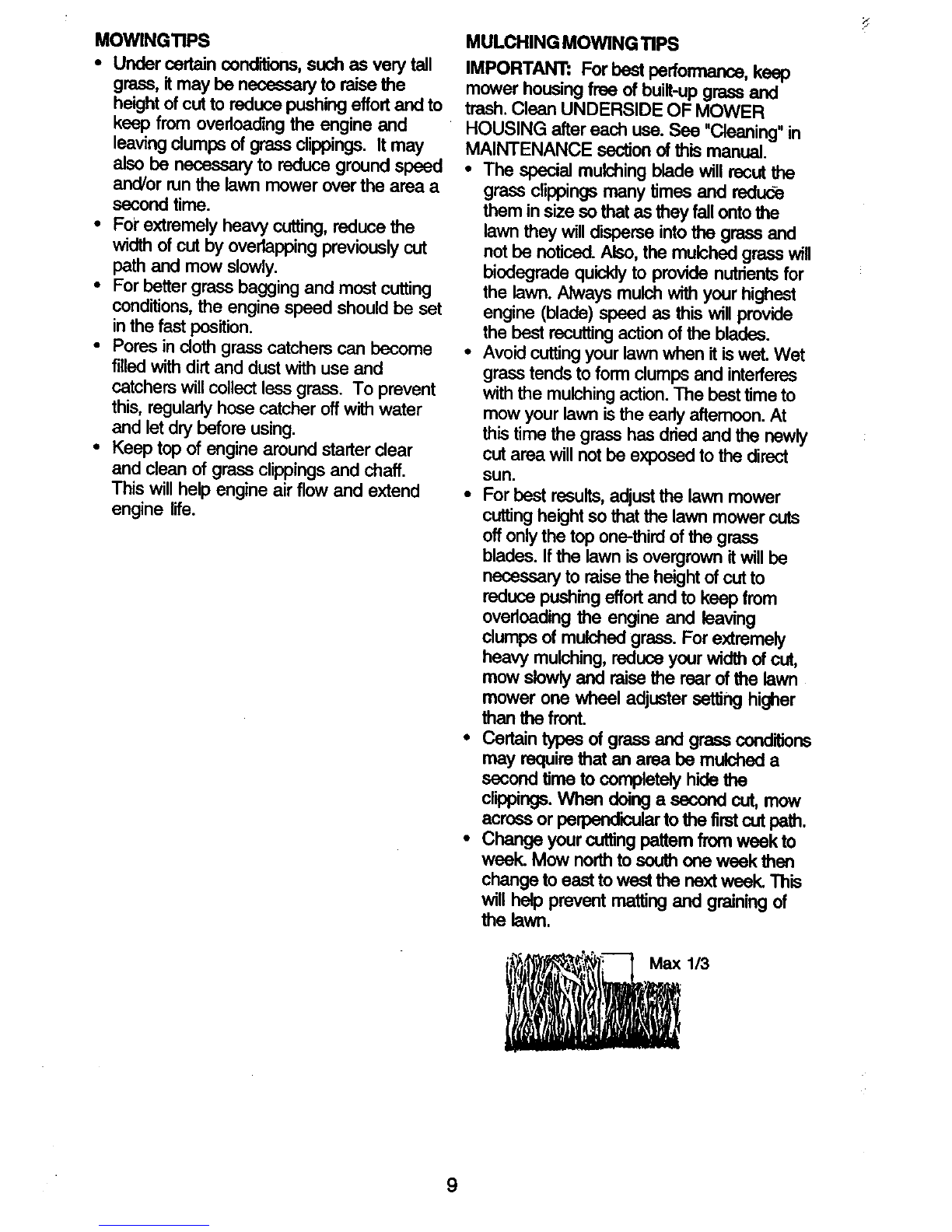

MOWINGTIPS

• Under certain conditions,such as very tall

grass, itmay be necessary to raise the

height of cut to reduce push;_geffort and to

keep from overloading the engine end

leaving clumps of grass clippings. It may

also be necessary to reduce ground speed

end/or runthe lawn mower over the area a

second time.

•FoPextremely heavy cutting,reduce the

width of cut by overlapping previouslycut

path and mow slowly.

•For better grass bagging and most cutting

conditions,the engine speed should be set

inthe fast position.

•Pores in cloth grass catchers can become

tiltedwith dirt and dust with use and

catchers will collect less grass. To prevent

this, regularly hose catcher off with water

end let dry before using.

• Keep top of engine around starter clear

and clean of grass clippings and chaff.

This will help engine air flow and extend

engine life.

MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. Clean UNDERSIDE OF MOWER

HOUSING after each use. See "Cleaning" in

MAINTENANCE section of this manual.

•The special mulching blade will recut the

grass clippings many times and reduce

them in size so that as they fallonto the

lawn they willdisperse intothe grass and

not be noticed. Also, the mulched grass will

biodegrade quicklyto provide nutrientsfor

the lawn. Always mulch with your highest

engine (blade) speed as this will provide

the best recuttingactionof the blades.

•Avoid cuttingyour lawn when it is wet. Wet

grass tends to form clumps and interferes

with the mulchingaction.The best time to

mow your lawn isthe early afternoon. At

this time the grass has dried and the newly

cut area will not be exposed to the direct

sun.

•For best results,adjustthe lawn mower

cuttingheight so that the lawn mower cuts

off onlythe top one-thirdof the grass

blades. Ifthe lawn is overgrown it will be

necessary to raise the height of cut to

reduce pushing effort end to keep from

overloading the engine and leaving

clumps of mulched grass. For extremely

heavy mulching,reduce your width of cut,

mow slowly and raise the rear of the lawn

mower one wheel adjuster setting higher

than the front.

•Certaintypesofgrassand grassconditione

may require that an area be mulched a

second time to completely hide the

clippings.Whendoinga secondcut,mow

across or perpendicularto the firstcut path.

•Change your cuttingpattern from week to

week. Mow northto south one week then

change to east to westthe next week. This

wilt help prevent matting and graining of

the lawn.

MAINTENANCE SCHEDULE

FILL IN DATES

AS YOU COMPLETE

REGULAR SERVICE 3EFIVICE DATES

Check forLoose Fastenem

Clean/Ins_ Grass Catcher I

1Clean LawnMower

Clean Under Drive Cover

power-e_ Mowe,_) V'

Check ddve belt/pulleys

(Power-Propelled Mowers) I/'

CheckiSha qJen/ReplaceBlade V_a

L®_=UonCha. I/ I/

Clean Battery/Recharge

IElectdc Start MowersIV' I/4

Check EngineOil Level !v'

Change EngineOil I II_l.l

Clean Air Filter ll/ it

InspectMuffler

Clean or Replace Spark Rug

Replace Air FittorPaper Cartridge lilifit

1-Change more ofte_ when operatklg under a heavy load or in high ambient temperatures.

2 - Sentlce more often when operaing in dirty or dusty conditions.

3-Repkv:e bldes mo_e oiten when mow_ in q.md¥ soQ.

4 - Charge 48 houm al end of m,

GENERAL RECOMMENDATIONS

The warranty on this lawn mower does not

cover itemsthat have been subjected to

operator abuse or negligence.To receive lull

value from the wanan_, operator must

maintain mower as instructedin this manual.

Some adjustments will need to be made

periodicallyto properly maintain your unit.

All I_:liusln'_s in ll'e Service and

Adjustments section of this manual should be

checked at leest orlce each season.

• Once a year, replace the spark plug,

replace air filterelement and check blade

for we_. A new spark plug and clean/new

airfilterelement assures proper air-fuel

mixtureand helps your engine run better

andlastk jer.

•Follow the maintenance schedule in this

manual.

BEFORE EACH USE

•Check engine oil level.

•Check for loose fasteners.

LUBRICATION

Keep unitwell lubricated (See "LUBRICATION

CHART").

LUBRICATION CHART

Wheel

adjusters

(_FI. Engine oil

ear

oDor IHandle bracket

hinge mounting pin

(_ SPRAY LUBRICANT

SAE 30 MOTOR OIL. REFER TO

(_ ENGINE- MAINTENANCE SECTION.

IMPORTANT: Do not oilor grease plastic

wheel bearings. Viscous lubricantswillattract

dust and dirtthat willshorten the lifeofthe self

lubricatingbearings. If you feel they must be

lubricated,use only adry,powdered graphite

typelubricantspadng /.

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.371560 Manuel utilisateur

Craftsman

Craftsman 917.28870 Manuel utilisateur

Craftsman

Craftsman 917.275761 Manuel utilisateur

Craftsman

Craftsman EZ3 917.259560 Manuel utilisateur

Craftsman

Craftsman 917.388020 Manuel utilisateur

Craftsman

Craftsman 247.288831 Manuel utilisateur

Craftsman

Craftsman C459-36303 Manuel utilisateur

Craftsman

Craftsman 917.274822 Manuel utilisateur

Craftsman

Craftsman 917.25436 Manuel utilisateur

Craftsman

Craftsman 25414 Manuel utilisateur

Craftsman

Craftsman 917.389290 Manuel utilisateur

Craftsman

Craftsman 917.377564 Manuel utilisateur

Craftsman

Craftsman C459-36201-1 Manuel utilisateur

Craftsman

Craftsman 917.375452 Manuel utilisateur

Craftsman

Craftsman 917.270751 Manuel utilisateur

Craftsman

Craftsman 247.37638 Manuel utilisateur

Craftsman

Craftsman 917.370600 Manuel utilisateur

Craftsman

Craftsman 247.25001 Manuel utilisateur

Craftsman

Craftsman 27717 Manuel utilisateur

Craftsman

Craftsman 917.275011 Manuel utilisateur

Craftsman

Craftsman 917.276750 Manuel utilisateur

Craftsman

Craftsman 917.273500 Manuel utilisateur

Craftsman

Craftsman 917.388520 Manuel utilisateur

Craftsman

Craftsman 917.377565 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
