Craftsman 917.377564 Manuel utilisateur

Owner's Manual

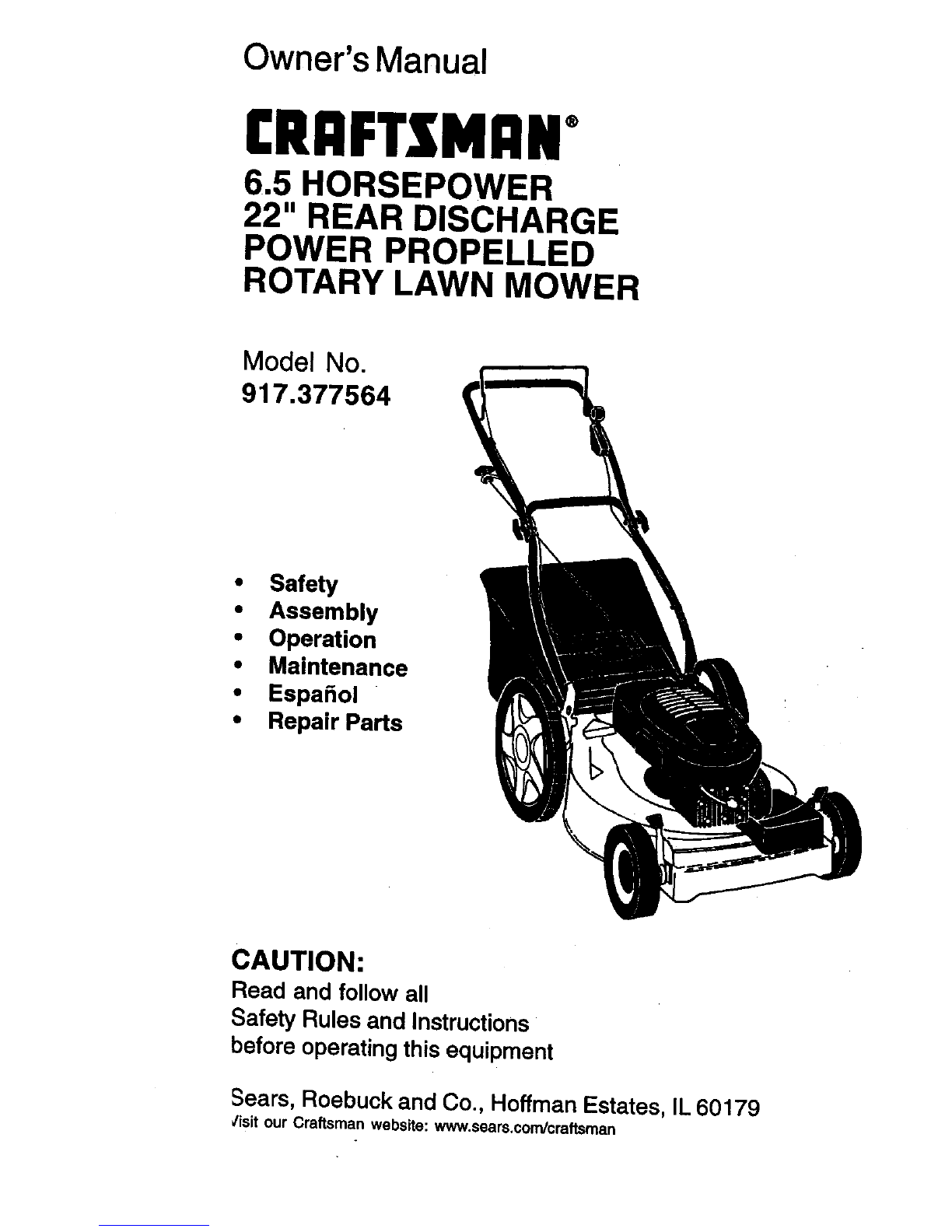

£RRFTSMflN"

6.5 HORSEPOWER

22" REAR DISCHARGE

POWER PROPELLED

ROTARY LAWN MOWER

Model No

917.377564

• safety

•Assembly

•Operation

• Maintenance

• Espafiol

• Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Sears, Roebuck and Co,, Hoffman Estates, IL 60179

_isit our Craftsman wsbsite: www,sears.com/craftsman

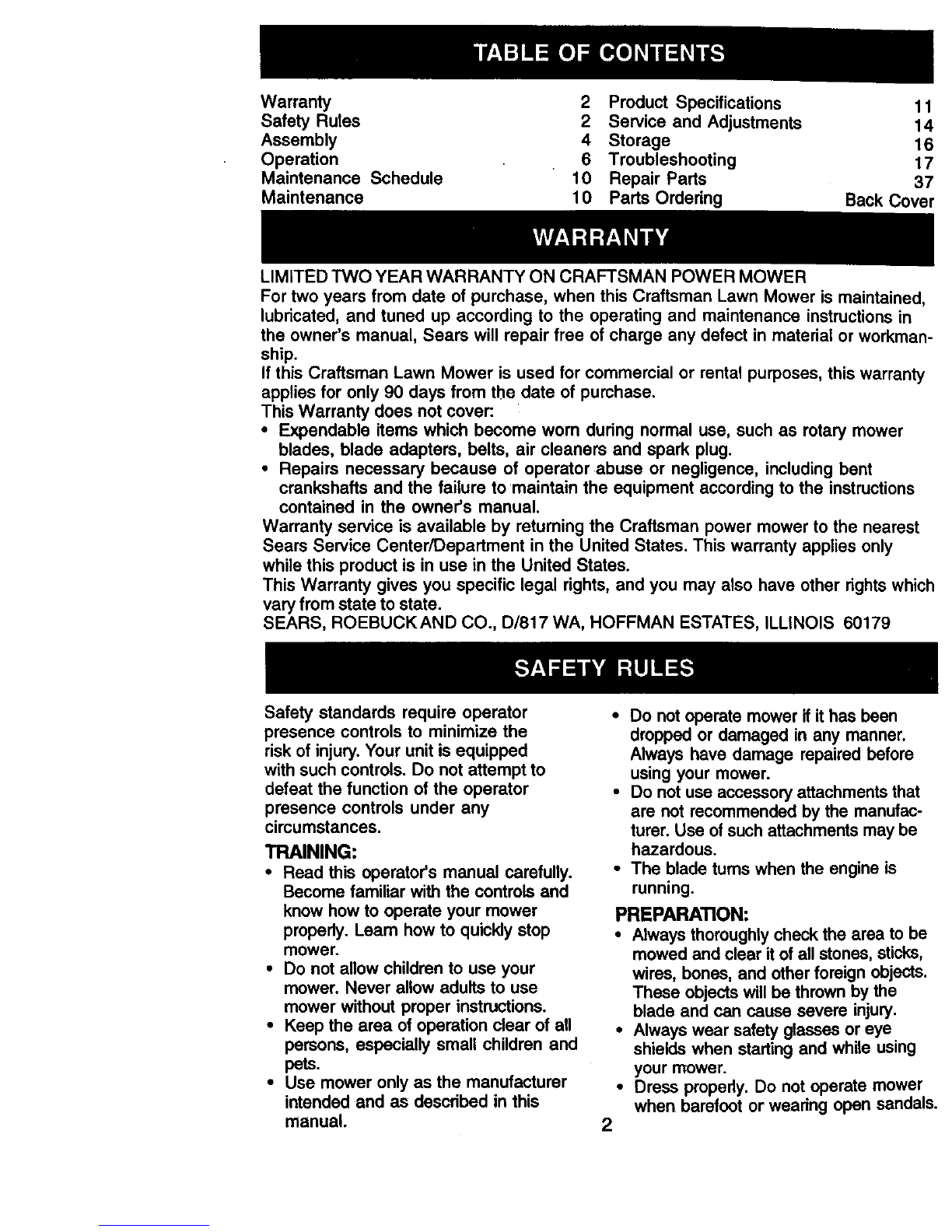

Warranty 2 ProductSpecifications 11

SafetyRules 2 Serviceand Adjustments 14

Assembly 4 Storage 16

Operation 6 Troubleshooting 17

MaintenanceSchedule 10 RepairParts 37

Maintenance 10 Parts Ordedng Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in

the owner's manual, Sears will repair free of charge any defect in material or workman-

ship.

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

This Warranty does not cover:

•Expendable items which become worn during normal use, such as rotary mower

blades, blade adapters, belts, air cleaners and spark plug.

•Repairs necessary because of operator abuse or negligence, includingbent

crankshafts and the failure to maintain the equipment according to the instructions

contained in the owner's manual.

Warranty service is available by returning the Craftsman power mower to the nearest

Sears Service Center/Department in the United States. This warranty applies only

while this product is in use in the United States.

This Warranty gives you specific legal dghts, and you may also have other rightswhich

vary from state to state.

SEARS, ROEBUCKAND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179

Safety standards require operator

presence controls to minimize the

risk of injury. Your unit is equipped

with such controls. Do not attempt to

defeat the function of the operator

presence controls under any

circumstances.

TRAINING:

•Read this operator's manual carefully.

Become familiar with the controlsand

know how to operate your mower

properly. Leam how to quickly stop

mower.

•Do not allow children to use your

mower. Never allow adults to use

mower without proper instructions.

•Keep the area of operation clear of all

persons, especially small children and

pets.

•Use mower only as the manufacturer

intended and as described in this

manual.

• Do not operate mower if it has been

dropped or damaged in any manner.

Always have damage repaired before

using your mower.

•Do not use accessory attachments that

are not recommended by the manufac-

turer. Use of such attachments may be

hazardous.

•The blade tums when the engine is

running.

PREPARATION:

•Always thoroughly check the area to be

mowed and clear it of all stones, sticks,

wires, bones, and other foreign objects.

These objects will be thrown by the

blade and can cause severe injury.

•Always wear safety glasses or eye

shields when starting and while using

your mower.

•Dress properly. Do not operate mower

when barefoot or weadng open sandals.

Wear only solid shoes with good traction

when mowing.

•Check fuel tank before starting engine.

Do not fill gas tank indoors,when the

engine is runningor when the engine is

hot.Allow the engine to cool for several

minutes before fillingthe gas tank. Clean

off any spilled gasoline before starting

the engine.

• Always make wheel height adjustments

before starting your mower. Never

attemptto do this while the engine is

running.

• Mow only in daylight or good artificial

light.

OPERATION:

•Keep your eyes and mind on your

mower and the area being cut. Do not let

other interestsdistractyou.

•Do not mow wet or slipperygrass. Never

run while operating your mower. Always

be sure of yourfooting -- keep a firm

hold on the handles and walk.

•Do notput hands or feet near or under

rotatingparts. Keep clear of the dis-

charge opening at all times.

•Always stop the engine whenever you

leave or are not using your mower, or

before crossingdriveways, walks, roads,

and any gravel--covered areas.

•Never direct discharge of material

toward bystanders nor allow anyone

near the mower while you are operating

it.

•Before cleaning, inspecting, or repairing

your mower, stop the engine and make

absolutely sure the blade and all moving

parts have stopped. Then disconnectthe

spark plug wire and keep itaway from

the spark plug to prevent accidental

starting.

• Do not continueto runyour mower if you

hita foreign object. Follow the procedure

outlined above, then repair any damage

before restartingand operating you

mower.

•Do not change the governorsettingsor

overspeed the engine. Engine damage

or personal injurymay result.

•Do not operate your mower if it vibrates

abnormally. Excessive vibrationis an

indicationof damage; stop the engine,

safely check for the cause of vibration

and repair as required.

• Do not run the engine indoors. Exhaust

fumes are dangerous. 3

* Never cut grass by pulling the mower

towards you. Mow across the face of

slopes, never up and down or you

might lose your footing. Do not mow

excessively steep slopes. Use caution

when operating the mower on uneven

terrain or when changing directions --

ma'mtain good footing.

• Never operate your mower without

proper guards, plates, grass catcher or

other safety devices in place.

MAINTENANCE AND STORAGE:

•Check the blade and the engine

mounting bolts often to be sure they are

tightened properly.

•Check all bolts, nuts and screws at

frequent intervals for proper tightness to

be sure mower is in safe working

condition.

•Keep all safety devices in place and

working.

•To reduce fire hazard, keep the engine

free of grass, leaves or excessive

grease and oil.

•Check grass catcher often for deteriora-

tion and wear and replace worn bags.

Use only replacement bags that.are

recommended by and comply with

specifications of the manufacturer of

your mower.

•Always keep a sharp blade on your

mower.

•Allow engine to cool before storing in

any enclosure.

•Never store mower with fuel in the tank

inside a building where fumes may

reach an open flame or an ignition

source such as a hot water heater,

space heater, clothes dryer, etc.

A, Look for this symbol to point out

important safety precautions. It means

CAUTION!!! BECOMEALERT!!! YOUR

SAFETY IS INVOLVED.

_,CAUTION: Always disconnect spark

plug wire and place wire where it cannot

contact spark plug in order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs.

A, WARNING

The engine exhaust from this product

contains chemicals known to the State of

California to cause cancer, birth defects,

or other reproductive harm.

These accessorieswere availablewhen thislawn mowerwas produced.They are not

shipped with your mower, They are alsoavailableat mostSears retailoulJetsand service

centers. Most Sears storescanalso orderrepairpartsfor you,whenyou providethe model

numberofyour lawnmower. Some ofthese accessoriesmay notapplytoyourlawn mower.

LAWN MOWER PERFORMANCE

CUPPING DEFLECTOR

FOR REAR DISCHARGE LAWN MOWERS

GRASS CATCHERS

FOR

REAR DISCHARGE

LAWN MOWERS

MULCHERKITS

LAWN MOWER MAINTENANCE

GRASSCATCHERS

FOR

SIDE DISCHARGE

LAWN MOWERS

MUFFLERS

GAS CANS

AIR FILTERS SPARK pl III'_._

BELTS BLADES BLADE ADAPTERS WHEELS ENGINE OIL

Read these instructiensand this manual in its

entiretybeforeyouattemptto assembleor

operateyournew lawn mower.

IMPORTANT: This lawn mower isshiped

WITHOUT OIL OR GASOLINE in the

engine.

Yournew lawn mower has been assembled

at thefactory withthe exceptJenofthose parts

leftunaseembledforshippingpurposes. All

parts suchas nuts,washers,bolts,atc.,

necessaryto completetheassemblyhave

been placedinthe partsbag. Toensures_e

and properoperationof yourlawn mower,all

parts and hardwareyou assernblemustbe

tightenedsecurely.Usethecorrecttoolaas

necessa_ to ensure properIJghthese.

TO REMOVE LAWN MOWER FROM

CARTON

•Remove loosepartsincludedwith mower.

•Cutdown twoend comomof cartonand

layendpaneldownfla_

•Remove allpackingmateriaisexcept

padding between upper and lower handle

and padding holdingoperatorpresence

centralbar to upper handle.

•Roll lawnmower outofcartenand check

cartonthoroughlyfor additionalloosepads.

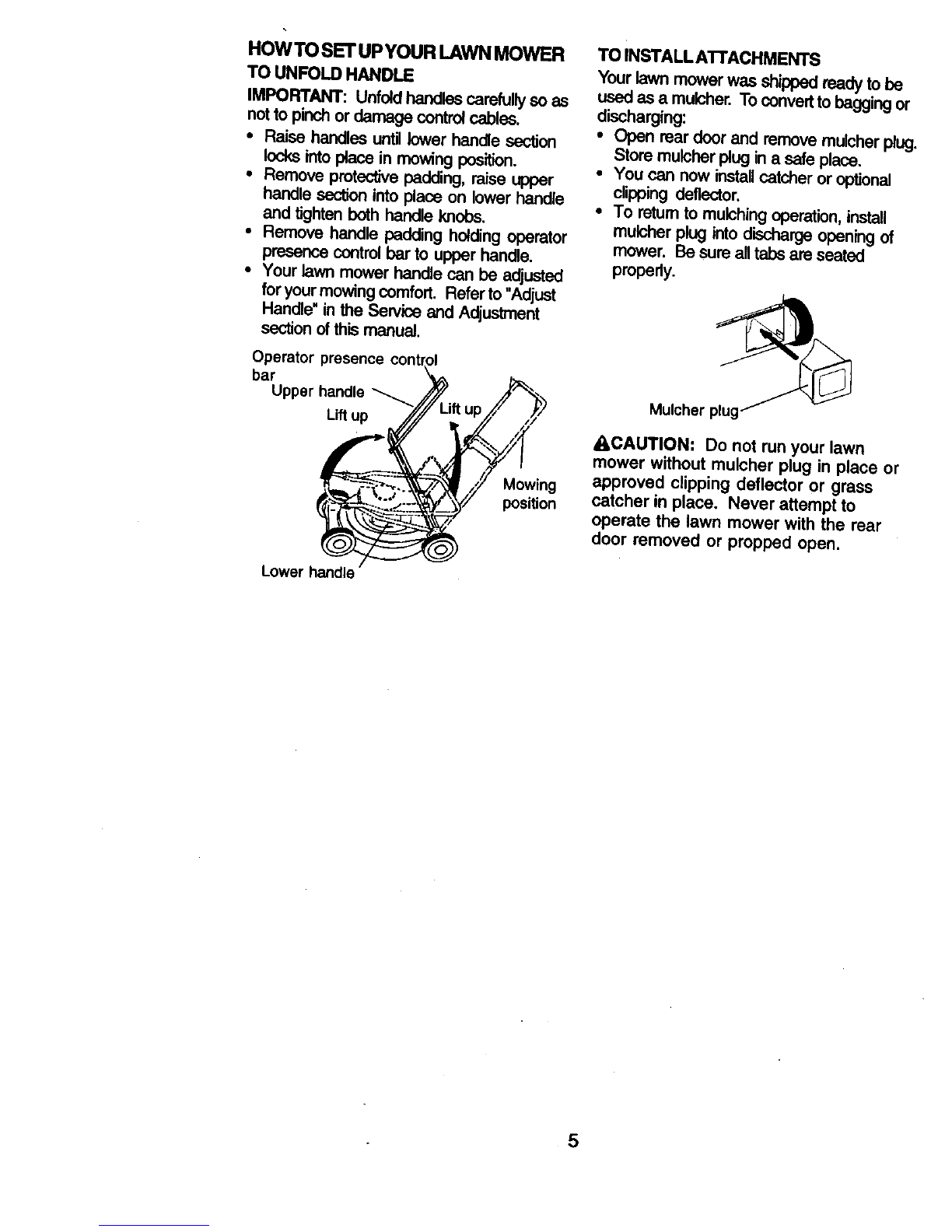

HOWTOSET UPYOUR LAWN MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handles carefully so as

not to pinch or damage cont_ cables.

•Raise handles until lower handle section

locks into place in mowing position.

•Remove protective padding, raise upper

handle section into place on lower hand"_

and tighten both handle knobs.

•Remove handle padding holding operator

presence control bar to upper handle.

•Your lawn mower handle can be adjusted

for your mowing comfort. Refer to "Adjust

Handle" in the Service and Adjustment

section ofthis manual.

OperatorpresencecontrpI

bar _ up_zf/._

Upper handle _,_,_, "_

Lift UP _L' /_M_owin

_.::..:...__ // position

Lower _

TO iNSTALL A'I'rACHMENTS

Your lawnmower was shippedreadyto be

usedas a mulcher,Toconvertto bagging or

discharging:

•Open rear doorand removemulcherplug,

Store mulcherplug in a safe place.

•You can now installcatcheror optional

clippingdeflector.

•To retumto mulchingoperation,install

mulcherplug intodischargeopeningof

mower, Be SUrealltabs are seated

properly.

Mulcher

ACAUTION: Do not run your lawn

mower without mulcher plug in place or

approved clipping deflector or grass

catcher in place, Never attempt to

operate the lawn mower with the rear

door removed or propped open,

KNOW YOUR LAWN MOWER

READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR LAWN

MOWER. Compare the illustrations with your lawn mower to familiarize yourseff with the

_Jon of various controls and adjustments. Save this manual for future reference.

_ eymbols mayappearon yourlawn_or in literaturesuppUedwiththeproduct.Leemmd

unde_m_ theremmn_g.

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS

OR WARNING ON OFF AND FEET AWAY

Engine zone control cable Operator presence control bar

Drive control lever

Starter handle

Handle knob

Mulcher plug Gasoline cap

Primer

Housing

Drive cover

Engine oil

cap w/

dipstick

IMPORTANT: This lawn mower isshipped

WITHOUT OIL OR GASOLINE inthe engine. Wheel adjuster

(on each wheel)

MEETS CPSC SAFETY REQUIREMENTS

Sears rotawywalk-behindpower lawnmowersconformtothe safetystandardsofthe American

NationalStandardsInstituteand the U.S. ConsumerProductSafety Commission.The blade

turnswhen the engineisrunning.

Operator presence control bar - must be

held down to the handle to start the engine.

Release to stop the engine.

Primer - pumps additional fuel from the

carburetor to the cylinder for use when

starling a cold engine.

Starter handle -used for starting the engine.

Drive control lever -used to engage power-

propelled forward motion of lawn mower.

Mulcher plug- must be removed to convert to

begging or discharging operation.

The operation of any lawn

mower can result in foreign

objects thrown into the eyes,

which can result in severe eye damage.

Always wear safety glasses or eye shields

while operating your lawn mower or

performing any adjustments or repairs.

We recommend a wide vision safety mask

over spectacles or standard safety

glasses.

HOW TO USE YOUR LAWN MOWER

ENGINE SPEED

The engine speed was set at the factory

for optimum performance. Speed is not

adjustable.

ENGINE ZONE CONTROL

_I_CAUTION: Federal regulations require

an engine control to be installed on this Hinge

lawn mower in order to minimize the risk brace_

of blade contact injury. Do not under any

cimumstances attempt to defeat the

function of the operator control. The blade

turns when the engine is running.

• Your lawn mower is equipped with an

operator presence control bar which

requires the operator to be positioned Formed

behind the lawn mower handle to start tabs

and operate the lawn mower.

TO ADJUST CUTTING HEIGHT

•Raise wheels for low cut and lower

wheels for high cut.

•Adjust cutting height to suit your

requirements. Medium position is best

for most lawns.

•To change cutting height, squeeze

adjuster lever toward wheel. Move

wheel up or down to suit your require-

ments. Be sure all wheels are in the

same setting.

NOTE: Adjuster is properly positioned

when plate tab inserts into hole in lever.

Also, 9-position adjusters (if so

equipped) allow lever to be positioned

between the plate tabs. PlateTab

Lower Wheels for High C_...._ / _,L_

Lsvor

Raise Wheels for Low Cut

TO ATTACH GRASS CATCHER

•Close the lifttop lid. Lift top lid must

be closed while operating lawn

mower.

•Lift the rear door on the mower

housing and place the grass catcher

frame onto the formed tabs on the rear

door hinge bracket.

•The grass catcher is secured to the

lawn mower housing when the rear

door is lowered onto the grass catcher

frame.

_CAUTION: Do not run your lawn

mower without clipping deflector or

approved grass catcher in place. Never

attempt to operate the lawn mower with

the rear door removed or propped open.

Rear door

Grass catcher

frame

TO EMPTY GRASS CATCHER

•To remove grass catcher, release

operator presence control bar to stop

engine.

•Lift up rear door and remove the grass

catcher by the handle.

NOTE: Do not drag the bag when

emptying; it will cause unnecessary

wear.

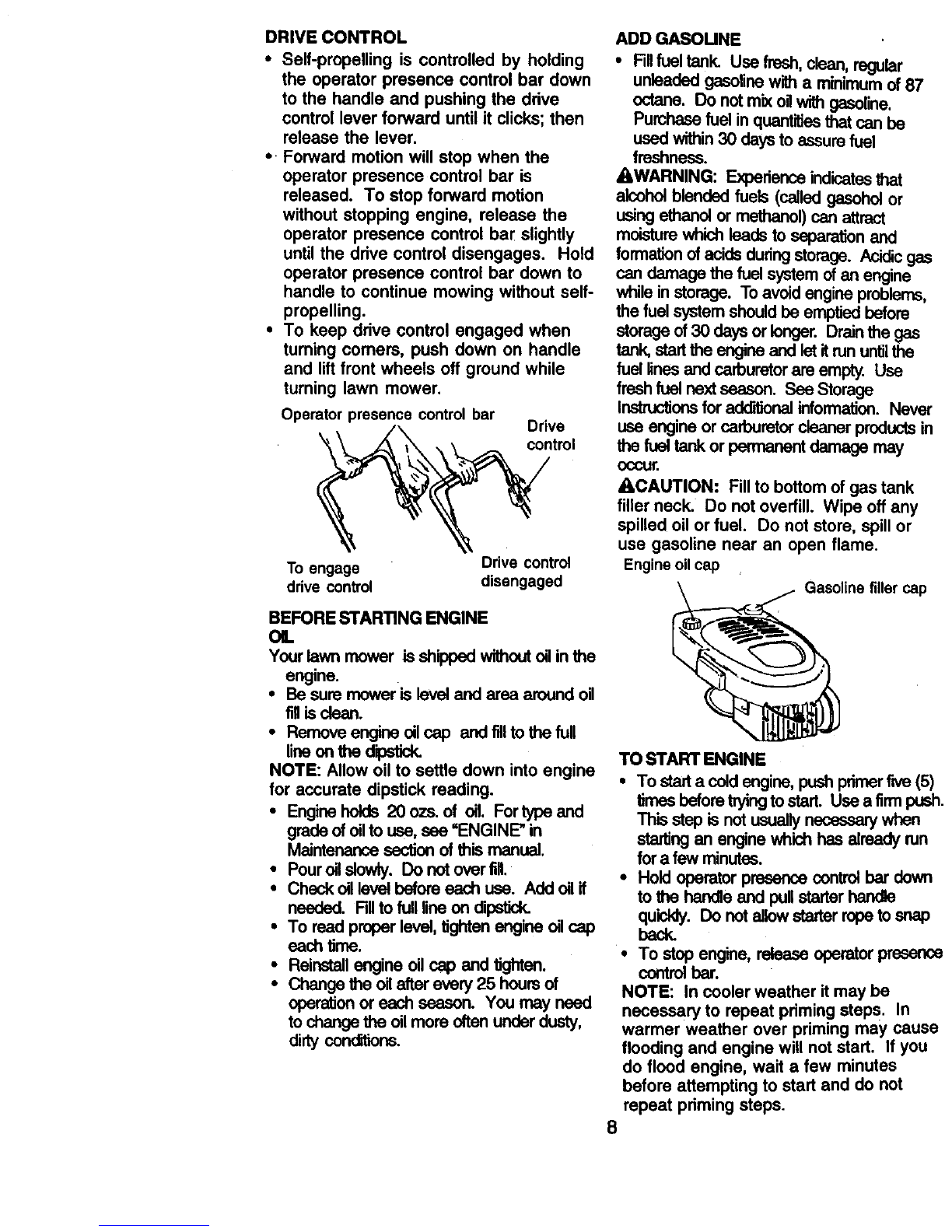

DRIVE CONTROL

•Self-propelling is controlled by holding

the operator presence control bar down

to the handle and pushing the drive

control lever forward until it clicks; then

release the lever.

•. Forward motion will stop when the

operator presence control bar is

released. To stop forward motion

without stopping engine, release the

operator presence control bar slightly

until the drive control disengages. Hold

operator presence control bar down to

handle to continue mowing without self-

propelling.

•To keep drive control engaged when

fuming comers, push down on handle

and lift front wheels off ground while

turning lawn mower.

Operator presence control bar Drive

\,_ control

To engage Drive control

drive control disengaged

BEFORE STARTING ENGINE

OIL

Your lawn mower is shipped without oil in the

engine.

•Be sure mower is level and area around oil

figis cleen.

•Remove engine oil cap and fillto the full

lineonthedipstick.

NOTE: Allow oil to settle down into engine

for accurate dipstick reading.

• Engine holds 20 ozs, of oil. For type and

grade of oilto use, see =ENGINE" in

Maintenance section of this manual.

•Pour oil slowly. Do not over fill

•Check oil level before each use. Add oil if

needed. Fill to full line on dipstick.

•To read proper level, tighten engine oil cap

each time.

• Reinstall engine oil cap end tighten.

•Change the oil after every 25 hours of

operation or each season. You may need

to change the oil more often under dusty,

dirty conditions.

ADD GASOUNE

•Fillfuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of 87

octane. Do not mix oilwith gasoline.

Purchase fuel in quantities that can be

used within 30 days to assure fuel

freshness.

AWARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethenol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic gas

can damage the fuel system of an engine

while in storage. To avoid engine problems,

the fuel system should be emptied before

storage of 30 days or longer. Drain the gas

tank, stad the engine and let if run untilthe

fuel lines end carburetor are empty. Use

fresh fuel next season. See Storage

I_ons for additional information. Never

use engine or carburetor cleaner products in

the fuel tenk or permenent damage may

occur.

ACAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe oft any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

Engine oil cap Gasoline filler cap

TO START ENGINE

•To start a cold engine, push primer tire (5)

timas befors trying to start. Use a firm push.

This step is not usually necessary when

starting an engine which has already run

for a few minutes.

•Hold operator presence control bar down

to the handle and pull starter handle

quickly. Do not allow starter rope to snap

back.

•To step engine, release operator presence

control bar.

NOTE: In cooler weather it may be

necessary to repeat priming steps. In

warmer weather over priming may cause

flooding and engine will not start. If you

do flood engine, wait a few minutes

before attempting to start and do not

repeat priming steps.

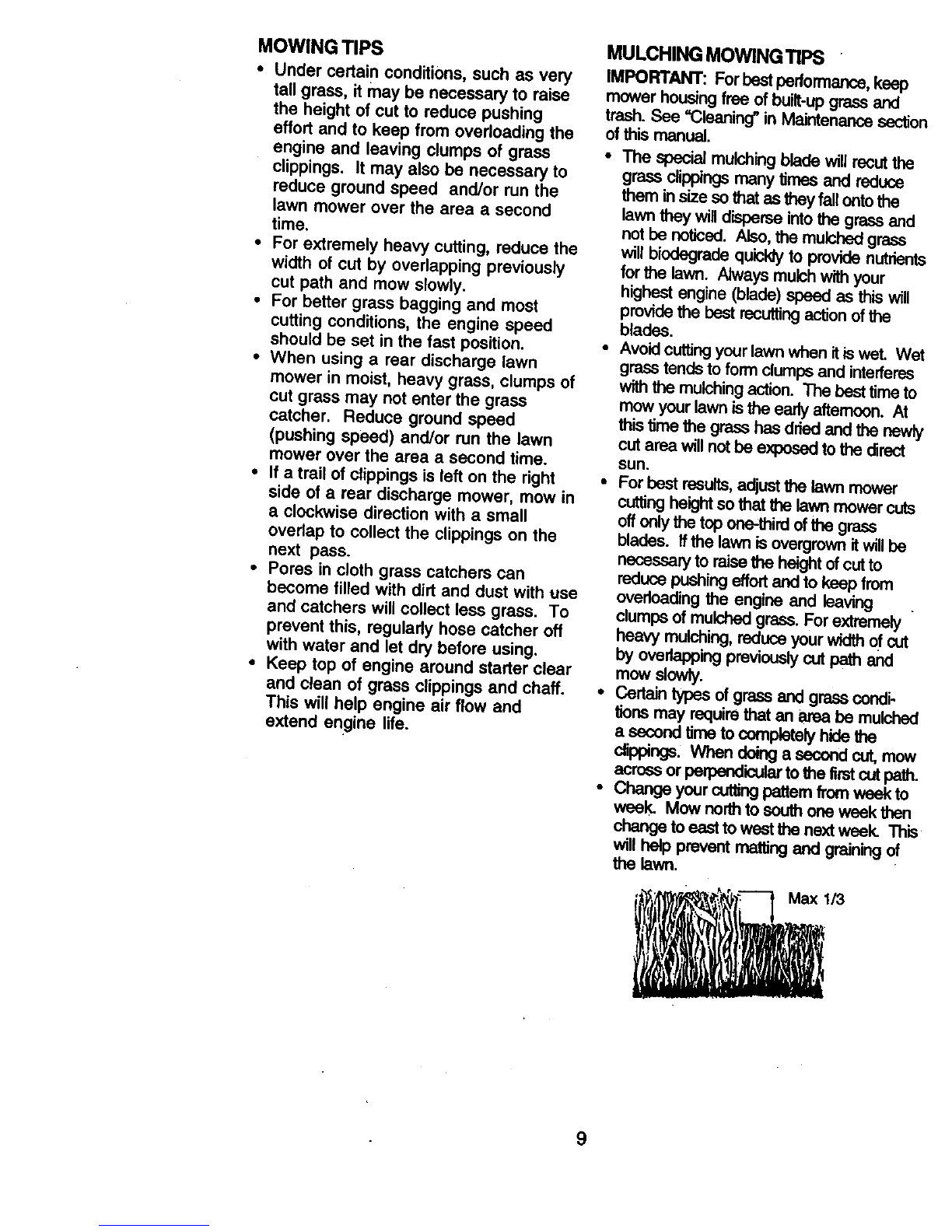

MOWING TIPS

• Under certain conditions, such as very

tall grass, it may be necessary to raise

the height of cut to reduce pushing

effort and to keep from ovedoading the

engine and leaving clumps of grass

clippings. It may also be necessary to

reduce ground speed and/or run the

lawn mower over the area a second

time.

•For extremely heavy cutting, reduce the

width of cut by overlapping previously

cut path and mow slowly.

•For better grass bagging and most

cutting conditions, the engine speed

should be set in the fast position.

•When using a rear discharge lawn

mower in moist, heavy grass, clumps of

cut grass may not enter the grass

catcher. Reduce ground speed

(pushing speed) and/or run the lawn

mower over the area a second time.

•If a trail of clippings is left on the right

side of a rear discharge mower, mow in

a clockwise direction with a small

ovedap to collect the clippings on the

next pass.

• Pores in cloth grass catchers can

become filled with dirt and dust with use

and catchers will collect less grass. To

prevent this, regularly hose catcher off

with water and let dry before using.

•Keep top of engine around starter clear

and clean of grass clippings and chaff.

This will help engine air flow and

extend engine life.

MULCHING MOWING TIPS

IMPORTANT: Forbestperformance,keep

mower housingfree of built-upgrass and

trash.See "Cleaning" in Maintenancesection

ofthismanual.

•The specialmulchingblade will recurthe

grassclippingsmany timesand reduce

them insize sothat as theyfallontothe

lawnthey will disperseintothe grassand

not be noticed. Also,the mulchedgrass

will biodegradequiddyto providenutrients

forthe lawn. Alwaysmulch withyour

highestengine (blade)speed as thiswill

provide the bestrecuttingaction ofthe

blades.

•Avoidcuttingyourlawnwhen itiswet. Wet

grasstendsto form clumpsand interferes

withthe mulchingaction. The besttimeto

mow yourlawnisthe earlyafternoon. At

thistime the grasshas driedand the newly

cut area wiltnotbe exposedtothe direct

SUn.

•For bestresults,adjustthe lawn mower

cuttingheightso that the lawn mowercuts

offonly the topone-thirdofthe grass

blades. If the lawnis overgrownitwillbe

necessaryto raisethe heightofcutto

reducepushingeffortand to keep from

overloadingthe engine and leaving

clumpsof mulched grass.Forextremely

heaW mulching, reduceyourwidth0f cut

by overlappingpreviouslycut Pathand

mow slowly,

•Certaintypesofgrassand grasscondi-

tionsmay requirethatan area be mulched

a second time tocompletelyhidethe

clippings:When doinge secondcut,mow

acrossor peq0endiculartothe tirstcut path.

•Change your out_ patternfromweekto

week. Mow northto south one weekthen

change toeastto westthe nextweek. This

will help preventmattingand grainingof

the lawn.

,,'_:,ffO_i_L_-."--_Max 1/3

MAINTENANCE SCHEDULE __ _ __./__#O__'_" _

AsYouCOMPL E ......

BEGOt.E.V,C SERV'CEATES

Check for Loose Fasteners _' ll/

Clean/Inspect GrassCatcher

(If Equipped) _' V#_

iM Clean Lawn Mower

oClean Under Drive Cover

_(Power-PropelledMowers) q_'Check drivebelt/pulleys ..

(Power-PropelledMowers)

RCheck/Sharpen/Replace Blade 3

LubricationChart I_

Clean Battery/Recharge

/Electric Start MowersIV' V'4

ECheck En_iineOil Level

Change EngineOil _1,2

Clean Air Niter _ 2

InspectMuffler

N Clean or ReplaceSpark Plug

ReplaceAir FilterPaper Cartridge V'2

1-Change more often when operating under aheavy load or in high ambient temperatures.

2 - Se_lce more often when operating In dirt'/or dusty conditions.

3 - Replace blades more often when mowing in sandy soil.

4 - Charge 48 hours at end of season.

GENERALRECOMMENDATIONS

The warranty on this lawn mower does

not cover items that have been subjected

to operator abuse or negligence. To

receive full value from the warranty,

operator must maintain mower as

instructed in this manual.

Some adjustments will need to be made

periodically to propedy maintain your unit.

All adjustments in the Service and

Adjustments section of this manual should

be checked at least once each season.

•Once a year, replace the spark plug,

replace air filter element and check

blade for wear. A new spark plug and

clean/new air filter element assures

proper air-fuel mixture and helps your

engine run better and last longer.

•Follow the maintenance schedule in

this manual.

BEFORE EACH USE

• Check engine oil level.

• Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See "LUBRICA-

TION CHART").

LUBRICATION CHART

Wheel

adjuster Engine

oil

(_ Handle bracket

mounting pin

(_) Spraylubricant

®Brake

spring

bracket

Rear door

hinge

('_ Referto Maintenance "ENGINE"

IMPORTANT: Do not oil or grease plastic

wheel bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of the self

lubricating bearings. Ifyou feel they must be

lubricated, use only a dry, powdered graphite

type lubricant sparingly.

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.255917 Manuel utilisateur

Craftsman

Craftsman 917.378352 Manuel utilisateur

Craftsman

Craftsman 917.255581 Manuel utilisateur

Craftsman

Craftsman 917.25801 Manuel utilisateur

Craftsman

Craftsman 917.25736 Manuel utilisateur

Craftsman

Craftsman 944.101781 Manuel utilisateur

Craftsman

Craftsman 917.370850 Manuel utilisateur

Craftsman

Craftsman 917.27688 Manuel utilisateur

Craftsman

Craftsman 917.255430 Manuel utilisateur

Craftsman

Craftsman 917.388101 Manuel utilisateur

Craftsman

Craftsman 917.252451 Manuel utilisateur

Craftsman

Craftsman 917.372490 Manuel utilisateur

Craftsman

Craftsman 917.374540 Manuel utilisateur

Craftsman

Craftsman 917.371624 Manuel utilisateur

Craftsman

Craftsman 917.28723 Manuel utilisateur

Craftsman

Craftsman 917.376094 Manuel utilisateur

Craftsman

Craftsman EZ3 917.251630 Manuel utilisateur

Craftsman

Craftsman 917.4791B Manuel utilisateur

Craftsman

Craftsman 917.376722 Manuel utilisateur

Craftsman

Craftsman 917.288230 Manuel utilisateur

Craftsman

Craftsman LAWN TRACTOR 917.2759 Manuel utilisateur

Craftsman

Craftsman 25968 Manuel utilisateur

Craftsman

Craftsman 917.275350 Manuel utilisateur

Craftsman

Craftsman 917.374031 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
