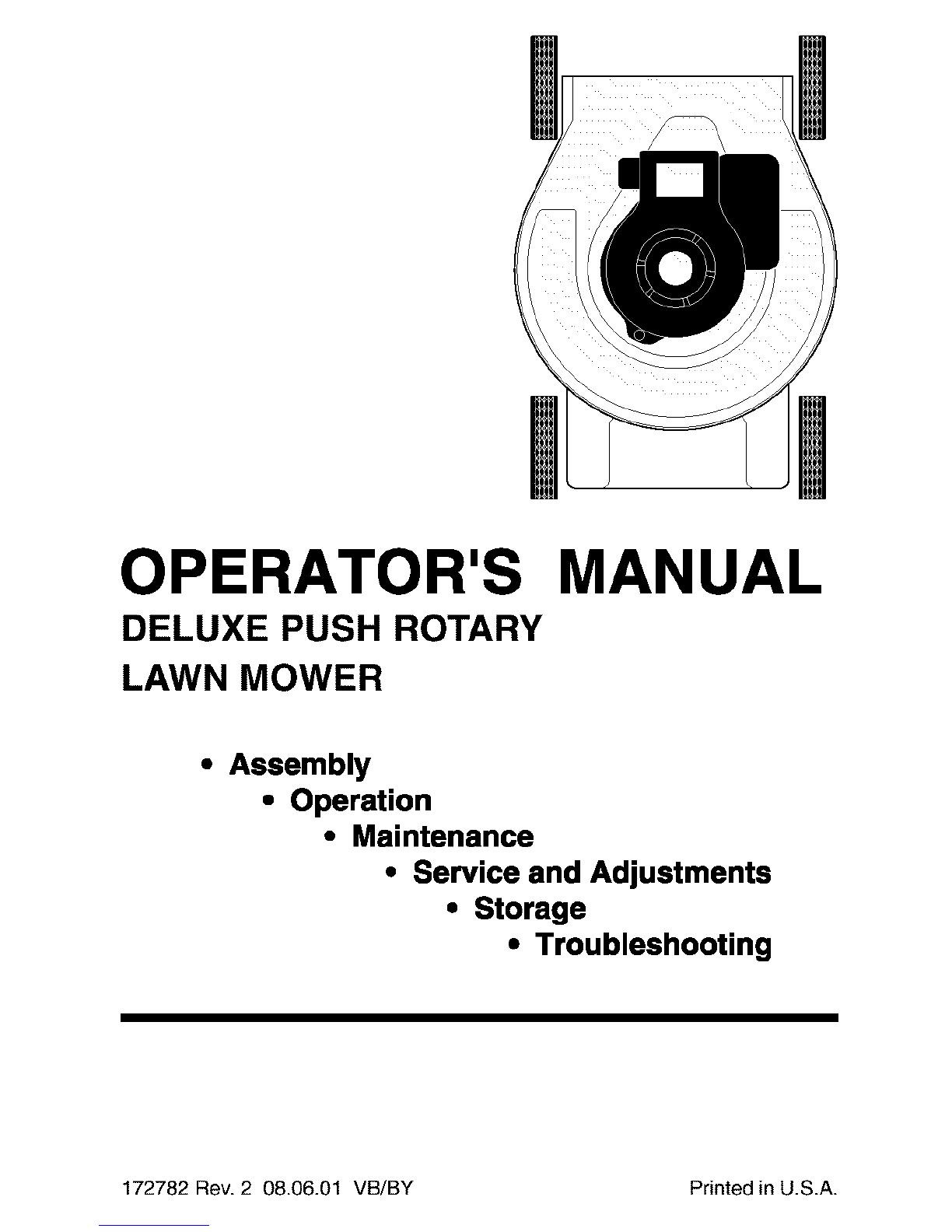

OPERATOR'S MANUAL

DELUXE PUSH ROTARY

LAWN MOWER

•Assembly

•Operation

•Maintenance

•Service and Adjustments

•Storage

•Troubleshooting

172782 Rev. 2 08.06.01 VB/BY Printed in U.S.A.

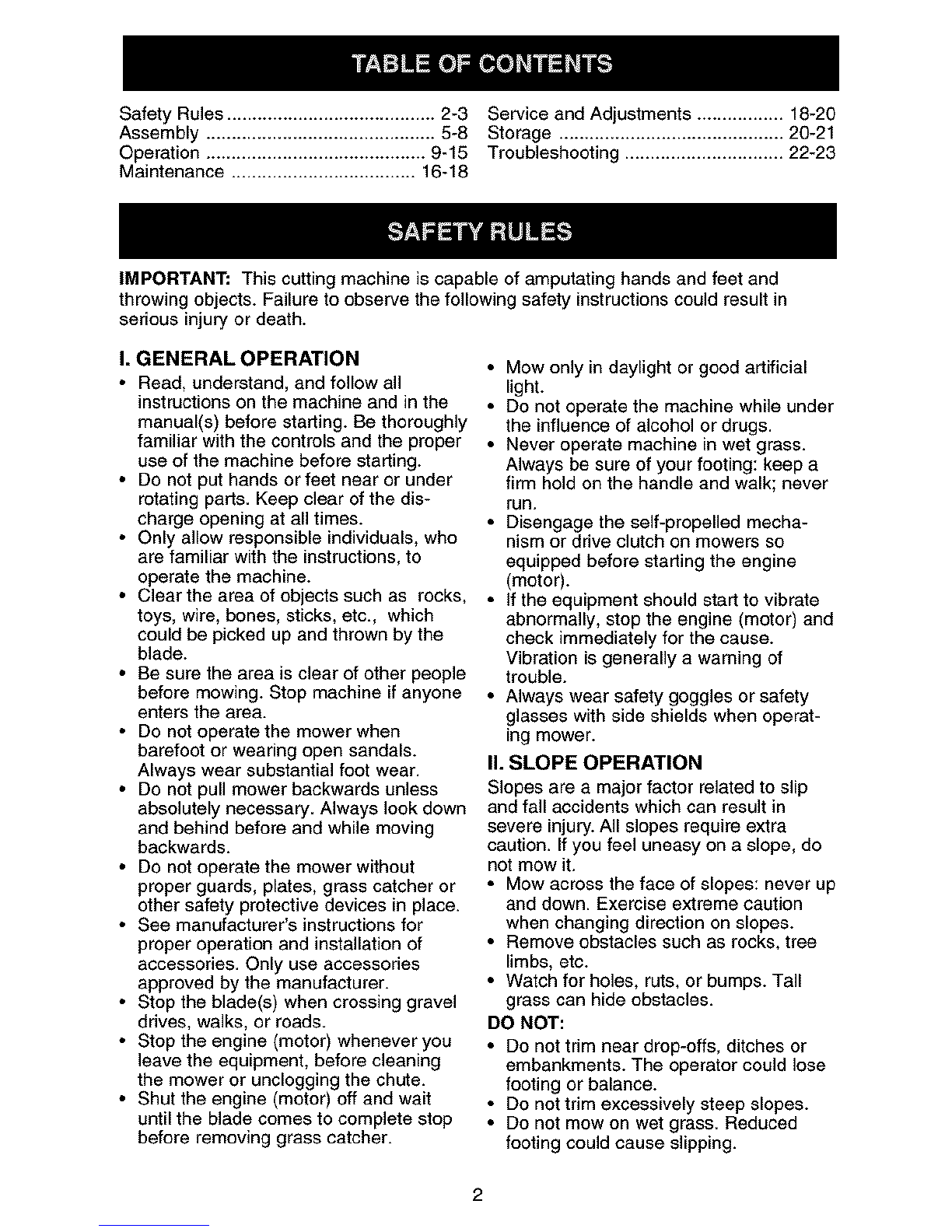

Safety Rules ......................................... 2-3

Assembly ............................................. 5-8

Operation ........................................... 9-15

Maintenance .................................... 16-18

Service and Adjustments ................. 18-20

Storage ............................................ 20-21

Troubleshooting ............................... 22-23

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result in

serious injury or death.

I. GENERAL OPERATION

•Read, understand, and follow all

instructions on the machine and in the

manual(s) before starting. Be thoroughly

familiar with the controls and the proper

use of the machine before starting.

• Do not put hands or feet near or under

rotating parts. Keep clear of the dis-

charge opening at all times.

• Only allow responsible individuals, who

are familiar with the instructions, to

operate the machine.

• Clear the area of objects such as rocks,

toys, wire, bones, sticks, etc., which

could be picked up and thrown by the

blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Do not operate the mower when

barefoot or wearing open sandals.

Always wear substantial foot wear.

• Do not pull mower backwards unless

absolutely necessary. Always look down

and behind before and while moving

backwards.

• Do not operate the mower without

proper guards, plates, grass catcher or

other safety protective devices in place.

• See manufacturer's instructions for

proper operation and installation of

accessories. Only use accessories

approved by the manufacturer.

• Stop the blade(s) when crossing gravel

ddves, walks, or roads.

• Stop the engine (motor) whenever you

leave the equipment, before cleaning

the mower or unclogging the chute.

• Shut the engine (motor) off and wait

until the blade comes to complete stop

before removing grass catcher.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Never operate machine in wet grass.

Always be sure of your footing: keep a

firm hold on the handle and walk; never

run.

• Disengage the self-propelled mecha-

nism or drive clutch on mowers so

equipped before starting the engine

(motor).

• If the equipment should start to vibrate

abnormally, stop the engine (motor) and

check immediately for the cause.

Vibration is generally a warning of

trouble.

• Always wear safety goggles or safety

glasses with side shields when operat-

ing mower.

II. SLOPE OPERATION

Slopes are a major factor related to slip

and fall accidents which can result in

severe injury. All slopes require extra

caution. If you feel uneasy on a slope, do

not mow it.

• Mow across the face of slopes: never up

and down. Exercise extreme caution

when changing direction on slopes.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Tall

grass can hide obstacles.

DO NOT:

• Do not trim near drop-offs, ditches or

embankments. The operator could lose

footing or balance.

• Do not trim excessively steep slopes.

• Do not mow on wet grass. Reduced

footing could cause slipping.

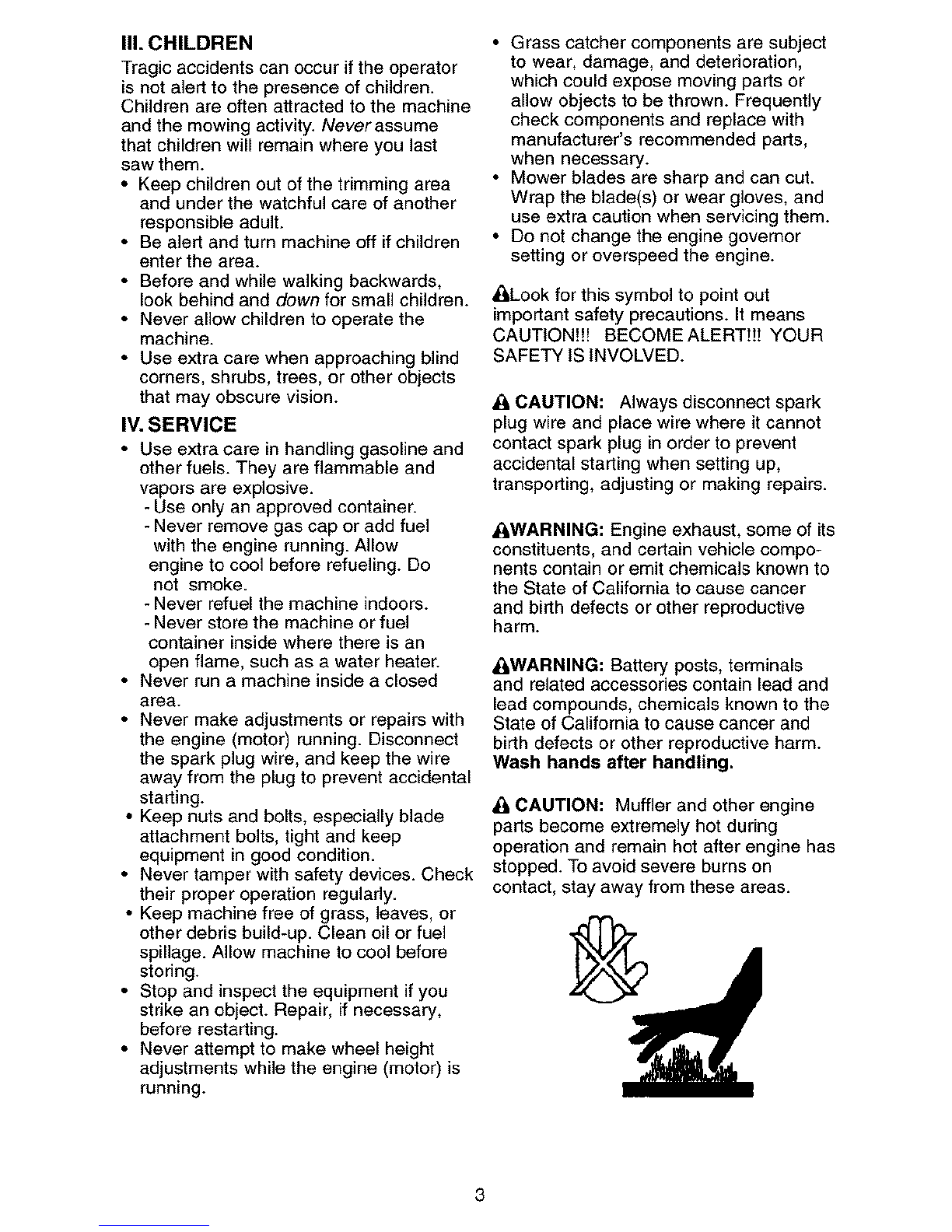

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the machine

and the mowing activity. Never assume

that children will remain where you last

saw them.

•Keep children out of the trimming area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and while walking backwards,

look behind and down for small children.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Never make adjustments or repairs with

the engine (motor) running. Disconnect

the spark plug wire, and keep the wire

away from the plug to prevent accidental

starting.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices. Check

their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never attempt to make wheel height

adjustments while the engine (motor) is

running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Do not change the engine governor

setting or overspeed the engine.

_Look for this symbol to point out

important safety precautions. It means

CAUTION!!! BECOMEALERTH! YOUR

SAFETY IS INVOLVED.

A CAUTION: Always disconnect spark

plug wire and place wire where it cannot

contact spark plug in order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs.

AWARNING: Engine exhaust, some of its

constituents, and certain vehicle compo-

nents contain or emit chemicals known to

the State of California to cause cancer

and birth defects or other reproductive

harm.

_WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

CAUTION: Muffler and other engine

parts become extremely hot during

operation and remain hot after engine has

stopped. To avoid severe burns on

contact, stay away from these areas.

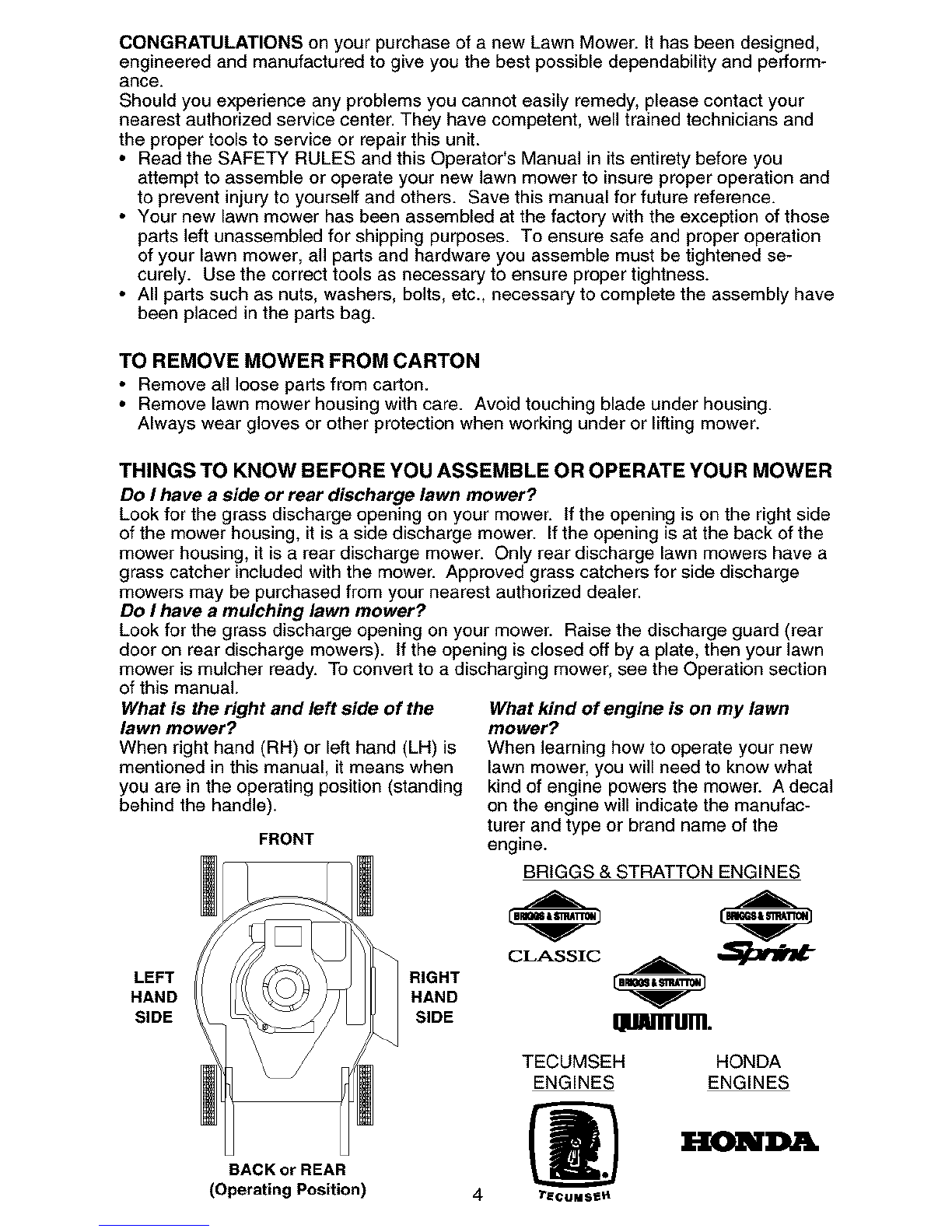

CONGRATULATIONSonyourpurchaseofanewLawnMower.Ithasbeendesigned,

engineeredandmanufacturedtogiveyouthebestpossibledependabilityandperform-

ance.

Shouldyouexperienceanyproblemsyoucannoteasilyremedy,pleasecontactyour

nearestauthorizedservicecenter.Theyhavecompetent,welltrainedtechniciansand

thepropertoolstoserviceorrepairthisunit.

• ReadtheSAFETYRULESandthisOperator'sManualinits entirety before you

attempt to assemble or operate your new lawn mower to insure proper operation and

to prevent injury to yourself and others. Save this manual for future reference.

• Your new lawn mower has been assembled at the factory with the exception of those

parts left unassembled for shipping purposes. To ensure safe and proper operation

of your lawn mower, all parts and hardware you assemble must be tightened se-

curely. Use the correct tools as necessary to ensure proper tightness.

• All parts such as nuts, washers, bolts, etc., necessary to complete the assembly have

been placed in the parts bag.

TO REMOVE MOWER FROM CARTON

• Remove all loose parts from carton.

• Remove lawn mower housing with care. Avoid touching blade under housing.

Always wear gloves or other protection when working under or lifting mower.

THINGS TO KNOW BEFORE YOU ASSEMBLE OR OPERATE YOUR MOWER

Do I have a side or rear discharge lawn mower?

Look for the grass discharge opening on your mower. If the opening is on the right side

of the mower housing, it isa side discharge mower. If the opening is at the back of the

mower housing, it is a rear discharge mower. Only rear discharge lawn mowers have a

grass catcher included with the mower. Approved grass catchers for side discharge

mowers may be purchased from your nearest authorized dealer.

Do I have amulching lawn mower?

Look for the grass discharge opening on your mower. Raise the discharge guard (rear

door on rear discharge mowers). If the opening is closed off by a plate, then your lawn

mower is muicher ready. To convert to a discharging mower, see the Operation section

of this manual.

What is the right and left side of the

lawn mower?

When right hand (RH) or left hand (LH) is

mentioned in this manual, it means when

you are in the operating position (standing

behind the handle).

LEFT

HAND

SIDE

RIGHT

HAND

SIDE

FRONT

RACK or REAR

(Operating Position)

What kind of engine is on my lawn

mower?

When learning how to operate your new

lawn mower, you will need to know what

kind of engine powers the mower. A decal

on the engine will indicate the manufac-

turer and type or brand name of the

engine.

BRIGGS & STRATTON ENGINES

CLASSIC

TECUMSEH HONDA

ENGINES ENGINES

_'ECUMSt_H

_I,CAUTION: Do not operate this mower without the discharge guard or an entire

approved grass catcher in place. These guards are for your protection and are required

by the American National Standards Institute and Consumer Products Safety Commis-

sion.

_i'LCAUTION: Disconnect spark plug wire from spark plug and place wire where it

cannot come in contact with plug.

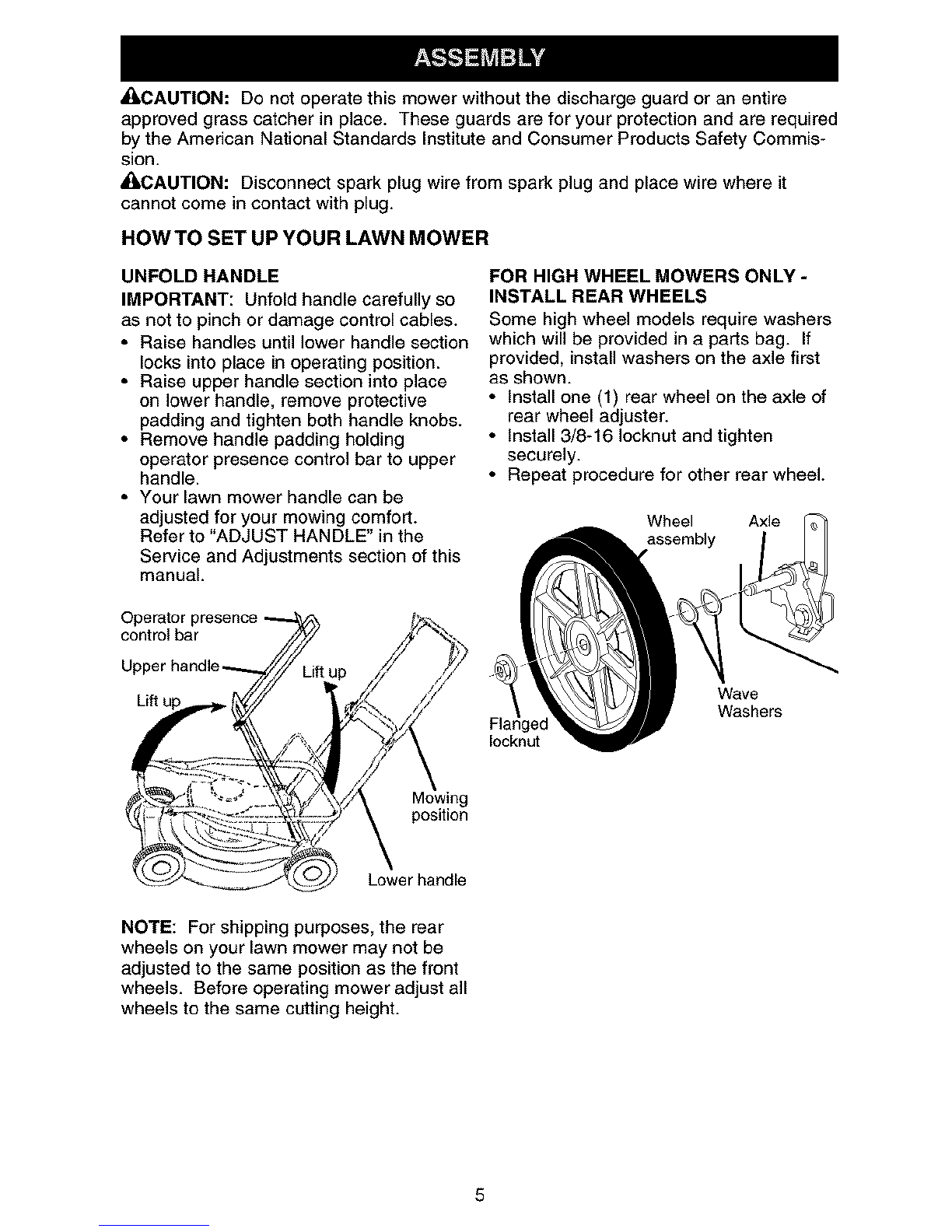

HOWTO SET UP YOUR LAWN MOWER

UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage control cables.

• Raise handles until lower handle section

locks into place in operating position.

• Raise upper handle section into place

on lower handle, remove protective

padding and tighten both handle knobs.

• Remove handle padding holding

operator presence control bar to upper

handle.

• Your lawn mower handle can be

adjusted for your mowing comfort.

Refer to "ADJUST HANDLE" in the

Service and Adjustments section of this

manual.

control bar

Lift L

Mowing

position

Lower handle

FOR HIGH WHEEL MOWERS ONLY -

INSTALL REAR WHEELS

Some high wheel models require washers

which will be provided in a parts bag. If

provided, install washers on the axle first

as shown.

• Install one (1) rear wheel on the axle of

rear wheel adjuster.

• Install 3/8-16 Iocknut and tighten

securely.

• Repeat procedure for other rear wheel.

Wheel Axle

assembly

Iocknut

Wave

Washers

NOTE: For shipp=ng purposes, the rear

wheels on your lawn mower may not be

adjusted to the same position as the front

wheels. Before operating mower adjust all

wheels to the same cutting height.

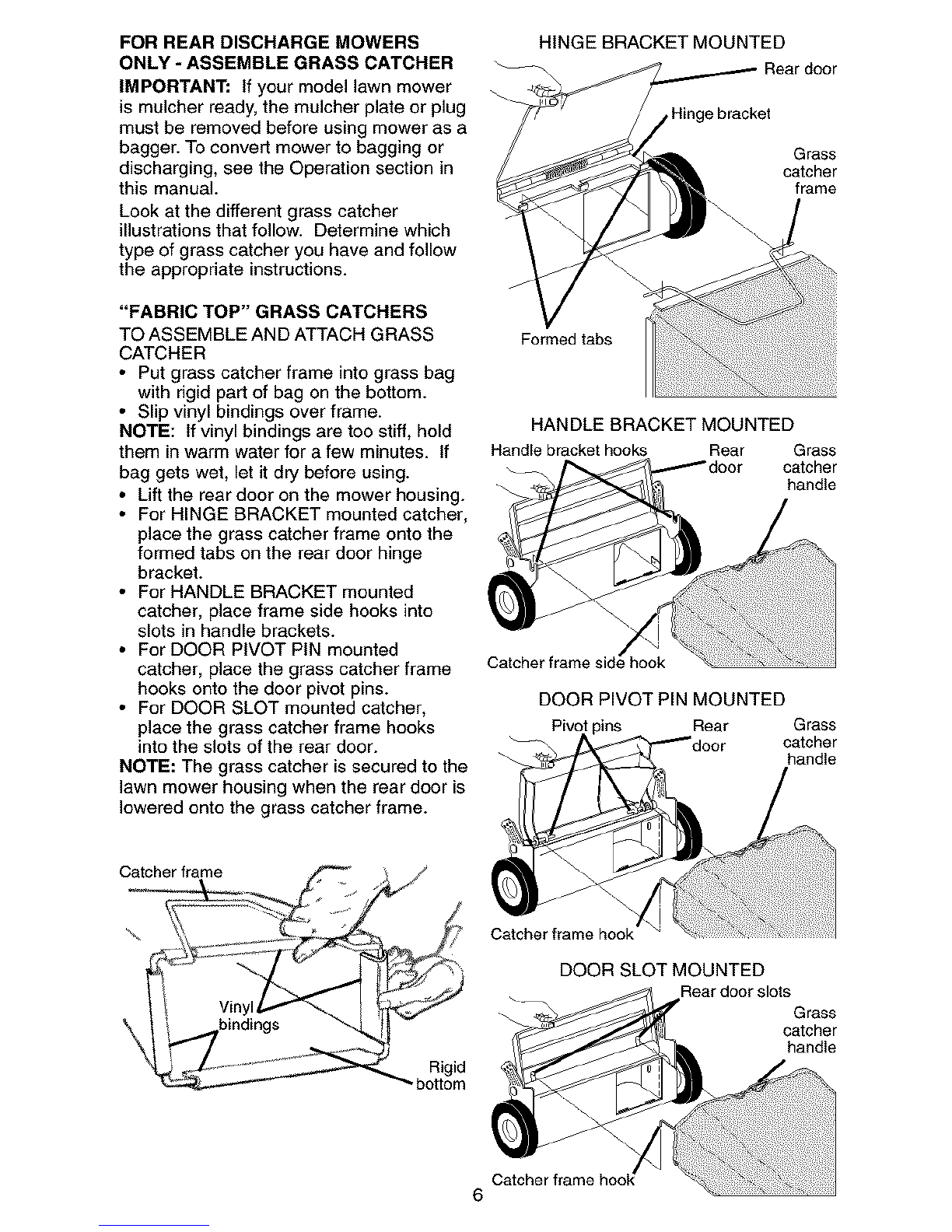

FOR REAR DISCHARGE MOWERS

ONLY -ASSEMBLE GRASS CATCHER

IMPORTANT: If your model lawn mower

is mulcher ready, the mulcher plate or plug

must be removed before using mower as a

bagger. To convert mower to bagging or

discharging, see the Operation section in

this manual.

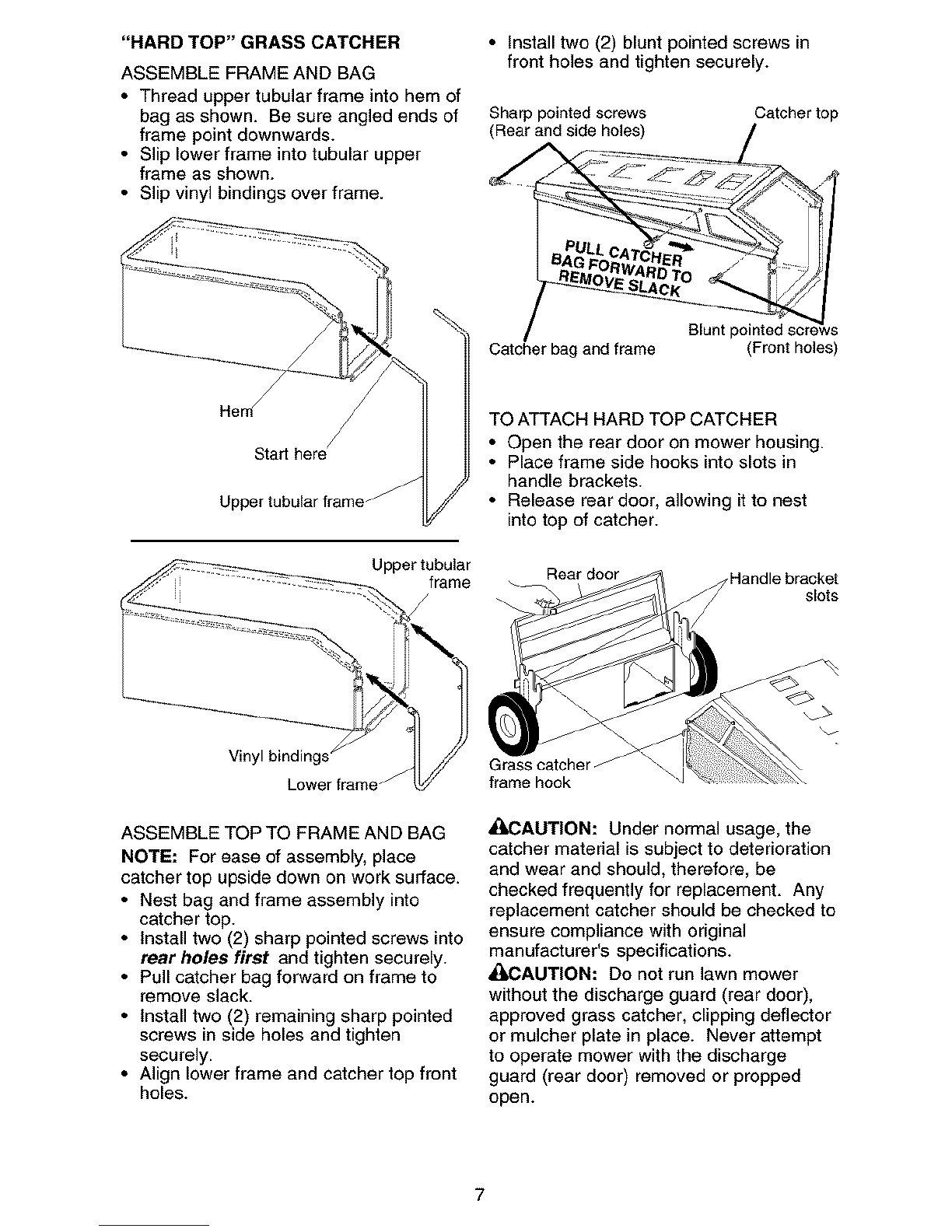

Look at the different grass catcher

illustrations that follow. Determine which

type of grass catcher you have and follow

the appropriate instructions.

"FABRIC TOP" GRASS CATCHERS

TO ASSEMBLE AND ATTACH GRASS

CATCHER

• Put grass catcher frame into grass bag

with rigid part of bag on the bottom.

• Slip vinyl bindings over frame.

NOTE: If vinyl bindings are too stiff, hold

them in warm water for a few minutes. If

bag gets wet, let it dry before using.

• Lift the rear door on the mower housing.

• For HINGE BRACKET mounted catcher,

place the grass catcher frame onto the

formed tabs on the rear door hinge

bracket.

• For HANDLE BRACKET mounted

catcher, place frame side hooks into

slots in handle brackets.

• For DOOR PIVOT PIN mounted

catcher, place the grass catcher frame

hooks onto the door pivot pins.

• For DOOR SLOT mounted catcher,

place the grass catcher frame hooks

into the slots of the rear door.

NOTE: The grass catcher is secured to the

lawn mower housing when the rear door is

lowered onto the grass catcher frame.

Catcher frame

Rigid

HINGE BRACKET MOUNTED

Hingebracket

_oor

Grass

catcher

frame

Formed tabs

HANDLE BRACKET MOUNTED

Handle bracket hooks Rear Grass

catcher

_. handle

Catcher fram{

DOOR PIVOT PIN MOUNTED

Pivot " Rear Grass

catcher

handle

Catcher frame hook

DOOR SLOT MOUNTED

Rear door slots Grass

catcher

handle

"HARDTOP"GRASSCATCHER

ASSEMBLE FRAME AND BAG

• Thread upper tubular frame into hem of

bag as shown. Be sure angled ends of

frame point downwards.

• Slip lower frame into tubular upper

frame as shown.

• Slip vinyl bindings over frame.

• Install two (2) blunt pointed screws in

front holes and tighten securely.

Sharp pointed screws

(Rear and side holes) Catcher top

Hem/

Start herej

Uppe

Upper tubular

frame

Vinyl bindings

Lower frame

ASSEMBLE TOP TO FRAME AND BAG

NOTE: For ease of assembly, place

catcher top upside down on work surface.

• Nest bag and frame assembly into

catcher top.

• Install two (2) sharp pointed screws into

rear holes first and tighten securely.

• Pull catcher bag forward on frame to

remove slack.

• Install two (2) remaining sharp pointed

screws in side holes and tighten

securely.

• Align lower frame and catcher top front

holes.

Blunt pointed screws

Catcher bag and {rame (Front holes)

TO ATTACH HARD TOP CATCHER

• Open the rear door on mower housing.

• Place frame side hooks into slots in

handle brackets.

• Release rear door, allowing it to nest

into top of catcher.

Rear door slots

Grass catcher _"

frame hook

_,CAUTION: Under normal usage, the

catcher matedal is subject to deterioration

and wear and should, therefore, be

checked frequently for replacement. Any

replacement catcher should be checked to

ensure compliance with original

manufacturer's specifications.

_CAUTION: Do not run lawn mower

without the discharge guard (rear door),

approved grass catcher, clipping deflector

or mulcher plate in place. Never attempt

to operate mower with the discharge

guard (rear door) removed or propped

open.

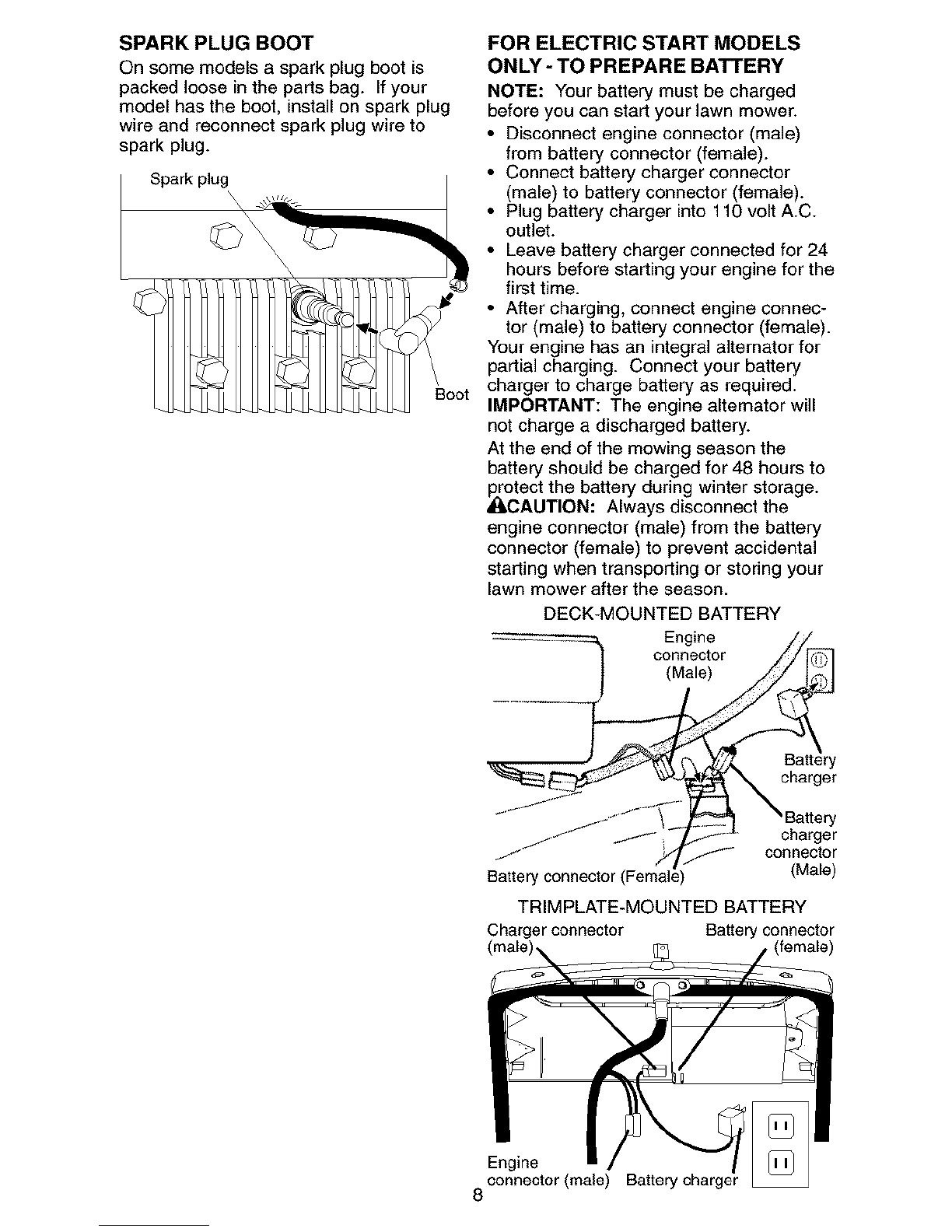

SPARK PLUG BOOT

On some models a spark plug boot is

packed loose in the parts bag. If your

model has the boot, install on spark plug

wire and reconnect spark plug wire to

spark plug.

Spark plug

_Boot

FOR ELECTRIC START MODELS

ONLY-TO PREPARE BATTERY

NOTE: Your battery must be charged

before you can start your lawn mower.

• Disconnect engine connector (male)

from battery connector (female).

• Connect battery charger connector

(male) to battery connector (female).

• Plug battery charger into 110 volt A.C.

outlet.

• Leave battery charger connected for 24

hours before starting your engine for the

first time.

• After charging, connect engine connec-

tor (male) to battery connector (female).

Your engine has an integral alternator for

partial charging. Connect your battery

charger to charge battery as required.

IMPORTANT: The engine alternator will

not charge a discharged battery.

At the end of the mowing season the

battery should be charged for 48 hours to

Iqrotect the battery during winter storage.

_,CAUTION: Always disconnect the

engine connector (male) from the battery

connector (female) to prevent accidental

starting when transporting or storing your

lawn mower after the season.

DECK-MOUNTED BATTERY

=:_ Engine //

__connector

_:'------_:_'_ C', ,l_attery

__ _ _ charger

jjt f_ _i--t \

jjJ _ -J.f_ charger

/_ _/f_'_ connector

Battery connector (Female) (Male)

TRIMPLATE-MOUNTED BATTERY

Charger connector Battery connector

(female)

Engine

connector (male) Battery charge

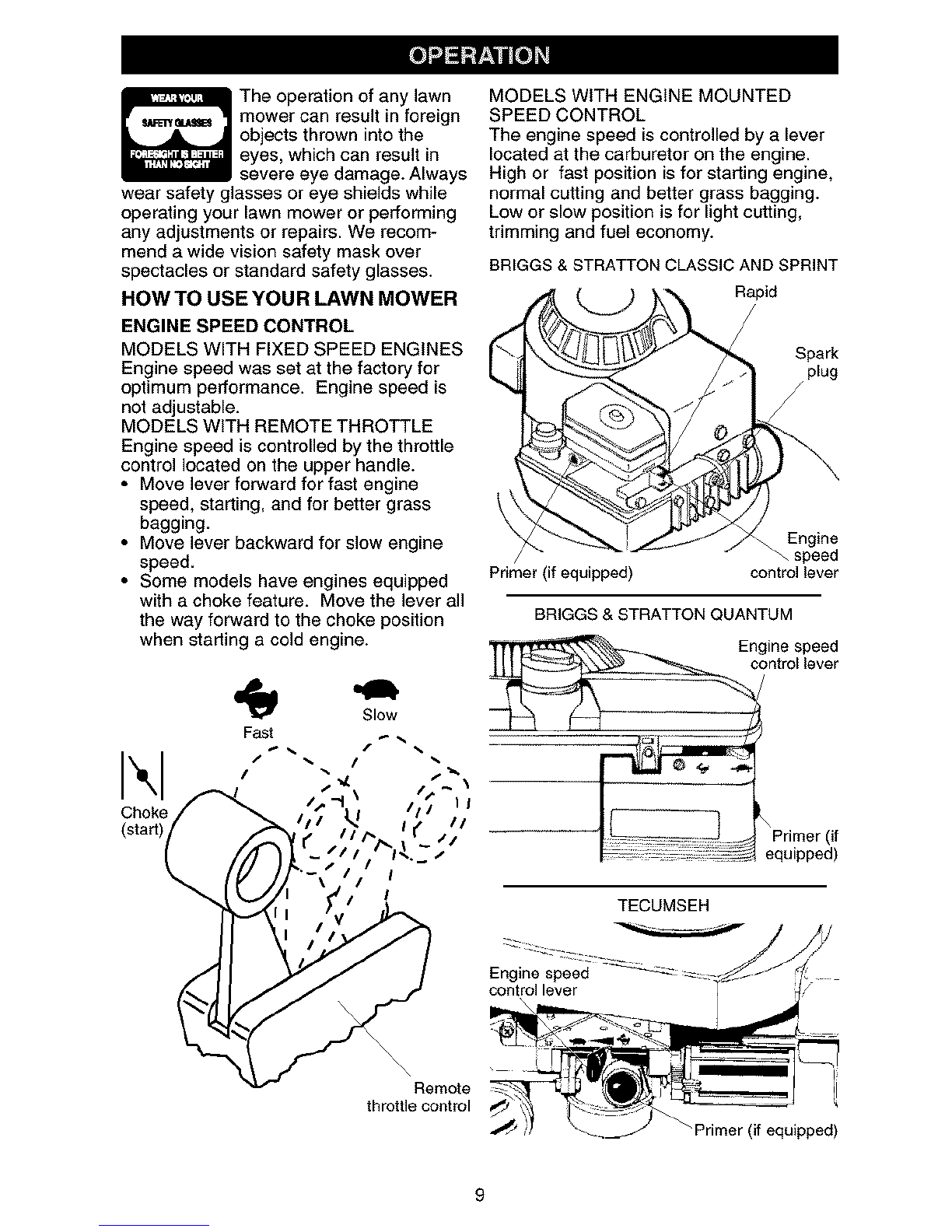

Theoperationof any lawn

mower can result in foreign

objects thrown into the

eyes, which can result in

severe eye damage. Always

wear safety glasses or eye shields while

operating your lawn mower or performing

any adjustments or repairs. We recom-

mend a wide vision safety mask over

spectacles or standard safety glasses.

HOWTO USE YOUR LAWN MOWER

ENGINE SPEED CONTROL

MODELS WITH FIXED SPEED ENGINES

Engine speed was set at the factory for

optimum performance. Engine speed is

not adjustable.

MODELS WITH REMOTE THROTTLE

Engine speed is controlled by the throttle

control located on the upper handle.

•Move lever forward for fast engine

speed, starting, and for better grass

bagging.

• Move lever backward for slow engine

speed.

• Some models have engines equipped

with a choke feature. Move the lever all

the way forward to the choke position

when starting a cold engine.

Choke

(start)

Remote

throttle control

MODELS WITH ENGINE MOUNTED

SPEED CONTROL

The engine speed is controlled by a lever

located at the carburetor on the engine.

High or fast position is for starting engine,

normal cutting and better grass bagging.

Low or slow position is for light cutting,

trimming and fuel economy.

BRIGGS & STRATTON CLASSIC AND SPRINT

Rapid

Spark

plug

_Engine

speed

Primer (if equipped) control lever

BRIGGS &STRATTON QUANTUM

Engine speed

control lever

TECUMSEH

Engine speed

controllever

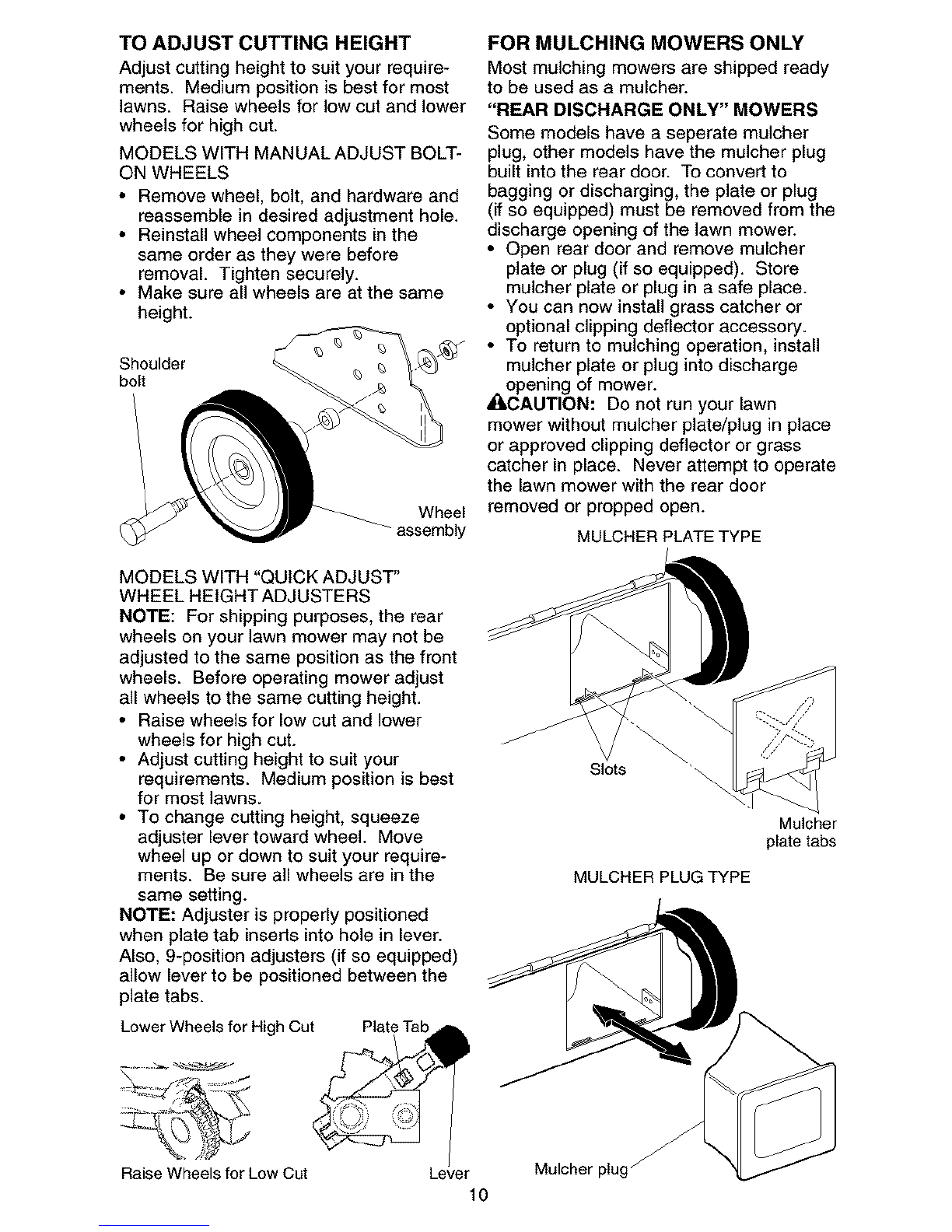

TO ADJUST CUTTING HEIGHT

Adjust cutting height to suit your require-

ments. Medium position is best for most

lawns. Raise wheels for low cut and lower

wheels for high cut.

MODELS WITH MANUALADJUST BOLT-

ON WHEELS

•Remove wheel, bolt, and hardware and

reassemble in desired adjustment hole.

• Reinstall wheel components in the

same order as they were before

removal. Tighten securely.

• Make sure all wheels are at the same

height.

Shoulder

bolt

Wheel

assembly

MODELS WITH "QUICK ADJUST"

WHEEL HEIGHT ADJUSTERS

NOTE: For shipping purposes, the rear

wheels on your lawn mower may not be

adjusted to the same position as the front

wheels. Before operating mower adjust

all wheels to the same cutting height.

• Raise wheels for low cut and lower

wheels for high cut.

• Adjust cutting height to suit your

requirements. Medium position is best

for most lawns.

• To change cutting height, squeeze

adjuster lever toward wheel. Move

wheel up or down to suit your require-

ments. Be sure all wheels are in the

same setting.

NOTE: Adjuster is properly positioned

when plate tab inser[s into hole in lever.

Also, 9-position adjusters (if so equipped)

allow lever to be positioned between the

plate tabs.

Lower Wheels for High Cut Plate Tab

FOR MULCHING MOWERS ONLY

Most mulching mowers are shipped ready

to be used as a mulcher.

"REAR DISCHARGE ONLY" MOWERS

Some models have a seperate mulcher

plug, other models have the mulcher plug

built into the rear door. To convert to

bagging or discharging, the plate or plug

(if so equipped) must be removed from the

discharge opening of the lawn mower.

• Open rear door and remove mulcher

plate or plug (if so equipped). Store

mulcher plate or plug in a safe place.

• You can now install grass catcher or

optional clipping deflector accessory.

• To return to mulching operation, install

mulcher plate or plug into discharge

opening of mower.

_I,CAUTION: Do not run your lawn

mower without mulcher plate/plug in place

or approved clipping deflector or grass

catcher in place. Never attempt to operate

the lawn mower with the rear door

removed or propped open.

MULCHER PLATE TYPE

Slots

Mulcher

plate tabs

MULCHER PLUG TYPE

RaiseWheels forLowCut Lever Mulcher plug/

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman ZTL7000 Manuel utilisateur

Craftsman

Craftsman 917.272674 Manuel utilisateur

Craftsman

Craftsman 917.387461 Manuel utilisateur

Craftsman

Craftsman EZ3 917.258542 Manuel utilisateur

Craftsman

Craftsman 37659 - Front Propelled Rear Bag Lawn Mower Manuel utilisateur

Craftsman

Craftsman 917.373841 Manuel utilisateur

Craftsman

Craftsman 944.362640 Manuel utilisateur

Craftsman

Craftsman 917.27623 Manuel utilisateur

Craftsman

Craftsman 107.28993 Manuel utilisateur

Craftsman

Craftsman CMXGRAM1130049 Manuel utilisateur

Craftsman

Craftsman EZ3 917.377261 Manuel utilisateur

Craftsman

Craftsman 917.276080 Manuel utilisateur

Craftsman

Craftsman 917.389270 Manuel utilisateur

Craftsman

Craftsman 38987 Manuel utilisateur

Craftsman

Craftsman 917.27662 Manuel utilisateur

Craftsman

Craftsman 917.25024 Manuel utilisateur

Craftsman

Craftsman 917.370710 Manuel utilisateur

Craftsman

Craftsman 917.272953 Manuel utilisateur

Craftsman

Craftsman 917.388450 Manuel utilisateur

Craftsman

Craftsman 25908 Manuel utilisateur

Craftsman

Craftsman 917.376462 Manuel utilisateur

Craftsman

Craftsman 917.273403 Manuel utilisateur

Craftsman

Craftsman 917.273373 Manuel utilisateur

Craftsman

Craftsman 917.377980 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
