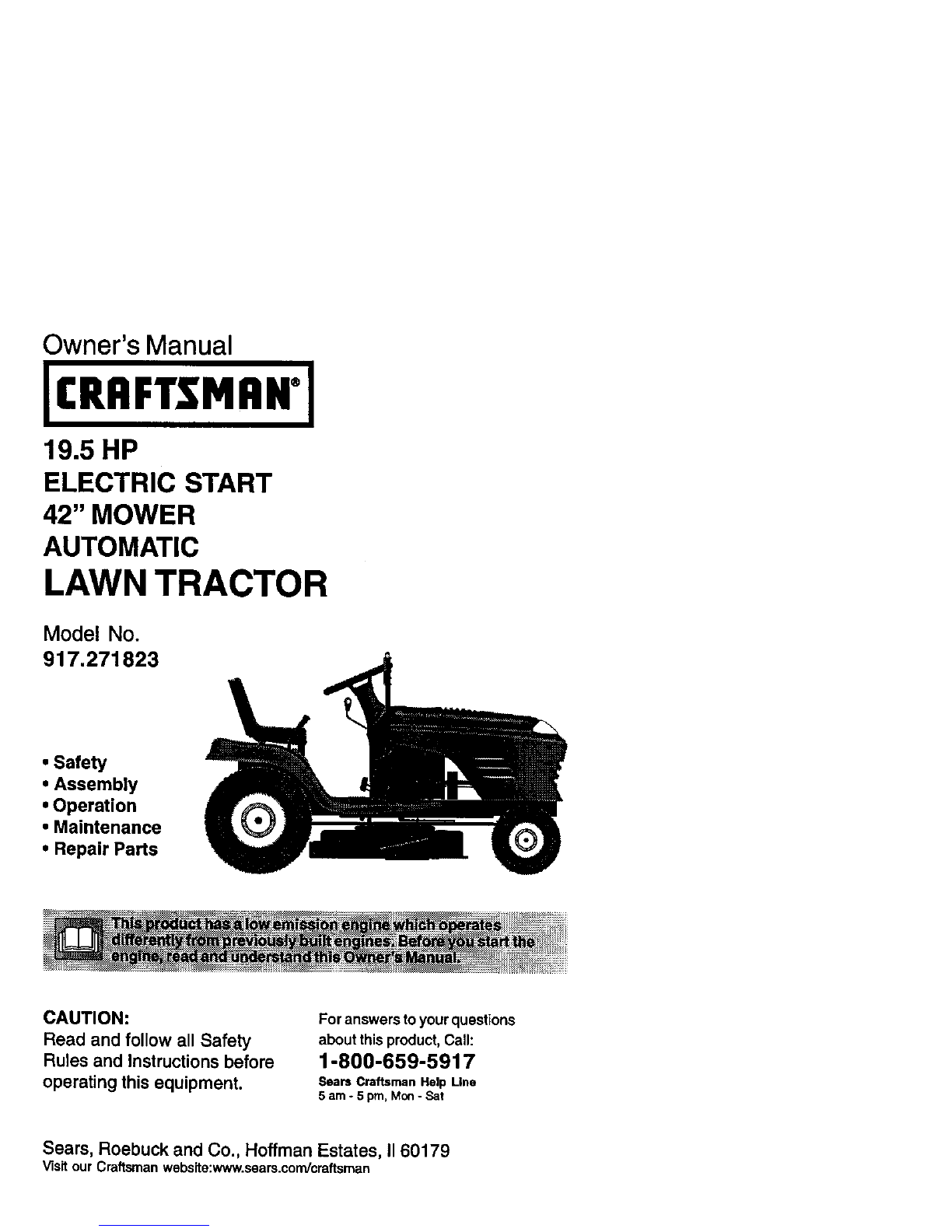

Craftsman 917.271823 Manuel utilisateur

Owner's Manual

I(RRFT$1VlRH°]

19.5 liP

ELECTRIC START

42" MOWER

AUTOMATIC

LAWN TRACTOR

Model No.

917.271823

• Safety

• Assembly

•Operation

•Maintenance

•Repair Parts

CAUTION:

Read and follow all Safety

Rules and instructions before

operating this equipment.

Foranswers toyourquestions

about thisproduct,Call:

1-800-659-5917

Sears Craftsman Help Line

5 am -5 pro, Mort -Sat

Sears, Roebuck and Co., Hoffman Estates, II 60179

Visit our Craftsman website:www.sears.com/craffsman

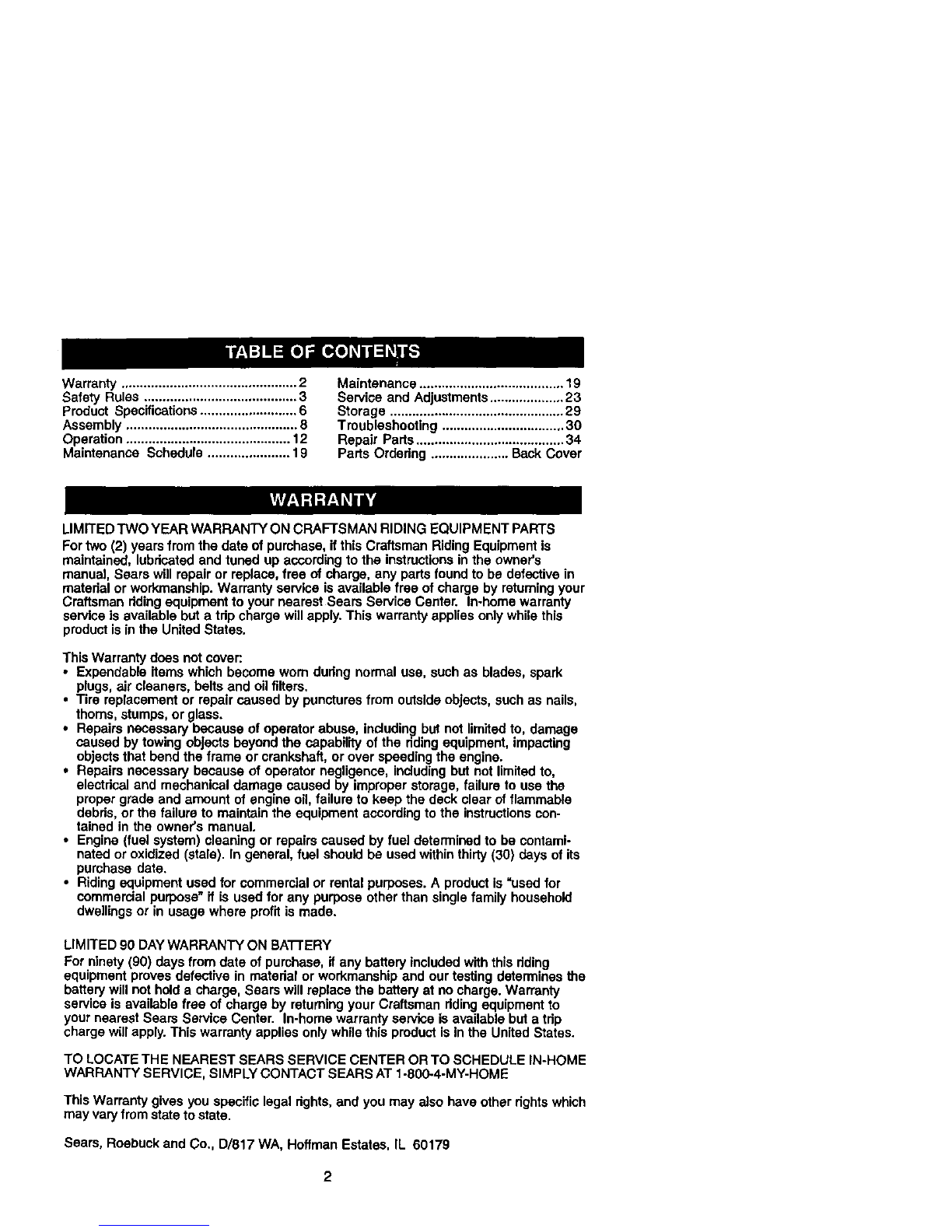

Warranty...............................................2

Safety Rules ......................................... 3

Product Specifications.......................... 6

Assembly .............................................. 8

Operation ............................................ 12

Maintenance Schedule ...................... 19

Maintenance ....................................... 19

Service and Adjustments.................... 23

Storage ............................................... 29

Troubleshooting ................................. 30

Repair Parts ........................................ 34

Parts Ordering ..................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT PARTS

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructionsin the owner's

manual, Sears will repair or replace, free of charge, any parts found to be defective in

matedal or workmanship. Warranty service is available free of charge by returningyour

Craftsman ddingequipment to your nearest Sears Service Center. In-home warranty

service is available but a tdp charge will apply.This warranty applies only while this

productis in the United States.

This Warranty does not cover:

•Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts and oil filters.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limitedto, damage

caused by towing objects beyond the capability of the ridingequipment, impacting

objects that bend the frame or crankshaft, or over speeding the engine.

•Repairs necessary because of operator negligence, includingbut not limitedto,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or the failure to maintain the equipment according to the instructionscon-

tained in the owner's manual,

•Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within thirty (30) days of its

pumhese date.

•Riding equipment used for commemial or rental purposes. Aproductis "used for

commercial purpose" ff is used for any purpose other than single family household

dwellingsor in usage where profitis made.

LIMITED 90 DAYWARRANTY ON BA'I-FERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. Warranty

service is available free of charge by returning your Craftsman riding equipment to

your nearest Sears Service Center. In-home warranty service is available but a trip

charge will apply. This warranty applies only while this product is in the United States.

TO LOCATE THE NEAREST SEARS SERVICE CENTER OR TO SCHEDULE IN-HOME

WARRANTY SERVICE, SIMPLY CONTACT SEARS AT 1-800-4-MY-HOME

This Warranty gives you specific legal rights, and you may also have other dghts which

may vary fromstate to state.

Sears, Roebuck and Co., D/817 WA, Hoftman Estates, IL 60179

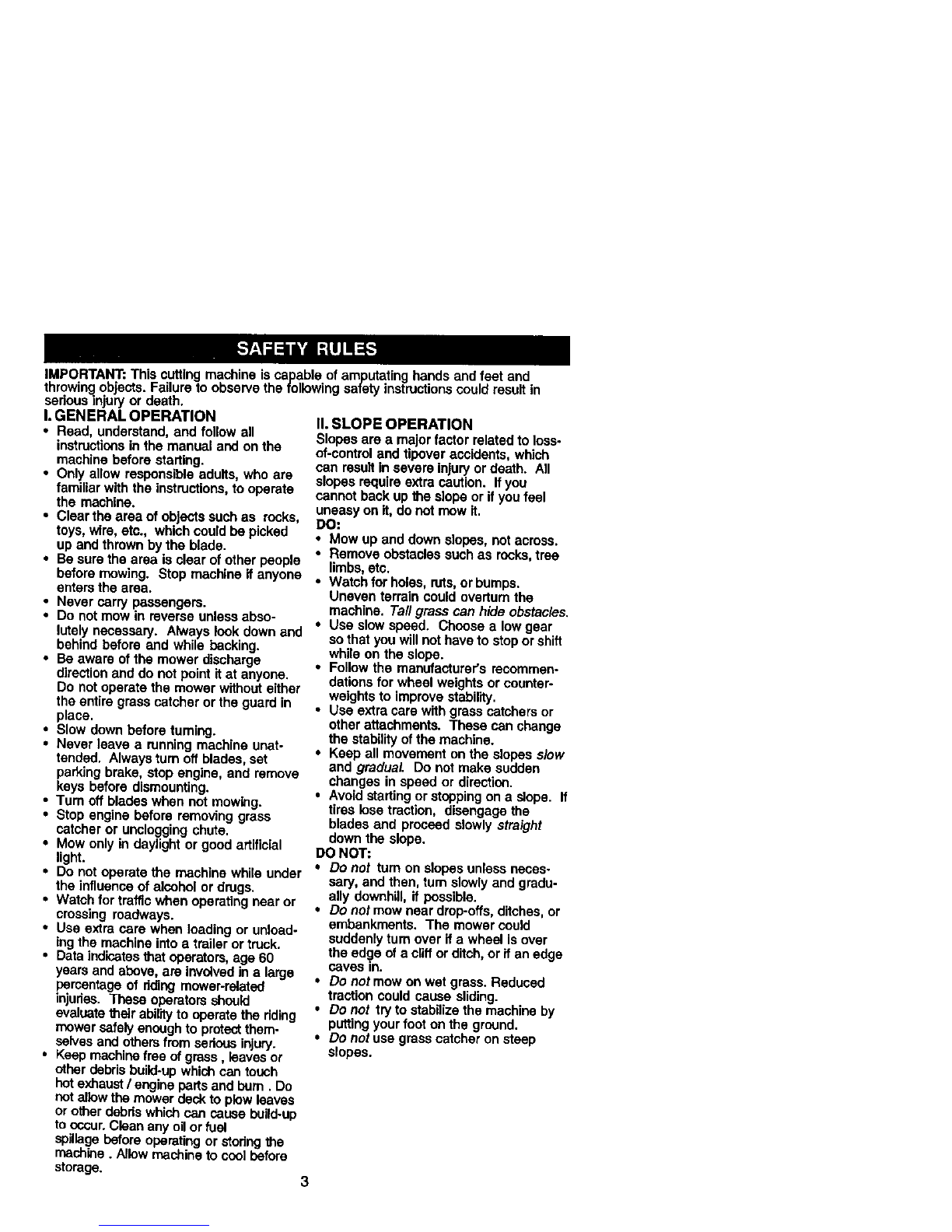

IMPORTANT: This cuttng mach nes capab e ofamputating hands and feet and

throwing objects. Failure to observe the following safety instructionscould result in

sedous injuryor death.

I.GENERAL OPERATION I1.SLOPE OPERATION

•Read, understand, and follow all

instructions in the manual and on the

machine before starting.

•Only allow responsible adults, who are

familiar with the instructions,to operate

the machine.

•Clear the area of objectssuch as rooks,

toys, wire, etc., which could be picked

up and thrown by the blade.

•Be sure the area is clear of other people

belore mowing. Stop manNne if anyone

enters the area.

• Never carry .pa_engers.

•Do notmow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

•Be aware of the mower discharge

direction and do not point it at anyone.

Do notoperate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

•Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

•Turn off blades when not mowing.

•Stop engine before removing grass

catcher or unclogging chute.

•Mow only in daylight or good artificial

light.

•Do not operate the machine while under

the influence of alcohol or drUgs.

•Watch for traffic when operating near or

crossing roadways.

•Use extra care when loading or unload-

ing the machine intoa trailer or truck.

• Data indicatesthat operators,age 60

years and above, are involved in alarge

pementage of doingmower-related

injuries. These operatorSshould

evaluate their abilityto operate the dding

mower safelyenough to protectthem-

selvesand others from serious injury.

•Keep machine free ofgrass, leaves or

other debris build-upwhich can touch

hot exhaust /engine parts and I_Jm. Do

not allewthe mower deck to plow leaves

or other debriswhich can cause build-up

1ooccur.Clean any d_lor fuel

spillagebefore operating or stodngthe

machine. Allow machine to cool before

storage.

Slopes are amajor factor related to Ioss-

ot-contro| and tipover accidents, which

can result in severe injury or death. All

slopes require extra caution. It you

cannot back up the slope or if you feel

uneasy on it, do not maw it.

DO:

•Mow up and down slopes, not across.

•Remove obstacles such as rocks,tree

limbs, etc.

Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

Use slow speed. Choose a low gear

so that you will not have to stop or shiff

while on the slope.

Follow the manufacturer's recommen-

detians for wheel weights or counter-

weights to improve stability.

Use extra care with grass catchers or

other attachments. These can change

the stability ofthe machine.

Keep all movement onthe slopes slow

and gradual. Do not make sudden

changes in speed or dirsctlen.

Avoid staffingor stoppingon a slope. It

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

DO NOT;

•Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhii|, if possible.

•Do notmow near dmp-offs, ditches, or

embankments. The mower could

suddenly turn over if a wheel isover

the edge of a cliff or ditch, or if an edge

caves In.

•Do notmow on wet grass. Reduced

traction could cause sliding.

•Do not try to stabilizethe machine by

puttingyour foot on the ground.

• Do notuse grass catcher on steep

slopes.

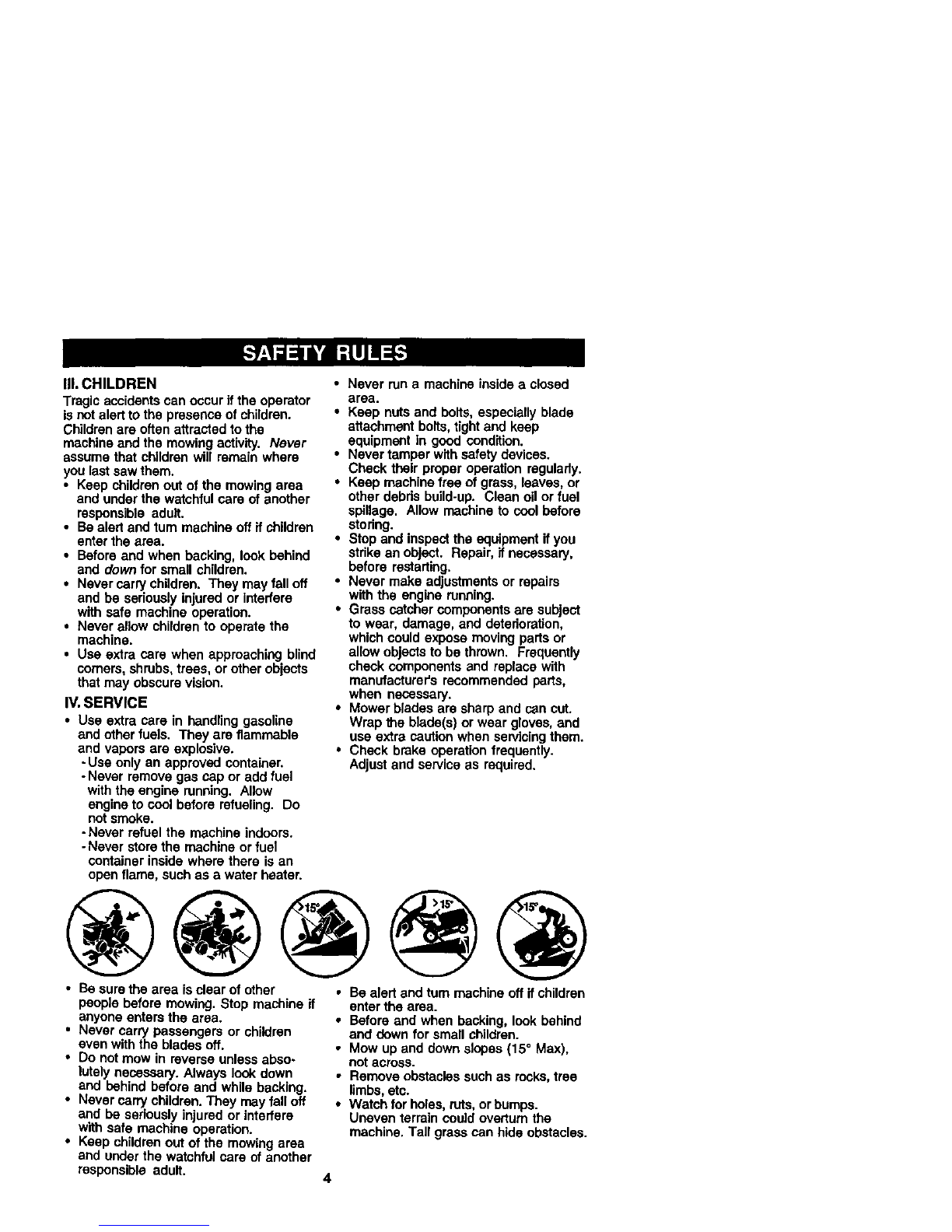

Ill.CHILDREN

Tragicaccidentscanoccurif the operator

is notalert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

•Keep children outof the mowing area

and under the watchful care of another

responsible adult.

•Be alert and turn machine off if children

enter the area.

•Before and when backing, look behind

and down for small children.

•Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

•Never allow children to operate the

machine.

•Use extra care when approaching blind

comers, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

•Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

notsmoke.

- Never refuel the machine indoors.

-Never store the machine or fuel

container inside where there is an

open flame, such as awater heater.

• Never run a machine inside a closed

area.

•Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

•Never tamper with safety devices.

Check their proper operation regularly.

•Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

•Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

•Never make adjustments or repairs

with the engine running.

•Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and c_n cut.

Wrap the blede(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently.

Adjust and service as required.

•Be sure the area isclear of other

people before mowing. Stop machine if

anyone enters the area.

• Never carry passengers or children

even with the blades off.

•Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while becking.

•Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

•Keep children out of the mowing area

and under the watchful care of another

responsible adult.

•Be alert and turn machine off if children

enter the area.

•Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15 °Max),

notacross.

•Remove obstacles such as rocks,tree

limbs, etc.

•Watch forholes, ruts, orbumps.

Uneven terrain could overturn the

machine. Tall grass san hide obstacles.

•Use slow speed. Choose alow gear so

that you will nothave to stop or shift

while on the slope.

•Avoid startingor stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

•If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

•Do notturn on slopes unless neces-

sary, and then, tum slowly and gradu-

ally downhill, if possible.

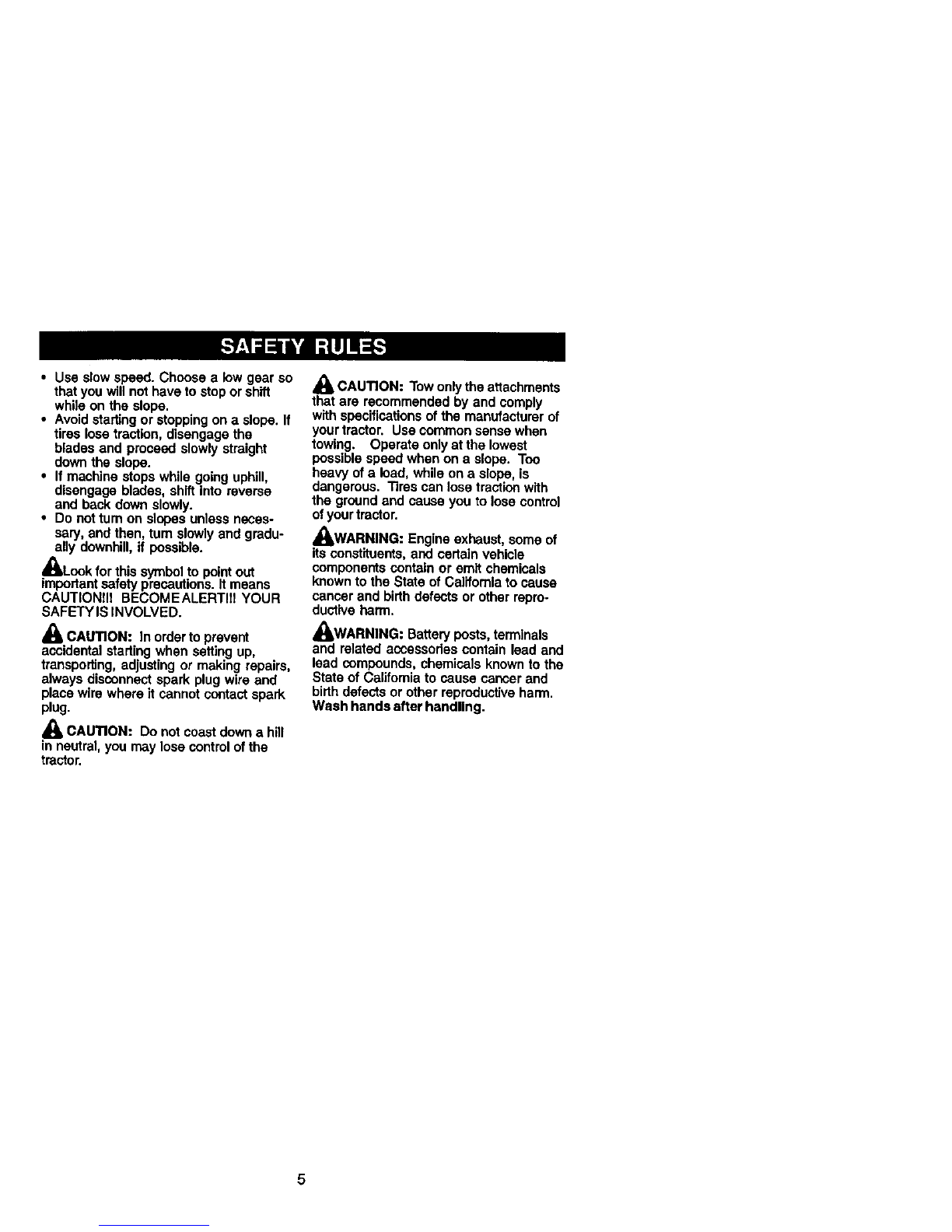

_Look for this symbol to pointout

important safety precautions, if means

CAUTIONIII BECOMEALERTlll YOUR

SAFETY IS INVOLVED.

_- CAUTION: in orderto prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where if cannot contactspark

plug.

CAUTION: Do not coast down ahill

in neutral, you may lose control ofthe

tractor.

_1_ CAUTION: Tow onlythe attachments

that are recommended by and comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of yourtractor.

_,WARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other repro-

ductive harm.

_=WARNING: Batterypests, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

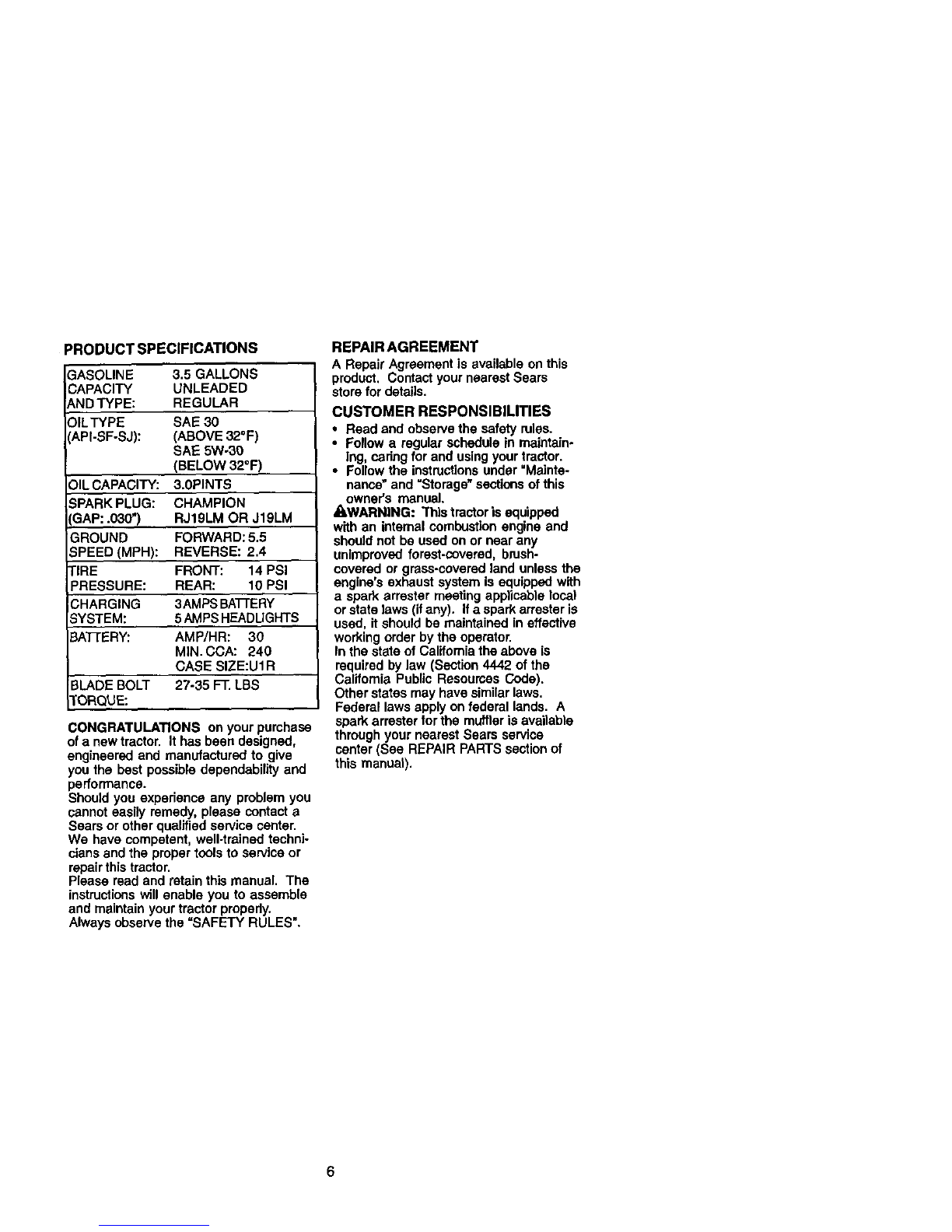

PRODUCT SPECIFICATIONS

GASOLINE 3.5 GALLONS

CAPACITY UNLEADED

AND TYPE: REGULAR

OILTYPE SAE 30

API-SF-SJ): (ABOVE 32°F)

SAE 5W-30

(BELOW 32°F)

DILCAPACITY: 3.OPINTS

3PARK PLUG: CHAMPION

3AP: .030") RJ19LM OR J19LM

GROUND FORWARD: 5.5

SPEED (MPH): REVERSE: 2.4

TIRE FRONT: 14 PSi

PRESSURE: REAR: 10 PSI

CHARGING 3AMPSBA'I-I'ERY

SYSTEM: 5AMPS HEADLIGHTS

BA'FrERY: AMP/HR: 30

MIN. CCA: 240

CASE SIZE:U1R

BLADE BOLT 27-35 FT, LBS

TORQUE:

CONGRATULATIONS on your purchase

ofa newtractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you expedence any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly.

Always observe the =SAFETY RULES".

REPAIR AGREEMENT

A Repair Agreement is available on this

product, Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety roles.

•Follow a regular schedule in maintain*

ing, cadng for and using your tractor.

•Follow the instructionsunder "Mainte-

nance" and "Storage" sections of this

owner's manual.

_I:_WARNING: This tractor is equipped

with an intemal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

orstate laws (if any). Ifa spark arrester is

used, it should be maintained in effective

working order by the operator,

In the state of Calitomia the above is

required by law (Section 4442 of the

Calitomie Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester forthe muffleris available

through your nearest Sears service

center (See REPAIR PARTS section of

this manual),

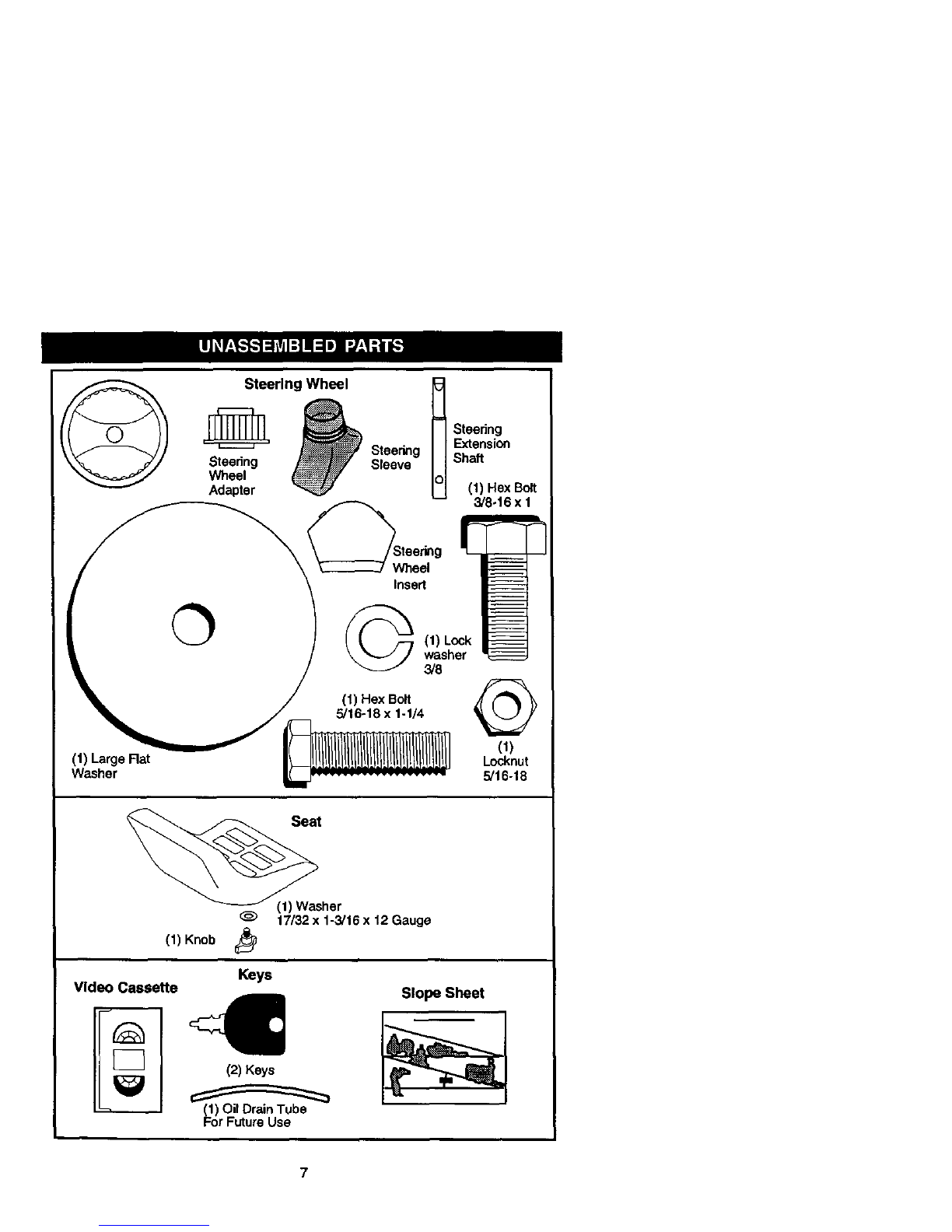

(1) LargeRat

Washer

Steering Wheel

Steedng

Wheel

Adapter

Steering

Sleeve

Steedng

Extension

Shaft

(1) Hex Bolt

3/8-16 x 1

Wheel

Insert /

(1) Lock I

washer •

(1) Hex Bolt

5/16-18 x 1-1/4

3/8 @

(1)

Locknut

5/16-18

Seat

_tsher

17/32 x 1-3/16 x 12 Gauge

(1) Knob _

Keys

Video Cassette

For Future Use

Slope Sheet

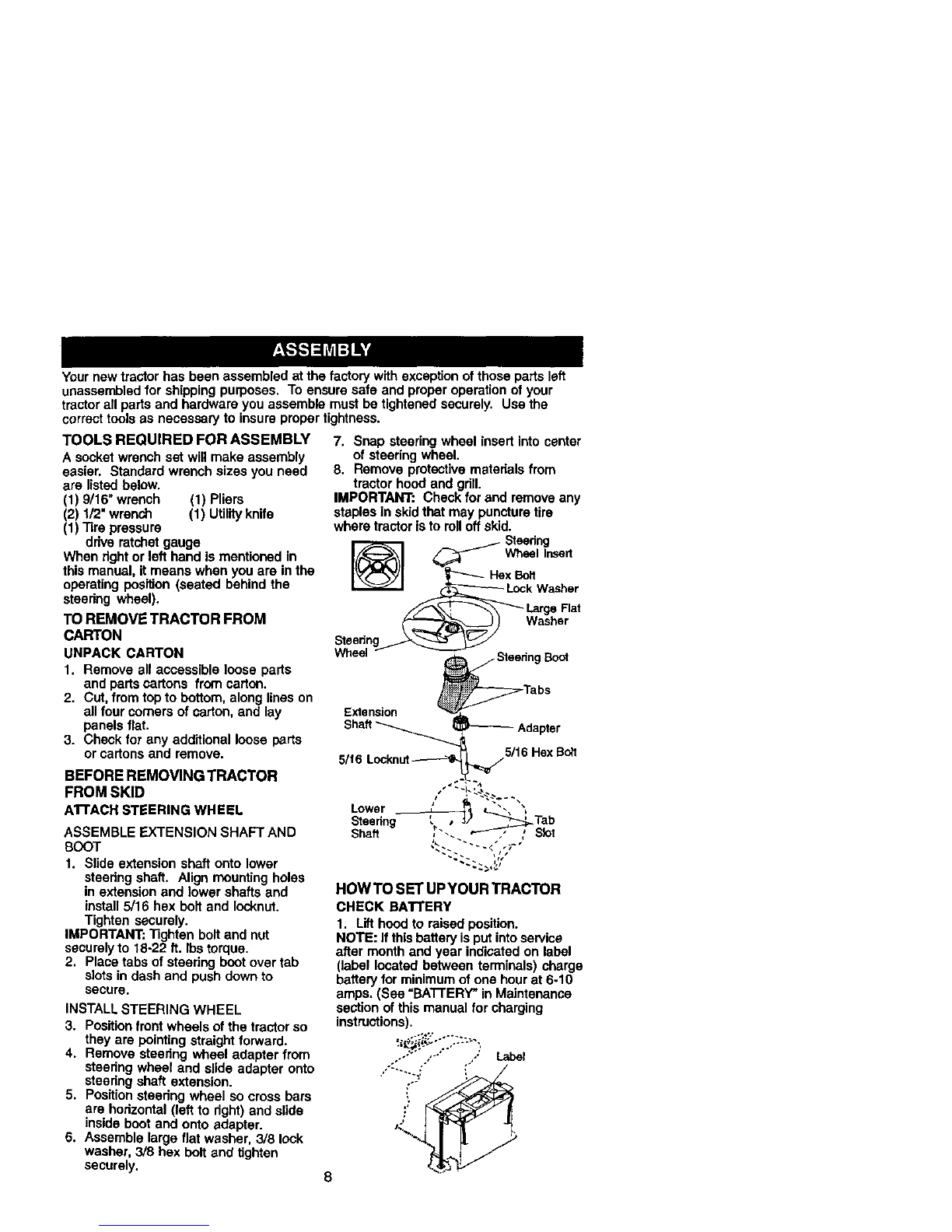

Your new tractor has been assembled at the factory with exception ofthose parts left

unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (1) Pliers

(2) 1/2"wrench (1) Utilityknife

(1) Tim pressure

drive ratchetgauge

When dght or left hand is mentioned in

this manual, if means when you are in the

operating position (seated behind the

steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts

and partscartons from carton.

2. Cut, from topto bottom, along lines on

all four comers of carton, and lay

panels flat.

3. Check for any additional loose parts

or cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATFACHSTEERINGWHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower

steedng shaft. Align mounting holes

in extension and lower shafts and

install5/16 hex bolt and Iocknut.

Tighten securely.

IMPORTANT: Tighten bolt and nut

securelyto 19-22 ft. Ibs torque.

2. Place tabs of steering boot over tab

slotsin dash and push down to

secure.

iNSTALL STEERING WHEEL

3. Positionfront wheels of the tractor so

they are pointing straight forward.

4. Remove steedng wheel adapter from

steedng wheel and slide adapter onto

steering shaft extension.

5. Positionsteedng wheel so cross bars

are horizontal (left to dght) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 3/8 lock

washer, 3/8 hex bolt and tighten

securely.

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective mataitals from

tractor hood and grill.

IMPORTANT: Check for and removeany

staples in skid that may puncture tire

where tractor isto roll off skid.

__ _Steedng

_Wheel Insert

FlexBolt

_::_ L_k Washer

F'/'_,_I _ _ LargeFlat

Steedng_Washer

_Sleedng Boot

5/16 Lockn__ 5/16 HexBolt

Lowersteering_ _i Tab

Shaft ,_"-_. _ Slot

HOWTO SET UPYOUR TRACTOR

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery isputintoservice

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hourat 6-10

amps. (See =BA'I-I'ERY"in Maintenance

section ofthis manual for charging

instructions).

_=_.=_-.'....--:_-_ Label

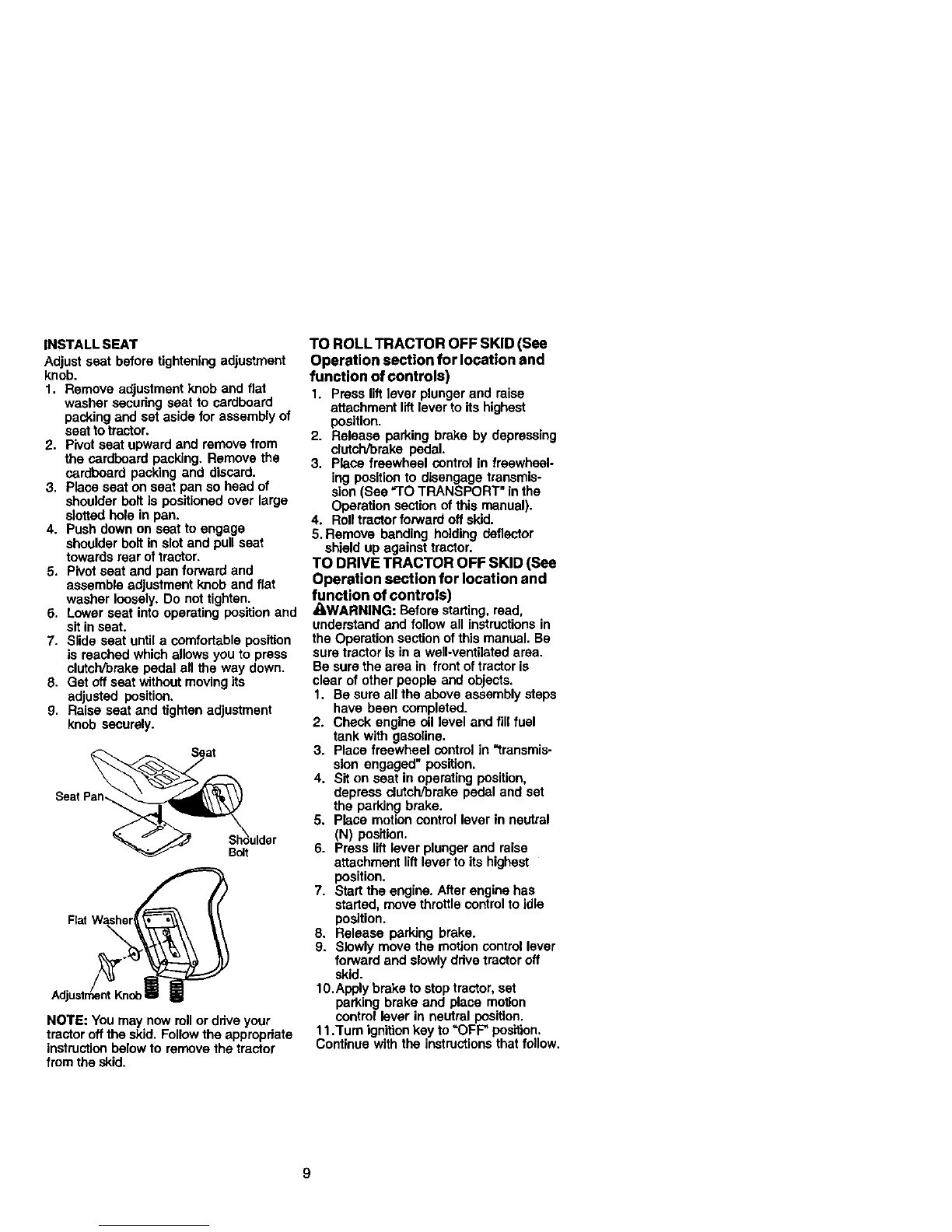

INSTALLSEAT

Adjustseatbeforetighteningadjustment

knob.

1. Removeadjustmentknobandfiat

washersecuringseattocardboard

packingandsetasidefor assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder boll is positioned over large

slotted hole in pan.

4. Push down on seat to engage

shoulder bolt in slot and pull seat

towards rear of tractor.

5. Pivot seat and pan forward and

assemble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating positionand

sit in seat.

7. Slide seat until a comfortable position

is reached whichallows you to press

clutch/breke pedal all the way down.

8. Get off seat without movingits

adjusted position.

9. Raise seat and tighten adjustment

knob securely.

SeatPan_ulder

FlatWash__

NOTE: You may now roll or ddve your

tractor off the skid. Followthe appropriate

instructionbelow to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1, Press lift lever plunger and raise

attachment llftlever to its highest

position.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place freewheel control in freewheel-

ing position to disengage transmis-

sion(See "TO TRANSPORT" inthe

Operation section of this manual).

4. Rolltractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_I=WARNING: Before starting,read,

understand and follow all instructionsin

the Operation section of this manual. Be

sure tractor is in a welI-ventitated area.

Be surethe area in front oftractor is

clear of other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline.

3. Place freewheel control in "transmis-

sion engaged" position.

4. Sit on seat in operating position,

depress clutch/brake pedal and sat

the parking brake.

5. Place motion control lever in neutral

(N) position.

6. Press lift lever plunger end raise

attachment liftlever to its highest

position.

7. Start the engine. After engine has

started, move throttlecontrolto idle

position.

8. Release paddng brake.

9. Slowly move the motion control lever

forward and slowly drive tractor off

skid.

10.Apply brake to stoptractor, set

parking brake and place motion

control lever in neutral position.

11.Turn ignitionkay to =OFF_position.

Continue with the instructionsthat follow.

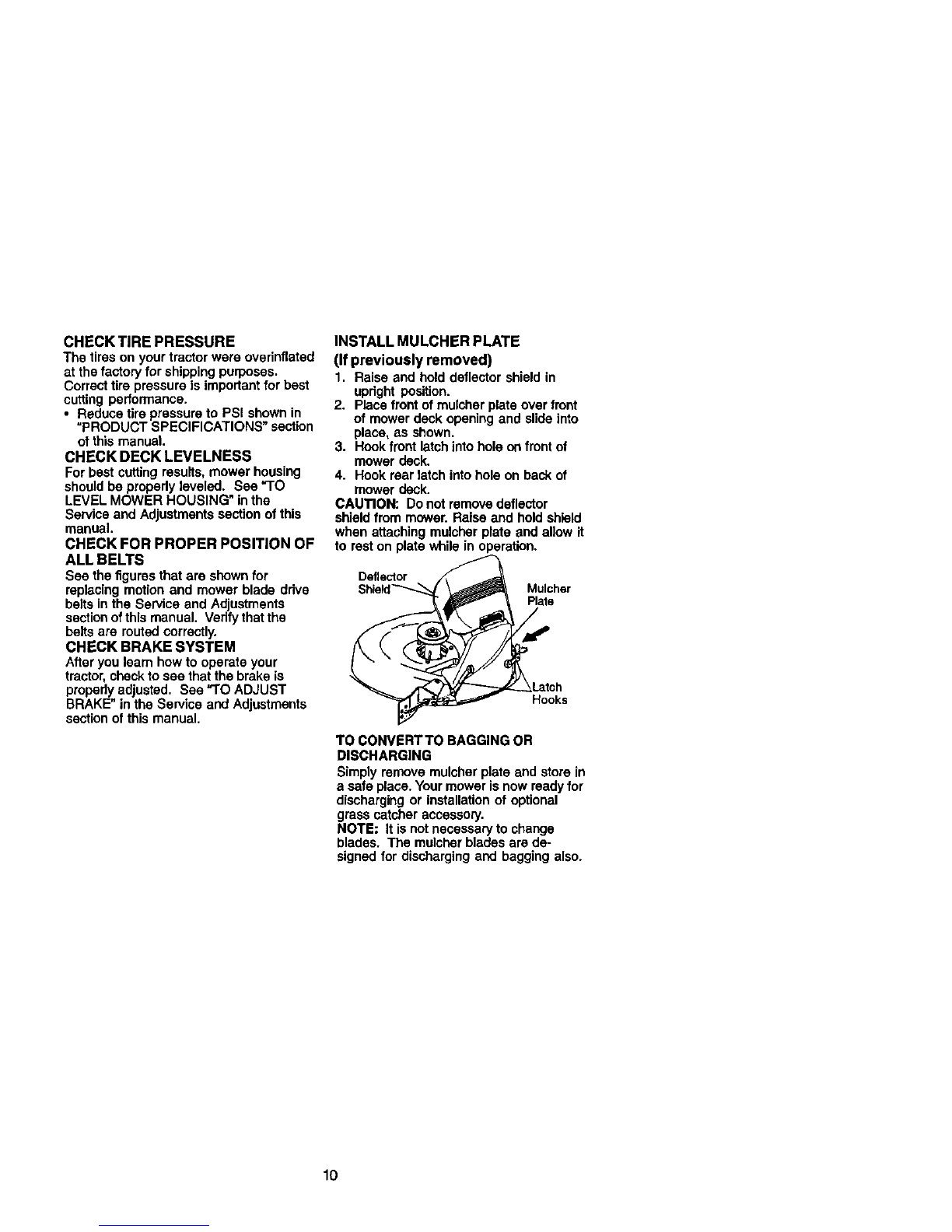

CHECK TIRE PRESSURE

The tires on your tractor were overinflated

at the factoryfor shipping purposes.

Correct tire pressure is important forbest

cutting performance.

•Reduce tire pressure to PSi shown in

=PRODUCT SPECIFICATIONS" section

of this manual

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO

LEVEL MOWER HOUSING" inthe

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figuresthat are shown for

replacing motion and mower blade ddve

belts in the Service and Adjustments

section of this manual, Verify that the

belts are routedcorrectly,

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor,checkto see thatthe brake is

propady adjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual,

INSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of roulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch intohole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

CAUTION: Do not removedeflector

shield from mower. Raise and hold shield

when attaching muioherplate and allow it

to rest on plate while in operation.

Deflector Mulcher

Plate

Hooks

TO CONVERTTO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional

grass catcher accessory.

NOTE: It is notnecessary to change

blades. The mulcher blades are de-

signed for discharging and bagging also.

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.387650 Manuel utilisateur

Craftsman

Craftsman 917.379240 Manuel utilisateur

Craftsman

Craftsman E405 Manuel utilisateur

Craftsman

Craftsman 917.27191 Manuel utilisateur

Craftsman

Craftsman 917.387611 Manuel utilisateur

Craftsman

Craftsman EZ3 917.271140 Manuel utilisateur

Craftsman

Craftsman 917.388102 Manuel utilisateur

Craftsman

Craftsman 917.27582 Manuel utilisateur

Craftsman

Craftsman 917.256450 Manuel utilisateur

Craftsman

Craftsman 917.274632 Manuel utilisateur

Craftsman

Craftsman CMEMW213 Manuel utilisateur

Craftsman

Craftsman 917.256591 Manuel utilisateur

Craftsman

Craftsman 917.388123 Manuel utilisateur

Craftsman

Craftsman 252800 Manuel du propriétaire

Craftsman

Craftsman 917.389612 Manuel utilisateur

Craftsman

Craftsman 917.377664 Manuel utilisateur

Craftsman

Craftsman 917.252560 Manuel utilisateur

Craftsman

Craftsman 917.28914 Manuel utilisateur

Craftsman

Craftsman 917.376402 Manuel utilisateur

Craftsman

Craftsman EZ 917.273121 Manuel utilisateur

Craftsman

Craftsman 37436 - Rear Propelled Bag Lawn Mower Manuel utilisateur

Craftsman

Craftsman 917.376165 Manuel utilisateur

Craftsman

Craftsman 917.376551 Manuel utilisateur

Craftsman

Craftsman 917.388092 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
