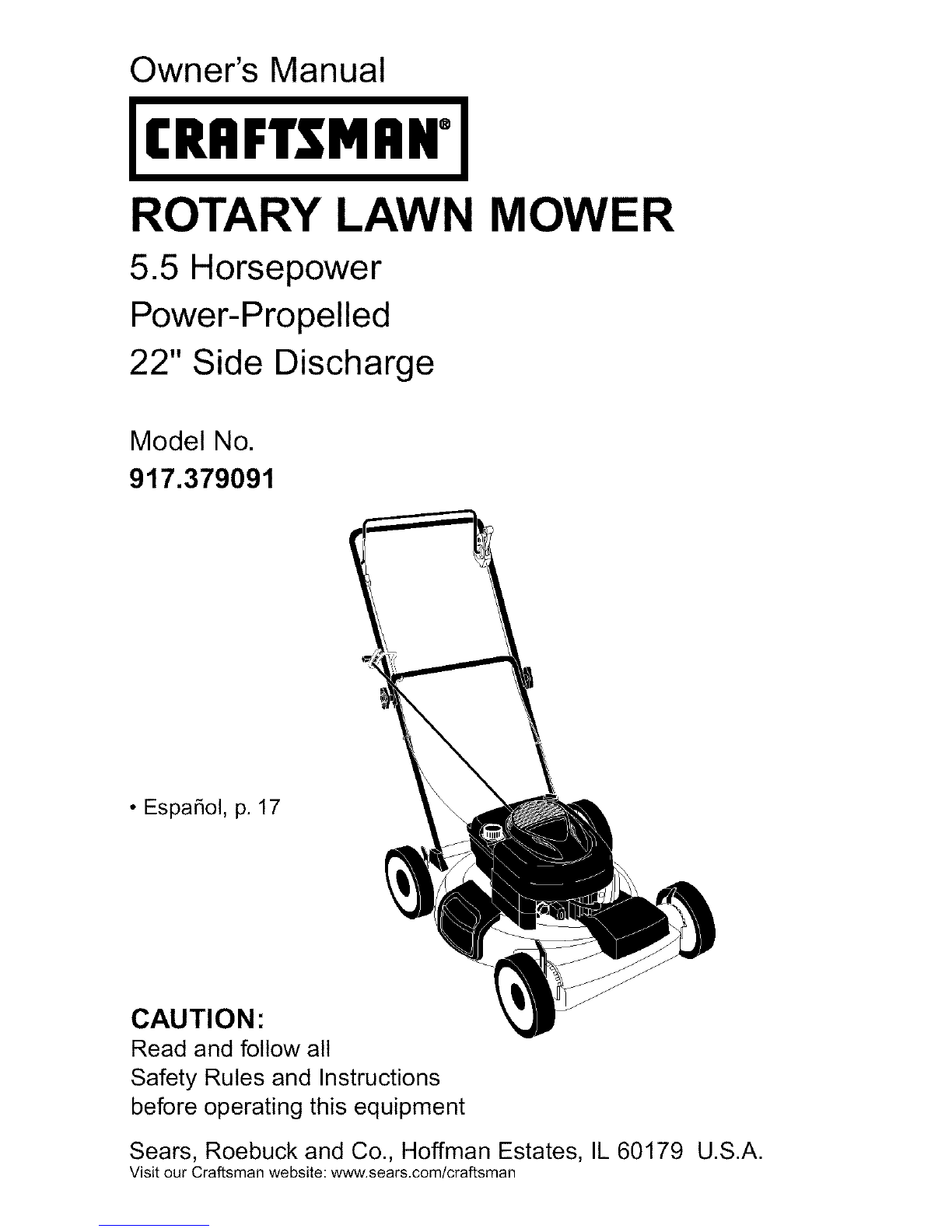

Craftsman 917.379091 Manuel utilisateur

Owner's Manual

JCRHFTSMRN°J

ROTARY LAWN MOWER

5.5 Horsepower

Power-Propelled

22" Side Discharge

Model No.

917.379091

•EspaSol, p. 17

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website: www.sears.com/craftsman

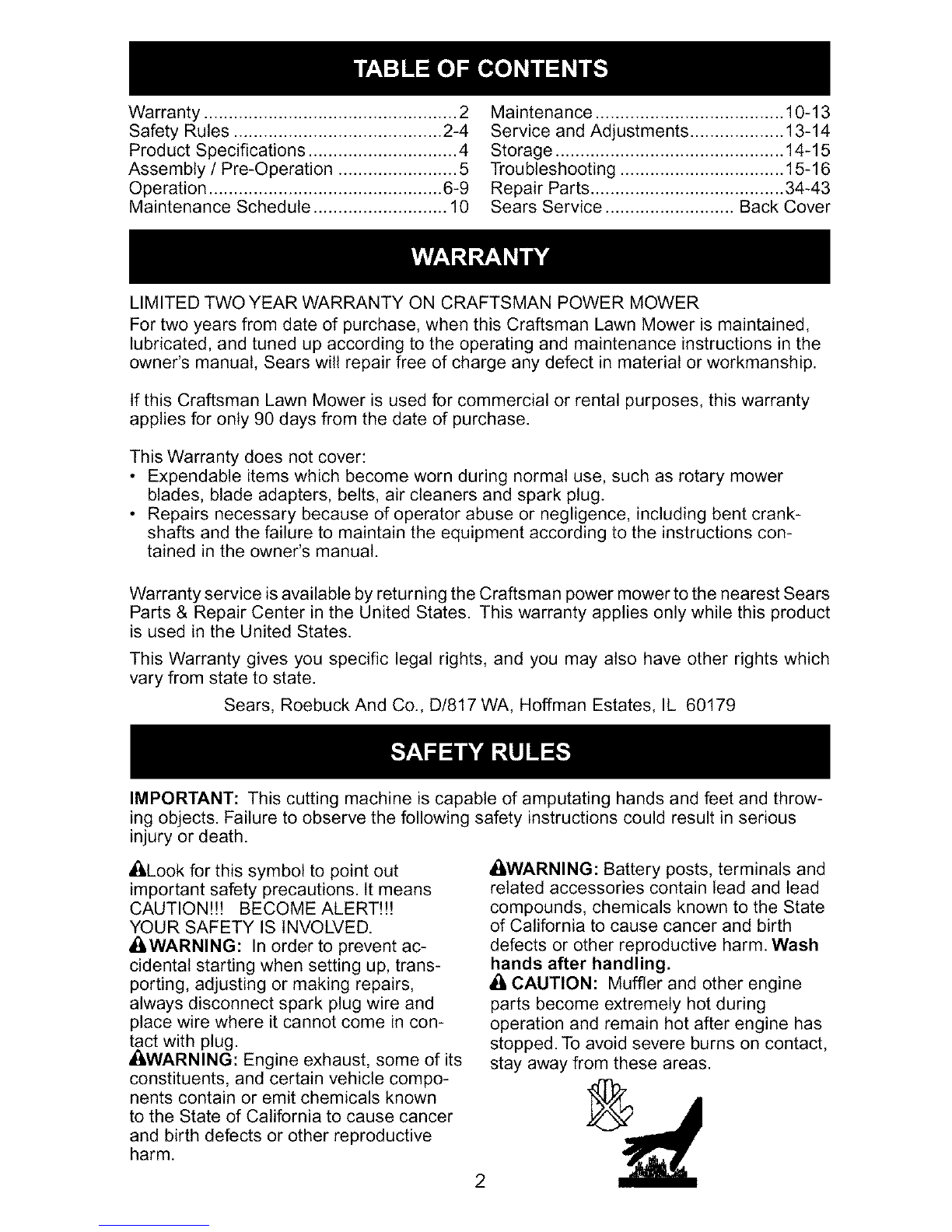

Warranty ................................................... 2

Safety Rules .......................................... 2-4

Prod uct Specifications .............................. 4

Assembly /Pre-Operation ........................ 5

Operation ............................................... 6-9

Maintenance Schedule ........................... 10

Maintenance ...................................... 10-13

Service and Adjustments ................... 13-14

Storage .............................................. 14-15

Troubleshooting ................................. 15-16

Repair Parts ....................................... 34-43

Sears Service .......................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in the

owner's manual, Sears will repair free of charge any defect in material or workmanship.

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as rotary mower

blades, blade adapters, belts, air cleaners and spark plug.

• Repairs necessary because of operator abuse or negligence, including bent crank-

shafts and the failure to maintain the equipment according to the instructions con-

tained in the owner's manual.

Warranty service is available by returning the Craftsman power mower to the nearest Sears

Parts & Repair Center in the United States. This warranty applies only while this product

is used in the United States.

This Warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

Sears, Roebuck And Co., D/817 WA, Hoffman Estates, IL 60179

IMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

_¢ILook for this symbol to point out

important safety precautions. It means

CAUTIONN! BECOME ALERT!N

YOUR SAFETY IS INVOLVED.

&WARNING: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot come in con-

tact with plug.

Ai:IWARNING: Engine exhaust, some of its

constituents, and certain vehicle compo-

nents contain or emit chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm.

Ai:IWARNING: Battery posts, terminals and

related accessories contain lead and lead

compounds, chemicals known to the State

of California to cause cancer and birth

defects or other reproductive harm. Wash

hands after handling.

_, CAUTION: Muffler and other engine

parts become extremely hot during

operation and remain hot after engine has

stopped. To avoid severe burns on contact,

stay away from these areas.

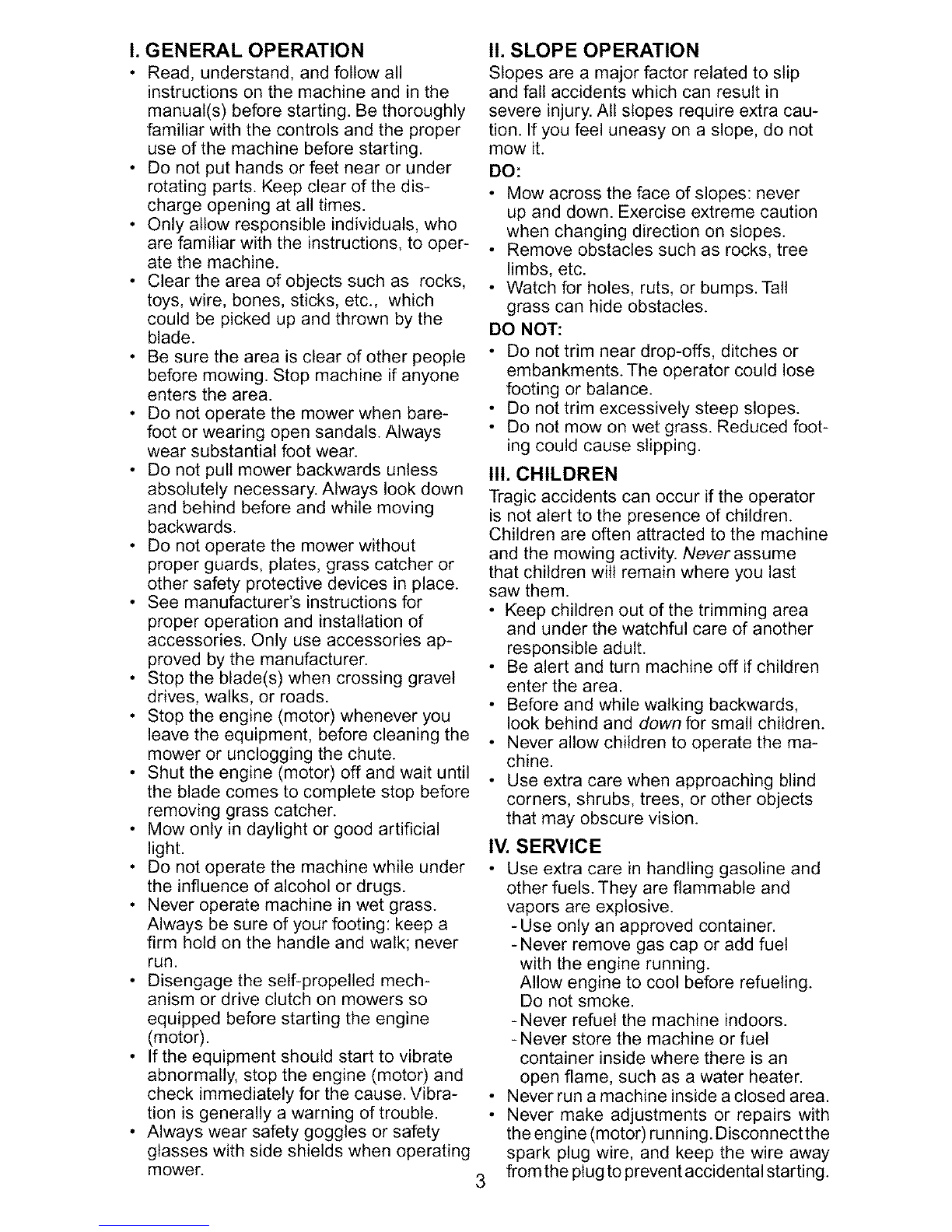

1.GENERAL OPERATION

• Read,understand,andfollowall

instructionsonthe machineandin the

manual(s)beforestarting.Bethoroughly

familiarwiththecontrolsandthe proper

useof themachinebeforestarting.

• Donotput handsorfeet nearorunder

rotatingparts.Keepclearof thedis-

chargeopeningat alltimes.

• Onlyallowresponsibleindividuals,who

are familiarwith the instructions,to oper-

atethe machine.

• Cleartheareaof objectssuchas rocks,

toys,wire,bones,sticks,etc., which

couldbe pickedup andthrownbythe

blade.

• Besuretheareaisclearof otherpeople

beforemowing.Stopmachineifanyone

entersthearea.

• Donotoperatethemowerwhenbare-

footorwearingopensandals.Always

wearsubstantialfootwear.

• Donotpullmowerbackwardsunless

absolutelynecessary.Alwayslookdown

and behindbeforeandwhile moving

backwards.

• Donotoperatethemowerwithout

properguards,plates,grasscatcheror

other safetyprotectivedevicesin place.

• Seemanufacturer'sinstructionsfor

properoperationandinstallationof

accessories.Onlyuse accessoriesap-

provedbythemanufacturer.

• Stoptheblade(s)whencrossinggravel

drives,walks,or roads.

• Stoptheengine(motor)wheneveryou

leavetheequipment,beforecleaningthe

moweror uncloggingthechute.

• Shuttheengine(motor)offandwait until

the bladecomesto completestopbefore

removinggrasscatcher.

• Mowonly in daylightorgood artificial

light.

• Do notoperatethemachinewhile under

the influenceof alcoholor drugs.

• Neveroperatemachineinwetgrass.

Alwaysbe sureof yourfooting:keepa

firm holdonthe handleandwalk;never

run.

• Disengagetheself-propelledmech-

anismordriveclutchon mowersso

equippedbeforestartingthe engine

(motor).

• Ifthe equipmentshouldstart to vibrate

abnormally,stopthe engine(motor)and

check immediatelyforthe cause.Vibra-

tion is generallya warningof trouble.

• Alwayswearsafetygogglesor safety

glasseswith sideshieldswhenoperating

11.SLOPE OPERATION

Slopes are a major factor related to slip

and fall accidents which can result in

severe injury. All slopes require extra cau-

tion. If you feel uneasy on a slope, do not

mow it.

DO:

• Mow across the face of slopes: never

up and down. Exercise extreme caution

when changing direction on slopes.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Tall

grass can hide obstacles.

DO NOT:

• Do not trim near drop-offs, ditches or

embankments. The operator could lose

footing or balance.

• Do not trim excessively steep slopes.

• Do not mow on wet grass. Reduced foot-

ing could cause slipping.

111.CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the machine

and the mowing activity. Never assume

that children will remain where you last

saw them.

• Keep children out of the trimming area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and while walking backwards,

look behind and down for small children.

• Never allow children to operate the ma-

chine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running.

Allow engine to cool before refueling.

Do not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed area.

• Never make adjustments or repairs with

the engine (motor) running. Disconnect the

spark plug wire, and keep the wire away

mower. 3fromthe plugto prevent accidentalstarting.

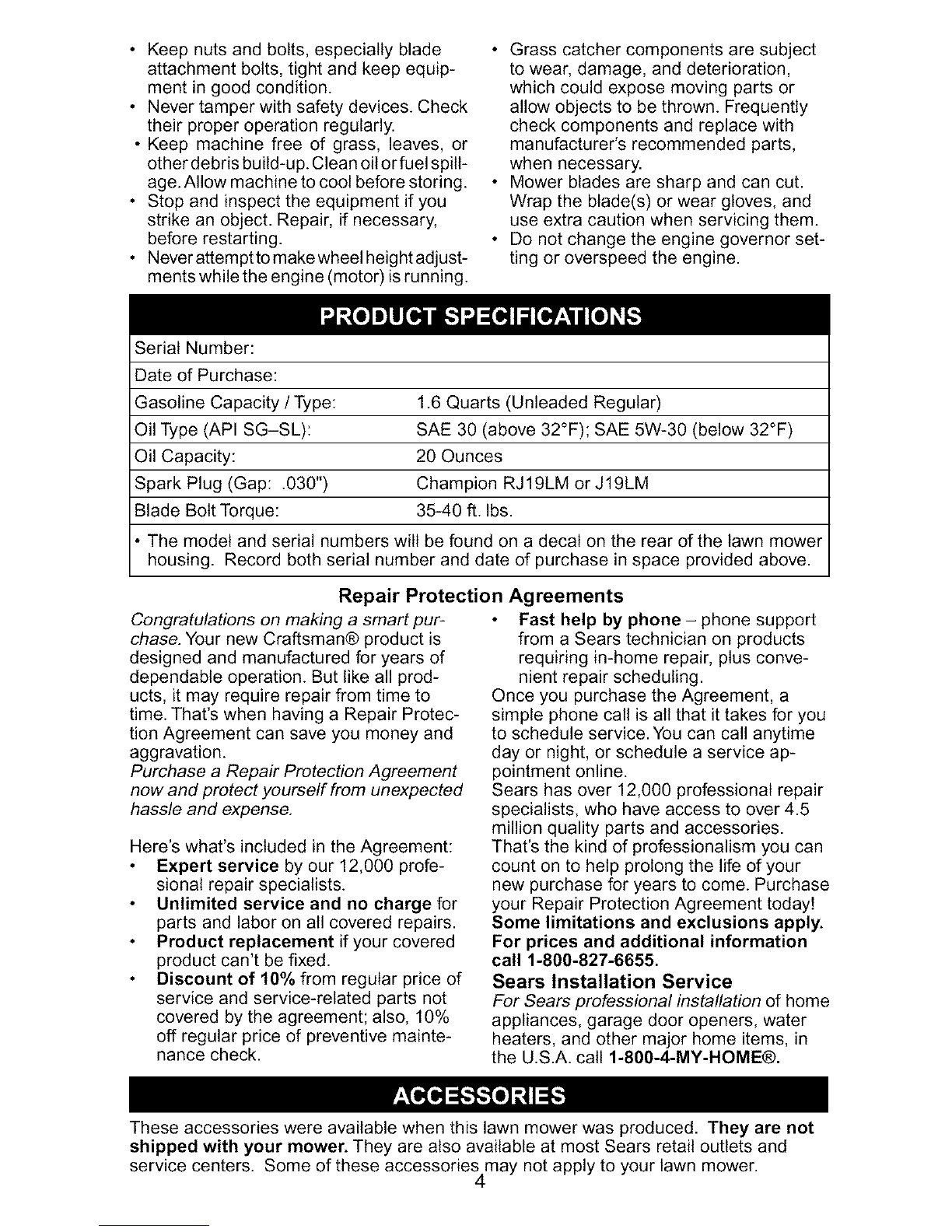

• Keepnutsand bolts,especiallyblade

attachmentbolts,tightandkeepequip-

mentin goodcondition.

• Nevertamperwithsafetydevices.Check

their properoperationregularly.

• Keep machinefree of grass, leaves,or

otherdebrisbuild-up.Cleanoilorfuelspill-

age.Allowmachinetocoolbeforestoring.

• Stopandinspectthe equipmentif you

strikean object.Repair,if necessary,

beforerestarting.

• Neverattempttomakewheelheightadjust-

mentswhiletheengine(motor)isrunning.

• Grasscatchercomponentsare subject

towear,damage,anddeterioration,

whichcouldexposemovingpartsor

allowobjectsto bethrown.Frequently

checkcomponentsandreplacewith

manufacturer'srecommendedparts,

whennecessary.

• Mowerbladesaresharpandcan cut.

Wrapthe blade(s)or weargloves,and

useextracautionwhenservicingthem.

• Donotchangetheenginegovernorset-

tingor overspeedtheengine.

SerialNumber:

Dateof Purchase:

GasolineCapacity/Type: 1.6 Quarts (Unleaded Regular)

Oil Type (API SG-SL): SAE 30 (above 32°F); SAE 5W-30 (below 32°F)

Oil Capacity: 20 Ounces

Spark Plug (Gap: .030") Champion RJ19LM or J19LM

Blade Bolt Torque: 35-40 ft. Ibs.

The model and serial numbers will be found on a decal on the rear of the lawn mower

housing. Record both serial number and date of purchase in space provided above.

Repair Protection Agreements

Congratulations on making a smart pur-

chase. Your new Craftsman@ product is

designed and manufactured for years of

dependable operation. But like all prod-

ucts, it may require repair from time to

time. That's when having a Repair Protec-

tion Agreement can save you money and

aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

Expert service by our 12,000 profe-

sional repair specialists.

Unlimited service and no charge for

parts and labor on all covered repairs.

Product replacement if your covered

product can't be fixed.

Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

Fast help by phone - phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement todayT

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

Sears Installation Service

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME@.

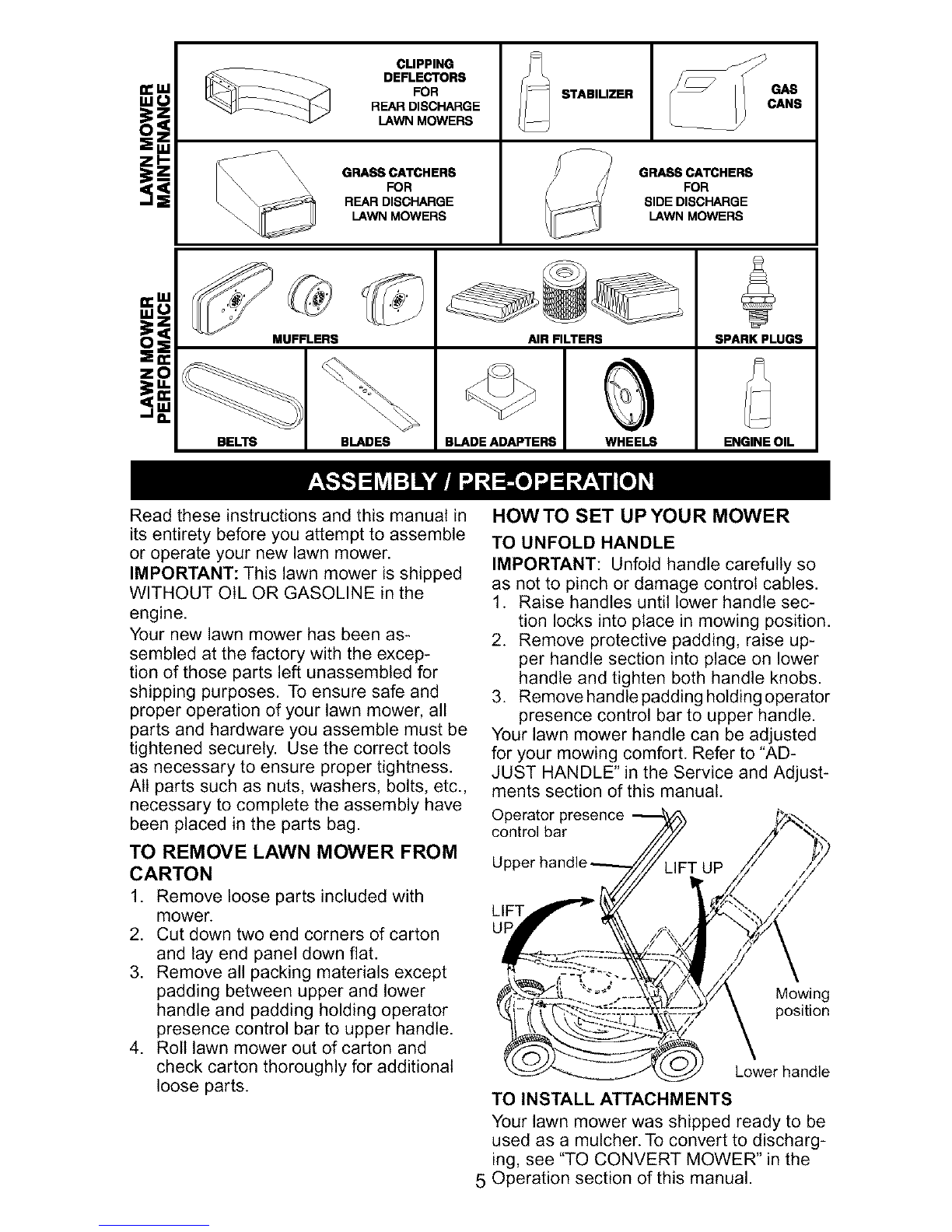

These accessories were available when this lawn mower was produced. They are not

shipped with your mower. They are also available at most Sears retail outlets and

service centers. Some of these accessories may not apply to your lawn mower.

zl-

CLIPPING

DEFLECTORS

FOR

REAR DISCHARGE

LAWN MOWERS

GRASS CATCHERS

FOR

REAR DISCHARGE

LAWN MOWERS

I_- STABILIZER

GRASS CATCHERS

FOR

SIDE DISCHARGE

LAWN MOWERS

GAS

CANS

,,,__

MUFFLERS AIR FILTERS

BELTS BLADES BLADE ADAPTERS WHEELS

SPARK PLUGS

ENGINE OIL

Read these instructions and this manual in

its entirety before you attempt to assemble

or operate your new lawn mower.

IMPORTANT: This lawn mower is shipped

WITHOUT OtL OR GASOLINE in the

engine.

Your new lawn mower has been as-

sembled at the factory with the excep-

tion of those parts left unassembled for

shipping purposes. To ensure safe and

proper operation of your lawn mower, all

parts and hardware you assemble must be

tightened securely. Use the correct tools

as necessary to ensure proper tightness.

All parts such as nuts, washers, bolts, etc.,

necessary to complete the assembly have

been placed in the parts bag.

TO REMOVE LAWN MOWER FROM

CARTON

1. Remove loose parts included with

mower.

2. Cut down two end corners of carton

and lay end panel down fiat.

3. Remove all packing materials except

padding between upper and lower

handle and padding holding operator

presence control bar to upper handle.

4. Roll lawn mower out of carton and

check carton thoroughly for additional

loose parts.

HOW TO SET UP YOUR MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage control cables.

1. Raise handles until lower handle sec-

tion locks into place in mowing position.

2. Remove protective padding, raise up-

per handle section into place on lower

handle and tighten both handle knobs.

3. Remove handle padding holding operator

presence control bar to upper handle.

Your lawn mower handle can be adjusted

for your mowing comfort. Refer to "AD-

JUST HANDLE" in the Service and Adjust-

ments section of this manual.

Operator presence

controlbar

LIFT

Mowing

position

Lower handle

TO INSTALL ATTACHMENTS

Your lawn mower was shipped ready to be

used as a mulcher. To convert to discharg-

ing, see "TO CONVERT MOWER" in the

5 Operation section of this manual.

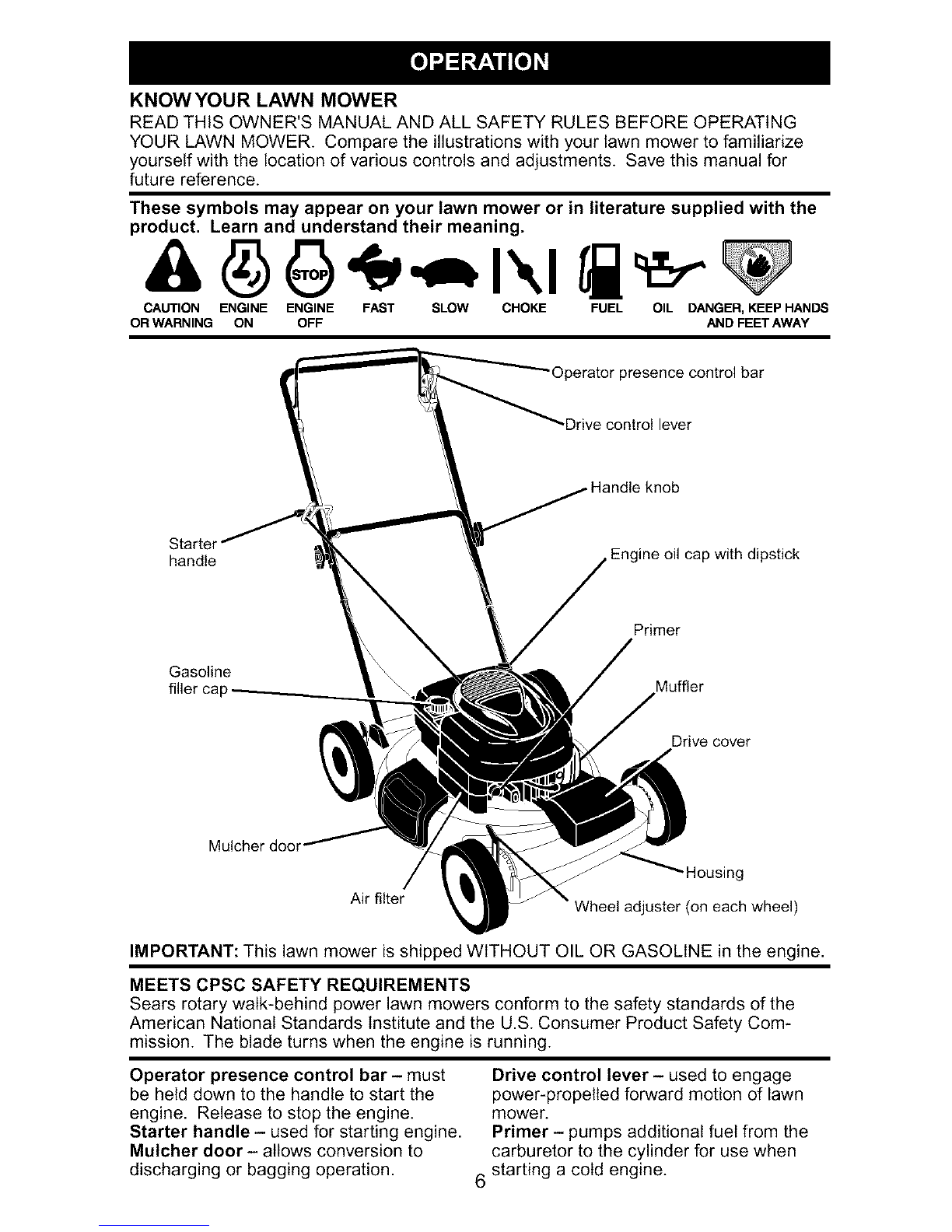

KNOW YOUR LAWN MOWER

READTHIS OWNER'SMANUALANDALL SAFETYRULESBEFOREOPERATING

YOURLAWNMOWER.Comparethe illustrationswith yourlawn mowerto familiarize

yourselfwiththe locationofvariouscontrolsand adjustments.Savethismanualfor

futurereference.

These symbols may appear on your lawn mower or in literature supplied with the

product. Learn and understand their meaning.

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS

OR WARNING ON OFF AND FEET AWAY

Operator presence control bar

"Drive control lever

knob

Starte

handle line oil cap with dipstick

Primer

Gasoline

filler ca_ Muffler

Drive cover

Mulcher

Air filter "-Housing

Wheel adjuster (on each wheel

IMPORTANT: This lawn mower is shipped WITHOUT OIL OR GASOLINE in the engine.

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the

American National Standards Institute and the U.S. Consumer Product Safety Com-

mission. The blade turns when the engine is running.

Operator presence control bar -must

be held down to the handle to start the

engine. Release to stop the engine.

Starter handle - used for starting engine.

Mulcher door - allows conversion to

discharging or bagging operation.

Drive control lever- used to engage

power-propelled forward motion of lawn

mower.

Primer - pumps additional fuel from the

carburetor to the cylinder for use when

6 starting a cold engine.

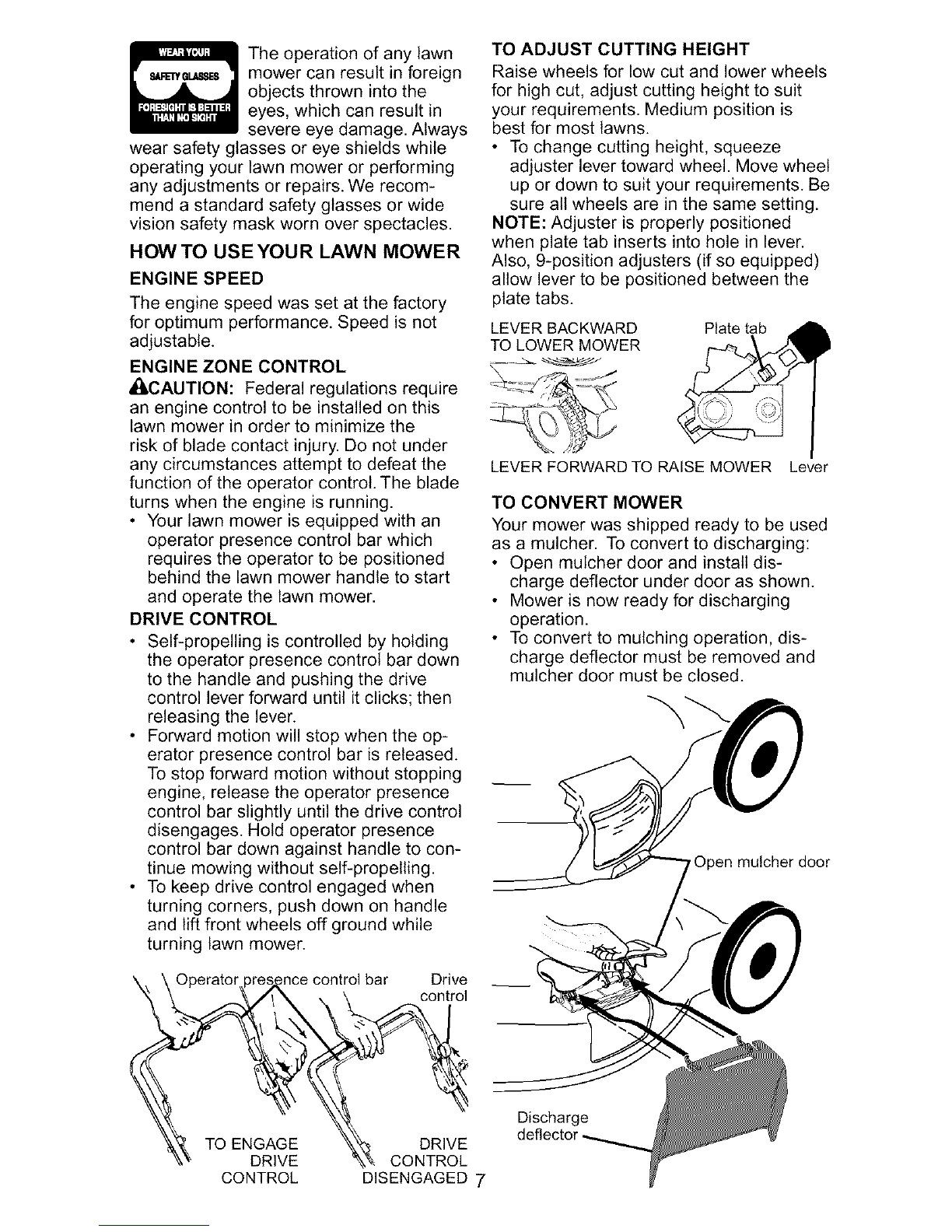

The operation of any lawn

mower can result in foreign

objects thrown into the

eyes, which can result in

severe eye damage. Always

wear safety glasses or eye shields while

operating your lawn mower or performing

any adjustments or repairs. We recom-

mend a standard safety glasses or wide

vision safety mask worn over spectacles.

HOWTO USEYOUR LAWN MOWER

ENGINE SPEED

The engine speed was set at the factory

for optimum performance. Speed is not

adjustable.

ENGINE ZONE CONTROL

AI::_CAUTION: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the

risk of blade contact injury. Do not under

any circumstances attempt to defeat the

function of the operator control. The blade

turns when the engine is running.

•Your lawn mower is equipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start

and operate the lawn mower.

DRIVE CONTROL

• Self-propelling is controlled by holding

the operator presence control bar down

to the handle and pushing the drive

control lever forward until it clicks; then

releasing the lever.

• Forward motion will stop when the op-

erator presence control bar is released.

To stop forward motion without stopping

engine, release the operator presence

control bar slightly until the drive control

disengages. Hold operator presence

control bar down against handle to con-

tinue mowing without self-propelling.

• To keep drive control engaged when

turning corners, push down on handle

and lift front wheels off ground while

turning lawn mower.

TO ADJUST CUTTING HEIGHT

Raise wheels for low cut and lower wheels

for high cut, adjust cutting height to suit

your requirements. Medium position is

best for most lawns.

• To change cutting height, squeeze

adjuster lever toward wheel. Move wheel

up or down to suit your requirements. Be

sure all wheels are in the same setting.

NOTE: Adjuster is properly positioned

when plate tab inserts into hole in lever.

Also, 9-position adjusters (if so equipped)

allow lever to be positioned between the

plate tabs.

LEVER BACKWARD

TO LOWER MOWER Plate tab

LEVER FORWARD TO RAISE MOWER Lever

TO CONVERT MOWER

Your mower was shipped ready to be used

as a mulcher. To convert to discharging:

• Open mulcher door and install dis-

charge deflector under door as shown.

• Mower is now ready for discharging

operation.

• To convert to mulching operation, dis-

charge deflector must be removed and

mulcher door must be closed.

Open mulcher door

X_\ Operator pr_ ,race control bar Drive

CONTROL DISENGAGED7

Discharge

deflector

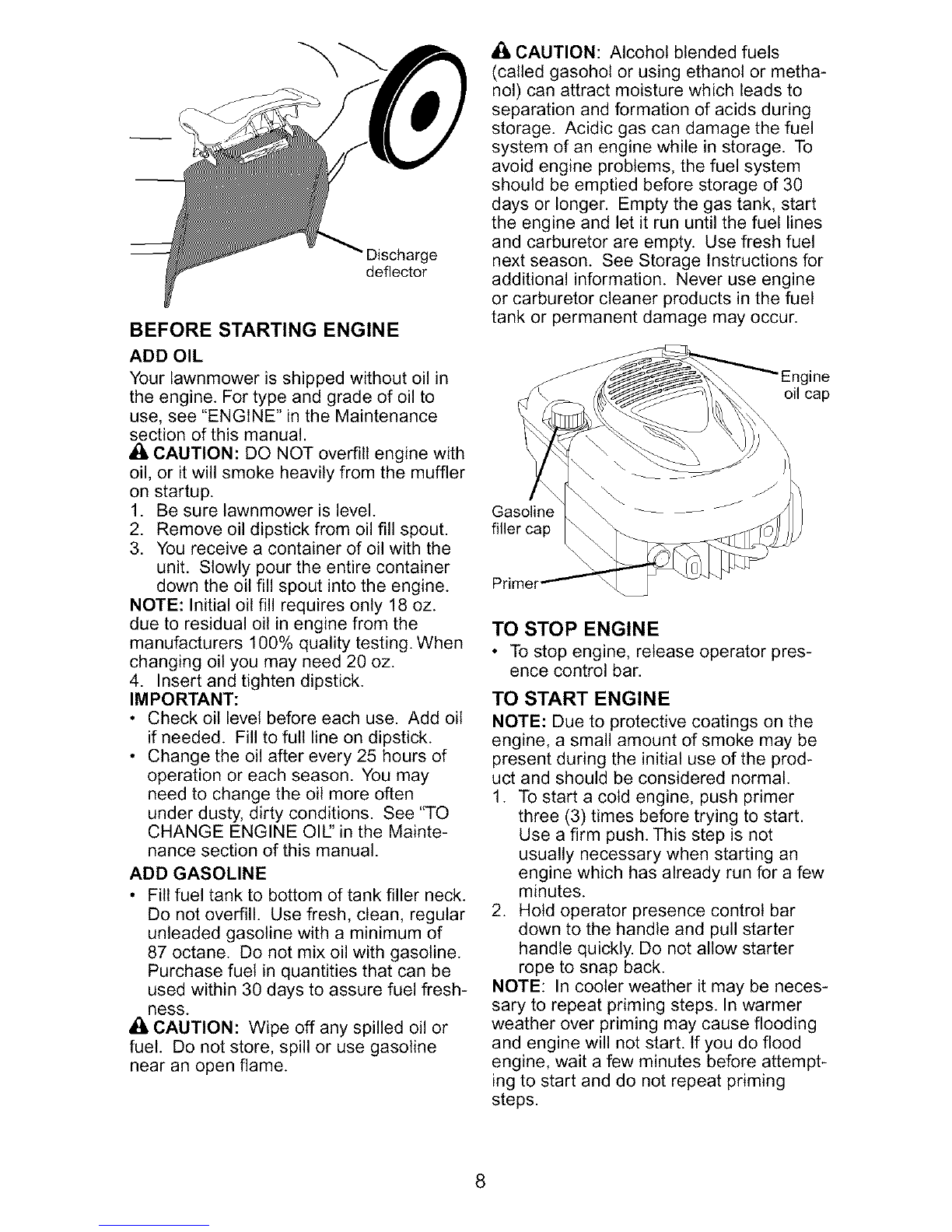

BEFORE STARTING ENGINE

ADD OIL

Your lawnmower is shipped without oil in

the engine. For type and grade of oil to

use, see "ENGINE" in the Maintenance

section of this manual.

CAUTION: DO NOT overfill engine with

oil, or it will smoke heavily from the muffler

on startup.

1. Be sure lawnmower is level.

2. Remove oil dipstick from oil fill spout.

3. You receive a container of oil with the

unit. Slowly pour the entire container

down the oil fill spout into the engine.

NOTE: Initial oil fill requires only 18 oz.

due to residual oil in engine from the

manufacturers 100% quality testing. When

changing oil you may need 20 oz.

4. Insert and tighten dipstick.

IMPORTANT:

• Check oil lever before each use. Add oil

if needed. Fill to full line on dipstick.

• Change the oil after every 25 hours of

operation or each season. You may

need to change the oil more often

under dusty, dirty conditions. See "TO

CHANGE ENGINE OIF' in the Mainte-

nance section of this manual.

ADD GASOLINE

• Fill fuel tank to bottom of tank filler neck.

Do not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. Do not mix oil with gasoline.

Purchase fuel in quantities that can be

used within 30 days to assure fuel fresh-

ness.

AClCAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

A CAUTION: Alcohol blended fuels

(called gasohot or using ethanol or metha-

nol) can attract moisture which leads to

separation and formation of acids during

storage. Acidic gas can damage the fuel

system of an engine while in storage. To

avoid engine problems, the fuel system

should be emptied before storage of 30

days or longer. Empty the gas tank, start

the engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

Engine

oil cap

Gasoline

filler cap

PrimeJ

TO STOP ENGINE

• To stop engine, release operator pres-

ence control bar.

TO START ENGINE

NOTE: Due to protective coatings on the

engine, a small amount of smoke may be

present during the initial use of the prod-

uct and should be considered normal.

1. To start a cold engine, push primer

three (3) times before trying to start.

Use a firm push. This step is not

usually necessary when starting an

engine which has already run for a few

minutes.

2. Hold operator presence control bar

down to the handle and pull starter

handle quickly. Do not allow starter

rope to snap back.

NOTE: In cooler weather it may be neces-

sary to repeat priming steps. In warmer

weather over priming may cause flooding

and engine will not start. If you do flood

engine, wait a few minutes before attempt-

ing to start and do not repeat priming

steps.

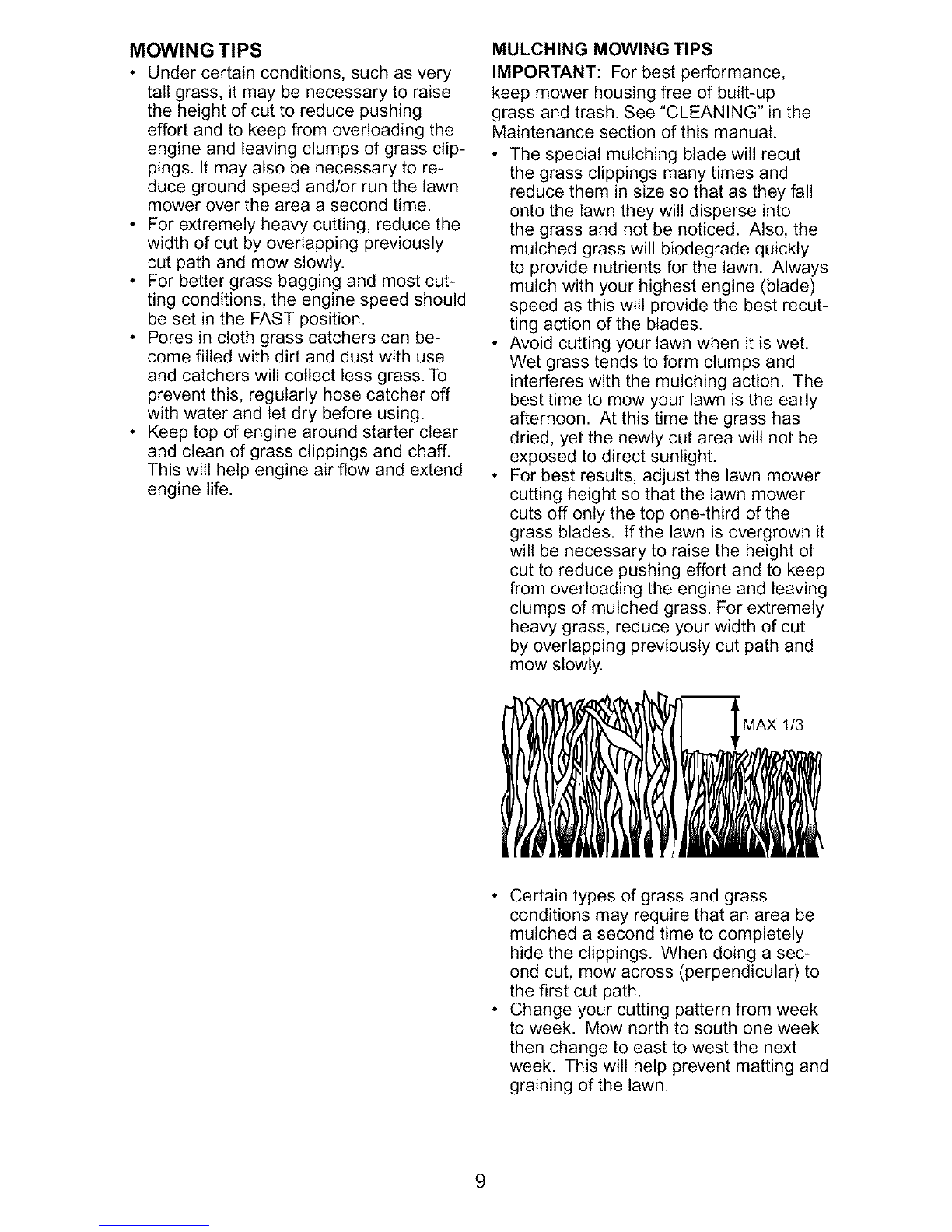

MOWING TIPS

• Under certain conditions, such as very

tall grass, it may be necessary to raise

the height of cut to reduce pushing

effort and to keep from overloading the

engine and leaving clumps of grass clip-

pings. It may also be necessary to re-

duce ground speed and/or run the lawn

mower over the area a second time.

• For extremely heavy cutting, reduce the

width of cut by overlapping previously

cut path and mow slowly.

• For better grass bagging and most cut-

ting conditions, the engine speed should

be set in the FAST position.

• Pores in cloth grass catchers can be-

come filled with dirt and dust with use

and catchers will collect less grass. To

prevent this, regularly hose catcher off

with water and let dry before using.

• Keep top of engine around starter clear

and clean of grass clippings and chaff.

This will help engine air flow and extend

engine life.

MULCHING MOWING TIPS

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. See "CLEANING" in the

Maintenance section of this manual.

• The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into

the grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn. Always

mulch with your highest engine (blade)

speed as this will provide the best recut-

ting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried, yet the newly cut area will not be

exposed to direct sunlight.

• For best results, adjust the lawn mower

cutting height so that the lawn mower

cuts off only the top one-third of the

grass blades. If the lawn is overgrown it

will be necessary to raise the height of

cut to reduce pushing effort and to keep

from overloading the engine and leaving

clumps of mulched grass. For extremely

heavy grass, reduce your width of cut

by overlapping previously cut path and

mow slowly.

• Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a sec-

ond cut, mow across (perpendicular) to

the first cut path.

• Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting and

graining of the lawn.

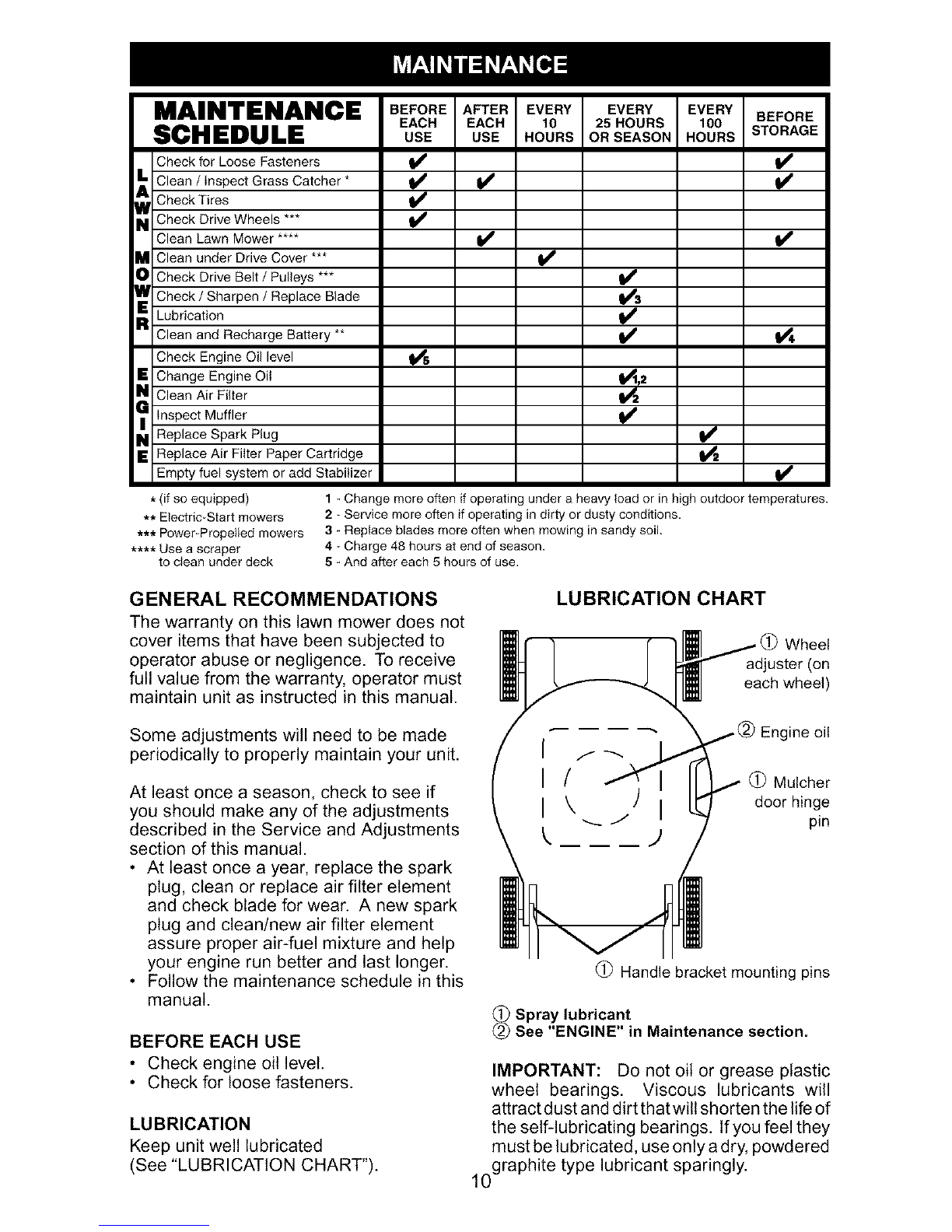

MAINTENANCE BEFORE AFTER EVERY EVERY EVERY BEFORE

EACH EACH 10 25 HOURS 100

SCHEDULE USE USE HOURS ORSEASON HOURS STORAGE

Check for Loose Fasteners

_ Clean /inspect Grass Catcher *

Check Tires

Check Drive Wheels ***

Clean Lawn Mower ....

lUl Clean under Drive Cover ***

OCheck Drive Belt /Pulleys ***

ENCheck /Sharpen /Replace Blade

iI_ Lubrication

Clean and Recharge Battery **

Check Engine Oil level

mChange Engine Oil

Clean Air Filter

Inspect Muffler

_1 Replace Spark Plug

mReplace Air Filter Paper Cartridge

Empty fuel system or add Stabilizer

*(if so equipped)

** Electric-Start mowers

*** Power-Propelled mowers

**** Use a scraper

to clean under deck

1 - Change more often if operating under a heavy load or in high outdoor temperatures.

2 _Service more often if operating in dirty or dusty conditions.

3 - Replace blades more often when mowing in sandy soil.

4 _Charge 48 hours at end of season.

5 - And after each 5 hours of use.

GENERAL RECOMMENDATIONS

The warranty on this lawn mower does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator must

maintain unit as instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your unit.

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Adjustments

section of this manual.

• At least once a year, replace the spark

plug, clean or replace air filter element

and check blade for wear. A new spark

plug and clean/new air filter element

assure proper air-fuel mixture and help

your engine run better and last longer.

• Follow the maintenance schedule in this

manual.

BEFORE EACH USE

• Check engine oil level.

• Check for loose fasteners.

LUBRICATION

Keep unit well lubricated

(See "LUBRICATION CHART").

LUBRICATION CHART

(_) Wheel

juster (on

ch wheel)

-- -- ine oil

[(_) Mulcher

\)door hinge

(_) Handle bracket mounting pins

_Spray lubricant

See ENGINE in Maintenance section.

IMPORTANT: Do not oil or grease plastic

wheel bearings. Viscous lubricants will

attract dust and dirt that will shorten the life of

the self-lubricating bearings. If you feel they

must be lubricated, use only a dry, powdered

0graphite type lubricant sparingly.

Table des matières

Langues :

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.370540 Manuel utilisateur

Craftsman

Craftsman 917.28863 Manuel utilisateur

Craftsman

Craftsman 247.377000 Manuel utilisateur

Craftsman

Craftsman 917.271733 Manuel utilisateur

Craftsman

Craftsman 13AC26JD293 Mode d’emploi

Craftsman

Craftsman 917.378030 Manuel utilisateur

Craftsman

Craftsman 37122 Manuel utilisateur

Craftsman

Craftsman 917.289271 Manuel utilisateur

Craftsman

Craftsman 25726 Manuel utilisateur

Craftsman

Craftsman 917.384531 Manuel utilisateur

Craftsman

Craftsman 917.388510 Manuel utilisateur

Craftsman

Craftsman C459-36100 Manuel utilisateur

Craftsman

Craftsman 944.360490 Manuel utilisateur

Craftsman

Craftsman 917.25759 Manuel utilisateur

Craftsman

Craftsman 917.385120 Manuel utilisateur

Craftsman

Craftsman 28974 - Professional PGT 9000 28 HP/54" Garden... Manuel utilisateur

Craftsman

Craftsman 917.378412 Manuel utilisateur

Craftsman

Craftsman 917.370940 Manuel utilisateur

Craftsman

Craftsman 27720 Manuel utilisateur

Craftsman

Craftsman 917.387412 Manuel utilisateur

Craftsman

Craftsman 917.376671 Manuel utilisateur

Craftsman

Craftsman 247.288861 Manuel utilisateur

Craftsman

Craftsman 27722 Manuel utilisateur

Craftsman

Craftsman 917.273505 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
