Craftsman 917.378890 Manuel utilisateur

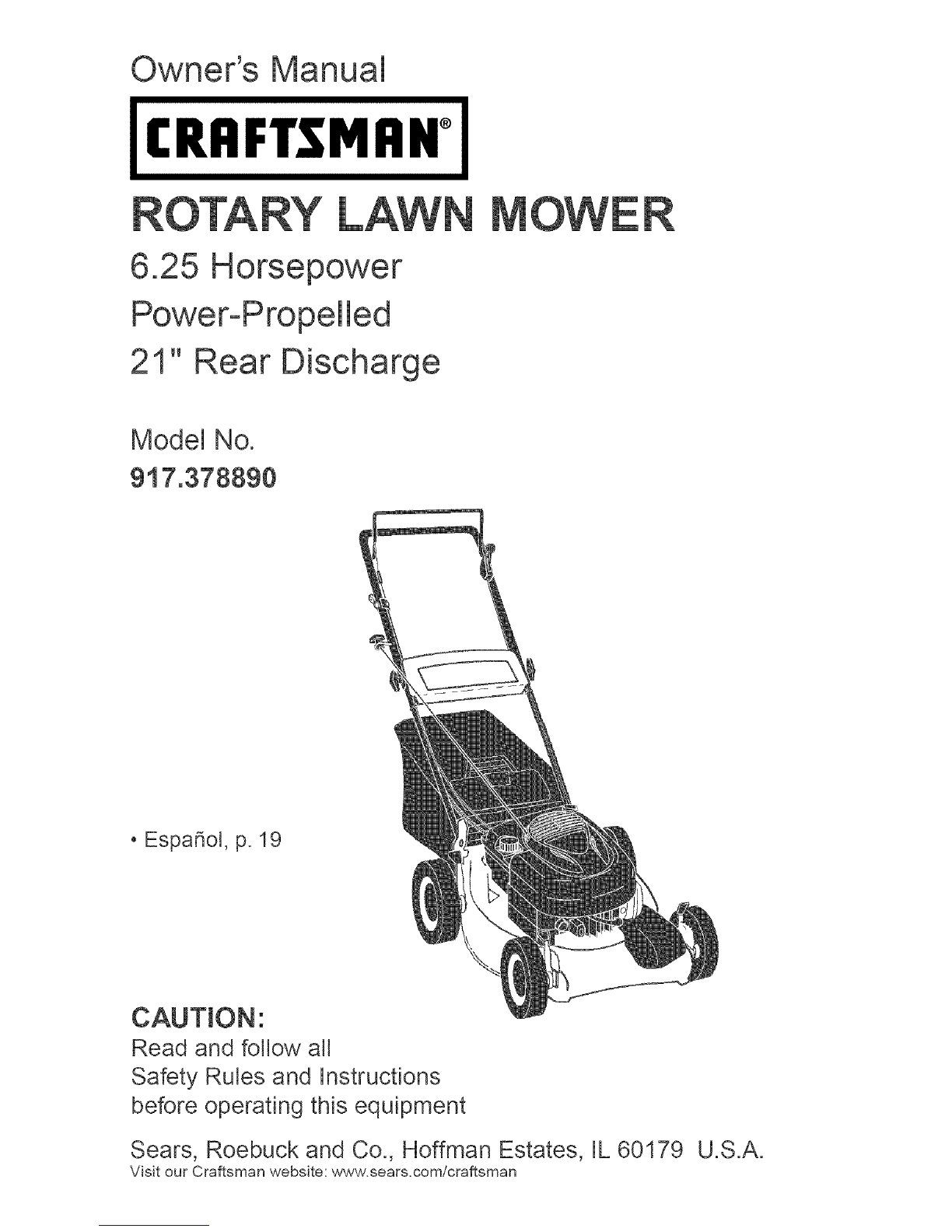

Owner's Manual

CRAFTSMAN°

6.25 Horsepower

Power-Propelled

21" Rear Discharge

Model No.

917.378890

oEspa_hol, p. 19

CAUTION'.

Read and follow all

Safety Rules and Instructions

before operating this equipment

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Visit our Craftsman website: www.sears.com/craftsman U.S.A.

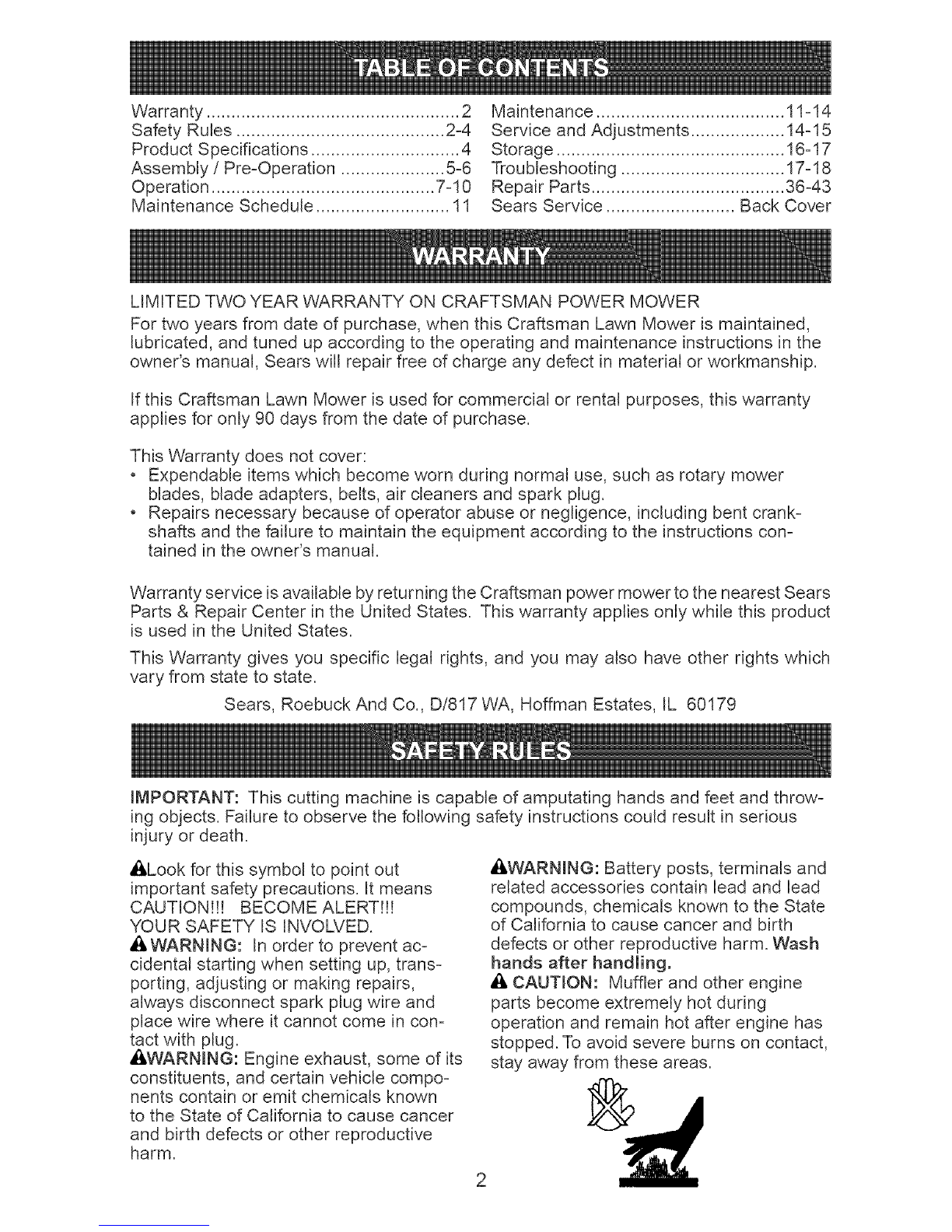

Warranty ................................................... 2

Safety Rules .......................................... 2-4

Product Specifications .............................. 4

Assembly /Pre-Operation ..................... 5-6

Operation ............................................. 7-10

Maintenance Schedule ........................... 11

Maintenance ...................................... 11-14

Service and Adjustments ................... 14-15

Storage .............................................. 16-t7

Troubleshooting ................................. 17-t8

Repair Parts ....................................... 36-43

Sears Service .......................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in the

owner's manual, Sears will repair free of charge any defect in material or workmanship.

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

This Warranty does not cover:

.Expendable items which become worn during normal use, such as rotary mower

blades, blade adapters, belts, air cleaners and spark plug.

.Repairs necessary because of operator abuse or negligence, including bent crank-

shafts and the failure to maintain the equipment according to the instructions con-

tained in the owner's manual.

Warranty service is available by returning the Craftsman power mower to the nearest Sears

Parts & Repair Center in the United States. This warranty applies only while this product

is used in the United States.

This Warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

Sears, Roebuck And Co., D/8t7 WA, Hoffman Estates, IL 60179

IMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects, Failure to observe the following safety instructions could result in serious

injury or death,

_Look for this symbol to point out

important safety precautions. It means

CAUTION!!! BECOME ALERT!!!

YOUR SAFETY IS INVOLVED.

AWARNmNG: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot come in con-

tact with plug.

AWARNING: Engine exhaust, some of its

constituents, and certain vehicle compo-

nents contain or emit chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm.

AWARNiNG: Battery posts, terminals and

related accessories contain lead and lead

compounds, chemicals known to the State

of California to cause cancer and birth

defects or other reproductive harm. Wash

hands after handling.

_i, CAUTION: Muffler and other engine

parts become extremely hot during

operation and remain hot after engine has

stopped. To avoid severe burns on contact,

stay away from these areas.

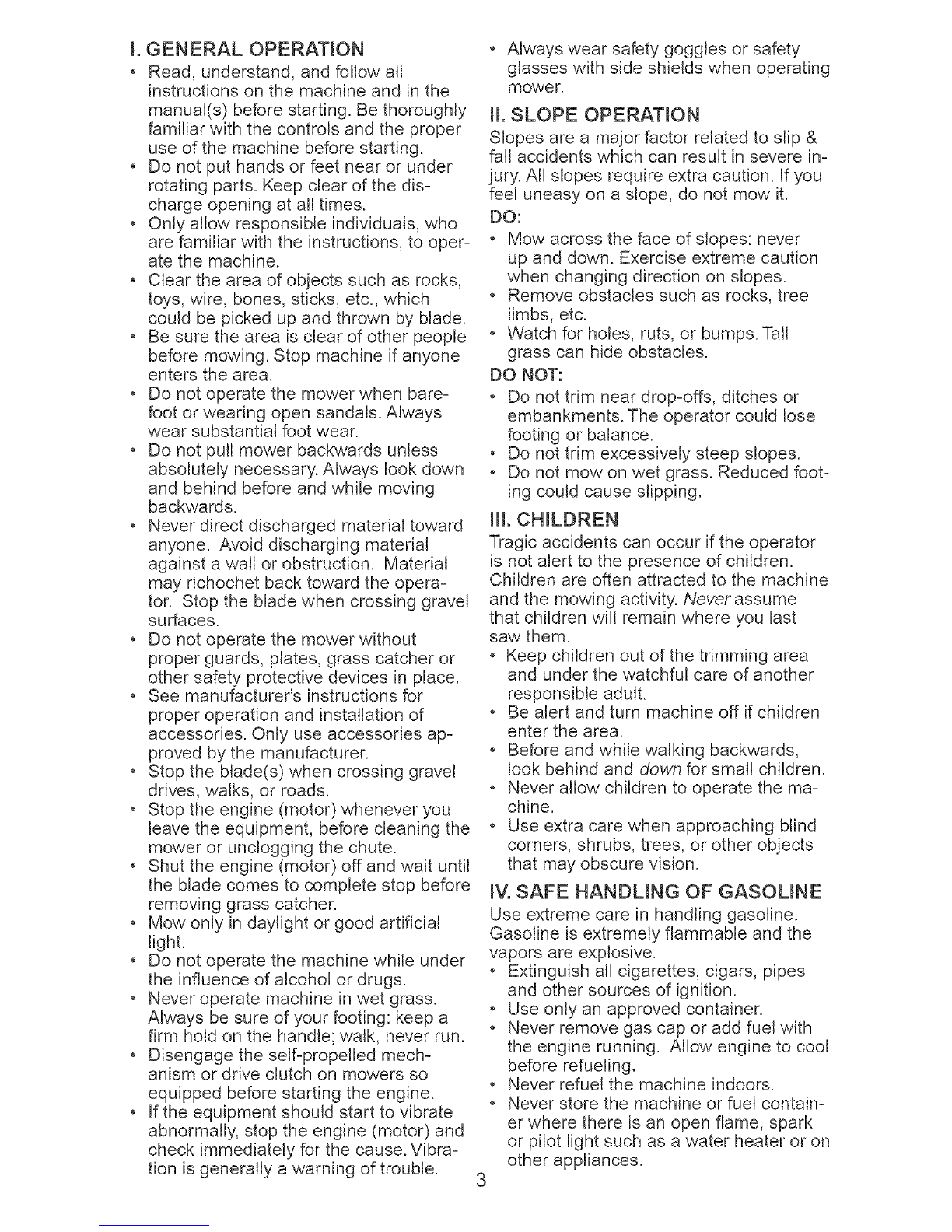

L GENERAL OPERATmON

o Read,understand,andfollowall

instructionson themachineand inthe

manual(s)beforestarting.Bethoroughly

familiarwith thecontrolsandthe proper

useof the machinebeforestarting.

o Do notputhandsorfeetnearor under

rotatingparts.Keepclearof thedis-

chargeopeningat alltimes.

o Onlyallowresponsibleindividuals,who

arefamiliarwiththe instructions,to oper-

atethemachine.

o Clearthe areaof objectssuch as rocks,

toys,wire, bones,sticks,etc.,which

couldbe pickedup andthrownbyblade.

o Besurethearea isclearofother people

beforemowing.Stopmachineif anyone

entersthearea.

o Do notoperatethe mowerwhenbare-

footorwearingopensandals.Always

wearsubstantialfootwear.

o Do notpullmowerbackwardsunless

absolutelynecessary.Alwayslookdown

and behindbeforeandwhile moving

backwards.

o Neverdirectdischargedmaterialtoward

anyone.Avoiddischargingmaterial

againstawallorobstruction. Material

mayrichochetbacktowardtheopera-

tor. Stopthebladewhen crossinggravel

surfaces.

o Do notoperatethe mowerwithout

properguards,plates,grasscatcheror

othersafetyprotectivedevicesin place.

o See manufacturer'sinstructionsfor

properoperationandinstallationof

accessories.Onlyuseaccessoriesap-

provedbythe manufacturer.

o Stopthe blade(s)whencrossinggravel

drives,walks,or roads.

o Stopthe engine(motor)wheneveryou

leavetheequipment,beforecleaningthe

moweror uncloggingthe chute.

o Shutthe engine(motor)off andwait until

thebladecomestocompletestopbefore

removinggrasscatcher.

o Mowonly indaylightorgoodartificial

light.

o Do notoperatethe machinewhile under

theinfluenceof alcoholordrugs.

o Neveroperatemachinein wetgrass.

Alwaysbe sureof yourfooting:keepa

firm holdon thehandle;walk,neverrun.

o Disengagethe self-propelledmech-

anismordriveclutchon mowersso

equippedbeforestartingtheengine.

o Ifthe equipmentshouldstartto vibrate

abnormally,stoptheengine(motor)and

checkimmediatelyforthecause.Vibra-

tion isgenerallyawarningof trouble.

o Alwayswearsafetygogglesor safety

glasseswith sideshieldswhenoperating

mower.

H.SLOPE OPERATmON

Slopesare a majorfactorrelatedto slip &

fall accidentswhichcan resultin severein-

jury.All slopesrequireextracaution.Ifyou

feel uneasyon a slope,do not mow it.

DO:

o Mowacrossthefaceof slopes:never

up anddown.Exerciseextremecaution

whenchangingdirectionon slopes.

o Removeobstaclessuchas rocks,tree

limbs,etc.

o Watchfor holes,ruts,or bumps.Tall

grass canhideobstacles.

DO NOT:

o Do not trim near drop-offs, ditches or

embankments. The operator could lose

footing or balance.

o Do not trim excessively steep slopes.

o Do not mow on wet grass. Reduced foot-

ing could cause slipping.

HI. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the machine

and the mowing activity. Never assume

that children will remain where you last

saw them.

o Keep children out of the trimming area

and under the watchful care of another

responsible adult.

o Be alert and turn machine off if children

enter the area.

o Before and while walking backwards,

look behind and down for small children.

o Never allow children to operate the ma-

chine.

o Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

inV.SAFE HANDLING OF GASOLINE

Use extreme care in handling gasoline.

Gasoline is extremely flammable and the

vapors are explosive.

o Extinguish all cigarettes, cigars, pipes

and other sources of ignition.

o Use only an approved container.

o Never remove gas cap or add fuel with

the engine running. Allow engine to cool

before refueling.

o Never refuel the machine indoors.

o Never store the machine or fuel contain-

er where there is an open flame, spark

or pilot light such as a water heater or on

other appliances.

oNever fill containers inside a vehicle, on

a truck or trailer bed with a plastic liner.

Always place containers on the ground

away from your vehicle before filling.

o Remove gasmpowered equipment from

the truck or trailer and refuel it on the

ground, If this is not possible, then

refuel such equipment with a portable

container, rather than from a gasoline

dispenser nozzle.

o Keep the nozzle in contact with the rim

of the fuel tank or container opening at

all times until fueling is complete, Do

not use a nozzle IocMopen device,

o If fuel is spilled on clothing, change

clothing immediately.

o Never overfill fuel tank. Replace gas

cap and tighten securely,

V. GENERAL SERVICE

oNever run a machine inside a closed

area,

oNever make adjustments or repairs with

the engine (motor) running. Disconnect

the spark plug wire, and keep the wire

away from the plug to prevent accidental

starting,

oKeep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

merit in good condition,

o Never tamper with safety devices, Check

their proper operation regularly.

o Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing,

oStop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

o Never attempt to make wheel height

adjustments while the engine is running,

o Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

o Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them,

o Do not change the engine governor set-

ting or overspeed the engine,

o Maintain or replace safety and instruc-

tion labels, as necessary,

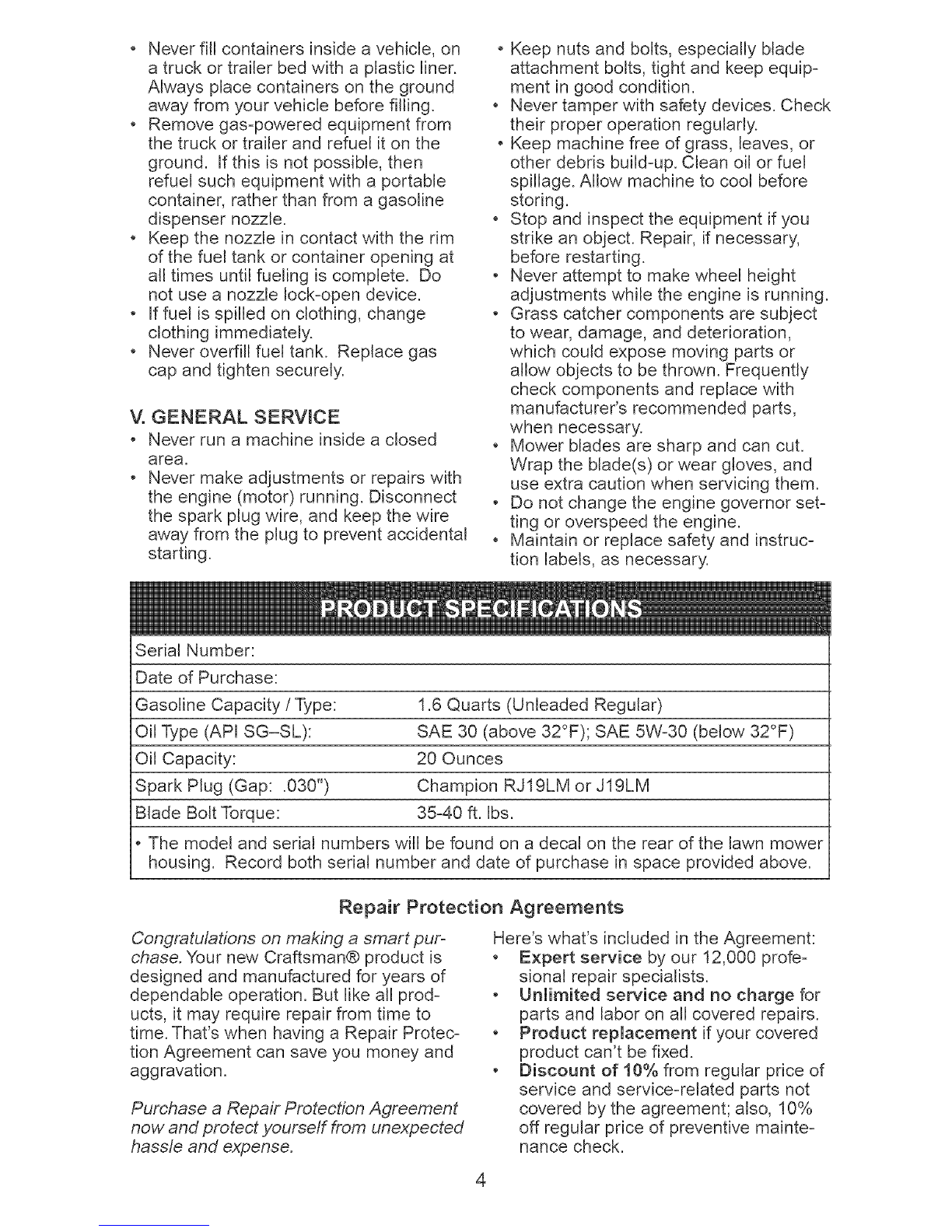

Serial Number:

Date of Purchase:

Gasoline Capacity /Type: 1,6 Quarts (Unleaded Regular)

Oil ]_ype (API SG-SL): SAE 30 (above 32°F); SAE 5Win30 (below 32°F)

Oil Capacity: 20 Ounces

Spark Plug (Gap: ,030") Champion RJ19LM or J19LM

Blade Bolt Torque: 35_40 ft, Ibs,

o The model and serial numbers will be found on a decal on the rear of the lawn mower

housing, Record both serial number and date of purchase in space provided above,

Repair Protection Agreements

Congratulations on making a smart pur-

chase. Your new Craftsman® product is

designed and manufactured for years of

dependable operation, But like all prod-

ucts, it may require repair from time to

time. That's when having a Repair Protec-

tion Agreement can save you money and

aggravation.

Purchase a Repair Protection Agreement

now and protect yourseff from unexpected

hassle and expense.

Here's what's included in the Agreement:

o Expert service by our 12,000 profe-

sional repair specialists.

oUnlimited service and no charge for

parts and labor on all covered repairs.

oProduct replacement if your covered

product can't be fixed.

oDiscount of 10% from regular price of

service and servicemrelated parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check,

oFast help by phone = phone support

from a Sears technician on products

requiring in=home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap=

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1o800-827-6655.

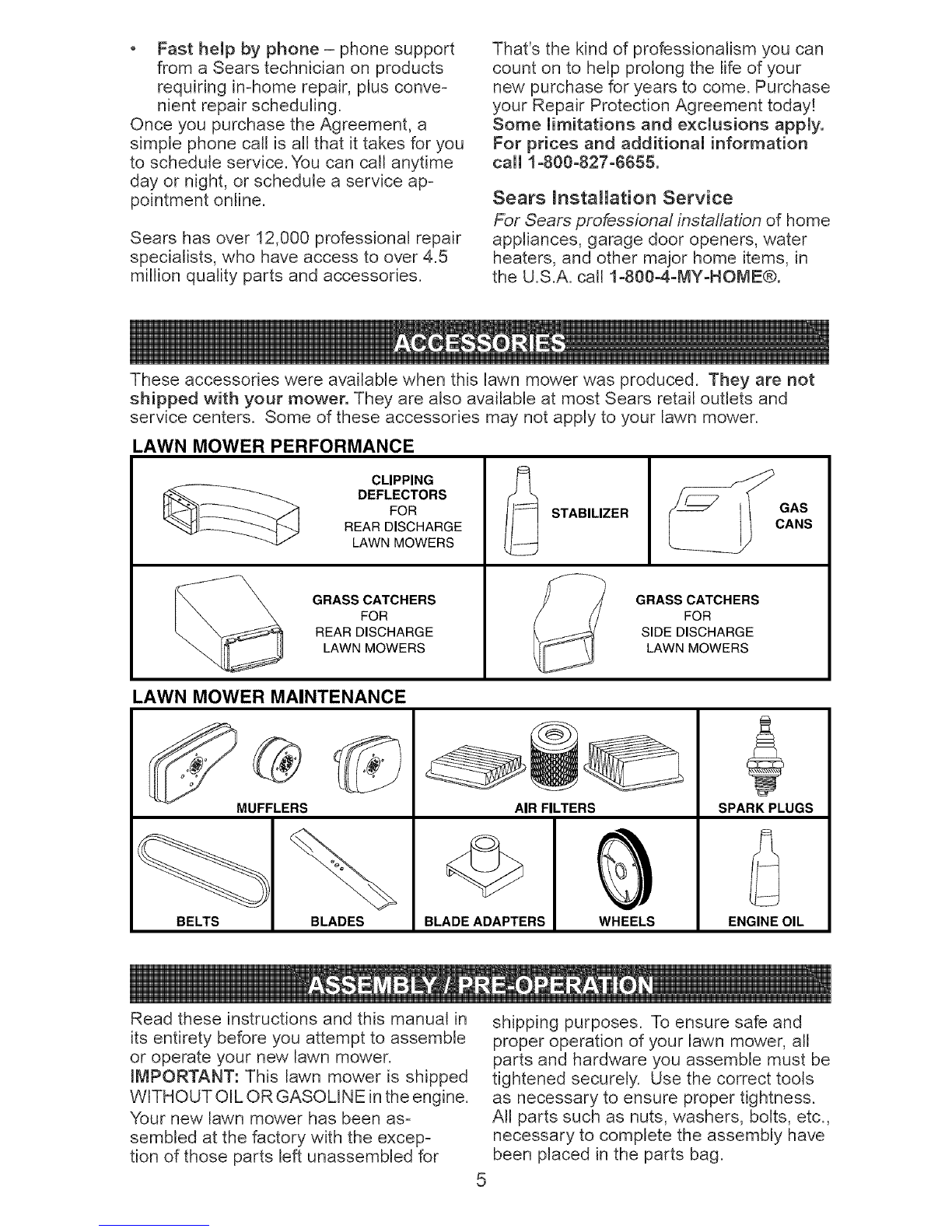

Sears Installation Service

For Sears professiona/ instaflation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call l o800-4-MY-HOME®.

These accessories were available when this lawn mower was produced. They are not

shipped with your mower. They are also available at most Sears retail outlets and

service centers. Some of these accessories may not apply to your lawn mower.

LAWN MOWER PERFORMANCE

CLIPPING

DEFLECTORS

FOR

REAR DISCHARGE

LAWN MOWERS

GRASS CATCHERS

FOR

REAR DISCHARGE

LAWN MOWERS

STABILIZER GAS

CANS

GRASS CATCHERS

FOR

SIDE DISCHARGE

LAWN MOWERS

LAWN MOWER MAINTENANCE

MUFFLERS

BELTS BLADES BLADE ADAPTERS

AIR FILTERS

WHEELS

SPARK PLUGS

ENGINE OIL

Read these instructions and this manual in

its entirety before you attempt to assemble

or operate your new lawn mower.

iMPORTANT: This lawn mower is shipped

WFHOUT OIL OR GASOLINE in the engine,

Your new lawn mower has been as=

sembled at the factory with the excep=

tion of those parts left unassembled for

shipping purposes. To ensure safe and

proper operation of your lawn mower, all

parts and hardware you assemble must be

tightened securely. Use the correct tools

as necessary to ensure proper tightness.

All parts such as nuts, washers, bolts, etc.,

necessary to complete the assembly have

been placed in the parts bag.

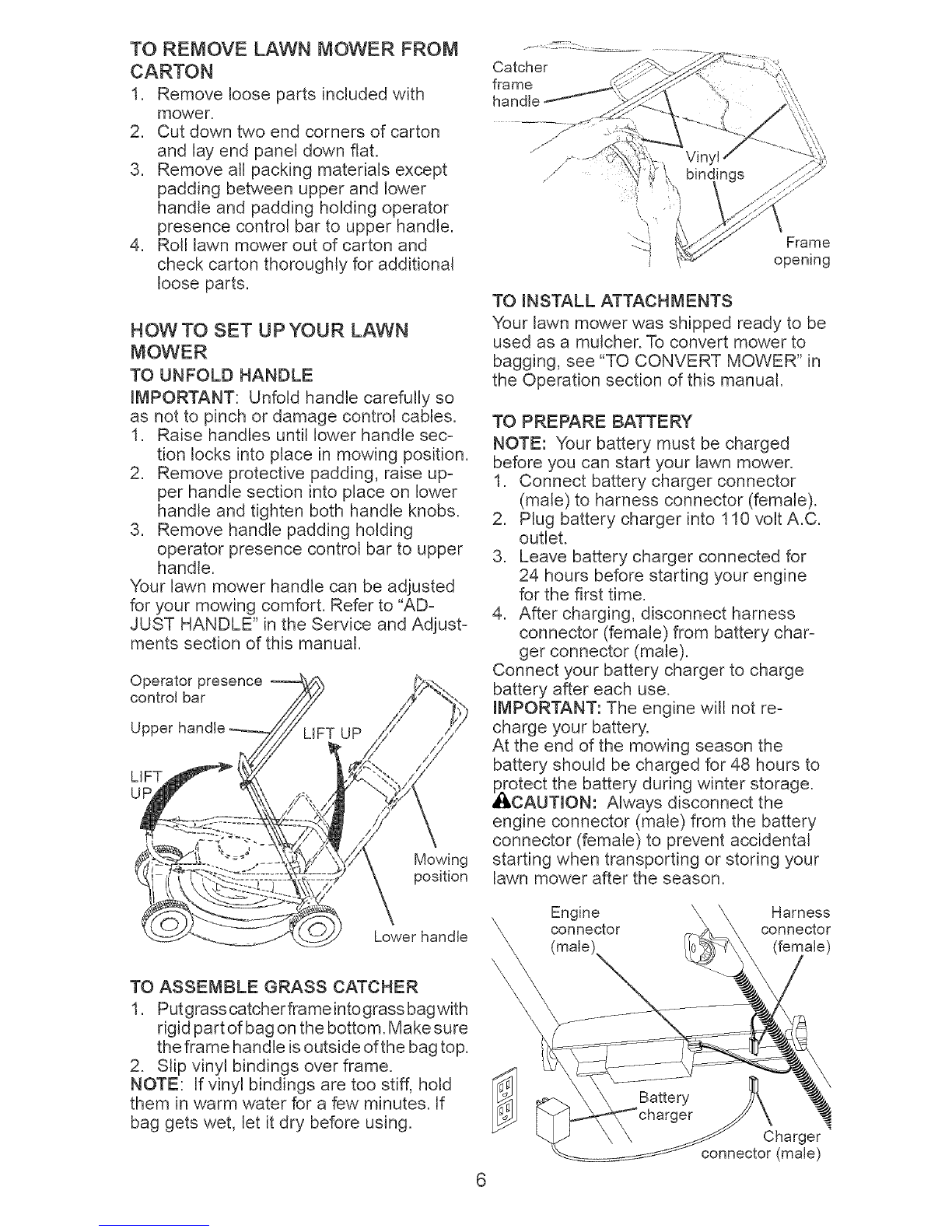

TO REMOVE LAWN MOWER FROM

CARTON

1. Removeloosepartsincludedwith

mower.

2. Cutdowntwoendcornersof carton

andlayend paneldownflat.

3. Removeall packingmaterialsexcept

paddingbetweenupperandlower

handleandpaddingholdingoperator

presencecontrolbar to upperhandle.

4. Rolllawnmoweroutof cartonand

checkcarton thoroughlyforadditional

looseparts.

HOWTO SET UPYOUR LAWN

MOWER

TO UNFOLDHANDLE

iMPORTANT: Unfold handle carefully so

as not to pinch or damage control cables.

1. Raise handles until lower handle sec=

tion locks into place in mowing position.

2. Remove protective padding, raise up=

per handle section into place on lower

handle and tighten both handle knobs.

3. Remove handle padding holding

operator presence control bar to upper

handle.

Your lawn mower handle can be adjusted

for your mowing comfort. Refer to "AD-

JUST HANDLE" in the Service and Adjust-

ments section of this manual.

Operator presence

control bar

LiFT

Mowing

position

Lower handle

TO ASSEMBLE GRASS CATCHER

1. Putgrasscatcherframeintograssbagwith

rigid part of bag on the bottom. Make sure

the frame handle is outside of the bag top.

2. Slip vinyl bindings over frame.

NOTE: If vinyl bindings are too stiff, hold

them in warm water for a few minutes. If

bag gets wet, let it dry before using.

Catcher

frame

handle

Frame

opening

TO iNSTALL ATTACHMENTS

Your lawn mower was shipped ready to be

used as a mutcher. To convert mower to

bagging, see "TO CONVERT MOWER" in

the Operation section of this manual.

TO PREPARE BATTERY

NOTE: Your battery must be charged

before you can start your lawn mower.

1, Connect battery charger connector

(male) to harness connector (female).

2, Plug battery charger into 110 volt A,C,

outlet.

3, Leave battery charger connected for

24 hours before starting your engine

for the first time,

4, After charging, disconnect harness

connector (female) from battery char-

ger connector (male),

Connect your battery charger to charge

battery after each use.

iMPORTANT: The engine will not re=

charge your battery,

At the end of the mowing season the

battery should be charged for 48 hours to

,_otect the battery during winter storage,

CAUTION: Always disconnect the

engine connector (male) from the battery

connector (female) to prevent accidental

starting when transporting or storing your

lawn mower after the season,

Engine \ Harness

connector connector

(male) ale)

Charger

connector (male)

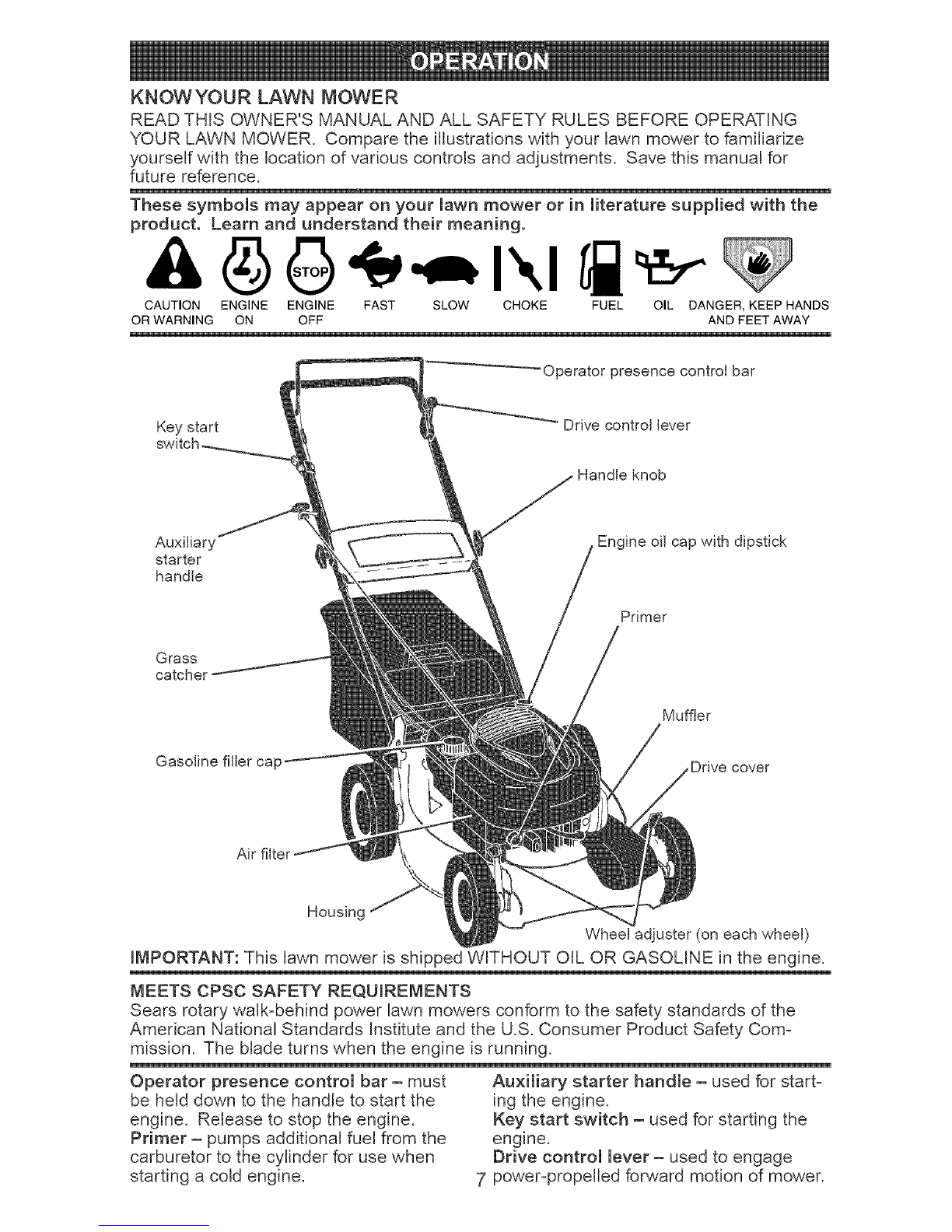

KNOWYOUR LAWN MOWER

READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING

YOUR LAWN MOWER. Compare the illustrations with your lawn mower to familiarize

yourself with the location of various controls and adjustments, Save this manual for

future reference. m

These symbols may appear on your lawn mower or in literature supplied with the

product. Learn and understand their meaning.

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS

OR WARNING ON OFF AND FEET AWAY

Operator presence control bar

Key start Drive control lever

Handle knob

Auxiliary

starter

handle

,Engine oil cap with dipstick

Primer

Grass

catcher

Gasoline filJer cap

Air filte_

Muffler

Housing Wheel adjuster (on each wheel)

IMPORTANT: This lawn mower is shipped WITHOUT OIL OR GASOLINE in the engine,

MEETS CPSC SAFETY REQUmREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the

American National Standards Institute and the U.S. Consumer Product Safety Com-

mission. The blade turns when the engine is running.

Operator presence control bar- must

be held down to the handle to start the

engine. Release to stop the engine.

Primer- pumps additional fuel from the

carburetor to the cylinder for use when

starting a cold engine,

Auxiliary starter handle - used for start-

ing the engine.

Key start switch -used for starting the

engine.

Drive control lever- used to engage

7power-propelled forward motion of mower,

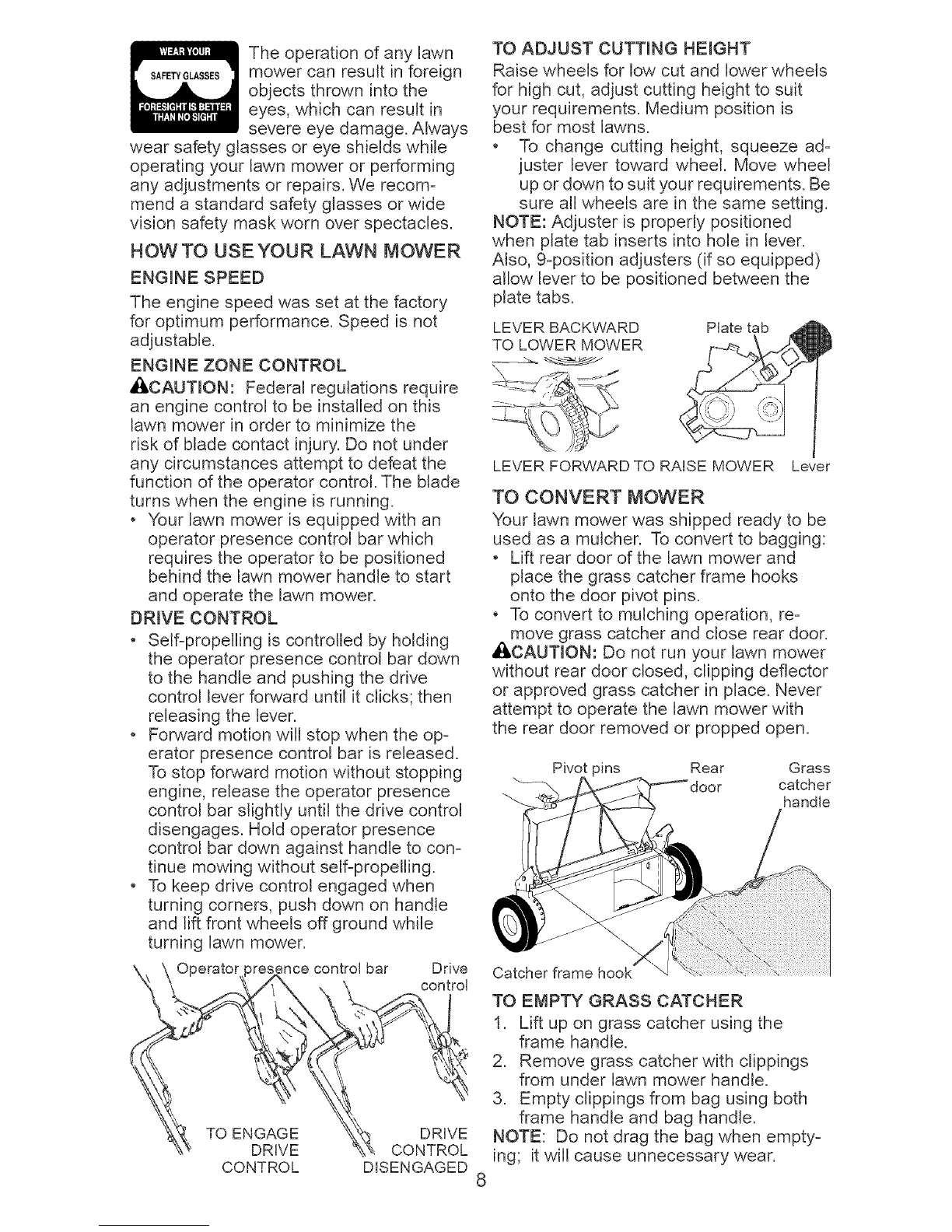

Theoperationof any lawn

SA_ETYGLASSESmowercan resultin foreign

objects thrown into the

eyes, which can result in

severe eye damage. Always

wear safety glasses or eye shields while

operating your lawn mower or performing

any adjustments or repairs. We recom=

mend a standard safety glasses or wide

vision safety mask worn over spectacles.

HOWTO USEYOUR LAWN MOWER

ENGiNESPEED

The engine speed was set at the factory

for optimum performance. Speed is not

adjustable.

ENGINE ZONE CONTROL

,I_CAUTiON: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the

risk of blade contact injury. Do not under

any circumstances attempt to defeat the

function of the operator control. The blade

turns when the engine is running.

o Your lawn mower is equipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start

and operate the lawn mower.

DRIVE CONTROL

o Self=propelling is controlled by holding

the operator presence control bar down

to the handle and pushing the drive

control lever forward until it clicks; then

releasing the lever.

o Forward motion will stop when the op=

erator presence control bar is released.

To stop forward motion without stopping

engine, release the operator presence

control bar slightly until the drive control

disengages. Hold operator presence

control bar down against handle to con=

tinue mowing without self=propelling.

o To keep drive control engaged when

turning corners, push down on handle

and lift front wheels off ground while

turning lawn mower.

Operator

TO ENGAGE

DRIVE

CONTROL

)resence control bar Drive

\ °ntr°'

DISENGAGED

TO ADJUST CUTTING HEIGHT

Raise wheels for low cut and lower wheels

for high cut, adjust cutting height to suit

your requirements. Medium position is

best for most lawns.

o To change cutting height, squeeze ad=

juster lever toward wheel. Move wheel

up or down to suit your requirements. Be

sure all wheels are in the same setting.

NOTE: Adjuster is properly positioned

when plate tab inserts into hole in lever.

Also, 9=position adjusters (if so equipped)

allow lever to be positioned between the

plate tabs.

LEVER BACKWARD

TO LOWER MOWER

Plate tab

LEVER FORVVARD TO RAISE MOWER Lever

TO CONVERT MOWER

Your lawn mower was shipped ready to be

used as a mutcher. To convert to bagging:

o Lift rear door of the lawn mower and

place the grass catcher frame hooks

onto the door pivot pins.

• To convert to mulching operation, re=

AI move grass catcher and close rear door.

CAUTION: Do not run your lawn mower

without rear door closed, clipping deflector

or approved grass catcher in place. Never

attempt to operate the lawn mower with

the rear door removed or propped open.

Pivot pins Rear Grass

catcher

handle

Catcher frame hook

TO EMPTY GRASS CATCHER

1. Lift up on grass catcher using the

frame handle.

2. Remove grass catcher with clippings

from under lawn mower handle.

3. Empty clippings from bag using both

frame handle and bag handle.

NOTE: Do not drag the bag when empty=

ing; it will cause unnecessary wear.

Grsss

catcher

frame

handle

Bag

handle

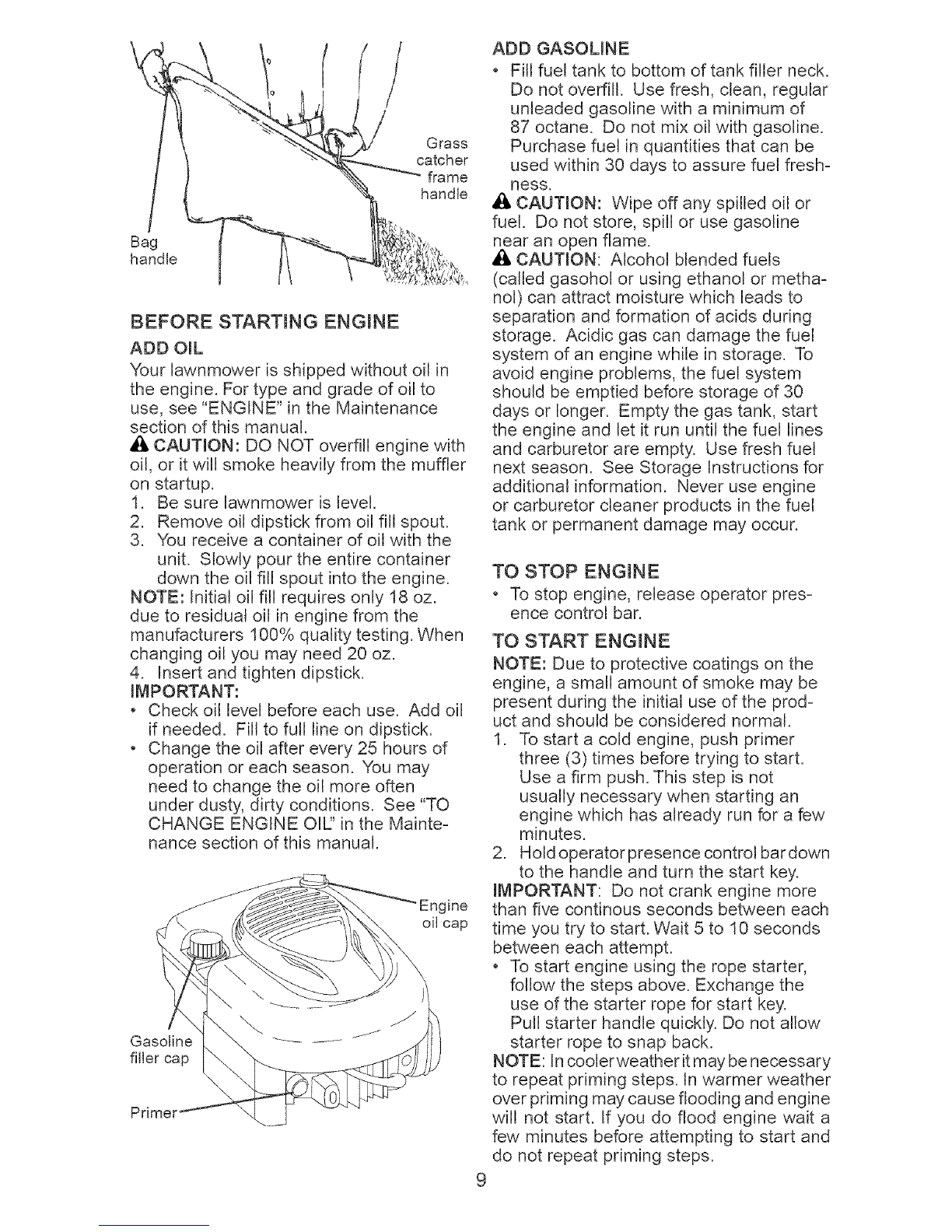

BEFORE STARTmNG ENGmNE

ADD OIL

Your lawnmower is shipped without oil in

the engine. For type and grade of oil to

use, see "ENGINE" in the Maintenance

section of this manual.

CAUTION: DO NOT overfill engine with

oil, or it will smoke heavily from the muffler

on startup.

1. Be sure lawnmower is level.

2. Remove oil dipstick from oil fill spout.

3. You receive a container of oil with the

unit. Slowly pour the entire container

down the oil fill spout into the engine.

NOTE: Initial oil fill requires only t8 oz.

due to residual oil in engine from the

manufacturers t00% quality testing. When

changing oil you may need 20 oz.

4. Insert and tighten dipstick.

IMPORTANT:

o Check oil level before each use. Add oil

if needed. Fill to full line on dipstick.

o Change the oil after every 25 hours of

operation or each season. You may

need to change the oil more often

under dusty, dirty conditions. See "TO

CHANGE ENGINE OIL:' in the Mainte-

nance section of this manual.

Engine

oil cap

Gasoline

filler cap

ADD GASOLINE

o Fill fuel tank to bottom of tank filler neck.

Do not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. Do not mix oil with gasoline.

Purchase fuel in quantities that can be

used within 30 days to assure fuel fresh-

ness.

• i, CAUTmON: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

• i, CAUTION: Alcohol blended fuels

(called gasohol or using ethanol or metha-

nol) can attract moisture which leads to

separation and formation of acids during

storage. Acidic gas can damage the fuel

system of an engine while in storage. To

avoid engine problems, the fuel system

should be emptied before storage of 30

days or longer. Empty the gas tank, start

the engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

TO STOP ENGmNE

o To stop engine, release operator pres-

ence control bar,

TO START ENGINE

NOTE: Due to protective coatings on the

engine, a small amount of smoke may be

present during the initial use of the prod-

uct and should be considered normal.

1. To start a cold engine, push primer

three (3) times before trying to start.

Use a firm push. This step is not

usually necessary when starting an

engine which has already run for a few

minutes.

2. Hold operator presence control bardown

to the handle and turn the start key.

IMPORTANT: Do not crank engine more

than five continous seconds between each

time you try to start. Wait 5 to 10 seconds

between each attempt.

o To start engine using the rope starter,

follow the steps above. Exchange the

use of the starter rope for start key.

Pull starter handle quickly. Do not allow

starter rope to snap back.

NOTE: In coolerweather it may be necessary

to repeat priming steps. In warmer weather

over priming may cause flooding and engine

will not start. If you do flood engine wait a

few minutes before attempting to start and

do not repeat priming steps.

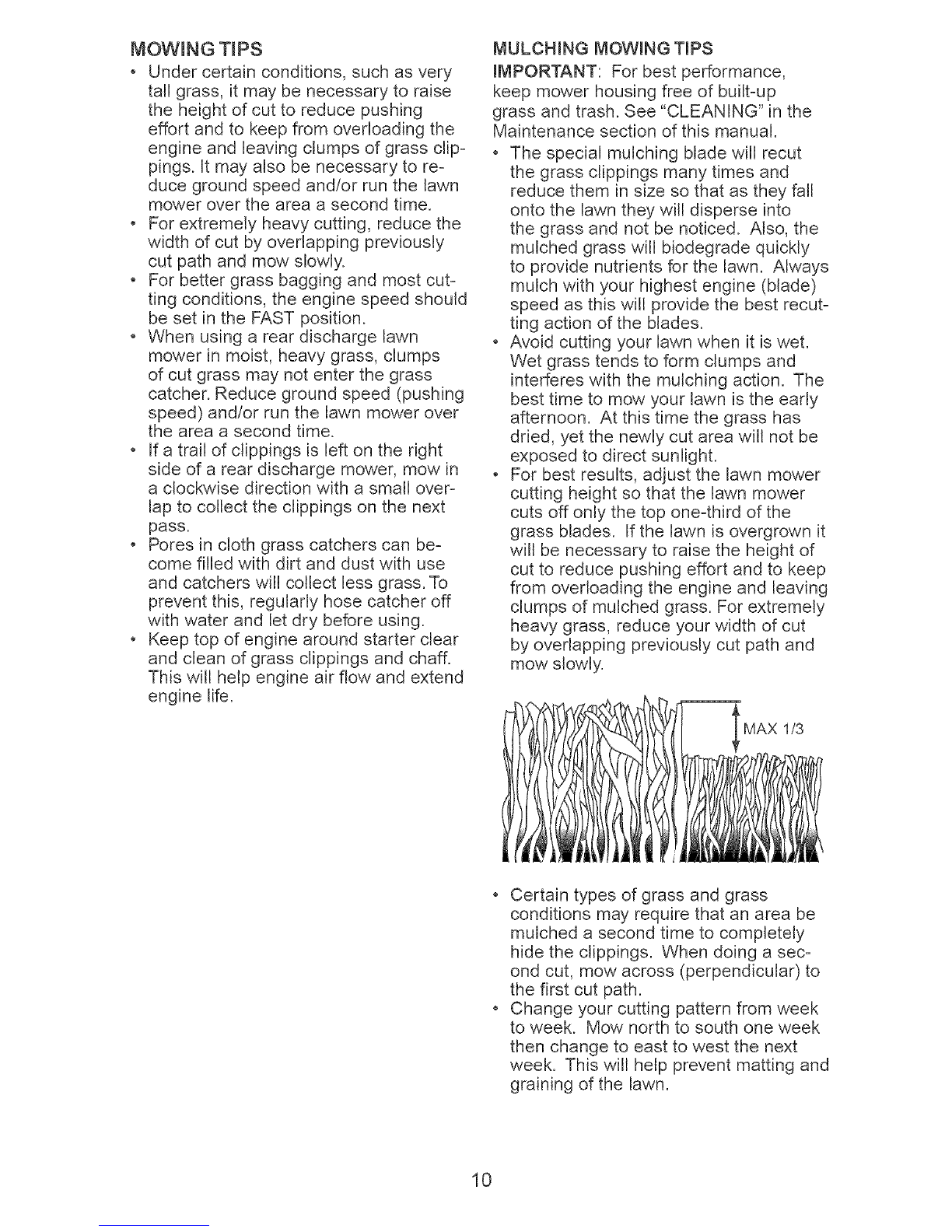

MOWING TIPS

o Undercertainconditions,suchasvery

tall grass,it maybe necessaryto raise

theheightof cutto reducepushing

effortandto keepfromoverloadingthe

engineandleavingclumpsofgrass clip-

pings.Itmayalsobe necessaryto re=

ducegroundspeedand/orrunthelawn

mowerovertheareaasecondtime.

o Forextremelyheavycutting,reducethe

widthof cut byoverlappingpreviously

cut pathandmowslowly.

o Forbettergrassbaggingandmostcut=

ting conditions,theenginespeedshould

be set inthe FASTposition.

oWhen using a rear discharge lawn

mower in moist, heavy grass, clumps

of cut grass may not enter the grass

catcher. Reduce ground speed (pushing

speed) and/or run the lawn mower over

the area a second time.

o If a trail of clippings is left on the right

side of a rear discharge mower, mow in

a clockwise direction with a small over-

lap to collect the clippings on the next

pass.

oPores in cloth grass catchers can be=

come filled with dirt and dust with use

and catchers will collect less grass. To

prevent this, regularly hose catcher off

with water and let dry before using.

o Keep top of engine around starter clear

and clean of grass clippings and chaff.

This will help engine air flow and extend

engine life.

MULCHING MOWING TiPS

iMPORTANT: For best performance,

keep mower housing free of built=up

grass and trash. See "CLEANING" in the

Maintenance section of this manual.

o The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into

the grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn. Always

mulch with your highest engine (blade)

speed as this will provide the best recut=

ting action of the blades.

oAvoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried, yet the newly cut area will not be

exposed to direct sunlight.

o For best results, adjust the lawn mower

cutting height so that the lawn mower

cuts off only the top one=third of the

grass blades. If the lawn is overgrown it

will be necessary to raise the height of

cut to reduce pushing effort and to keep

from overloading the engine and leaving

clumps of mulched grass. For extremely

heavy grass, reduce your width of cut

by overlapping previously cut path and

mow slowly,

1/3

o Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a sec=

ond cut, mow across (perpendicular) to

the first cut path.

o Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting and

graining of the lawn.

Table des matières

Langues :

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.275901 Manuel utilisateur

Craftsman

Craftsman EZ3 917.256701 Manuel utilisateur

Craftsman

Craftsman 917.273280 Manuel utilisateur

Craftsman

Craftsman 247.290000 Manuel utilisateur

Craftsman

Craftsman 917.28872 Manuel utilisateur

Craftsman

Craftsman 27742 Manuel utilisateur

Craftsman

Craftsman 917.376630 Manuel utilisateur

Craftsman

Craftsman 917.374112 Manuel utilisateur

Craftsman

Craftsman 25740 Manuel utilisateur

Craftsman

Craftsman 16 HP ELECTRIC START 42" MOWER 6 SPEED TRANSAXLE LAWN TRACTOR... Manuel utilisateur

Craftsman

Craftsman 917.276350 Manuel utilisateur

Craftsman

Craftsman 25554 Manuel utilisateur

Craftsman

Craftsman C459-36100 Manuel utilisateur

Craftsman

Craftsman 917.388512 Manuel utilisateur

Craftsman

Craftsman 917.376091 Manuel utilisateur

Craftsman

Craftsman 917.272261 Manuel utilisateur

Craftsman

Craftsman EZ3 917.270642 Manuel utilisateur

Craftsman

Craftsman 917.255890 Manuel utilisateur

Craftsman

Craftsman 917.28972 Manuel utilisateur

Craftsman

Craftsman 917.272247 Manuel utilisateur

Craftsman

Craftsman 917.376224 Manuel utilisateur

Craftsman

Craftsman ZTS 6000 Manuel utilisateur

Craftsman

Craftsman 917.272421 Manuel utilisateur

Craftsman

Craftsman 917.272233 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
