Craftsman EZ3 917.270642 Manuel utilisateur

Owner's Manual

.0 HP

ELECTRIC ;TART

42" MOWER

AUTOMATIC

LAWN TRACTOR

Model No.

917.270642

oSafety

Assembly

oOperation

o Maintenance

o Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equip-

ment.

For answers to your questions

about this product, Call:

1=800-659-5917

Sears Craftsman Help Line

5 am -5 pro, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Warranty ................................................. 2

Safety Rules ........................................... 2

Product Specifications ............................ 5

Assembly ................................................ 6

Operation ............................................... 1t

Maintenance Schedule ......................... 18

Maintenance .......................................... 18

Service and Adjustments ...................... 22

Storage .................................................. 28

Troubleshooting .................................... 30

Repair Parts ......................................... 34

Parts Ordering ....................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is main-

tained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace, free of charge, any parts found to be defective in material or

workmanship.

This Warranty does not cover:

o Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts, etco

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

o Repairs necessary because of operator abuse, negligence, improper storage or acci-

dent or the failure to maintain the equipment according to the instructions contained in

the owner's manual.

o Riding equipment used for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in material or workmanship and our testing determines the bat-

tery will not hold a charge, Sears will replace the battery at no charge. In-home warranty

service on your Craftsman riding equipment is available at no charge for 30 days from

the date of purchase. Please contact your nearest service center. After 30 days from the

date of purchase, warranty service is available by taking your Craftsman riding equip-

ment to your nearest Sears Service Center. (In-home warranty service will still be avail-

able after 30 days from the date of purchase but a standard trip charge will apply). This

warranty applies only while this product is in the United States. This Warranty gives you

specific legal rights, and you may also have other rights which may vary from state to

state.

Sears, Roebuck and Co, D/817 WA, Hoffman Estates, IL 60179

GENERAL OPERATION

oRead, understand, and follow all instruc-

tions in the manual and on the machine

before starting°

°Only allow responsible adults, who are

familiar with the instructions, to operate

the machine_

o Clear the area of objects such as rocks,

toys, wire, etco, which could be picked

up and thrown by the blade.

- Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

oNever carry passengers.

° Do not mow in reverse unless absolute-

ly necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

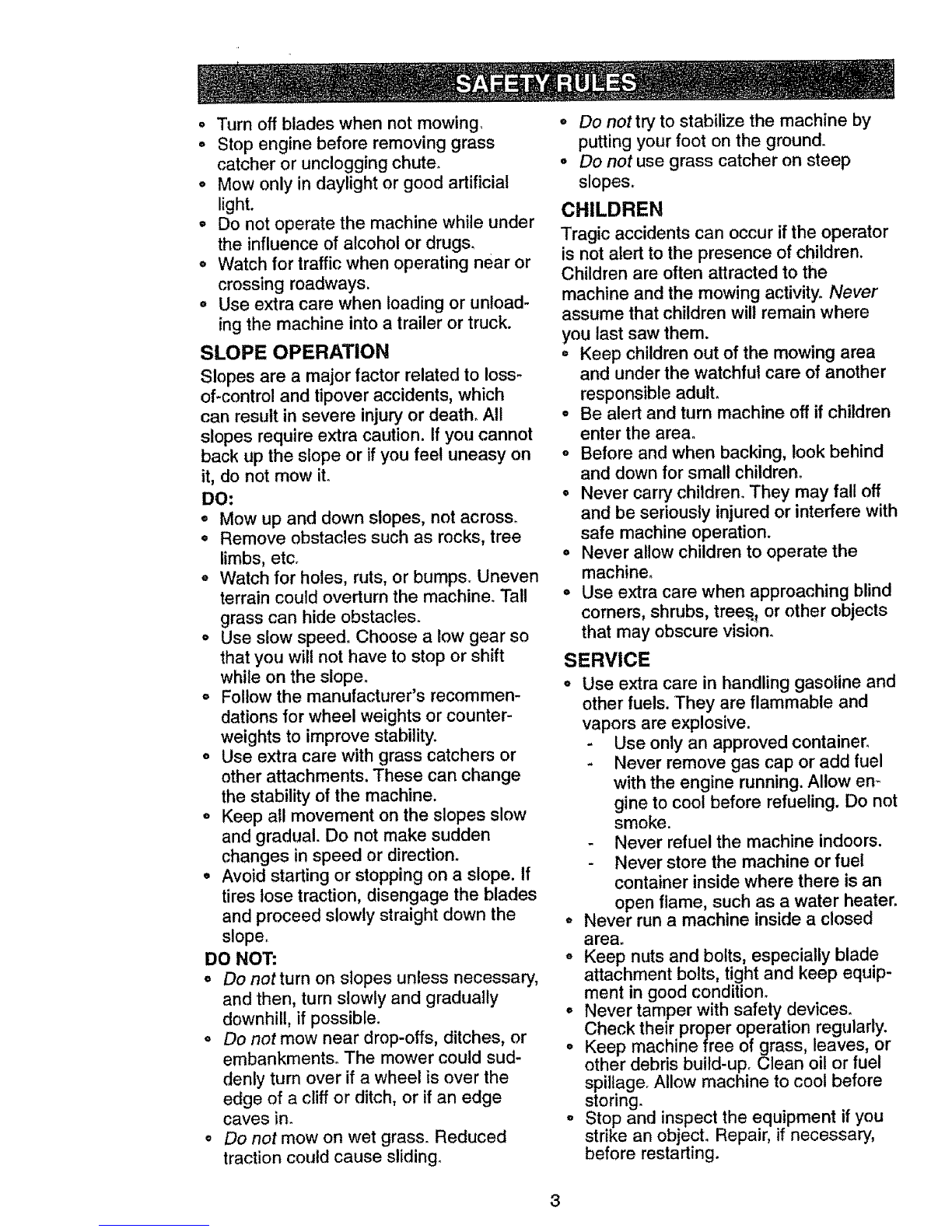

oSlow down before turning.

°Never leave a running machine unat-

tended. Always turn off blades, set park-

ing brake, stop engine, and remove

keys before dismounting.

• Turnoff blades whennotmowing.

- Stopenginebefore removinggrass

catcheror uncloggingchute°

o Mowonly in daylightor good artificial

light.

° Do not operatethe machinewhile under

the influenceof alcoholor drugs.

o Watchfor trafficwhenoperating nearor

crossingroadways.

° Useextra care when loadingorunload-

ingthemachine into atrailer ortruck.

SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which

can result in severe injury or death. All

slopes require extra caution. If you cannot

back up the slope or if you fee! uneasy on

it, do not mow it.

DO:

o Mow up and down slopes, not across_

° Remove obstacles such as rocks, tree

limbs, etc.

°Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

o Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

o Follow the manufacturer's recommen-

dations for wheel weights or counter-

weights to improve stability.

o Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

° Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction_

° Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

oDo not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

oDo not mow near drop-offs, ditches, or

embankments° The mower could sud-

denly turn over if a wheel is over the

edge of a cliff or ditch, or if an edge

caves in.

oDo not mow on wet grass. Reduced

traction could cause sliding_

oDo not try to stabilize the machine by

putting your foot on the ground.

o Do not use grass catcher on steep

slopes.

CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

o Be alert and turn machine off if children

enter the area.

o Before and when backing, look behind

and down for small children_

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

o Never allow children to operate the

machine_

° Use extra care when approaching blind

corners, shrubs, trees._ or other objects

that may obscure vision.

SERVICE

o Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

Use only an approved container.

Never remove gas cap or add fuel

with the engine running. Allow en-

gine to cool before refueling. Do not

smoke.

Never refuel the machine indoors.

Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

° Never run a machine inside a closed

area.

°Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

° Never tamper with safety devices.

Check their proper operation regularly.

° Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

oStop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

Never make adjustments or repairs with

the engine running.

Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

o Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

o Do not mow in reverse unless absolute-

ly necessary. Always look down and

behind before and while backing.

o Never carry children. They may fall off

and be seriously injured or interfere with

safe machine oRerationo

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

° Be alert and turn machine off if children

enter the area.

°Before and when backing, look behind

and down for small children.

o Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

Check brake operation frequently.

Adjust and service as required.

o Mow up and down slopes (t5 ° Max), not

across.

•Remove obstacles such as rocks, tree

limbs, etc.

o Watch for holes, ruts, or bumps_ Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

o Use slow speed. Choose a low gear so

that you wilt not have to stop or shift

while on the stope_

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

oDo not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

,_Look for this symbol to point out impor-

tant safety precautions. It means CAU-

TION!!! BECOME AWARE!!! YOUR SAFE-

TY IS INVOLVED°

,_CAUTION: In order to prevent acciden-

tal starting when setting up, transporting,

adjusting or making repairs always discon-

nect spark plug wire and place wire where

it cannot contact spark plug.

,_WARNING: The engine exhaust from

this product contains chemicals known to

the State of California to cause cancer,

birth defects, or other reproductive harm.

PRODUCT SPECIFICATIONS

GASOLINE 1.25 GALLONS

CAPACITY UNLEADED

AND TYPE: REGULAR

O!L TYPE SAE 30

(API-SF!SG/SH): (above 32°F)

SAE 5W-30

(below 32°F)

OIL CAPACITY: 3,0 PINTS

SPARK PLUG: Champion RC12YC

(GAP: .030")

VALVE INTAKE: o003"-_005"

;LEARANCE: EXHAUST: .005"-.007"

'GROUND SPEED FORWARD: 0-5.7

MPH): REVERSE: 0- 2.7

TIRE PRESSURE: FRONT: 14PSI

REAR: 12 PSt

;HARGING 3 AMPS BATTERY

;YSTEM: 5 AMPS HEADLIGHTS

BATTERY: AMP/HR: 25

MIN. CCA:190

CASE SIZE: UtR

BLADE BOLT 27-35 FT.LBS.

TORQUE:

CONGRATULATIONS on your purchase

of a Craftsman Tractor. It has been

designed, engineered and manufactured

to give you the best possible dependability

and performance.

Should you experience any problem you

cannot easily remedy, please contact your

nearest Sears Authorized Service Center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is avail-

able on this product. Contact your nearest

Sears store for details.

CUSTOMER RESPONSIBILITIES

•Read and observe the safety rules.

o Follow a regular schedule in maintain-

ing, caring for and using your tractor.

•Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual°

_kWARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grassocovered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any)° If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code), Other

states may have similar laws. Federal

laws apply on federal lands. A spark

arrester for the muffler is available through

your nearest Sears Authorized Service

Center (See REPAIR PARTS section of

this manual).

PARTS BAG CONTENTS SHOWN FULL SIZIE

(t) Large Flat Washer (1) Hex Bolt

3/8-16 x 1

(1) Large Flat Washer (1) Lockwasher 3/8

(1) Hex Bolt 5/16-t8 x 1-1/4 (I) Locknut 516-18

(1) Shoulder Bolt 5/16-18

O(1) Knob

(1) Washer 17/32 x1-3/16 x 12 Gauge

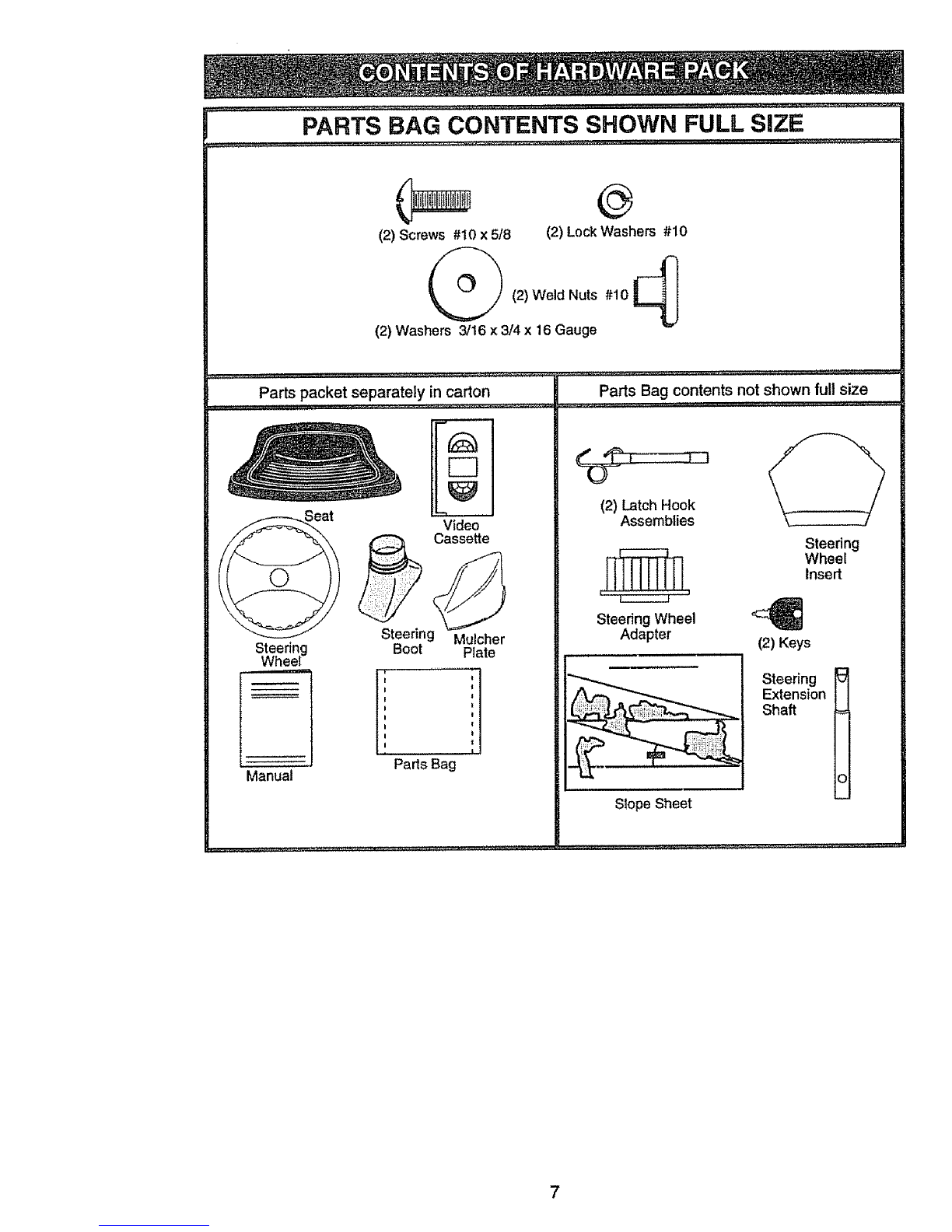

PARTS BAG CONTENTS SHOWN FULL SiZE

(2) Screws #10 x 5/8 (2) Lock Washers #10

(2) Washers 3/16 x 3/4 x 16 Gauge

Parts packet separately in carton

........................... ,.4_L .............•u ,J_............. ,.Ju............

F-]

Steering

Wheel

Manual

Video

Cassette

Steering Mulcher

Boot Plate

ii t

I t

Parts Bag

Parts Bag contents not shown full size

(2) Latch Hook

Assemblies

Steering Wheel ,c_

Adapter (2) Keys

Slope Sheet

Steering

Wheel

Insert

Steering

Extension

Shaft =

Your new tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness. Review the video cassette before you begin.

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier.Standard wrench sizes you need

are listed below.

(1) 9/16" wrench

(1)Pliers

(2) 1/2" wrench

(1) 3/4" wrench

(1) Utility knife

(1) 3/4" Socket w/

drive rachet

(1) Phillips Screw-

driver

(1) Tire pressure

gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

= Remove all accessible loose parts and

parts boxes from shipping carton (See

page 6).

• Cut, from top to bottom, along lines on

all four corners of shipping carton, and

lay panels flaL

o Check for any additional loose parts or

boxes and remove.

BEFORE ROLLING TRACTOR OFF

SKiD

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

o Slide extension shaft onto lower steer-

ing shaft. Align mounting holes in exten-

sion and lower shafts and install 5/16

hex bolt and iocknut. Tighten securely.

IMPORTANT: Tighten bolt and nut secure-

ly to 18-22 ft. Ibs. torque.

o Place tabs of steering boot over tab

slots in dash and push down to secure.

INSTALL STEERING WHEEL

-Position front wheels of the tractor so

they are pointing straight forward.

o Slide steering wheel adapter onto steer-

ing shaft extension.

• Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

° Assemble large flat washer, 3/8 lock

washer, 3/8 hex bolt and tighten securely.

°Snap steering wheel insert into center

of steering wheel.

o Remove protective rfiaterials from trac-

tor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

Insert

318 Hex Bolt

318 Lockwasher

Large Flat

Washer

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

oPress liftlever plunger and raise attach-

ment lift lever to its highest position.

°Release parking brake by depressing

clutch/brake pedal.

° Place freewheel control in freewheeling

position to disengage transmission (See

"TO TRANSPORT" in the Operation

section of this manual).

• Roll tractor forward off skid.

•Remove banding holding discharge

guard up against tractor.

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

o Lift seat pan to raised postion and open

battery box door,

° If this battery is put into service after

month and year indicated on label (label

located between terminals) charge bat-

tery for minimum of one hour at 6-10

amps. (See "BATTERY" in MAINTE-

NANCE section of this manual for charg-

ing structions.)

Seat

Battery

Door

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

o Remove cardboard packing on seat pan.

o Place seat on seat pan and assemble

shoulder bolt. Tighten shoulder bolt

securely.

• Assemble adjustment knob and flat

washer loosely. Do not tighten.

• Lower seat into operating position and

sit on seat°

° Slide seat until a comfortable position is

reached which allows you to press

clutch/brake pedal all the way down.

° Get off seat without moving its adjusted

position.

• Raise seat and tighten adjustment knob

securely. Seat

Seat Pan _!

Shoulder

Bolt

Adjustment Knob

Flat Washer

CHECK TIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

•Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" on page

5 of this manual°

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts in

the Service and Adjustments sectoin of

this manual. Verify that the belts are routed

correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor,

check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in the

Service and Adjustments section of this

manual.

INSTALL MULCHER PLATE

•Install two latch hooks to mulcher plate

using screw, washer, lock washer, and

weld nut as shown.

NOTE: Pre-assemble weld nut to latch

hook by inserting weld nut from the top

with hook pointing down.

,Tighten hardware securely.

oRaise and hold deflector shield in up,-

right position.

oPlace front of mulcher plate over front of

mower deck opening and slide into

place, as shown.

°Hook front latch into hole on front of

mower deck.

°Hook rear latch into hole on back of

_kmower deck.

CAUTION: Do not remove discharge

guard from mower_ Raise and hold guard

when attaching mulcher plate and allow it

to rest on plate while in operation.

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional

grass catcher accessory.

NOTE; It is not necessary to change

blades. The mulcher blades are designed

for discharging and bagging also.

Weld Nut From Hook Points

Down

The Top ,,_

Lock

Weld Washer

Screw

Latch Latch

Hook

Washer

Mulcher "_I-- Screw

Plate

Deflector

Shield

Nut

Lock Washer

Washer

Latch

Hooks

_/CHECKLIS T

PLEASE REVIEW THE FOLLOWING

CHECKLIST:

_" All assembly instructions have been

completed.

v" No remaining loose parts in carton.

Battery is properly prepared and

charged. (Minimum I hour at 6 amps).

v' Seat is adjusted comfortably and

tightened securely°

v' All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

Be sure mower deck is properly leveled

side-to-side/front-to-rear for best

cutting results. (Tires must be properly

inflated for leveling).

v' Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

v" Check wiring. See that all connections

are still secure and wires are properly

clamped.

v' Before driving tractor, be sure free-

wheel control is in drive position.

WHILE LEARNING HOW TO USE YOUR

TRACTOR, PAY EXTRA ATTENTION TO

THE FOLLOWING IMPORTANT ITEMS:

#" Engine oil is at proper level.

J' Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

,/ Become familiar with all controls - their

location and function. Operate them

before you start the engine,

,/ Be sure brake system is in safe operat-

ing condition_

,/ It is important to purge the transmis-

sion before operating your tractor for

the first time. Follow proper starting

and transmission purging instructions

(See "TO START ENGINE" and

"PURGE TRANSMISSION" in the Op-

eration section of this manual).

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman EZ3 917.377531 Manuel utilisateur

Craftsman

Craftsman EZ3 917.256522 Manuel utilisateur

Craftsman

Craftsman 917.378342 Manuel utilisateur

Craftsman

Craftsman EZ3 917.273080 Manuel utilisateur

Craftsman

Craftsman 917.371660 Manuel utilisateur

Craftsman

Craftsman 3One 917.255440 Manuel utilisateur

Craftsman

Craftsman EZ3 917.387250 Manuel utilisateur

Craftsman

Craftsman EZ3 917.256531 Manuel utilisateur

Craftsman

Craftsman 917.389064 Manuel utilisateur

Craftsman

Craftsman 25344 Manuel utilisateur

Craftsman

Craftsman 917.370721 Manuel utilisateur

Craftsman

Craftsman 917.258694 Manuel utilisateur

Craftsman

Craftsman 917.376483 Manuel utilisateur

Craftsman

Craftsman 917.388971 Manuel utilisateur

Craftsman

Craftsman 27736 Manuel utilisateur

Craftsman

Craftsman 917.379812 Manuel utilisateur

Craftsman

Craftsman 917.288623 Manuel utilisateur

Craftsman

Craftsman 917.25156 Manuel utilisateur

Craftsman

Craftsman 917.377981 Manuel utilisateur

Craftsman

Craftsman 917.377520 Manuel utilisateur

Craftsman

Craftsman 917.252551 Manuel utilisateur

Craftsman

Craftsman 917.377422 Manuel utilisateur

Craftsman

Craftsman 917.27590 Manuel utilisateur

Craftsman

Craftsman 917.271532 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
