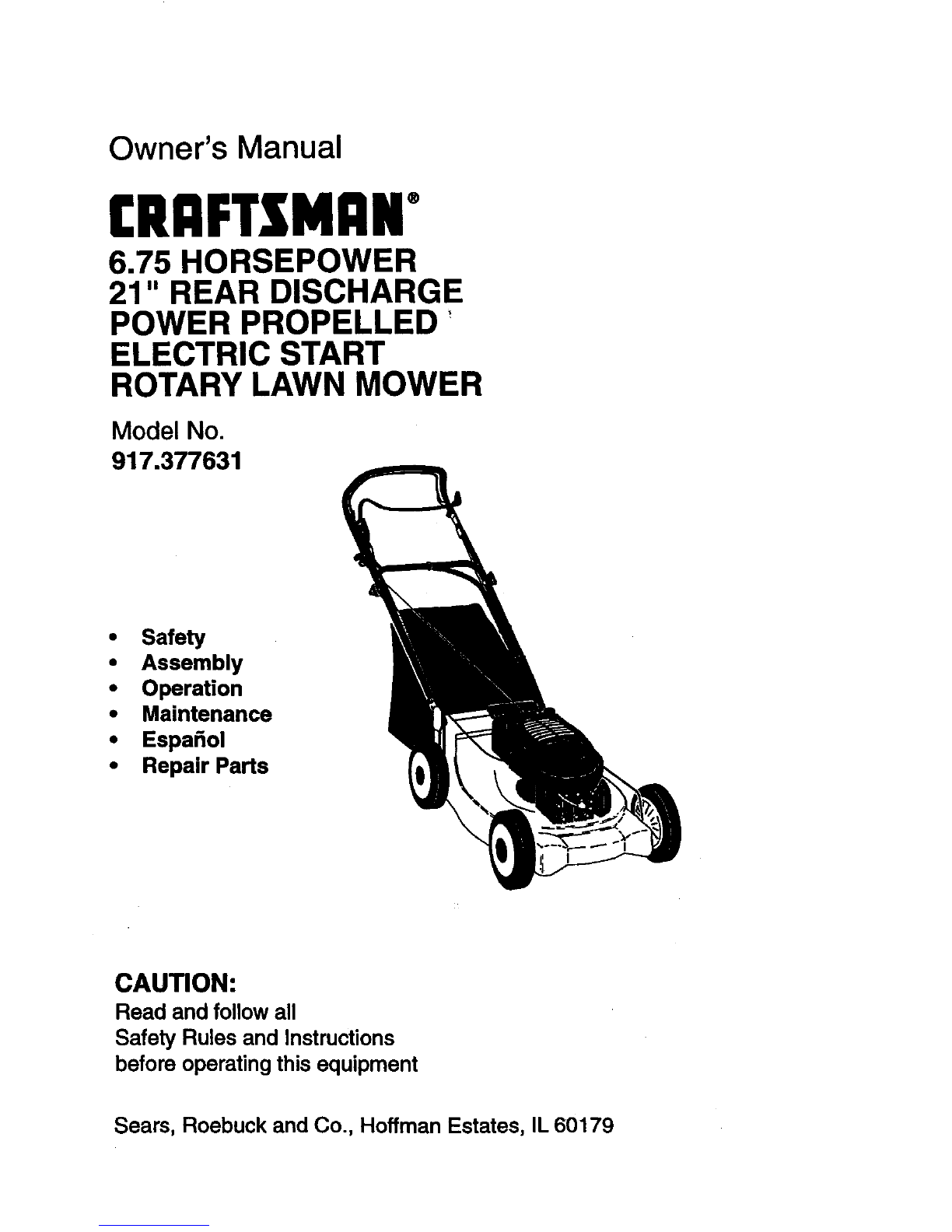

Craftsman 917.377631 Manuel utilisateur

Owner's Manual

(RRFTXMnN°

6.75 HORSEPOWER

21" REAR DISCHARGE

POWER PROPELLED'

ELECTRIC START

ROTARY LAWN MOWER

Model No.

917.377631

• Safety

•Assembly

•Operation

• Maintenance

•Espa_ol

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Sears, Roebuck and Co., Hoffman Estates, IL 60179

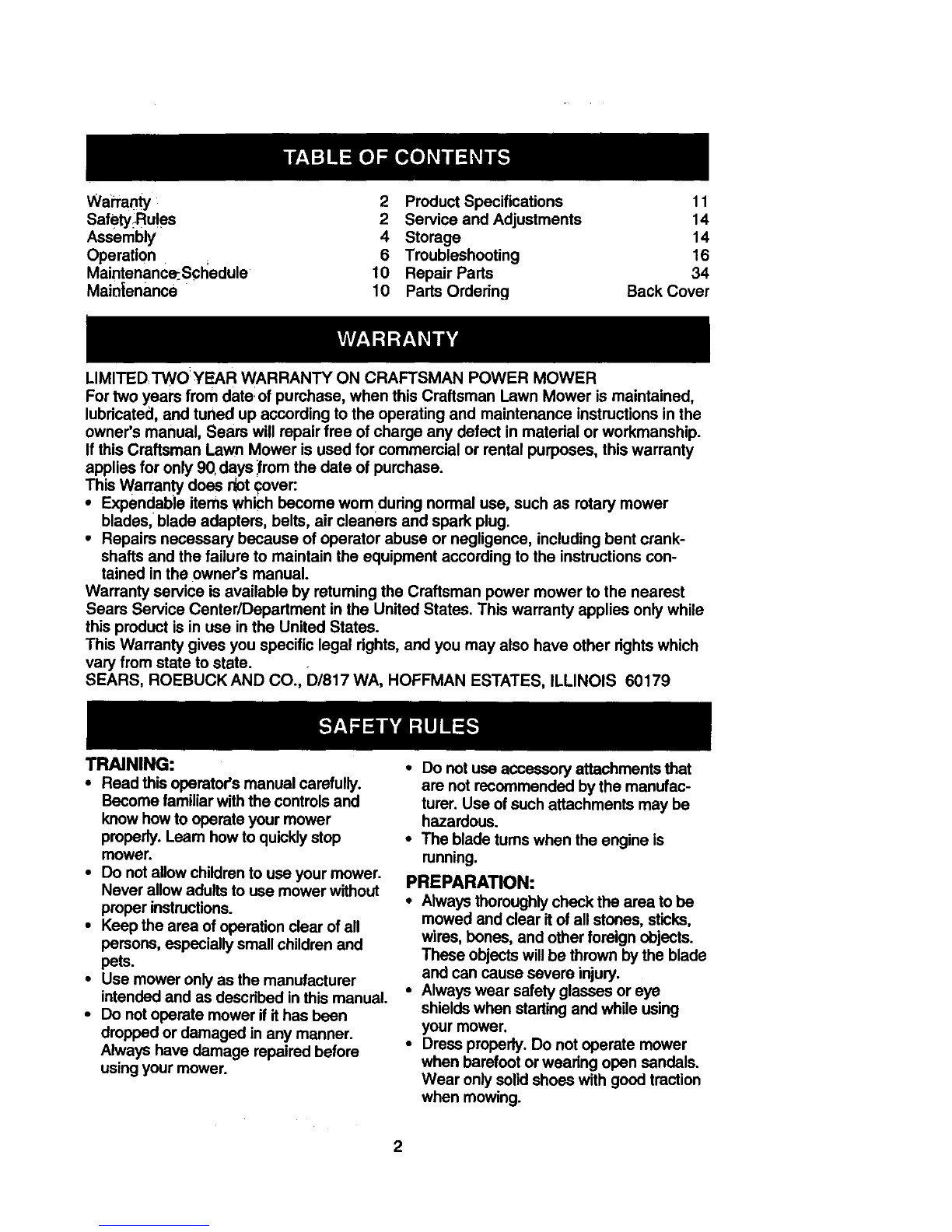

Warranty 2 Product Specifications 11

Safety:Ru!es 2 Service and Adjustments 14

Assembly 4 Storage 14

Operation 6 Troubleshooting 16

Maintenanc_Scl_edule 10 Repair Parts 34

Main|enance 10 Parts Ordering Back Cover

LIMITEDTWOYEAR WARRANTY ON CRAFTSMAN POWER MOWER

Fortwo years from date of purchase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in the

owner's manual, Sears will repair free of charge any defect in matedal or workmanship.

Ifthis Craftsman Lawn Mower is used for commercial or rental purposes, this warranty

applies for only 90,days _fromthe date of purchase.

This Warranty does dot cover:

•Expendable items which become worn during normal use such as rotary mower

blades, blade adapters, belts, air cleaners and spark plug.

•Repairs necessary because of operator abuse or negligence, includingbent crank-

shafts and the failure to maintain the equipment according to the instructionscon-

tained in the owner's manual.

Warranty service is available by retuming the Craftsman power mower to the nearest

Sears Service Center/Department in the United States. This warranty applies only while

this productis in use in the United States.

This Warranty gives you specific legal dghts, and you may also have other dghts which

vary from state to state.

SEARS, ROEBUCKAND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179

TRAINING:

• Read this operator'smanual carefully.

Become familiarwith the controlsand

knowhow to operate your mower

properly. Leam how to quicklystop

mower.

•Do notallow childrento use your mower.

Never allowadultsto use mower without

proper instructions.

• Keep the area ofoperationclear of all

pemons, especiallysmall children and

pets.

•Use mower onlyas the manufacturer

intended and as descdbed in this manual.

• Do notoperate mower if ithas been

dropped or damaged in any manner.

Always have damage repairedbefore

usingyour mower.

•Do not use accessory attachments that

are not recommended by the manufac-

turer. Use of suchattachments may be

hazardous.

•The blade turnswhen the engine is

running.

PREPARATION:

•Always thoroughly check the area to be

mowed and clear it of all stones, sticks,

wires, bones, and other foreign objects.

These objects will be thrown by the blade

and can cause severe injury.

•Always wear safety glasses or eye

shields when starting and while using

your mower,

•Dress properly. Do not operate mower

when barefoot or weadng open sandals.

Wear only solid shoes with good traction

when mowing.

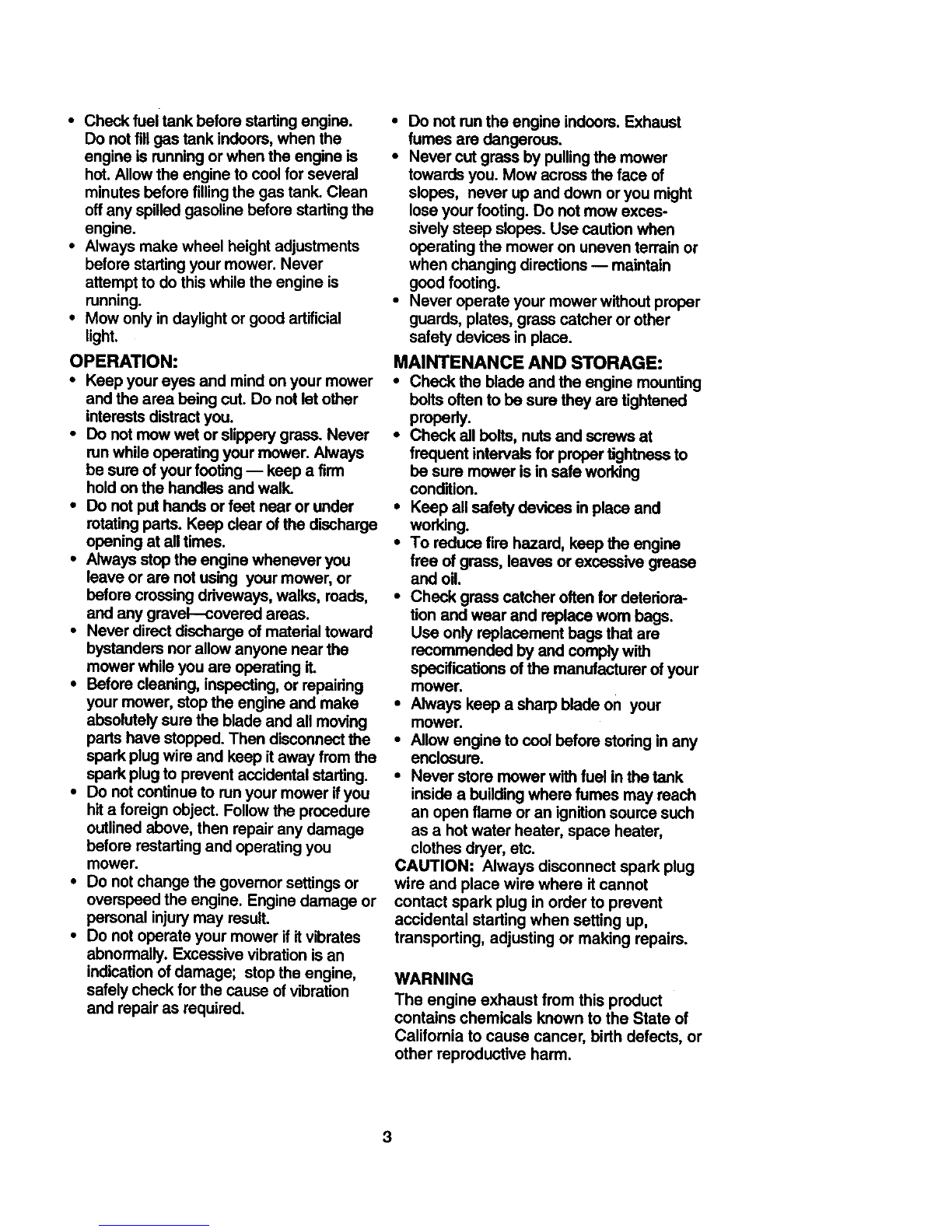

• Checkfueltankbeforestartingengine.

Do not fill gas tank indoors, when the

engine is running or when the engine is

hot. Allow the engine to cool for several

minutes before filling the gas tank. Clean

off any spilled gasoline before stading the

engine.

• Always make wheel height adjustments

before starting your mower. Never

attempt to do this while the engine is

running.

• Mow only in daylight or good artificial

light.

OPERATION:

•Keep your eyes and mind on your mower

and the area being cut. Do not let other

interests distract you.

•Do not mow wet or slippery grass. Never

run while operating your mower. Always

be sure of your footing -- keep a firm

hold on the handles and walk.

•Do not put hands or feet near or under

rotating pads. Keep clear of the discharge

opening at all times.

•Always stop the engine whenever you

leave or are not using your mower, or

before crossing driveways, walks, roads,

and any gravel--covered areas.

•Never direct discharge of material toward

bystanders nor allow anyone near the

mower while you are operating it.

•Before cleaning, inspecting, or repairing

your mower, stop the engine and make

absolutely sure the blade and all moving

pads have stopped. Then disconnect the

spark plug wire and keep it away from the

spark plug to prevent accidental starting.

• DO not continue to run your mower if you

hit a foreign object. Follow the procedure

outlined above, then repair any damage

before restarting and operating you

mower.

•Do not change the govemor settings or

overspeed the engine. Engine damage or

personal injury may result.

•Do not operate your mower if it vibrates

abnormally. Excessive vibration is an

indication of damage; stop the engine,

safely check for the cause of vibration

and repair as required.

•Do not run the engine indoors.Exhaust

fumes are dangerous.

•Never cut grass by pullingthe mower

towardsyou. Mow acrossthe face of

slopes, never up and down or you might

lose your footing. Do not mow exces-

sivelysteep slopes. Use caution when

operatingthe mower on uneven terrain or

when changing directions-- maintain

good footing.

• Never operate your mower withoutproper

guards, plates, grass catcher or other

safety devices in place.

MAINTENANCE AND STORAGE:

•Check the blade and the engine mounting

bolts often to be sure they are tightened

proper .

•Check all belts, nuts and screws at

frequent intervals for proper tightness to

be sure mower is in safe working

condition.

•Keep all safety devices in place and

working.

•To reduce fire hazard, keep the engine

free of grass, leaves or excessive grease

and oil.

•Check grass catcher often for deteriora-

tion and wear and replace wom bags.

Use only replacement bags that are

recommended by and comply with

specifications of the manufacturer of your

mower,

•Always keep a sharp blade on your

mower.

•Allow engine to cool before storing in any

enclosure.

•Never store mower with fuel in the tank

inside a building where fumes may reach

an open flame or an ignition source such

as a hot water heater, space heater,

clothes dryer, etc.

CAUTION: Always disconnect spark plug

wire and place wire where it cannot

contact spark plug in order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs.

WARNING

The engine exhaust from this product

contains chemicals known to the State of

California to cause cancer, birth defects, or

other reproductive harm.

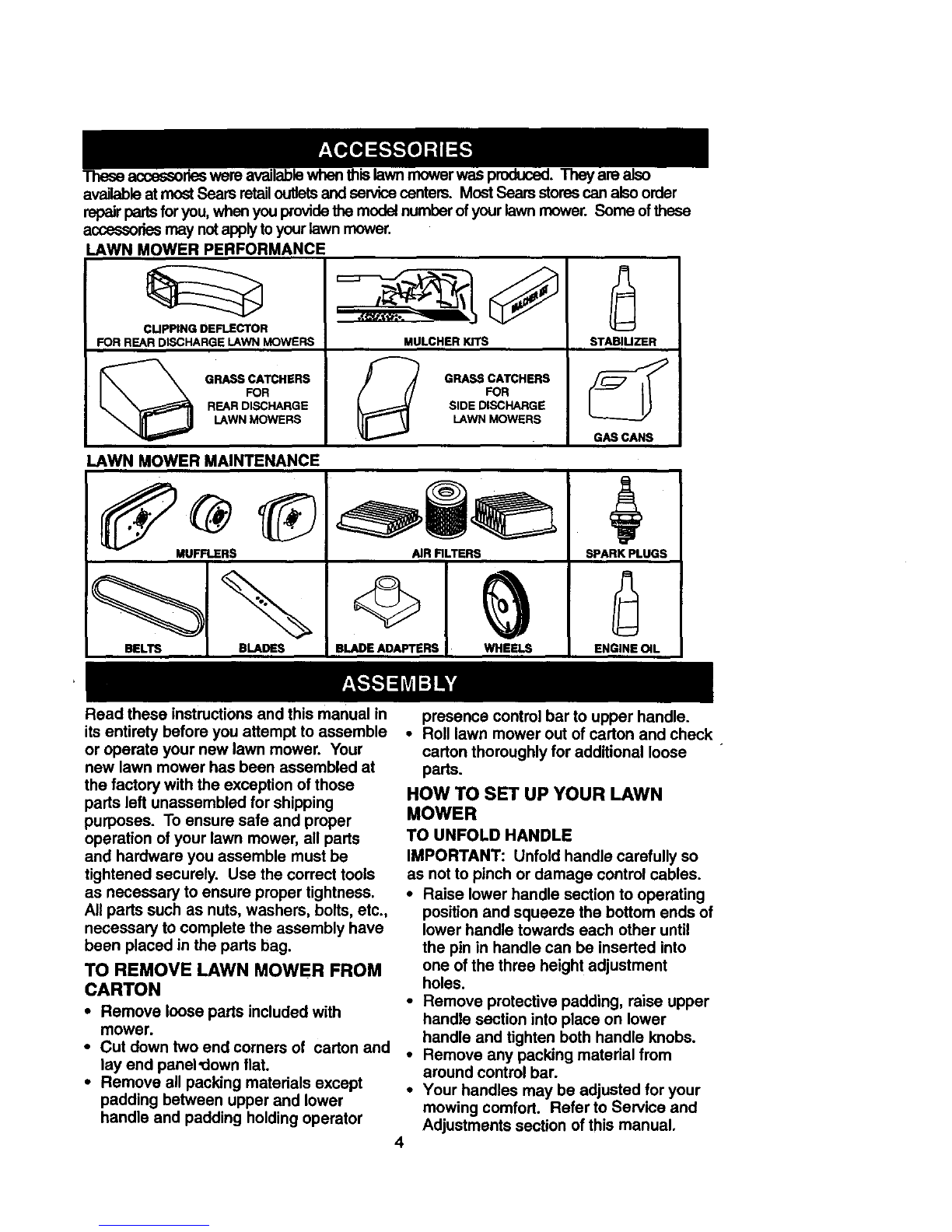

Theseaccessoneswereavailablewhen1

availableatmostSearsretailoutletsandservicecenters.MostSearsstorescanalsoorder

repairpartsfor you,whenyouprovidethe modelnumberofyourlawn mower. Some ofthese

accessories may not apply to your lawn mower.

LAWN MOWER PERFORMANCE

CUPPING DEFLECTOR

FOR REAR DISCHARGE LAWN MOWERS

GRASS CATCHERS

FOR

REAR DISCHARGE

LAWN MOWERS

MULCHERKITS

GRASS CATCHERS

FOR

J_ SIDE DISCHARGE

LAWN MOWERS

LAWN MOWER MAINTENANCE

MUFFLERS AIR RLTERS

BELTS BLADES BLADE ADAPTERS WHEELS

STABIUZER

SPARK PLUGS

ENGINE OIL

Read these instructionsand this manual in

its entirety before you attempt to assemble

or operate your new lawn mower. Your

new lawn mower has been assembled at

the factory with the exception of those

parts left unassembled for shipping

purposes. To ensure safe and proper

operation of your lawn mower, all parts

and hardware you assemble must be

tightened securely. Use the correct tools

as necessary to ensure proper tightness.

All parts such as nuts, washers, bolts, etc.,

necessary to complete the assembly have

been placed in the parts bag.

TO REMOVE LAWN MOWER FROM

CARTON

• Remove loose parts included with

mower.

•Cut down two end corners of carton and

lay end panel'down flat.

•Remove all packing materials except

padding between upper and lower

handle and padding holding operator

presence control bar to upper handle.

•Roll lawn mower out of carton and check

carton thoroughly for additional loose

parts.

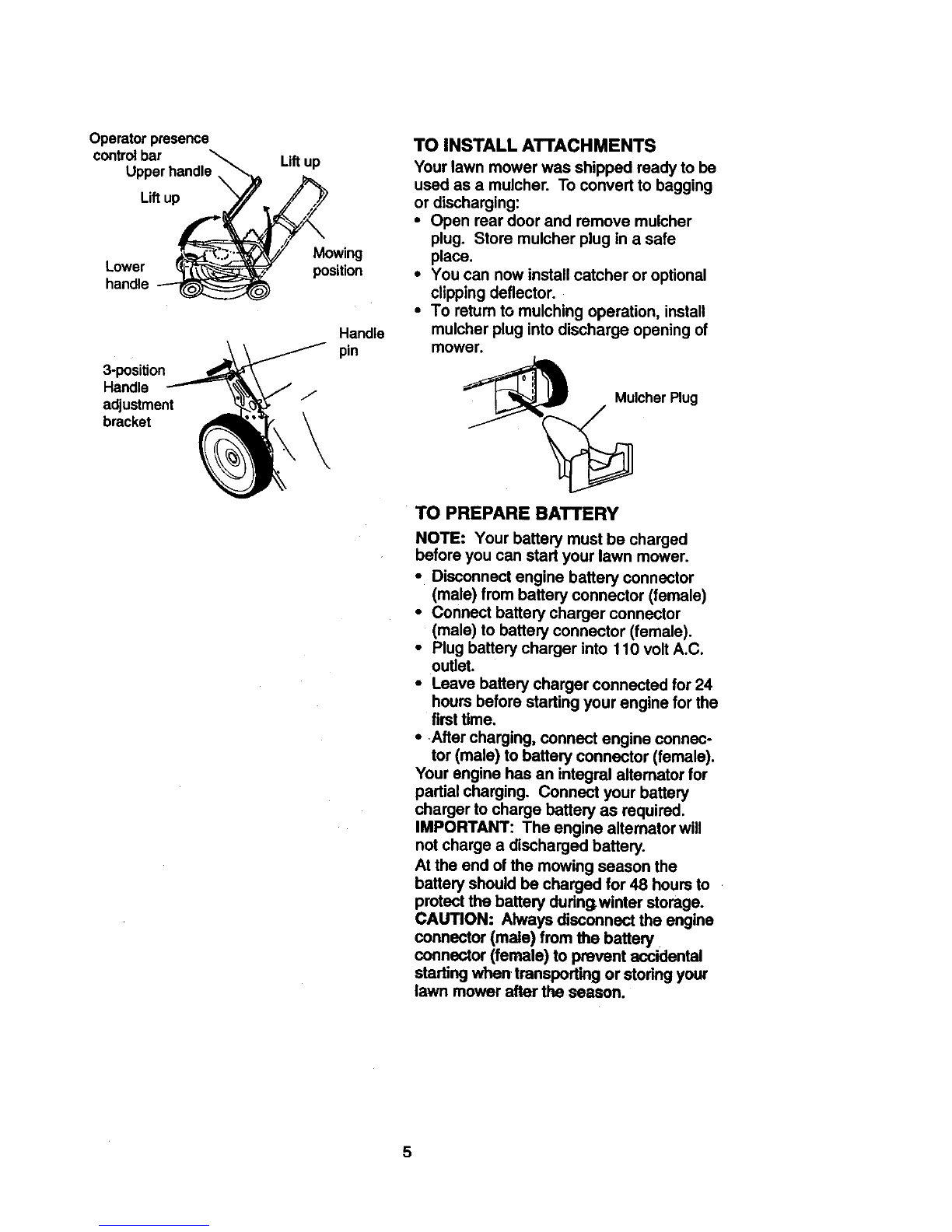

HOW TO SET UP YOUR LAWN

MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage control cables.

•Raise lower handle section to operating

position and squeeze the bottom ends of

lower handle towards each other until

the pin in handle can be inserted into

one of the three height adjustment

holes.

•Remove protective padding, raise upper

handle section into place on lower

handle and tighten both handle knobs.

•Remove any packing material from

around control bar.

•Your handles may be adjusted for your

mowing comfort. Refer to Service and

Adjustments section of this manual.

Operator presence

controlbar

Upper handle

Lift up

Lower

handle

3-position

Handle

adjustment

bracket

Lift up

Mowing

position

Handle

TO INSTALL ATrACHMENTS

Your lawn mower was shipped ready to be

used as a mulcher. To convert to bagging

or discharging:

•Open rear door and remove mulcher

plug. Store mulcher plug in a safe

place.

•You can now install catcher or optional

clippingdeflector.

• To return to mulching operation, install

mulcher plug intodischarge opening of

mower.

Mulcher Plug

TO PREPARE BATTERY

NOTE: Your battery must be charged

before you can start your lawn mower.

•Disconnect engine battery connector

(male) from battery connector (female)

•Connect battery charger connector

(male) to battery connector (female).

•Plug battery charger into t 10 volt A.C.

outlet.

•Leave battery charger connected for 24

hours before starting your engine for the

first time.

•After charging, connect engine connec-

tor (male) to battery connector (female).

Your engine has an integral altemator for

partial charging. Connect your battery

charger to charge battery as required.

IMPORTANT: The engine altemator will

not charge a discharged battery.

At the end of the mowing season the

battery should be charged for 48 hours to

protect the battery during.winter storage.

CAUTION: Always disconnect the engine

connector (male) from the battery

connector (female) to prevent accidental

startingwhen,transporting or storingyour

lawn mower after the season.

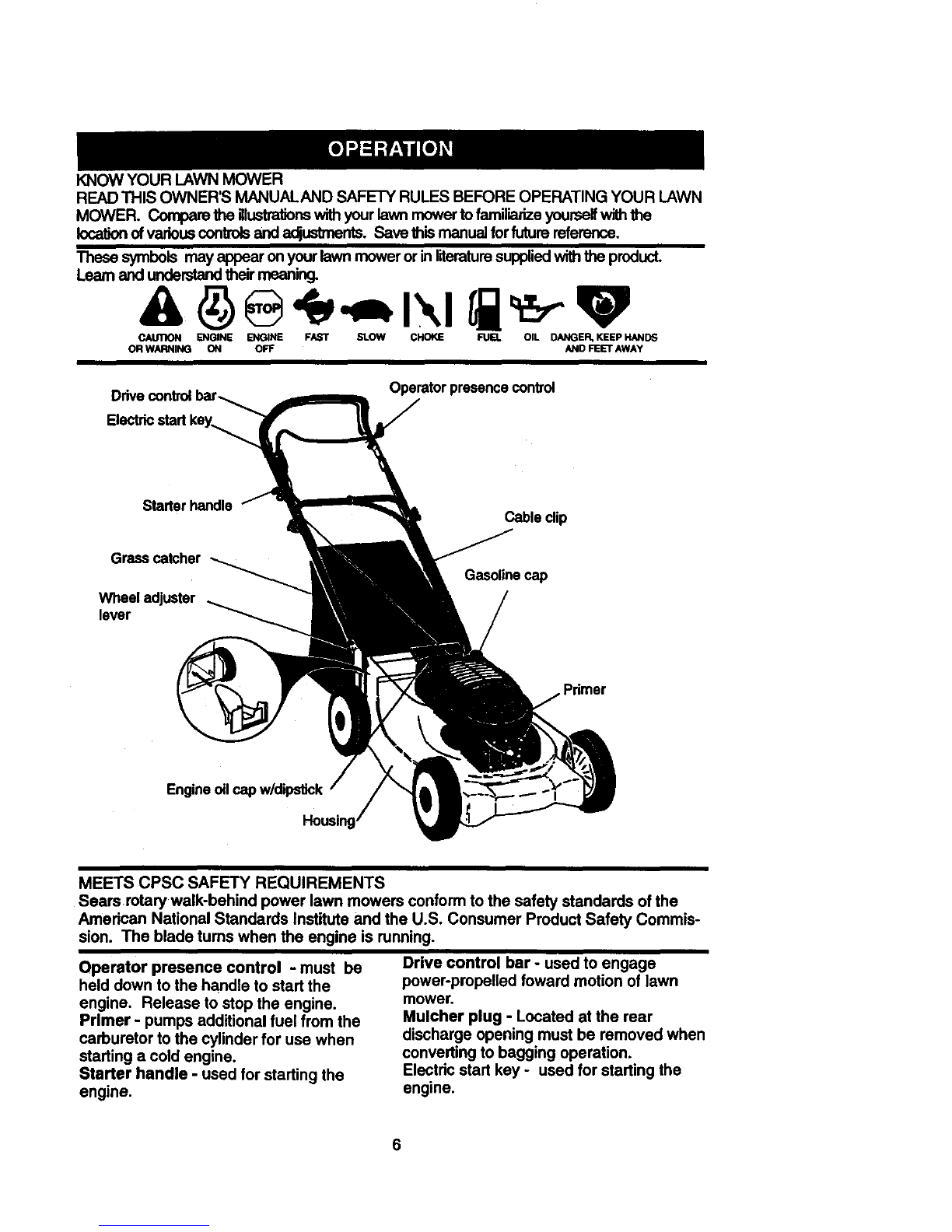

KNOWYOURLAWNMOWER

READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR LAWN

MOWER. Compare the illustrationswith your lawn mower to familiarize yourself with the

location of various controls and a(_uslmer_s. Save this manual for future reference.

These symbols may appearon yourlawn moweror inliteraturesuppliedwiththe product.

Learnand understandtheirmeaning.

CAUI_)N ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HAND6

OR WARNING ON OFF AND FEET AWAY

Electricstart key_

Operator presence control

Starter handle Cable clip

Grass catcher

Wheel adjuster

lever

Gasoline cap

Primer

Engine oil cap w/dipstick

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the

American National Standards Institute and the U.S. Consumer Product Safety Commis-

sion. The blade turns when the engine is running.

Operator presence control -must be

held down to the handle to start the

engine. Release to stop the engine.

Primer -pumps additional fuel from the

carburetor to the cylinder for use when

starting a cold engine.

Starter handle -used for starting the

engine.

Drive control bar - used to engage

power-propelled foward motion of lawn

mower.

Mulcher plug -Located at the rear

discharge opening must be removed when

convertingto bagging operation.

Electdc start key - used for starting the

engine.

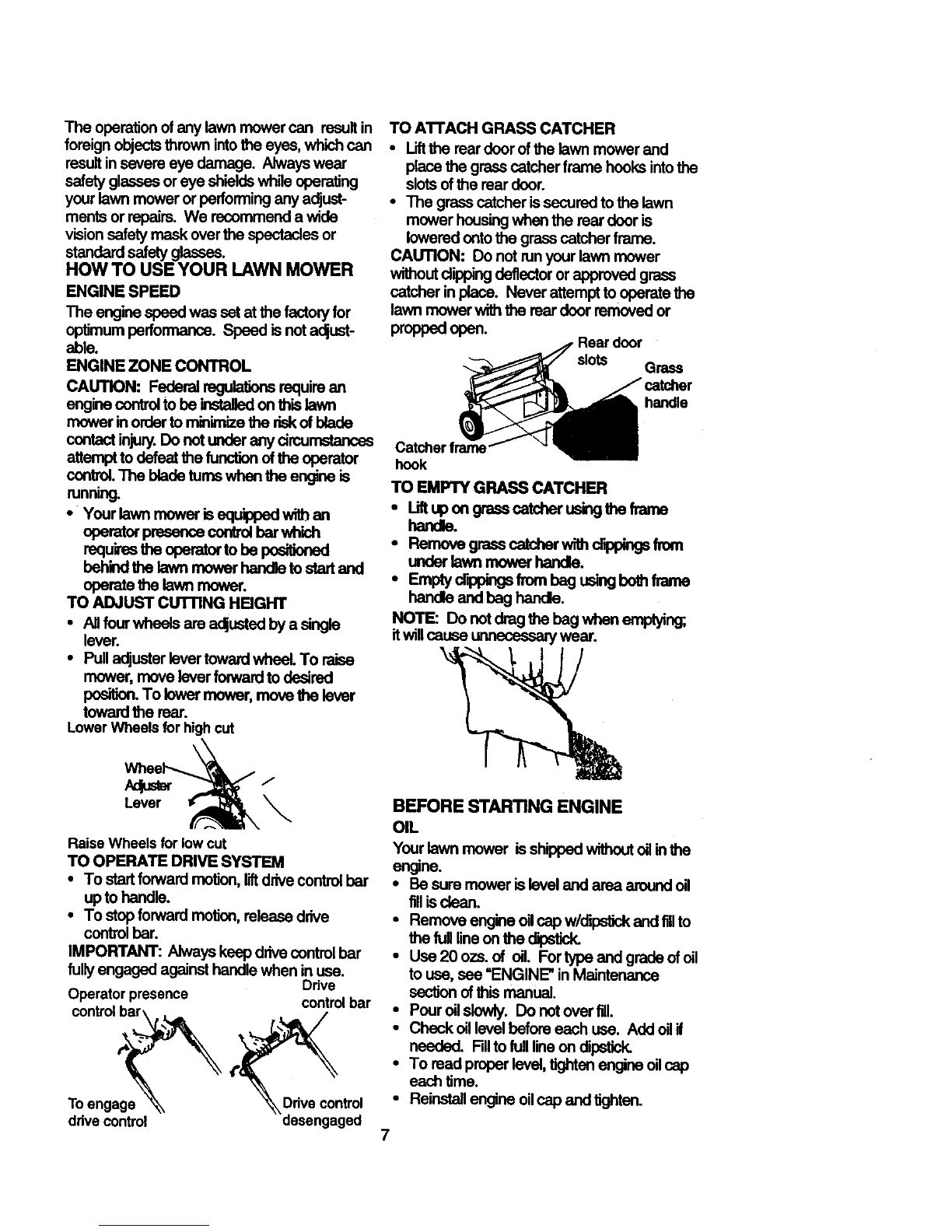

Theoperationofanylawnmowercan resultin

foreign objectsthrownintothe eyes, whichcan

resultinsevereeye damage. Alwayswear

safetyglassesor eye shieldswhile operating

yourlawnmoweror performing any adjust-

mentsorrepairs. We recommenda wide

visionsafetymaskoverthespectaclesor

standardsafetyglasses.

HOW TO USE YOUR LAWN MOWER

ENGINE SPEED

The engine speed was set at the factory for

optimum performance. Speed is not adjust-

able.

ENGINE ZONE CONTROL

CAUTION: Federal regulations require an

engine control to be instalied on this lawn

mower in order to minimize the risk of blade

contact injury.Do not under any drcurnstances

attempt to defeat the function of the operator

control. The blade tums when the engine is

running.

• Your lawn mower is equ'Lopedwith an

operator presenca control bar which

requ','es the operator to be posiSoned

behind the lawn mower handle to start and

operate the lawn mower.

TO ADJUST cUTnNG HEIGHT

•All fourwheels are adjusted by a singie

lever.

•Pull adjustar lever toward wheeL To raise

mower, move lever forward to desired

position. To lower mower, move the lever

toward the rear.

Lower Wheels for high cut

Lever_

Raise Wheels for low cut

TO OPERATE DRIVE SYSTEM

• To start forward motion, liftdrive control bar

up to handle.

•To stop forward motion, release drive

controlbar.

IMPORTANT: Always keep drive controlbar

fully engaged against handle when in use.

Drive

Operator presence control bar

control bar\.

To engage_-_ Drivecontrol

drive control desengaged

TO A'I'rACH GRASS CATCHER

•Liftthe rear door of the lawn mower and

place the grass catcher frame hooks intothe

slots ofthe rear door.

• The grass catcher is secured to the lawn

mower housing when the rear door is

lowered onto the grass catcher frame.

CAUTION: Do not runyour lawn mower

without dipping deflector or approved grass

catcher in place. Never attempt to operate the

lawn mower with the rear door removed or

proppedopen. _.//7 Rear door

slots Grass

Catcher frame_'_ "_

hook

TO EMPTY GRASS CATCHER

•Lift up on grass catcher using the frame

handle.

•Remevegra_ catcherwi_ cippingsfrom

Lq_,derlawn mowor handle.

• F-mp frombagu ngbothfr ne

handle and bag handle.

NOTE: Do not drag the bag when emptying;

itwillcause unnecessary wear.

BEFORE STARTING ENGINE

OIL

Your lawn mower is shipped without oilin the

an_rle.

• Be sure mower is ievel and area around oil

fillis dean.

•Remove engine oil cap w/dipstick and fillto

the full line on _%edipstick.

•Use20ozs. of oil. For type and grade of oil

to use, see "ENGINE" in Maintenance

section of this manual.

•Pour oil slowly. Do not overfill.

•Check oil level before each use. Add oilif

needed. Fillto full lineon dipstick.

•To read proper level, tighten engine oilcap

each time.

•Reinstall engine oilcap and tighten.

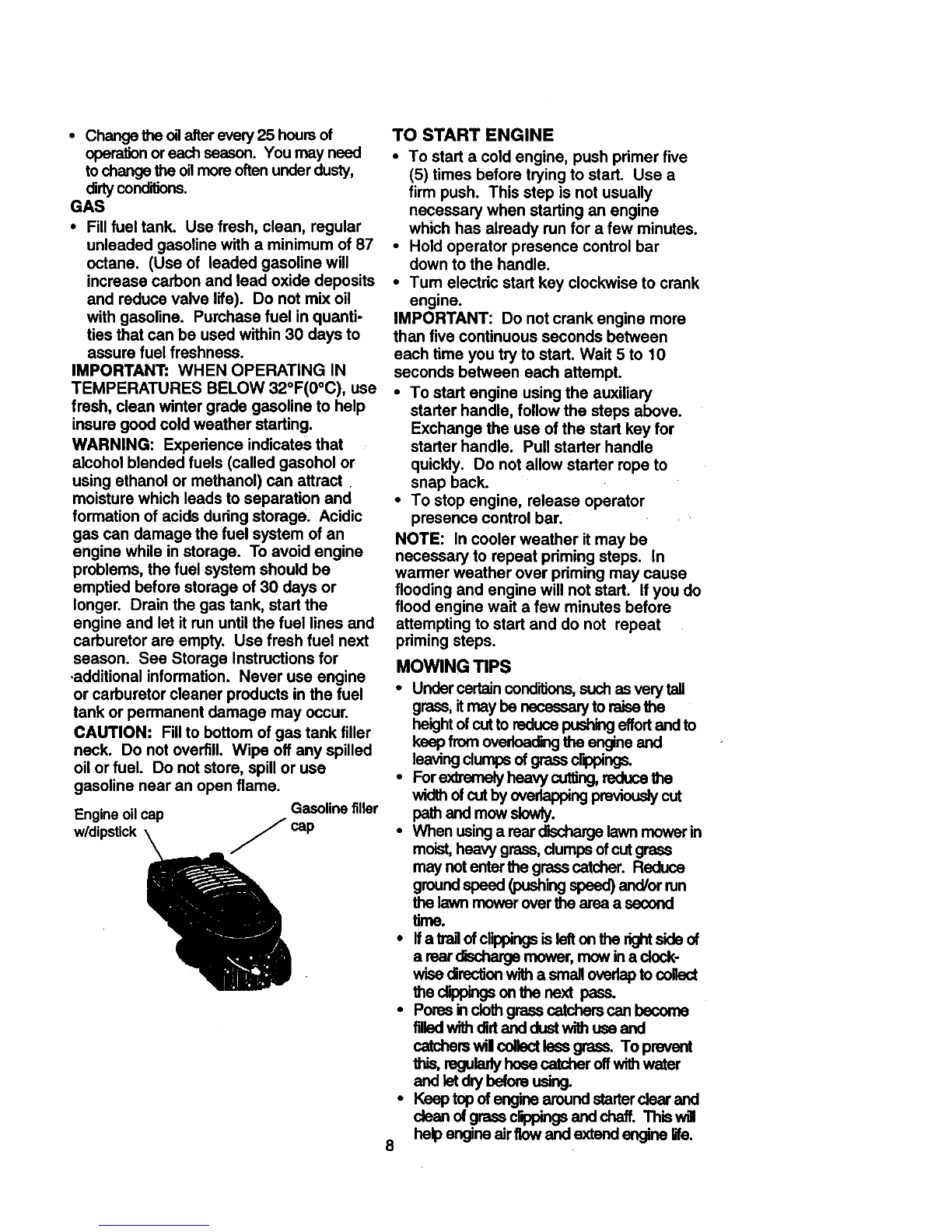

•Change the oil after every 25 hours of

operation or each season. You may need

to change the oilmore often under dusty,

dirtyconditions.

GAS

•Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of 87

octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quanti-

ties that can be used within 30 days to

assure fuel freshness.

IMPORTANT: WHEN OPERATING IN

TEMPERATURES BELOW 32°F(0°C), use

fresh, clean winter grade gasoline to help

insure good cold weather starting.

WARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines and

carburetor are empty. Use fresh fuel next

season. See Storage Instructions for

.additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

CAUTION: Fill to bottom of gas tank filler

neck. Do not overfill. Wipe off any spilled

oil or fuel. Do not store, spill or use

gasoline near an open flame. Gasoline filler

Engine oilcap

w/dipstick Jcap

TO START ENGINE

•To start a cold engine, push primer five

(5) times before trying to start. Use a

firm push. This step is not usually

necessary when starting an engine

which has already run for a few minutes.

•Hold operator presence control bar

down to the handle.

•Turn electric start key clockwise to crank

engine.

IMPORTANT: Do not crank engine more

than five continuous seconds between

each time you try to start. Wait 5 to 10

seconds between each attempt.

•To start engine using the auxiliary

starter handle, follow the steps above.

Exchange the use of the start key for

starter handle. Pull starter handle

quickly. Do not allow starter rope to

snap back.

•To stop engine, release operator

presence control bar.

NOTE: In cooler weather it may be

necessary to repeat priming steps. In

warmer weather over priming may cause

flooding and engine will not start. If you do

flood engine wait a few minutes before

attempting to start and do not repeat

priming steps.

MOWING TIPS

•Undercertainconditions, suchas verytall

grass,it maybe necessaryto raissthe

heightofcuttoreducepushingeffortand to

keep fromoverloading_engineand

leavingdumps ofgrassclippings.

•Forextremelyheavycutting,reducethe

widthofcutby overlappingpreviouslycut

pathand mowslowly.

•When usinga rearolschargelawnmowerin

moist,heavy grass,dumps ofcut grass

may notentarthe grasscatcher. Reduce

groundspeed (pushingspeed)and/orrun

the lawn mower overthe area a second

time.

• Ifa trailofclippingsis leftonthe dghtside of

a rear arBchargemower,mow ina clock-

wisedirectionwitha smallovedaptocollect

theclippingson the next pass.

•Poresinclothgrasscatcharscanbecome

filledwithdirtand dustwithuseand

catcherswil collectlessgrass. Toprevent

this,regularlyhoeacatcheroffwithwatar

and letdrybeforeusing.

•Keeptopof enginearoundstarterclearand

dean ofgrasecrtppingsand cheff. Thiswill

8 helpengineairflowand extendenginelife.

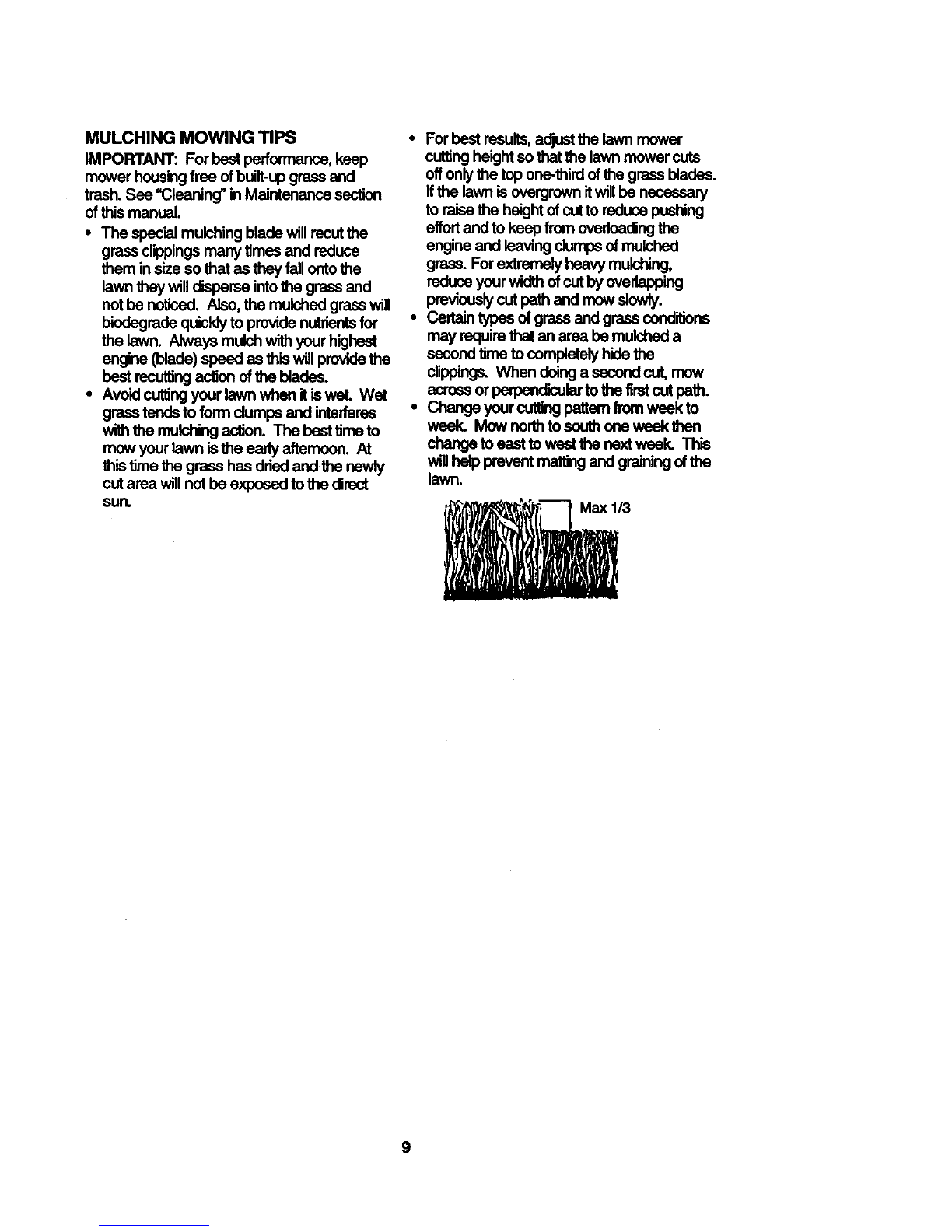

MULCHINGMOWINGTIPS

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. See =Cleaning" in Maintenance section

of this manual.

•The spec'BImulchingbladewillrecutthe

grassclippingsmany timesand reduce

them insize sothatas theyfall ontothe

lawnthey will disperseintothe grassend

notbe noticed. ALso,the mulchedgrasswill

biodegradequicklytoprovidenutrientsfor

the lawn. Alwaysmulchwithyourhighest

engine (blade)speed as thiswillprovidethe

bestrecurringactionofthe blades.

•AvokJcuttJngyourlawnwhen itiswet. Wet

grasstendstoformdumps and interferes

withthe mulchingaction. The besttimeto

mowyourlawnisthe eady afternoon.At

this time the grasshas driedand the newly

cutarea will notbe exposedto the direct

sun.

•For bestresults,adjustthe lawn mower

cuttinghekjhtso thatthe lawnmowercuts

offonlythe topone-thirdofthe grassblades.

Ifthe lawnisovergrownitw,I be necessary

to raisethe heightofcuttoreducepushing

effortand to keepfromoverloadingthe

engineand leavingdumps ofmulched

grass.For extremelyheavymulching,

reduceyourwidthofcutbyoverlapping

previouslycutpathand mowslowly.

•Certaintypesofgrassandgrasscenditions

mayrequirethatan area be mulcheda

secondtime tocompletelyhidethe

clippings.When doinga secondcut,mow

acrossorperpendicularto the firstcutpath.

• ChangeyourcutlJngpatternfromweek to

week. Mow northtosouthone weekthen

changetoeasttowestthe next wask. This

willhelppreventmattingand grainingofthe

lawn.

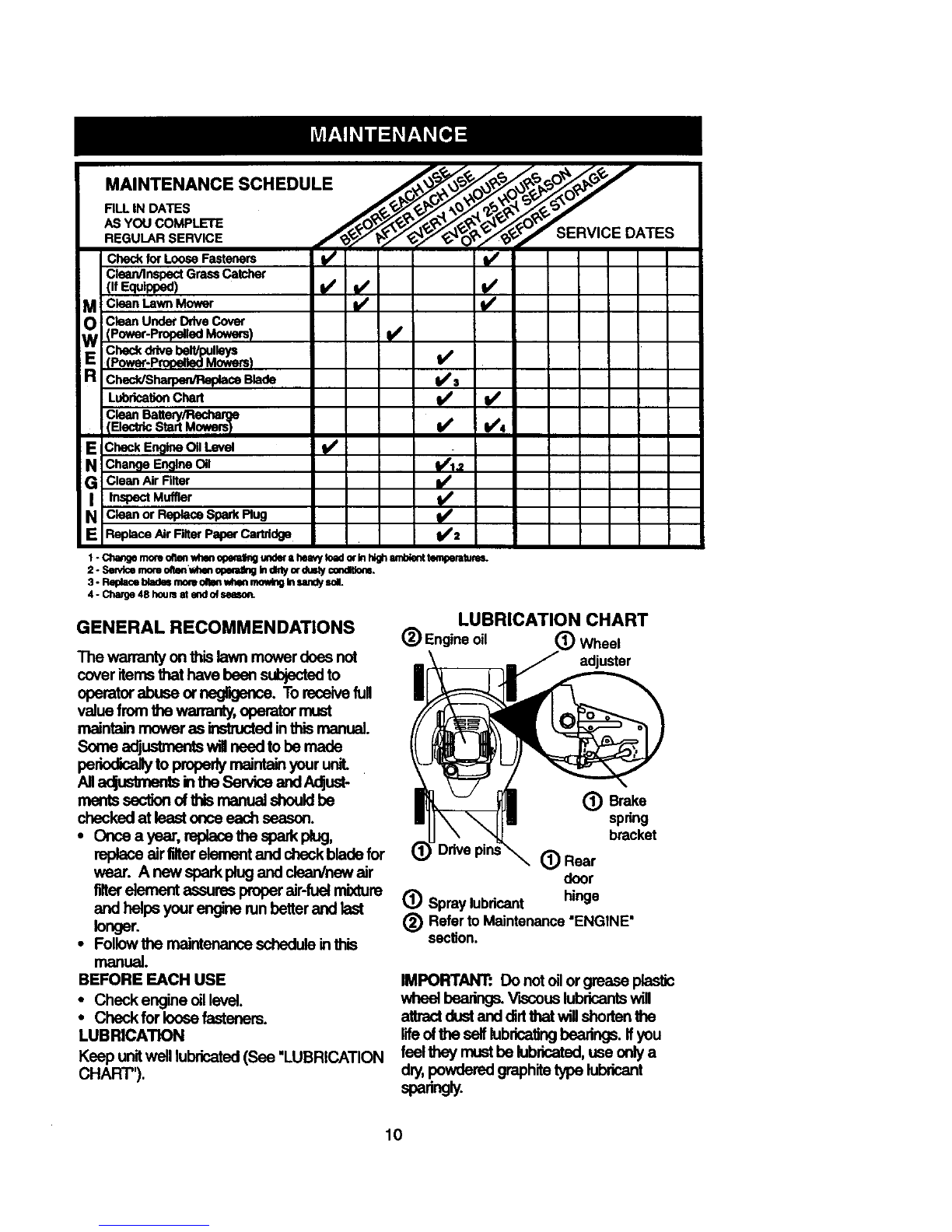

.A,NTENANCESCHEDULE

O_ _ 0 _ 0_

AS YOU COMPLETE ______- _ _ _ _€'x_- _

ir _l,_ -jr -

CheckforLooseFasteners I,/; ll/

Clean4nspectGrassCatcher

_Clean Lawn Mower

Clean Under_tve Cover

W (Power-Propelled Mowers) I/Checkdr_e beN/pulk_/s ._

(Power-Pmpe.ed Mowers)

R chac_s_c8 S_de s

LubricationChart I/

Clean Battep//Rechar!_le

IElectric Start Mowers/ I/ I/4

NEChackEng_O,L_,_ it/

Change EngineOil 1_1.2

GClean Air Filter

Clean or Replace Spark Plug

E ReplaceAirRlterPaperCartridge _=

1 -Q_nge rnom_l_n wl_ q_iling .ndl_ a helvyloadmIn highIlmbl_t le_ermms.

2 - Sen4cemornonenwheno1_ btdhtyor_sly €ondlUo_.

3 - Replaceb_dm moruoltenwhenmowingInsardysol.

4-Charge48 houmat endofseuoJ_

GENERAL RECOMMENDATIONS

The warranty on this lawn mower doas not

cover items that have been subjected to I --

operator abuse or negligence. To receive full II

value from the wananty, operator must /"----

maintain mowerasinstructedinthismanual. //

Some adjustments will need to be made |'H

periodically to properly maintain your unit.

All_ inlheSen4ceaedAdjust-

mentssection of this manual should be I

checked at least once each season. _--_

• Onceayear,replacethespsrkp_,

replaceairlilterelementandcheckbladefor (_

wear.Anewsparkplugandclean/newair

filterelement assures proper elr-fuel mixture

andhelpsyourenginerunbetterandlast

longer.

• Follow the maintenance schedule in this

manual.

BEFORE EACH USE

• Check engine oil level.

•Check for loose fasteners.

LUBRICATION

Keep unitwell lubricated (See "LUBRICATION

CHART").

LUBRICATION CHART

(_) Engine oil _Wheel

adjuster

(_ Brake

spring

bracket

(_) Rear

door

hinge

(_ Spray lubricant

(_ Refer to Maintenance "ENGINE"

section.

IMPORTANT: Do not oilor grease plastic

wheel bearings. VL_couslubricants will

attract dust and dirtthat WIllshoden the

lifeof the serflubricating bearings, ffyou

feel they must be lubricated, use only a

dry,powdered graphite type lubricant

sp_ng_.

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.388510 Manuel utilisateur

Craftsman

Craftsman 917.376451 Manuel utilisateur

Craftsman

Craftsman 917.376541 Manuel utilisateur

Craftsman

Craftsman 917.385143 Manuel utilisateur

Craftsman

Craftsman 25406 Manuel utilisateur

Craftsman

Craftsman 917.371662 Manuel utilisateur

Craftsman

Craftsman 917.388941 Manuel utilisateur

Craftsman

Craftsman 917.387206 Manuel utilisateur

Craftsman

Craftsman 917.275753 Manuel utilisateur

Craftsman

Craftsman 917.274352 Manuel utilisateur

Craftsman

Craftsman 6073308 Manuel utilisateur

Craftsman

Craftsman 917.377891 Manuel utilisateur

Craftsman

Craftsman 917.272265 Manuel utilisateur

Craftsman

Craftsman EZ3 917.38713 Manuel utilisateur

Craftsman

Craftsman 917.271815 Manuel utilisateur

Craftsman

Craftsman 917.379701 Manuel utilisateur

Craftsman

Craftsman 917.254244 Manuel utilisateur

Craftsman

Craftsman 917.374368 Manuel utilisateur

Craftsman

Craftsman 917.259170 Manuel utilisateur

Craftsman

Craftsman 247.2893 Manuel utilisateur

Craftsman

Craftsman 917.27086 Manuel utilisateur

Craftsman

Craftsman EZ3 917.386051 Manuel utilisateur

Craftsman

Craftsman 917.275032 Manuel utilisateur

Craftsman

Craftsman 917.388520 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
