Craftsman 247.2893 Manuel utilisateur

Sears, Roebuck and Co., Hoffman Estates, IL 60179, U.S.A.

Visit our website: www.craftsman.com

CAUTION: Before using

this product, read this

manual and follow all

safety rules and operating

instructions.

Operator’s Manual

REVOLUTION

ZERO TURN RIDING MOWER

Model No. 247.28933

• SAFETY

• ASSEMBLY

• OPERATION

• MAINTENANCE

• PARTS LIST

• ESPAÑOL, p. 58

4/21/2009

FORM NO. 769-04608A

For answers to your questions about this product,

call 1-800-659-5917.

PARTS LIST

Craftsman Revolution Model 247.28933

20 9

PARTS LIST

Craftsman Revolution Model 247.28933

Ref. No. Part No. Description

1. 683-04269-0637 Frame Assembly

2. 710-04377 Screw, Hex Cap Lock, 7/16-20 x 2.75

3. 710-04484 Screw, Hex Wash., 5/16-18 x .75

4. 710-04666 Screw, Hex Flange Hd. , 1/4-20 x .75

5. 710-0599 Screw, Hex Wash., 1/4-20 x .5

6. 710-0642 Screw, Hex Wash., 1/4-20 x .75

7. 710-3005 Screw, Hex Cap, 3/8-16 x 1.25 Gr5

8. 712-0271 Nut, Hex Sems, 1/4-20

9. 712-04064 Nut, Hex Flange Insert Lock, 1/4-20

10. 712-04065 Nut, Hex Flange Insert Lock, 3/8-16

11. 712-3087 Nut, Wing, 1/4-20

12. 917-04526 Clutch, Electric PTO

13. 725-0157 Cable Tie

14. 725-04439 Solenoid, Start

15. 925-1707D Battery

16. 731-05659 Bushing, Steering Shaft

17. 936-0171 Washer, Lock, 7/16

18. 738-04058 Spacer, Shoulder, .38 x 1.0 x .7

19. 738-1132 Screw, Shoulder, .25 x .15:1/4-20

20. 747-04215-0637 Strap, Battery

21. 750-04763 Spacer, 1.37 x 1.00 x .25

22. 756-04354 Pulley, Engine

23. 747-05056 Rod, Belt Keeper

24. 783-04806-0637 Bracket, Pivot Bar

25. 783-04844-0637 Bracket, Pivot Support RH

26. 783-04845-0637 Bracket, Pivot Support LH

27. 783-04868-0637 Bracket, Steering Support

28. 783-04910A-0637 Bracket, Support Fender

29. 783-05469-0637 Bracket, Battery Support

30. 783-05617B-0637 Bracket, Running Board Support - LH

783-06193-0637 Bracket, Running Board Support - RH

31. 783-05760-0637 Bracket, Pivot Bar Support

32. 783-05850-0637 Plate, Seat Frame

33. 710-04484 Screw, Hex Wash., 5/16-18 x .75

PARTS LIST

Craftsman Revolution Model 247.28933

33 16

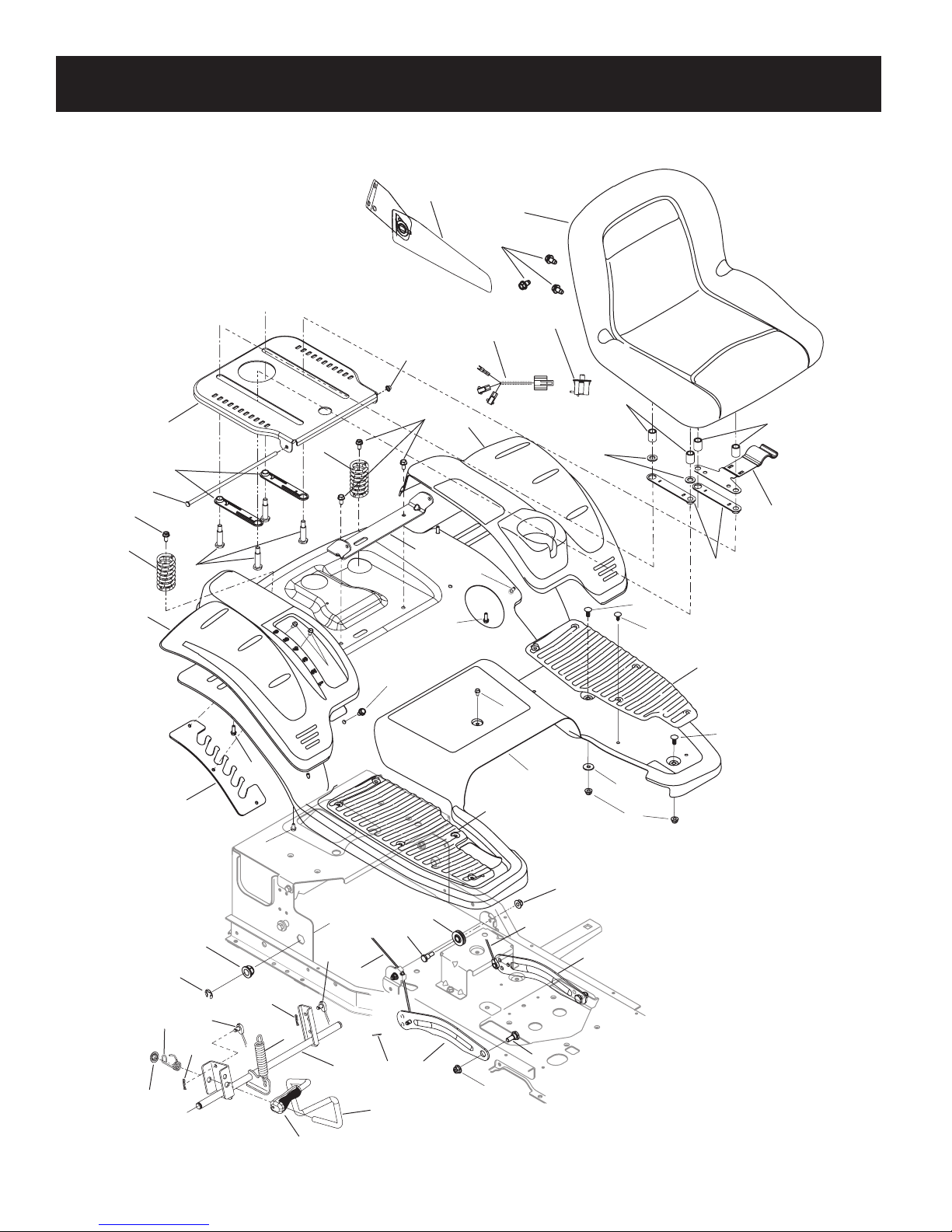

PARTS LIST

Ref. No. Part No. Description

1. 710-0192 Screw, Truss Hd. Mach., 10-24 x .375

2. 710-0599 Screw, Hex Wash, 1/4-20 x .5

3. 710-0604A Screw, Hex Wash, 5/16-18 x .625

4. 710-04484 Screw, Hex Wash, 5/16-18 x .75

5. 710-0642 Screw, Hex Wash, 1/4-20 x .75

6. 710-0895 Screw, Hex Wash, 1/4-15 x .75

7. 710-3217 Screw, Truss Hd. Mach., #8-32 x .375

8. 712-0142 Nut, Hex, 8-32

9. 725-0157 Tie, Cable

10. 925-04022B Meter, Indicator/Service Monitor

11. 925-04174 Switch, PTO

12. 925-04227B Switch, Ingition/Module

13. 925-1745A Key, Ignition, w/ Plastic Cover

925-1744A Key, Ignition, w/o Plastic Cover

14. 720-3025 Plug

15. 925-0963 Bulb, 12V Light

16. 925-1649 Receptacle, Light

17. 726-3046 Clip, Ratchet

18. 731-04213 Lever, Dash Brake

19. 731-05406 Panel, Dash

20. 731-06830 Hood

21. 731-05935 Plenum, Hood

22. 731-05525 Lens, Head Light LH

23. 731-05526 Lens, Head Light RH

24. 731-1857 Knob, Throttle Control

25. 935-0149 Bushing, Fuel Tank

Ref. No. Part No. Description

26. 735-0271A Bumper

27. 735-04076 Net, Storage

28. 936-0463 Washer, Flat, .25 x .63 x .0515

29. 738-04091A Screw, Shoulder, .43 x .29:TT5/16-18

30. 746-04132 Cable, Choke Control

31. 746-1100 Cable, Throttle Control

32. 747-1155 Rod, Brake Lock Pivot

33. 751-10442 Fitting, Fuel Pick Up

34. 751-10692 Tank, Fuel

35. 751-10703 Cap, Fuel Tank

36. 783-04285F-0637 Support, Dash, R.H.

37. 783-04323F-0637 Support, Dash, L.H.

38. 683-04536 Bracket, Hood Pivot

39. 783-04840-0637 Bracket, Hood Pivot RH

40. 783-04841-0637 Bracket, Hood Pivot LH

41. 783-05162-0637 Bracket, Hood Support

42. 777X42426 Label, Reflector

43. 777X42427 Label, Reflector

44. 783-05140-0637 Brkt., Strg. Support, RH

45. 783-04798-0637 Brkt., Strg. Support, LH

46. 783-04799-0637 Brkt., Support, Upper Strg.

47. 725-2003 12V Power Receptacle

— 925-04375A Harness, Main Wire (Includes Fuse)

— 925-1381 Fuse, 20 Amp

— 937-04050 Grease Gun Kit

Craftsman Revolution Model 247.28933

PARTS LIST

Craftsman Revolution Model 247.28933

140

20 23

PARTS LIST

Ref. No. Part No. Description

1. 647-04095A-0637 Shaft, Lift

2. 710-04187 Screw, Hex Wash Hd. H/L, 1/4-15 x .5

3. 710-04484 Screw, Hd. Tapp, 5/16-18 x .75

4. 710-0451 Screw, Carriage, 5/16-18 x 75

5. 710-0599 Screw, Hd. Tapp, 1/4-20 x .5

6. 710-1260A Screw, Hd. Tapp, 5/16-18 x .75

7. 710-0895 Screw, Hd. Tapp, 1/4-15 x .75

8. 712-04063 Nut, Hex Flange Insert Lock, 5/16-18

9. 712-04065 Nut, Hex Flange Insert Lock, 3/8-16

10. 914-0104 Pin, Internal Cotter

11. 914-0111 Pin, Cotter, 3/32 x 1.0

12. 716-0106A E-ring, .625 Shaft

13. 720-0311 Grip, Handle

14. 726-0135 Nut, Speed, .3125 Dia.

15. 726-0221 Nut, Speed, .5

16. 726-3046 Clip, Ratchet

17. 731-06836 Cover, Rear Fender RH

18. 731-06835 Cover, Rear Fender LH

19. 731-06208 Spacer, Seat Adjust

20. 732-04459 Spring, Lift Handle Torsion

21. 732-04491 Spring, Seat Adjust

22. 732-04508 Spring, Compress., 1.71 x 3.25 x .23

23. 732-0826A Spring, Extension, .865 x 4.68

24. 735-04078A Pad, Foot RH

Ref. No. Part No. Description

25. 735-04109 Pad, Foot LH

26. 936-0192 Washer, Flat, .535 x .93 x .09

27. 736-3078 Washer, Flat, .344 x 1.0 x .063 HT

28. 738-0138A Bolt, Shoulder, .496 x 2.5:3/8-16

29. 938-0373 Bolt, Shoulder, .496 x 1.525:3/8-16

30. 738-04130 Bolt, Shoulder, .625 x .175:3/8-16

31. 941-0225 Bearing, Hex Flange,

32. 946-04546 Cable, Lift, 16.64 Lg

33. 946-04436 Cable, Lift, 16.64 Lg

34. 747-04701 Handle, Lift

35. 747-04821 Rod, Seat, 5/16 x 11.62

36. 750-04945 Spacer, .51 x .75 x 1.0

37. 756-04331 Pulley, Roller

38. 757-04104 Seat, High Back

39. 783-04977A-0637 Plate, Deck Lift Index

40. 783-04494B-0637 Arm, Deck Lift RH

41. 783-04711B-0637 Arm, Deck Lift LH

42. 783-05816-0637 Bracket, Seat Pivot

43. 783-05817-0637 Plate, Seat Mounting

44. 783-05865A-0637 Fender, Rear

45. 925-04040 Switch, Seat

46. 725-04658 Harness, Seat Switch Jumper

47. 757-04040 Arm Rest, Seat

Craftsman Revolution Model 247.28933

PARTS LIST

Craftsman Revolution Model 247.28933

31 35

24 29 21

60 33

26 67

51 35

2865

16 49

35 10

PARTS LIST

Craftsman Revolution Model 247.28933

Ref. No. Part No. Description

1. 918-04414 Steering Assembly, Synchro

2. 631-04331 Wheel Assembly, Steering

3. 634-04415 Wheel Assembly, 15 x 5 x 6

734-04347-0901 Tire, 15 x 5 x 6

634-04104 Rim Assembly

737-0224 Grease Fitting

941-04137 Bearing

934-0255 Valve, Tubeless Air

4. 683-04439 Axle Assembly, RH

5. 683-04440 Axle Assembly, LH

6. 647-04080A-0637 Rod, Fender Support

7. 683-04285-0637 Link, Steering, IVT

8. 710-04006 Screw, Hex Wash, 5/16-18 x 2.0

9. 710-04187 Screw, Hex Wash, Hi/Lo, 1/4-15 x .5

10. 710-04389 Screw, Hex Wash, 5/16-18 x 2.25

11. 710-04484 Screw, Hex Wash, 5/16-18 x .75

12. 710-04692 Screw, Hex Cap, 3/8-16 x 7.25 Gr5

13. 710-0513 Screw, Hex Cap Lock, 1/4-28 x .625

14. 710-0520 Screw, Hex Cap, 3/8-16 x 1.5 Gr5

15. 710-0528 Screw, Hex Cap, 5/16-18 x 1.25 Gr5

16. 710-0597 Screw, Hex Cap, 1/4-20 x 1.00

17. 710-0599 Screw, Hex Wash, 1/4-20 x .5

18. 710-0642 Screw, Hex Wash, 1/4-20 x .75

19. 710-0650 Screw, Hex Wash, 5/16-18 x .875

20. 710-3015 Screw, Hex Cap, 1/4-20 x .75 Gr5

21. 710-3119 Screw, Hex Cap Lock, 3/8-16 x .75

22. 710-3144 Screw, Hex Cap, 3/8-16 x 2.0 Gr5

23. 710-3296 Screw, Hex Cap Lock, 1/4-20 x .75

24. 711- 04472 Link, Drag

25. 711-04562 Shaft, Steering Pivot Gear

26. 711-04722 Pin, Clevis, .375 x .969 HT

27. 712-0312A Nut, Jam, 3/8-24 LH Thrd

28. 741-04280 Brg., Ball

29. 712-0375 Nut, Hex Lock, 3/8-16

30. 712-04063 Nut, Hex Insert Flange Lock, 5/16-18

31. 712-04064 Nut, Hex Insert Flange Lock, 1/4-20

32. 712-04065 Nut, Hex Insert Flange Lock, 3/16-16

33. 912-3001 Nut, Hex Jam, 3/8-24 Gr2

34. 913-04037 Link, Connecting

35. 914-0104 Pin, Internal Cotter

36. 714-04039 Pin, Cotter, 5/32 x 1.25

Ref. No. Part No. Description

37. 717-04274A Gear, Spur, 12T

38. 717-04275A Gear, Spur, RH 13T

39. 717-04282A Gear, Spur, LH 13T

40. 719-04170A Axle, Pivot Bar

41. 719-04287-0637 Arm, Steering, LH

42. 719-04288-0637 Arm, Steering, RH

43. 723-04035 End, Ball Joint Rod

44. 723-04036 End, Ball Joint Rod, LH Thrd.

45. 738-1011A Bolt, Shoulder, .5 x 2.23:3/8-16

46. 731-05476 Cover, Steering Gear, RH

47. 731-05618 Cover, Steering Gear, LH

48. 731-06825 Cap, Steering Wheel

49. 936-0185 Washer, Flat, .375 x .738.063

50. 736-0270 Washer, Bell, .265 x .75 x .062

51. 936-0300 Washer, Flat, .406 x .875 x .059

52. 736-0315 Washer, Flat, .76 x 1.5 x .12

53. 936-0452 Washer, Bell, .396 x 1.14 x .095

54. 736-0866 Washer, Flat, .755 x 1.92 x .060

55. 936-3004 Washer, Flat, .406 x .875 x .105

56. 736-3052 Washer, Flat, .406 x 1.0 x .105

57. 931-3020 Hub Cap

58. 937-3000 Fitting, Grease

59. 738-04189 Shaft, Steering, .625 x 17.281

60. 738-04240 Nut, Shoulder, .375 x .5

61. 747-04496 Rod, 3/8-24 x 14.4 Lg

62. 748-04139 Block, Steering Shaft

63. 750-04676 Spacer, .385 x .63 x .75

64. 750-04776 Spacer, .380 x .625 x .265

65. 736-04299 Washer, Flat, .281 x .50 x .04

66. 750-04855 Spacer, .385 x .75 x 3.47

67. 783-04798-0637 Bracket, Steering Support, LH

68. 783-04799-0637 Bracket, Steering Support, Upper

69. 783-05140-0637 Bracket, Steering Support, RH

70. 783-05184-0637 Plate, Base Cover, RH

71. 783-05185-0637 Plate, Base Cover, LH

72. 783-05956 Link, Cont., IVT

73. 783-05957 Bracket, IVT/Steering Adjustment

74. 783-05706 Bracket, Support Arm

75 710-04040 Scr, Shldr., .497 x .750

76 712-0376 Nut, 3/8-16

PARTS LIST

Craftsman Revolution Model 247.28933

877

52 30

43 11

18 8

655

87 69

32 29

23 87

41 5

65 21

30 30

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.37775 Manuel utilisateur

Craftsman

Craftsman 917.374540 Manuel utilisateur

Craftsman

Craftsman 28790 - 26 HP 50 in. Zero Turn Tractor Mower Manuel utilisateur

Craftsman

Craftsman 27710 Manuel utilisateur

Craftsman

Craftsman 536.270340 Manuel utilisateur

Craftsman

Craftsman 917.376483 Manuel utilisateur

Craftsman

Craftsman 917.388480 Manuel utilisateur

Craftsman

Craftsman 917.254520 Manuel utilisateur

Craftsman

Craftsman 917.370882 Manuel utilisateur

Craftsman

Craftsman 917.387670 Manuel utilisateur

Craftsman

Craftsman 917.371640 Manuel utilisateur

Craftsman

Craftsman 917.370604 Manuel utilisateur

Craftsman

Craftsman 247.377051 Manuel utilisateur

Craftsman

Craftsman 917.377541 Manuel utilisateur

Craftsman

Craftsman 917.372290 Manuel utilisateur

Craftsman

Craftsman EZ3 917.273070 Manuel utilisateur

Craftsman

Craftsman 917.377801 Manuel utilisateur

Craftsman

Craftsman 25326 Manuel utilisateur

Craftsman

Craftsman 917.376461 Manuel utilisateur

Craftsman

Craftsman 28974 - Professional PGT 9000 28 HP/54" Garden... Manuel utilisateur

Craftsman

Craftsman PRO Turn Tight 247.204420 Manuel utilisateur

Craftsman

Craftsman 27740 Manuel utilisateur

Craftsman

Craftsman 917.388621 Manuel utilisateur

Craftsman

Craftsman 917.270654 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
