Craftsman 917.377880 Manuel utilisateur

Owner's Manual

CRAFTIMBN°

6.5 HORSEPOWER

21" MULTI-CUT

POWER PROPELLED

ROTARY LAWN MOWE_R

Model No.

917.377880

•Safety

•Assembly

•Operation

•Maintenance

•Espafiol

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Visit our Craftsman website: www.sears.com/craftsman

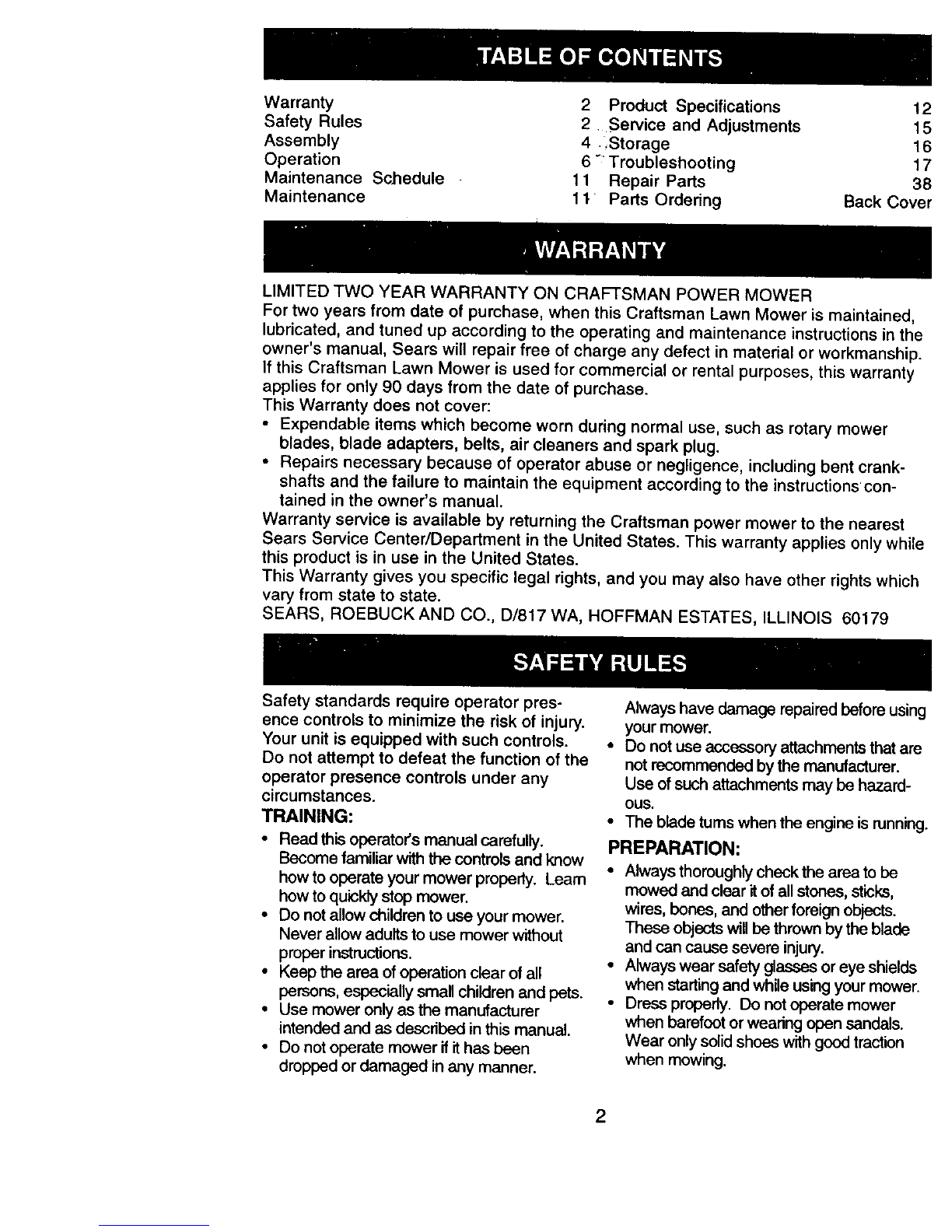

Warranty

Safety Rules

Assembly

Operation

Maintenance Schedule

Maintenance

2 Product Specifications 12

2 Service and Adjustments 15

4 ..Storage 16

6 " Troubleshooting 17

11 Repair Parts 38

lt Parts Ordering Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in the

owner's manual, Sears will repair free of charge any defect in material or workmanship.

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

This Warranty does not cover:

•Expendable items which become worn during normal use, such as rotary mower

blades, blade adapters, belts, air cleaners and spark plug.

• Repairs necessary because of operator abuse or negligence, including bent crank-

shafts and the failure to maintain the equipment according to the instructions con-

tained in the owner's manual.

Warranty service is available by returning the Craftsman power mower to the nearest

Sears Service Center/Department in the United States. This warranty applies only while

this product is in use in the United States.

This Warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179

Safety standards require operator pres-

ence controls to minimize the risk of injury.

Your unit is equipped with such controls.

Do not attempt to defeat the function of the

operator presence controls under any

circumstances.

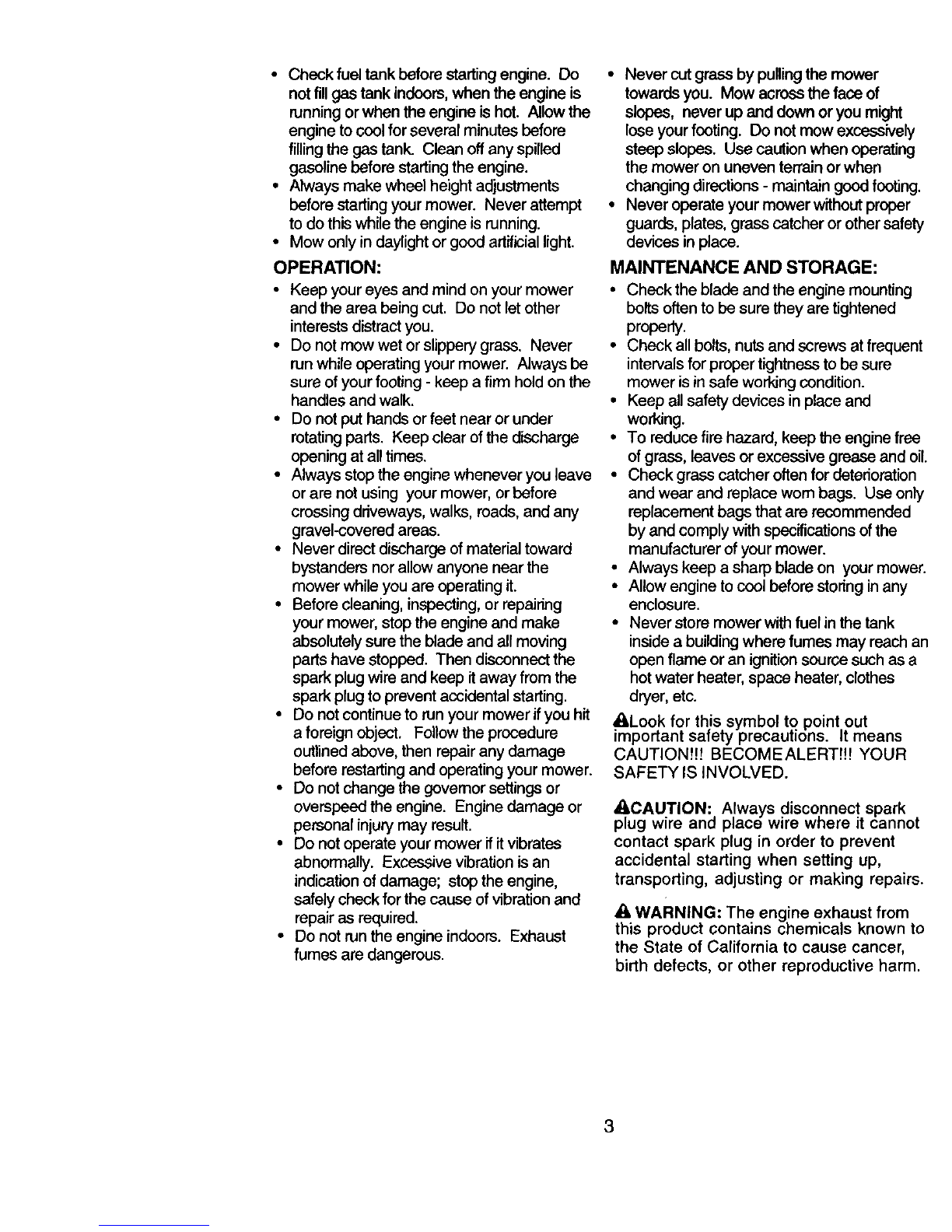

TRAINING:

• Read this operator's manual carefully.

Become familiar with the controls and know

how to operate your mower properly. Learn

how to quickly stop mower.

•Do not allow children to use your mower.

Never allow adults to use mower without

proper instructions.

• Keep the area of operation clear of all

persons, especially small children and pets.

• Use mower only as the manufacturer

intended and as described in this manual.

• Do not operate mower if it has been

dropped or damaged in any manner.

Always have damage repaired before using

your mower.

•Do not use accessory attachments that are

not recommended by the manufacturer.

Use of such attachments may be hazard-

ous.

•The blade turns when the engine is running.

PREPARATION:

•Always thoroughly check the area tobe

mowed and clear it of all stones, sticks,

wires, bones, and other foreign objects.

These objects willbe thrown by the blade

and can cause severe injury.

• Always wear safety glasses or eye shields

when starting and while using your mower.

•Dress properly. Do not operate mower

when barefoot or wearing open sandals.

Wear only solid shoes with good traction

when mowing.

•Check fuel tank before starting engine. Do

not fill gas tank indoors, when the engine is

running or when the engine is hot. Allow the

engine to cool for several minutes before

filling the gas tank. Clean off any spilled

gasoline before starting the engine.

•Always make wheel height adjustments

before starting your mower. Never attempt

to do this while the engine is running.

• Mow only in daylight or good artificial light.

OPERATION:

•Keep your eyes and mind on your mower

and the area being cut. Do not let other

interests distract you.

• Do not mow wet or slippery grass. Never

run while operating your mower. Always be

sure of your footing - keep a firm hold on the

handles and walk.

• Do not put hands or feet near or under

rotating parts. Keep clear of the discharge

opening at all times.

•Always stop the engine whenever you leave

orare not using your mower, or before

crossing driveways, walks, roads, and any

gravel-covered areas.

• Never direct discharge of material toward

bystanders nor allow anyone near the

mower while you are operating it.

• Before cleaning, inspecting, or repairing

your mower, stop the engine and make

absolutely sure the blade and all moving

parts have stopped. Then disconnect the

spark plug wire and keep if away from the

spark plug to prevent accidental starting.

• Do not continue to run your mower if you hit

a foreign object. Follow the procedure

outlined above, then repair any damage

before restarting and operating your mower.

• Do not change the gevemor settings or

overspeed the engine. Engine damage or

personal injury may result.

• Do not operate your mower if if vibrates

abnormally. Excessive vibration is an

indication of damage; stop the engine,

safely check for the cause of vibration and

repair as required.

• Do not run the engine indoors. Exhaust

fumes are dangerous.

• Never cut grass by pulling the mower

towards you. Mow across the face of

slopes, never up and down or you might

lose your footing. Do not mow excessively

steep slopes. Usa caution when operating

the mower on uneven terrain or when

changing directions - maintain good footing.

• Never operate your mower without proper

guards, plates, grass catcher or other safety

devices in place.

MAINTENANCE AND STORAGE:

• Check the blade and the engine mounting

belts often to be sure they are tightened

properly.

• Check all bolts, nuts and screws at frequent

intervals for proper tightness to be sure

mower is in safe working condition.

• Keep all safety devices in place and

working.

• To reduce fire hazard, keep the engine free

of grass, leaves or excessive grease and oil.

• Check grass catcher often for deterioration

and wear and replace wom bags. Usa only

replacement bags that are recommended

by and comply with specifications of the

manufacturer of your mower.

•Always keep a sharp blade on your mower.

• Allow engine to cool before storing in any

enclosure.

• Never store mower with fuel in the tank

inside a building where fumes may reach an

open flame or an ignition source such as a

hot water heater, space heater, clothes

dryer, etc.

_,Look for this symbol to point out

important safety precautions. It means

CAUTIONf!! BECOMEALERT!!f YOUR

SAFETY IS iNVOLVED.

A, CAUTION: Always disconnect spark

plug wire and place wire wnere it cannot

contact spark plug in order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs.

_1,WARNING: The engine exhaust from

this product contains chemicals known to

the State of California to cause cancer,

birth defects, or other reproductive harm.

_=when this produced.

shipped with your mower. They are also avaik='_bteat most Sears retail outlats and service

centers. Most Sears stores can also order repair parts for you, when you provide the model

number of your lawn mower. Some of these accessories may not app{y to your lawn mower.

LAWN MOWER PERFORMANCE

CLIPPING DEFLECTOR I --

FOR REAR DISCHARGE LAWN MOWERS MULCHER KITS STARIUZER

%osscs ccFO o

REAR DISCHARGE SIDE DISCHARGE

LAWN MOWERS LAWN MOWERS

GAS CANS

LAWN MOWER MAINTENANCE

MUFFLERS AIR FILTERS SPARK PLUGS

BELTS BLADES BLADE ADAPTERS WHEELS ENGINE OIL

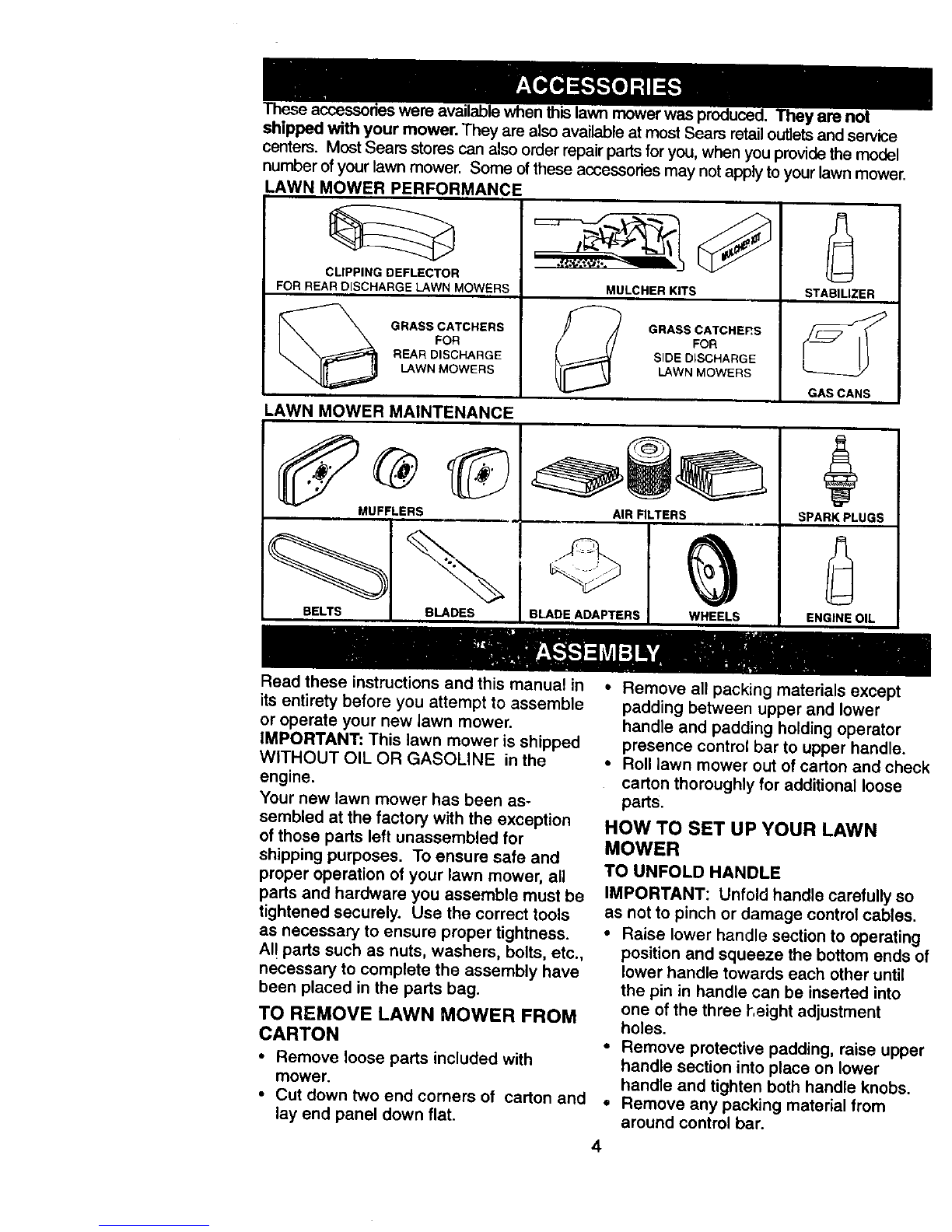

Read these instructions and this manual in

its entirety before you attempt to assemble

or operate your new lawn mower.

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the

engine.

Your new lawn mower has been as-

sembled at the factory with the exception

of those parts left unassembled for

shipping purposes. To ensure safe and

proper operation of your lawn mower, all

parts and hardware you assemble must be

tightened securely. Use the correct tools

as necessary to ensure proper tightness.

At! parts such as nuts, washers, bolts, etc.,

necessary to complete the assembly have

been placed in the parts bag.

TO REMOVE LAWN MOWER FROM

CARTON

•Remove loose parts included with

mower.

•Cut down two end corners of carton and

lay end panel down flat.

•Remove all packing materials except

padding between upper and lower

handle and padding holding operator

presence control bar to upper handle.

• Roll lawn mower out of carton and checl

carton thoroughly for additional loose

pads.

HOW TO SET UP YOUR LAWN

MOWER

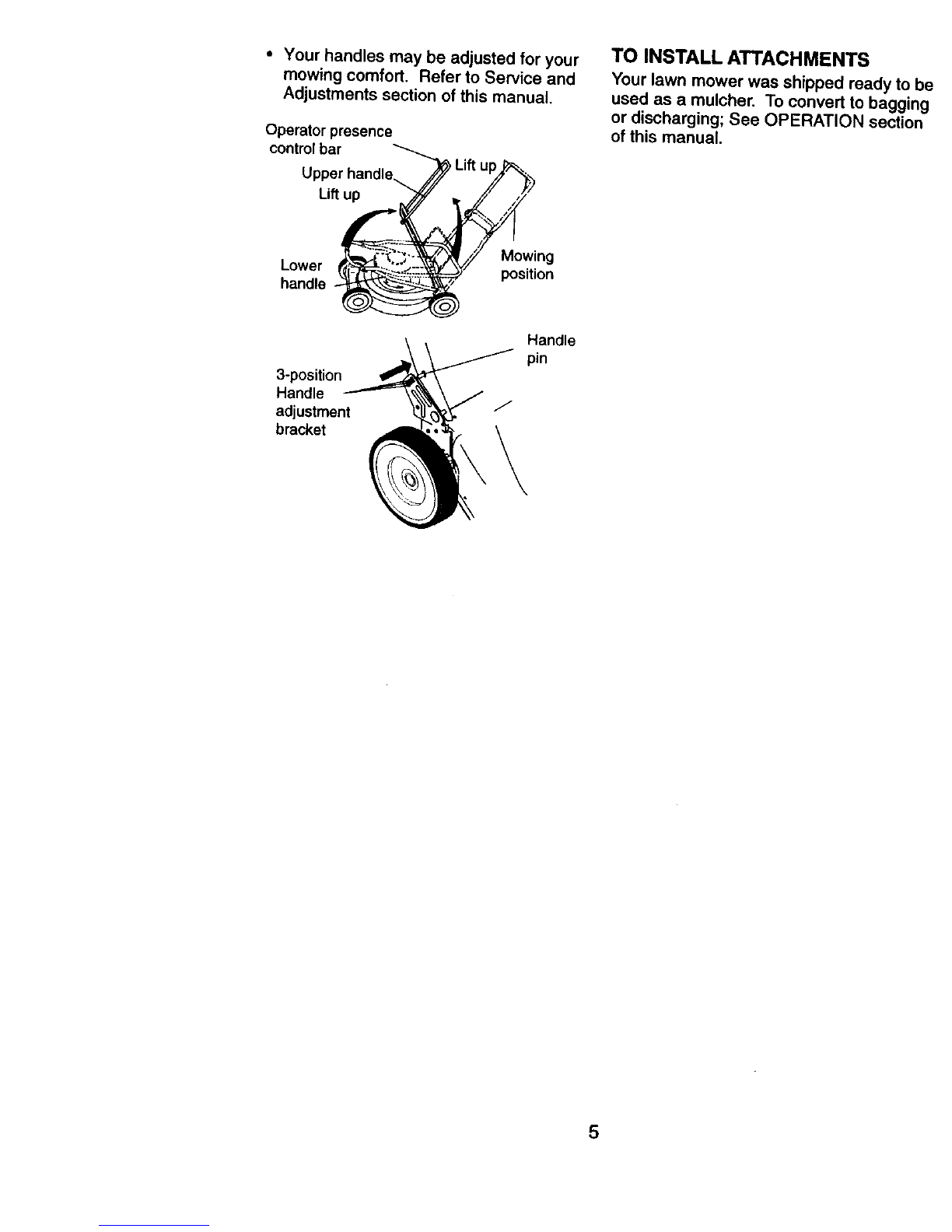

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage control cables.

•Raise lower handle section to operating

position and squeeze the bottom ends c

lower handle towards each other until

the pin in handte can be inserted into

one of the three height adjustment

holes.

• Remove protective padding, raise upper

handle section into place on lower

handle and tighten both handle knobs.

•Remove any packing material from

around control bar.

•Your handles may be adjusted for your

mowing comfort. Refer to Service and

Adjustments section of this manual.

Operator presence

controlbar

Upper handle\

Lift up

TO INSTALL ATTACHMENTS

Your lawn mower was shipped ready to be

used as a mulcher. To convert to bagging

or discharging; See OPERATION section

of this manual.

Lower Mowing

handle position

3-position

Handle

adjustment

bracket

Handle

KNOW YOUR LAWN MOWER

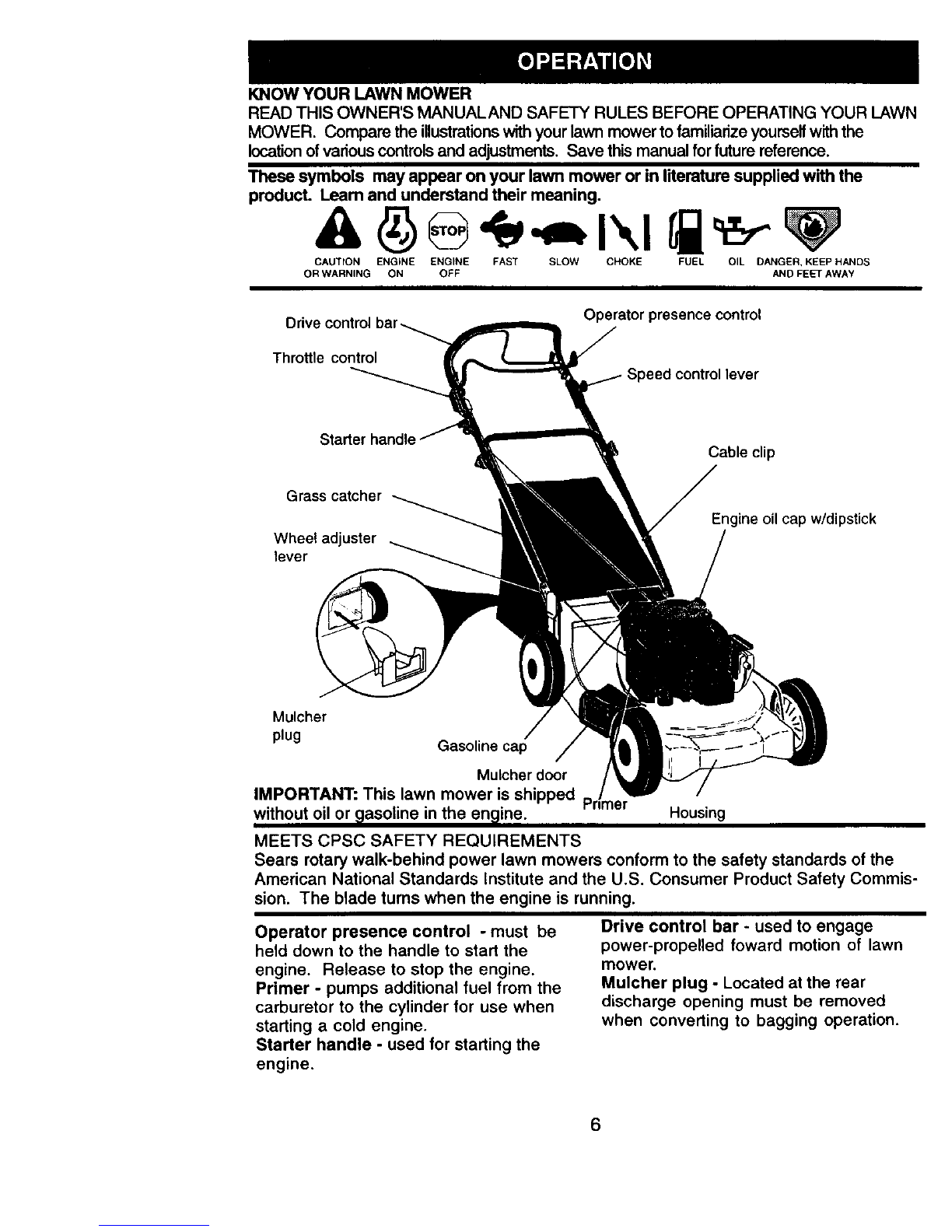

READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR LAWN

MOWER, Compare the illustrationswith your lawn mower to familiarize yourself with the

location of various controls and adjustments. Save this manual for future reference.

These symbols may appear on your lawn mower or in literature supplied with the

product. Learn and understand their meaning.

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS

OR WARNING ON OFF AND FEET AWAY

Drivl

Throttle control

Operator presence control

Starter handle Cable clip

Grass catcher _.

Wheel adjuster

lever

Engine oilcap w/dipstick

Mulcher

plug Gasoline cap

Mulcher door

IMPORTANT: This lawn mower is shipped Primer

without oil or _lasoline in the en_line. Housing

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the

American National Standards Institute and the U.S. Consumer Product Safety Commis-

sion. The blade turns when the engine is running.

Operator presence control -must be

held down to the handle to start the

engine. Release to stop the engine.

Primer -pumps additional fuel from the

carburetor to the cylinder for use when

starting a cold engine.

Starter handle -used for starting the

engine.

Drive control bar -used to engage

power-propelled foward motion of lawn

mower.

Mulcher plug - Located at the rear

discharge opening must be removed

when converting to bagging operation.

The operation of any lawn mower

can result in foreign objects thrown

into the eyes, which can result in

severe eye damage. Always wear safety

glasses or eye sh_ds while operating your

lawn mower or performing any adjustments

or repairs. We recommend a wide vision

safety mask over spectacles or standard

safety glasses.

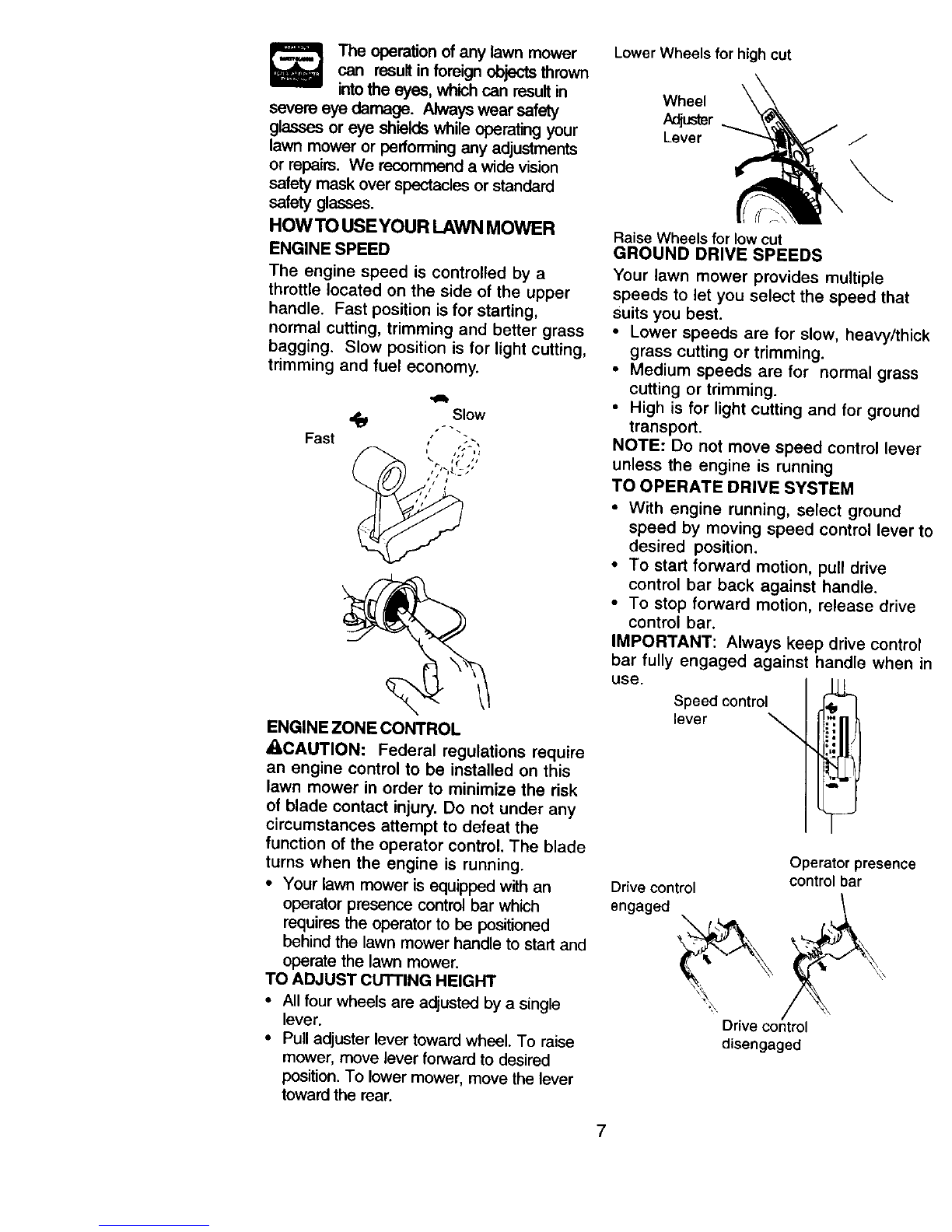

HOWTO USEYOUR LAWN MOWER

ENGINE SPEED

The engine speed is controlled by a

throttle located on the side of the upper

handle. Fast position is for starting,

normal cutting, trimming and better grass

bagging. Slow position is for light cutting,

trimming and fuel economy.

ENGINE ZONE CONTROL

_CAUTION: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the risk

of blade contact injury. Do not under any

circumstances attempt to defeat the

function of the operator control. The blade

turns when the engine is running.

•Your lawn mower is equipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start and

operate the lawn mower.

TO ADJUST CUTTING HEIGHT

• All four wheels are adjusted by a single

lever.

• Pull adjuster lever toward wheel. To raise

mower, move lever forward to desired

position. To lower mower, move the lever

toward the rear.

Lower Wheels for high cut

Wheel \

A_uster

Lever J

Raise Wheels for low cut

GROUND DRIVE SPEEDS

Your lawn mower provides multiple

speeds to let you select the speed that

Suits you best.

•Lower speeds are for slow, heavy/thic

grass cutting or trimming.

•Medium speeds are for normal grass

cutting or trimming.

• High is for light cutting and for ground

transport.

NOTE: Do not move speed control level

unless the engine is running

TO OPERATE DRIVE SYSTEM

• With engine running, select ground

speed by moving speed control lever

desired position.

• To start forward motion, pull drive

control bar back against handle.

• To stop forward motion, release drive

control bar.

IMPORTANT: Always keep drive control

bar fully engaged against handle when

use. I

Speed control

lever

Drive control

engaged

Drive control

disengaged

Operator presence

control bar

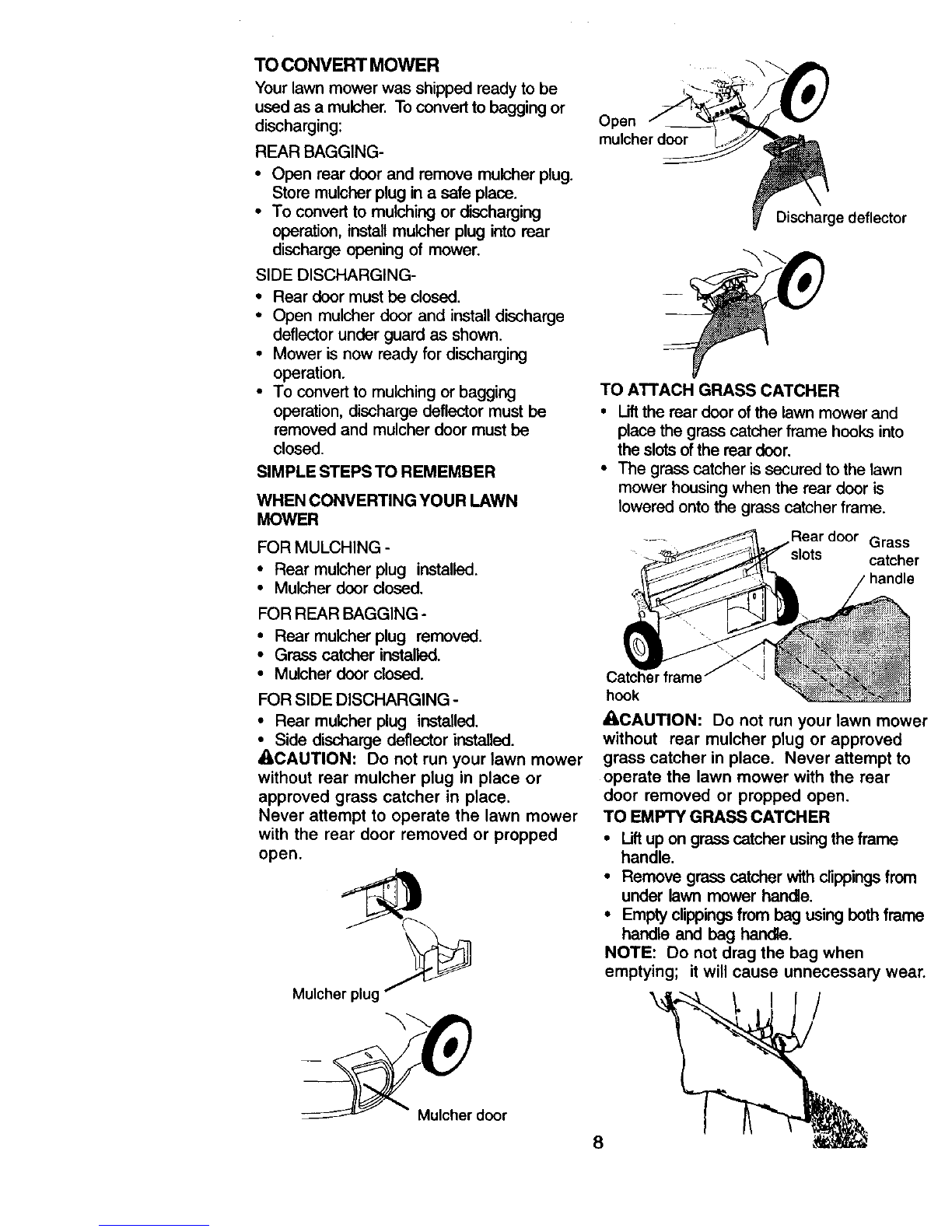

TO CONVERT MOWER

Yourlawnmowerwas shippedreadyto be

used as a mulcher. Toconvert to bagging or

discharging:

REAR BAGGING-

.Open rear door and remove mulcher plug.

Store mulcher plug in a safe place.

•To convert to _ing or discharging

operation, install mulcher plug into rear

discharge opening of mower.

SIDE DISCHARGING-

.Rear door must be closed.

• Open mulcher door and install discharge

deflector under guard as shown.

• Mower is now ready for discharging

operation.

•To convert to mulching or bagging

operation, discharge deflector must be

removed and mulcher door must be

closed.

SIMPLE STEPS TO REMEMBER

WHEN CONVERTING YOUR LAWN

MOWER

FOR MULCHING -

• Rear mulcher plug installed.

• Mulcher door closed.

FOR REAR BAGGING -

•Rear mulcher plug removed.

•Grass catcher installed.

• Mulcher door closed.

FOR SIDE DISCHARGING -

• Rear mulcher plug installed.

• Side discharge deflector installed.

_CAUTION: Do not run your lawn mower

without rear mulcher plug in place or

approved grass catcher in place.

Never attempt to operate the lawn mower

with the rear door removed or propped

open.

Muncher plug

Mulcher door

Open

mulcher door

Discharge deflector

TO ATTACH GRASS CATCHER

•Liftthe rear door of the lawn mower and

place the grass catcher frame hooks into

the slots of the rear door.

•The grass catcher is secured to the lawn

mower housing when the rear door is

lowered onto the grass catcher frame.

Rear door Grass

catcher

hook

ACAUTION: Do not run your lawn mow_

without rear mulcher plug or approved

grass catcher in place. Never attempt to

operate the lawn mower with the rear

door removed or propped open.

TO EMPTY GRASS CATCHER

•Lift up on grass catcher usingthe frame

handle.

• Remove grass catcher with clippings from

under lawn mower handle.

• Empty clippings from bag using beth frarnq

handle and bag handle.

NOTE: Do not drag the bag when

emptying; it will cause unnecessary wea

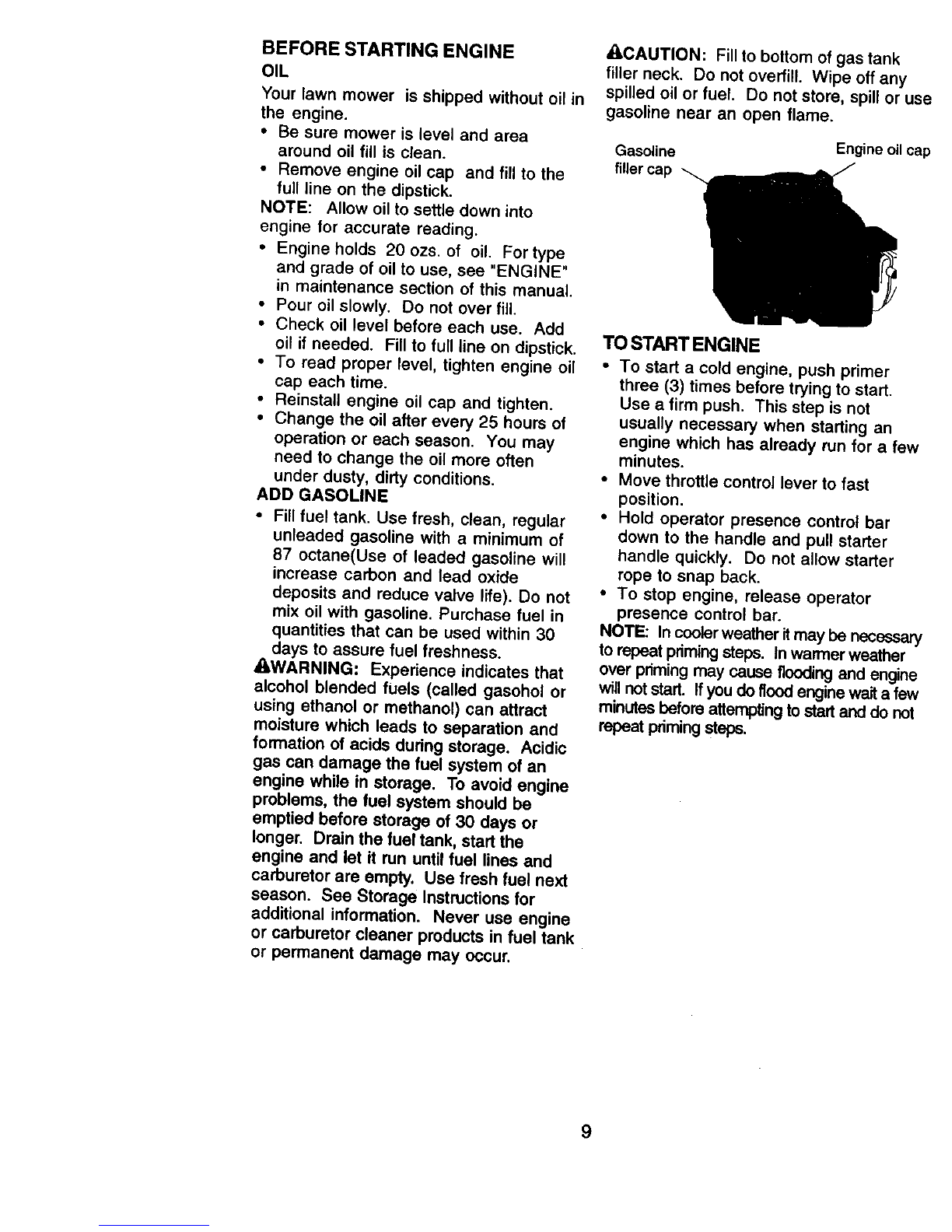

BEFORE STARTING ENGINE

OIL

Your lawn mower is shipped without oil in

the engine.

• Be sure mower is level and area

around oil fill is clean.

• Remove engine oil cap and fill to the

full line on the dipstick.

NOTE: Allow oil to settle down into

engine for accurate reading.

• Engine holds 20 ozs. of oil. For type

and grade of oil to use, see "ENGINE"

in maintenance section of this manual.

• Pour oil slowly. Do not over fill.

• Check oil level before each use. Add

oil if needed. Fill to full line on dipstick.

• To read proper level, tighten engine oil

cap each time.

• Reinstall engine oil cap and tighten.

• Change the oil after every 25 hours of

operation or each season. You may

need to change the oil more often

under dusty, dirty conditions.

ADD GASOLINE

•Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane(Use of leaded gasoline will

increase carbon and lead oxide

deposits and reduce valve life). Do not

mix oil with gasoline. Purchase fuel in

quantities that can be used within 30

days to assure fuel freshness.

_WARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the fuel tank, start the

engine and let it run until fuel lines and

carburetor are empty. Use fresh fuel next

season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in fuel tank

or permanent damage may occur.

_I,CAUTION: Fillto bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or u,_

gasoline near an open flame.

Gasoline

filler cap

Engine oilc_

TO START ENGINE

•To start a cold engine, push primer

three (3) times before trying to start.

Use a firm push. This step is not

usually necessary when starting an

engine which has already run for a few

minutes.

• Move throttle control lever to fast

position.

• Hold operator presence control bar

down to the handle and pull starter

handle quickly. Do not allow starter

rope to snap back.

• To stop engine, release operator

presence control bar.

NOTE: In cooler weather it may be necessaq

to repeat priming steps. In warmer weather

over priming may cause flooding and engine

will not start. If you do flood engine wait a fen

minutes before attempting to start and do not

repeat priming steps.

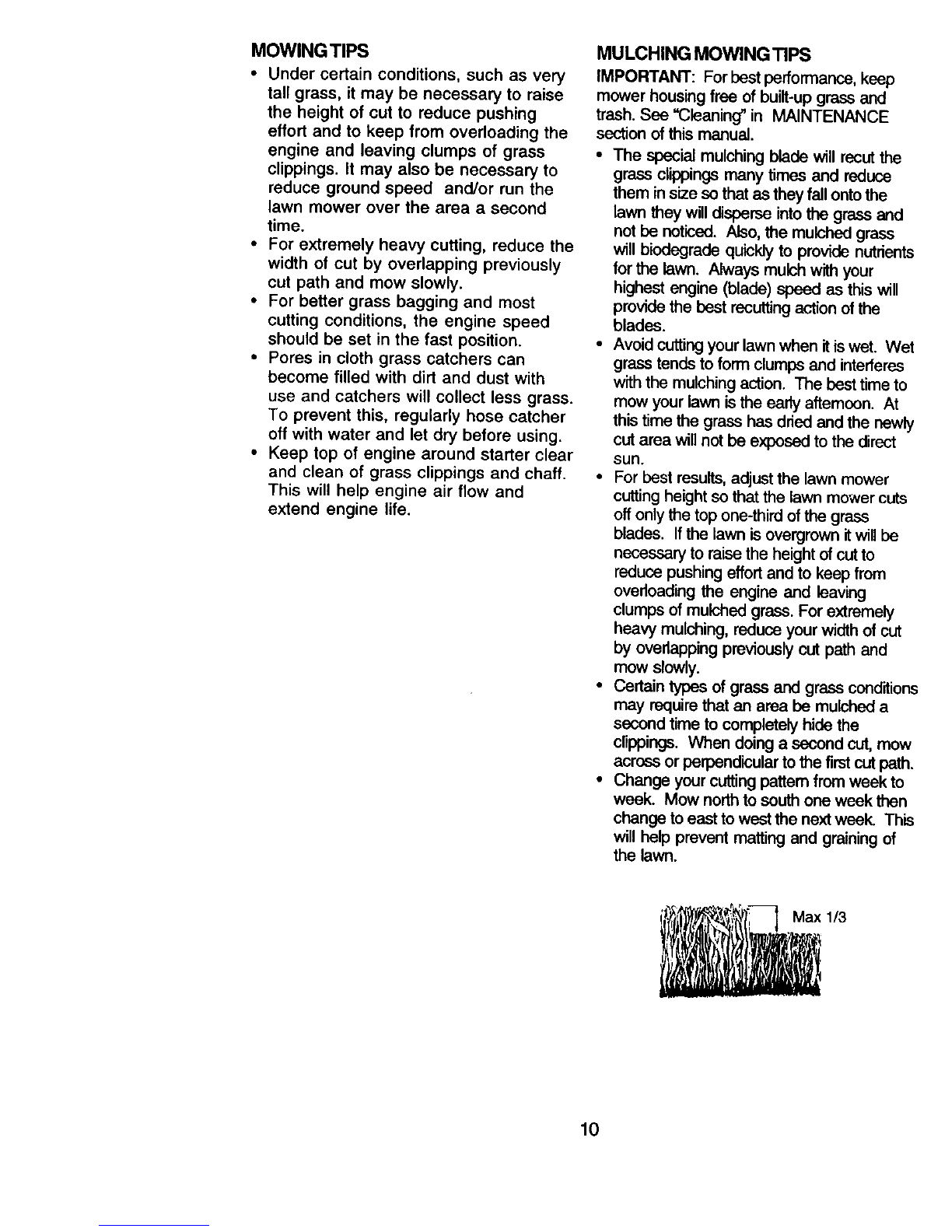

MOWINGTIPS

•Under certain conditions, such as very

tall grass, it may be necessary to raise

the height of cut to reduce pushing

effort and to keep from overloading the

engine and leaving clumps of grass

clippings. It may also be necessary to

reduce ground speed and/or run the

lawn mower over the area a second

time.

•For extremely heavy cutting, reduce the

width of cut by overlapping previously

cut path and mow slowly.

•For better grass bagging and most

cutting conditions, the engine speed

should be set in the fast position.

•Pores in cloth grass catchers can

become filled with dirt and dust with

use and catchers will collect less grass.

To prevent this, regularly hose catcher

off with water and let dry before using.

• Keep top of engine around starter clear

and clean of grass clippings and chaff.

This will help engine air flow and

extend engine life.

MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. See "Cleaning" in MAINTENANCE

section of this manual.

•The special mulching blade will recut the

gross clippings many times and reduce

them in size so that as they fall onto the

lawn they will disperse into the grass and

not be noticed. Also, the mulched grass

will biodegrade quickly to provide nutrients

for the lawn. Always mulch with your

highest engine (blade) speed as this will

provide the best recutting action of the

blades.

•Avoid cutting your lawn when it iswet. Wet

grass tends to form clumps and interferes

with the mulching action. The best time to

mow your lawn is the early aftemson. At

this time the grass has dried and the newly

cut area will not be exposed to the direct

sun.

•For best results, adjust the lawn mower

cutting height so that the lawn mower cuts

off only the top one-third of the grass

blades. Ifthe lawn is overgrown it will be

necessary to raise the height of cut to

reduce pushing effort and to keep from

overloading the engine and leaving

clumps of mulched grass. For extremely

heavy mulching, reduce your width of cut

by overlapping previously cut path and

mow slowly.

•Certain types of grass and grass conditions

may require that an area be mulched a

second time to completely hide the

clippings. When doing a second cut, mow

acmas or perpendicular to the first cutpath.

•Change your cutting pattem from week to

week. Mow north to south one week then

change to east to west the next week This

will help prevent matting and graining of

the lawn.

i!;_',l_f_",_l';'_ Max 1/3

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.270613 Manuel utilisateur

Craftsman

Craftsman 917.255980 Manuel utilisateur

Craftsman

Craftsman 944.367521 Manuel utilisateur

Craftsman

Craftsman 917.276010 Manuel utilisateur

Craftsman

Craftsman 917.370830 Manuel utilisateur

Craftsman

Craftsman 917.375620 Manuel utilisateur

Craftsman

Craftsman 917.270654 Manuel utilisateur

Craftsman

Craftsman 25913 Manuel utilisateur

Craftsman

Craftsman 917.272911 Manuel utilisateur

Craftsman

Craftsman 917.256501 Manuel utilisateur

Craftsman

Craftsman 917.387430 Manuel utilisateur

Craftsman

Craftsman 917.27623 Manuel utilisateur

Craftsman

Craftsman 917.276800 Manuel utilisateur

Craftsman

Craftsman 917.370721 Manuel utilisateur

Craftsman

Craftsman 917.383641 Manuel utilisateur

Craftsman

Craftsman 917.28925 Manuel utilisateur

Craftsman

Craftsman 917.388801 Manuel utilisateur

Craftsman

Craftsman 944.367150 Manuel utilisateur

Craftsman

Craftsman 38973 Manuel utilisateur

Craftsman

Craftsman 917.256571 Manuel utilisateur

Craftsman

Craftsman 917.255950 Manuel utilisateur

Craftsman

Craftsman 247.887760 Manuel utilisateur

Craftsman

Craftsman 917.272064 Manuel utilisateur

Craftsman

Craftsman 917.273590 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
