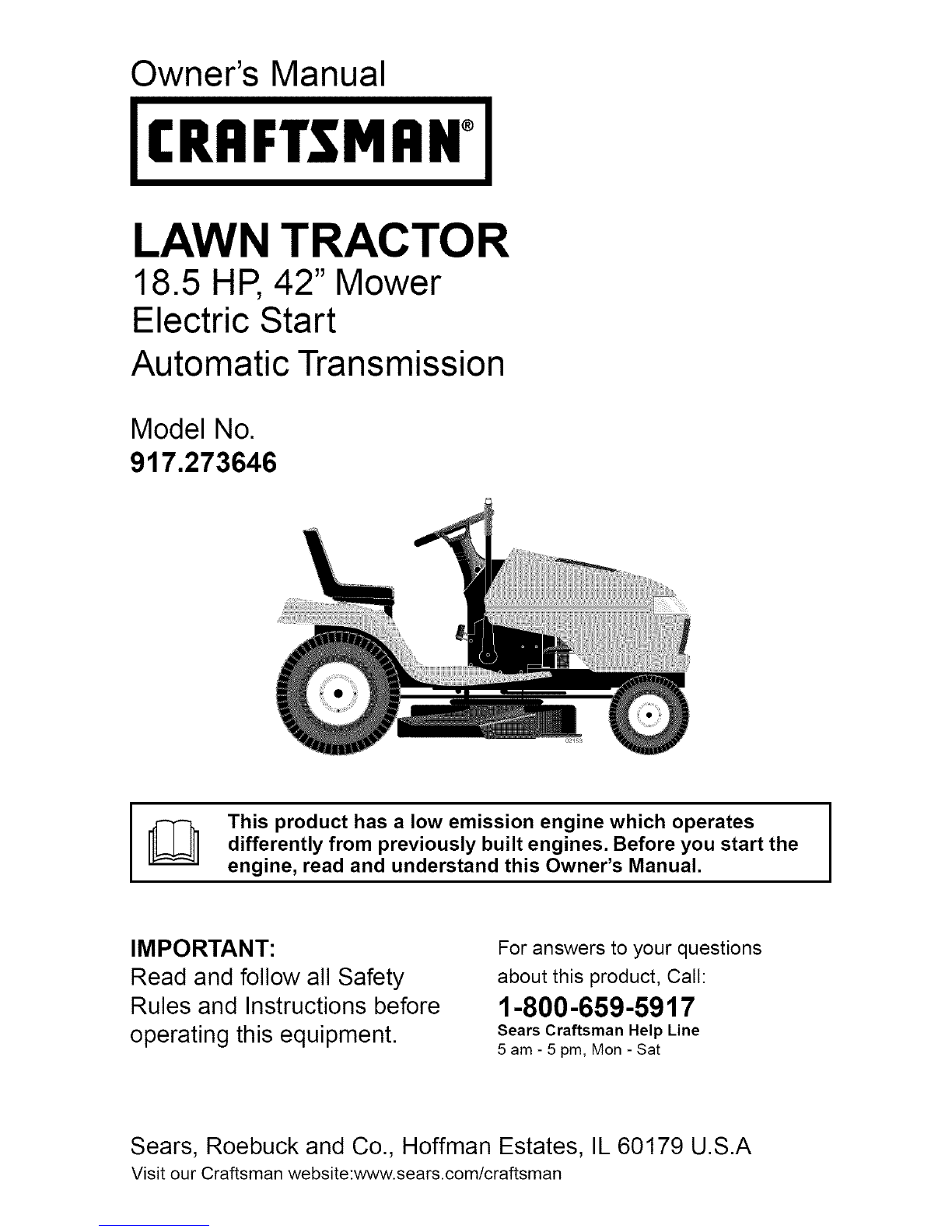

Owner's Manual

CRIIFTSMHN°

LAWN TRACTOR

18.5 HP, 42" Mower

Electric Start

Automatic Transmission

Model No.

917.273646

This product has a low emission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual,

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A

Visit our Craftsman website:www.sears.com/craftsman

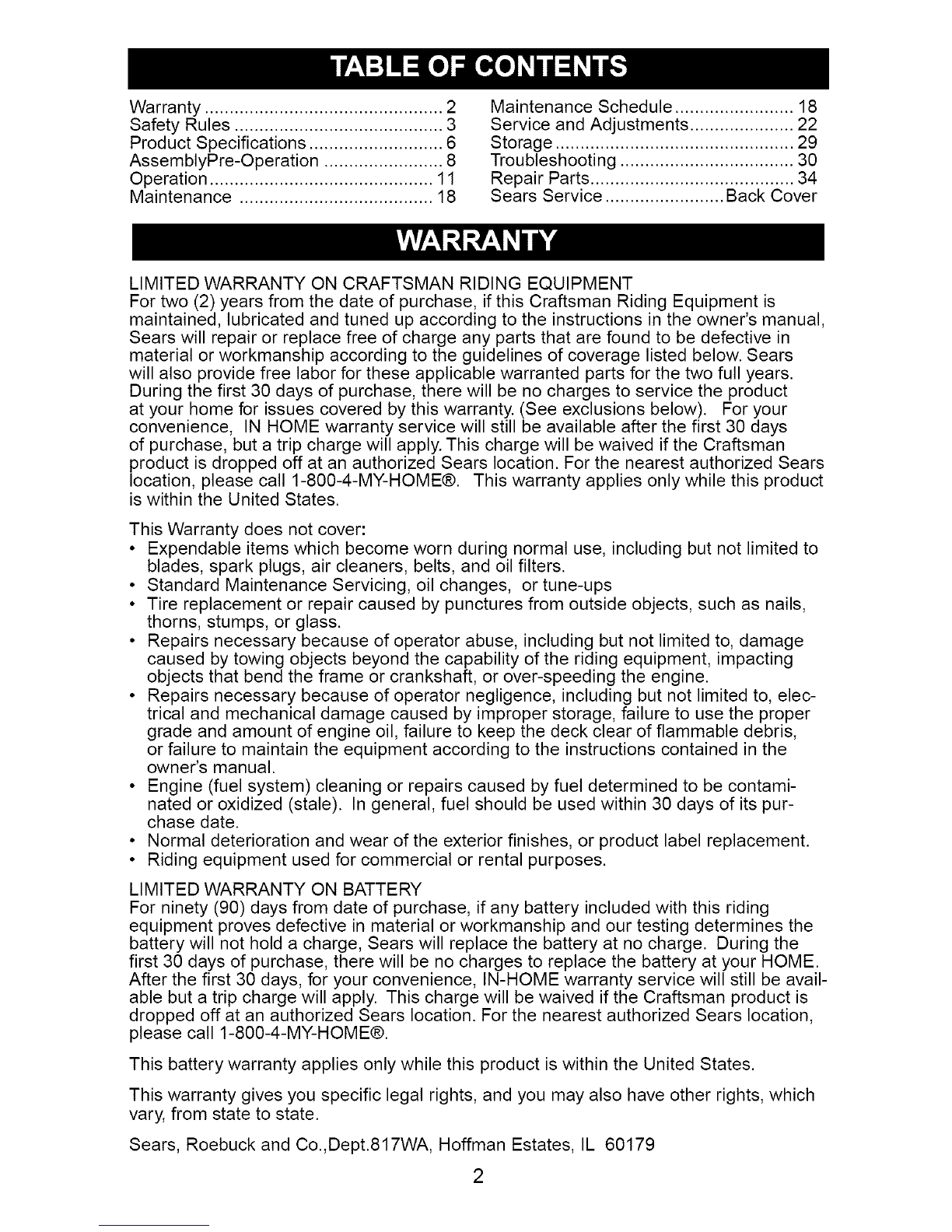

Warranty................................................2

SafetyRules..........................................3

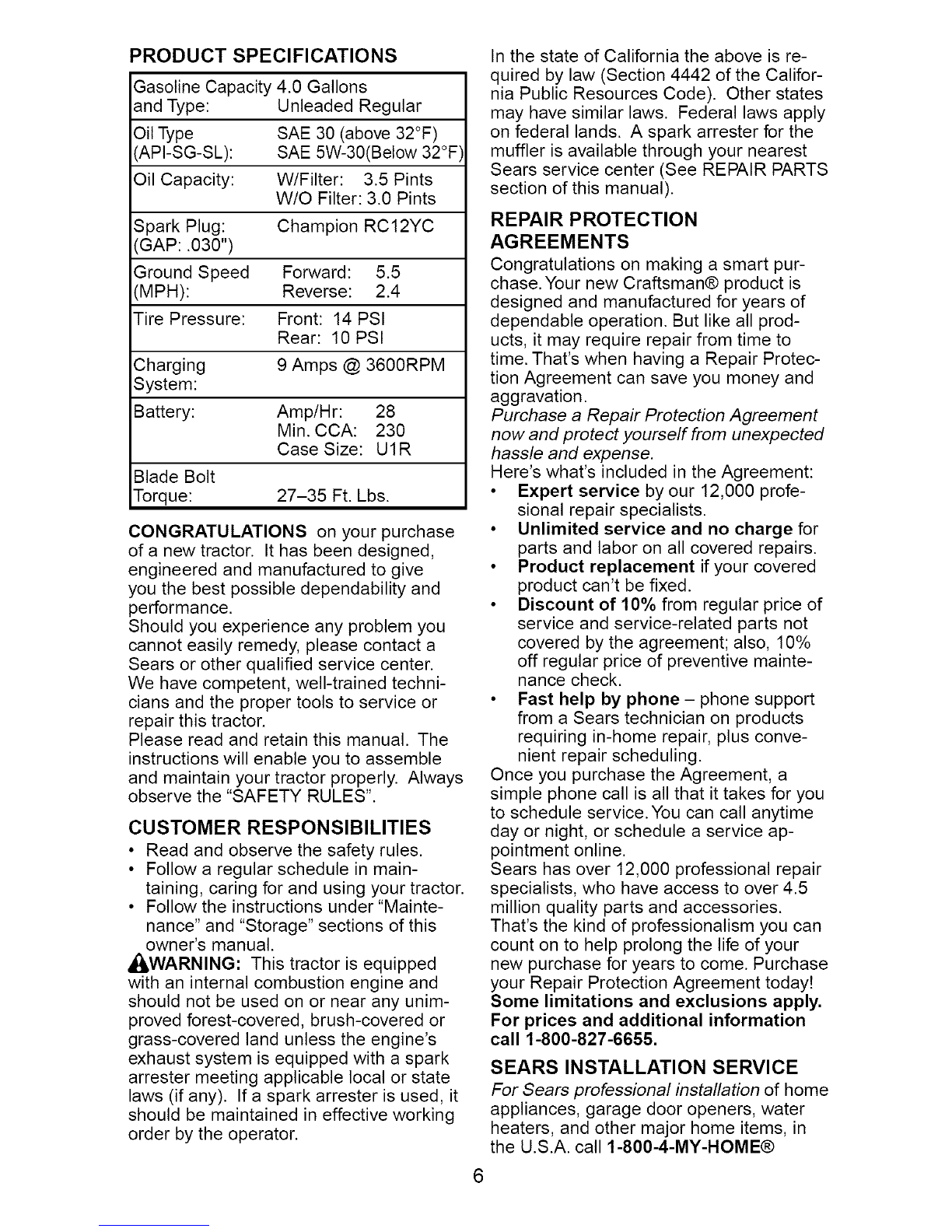

ProductSpecifications...........................6

AssemblyPre-Operation........................8

Operation.............................................11

Maintenance.......................................18

MaintenanceSchedule........................18

ServiceandAdjustments.....................22

Storage................................................29

Troubleshooting...................................30

RepairParts.........................................34

SearsService........................BackCover

LIMITEDWARRANTYONCRAFTSMANRIDINGEQUIPMENT

Fortwo(2)yearsfromthedate of purchase,ifthis CraftsmanRidingEquipmentis

maintained,lubricatedandtunedup accordingto theinstructionsin the owner'smanual,

Searswillrepairor replacefreeof chargeanypartsthatare foundto bedefectivein

materialorworkmanshipaccordingto theguidelinesof coveragelistedbelow.Sears

will alsoprovidefreelaborfor theseapplicablewarrantedpartsfor thetwofull years.

Duringthefirst30 daysof purchase,therewillbe no chargesto servicetheproduct

atyour homefor issuescoveredbythiswarranty.(Seeexclusionsbelow). Foryour

convenience,IN HOMEwarrantyservicewillstill be availableafterthe first 30days

of purchase,butatripchargewill apply.This chargewill bewaivedif the Craftsman

productisdroppedoff at an authorizedSears location.Forthe nearestauthorizedSears

location,pleasecall 1-800-4-MY-HOME®.Thiswarrantyappliesonlywhile this product

iswithinthe UnitedStates.

ThisWarrantydoesnotcover:

• Expendableitemswhichbecomewornduringnormaluse,includingbutnotlimitedto

blades,sparkplugs,air cleaners,belts,andoilfilters.

• StandardMaintenanceServicing,oil changes, ortune-ups

• Tire replacementor repaircausedbypuncturesfromoutsideobjects,suchas nails,

thorns,stumps,or glass.

• Repairsnecessarybecauseofoperatorabuse,includingbut notlimitedto, damage

causedbytowingobjectsbeyondthe capabilityof theridingequipment,impacting

objectsthat bendtheframeor crankshaft,orover-speedingtheengine.

• Repairsnecessarybecauseofoperatornegligence,includingbutnot limitedto, elec-

trical andmechanicaldamagecausedbyimproperstorage,failureto usethe proper

gradeand amountofengineoil, failureto keepthedeckclearofflammabledebris,

orfailureto maintaintheequipmentaccordingto the instructionscontainedin the

owner'smanual.

• Engine(fuelsystem)cleaningor repairscausedby fuel determinedto be contami-

natedoroxidized(stale). Ingeneral,fuel shouldbeusedwithin30daysof itspur-

chasedate.

• Normaldeteriorationandwearof the exteriorfinishes,or productlabel replacement.

• Ridingequipmentusedforcommercialorrentalpurposes.

LIMITEDWARRANTYONBATTERY

Forninety(90)daysfrom dateof purchase,if anybatteryincludedwiththis riding

equipmentprovesdefectivein materialorworkmanshipandour testingdeterminesthe

batterywill notholda charge,Searswill replacethebatteryat no charge. Duringthe

first 30daysof purchase,therewill beno chargesto replacethebatteryat yourHOME.

After thefirst 30 days,for yourconvenience,IN-HOMEwarrantyservicewillstill be avail-

ablebuta tripchargewill apply.Thischargewillbewaivedif theCraftsmanproductis

droppedoff at an authorizedSearslocation.Forthe nearestauthorizedSearslocation,

pleasecall 1-800-4-MY-HOME®.

ThisbatterywarrantyappliesonlywhilethisproductiswithintheUnitedStates.

Thiswarrantygivesyouspecificlegalrights,andyoumayalsohaveother rights,which

vary,from stateto state.

Sears,RoebuckandCo.,Dept.817WA,HoffmanEstates,IL 60179

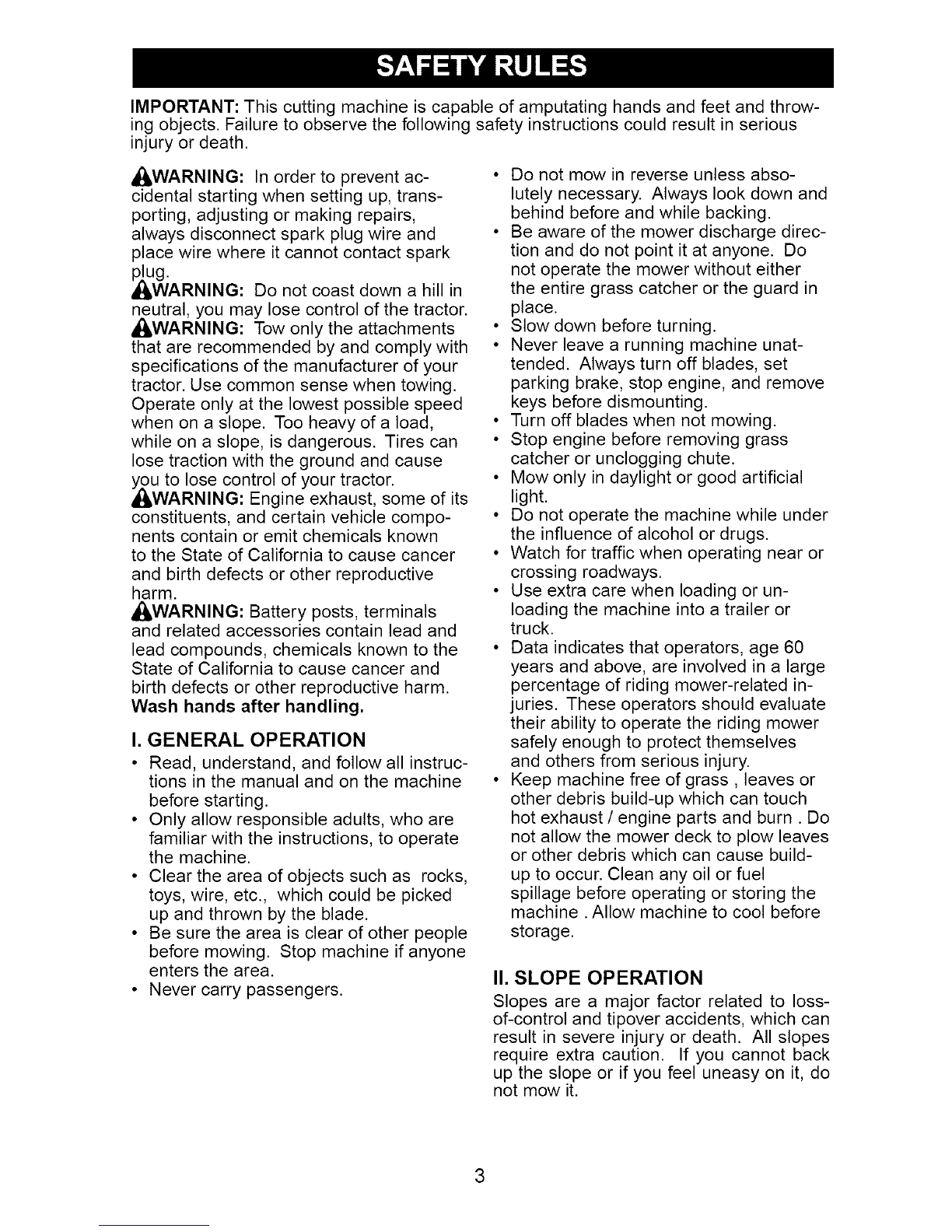

IMPORTANT:Thiscuttingmachineiscapableof amputatinghandsandfeetand throw-

ingobjects.Failureto observethefollowingsafetyinstructionscouldresultin serious

injuryordeath.

_WARNING: Inordertopreventac-

cidentalstartingwhensettingup,trans-

porting,adjustingormakingrepairs,

alwaysdisconnectspark plugwire and

placewirewhereit cannotcontactspark

_iug"

WARNING: Do notcoastdownahill in

neutral,you maylosecontrolof thetractor.

_WARNING: Towonlythe attachments

that arerecommendedbyandcomplywith

specificationsofthe manufacturerof your

tractor.Usecommonsensewhentowing.

Operateonly atthelowestpossiblespeed

whenon a slope. Tooheavyof a load,

whileon a slope,is dangerous.Tires can

losetractionwith thegroundandcause

_I, WAu to lose control of your tractor.

RNING: Engine exhaust, some of its

constituents, and certain vehicle compo-

nents contain or emit chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm.

_WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or un-

loading the machine into a trailer or

truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves

and others from serious injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust /engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

II. SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

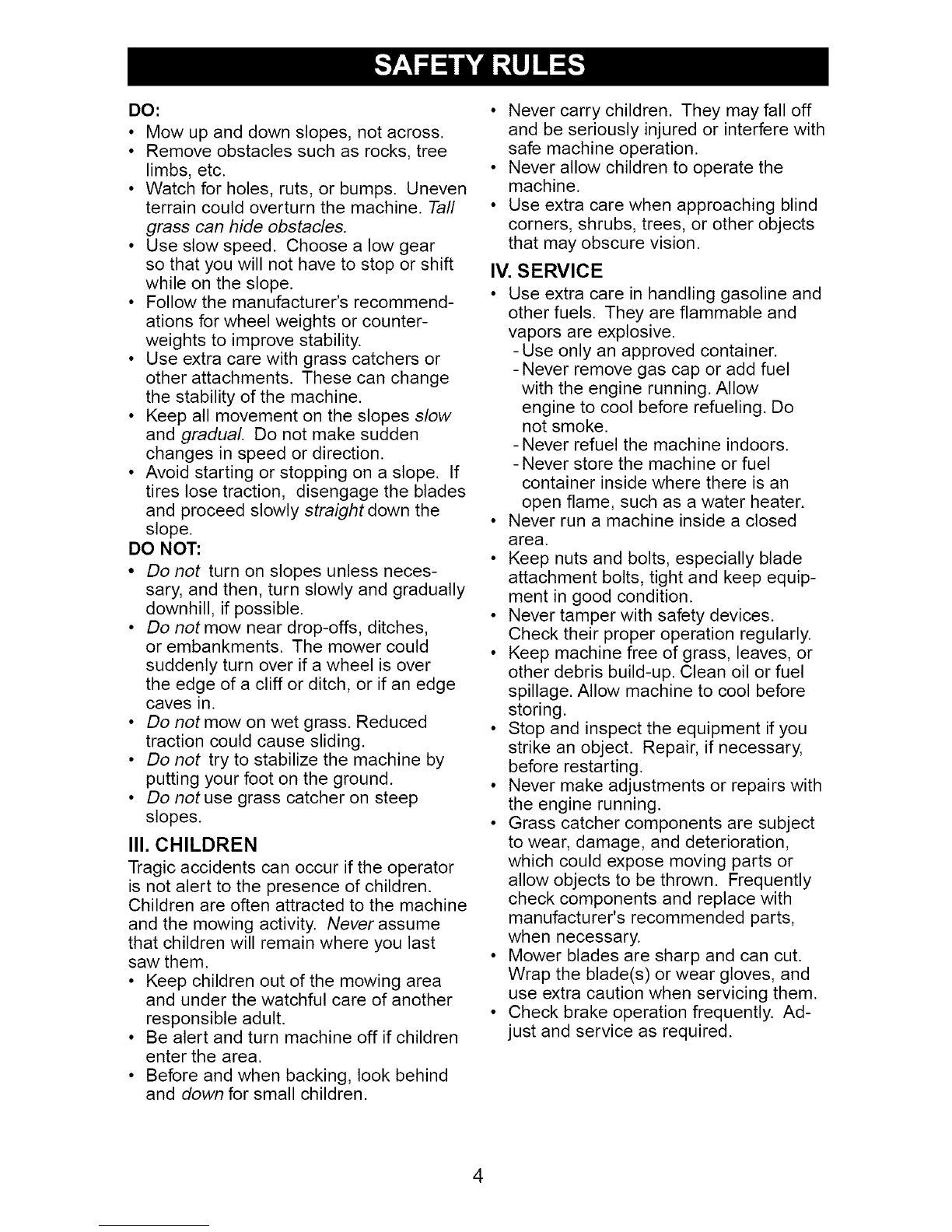

DO:

•Mow up and down slopes, not across.

•Remove obstacles such as rooks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

•Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

•Do not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do not try to stabilize the machine by

putting your foot on the ground.

•Do not use grass catcher on steep

slopes.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the machine

and the mowing activity. Never assume

that children will remain where you last

saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs with

the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently. Ad-

just and service as required.

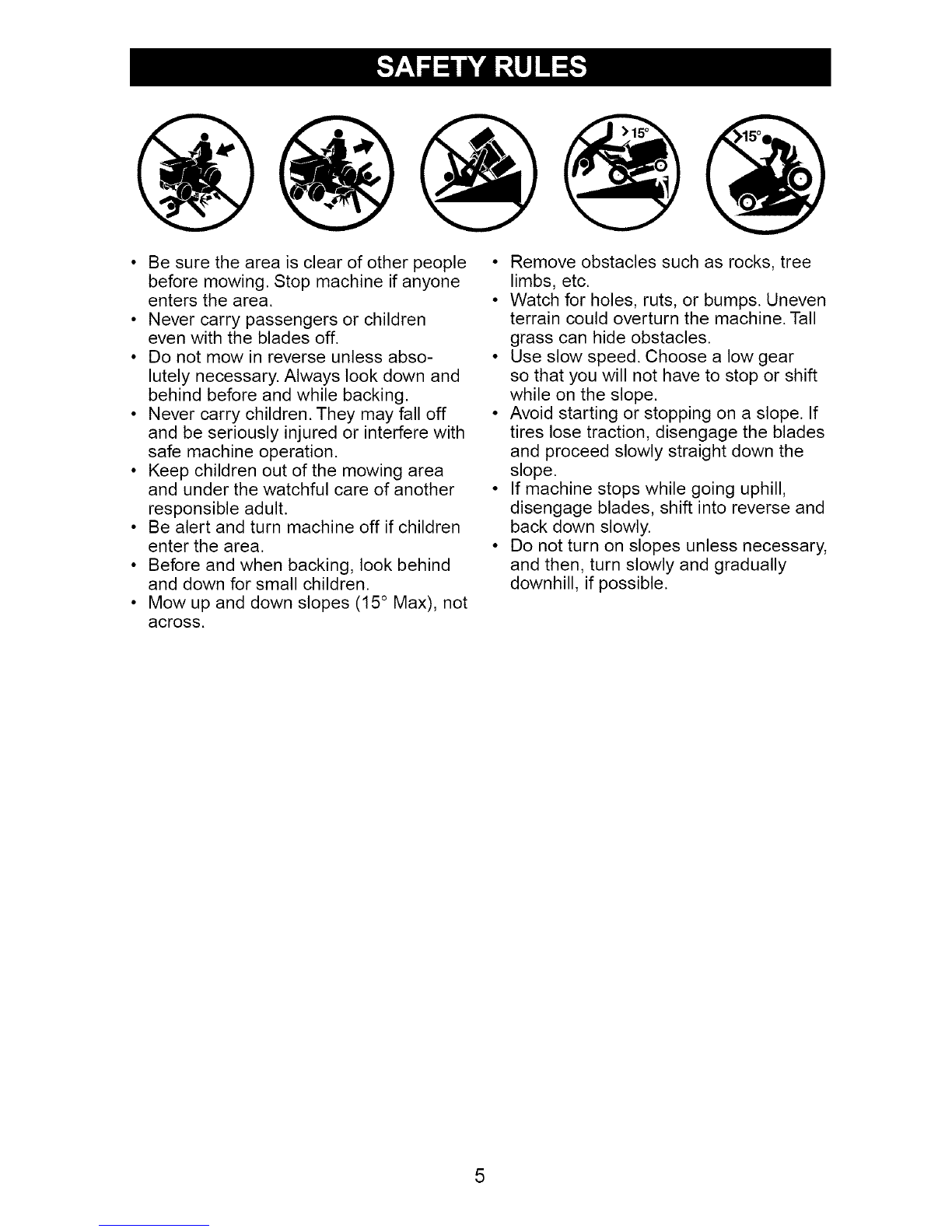

• Besurethearea isclearofother people

beforemowing.Stopmachineif anyone

entersthearea.

• Nevercarrypassengersorchildren

evenwiththe bladesoff.

• Do notmowin reverseunlessabso-

lutelynecessary.Alwayslookdownand

behindbeforeandwhile backing.

• Nevercarrychildren.Theymayfall off

andbe seriouslyinjuredorinterferewith

safemachineoperation.

• Keepchildrenoutof the mowingarea

andunderthewatchfulcare ofanother

responsibleadult.

• Bealert andturnmachineoff ifchildren

enterthearea.

• Beforeandwhenbacking,lookbehind

anddownforsmall children.

• Mowup anddownslopes(15° Max),not

across.

• Removeobstaclessuchasrocks,tree

limbs,etc.

• Watchforholes,ruts,or bumps.Uneven

terraincouldoverturnthe machine.Tall

grasscan hideobstacles.

• Useslowspeed.Choosealowgear

sothat youwill nothaveto stopor shift

whileon theslope.

• Avoidstartingorstoppingona slope.If

tireslosetraction,disengagethe blades

andproceedslowlystraightdownthe

slope.

• Ifmachinestopswhilegoing uphill,

disengageblades,shiftinto reverseand

backdownslowly.

• Donotturnon slopesunlessnecessary,

andthen,turnslowlyandgradually

downhill,if possible.

PRODUCT SPECIFICATIONS

Gasoline Capacity 4.0 Gallons

and Type: Unleaded Regular

Oil Type SAE 30 (above 32°F)

API-SG-SL): SAE 5W-30(Below 32°F

Oil Capacity: W/Filter: 3.5 Pints

W/O Filter: 3.0 Pints

Spark Plug: Champion RC12YC

GAP: .030")

Ground Speed Forward: 5.5

(MPH): Reverse: 2.4

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging 9 Amps @ 3600RPM

System:

Battery: Amp/Hr: 28

Min. CCA: 230

Case Size: U1R

Blade Bolt

Torque: 27-35 Ft. Lbs.

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in main-

taining, caring for and using your tractor.

• Follow the instructions under"Mainte-

nance" and "Storage" sections of this

owner's manual.

AI_,WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all prod-

ucts, it may require repair from time to

time. That's when having a Repair Protec-

tion Agreement can save you money and

aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

•Expert service by our 12,000 profe-

sional repair specialists.

• Unlimited service and no charge for

parts and labor on all covered repairs.

• Product replacement if your covered

product can't be fixed.

• Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

• Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME®

)

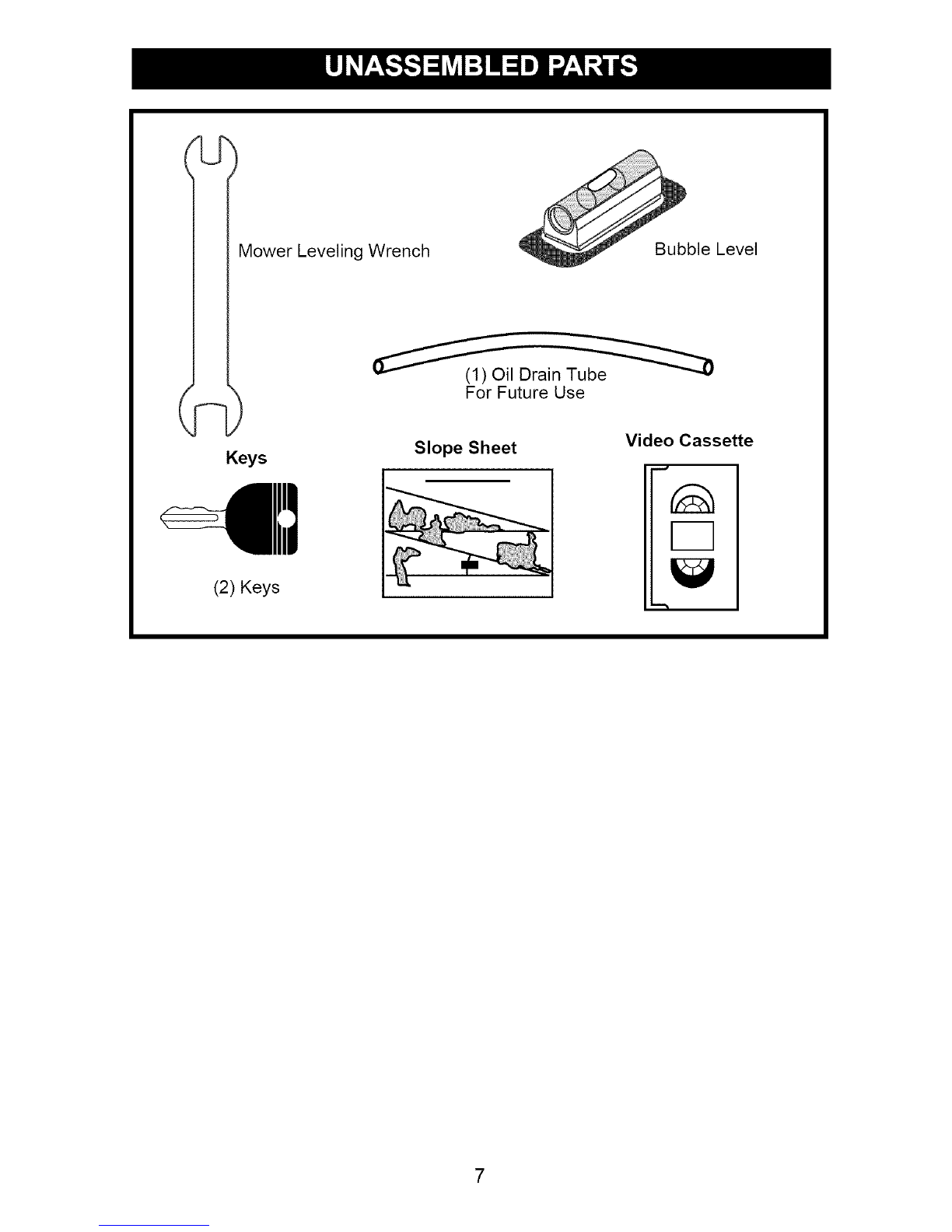

Mower Leveling Wrench Bubble Level

)

Keys

(2) Keys

(1) Oil Drain Tube

For Future Use

Slope Sheet Video Cassette

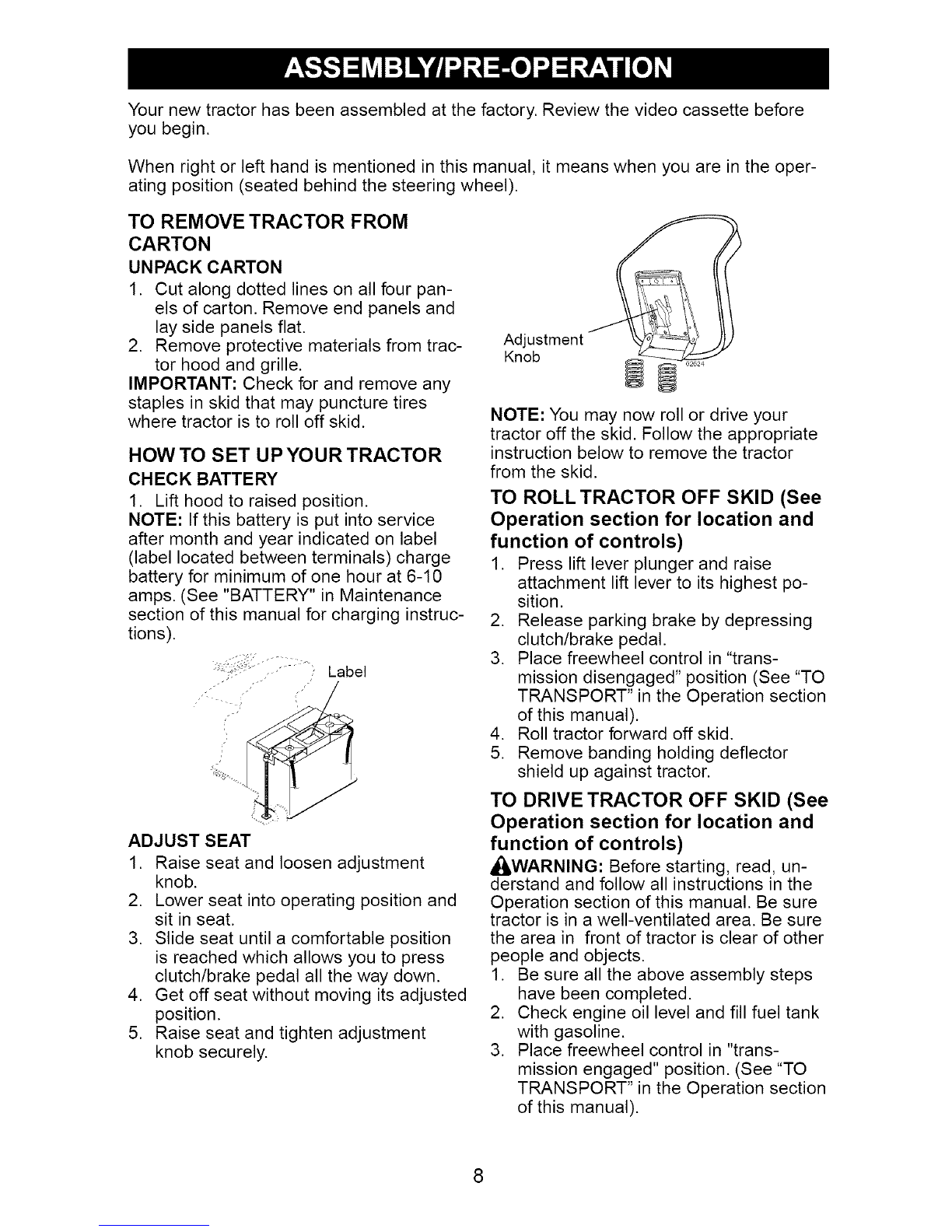

Your new tractor has been assembled at the factory. Review the video cassette before

you begin.

When right or left hand is mentioned in this manual, it means when you are in the oper-

ating position (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

2. Remove protective materials from trac-

tor hood and grille.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc-

tions).

'Label

ADJUST SEAT

1. Raise seat and loosen adjustment

knob.

2. Lower seat into operating position and

sit in seat.

3. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

4. Get off seat without moving its adjusted

position.

5. Raise seat and tighten adjustment

knob securely.

Adjustment

Knob

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place freewheel control in "trans-

mission disengaged" position (See "TO

TRANSPORT" in the Operation section

of this manual).

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Place freewheel control in "trans-

mission engaged" position. (See "TO

TRANSPORT" in the Operation section

of this manual).

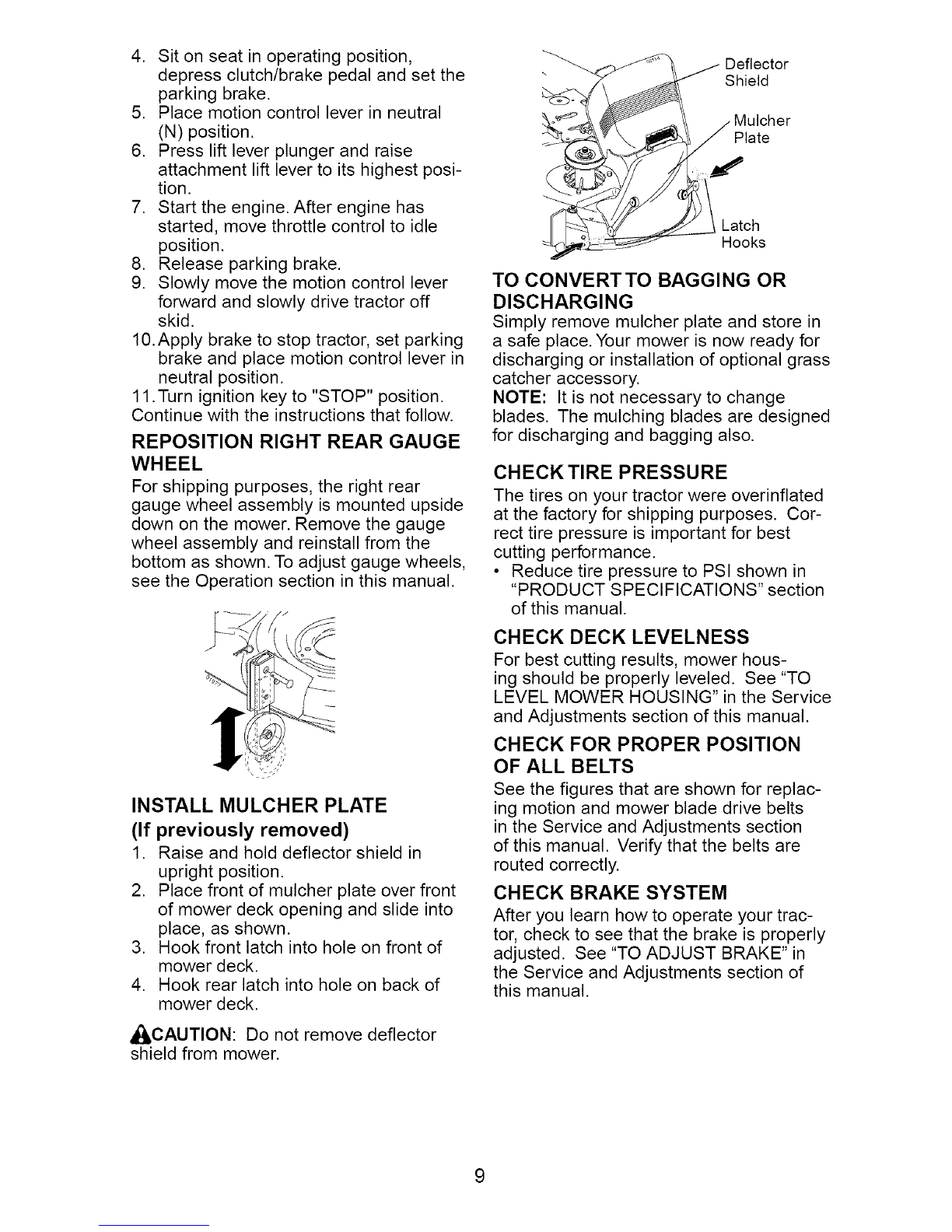

4. Sit onseat inoperatingposition,

depressclutch/brakepedal andset the

parkingbrake.

5. Placemotioncontrolleverin neutral

(N)position.

6. Pressliftleverplungerandraise

attachmentlift leverto itshighestposi-

tion.

7. Start the engine.After enginehas

started,movethrottlecontrolto idle

position.

8. Releaseparkingbrake.

9. Slowly movethe motioncontrollever

forwardandslowlydrivetractoroff

skid.

10.Applybraketo stoptractor,setparking

brakeandplacemotioncontrolleverin

neutralposition.

11.Turnignitionkeyto "STOP"position.

Continuewiththe instructionsthatfollow.

REPOSITION RIGHT REAR GAUGE

WHEEL

For shipping purposes, the right rear

gauge wheel assembly is mounted upside

down on the mower. Remove the gauge

wheel assembly and reinstall from the

bottom as shown. To adjust gauge wheels,

see the Operation section in this manual.

INSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

_CAUTION: Do not remove deflector

shield from mower.

Deflector

Shield

Plate

Latch

Hooks

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional grass

catcher accessory.

NOTE: It is not necessary to change

blades. The mulching blades are designed

for discharging and bagging also.

CHECKTIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes. Cor-

rect tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

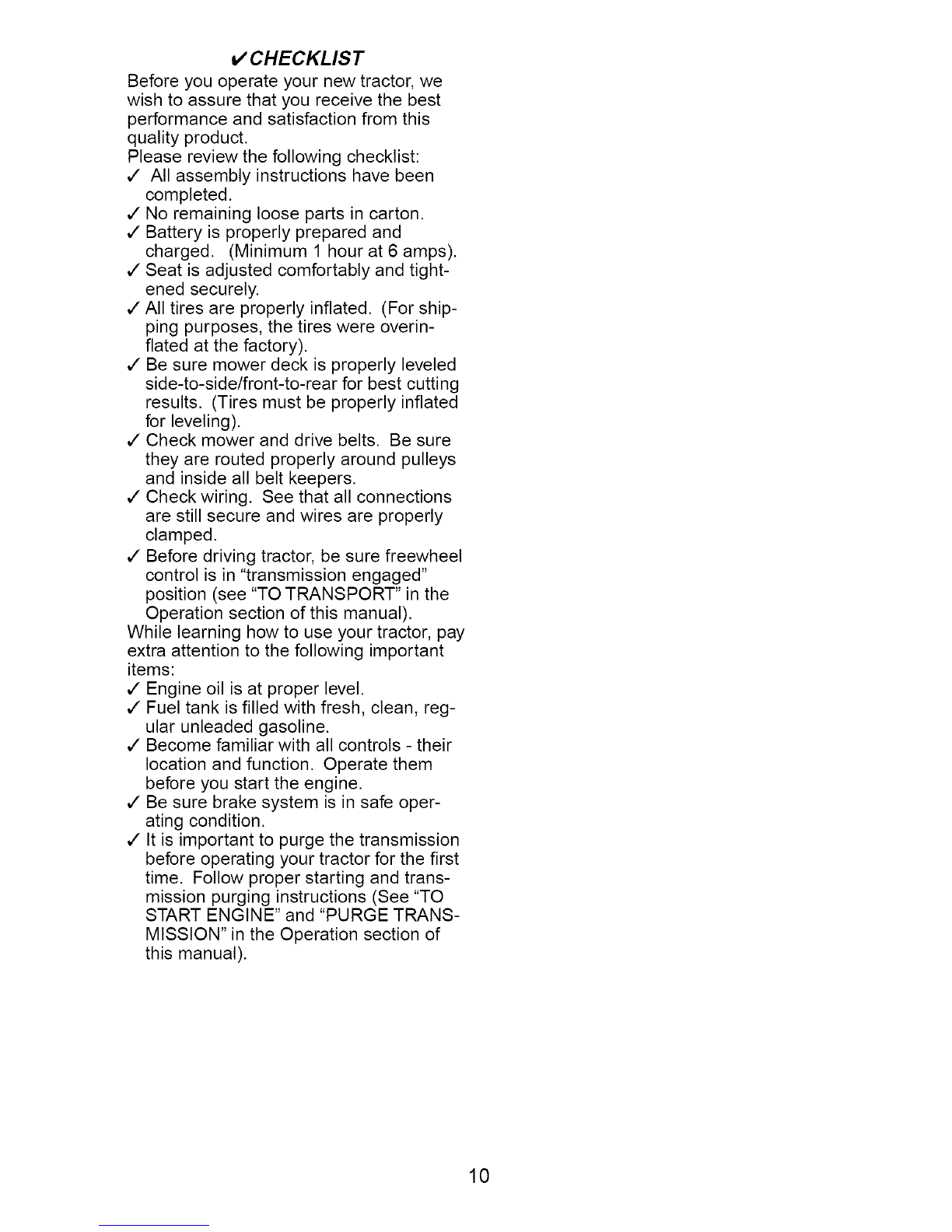

V'CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

quality product.

Please review the following checklist:

,/ All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

v" Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

v" Check wiring. See that all connections

are still secure and wires are properly

clamped.

v" Before driving tractor, be sure freewheel

control is in "transmission engaged"

position (see "TO TRANSPORT" in the

Operation section of this manual).

While learning how to use your tractor, pay

extra attention to the following important

items:

v" Engine oil is at proper level.

v" Fuel tank is filled with fresh, clean, reg-

ular unleaded gasoline.

v" Become familiar with all controls - their

location and function. Operate them

before you start the engine.

v" Be sure brake system is in safe oper-

ating condition.

v" It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and trans-

mission purging instructions (See "TO

START ENGINE" and "PURGE TRANS-

MISSION" in the Operation section of

this manual).

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.273645 Manuel utilisateur

Craftsman

Craftsman 917.379243 Manuel utilisateur

Craftsman

Craftsman 247.38821 Manuel utilisateur

Craftsman

Craftsman 917.374095 Manuel utilisateur

Craftsman

Craftsman 917.250032 Manuel utilisateur

Craftsman

Craftsman 917.377160 Manuel utilisateur

Craftsman

Craftsman C459.60310 Manuel utilisateur

Craftsman

Craftsman 917.374553 Manuel utilisateur

Craftsman

Craftsman 917.376991 Manuel utilisateur

Craftsman

Craftsman T1600 247.203743 Manuel utilisateur

Craftsman

Craftsman 247.37000 Manuel utilisateur

Craftsman

Craftsman EZ3 917.271141 Manuel utilisateur

Craftsman

Craftsman 917.275701 Manuel utilisateur

Craftsman

Craftsman 917.388202 Manuel utilisateur

Craftsman

Craftsman 917.273642 Manuel utilisateur

Craftsman

Craftsman 917.374050 Manuel utilisateur

Craftsman

Craftsman 917.370584 Manuel utilisateur

Craftsman

Craftsman 917.280150 Manuel utilisateur

Craftsman

Craftsman 917.275023 Manuel utilisateur

Craftsman

Craftsman 917.370692 Manuel utilisateur

Craftsman

Craftsman 247.889210 Manuel utilisateur

Craftsman

Craftsman 917.376571 Manuel utilisateur

Craftsman

Craftsman C459-36306 Manuel utilisateur

Craftsman

Craftsman 917.272451 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
