Craftsman 917.27639 Manuel utilisateur

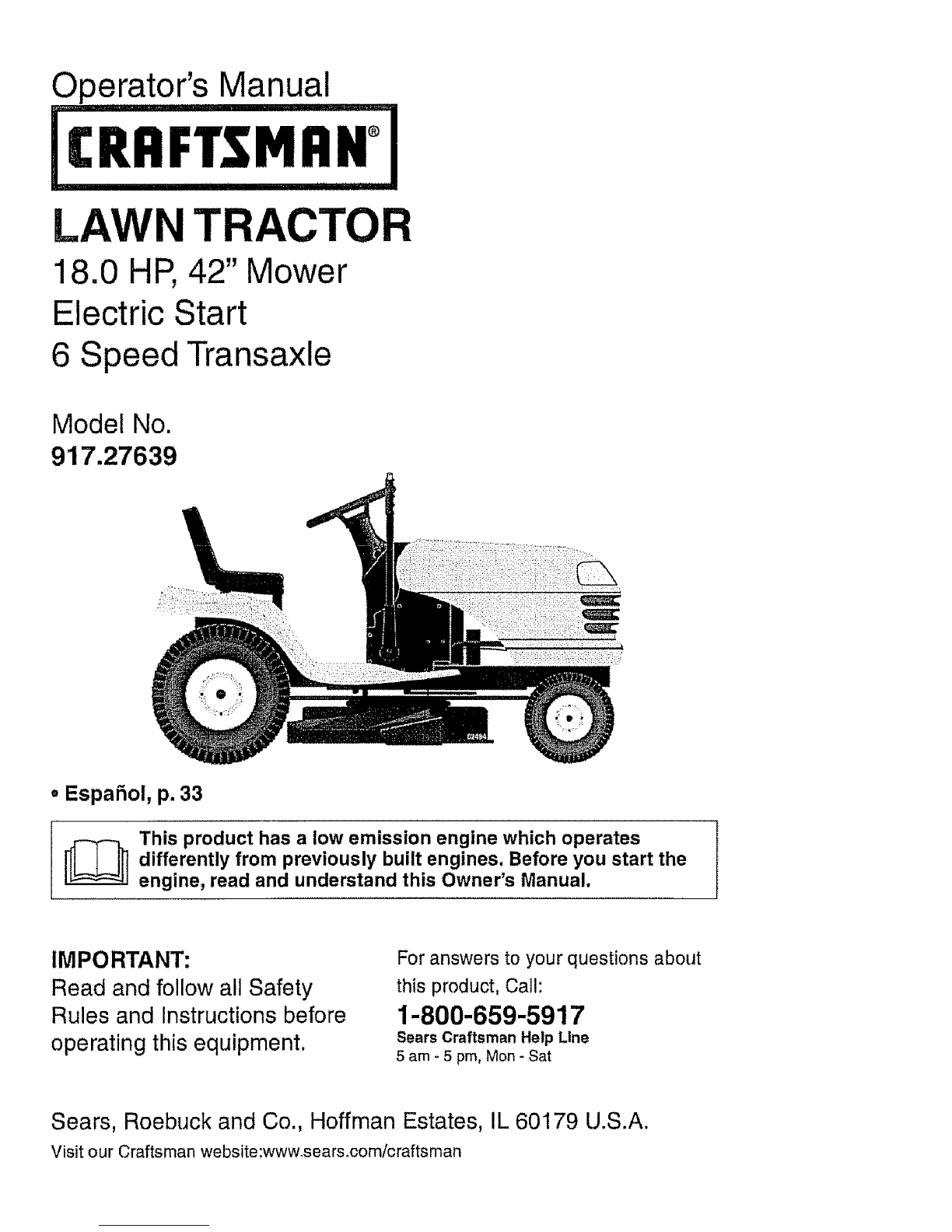

Operator's Manual ....

I RI:IFTSMFIN°

LAWN TRACTOR

18.0 HP, 42" Mower

Electric Start

6 Speed Transaxle

Model No.

917.27639

•Espafiol, p. 33

This product has a low emission engine which operates

[_ differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions about

this product, Call:

1-600-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website:www,sears,com/craftsman

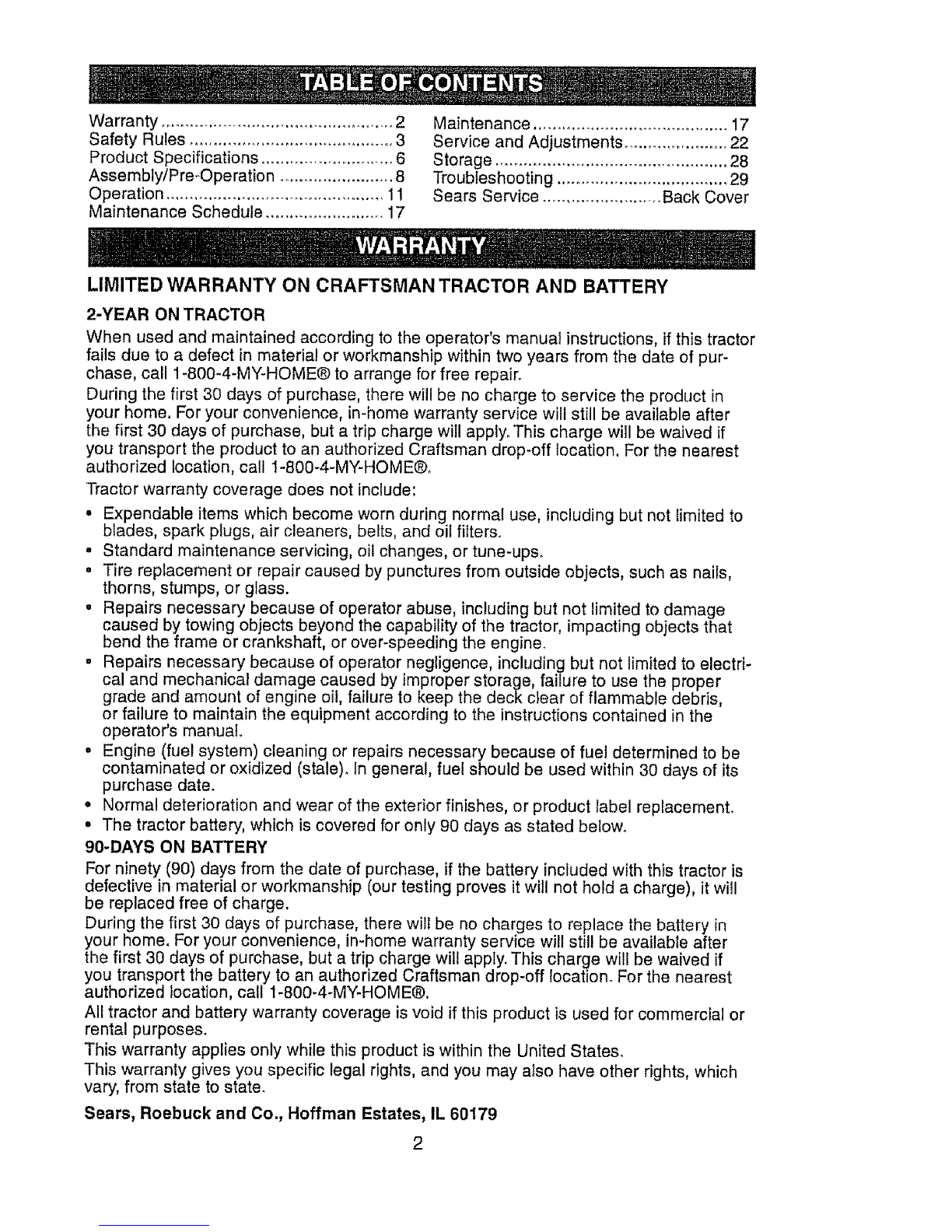

Warranty..................................................2

SafetyRules...........................................3

ProductSpecifications............................6

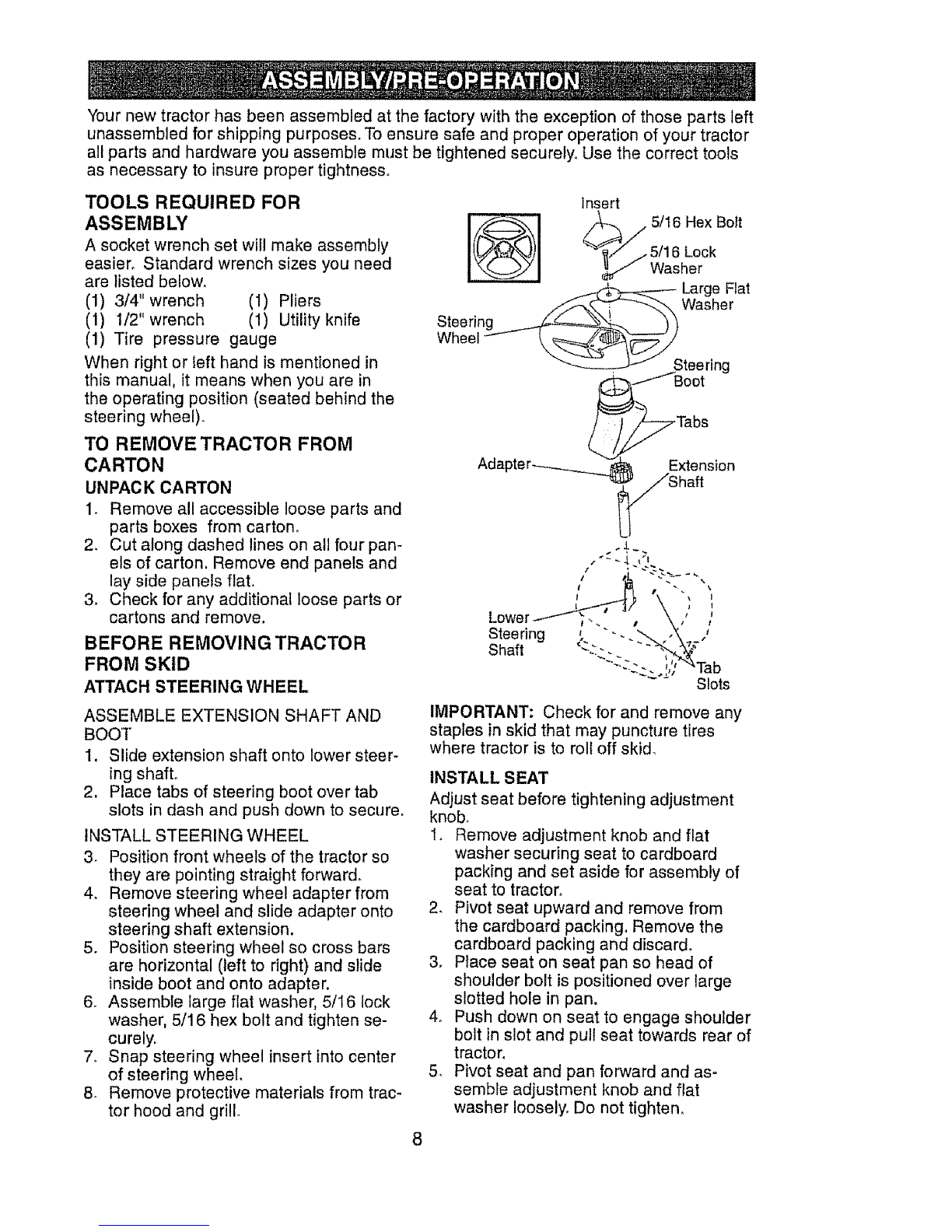

Assembly/Pre-Operation........................8

Operation..............................................11

MaintenanceSchedule.........................17

Maintenance.........................................17

ServiceandAdjustments......................22

Storage.................................................28

Troubleshooting....................................29

SearsService.........................BackCover

LIMITED WARRANTY ON CRAFTSMAN TRACTOR AND BATTERY

2-YEAR ON TRACTOR

When used and maintained according to the operator's manual instructions, if this tractor

fails due to a defect in material or workmanship within two years from the date of pur-

chase, call 1-800-4-MY-HOME® to arrange for free repair.

During the first 30 days of purchase, there will be no charge to service the product in

your home, For your convenience, in-home warranty service wilt still be available after

the first 30 days of purchase, but a trip charge will apply. This charge will be waived if

you transport the product to an authorized Craftsman drop-off location. For the nearest

authorized location, call 1-800-4-MY-HOME®°

Tractor warranty coverage does not include:

• Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oiEfilters.

•Standard maintenance servicing, oil changes, or tune-ups.

= Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

. Repairs necessary because of operator abuse, including but not limited to damage

caused by towing objects beyond the capability of the tractor, impacting objects that

bend the frame or crankshaft, or over-speeding the engine.

° Repairs necessary because of operator negligence, including but not limited to electri-

cal and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

operator's manual.

° Engine (fuel system) cleaning or repairs necessary because of fuel determined to be

contaminated or oxidized (stale)_ In general, fuel should be used within 30 days of its

purchase date.

=Normal deterioration and wear of the exterior finishes, or product label replacement.

° The tractor battery, which is covered for only 90 days as stated below.

90-DAYS ON BATTERY

For ninety (90) days from the date of purchase, if the battery included with this tractor =s

defective in material or workmanship (our testing proves it will not hold a charge), it will

be replaced free of charge.

During the first 30 days of purchase, there will be no charges to replace the battery in

your home. For your convenience, in-home warranty service wilt still be available after

the first 30 days of purchase, but a trip charge will apply. This charge will be waived if

you transport the battery to an authorized Craftsman drop-off location. For the nearest

authorized location, call t-800-4-MY-HOME®,

All tractor and battery warranty coverage is void if this product is used for commercial or

rental purposes.

This warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

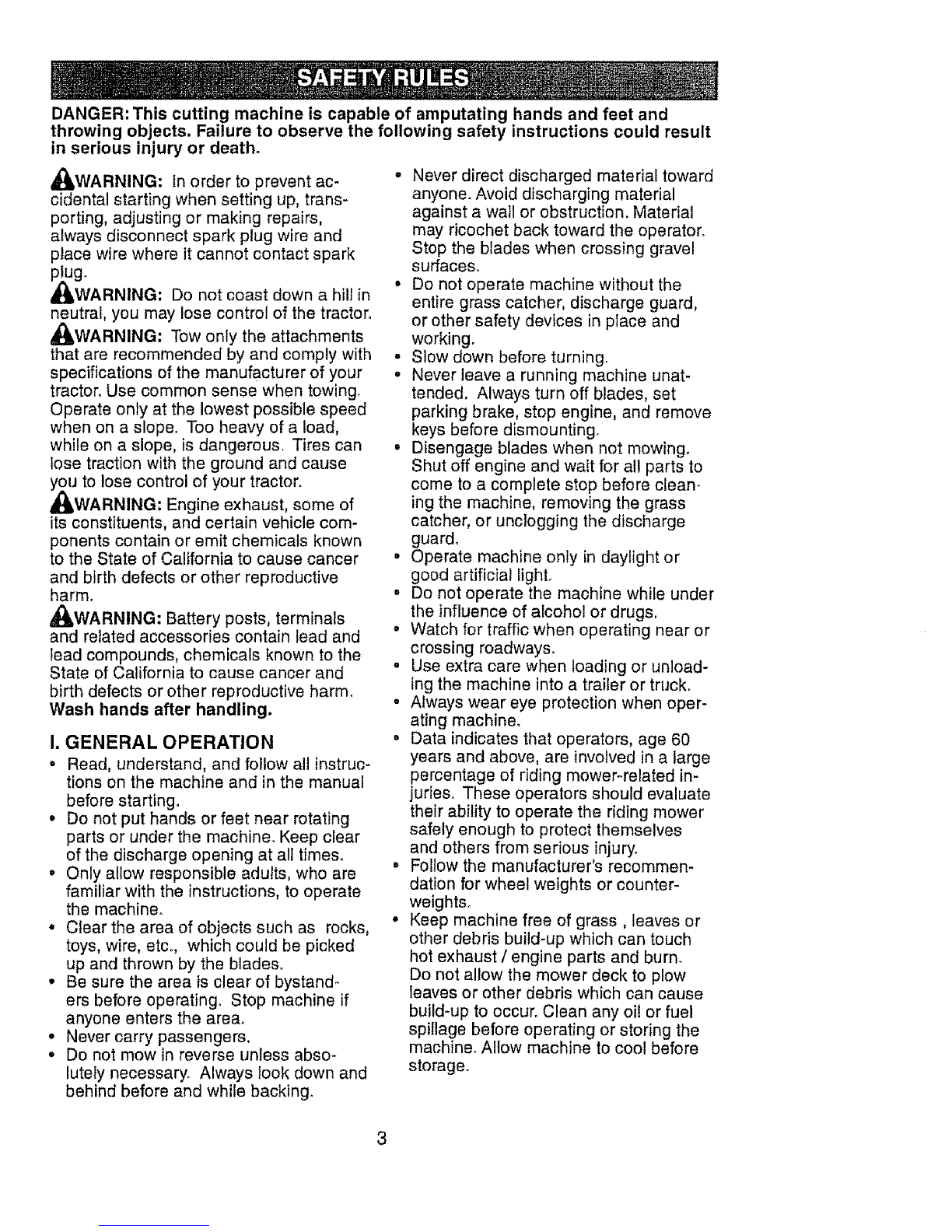

DANGER:This cutting machine is capableof amputating hands andfeet and

throwing objects. Failureto observe thefollowing safety instructions could result

in serious injury or death°

_)AWARNING: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_I, WARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_0&.WARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

you to lose control of your tractor.

_bWARNING: Engine exhaust, some of

its constituents, and certain vehicle com-

ponents contain or emit chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm.

_WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all instruc-

tions on the machine and in the manual

before starting.

°Do not put hands or feet near rotating

parts or under the machine. Keep clear

of the discharge opening at all times.

°Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

° Clear the area of objects such as rocks,

toys, wire, etc, which could be picked

up and thrown by the blades.

°Be sure the area is clear of bystand-

ers before operating. Stop machine if

anyone enters the area°

• Never carry passengers.

°Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

= Never direct discharged material toward

anyone. Avoid discharging material

against a wall or obstruction. Material

may ricochet back toward the operator°

Stop the blades when crossing gravel

surfaces.

,Do not operate machine without the

entire grass catcher, discharge guard,

or other safety devices in place and

working.

• Slow down before turning.

° Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting_

•Disengage blades when not mowing.

Shut off engine and wait for all parts to

come to a complete stop before clean _

ing the machine, removing the grass

catcher, or unclogging the discharge

guard.

•Operate machine only in daylight or

good artificial lighto

,Do not operate the machine while under

the influence of alcohol or drugs.

oWatch for traffic when operating near or

crossing roadways.

o Use extra care when loading or unload-

ing the machine into a trailer or truck°

o Always wear eye protection when oper-

ating machine.

,Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related in-

juries° These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves

and others from serious injury.

°Follow the manufacturer's recommen-

dation for wheel weights or counter-

weights.

° Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust /engine parts and burn.

Do not allow the mower deck to plow

leaves or other debris which can cause

build-up to occur_ Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

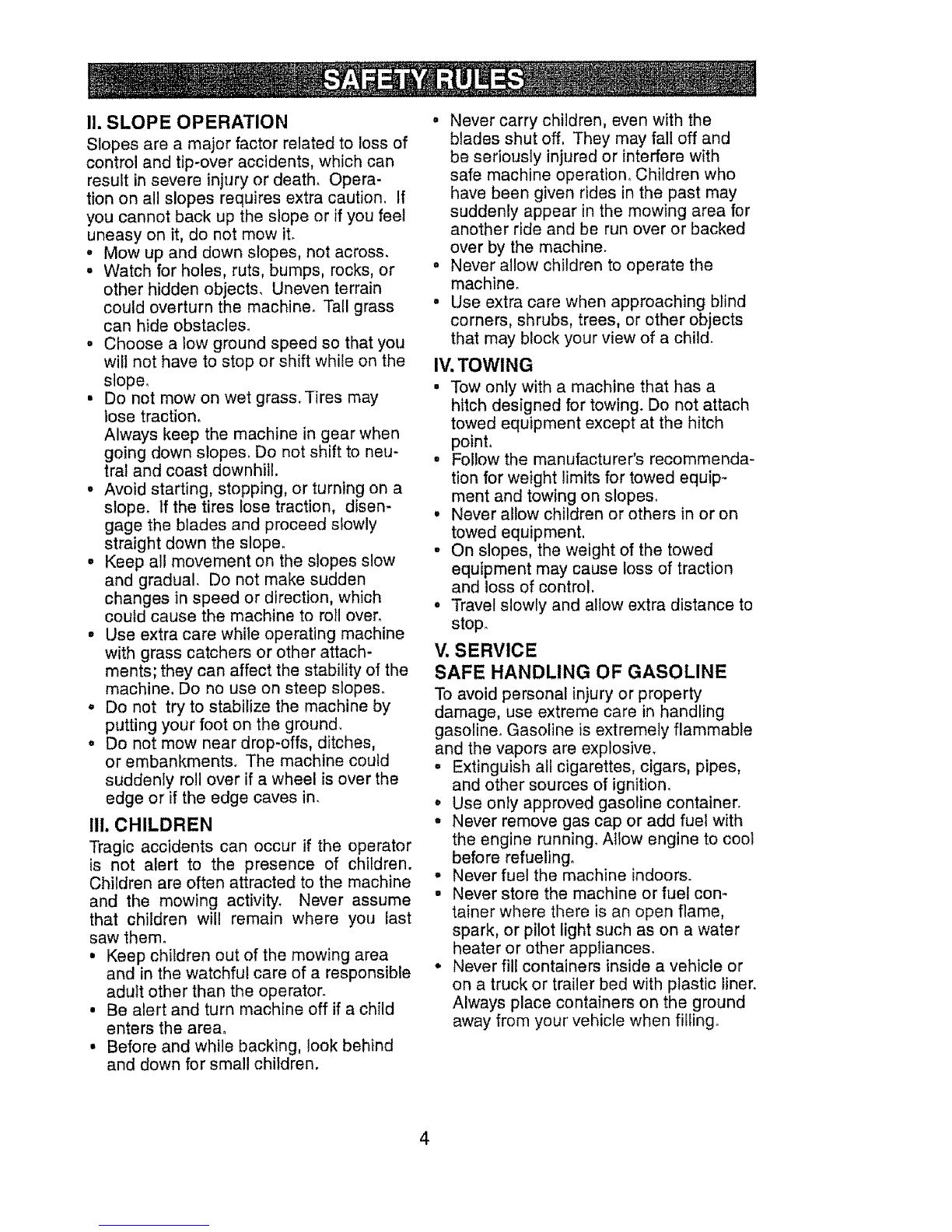

II. SLOPE OPERATION

Slopes are a major factor related to loss of

control and tip-over accidents, which can

result in severe injury or death. Opera-

tion on all slopes requires extra caution. If

you cannot back up the slope or if you feel

uneasy on it, do not mow it.

• Mow up and down slopes, not across.

• Watch for holes, ruts, bumps, rocks, or

other hidden objects. Uneven terrain

could overturn the machine. Tall grass

can hide obstacles°

, Choose a low ground speed so that you

will not have to stop or shift while on the

slope_

• Do not mow on wet grass.Tires may

lose traction.

Always keep the machine in gear when

going down slopes. Do not shift to neu-

tral and coast downhill.

oAvoid starting, stopping, or turning on a

slope. If the tires lose traction, disen-

gage the blades and proceed slowly

straight down the slope.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction, which

could cause the machine to roll over°

•Use extra care while operating machine

with grass catchers or other attach-

ments; they can affect the stability of the

machine. Do no use on steep slopes.

• Do not try to stabilize the machine by

putting your foot on the ground.

•Do not mow near drop-offs, ditches,

or embankments. The machine could

suddenly roll over if a wheel is over the

edge or if the edge caves in.

III, CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the machine

and the mowing activity. Never assume

that children will remain where you last

saw them.

• Keep children out of the mowing area

and in the watchful care of a responsible

adult other than the operator.

• Be alert and turn machine off if a child

enters the area.

• Before and while backing, look behind

and down for small children.

oNever carry children, even with the

blades shut off. They may fall off and

be seriously injured or interfere with

safe machine operation. Children who

have been given rides in the past may

suddenly appear in the mowing area for

another ride and be run over or backed

over by the machine.

° Never allow children to operate the

machine.

°Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may block your view of a child.

IV. TOWING

•Tow only with a machine that has a

hitch designed for towing. Do not attach

towed equipment except at the hitch

point°

° Follow the manufacturer's recommenda-

tion for weight limits for towed equip-

ment and towing on slopes°

oNever allow children or others in or on

towed equipment.

•On slopes, the weight of the towed

equipment may cause loss of traction

and loss of control.

• Travel slowly and allow extra distance to

stop.

V. SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property

damage, use extreme care in handling

gasoline. Gasoline is extremely flammable

and the vapors are explosive_

• Extinguish all cigarettes, cigars, pipes,

and other sources of ignition.

• Use only approved gasoline container.

• Never remove gas cap or add fuel with

the engine running_ Atlow engine to cool

before refueling°

• Never fuel the machine indoors.

• Never store the machine or fuel con-

tainer where there is an open flame,

spark, or pilot light such as on a water

heater or other appliances.

• Never fill containers inside a vehicle or

on a truck or trailer bed with plastic liner.

Always place containers on the ground

away from your' vehicle when filtingo

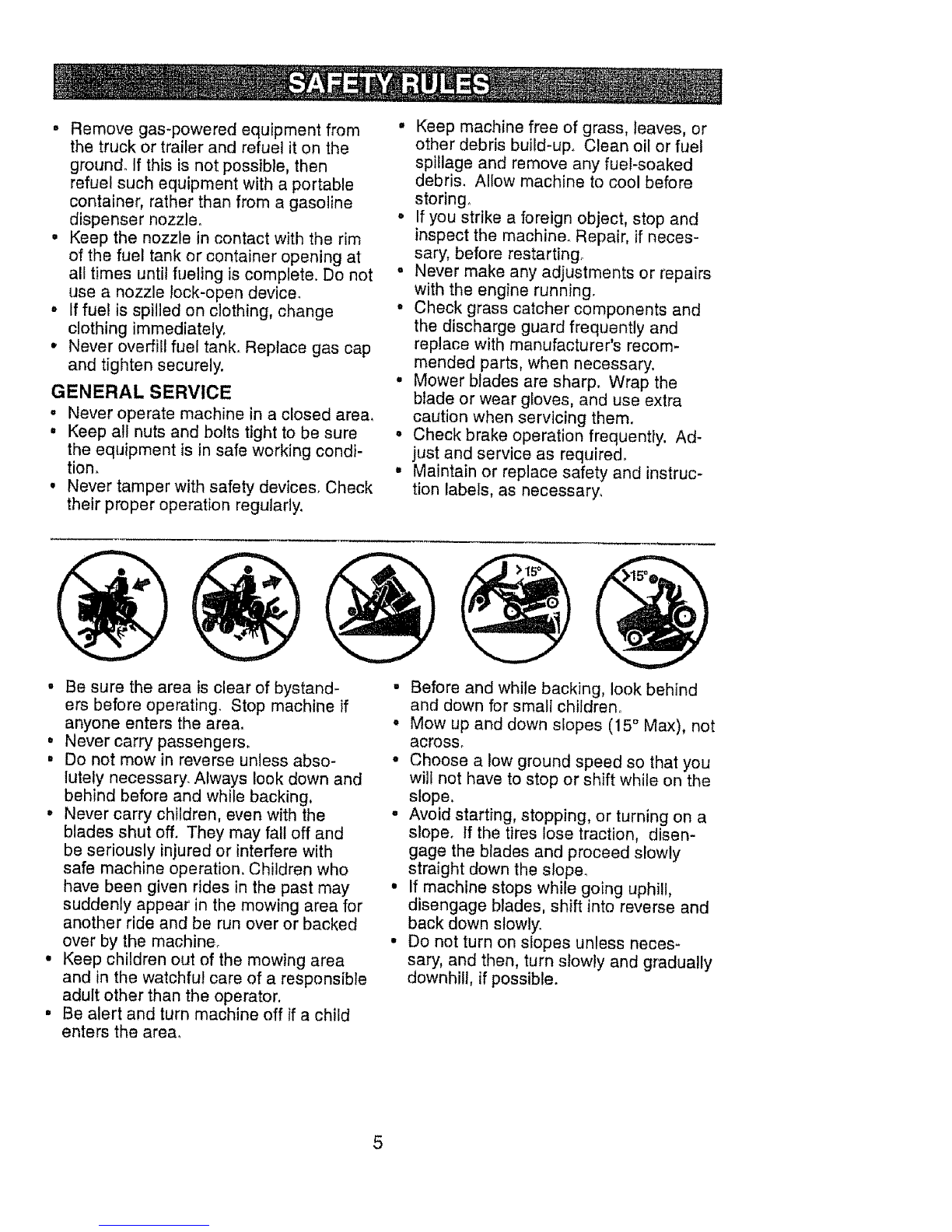

• Remove gas-powered equipment from

the truck or trailer and refuel it on the

ground° If this is not possible, then

refuel such equipment with a portable

container, rather than from a gasoline

dispenser nozzle.

• Keep the nozzle in contact with the rim

of the fuel tank or container opening at

all times until fueling is complete. Do not

use a nozzle lock-open device.

• If fuel is spilled on clothing, change

clothing immediately.

• Never overfill fuel tank. Replace gas cap

and tighten securely.

GENERAL SERVICE

° Never operate machine in a closed area.

• Keep all nuts and bolts tight to be sure

the equipment is in safe working condi-

tion.

• Never tamper with safety devices. Check

their proper operation regularly.

, Keep machine free of grass, leaves, or

other debris bui_d-up. Clean oil or fue!

spillage and remove any fuel-soaked

debris. Allow machine to cool before

storing°

• If you strike a foreign object, stop and

inspect the machine. Repair, if neces-

sary, before restarting.

• Never make any adjustments or repairs

with the engine running.

• Check grass catcher components and

the discharge guard frequently and

replace with manufacturer's recom-

mended parts, when necessary.

, Mower blades are sharp. Wrap the

blade or wear gloves, and use extra

caution when servicing them.

• Check brake operation frequently. Ad-

just and service as required.

• Maintain or replace safety and instruc-

tion labeis, as necessary.

• Be sure the area is clear of bystand-

ers before operating. Stop machine if

anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing,

• Never carry children, even with the

blades shut off. They may fall off and

be seriously injured or interfere with

safe machine operation. Children who

have been given rides in the past may

suddenly appear in the mowing area for

another ride and be run over or backed

over by the machine.

• Keep children out of the mowing area

and in the watchful care of a responsible

adult other than the operator.

° Be alert and turn machine off if a child

enters the area.

• Before and while backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max), not

across,

• Choose a low ground speed so that you

will not have to stop or shift while on the

slope.

• Avoid starting, stopping, or turning on a

slope. If the tires lose traction, disen-

gage the blades and proceed slowly

straight down the slope_

° If machine stops while going uphil;,

disengage blades, shift into reverse and

back down slowly.

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

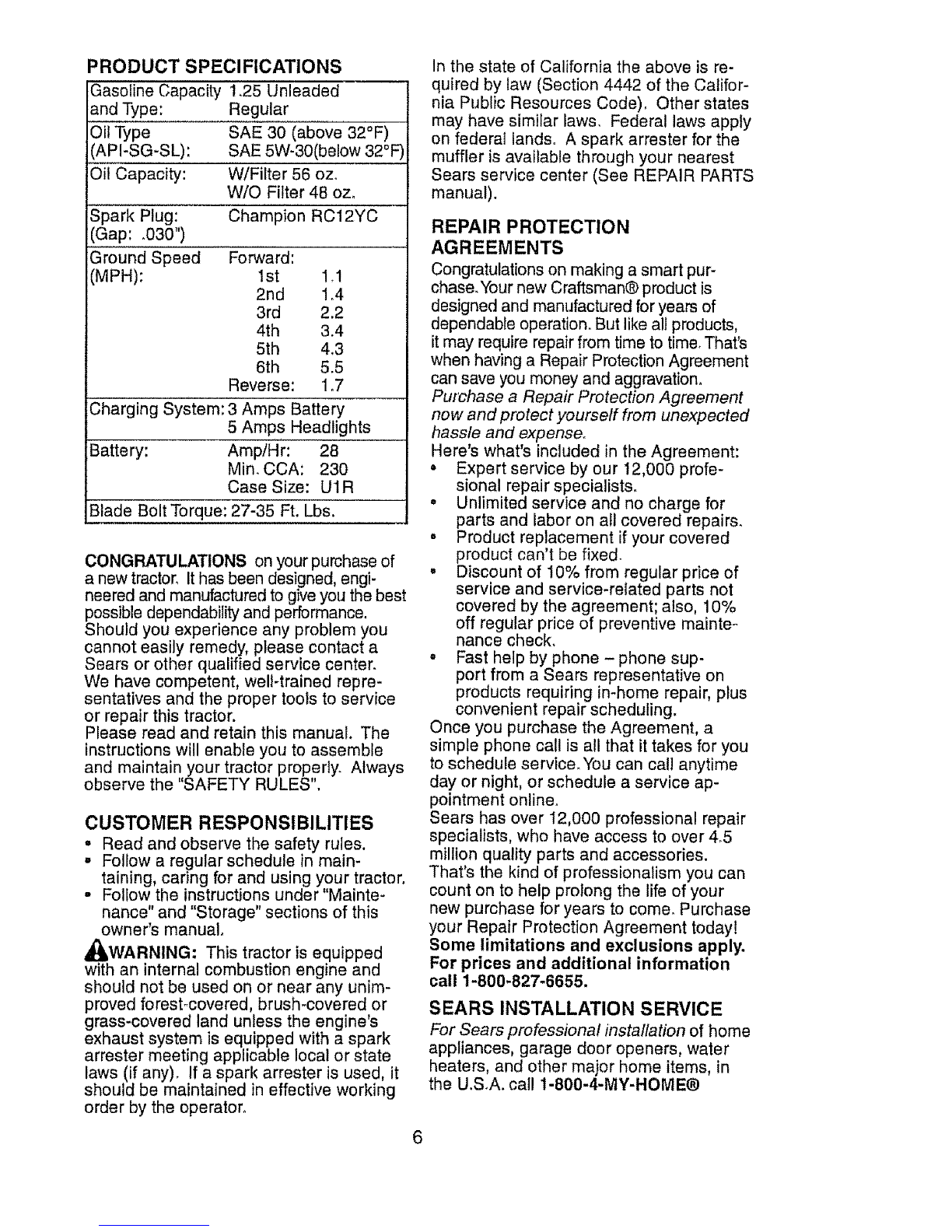

PRODUCT SPECIFICATIONS

Gasoline Capacity !.25 Unleaded

and Type: Regular

Oil ]_jpe SAE 30 (above 32°F)

API-SG-SL): SAE 5W-30(below 32°F

Oil Capacity: W/Filter 56 oz.

W/O Filter 48 ozo

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed

(MPH): Forward:

1st 1.1

2nd 1o4

3rd 2.2

4th 3.4

5th 4,3

6th 5.5

Reverse: 1,7

Charging System: 3 Amps Battery

5 Amps Headlights

Battery: Amp/Hr: 28

Min. CCA: 230

Case Size: U1R

Blade Bolt Torque: 27-35 Ft. Lbs.

CONGRATULATIONS on your purchase of

a new tractor. It has been designed, engi-

neered and manufactured to give you the best

possible dependability and performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, welHrained repre-

sentatives and the proper tools to service

or repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

Read and observe the safety rules.

Follow a regular schedule in main-

taining, caring for and using your tractor.

-Follow the instructions under"Mainte-

nance" and "Storage" sections of this

owner's manual.

4_IbWARNING" This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved foresbcovered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator°

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands° A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase.Your new Craftsman@ product is

designed and manufactured for years of

dependable operation. But like all products,

it may require repair from time to time. That's

when having a Repair Protection Agreement

can save you money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourseff from unexpected

hassle and expense_

Here's what's included in the Agreement:

•Expert service by our 12,000 profe-

sional repair specialists.

• Unlimited service and no charge for

parts and labor on all covered repairs.

° Product replacement if your covered

product can't be fixed.

,Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

o Fast help by phone - phone sup-

port from a Sears representative on

products requiring in-home repair, plus

convenient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online°

Sears has over 12,000 professional repair

specialists, who have access to over 4_5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME®

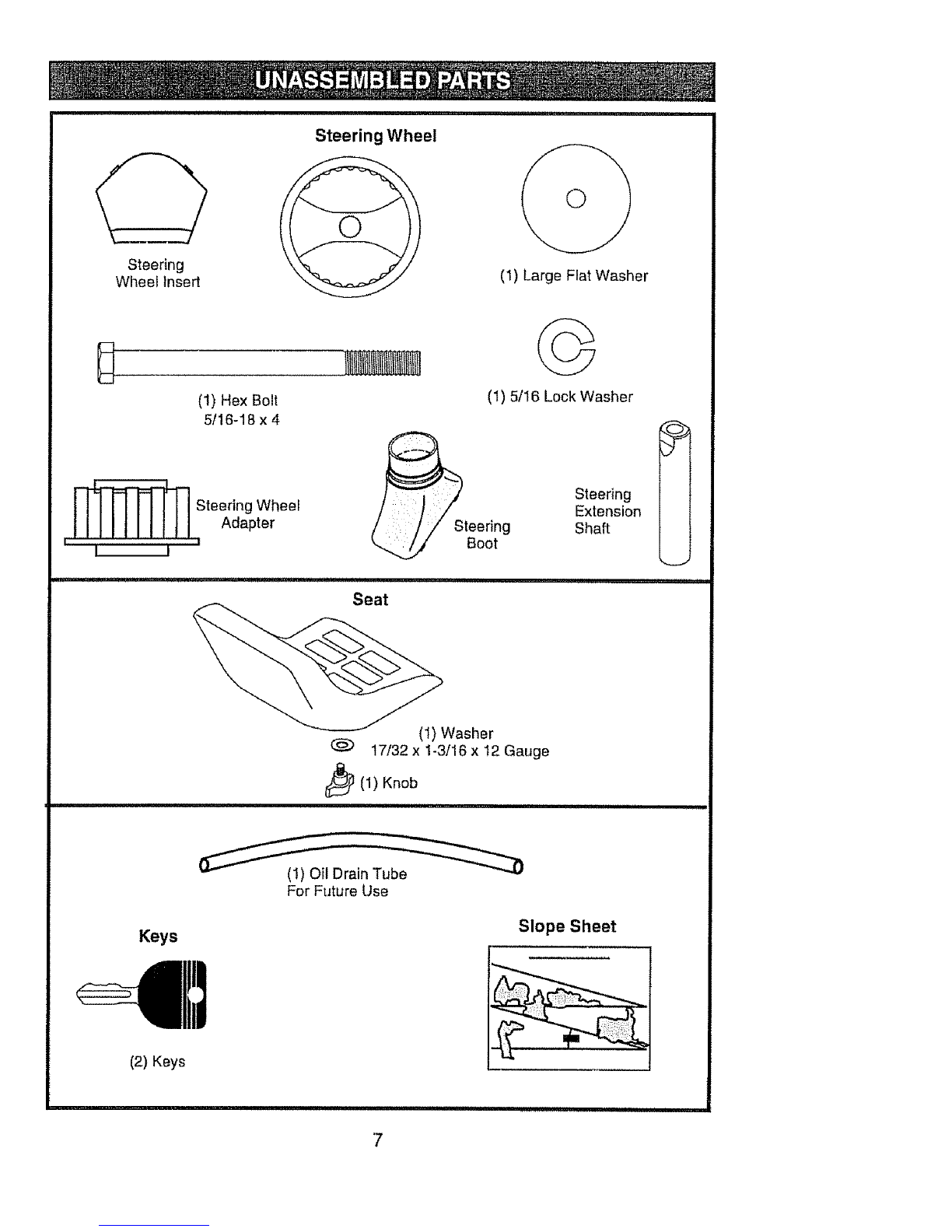

Steering

Wheel Insert

Steering Wheel

@ilnlll, ii , n

(1) Large Flat Washer

(1) Hex Bolt

5/16-18 x 4

_ Steedng Wheel

,IIII1111tl, Adapter

I I

(1) 5/I6 Lock Washer

Steering

Extension

Shaft

Seat

Keys

(1) Oil Drain Tube

For Future Use

Slope Sheet

(2) Keys

,i,iiiiii,in I i I n,,'11111' I

"four new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely° Use the correct tools

as necessary to insure proper tightness,

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier° Standard wrench sizes you need

are listed below.

(1) 3/4" wrench (1) Pliers

(1) 1/2" wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means when you are in

the operating position (seated behind the

steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts boxes from carton.

2. Cut along dashed lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

3. Check for any additional loose parts or

cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower steer-

ing shaft.

2. Place tabs of steering boot over tab

slots in dash and push down to secure.

iNSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6 Assemble large flat washer, 5/16 lock

washer, 5/16 hex bolt and tighten se-

curely.

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from trac-

tor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off ski&

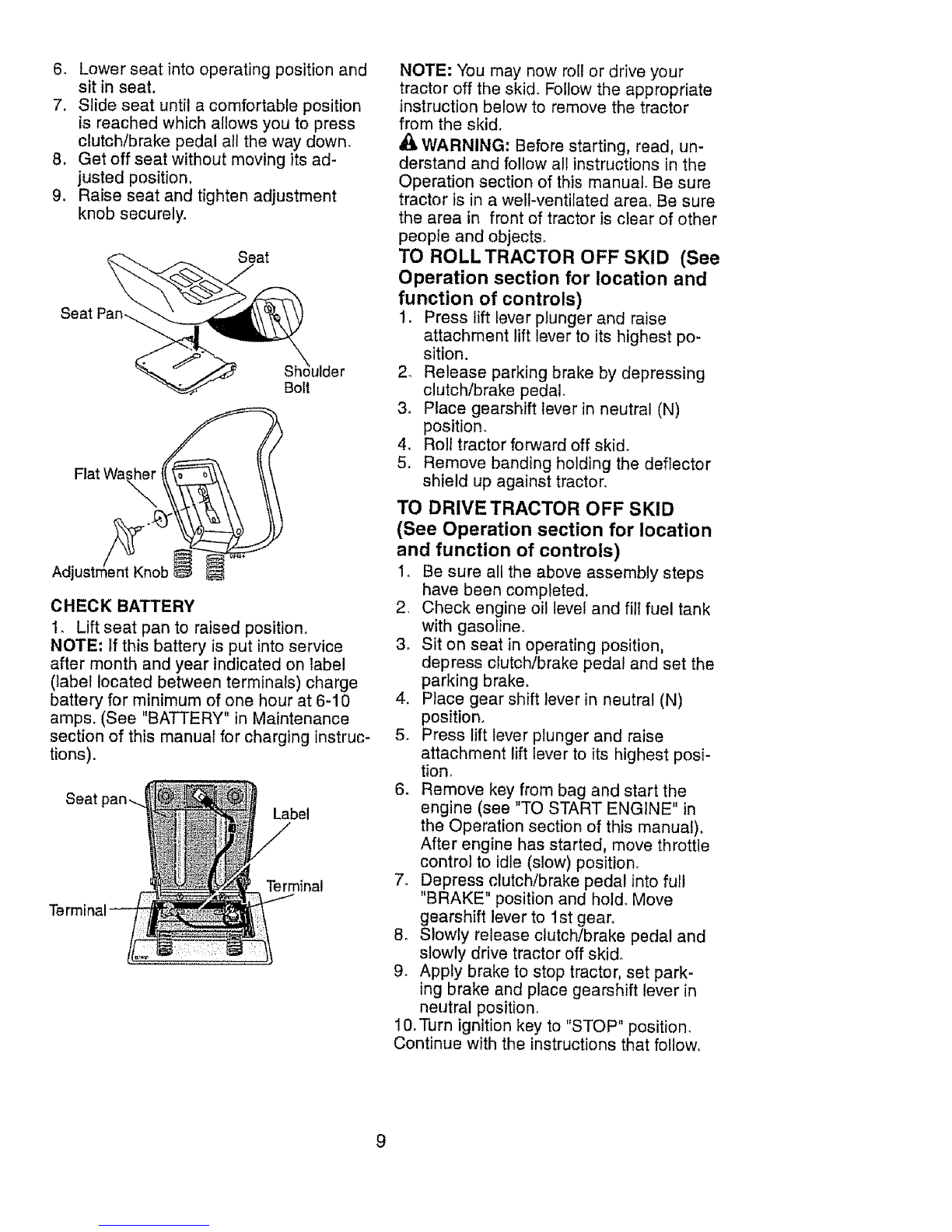

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

t. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor_

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discar&

3. Place seat on seat pan so head of

shoulder bolt is positioned over large

slotted hole in pan.

4o Push down on seat to engage shoulder

bolt in slot and pull seat towards rear of

tractor°

5_ Pivot seat and pan forward and as-

semble adjustment knob and flat

washer loosely. Do not tighten°

6. Lowerseatintooperatingpositionand

sit inseat.

7. Slideseatuntilacomfortableposition

is reachedwhichallowsyouto press

clutch/brakepedalallthewaydown,

8, Getoff seatwithoutmovingitsad-

justed position.

9. Raise seat and tighten adjustment

knob securely.

Seat

Bolt

Flat Washer

Adjost /oo(Knob

CHECK BATTERY

1_ Lift seat pan to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc-

tions).

Seat Label

Term

Terminal

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area, Be sure

the area in front of tractor is clear of other

people and objects.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2o Release parking brake by depressing

clutch/brake pedal.

3. Place gearshift lever in neutral (N)

position.

4, Roll tractor forward off skid.

5. Remove banding holding the deflector

shield up against tractor,

TO DRIVE TRACTOR OFF SKID

(See Operation section for location

and function of controls)

1o Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

6. Remove key from bag and start the

engine (see "TO START ENGINE" in

the Operation section of this manual),

After engine has started, move throttle

control to idle (slow) position.

7. Depress clutch/brake pedal into full

"BRAKE" position and holdo Move

gearshift lever to 1st gear,

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set park-

ing brake and place gearshift lever in

neutral position.

1&Turn ignition key to "STOP" position.

Continue with the instructions that follow.

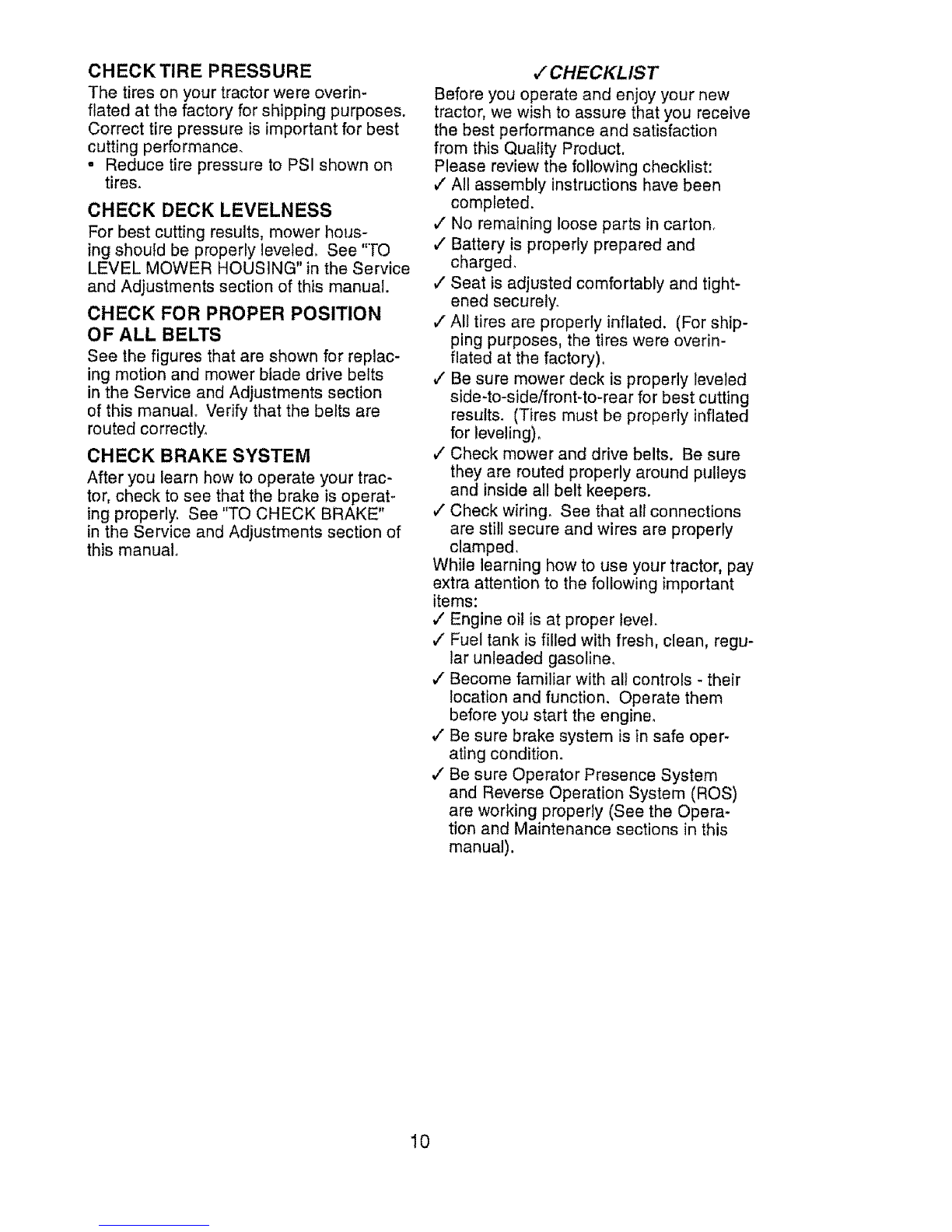

CHECK TIRE PRESSURE

The tires on your tractor were overin-

flared at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance°

• Reduce tire pressure to PSI shown on

tires.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled, See '"TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual° Verify that the belts are

routed correctly,

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is operat-

ing properly, See "TO CHECK BRAKE"

in the Service and Adjustments section of

this manual,

,/CHECKLIST

Before you operate and enjoy your new

tractor, we wish to assure that you receive

the best performance and satisfaction

from this Quality Product.

Please review the following checklist:

v" All assembly instructions have been

completed.

,/No remaining loose parts in carten_

,/Battery is properly prepared and

charged.

_" Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

v" Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling)°

¢Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

v" Check wiring. See that all connections

are still secure and wires are properly

clamped,

While learning how to use your tractor, pay

extra attention to the following important

items:

¢Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean, regu-

lar unleaded gasoline_

,,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

v" Be sure brake system is in safe oper-

ating condition.

7' Be sure Operator Presence System

and Reverse Operation System (ROS)

are working properly (See the Opera-

tion and Maintenance sections in this

manual).

Table des matières

Langues :

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 944.364151 Manuel utilisateur

Craftsman

Craftsman 917.272464 Manuel utilisateur

Craftsman

Craftsman 917.276013 Manuel utilisateur

Craftsman

Craftsman 917.376732 Manuel utilisateur

Craftsman

Craftsman 917.271920 Manuel utilisateur

Craftsman

Craftsman 917.388541 Manuel utilisateur

Craftsman

Craftsman EZ3 917.377580 Manuel utilisateur

Craftsman

Craftsman 917.258271 Manuel utilisateur

Craftsman

Craftsman 25414 Manuel utilisateur

Craftsman

Craftsman 917.273180 Manuel utilisateur

Craftsman

Craftsman 944.364270 Manuel utilisateur

Craftsman

Craftsman 917.387630 Manuel utilisateur

Craftsman

Craftsman EZ 917.270810 Manuel utilisateur

Craftsman

Craftsman 917.376523 Manuel utilisateur

Craftsman

Craftsman 917.387612 Manuel utilisateur

Craftsman

Craftsman 917.370563 Manuel utilisateur

Craftsman

Craftsman EZ 917.37742 Manuel utilisateur

Craftsman

Craftsman 917.370690 Manuel utilisateur

Craftsman

Craftsman 917.379040 Manuel utilisateur

Craftsman

Craftsman 917.388551 Manuel utilisateur

Craftsman

Craftsman 917.389490 Manuel utilisateur

Craftsman

Craftsman 917.276630 Manuel utilisateur

Craftsman

Craftsman 917.374943 Manuel utilisateur

Craftsman

Craftsman 917.376730 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
