Craftsman 917.388811 Manuel utilisateur

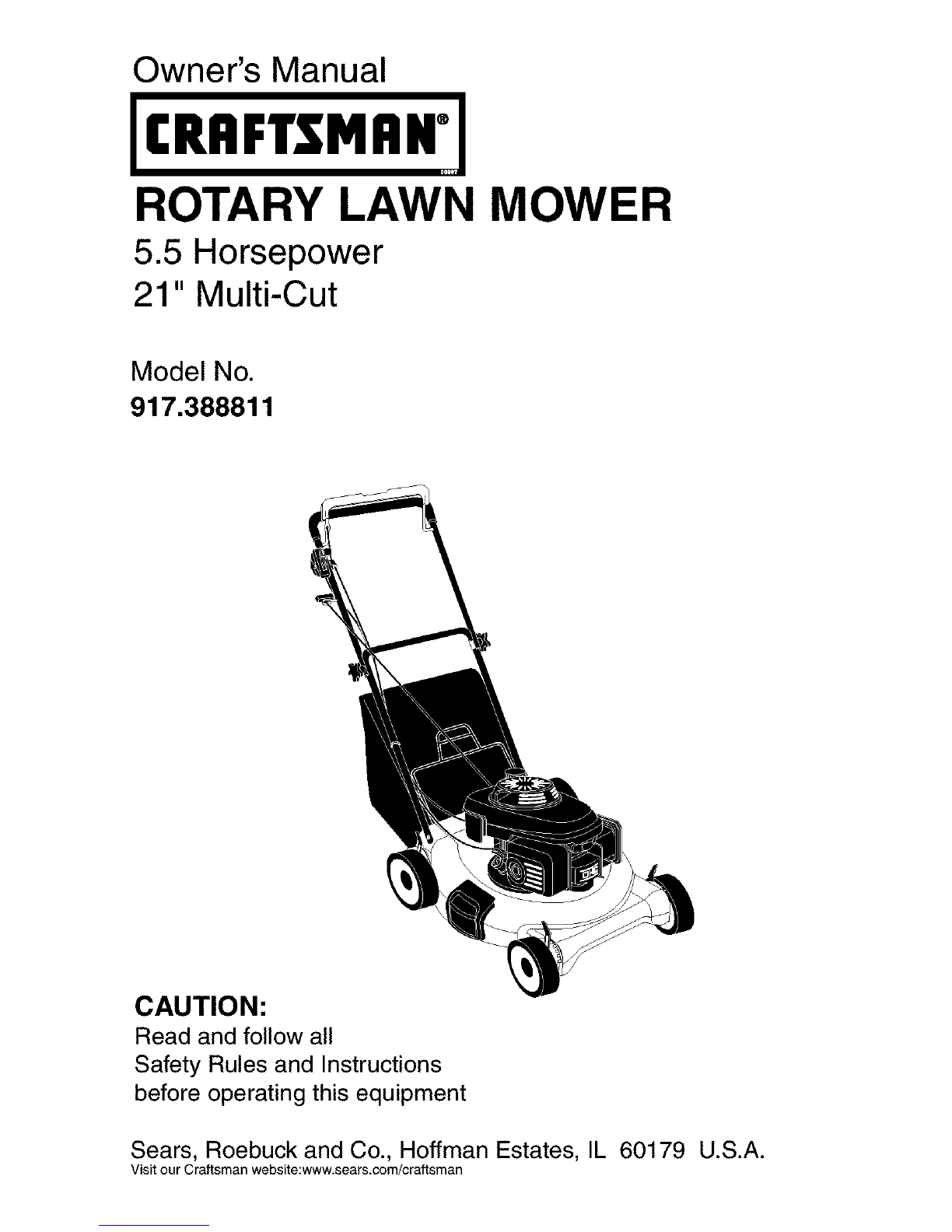

Owner's Manual

IC..FTSMnWl

ROTARY LAWN MOWER

5.5 Horsepower

21" Multi-Cut

Model No.

917.388811

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

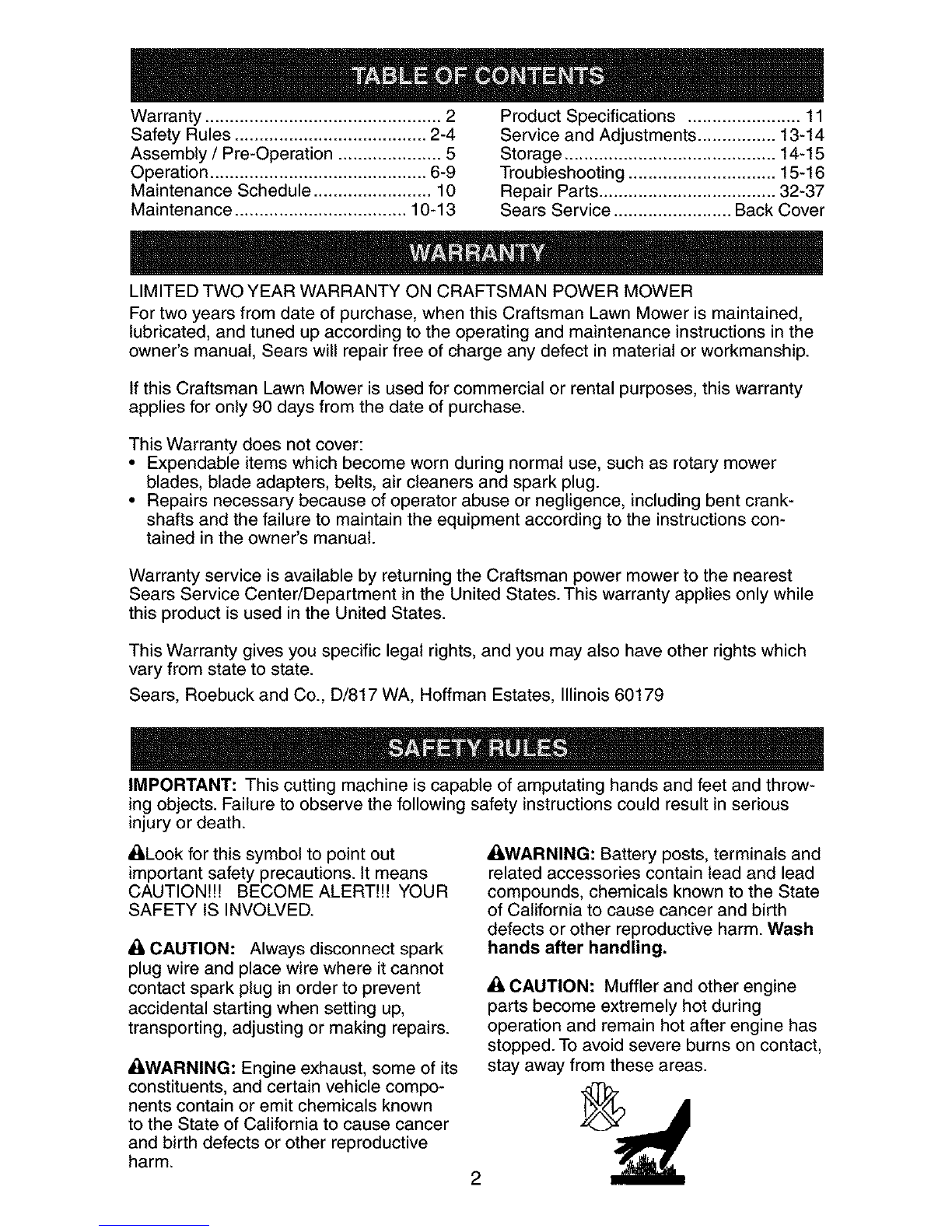

Warranty ................................................ 2

Safety Rules ....................................... 2-4

Assembly /Pre-Operation ..................... 5

Operation ............................................ 6-9

Maintenance Schedule ........................ 10

Maintenance ................................... 10-13

Product Specifications ....................... 11

Service and Adjustments ................ 13-14

Storage ........................................... 14-15

Troubleshootin( .............................. 15-16

Repair Parts .................................... 32-37

Sears Service ........................ Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in the

owner's manual, Sears will repair free of charge any defect in material or workmanship.

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as rotary mower

blades, blade adapters, belts, air cleaners and spark plug.

• Repairs necessary because of operator abuse or negligence, including bent crank-

shafts and the failure to maintain the equipment according to the instructions con-

tained in the owner's manual.

Warranty service is available by returning the Craftsman power mower to the nearest

Sears Service Center/Department in the United States. This warranty applies only while

this product is used in the United States.

This Warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, Illinois 60179

IMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

Ai::_Lookfor this symbol to point out

important safety precautions. It means

CAUTION!H BECOME ALERT!H YOUR

SAFETY IS INVOLVED.

_, CAUTION: Always disconnect spark

plug wire and place wire where it cannot

contact spark plug in order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs.

_LWARNING: Engine exhaust, some of its

constituents, and certain vehicle compo-

nents contain or emit chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm.

_I_WARNING: Battery posts, terminals and

related accessories contain lead and lead

compounds, chemicals known to the State

of California to cause cancer and birth

defects or other reproductive harm. Wash

hands after handling.

_i, CAUTION: Muffler and other engine

parts become extremely hot during

operation and remain hot after engine has

stopped. To avoid severe burns on contact,

stay away from these areas.

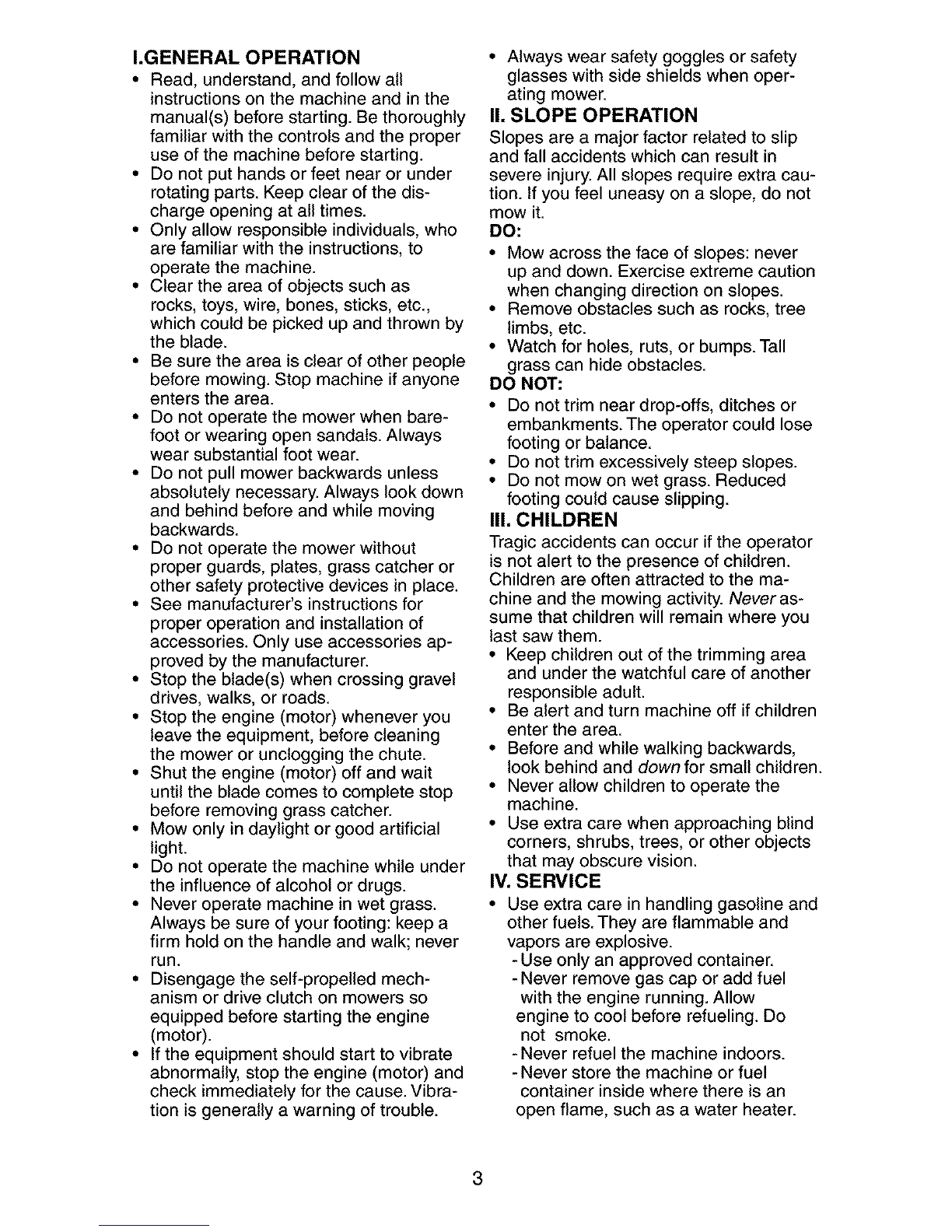

I.GENERAL OPERATION

• Read, understand, and follow all

instructions on the machine and in the

manual(s) before starting. Be thoroughly

familiar with the controls and the proper

use of the machine before starting.

• Do not put hands or feet near or under

rotating parts. Keep clear of the dis-

charge opening at all times.

• Only allow responsible individuals, who

are familiar with the instructions, to

operate the machine.

• Clear the area of objects such as

rocks, toys, wire, bones, sticks, etc.,

which could be picked up and thrown by

the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Do not operate the mower when bare-

foot or wearing open sandals. Always

wear substantial foot wear.

• Do not pull mower backwards unless

absolutely necessary. Always look down

and behind before and while moving

backwards.

• Do not operate the mower without

proper guards, plates, grass catcher or

other safety protective devices in place.

• See manufacturer's instructions for

proper operation and installation of

accessories. Only use accessories ap-

proved by the manufacturer.

• Stop the blade(s) when crossing gravel

drives, walks, or roads.

• Stop the engine (motor) whenever you

leave the equipment, before cleaning

the mower or unclogging the chute.

• Shut the engine (motor) off and wait

until the blade comes to complete stop

before removing grass catcher.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Never operate machine in wet grass.

Always be sure of your footing: keep a

firm hold on the handle and walk; never

run.

• Disengage the self-propelled mech-

anism or drive clutch on mowers so

equipped before starting the engine

(motor).

• If the equipment should start to vibrate

abnormally, stop the engine (motor) and

check immediately for the cause. Vibra-

tion is generally a warning of trouble.

• Always wear safety goggles or safety

glasses with side shields when oper-

ating mower.

II, SLOPE OPERATION

Slopes are a major factor related to slip

and fall accidents which can result in

severe injury. All slopes require extra cau-

tion. If you feel uneasy on a slope, do not

mow it.

DO:

• Mow across the face of slopes: never

up and down. Exercise extreme caution

when changing direction on slopes.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Tall

grass can hide obstacles.

DO NOT:

• Do not trim near drop-offs, ditches or

embankments. The operator could lose

footing or balance.

• Do not trim excessively steep slopes.

• Do not mow on wet grass. Reduced

footing could cause slipping.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Neveras-

sume that children will remain where you

last saw them.

• Keep children out of the trimming area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and while walking backwards,

look behind and down for small children.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

-Use only an approved container.

-Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

-Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

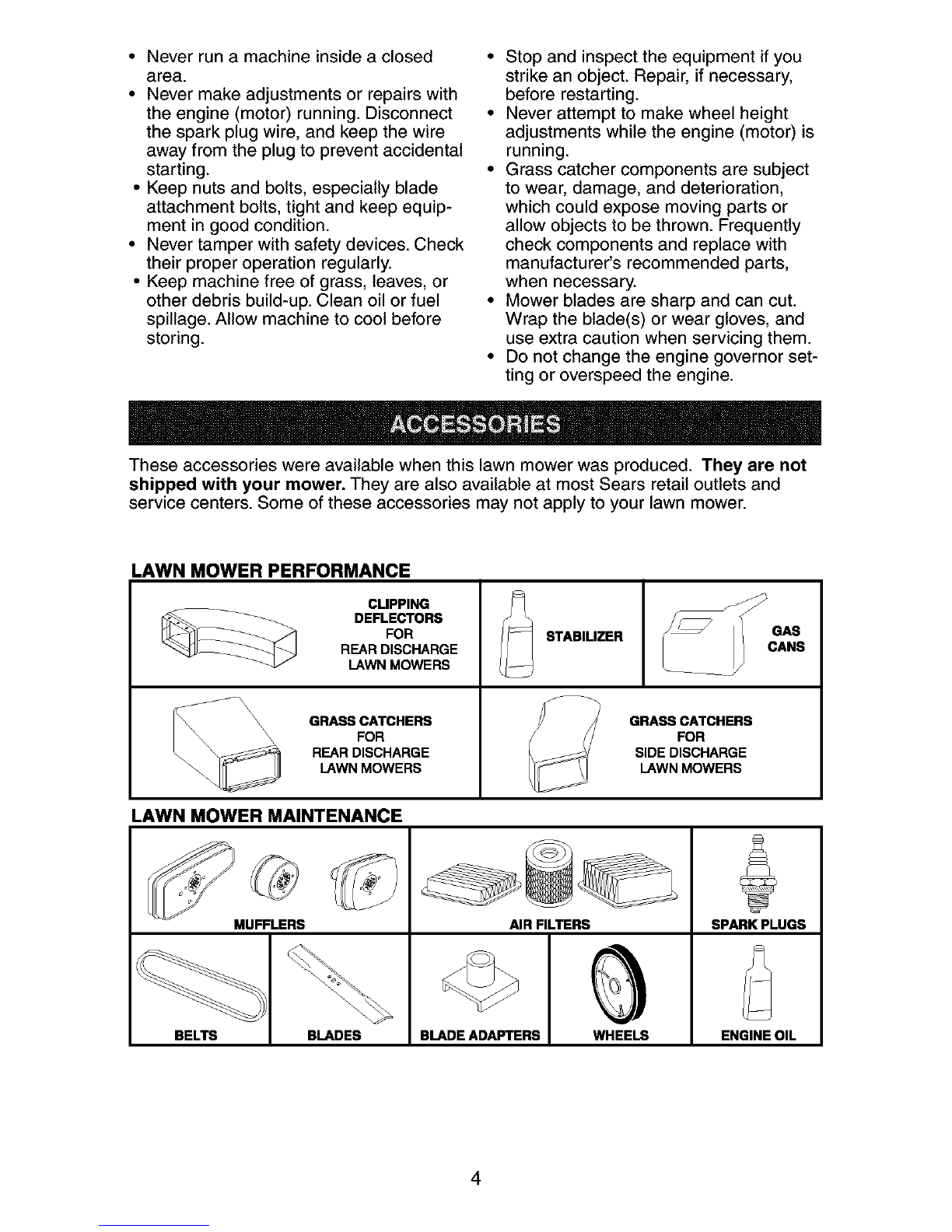

• Never run a machine inside a closed

area.

• Never make adjustments or repairs with

the engine (motor) running. Disconnect

the spark plug wire, and keep the wire

away from the plug to prevent accidental

starting.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

• Never tamper with safety devices. Check

their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never attempt to make wheel height

adjustments while the engine (motor) is

running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Do not change the engine governor set-

ting or overspeed the engine.

These accessories were available when this lawn mower was produced. They are not

shipped with your mower. They are also available at most Sears retail outlets and

service centers. Some of these accessories may not apply to your lawn mower.

LAWN MOWER PERFORMANCE

CLIPPING

DEFLECTORS

FOR

REAR DISCHARGE

LAWN MOWERS

GRASS CATCHERS

\\ FOR

__ REAR DISCHARGE

LAWN MOWERS

STABILIZER

GRASS CATCHERS

FOR

SIDE DISCHARGE

LAWN MOWERS

LAWN MOWER MAINTENANCE

MUFFLERS AIR FILTERS SPARK PLUGS

BELTS BLADES BLADE ADAPTERS WHEELS ENGINE OIL

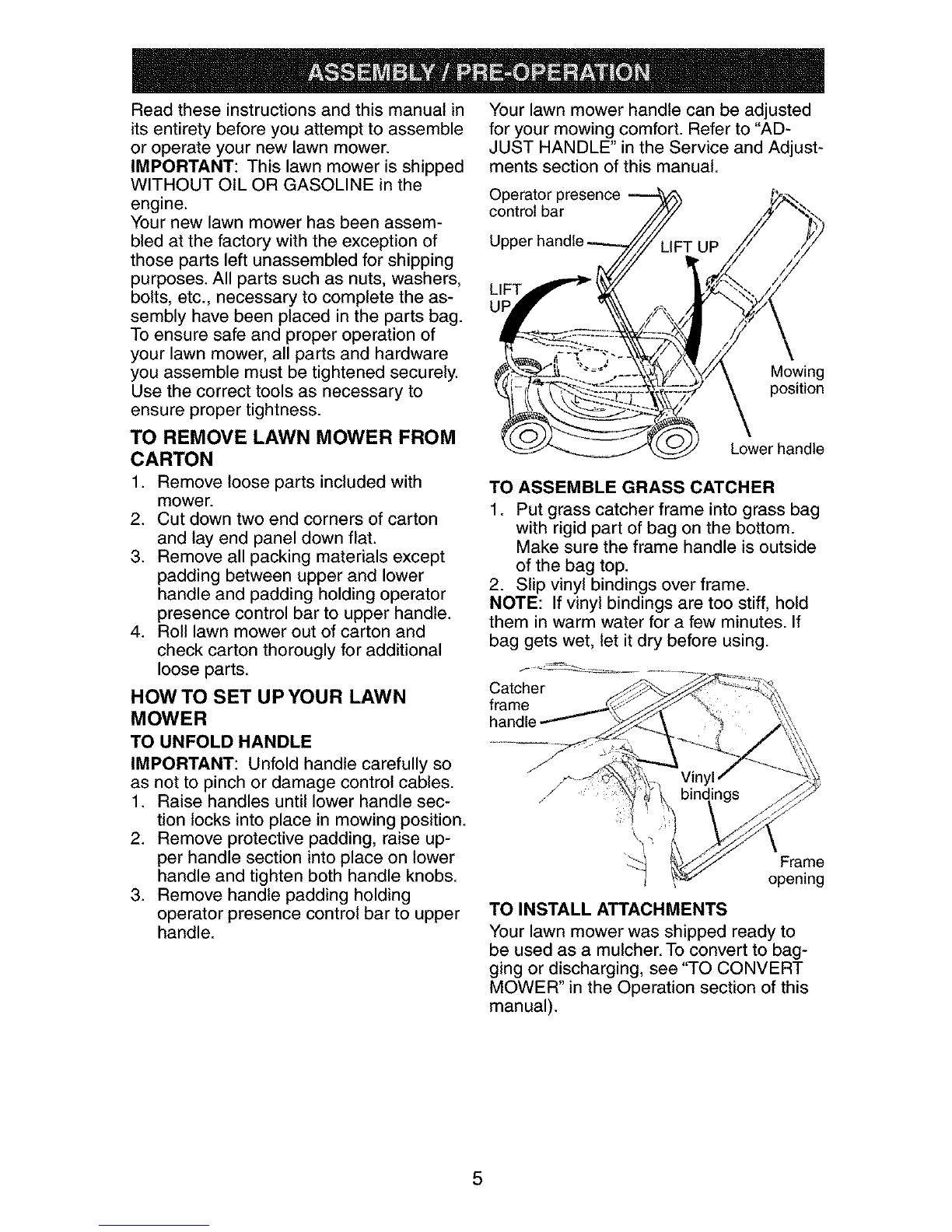

Read these instructions and this manual in

its entirety before you attempt to assemble

or operate your new lawn mower.

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the

engine.

Your new lawn mower has been assem-

bled at the factory with the exception of

those parts left unassembled for shipping

purposes. All parts such as nuts, washers,

bolts, etc., necessary to complete the as-

sembly have been placed in the parts bag.

To ensure safe and proper operation of

your lawn mower, all parts and hardware

you assemble must be tightened securely.

Use the correct tools as necessary to

ensure proper tightness.

TO REMOVE LAWN MOWER FROM

CARTON

1. Remove loose parts included with

mower.

2. Cut down two end corners of carton

and lay end panel down flat.

3. Remove all packing materials except

padding between upper and lower

handle and padding holding operator

presence control bar to upper handle.

4. Roll lawn mower out of carton and

check carton thorougly for additional

loose parts.

HOWTO SET UPYOUR LAWN

MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage control cables.

1. Raise handles until lower handle sec-

tion locks into place in mowing position.

2. Remove protective padding, raise up-

per handle section into place on lower

handle and tighten both handle knobs.

3. Remove handle padding holding

operator presence control bar to upper

handle.

Your lawn mower handle can be adjusted

for your mowing comfort. Refer to "AD-

JUST HANDLE" in the Service and Adjust-

ments section of this manual.

Operator presence

control bar

LIFT

Mowing

position

Lower handle

TO ASSEMBLE GRASS CATCHER

1. Put grass catcher frame into grass bag

with rigid part of bag on the bottom.

Make sure the frame handle is outside

of the bag top.

2. Slip vinyl bindings over frame.

NOTE: If vinyl bindings are too stiff, hold

them in warm water for a few minutes. If

bag gets wet, let it dry before using.

Catcher

frame

handle

Et Frame

opening

TO INSTALL ATTACHMENTS

Your lawn mower was shipped ready to

be used as a mulcher. To convert to bag-

ging or discharging, see "TO CONVERT

MOWER" in the Operation section of this

manual).

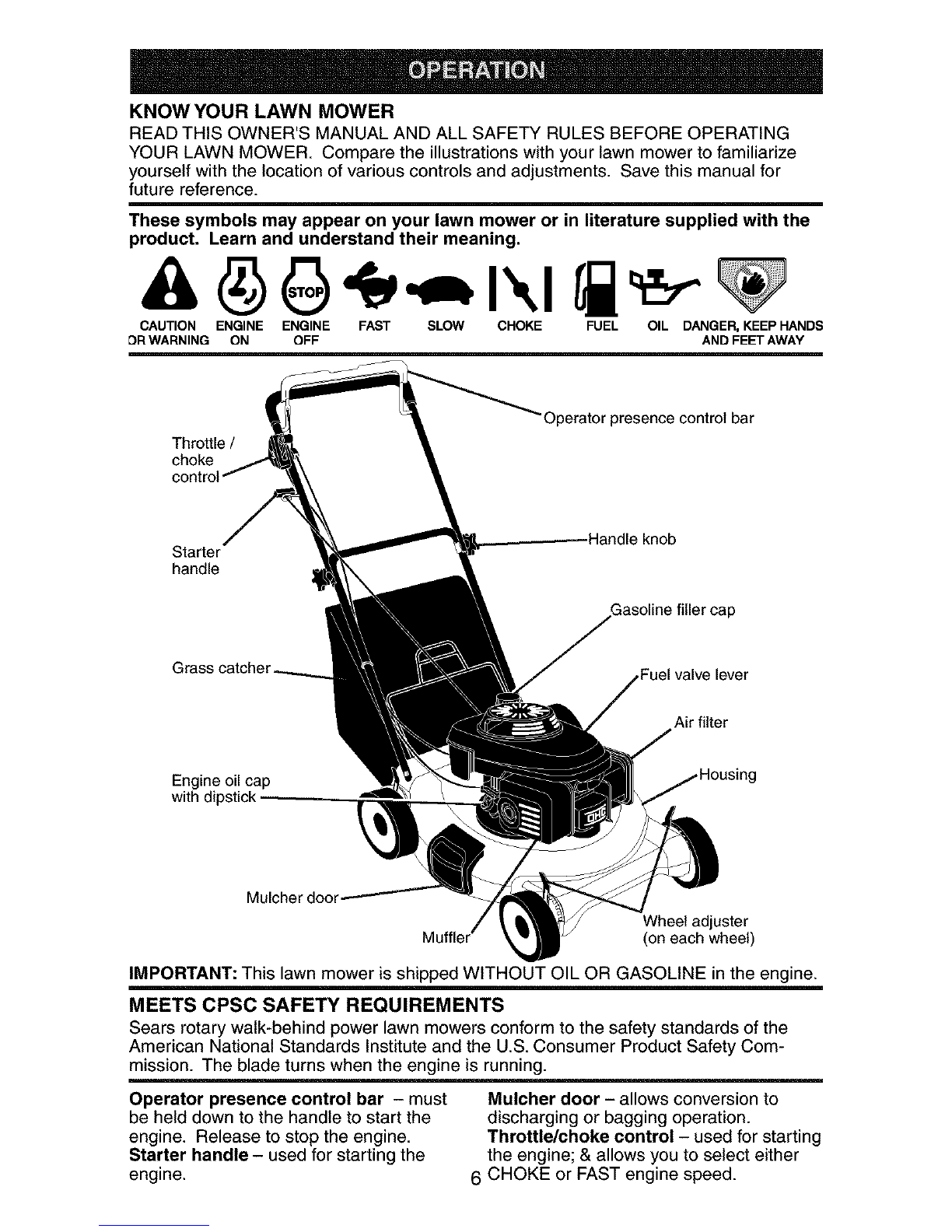

KNOW YOUR LAWN MOWER

READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING

YOUR LAWN MOWER. Compare the illustrations with your lawn mower to familiarize

yourself with the location of various controls and adjustments. Save this manual for

future reference.

These symbols may appear on your lawn mower or in literature supplied with the

product. Learn and understand their meaning.

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS

DR WARNING ON OFF AND FEET AWAY

Throttle /

choke

3perator presence control bar

Starter

handle

3asoline filler cap

,Fuel valve lever

Air filter

Engine oil cap

with dipstick

Mulcher door

Wheel adjuster

(on each wheel)

IMPORTANT: This lawn mower is shipped WITHOUT OIL OR GASOLINE in the engine.

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the

American National Standards Institute and the U.S. Consumer Product Safety Com-

mission. The blade turns when the engine is running.

Operator presence control bar - must

be held down to the handle to start the

engine. Release to stop the engine.

Starter handle - used for starting the

engine.

Mulcher door - allows conversion to

discharging or bagging operation.

ThrotUe/choke control - used for starting

the engine; & allows you to select either

6 CHOKE or FAST engine speed.

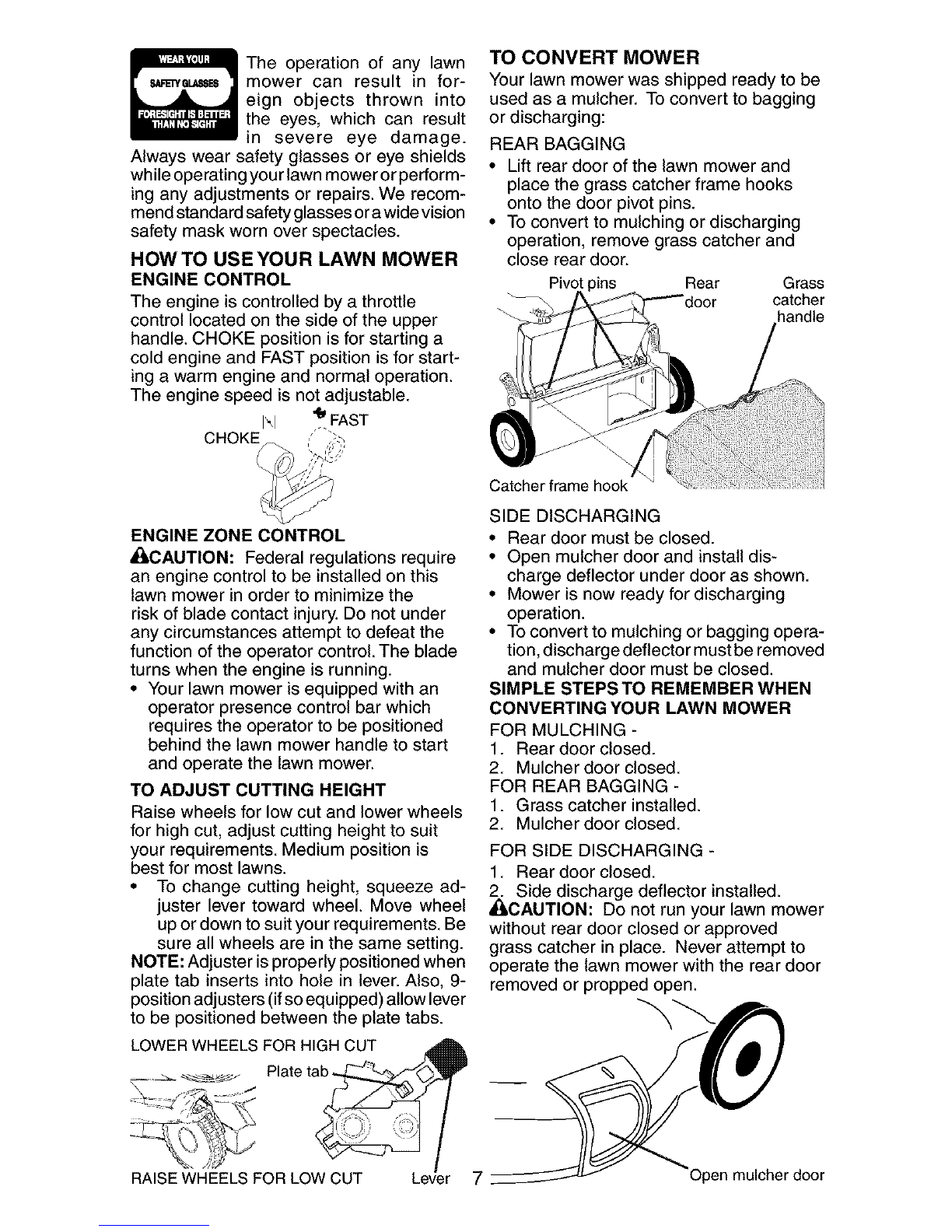

The operation of any lawn

mower can result in for-

eign objects thrown into

the eyes, which can result

in severe eye damage.

Alwayswearsafetyglassesor eye shields

whileoperatingyourlawnmowerorperform-

ingany adjustmentsor repairs.We recom-

mendstandardsafetyglassesorawidevision

safetymaskwornoverspectacles.

HOW TO USE YOUR LAWN MOWER

ENGINE CONTROL

The engine is controlled by a throttle

control located on the side of the upper

handle. CHOKE position is for starting a

cold engine and FAST position is for start-

ing a warm engine and normal operation.

The engine speed is not adjustable.

"_ FAST

CHOKE ,"-""

ENGINE ZONE CONTROL

ACAUTION: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the

risk of blade contact injury. Do not under

any circumstances attempt to defeat the

function of the operator control. The blade

turns when the engine is running.

• Your lawn mower is equipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start

and operate the lawn mower.

TO ADJUST CUTTING HEIGHT

Raise wheels for low cut and lower wheels

for high cut, adjust cutting height to suit

your requirements. Medium position is

best for most lawns.

• To change cutting height, squeeze ad-

juster lever toward wheel. Move wheel

up or down to suit your requirements. Be

sure all wheels are in the same setting.

NOTE: Adjuster is properly positioned when

plate tab inserts into hole in lever. Also, 9-

position adjusters (ifso equipped) allow lever

to be positioned between the plate tabs.

LOWER WHEELS FOR HIGH CUT _/_

_._j Plate tab "-_k'_

RAISE WHEELS FOR LOW CUT Lever 7

TO CONVERT MOWER

Your lawn mower was shipped ready to be

used as a mulcher. To convert to bagging

or discharging:

REAR BAGGING

• Lift rear door of the lawn mower and

place the grass catcher frame hooks

onto the door pivot pins.

• To convert to mulching or discharging

operation, remove grass catcher and

close rear door. Rear Grass

catcher

handle

Catcher frame hook

SIDE DISCHARGING

• Rear door must be closed.

• Open mulcher door and install dis-

charge deflector under door as shown.

• Mower is now ready for discharging

operation.

• To convert to mulching or bagging opera-

tion, discharge deflector must be removed

and mulcher door must be closed.

SIMPLE STEPS TO REMEMBER WHEN

CONVERTING YOUR LAWN MOWER

FOR MULCHING -

1. Rear door closed.

2. Mulcher door closed.

FOR REAR BAGGING -

1. Grass catcher installed.

2. Mulcher door closed.

FOR SIDE DISCHARGING -

1. Rear door closed.

2. Side discharge deflector installed.

Ar_CAUTION: Do not run your lawn mower

without rear door closed or approved

grass catcher in place. Never attempt to

operate the lawn mower with the rear door

removed or propped open.

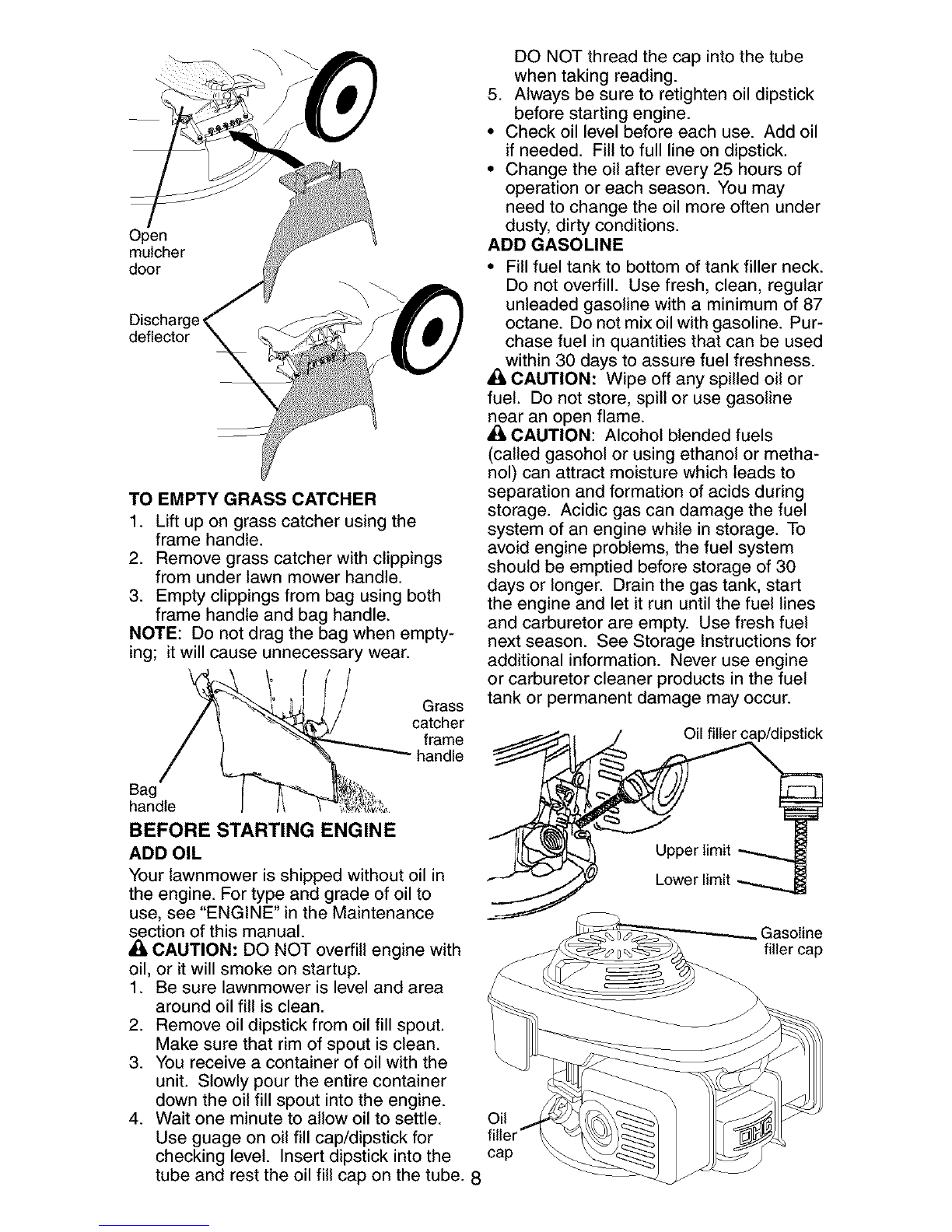

Open

mulcher

door

deflector

TO EMPTY GRASS CATCHER

1. Lift up on grass catcher using the

frame handle.

2. Remove grass catcher with clippings

from under lawn mower handle.

3. Empty clippings from bag using both

frame handle and bag handle.

NOTE: Do not drag the bag when empty-

ing; it will cause unnecessary wear.

Grass

catcher

frame

handle

Bag

handle

BEFORE STARTING ENGINE

ADD OIL

Your lawnmower is shipped without oil in

the engine. For type and grade of oil to

use, see "ENGINE" in the Maintenance

section of this manual.

CAUTION: DO NOT overfill engine with

oil, or it will smoke on startup.

1. Be sure lawnmower is level and area

around oil fill is clean.

2. Remove oil dipstick from oil fill spout.

Make sure that rim of spout is clean.

3. You receive a container of oil with the

unit. Slowly pour the entire container

down the oil fill spout into the engine.

4. Wait one minute to allow oil to settle. Oil

Use guage on oil fill cap/dipstick for

checking level. Insert dipstick into the cap

tube and rest the oil fill cap on the tube. 8

DO NOT thread the cap into the tube

when taking reading.

5. Always be sure to retighten oil dipstick

before starting engine.

• Check oil level before each use. Add oil

if needed. Fill to full line on dipstick.

• Change the oil after every 25 hours of

operation or each season. You may

need to change the oil more often under

dusty, dirty conditions.

ADD GASOLINE

• Fill fuel tank to bottom of tank filler neck.

Do not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of 87

octane. Do not mix oil with gasoline. Pur-

chase fuel in quantities that can be used

within 30 days to assure fuel freshness.

CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

CAUTION: Alcohol blended fuels

(called gasohol or using ethanol or metha-

nol) can attract moisture which leads to

separation and formation of acids during

storage. Acidic gas can damage the fuel

system of an engine while in storage. To

avoid engine problems, the fuel system

should be emptied before storage of 30

days or longer. Drain the gas tank, start

the engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

__ Oil filler cap/dipstick

Upper limit

Lower limit

Gasoline

filler cap

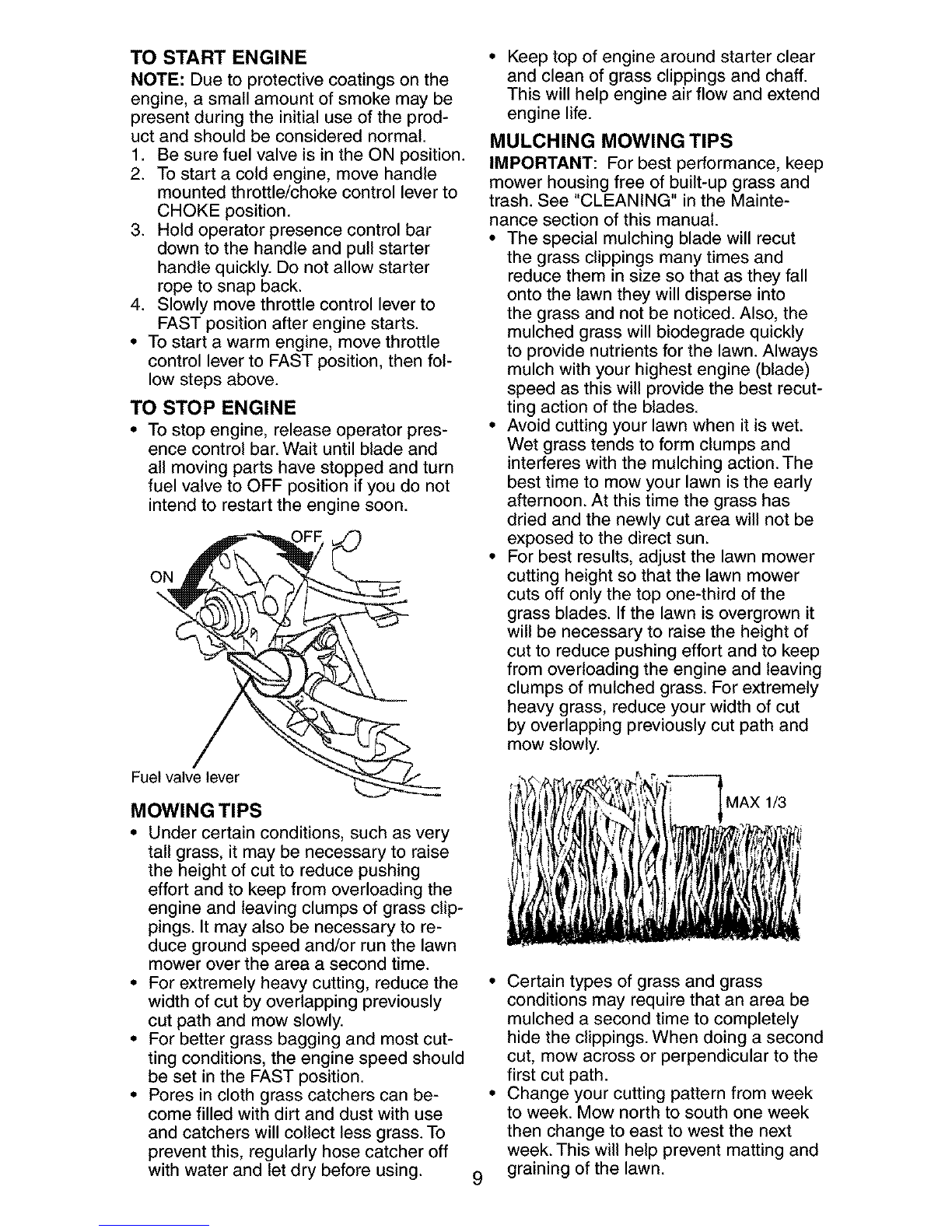

TO START ENGINE

NOTE: Due to protective coatings on the

engine, a small amount of smoke may be

present during the initial use of the prod-

uct and should be considered normal.

1. Be sure fuel valve is in the ON position.

2. To start a cold engine, move handle

mounted throttle/choke control lever to

CHOKE position.

3. Hold operator presence control bar

down to the handle and pull starter

handle quickly. Do not allow starter

rope to snap back.

4. Slowly move throttle control lever to

FAST position after engine starts.

• To start a warm engine, move throttle

control lever to FAST position, then fol-

low steps above.

TO STOP ENGINE

• To stop engine, release operator pres-

ence control bar. Wait until blade and

all moving parts have stopped and turn

fuel valve to OFF position if you do not

intend to restart the engine soon.

Fuel valve lever

MOWING TIPS

•Under certain conditions, such as very

tall grass, it may be necessary to raise

the height of cut to reduce pushing

effort and to keep from overloading the

engine and leaving clumps of grass clip-

pings. It may also be necessary to re-

duce ground speed and/or run the lawn

mower over the area a second time.

•For extremely heavy cutting, reduce the

width of cut by overlapping previously

cut path and mow slowly.

•For better grass bagging and most cut-

ting conditions, the engine speed should

be set in the FAST position.

•Pores in cloth grass catchers can be-

come filled with dirt and dust with use

and catchers will collect less grass. To

prevent this, regularly hose catcher off

with water and let dry before using.

• Keep top of engine around starter clear

and clean of grass clippings and chaff.

This will help engine air flow and extend

engine life.

MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. See "CLEANING" in the Mainte-

nance section of this manual.

• The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into

the grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn. Always

mulch with your highest engine (blade)

speed as this will provide the best recut-

ting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried and the newly cut area will not be

exposed to the direct sun.

• For best results, adjust the lawn mower

cutting height so that the lawn mower

cuts off only the top one-third of the

grass blades. If the lawn is overgrown it

will be necessary to raise the height of

cut to reduce pushing effort and to keep

from overloading the engine and leaving

clumps of mulched grass. For extremely

heavy grass, reduce your width of cut

by overlapping previously cut path and

mow slowly.

MAX 1/3

• Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a second

cut, mow across or perpendicular to the

first cut path.

• Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting and

graining of the lawn.

,.,.,..,.,.,..

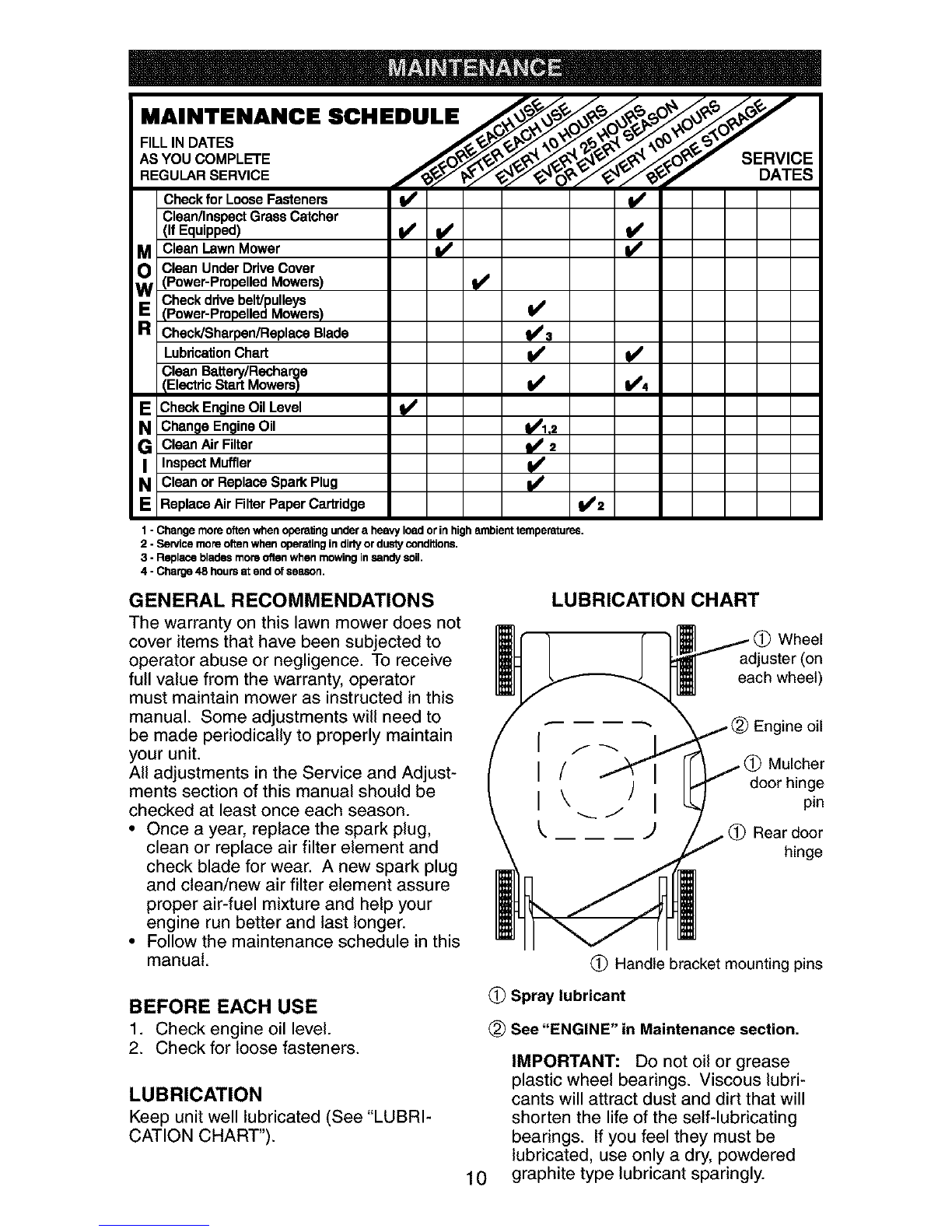

AS YOU COMPLETE E

REGULARSERVICE /_..7 _'_£" _._.._/_'_ f" DATES

/_r Fr _

Checkfor LooseFasteners If I_'

Clean/Inspect Grass Catcher

(If Equipped) V_

MClean Lawn Mower

O Clean Under Drive Cover

(Power-Propelled Mowers) !/

Check drive belt/pulleys

RE (Power-Propelled Mowers) ll/

Check/Sharpen/Replace Blade i_ _

LubricationChart b/'

Clean Battery/Recharge

/Electric Start MowersIIf I/4

E Check Engine Oil Level I_

Change Engine Oil I_1,2

IG Clean Air Filter _2

Inspect Muffler

NClean or Replace Spark Plug

EReplace Air Filter Paper Cartridge li/2

1- Changemore oftenwhenoperaitngunderaheavyIcedor inhighambienttemperatures.

2 - Servicemoreoftenwhenoperatingindirtyordustyconditions.

3 - Replacebladesmoreoftenwhen mowinginsandysoil.

4 - Charge48 hoursat end ofseason.

GENERAL RECOMMENDATIONS

The warranty on this lawn mower does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain mower as instructed in this

manual. Some adjustments will need to

be made periodically to properly maintain

your unit.

All adjustments in the Service and Adjust-

ments section of this manual should be

checked at least once each season.

•Once a year, replace the spark plug,

clean or replace air filter element and

check blade for wear. A new spark plug

and clean/new air filter element assure

proper air-fuel mixture and help your

engine run better and last longer.

• Follow the maintenance schedule in this

manual.

LUBRICATION CHART

Mulcher

door hinge

Rear door

hinge

(_ Handle bracket mounting pins

BEFORE EACH USE

1. Check engine oil level.

2. Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See "LUBRI-

CATION CHART").

Spray lubricant

See "ENGINE" in Maintenance section.

IMPORTANT: Do not oil or grease

plastic wheel bearings. Viscous lubri-

cants will attract dust and dirt that will

shorten the life of the self-lubricating

bearings. If you feel they must be

lubricated, use only a dry, powdered

graphite type lubricant sparingly.

Table des matières

Langues :

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman EZ3 917.270662 Manuel utilisateur

Craftsman

Craftsman 917.385144 Manuel utilisateur

Craftsman

Craftsman EZ3 917.258555 Manuel utilisateur

Craftsman

Craftsman Craftsman 917.257720 Manuel utilisateur

Craftsman

Craftsman 247.374810 Manuel utilisateur

Craftsman

Craftsman 917.25736 Manuel utilisateur

Craftsman

Craftsman 917.277130 Manuel utilisateur

Craftsman

Craftsman 277620 Manuel du propriétaire

Craftsman

Craftsman 917.371663 Manuel utilisateur

Craftsman

Craftsman 917.273760 Manuel utilisateur

Craftsman

Craftsman 917.98635 Manuel utilisateur

Craftsman

Craftsman EZ3 917.270774 Manuel utilisateur

Craftsman

Craftsman 917.374354 Manuel utilisateur

Craftsman

Craftsman 917.388107 Manuel utilisateur

Craftsman

Craftsman 917.271760 Manuel utilisateur

Craftsman

Craftsman 944.364153 Manuel utilisateur

Craftsman

Craftsman 917.374092 Manuel utilisateur

Craftsman

Craftsman 917.371370 Manuel utilisateur

Craftsman

Craftsman 917.376530 Manuel utilisateur

Craftsman

Craftsman 127.28875 Manuel utilisateur

Craftsman

Craftsman EZ3 917.251630 Manuel utilisateur

Craftsman

Craftsman 917.376682 Manuel utilisateur

Craftsman

Craftsman EZ3 917.376960 Manuel utilisateur

Craftsman

Craftsman EZ3 917.271642 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
