Craftsman 917.276071 Manuel utilisateur

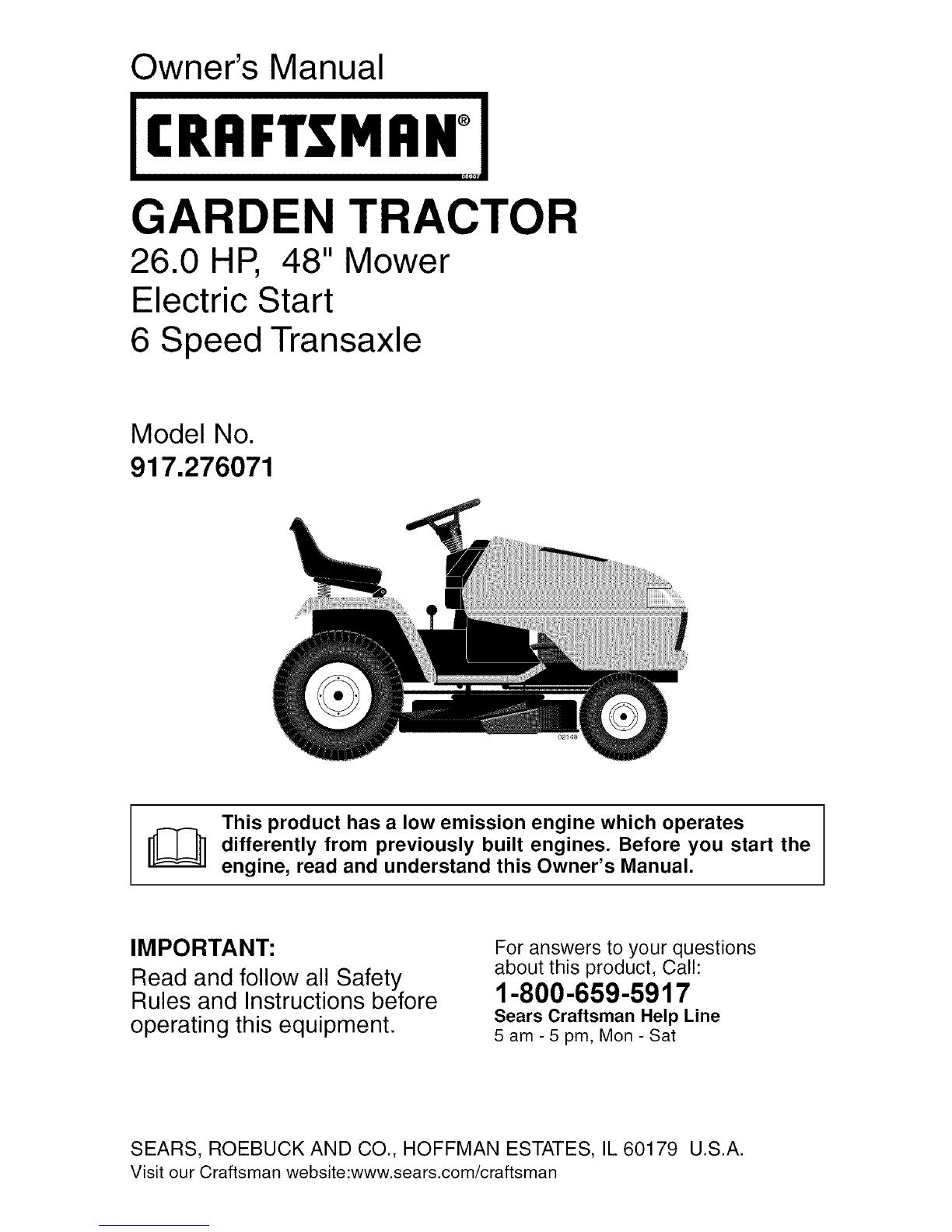

Owner's Manual

[RRFTSMIIN°

GARDEN TRACTOR

26.0 HP, 48" Mower

Electric Start

6 Speed Transaxle

Model No.

917.276071

This product has a low emission engine which operates

_]]] differently from previously built engines. Before start the

you

engine, read and understand this Owner's Manual.

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon - Sat

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

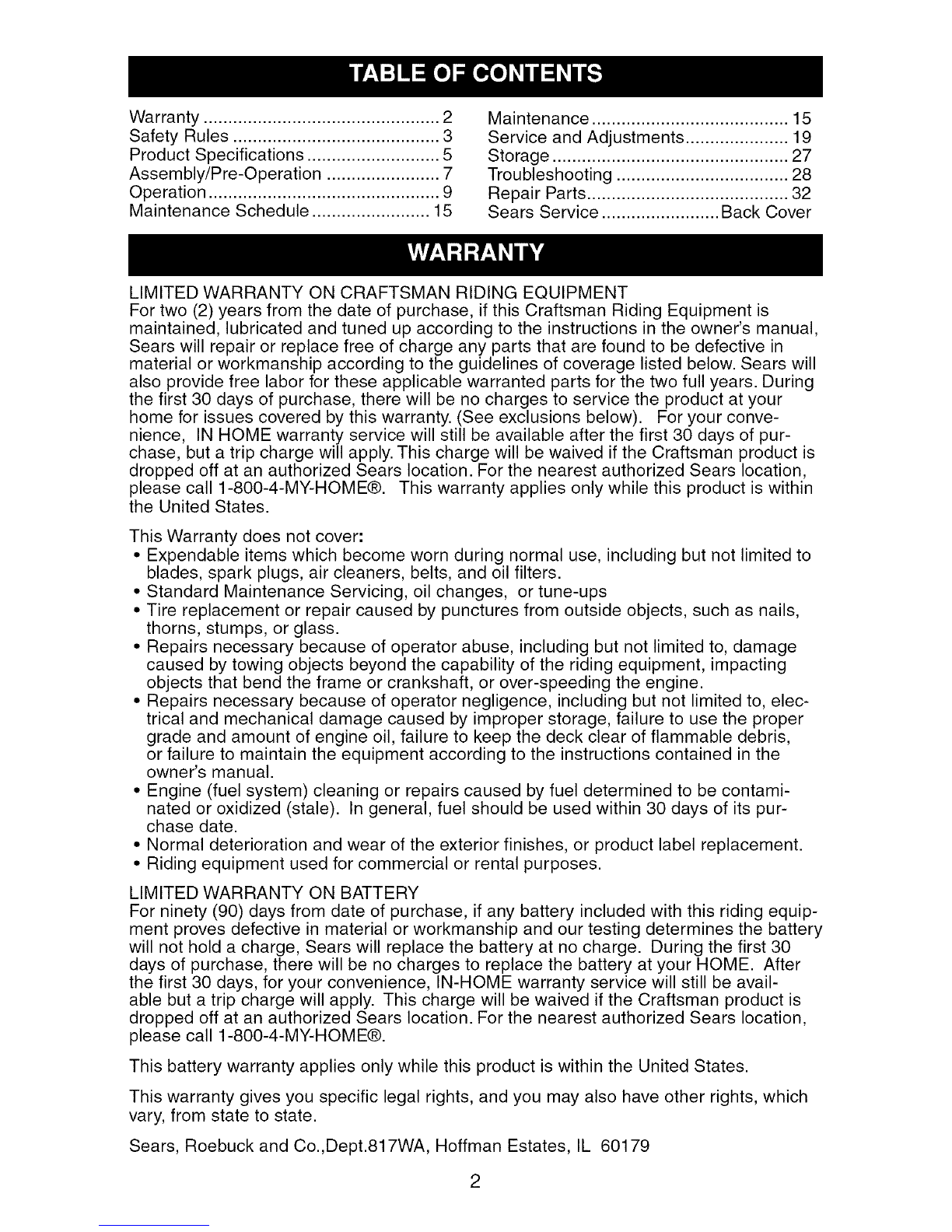

Warranty ................................................ 2

Safety Rules .......................................... 3

Product Specifications ........................... 5

Assembly/Pre-Operation ....................... 7

Operation ............................................... 9

Maintenance Schedule ........................ 15

Maintenance ........................................ 15

Service and Adjustments ..................... 19

Storage ................................................ 27

Troubleshooting ................................... 28

Repair Parts ......................................... 32

Sears Service ........................ Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears will

also provide free labor for these applicable warranted parts for the two full years. During

the first 30 days of purchase, there will be no charges to service the product at your

home for issues covered by this warranty. (See exclusions below). For your conve-

nience, IN HOME warranty service will still be available after the first 30 days of pur-

chase, but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®. This warranty applies only while this product is within

the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

• Standard Maintenance Servicing, oil changes, or tune-ups

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in material or workmanship and our testing determines the battery

will not hold a charge, Sears will replace the battery at no charge. During the first 30

days of purchase, there will be no charges to replace the battery at your HOME. After

the first 30 days, for your convenience, IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

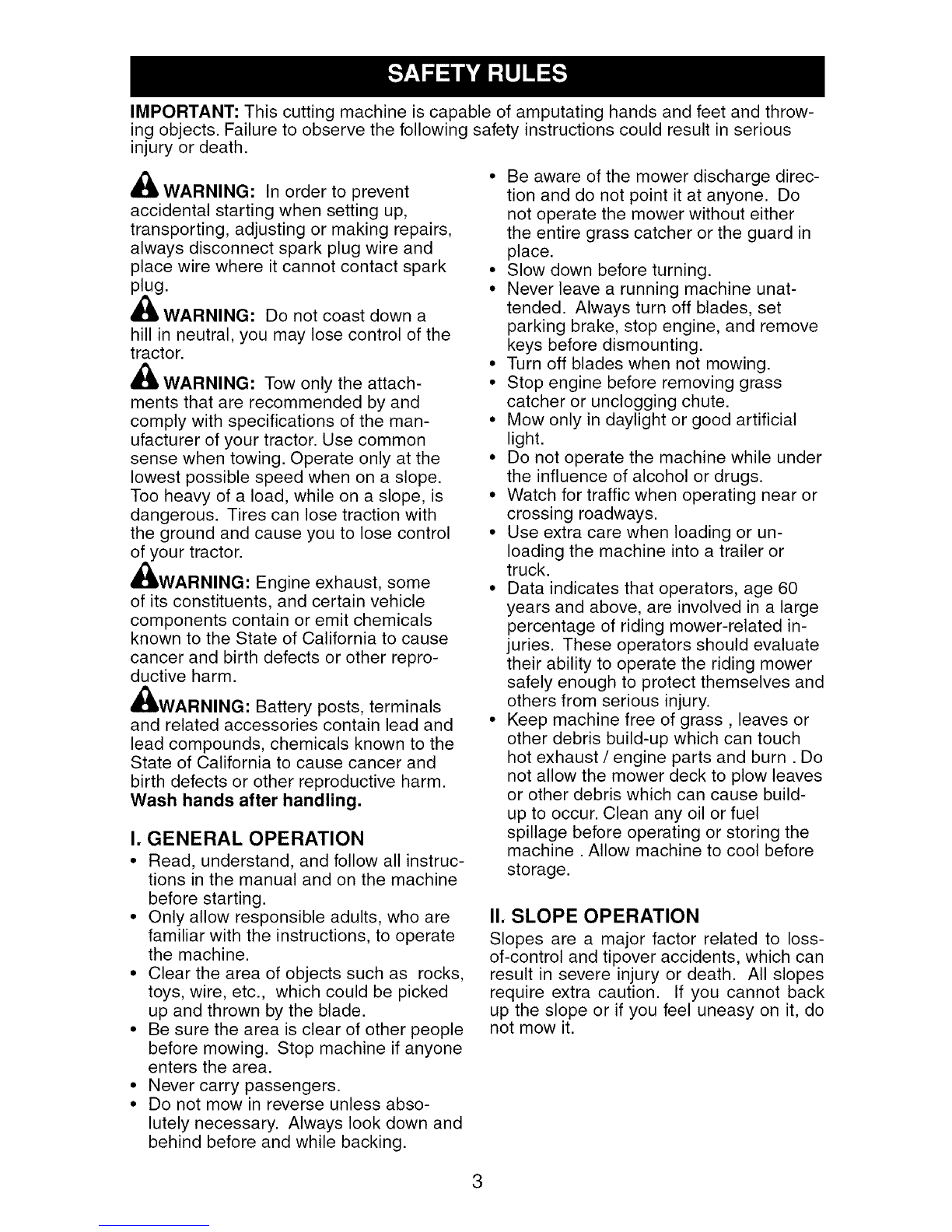

IMPORTANT:Thiscuttingmachineiscapableofamputatinghandsandfeetandthrow-

ingobjects.Failureto observethefollowingsafetyinstructionscouldresultin serious

injuryor death.

WARNING: Inorderto prevent

accidentalstartingwhensettingup,

transporting,adjustingor makingrepairs,

alwaysdisconnectsparkplugwireand

placewirewhereitcannotcontactspark

plug.

WARNING: Donotcoastdowna

hillin neutral,you maylosecontrolofthe

tractor.

WARNING: Towonlytheattach-

mentsthatare recommendedbyand

complywithspecificationsofthe man-

ufacturerof yourtractor.Usecommon

sensewhentowing.Operateonlyat the

lowestpossiblespeedwhenon a slope.

Tooheavyofa load,while on a slope,is

dangerous.Tirescan losetractionwith

the groundandcauseyou to losecontrol

ofyourtractor.

WARNING:Engineexhaust, some

of its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other repro-

ductive harm.

WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or un-

loading the machine into a trailer or

truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust /engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

II. SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

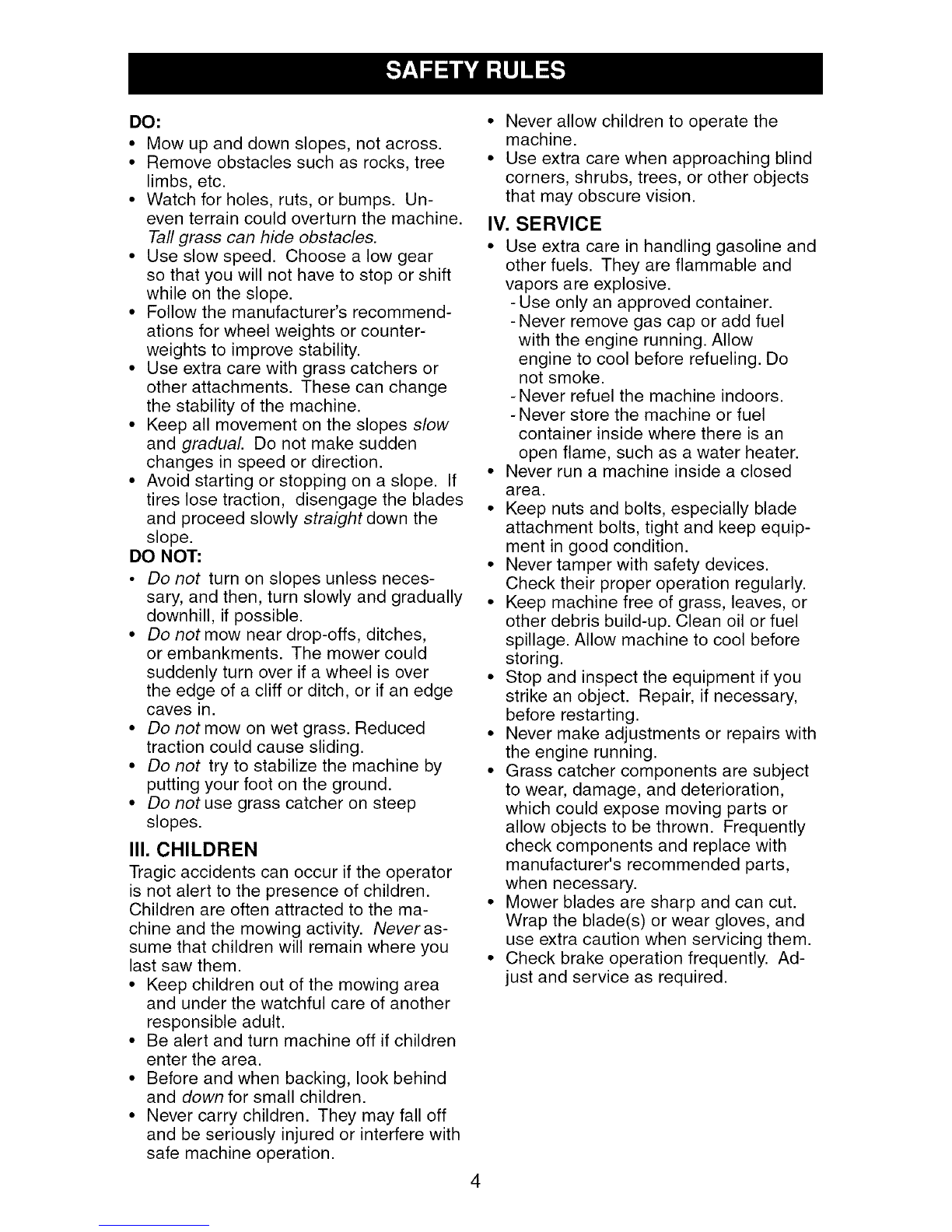

DO:

•Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Un-

even terrain could overturn the machine.

Tall grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

•Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

•Do not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do not try to stabilize the machine by

putting your foot on the ground.

•Do not use grass catcher on steep

slopes.

III, CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Never as-

sume that children will remain where you

last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

Never allow children to operate the

machine.

Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs with

the engine running.

•Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently. Ad-

just and service as required.

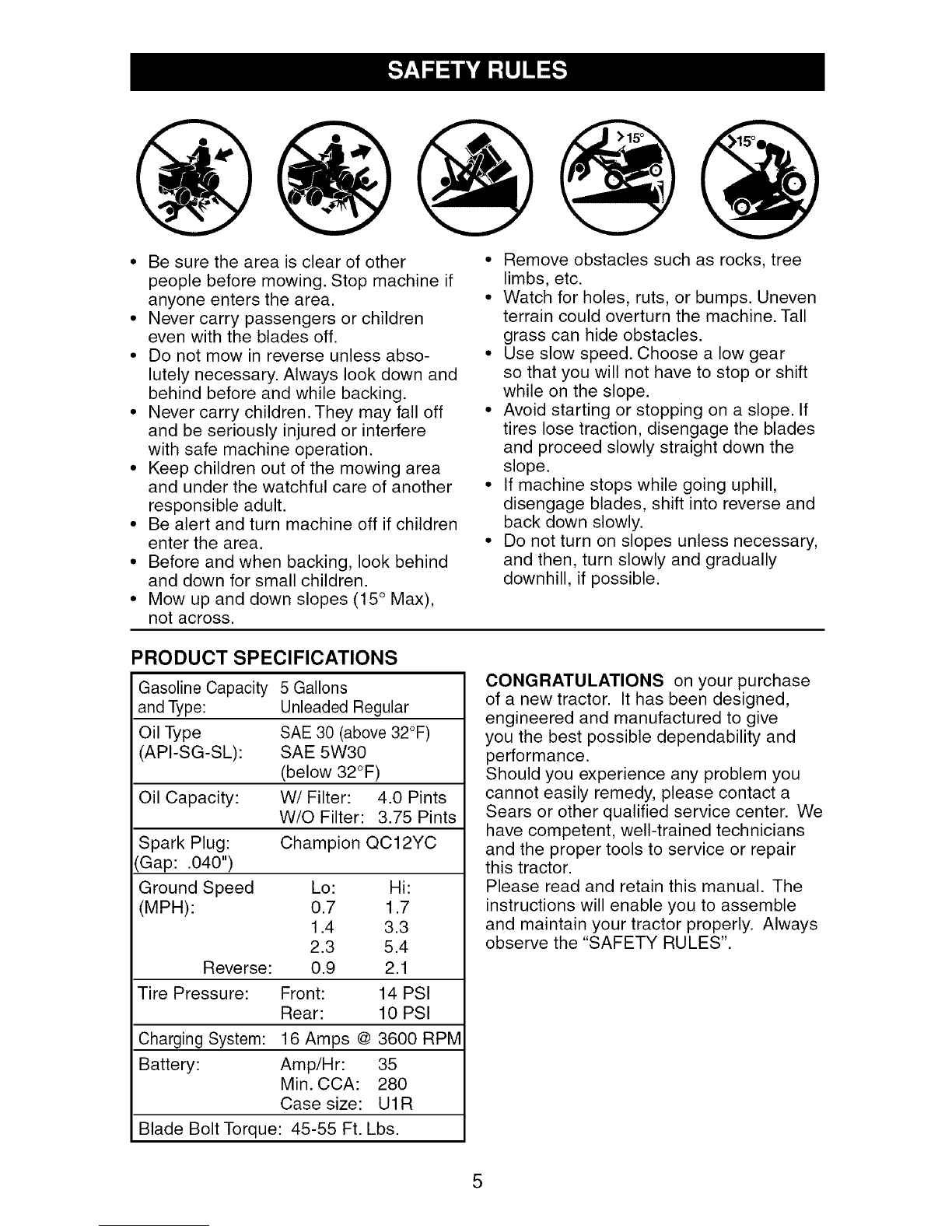

• Besurethearea isclearofother

peoplebeforemowing.Stopmachineif

anyoneentersthearea.

• Nevercarrypassengersorchildren

evenwith thebladesoff.

• Do not mowin reverseunlessabso-

lutelynecessary.Alwayslook downand

behindbeforeandwhilebacking.

• Nevercarrychildren.Theymayfall off

and beseriouslyinjuredorinterfere

withsafemachineoperation.

• Keepchildrenoutof themowingarea

and underthewatchfulcare ofanother

responsibleadult.

• Be alert andturn machineoff ifchildren

enterthearea.

• Beforeandwhenbacking,lookbehind

anddownfor smallchildren.

• Mowup anddownslopes (15° Max),

notacross.

• Removeobstaclessuchasrocks,tree

limbs,etc.

• Watchforholes,ruts,orbumps.Uneven

terraincouldoverturnthemachine.Tall

grasscan hideobstacles.

• Useslowspeed.Choosealowgear

sothatyou willnothaveto stoporshift

whileon theslope.

• Avoidstartingorstoppingon aslope.If

tireslosetraction,disengagetheblades

andproceedslowlystraightdownthe

slope.

• If machinestopswhilegoing uphill,

disengageblades,shiftinto reverseand

backdownslowly.

• Donot turnon slopesunlessnecessary,

andthen,turnslowlyandgradually

downhill,if possible.

PRODUCT SPECIFICATIONS

Gasoline Capacity 5 Gallons

and Type: Unleaded Regular

Oil Type SAE 30 (above 32°F)

(API-SG-SL): SAE 5W30

(below 32°F)

Oil Capacity: W/Filter: 4.0 Pints

W/O Filter: 3.75 Pints

Spark Plug: Champion QC12YC

(Gap: .040")

Ground Speed Lo: Hi:

(MPH): 0.7 1.7

1.4 3.3

2.3 5.4

Reverse: 0.9 2.1

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging System: 16 Amps @ 3600 RPM

Battery: Amp/Hr: 35

Min. CCA: 280

Case size: U1R

Blade Bolt Torque: 45-55 Ft. Lbs.

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center. We

have competent, well-trained technicians

and the proper tools to service or repair

this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

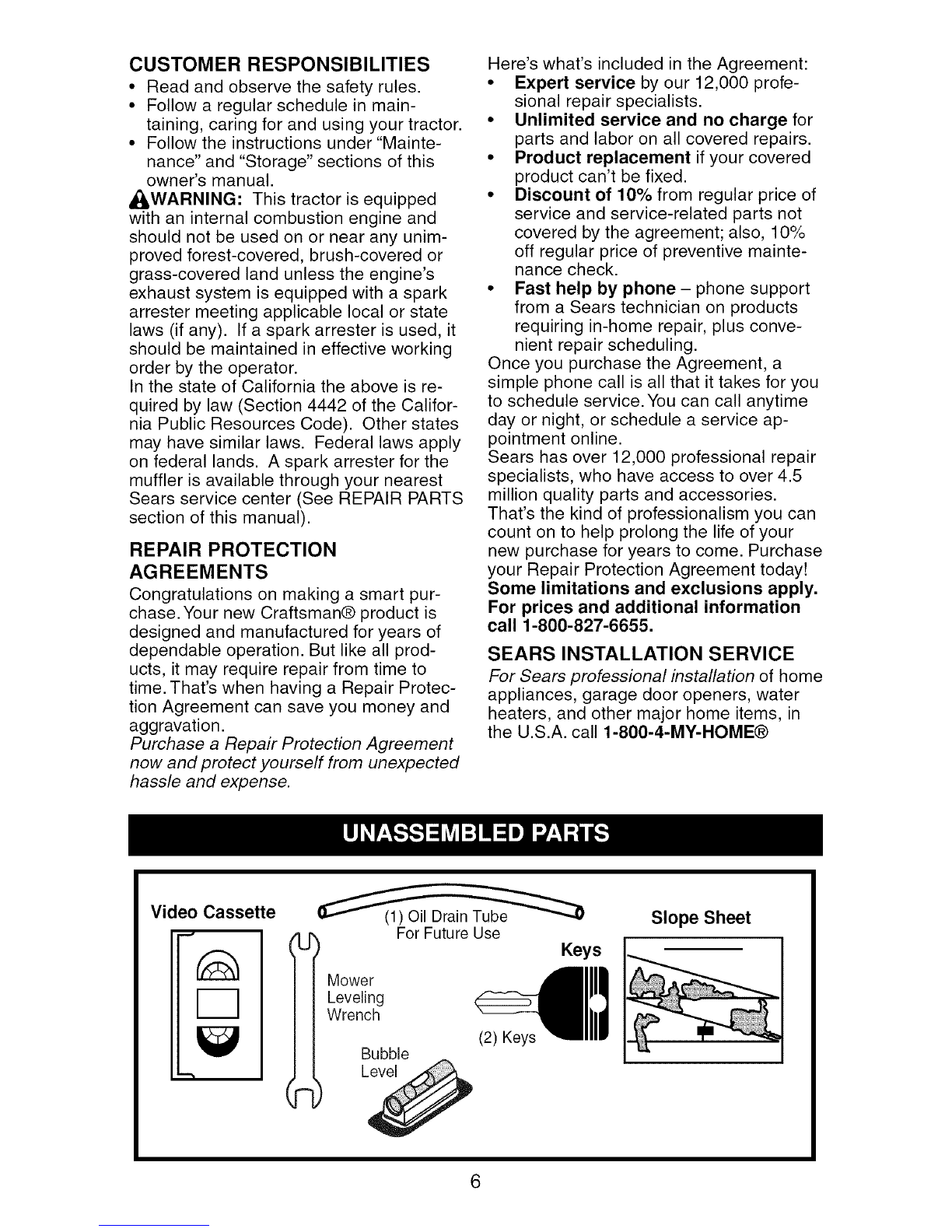

CUSTOMER RESPONSIBILITIES

•Read and observe the safety rules.

• Follow a regular schedule in main-

taining, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all prod-

ucts, it may require repair from time to

time. That's when having a Repair Protec-

tion Agreement can save you money and

aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

•Expert service by our 12,000 profe-

sional repair specialists.

• Unlimited service and no charge for

parts and labor on all covered repairs.

•Product replacement if your covered

product can't be fixed.

•Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

• Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME®

Video Cassette

Mower

Leveling

Wrench

Bubble

Level

For Future Use

(2) Keys

Keys

Slope Sheet

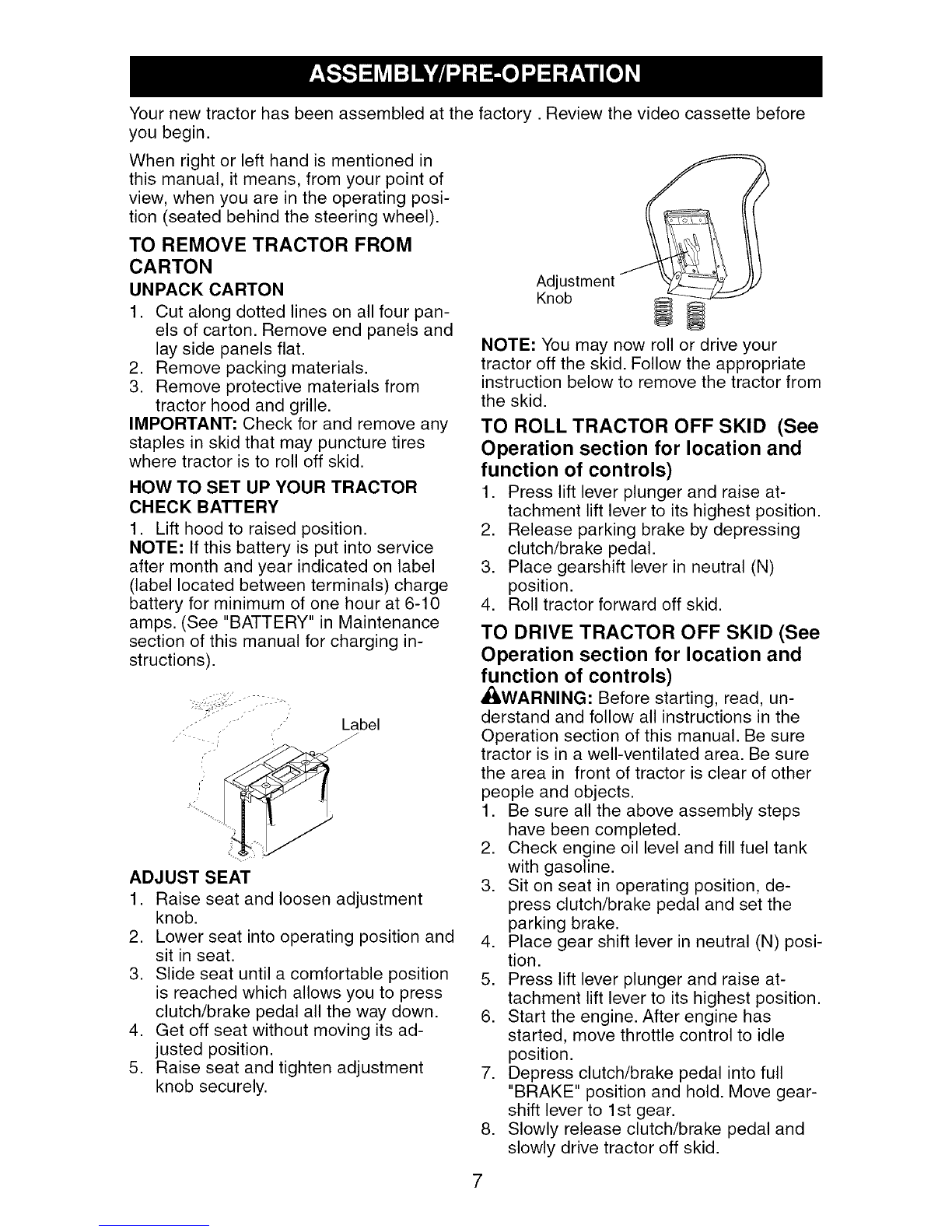

Your new tractor has been assembled at the factory. Review the video cassette before

you begin.

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

2. Remove packing materials.

3. Remove protective materials from

tractor hood and grille.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging in-

structions).

Label

ADJUST SEAT

1. Raise seat and loosen adjustment

knob.

2. Lower seat into operating position and

sit in seat.

3. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

4. Get off seat without moving its ad-

justed position.

5. Raise seat and tighten adjustment

knob securely.

Adjustment

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor from

the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise at-

tachment lift lever to its highest position.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

,4_WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Sit on seat in operating position, de-

press clutch/brake pedal and set the

parking brake.

4. Place gear shift lever in neutral (N) posi-

tion.

5. Press lift lever plunger and raise at-

tachment lift lever to its highest position.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move gear-

shift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

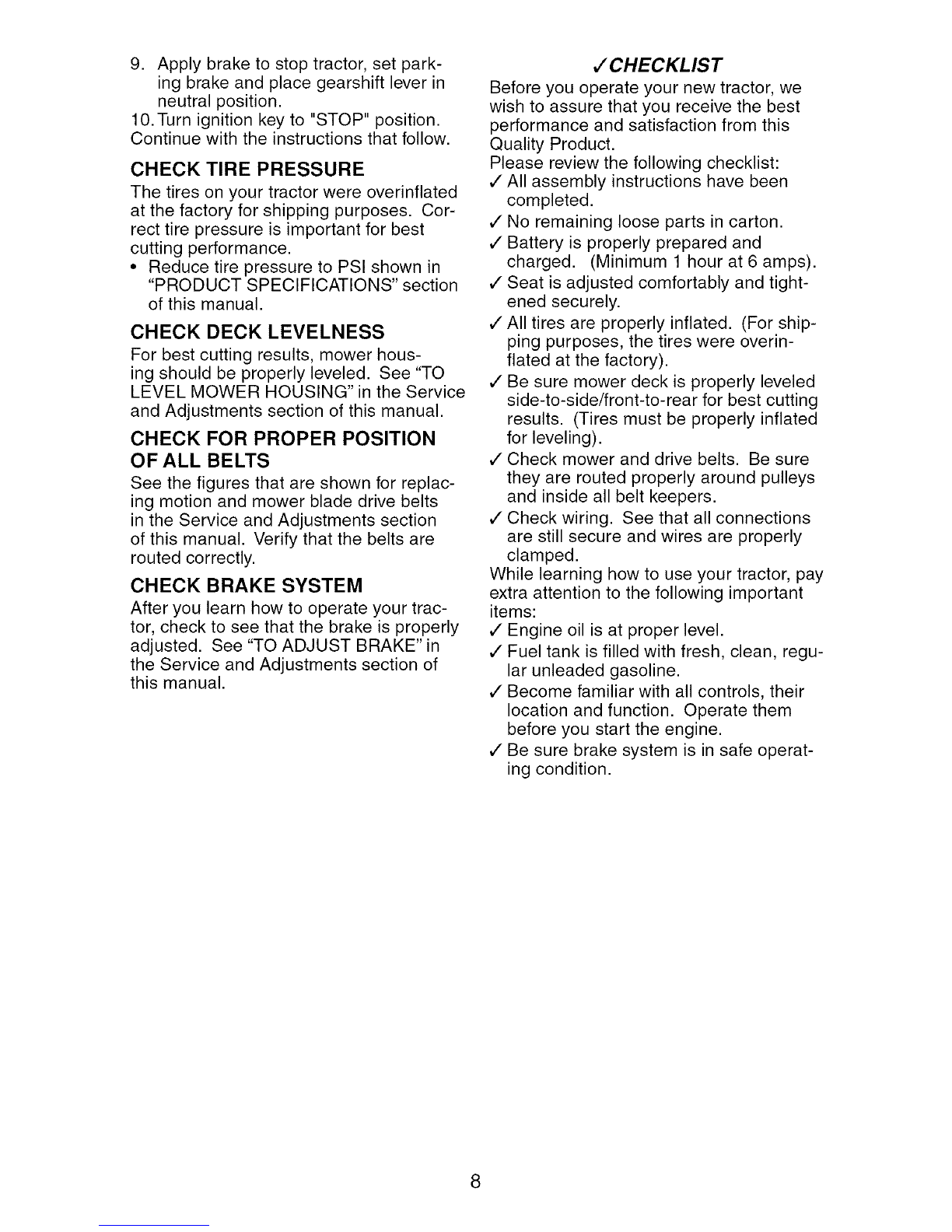

9. Apply brake to stop tractor, set park-

ing brake and place gearshift lever in

neutral position.

10. Turn ignition key to "STOP" position.

Continue with the instructions that follow.

CHECK TIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes. Cor-

rect tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

,/CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

Quality Product.

Please review the following checklist:

v" All assembly instructions have been

completed.

v" No remaining loose parts in carton.

v" Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

v" Seat is adjusted comfortably and tight-

ened securely.

v" All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

v" Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

v" Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

v" Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor, pay

extra attention to the following important

items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean, regu-

lar unleaded gasoline.

,/Become familiar with all controls, their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe operat-

ing condition.

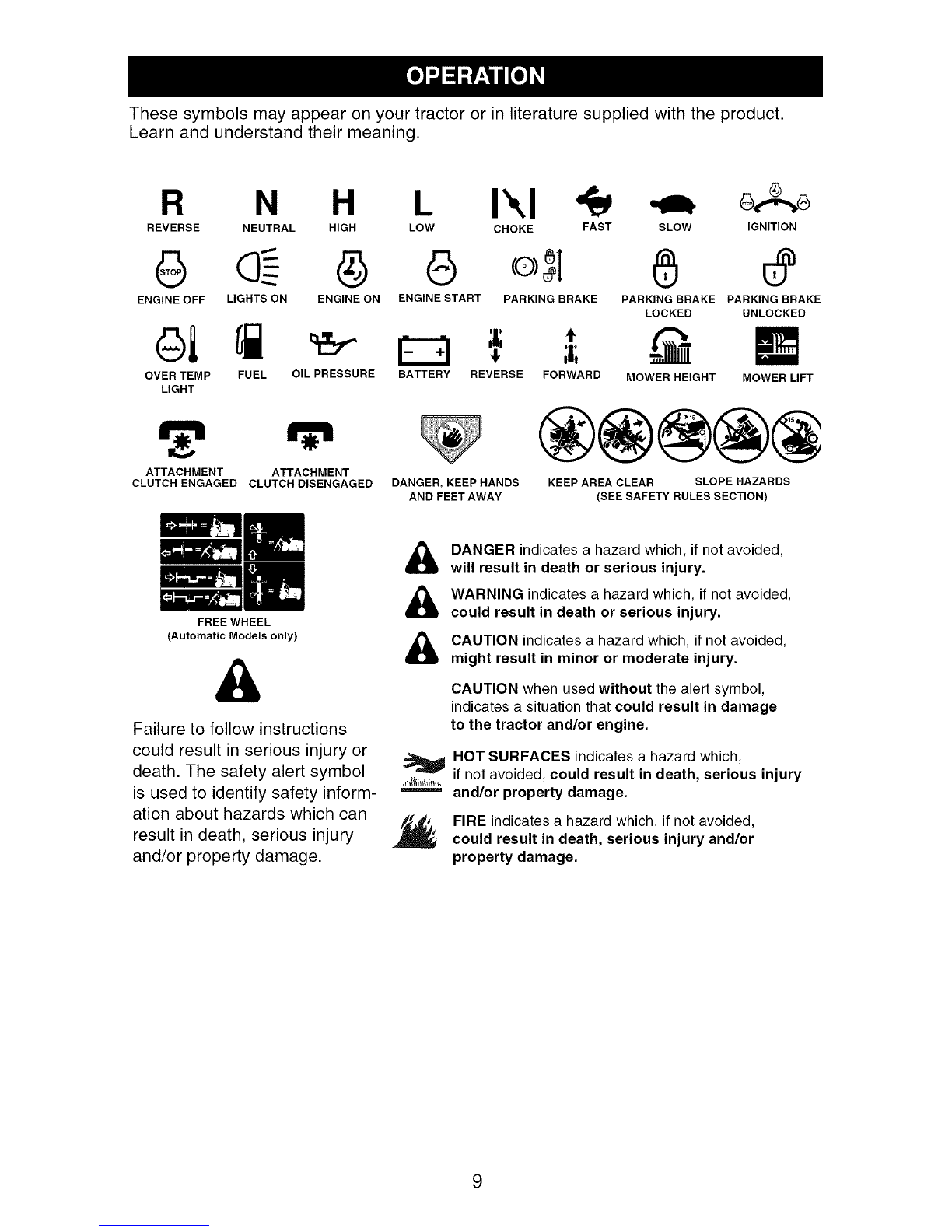

Thesesymbolsmayappearon yourtractororin literaturesuppliedwiththe product.

Learnandunderstandtheir meaning.

R N H I\1

REVERSE NEUTRAL HIGH LOW CHOKE FAST

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE

OVER TEMP

LIGHT

ATTACHMENT

CLUTCH ENGAGED

BATTERY REVERSE FORWARDFUEL OIL PRESSURE

ATTACHMENT

CLUTCH DISENGAGED

FREE WHEEL

(Automatic Modelsonly)

SLOW IGNITION

PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

MOWER HEIGHT MOWER LIFT

DANGER, KEEPHANDS

AND FEET AWAY KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicatesa hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicatesa hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

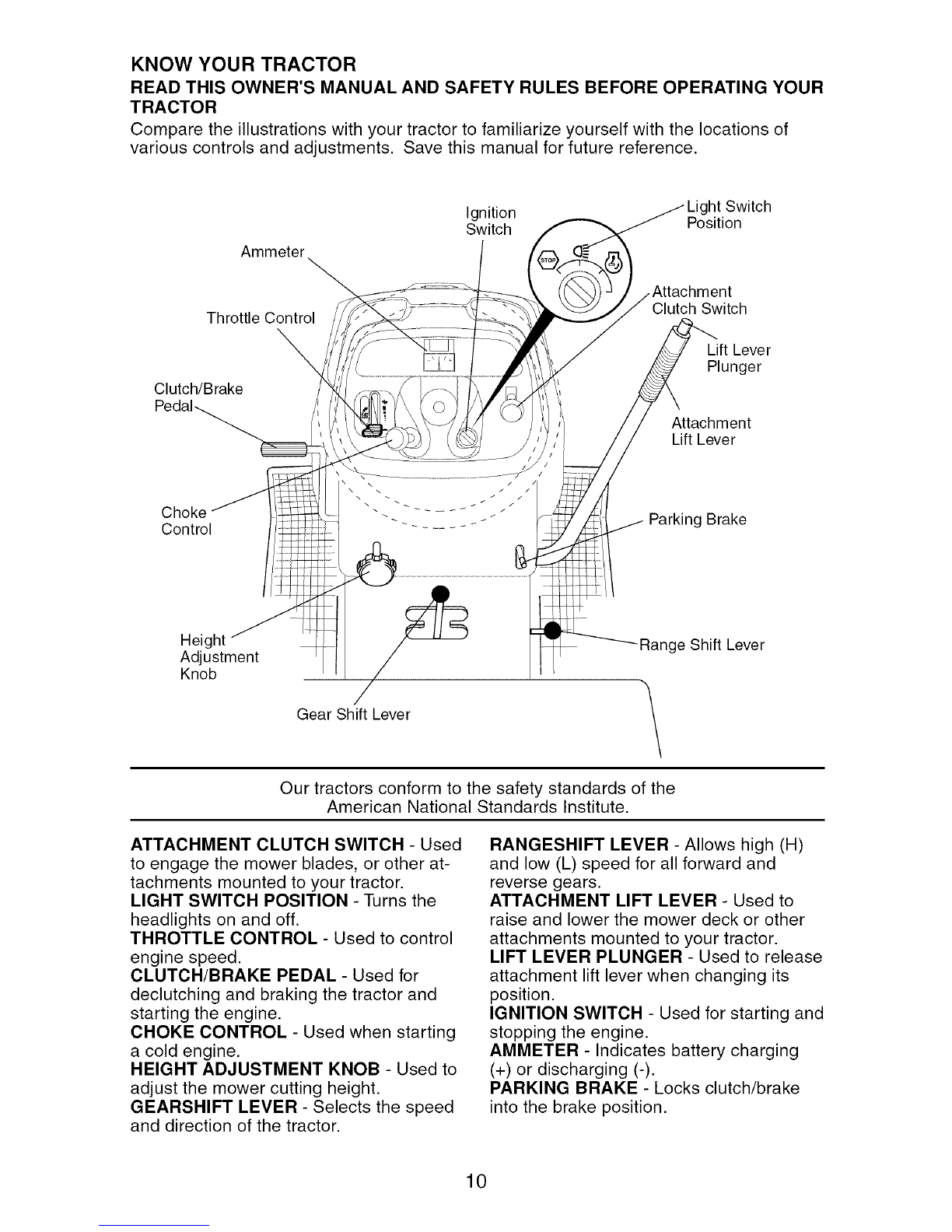

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Ammeter

Ignition iht Switch

Switch Position

Throttle Control Clutch Switch

Lift Lever

Plunger

Clutch/Brake

Attachment

Lift Lever

Choke Parking Brake

Control

Height

Adjustment

Knob _ -Range Shift Lever

Gear Shift Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

ATTACHMENT CLUTCH SWITCH - Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

LIGHT SWITCH POSITION - Turns the

headlights on and off.

THROTTLE CONTROL - Used to control

engine speed.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

CHOKE CONTROL - Used when starting

a cold engine.

HEIGHT ADJUSTMENT KNOB - Used to

adjust the mower cutting height.

GEARSHIFT LEVER - Selects the speed

and direction of the tractor.

RANGESHIFT LEVER - Allows high (H)

and low (L) speed for all forward and

reverse gears.

ATTACHMENT LIFT LEVER - Used to

raise and lower the mower deck or other

attachments mounted to your tractor.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

IGNITION SWITCH - Used for starting and

stopping the engine.

AMMETER - Indicates battery charging

(+) or discharging (-).

PARKING BRAKE - Locks clutch/brake

into the brake position.

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 25672 Manuel utilisateur

Craftsman

Craftsman 917.272263 Manuel utilisateur

Craftsman

Craftsman T1400 247.203734 Manuel utilisateur

Craftsman

Craftsman 917.389590 Manuel utilisateur

Craftsman

Craftsman 917.377663 Manuel utilisateur

Craftsman

Craftsman C459.60133 Manuel utilisateur

Craftsman

Craftsman ZTS 7500 Manuel utilisateur

Craftsman

Craftsman EZ3 917.386153 Manuel utilisateur

Craftsman

Craftsman 27710 Manuel utilisateur

Craftsman

Craftsman 917.388550 Manuel utilisateur

Craftsman

Craftsman CMCMWSP220P2 Manuel utilisateur

Craftsman

Craftsman 917.377960 Manuel utilisateur

Craftsman

Craftsman 944.365480 Manuel utilisateur

Craftsman

Craftsman 917.271110 Manuel utilisateur

Craftsman

Craftsman 917.272760 Manuel utilisateur

Craftsman

Craftsman 28925 - YT 4000 24 HP/42" Yard Tractor Manuel utilisateur

Craftsman

Craftsman EZ3 917.259531 Manuel utilisateur

Craftsman

Craftsman EZ3 917.258970 Manuel utilisateur

Craftsman

Craftsman 917.273370 Manuel utilisateur

Craftsman

Craftsman 917.27621 Manuel utilisateur

Craftsman

Craftsman 316.773800 Operator's Manuel utilisateur

Craftsman

Craftsman 38996 Manuel utilisateur

Craftsman

Craftsman 917.25431 Manuel utilisateur

Craftsman

Craftsman 917.385192 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
