Craftsman 247.28984 Manuel utilisateur

Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.

Visit our website: www.craftsman.com

Operator’s Manual

GARDEN TRACTOR

28 HP, 54” Tractor

Electric Start

PGT9000

Model No. 247.28984

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions about

this product, Call:

1-800-659-5917

Craftsman Tractor Help Line

5am - 5 pm, Mon - Sat

This product has a low emission engine which operates differently

from previously built engines. Before you start the engine, read and

understand this Operator’s Manual.

• Español, p. 62

Form No. 769-05601

(August 3, 2010)

PARTS LIST

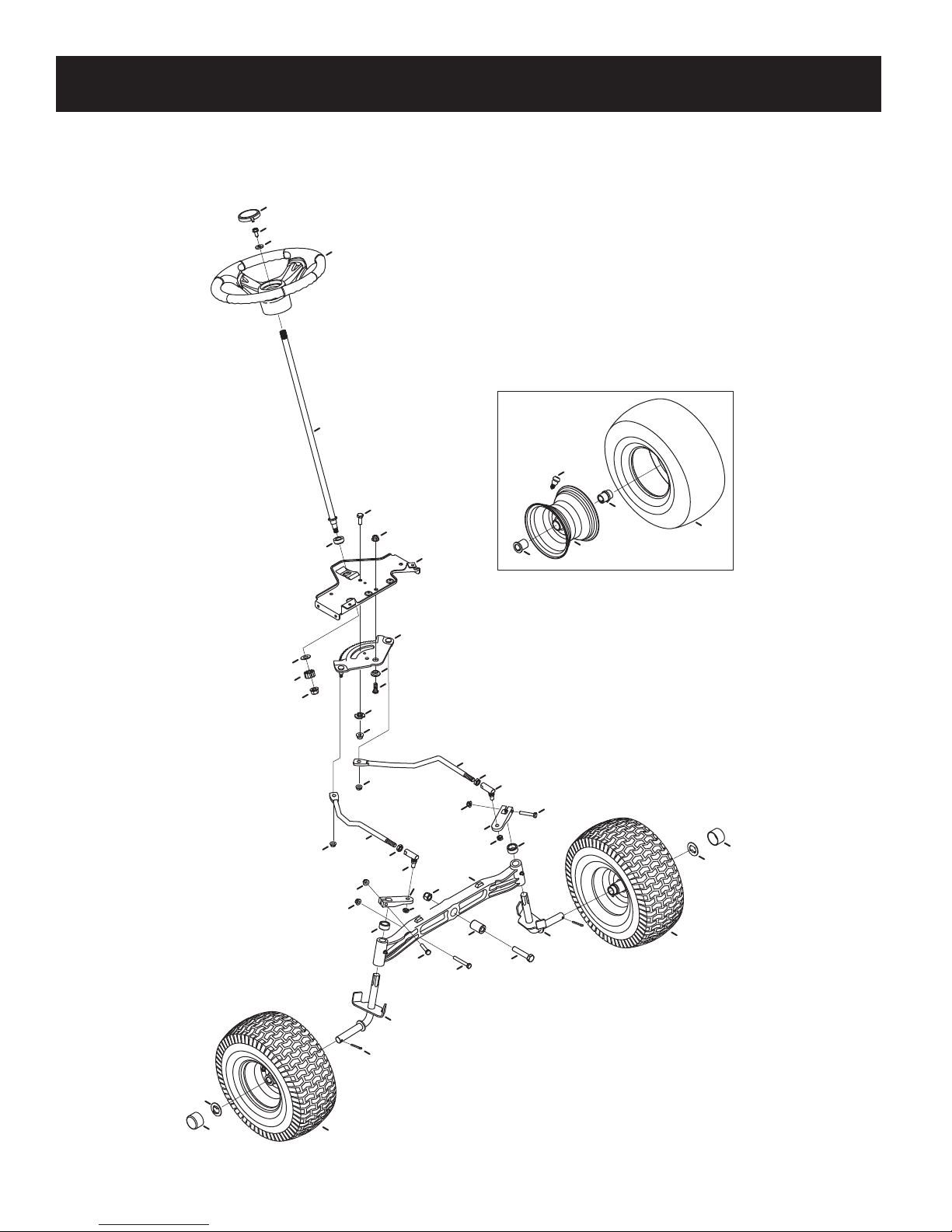

Steering and Axle — Model No. 247.28984

21 36

PARTS LIST

Ref.

No. Part No. Description

1710-04095 Hex Head Screw, 3/8-16:1.00

2710-0514 Hex Head Screw, 3/8-16:1.00

3710-0643 Hex Head Screw, 5/16-18:1.00

4711- 04998 LH Drag Link

5711-04999 RH Drag Link

6912-0240 Jam Nut, 7/16-20

7712-04065 Flangelock Nut, 3/8-16

8712-0459 Flangelock Nut, 7/16-20

9712-3004A Flangelock Nut, 5/16-18

10 717-1550F Steering Gear

11 717-1554 Steering Pinion Gear

12 923-0448A Ball Joint, 7/16-20

13 936-3004 Flat Washer, .406 x .875 x .105

14 736-3084 Flat Washer, .51 x 1.12 x .06

15 783-06043-0637 Steering Support Bracket

16 738-04263 Steering Shaft, .625 OD x 24.25 LG

17 738-04363 Shoulder Spacer, .385 x 1.25 x .3025

18 738-04364B Spacer, .38 x 1.375

19 741-04237B Hex Flange Bearing 5/8 PM

20 638-04040-0637 RH Axle Assembly

21 638-04041-0637 LH Axle Assembly

Ref.

No. Part No. Description

22 710-0395 Hex Head Screw, 5/16-18:2.25

23 710-0859 Hex Head Screw, 3/8-16:2.50

24 710-3180 Hex Head Screw, 5/16-18:1.75

25 912-0214 Hexlock Nut, 3/8-24

26 712-04063 Flangelock Nut, 5/16-18

27 714-0162 Cotter Pin, 5/32:1.25

28 719-04413A Pivot Bar Axle

29 748-04065-0637 Steering Block

30 748-04068 Spacer, .71 ID x .125 OD x .56LG

31 750-05280 Spacer, .385 x 1.00 x 1.5075

32 631-04415 Steering Wheel

33 731-06825 Steering Wheel Cap

34 731-05674 Bumper Cap

35 736-04228A Flat Washer, .781ID x 1.590OD

36 634-04466-0961 Wheel Assembly

37 734-1727 Tire

38 934-04082-4042 Rim Assembly

39 934-0255 Tubeless Air Valve

40 741-0516B Flange Bearing, .760 x 1.00 x 1.20LG

41 741-0990B Flange Bearing, .760ID

Steering and Axle — Model No. 247.28984

PARTS LIST

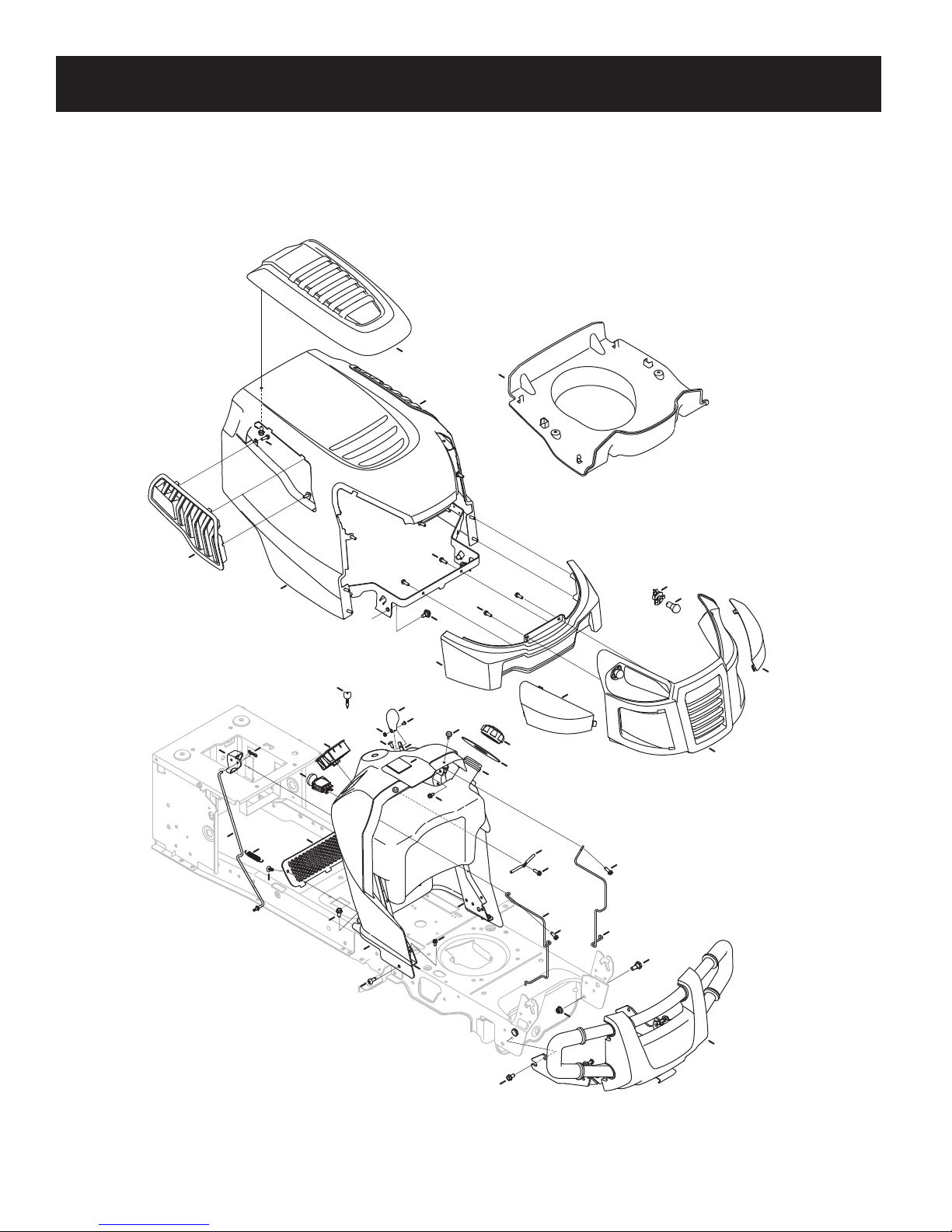

Hood and Dash — Model No. 247.28984

10 41

PARTS LIST

Ref.

No. Part No. Description

1631-04353P Dash Lever

2710-04484 Taptite Screw, Lock Washer, 5/16-18:.750

3710-0599 Taptite Screw, Lock Washer, 1/4-20:0.500

4710-0895 Hi-Lo Screw, Lock Washer, 1/4-15:0.750

5710-1017 Screw, 1/4-14:0.625

6710 -1611B Taptite Screw, 5/16-18:0.750

7710-1652 Taptite Screw, 1/4-20 x .625

8710-3217 Machine Screw, #8-32:0.375

9712-0142 Hex Nut, #8-32:GRA

10 714-04040 Bow-tie Cotter Pin

11 726-3046 Ratchet Clip:.250 DIA

12 731-07456 Dash

13 731-07550 Control Knob

14 732-04580 Extension Spring, .500 DIA x 2.733 LG

15 735-0271A Bumper

16 735-04076 Accessory Net

17 747-05280 Control Rod Latch

18 747-1196 Lever Rod

19 783-04285F-0637 RH Dash Support Plate

20 783-04323F-0637 LH Dash Support Plate

21 625-04124 Key (Set of 2)

22 683-04618-0691 Hood Assembly

23 710-04187 Hi-lo Screw, Lock Washer, 1/4-15:0.50

24 710-05108 Screw, Lock Washer, 1/4 DIA:.750

25 931-07457 Grill

Ref.

No. Part No. Description

26 731-07458 RH Lens

27 731-07459 LH Lens

28 931-07461 Hood Scoop

29 731-07467 Lower Grill

30 731-07469 LH Hood Scoop

31 731-07470 RH Hood Scoop

32 738-04091A Shoulder Screw, .43 x .29:TT:5/16-18

33 710-0642 Taptite Screw, 1/4-20:0.750

34 747-05049 RH Tank Support Rod

35 747-05050 LH Tank Support Rod

36 751-0603A Fuel Cap

37 951-10573 Fuel Tank, 2.75 Gallons

38 689-00157 Guard Assembly

39 725-04992 Key Switch Module

40 735-04170 Fuel Tank Gasket

41 746 -1100 Throttle Control

42 731-07495 P-Style Plen

43 725-04258 PTO Switch

44 925-04036C Hour Meter

45 925-0963 Miniature Lamp, 12V

46 925-1649 Lamp Socket

47 738-0143 Shoulder Bolt, .496 x .336:3/8-16

48 712-04065 Flangelock Nut, 3/8-16

—777X44365 RH Reflector Label (Not Shown)

—777X55366 LH Reflector Label (Not Shown)

Hood and Dash — Model No. 247.28984

PARTS LIST

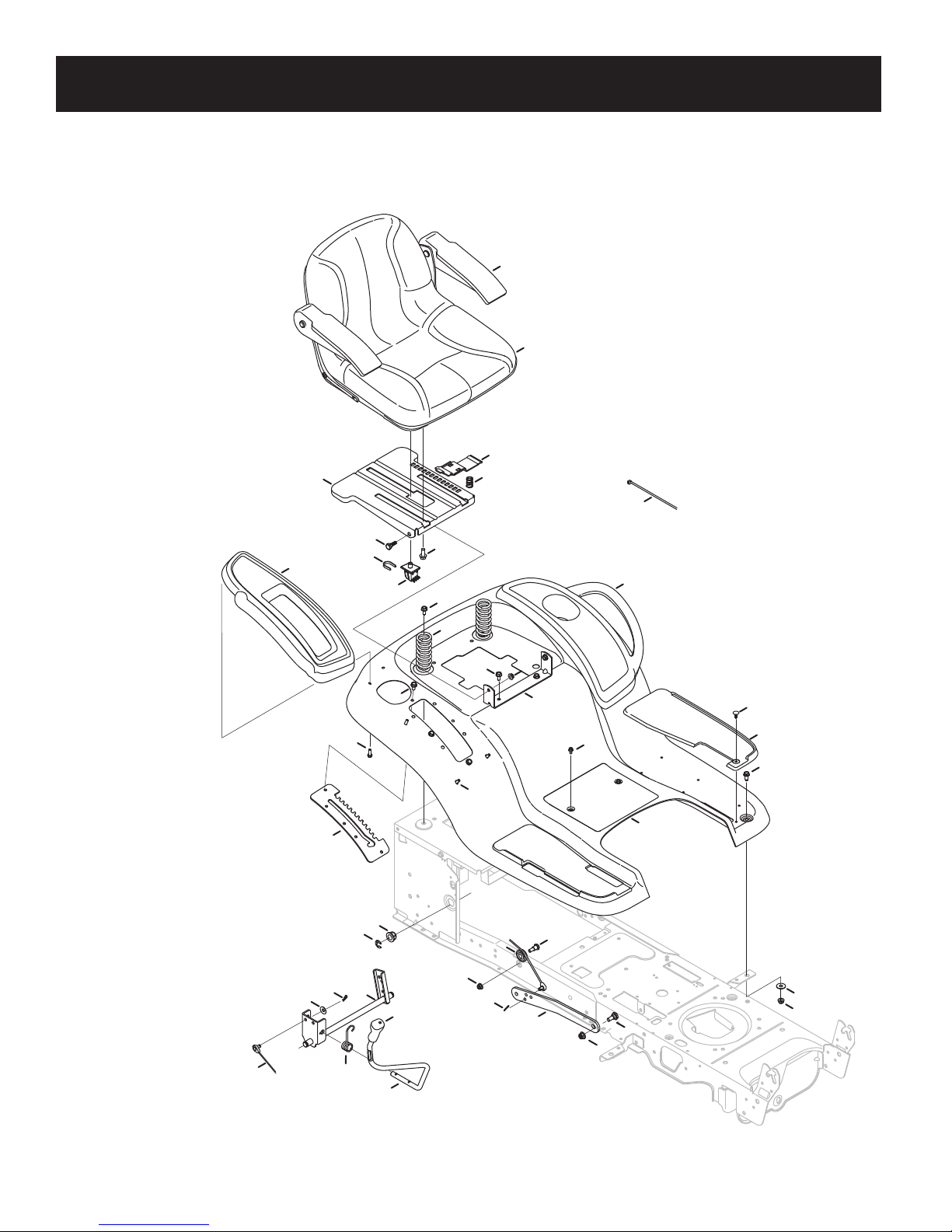

Seat and Fender — Model No. 247.28984

40: 783-06181

Lift Bracket

PARTS LIST

Ref.

No. Part No. Description

1683-04301-0637 Lift Shaft Assembly

2712-04063 Flangelock Nut, 5/16-18

3712-04065 Flangelock Nut, 3/8-16

4914-0104 Cotter Pin, .072 DIA. x 1.13 LG

5714-04040 Bow-Tie Cotter Pin

6716-0106A E-Ring, .625 DIA. SHAFT

7720-04150 Handle Grip

8732-0874 Torsion Spring

9736-0105 Spring Washer, .401 x .870 x .063

10 738-0138A Shoulder Screw, .437 x .470:5/16-18

11 938-0380 Shoulder Bolt, .500 x .270:3/8-16

12 941-0225 Hex Flange Bearing

13 746-0968 Lift Cable, 16.16 LG

14 747-04962A Lift Handle

15 756-04331 Pulley Roller Cable

16 783-05546A-0637 Lift Arm

17 710-04482 Hex Head Flange, 3/8-16:.875

18 710-04484 Taptite Screw, Lock Washer, 5/16-18:.750

19 712-3004A Flangelock Nut, 5/16-18

20 725-0157 Cable Tie, 3/16 x .05 x 7.4

21 732-04561 Compression Spring, 1.71 x 3.735 x .238

Ref.

No. Part No. Description

22 732-04563 Compression Spring, .68 x 1.065 x .055

23 938-0296 Shoulder Screw, .437 x .268:5/16-18

24 783-06049-0691 Seat Mounting Bracket

25 783-06050 Seat Adjustment Lever

26 783-06088-0691 Seat Pivot Bracket

27 783-06448 Switch Retainer Clip

28 710-04187 Hi-Lo Screw, Lock Washer, 1/4-15:0.50

29 710-0451 Carriage Bolt, 5/16-18:.750

30 710-0599 Taptite Screw, Lock Washer, 1/4-20:0.500

31 710-0895 Hi-Lo Screw, Lock Washer, 1/4-15:0.750

32 731-05837 LH Fender Cover

33 731-06754 RH Fender Cover

34 736-3078 Flat Washer, .344 x 1.00 x .063 HDN

35 783-06118-0691 Fender

36 726-3046 Ratchet Clip

37 735-04137 LH Foot Pad

— 735-04139 RH Foot Pad

38 757-04128 Seat

39 757-04134 Armrests

40 783-06181-0637 Lift Bracket

41 925-05013 Seat Switch

Seat and Fender — Model No. 247.28984

PARTS LIST

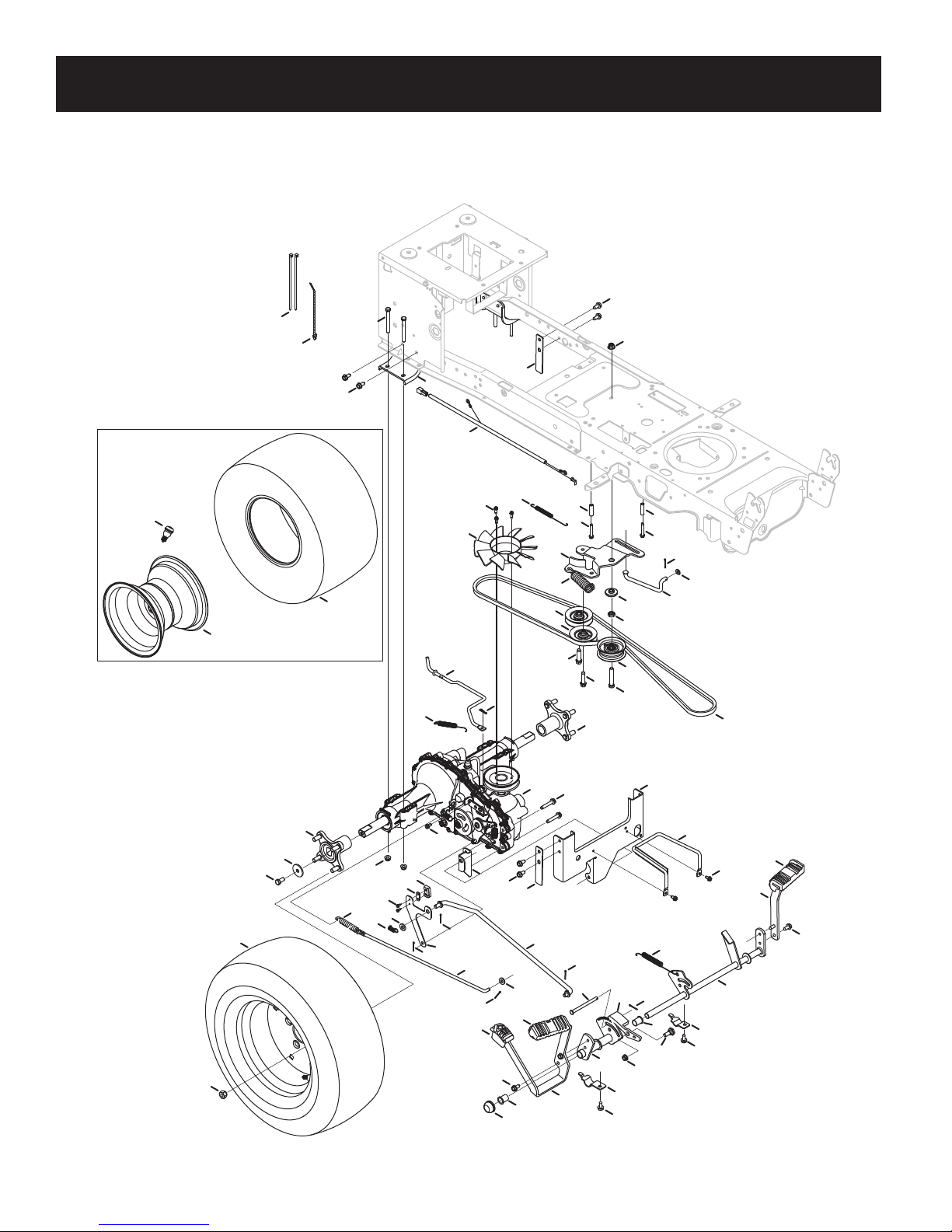

Drive and Rear Wheels — Model No. 247.28984

35 36

28 41

29 33

38 56

62 54

PARTS LIST

Ref.

No. Part No. Description

1918-04317 Wheel Assembly Hub

2918-04917 Transmission

3710-0189 Hex Screw, 5/16-18:3.00

4710-0227 Screw, #8-18:0.500

5710-04484 Taptite Screw, 5/16-18:.750

6710-0599 Taptite Screw, 1/4-20:0.500

7710-0909A Taptite Screw, 5/16-18:1.750

8710-1007 Taptite Sems Screw, 3/8-16:1.500

9710-1008 Taptite Sems Screw, 3/8-16:1.875

10 710 -1189 Screw, #12-24:0.625

11 710-1325 Taptite Screw, 1/4-20:1.625

12 710 -3011 Hex Screw, 3/8-16:2.25

13 710 -3119 Hex Screw, 3/8-16:.750

14 712-0240 Jam Nut, 7/16-20

15 712-04063 Flangelock Nut, 5/16-18

16 712-04065 Flangelock Nut, 3/8-16

17 914-0104 Cotter Pin, .072 DIA. x 1.13 LG

18 914- 0111 Cotter Pin, 3/32:1.0

19 725-0157 Cable Tie, 3/16 x .05 x 7.4

20 725-04791A Jumper Harness

21 725-1644 Short Spring Switch

22 926-0154 Push Mount Cable Tie 7.5 LG

23 926-0320 Insulator Nut Plate

24 931-1449A Blade Fan

25 732-04528 Extension Spring, .50 DIA x 5.0 LG

26 732-04624 Extension Spring, 1.00 DIA x 4.75

27 732-0716D Extension Spring, .59 OD x 4.00 LG

28 732-0932 Extension Spring, .38 DIA x 5.6

29 732-3118 Extension Spring, .375 OD x 1.44 LG

30 936-0227 Flat Washer, .390 x 1.500 x .134

31 936-0264 Flat Washer, .330 x .630 x .0635

32 936-3008 Flat Washer, .344 x .750 x .120

33 736-3010 Flat Washer, .407 x .812 x .135

34 647-04152A Brake Control Assembly

35 738-04420 Shoulder Spacer, 1.375 x .380 x .183

36 747-04957A Footpedal Bypass Transmission Rod

Ref.

No. Part No. Description

37 747-05124 Brake Rod

38 747-05125A Control Rod

39 747-05130 Disengage Rod

40 747-05181 Belt Keeper, 5/16

41 750-04456 Spacer, 260 x .372 x 1.420 LG

42 954-04244A V Belt, 4L x 77.0

43 756-04224 Flat Idler Pulley, 2.75 OD

44 756-04325 V Idler Pulley, 3.06

45 783-05443A-0637 Torque Bracket

46 783-05841 Switch Bracket

47 783-06027A Center Idler Bracket

48 783-06501A-0637 Deck Bracket

49 783-06503 Plate Bracket

50 783-0693A-0637 Axle Bracket

51 683-04571 Pedal Bracket Assembly

52 710-0604A Taptite Screw, 5/16-18:0.625

53 711-05068 Clevis Pin, 5/16 x 3.985

54 714-04040 Bow-Tie Cotter Pin

55 726-0214 Push Cap

56 732-04587 Extension Spring, .63 DIA x 4.95 LG

57 735-04118A Forward Pedal Pad

58 735-04135 Reverse Pedal Pad

59 735-04136 Brake Pedal Pad

60 938-0380 Shoulder Bolt, .500 x .270:3/8-16

61 741-0495 Flange Bearing, .630 ID x .695 OD x .60

62 748-04203 Cruise Latch

63 783-05914 Pedal Support Bracket

64 783-05940 Pedal Support Bracket, 5/8

65 783-06059-0637 Drive Pedal Bracket

66 783-06103A-0637 Brake Pedal Bracket

67 634-0202A-0961 Complete Wheel

68 712-3050 Lug Nut, 7/16-14

69 934-0255 Air Valve

70 734-04147-0901 Tire

71 634-04238-4042 Rim Assembly

Drive and Rear Wheels — Model No. 247.28984

PARTS LIST

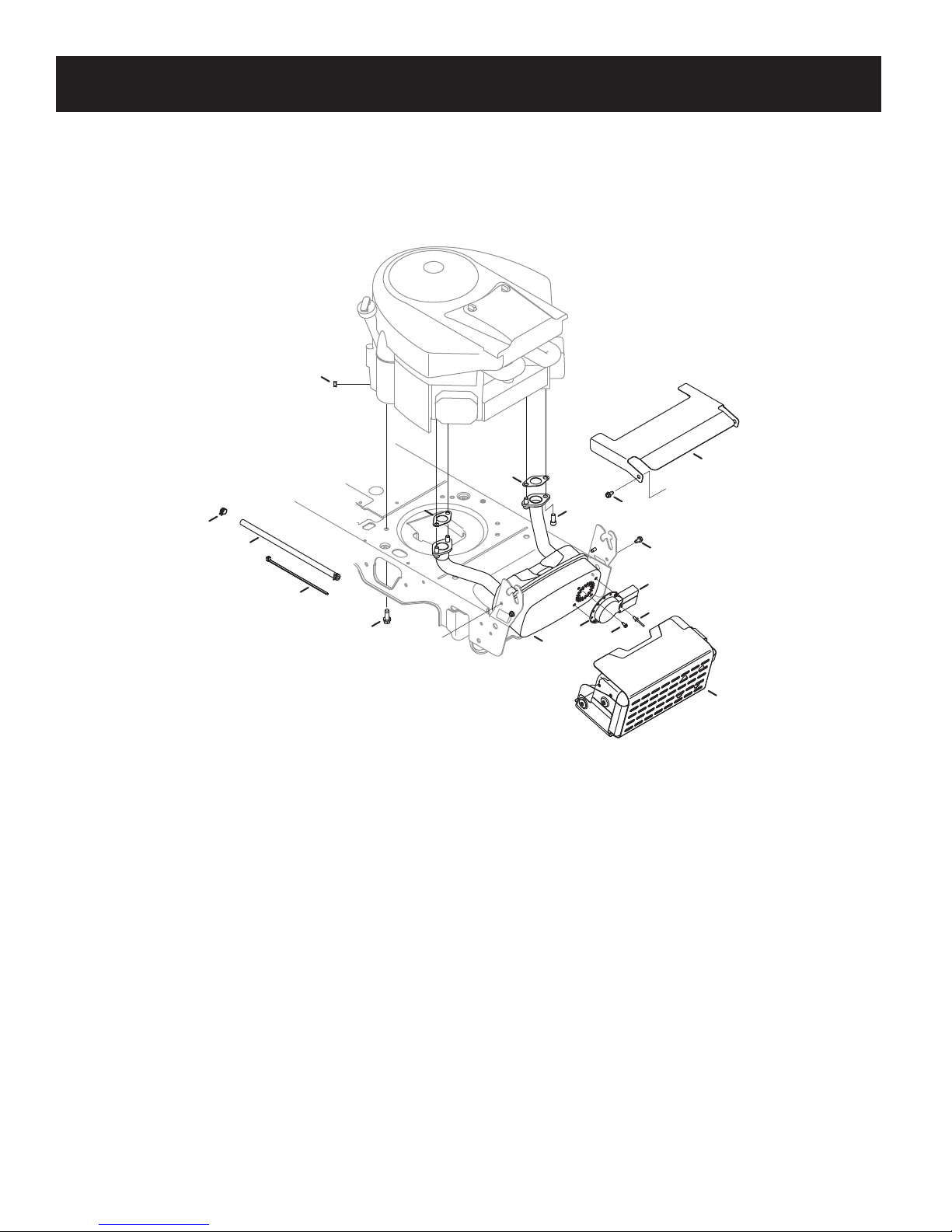

Engine Accessories — Model No. 247.28984
