CPS FlexOM Gateway V2 Manuel utilisateur
Quick Guide for FlexOM Gateway V2
2/23/2023
Revision 3
Page 1
Table of Contents
Product Features
Product Specifications
-- -- Dimensions and Interfaces
-- -- LED Indicators
-- -- Typical System Design and Diagrams
Hardware Installation
-- -- Daisy Chain Wiring
Using the CPS Connect Pro App
-- -- Check the Internet Connection
-- -- Modbus Device Settings
-- -- Modbus TCP
-- -- Reset / Restart
-- -- Option 1: Internal Wire-box Installation
-- -- List of Required Tools and Materials
2
3
6
10
11
16
27
28
28
31
32
33
17
16
-- -- 4G Cellular Antenna Installation (FlexOM-4G V2 only) 26
-- -- Safety Precautions 14
-- -- Option 2a: DIN Rail Side Mounting (in External DAS Box) 21
-- -- Option 2b: DIN Rail Flat Mounting (in External DAS Box) 24
CPS Warranty Policy 34
Page 2
Product Features
The FlexOM Gateway V2 is an IoT cloud-based gateway that allows the integration of
various hardware and system scenarios
Connect multiple CPS inverters and other devices to a single RS485 daisy chain
RS485 pass-thru allows third-party controller to act as a client in parallel with the FlexOM
Gateway V2
Enables diagnosis of RS485 wiring issues through the CPS FlexOM portal
Modbus TCP pass-thru (Third-party controllers can read/write commands to CPS inverters
through Modbus TCP.)
Easy mass deployment and configuration via the CPS Connect Pro app using built-in BLE
Reduces the need for truck rolls via remote firmware updates
Page 3
Product Specifications
RS485 Interface
No. of Ports 1 (A: 6-Pin Connector or B: 5-Pole Terminal Block)
Protocol Modbus RTU
Modbus RTU Mode Client
Terminator for RS485 120 ohms
Isolation 2.5 kV
AUX Interface
No. of Ports 1 (3-pole Terminal Block)
Protocol Modbus RTU
Modbus RTU Mode Server (RS485 Pass-thru)
Terminator for RS485 120 ohms
Isolation 2.5 kV
Ethernet Interface
10/100BaseTX Ports (RJ45 connector) 1
Connect to the Cloud Applications MQTT
SCADA controllers on the same LAN subnet Modbus TCP
Page 4
Modbus TCP
Mode Server
Max. No. of Client Connections 2
Cellular Interface (FlexOM-4G V2 product only)
Cellular Standards LTE-FDD/LTE-TDD, WCDMA
No. of SIM Slot 1
Cellular Antenna Connectors 1 SMA female
Bluetooth Interface
Standard BLE 4.2
Antenna Built-in
Power Parameters
Input Voltage 9 to 24 Vdc
Power Consumption 2.5 W, Max. 5 W
Power Connector Terminal Block
Environmental Limits
Operating Temperature -30°C to 85°C (-22 to 185°F), Natural convection
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 85% (non-condensing)
Page 5
Physical Characteristics
Housing Plastic
IP Rating IP 20
Dimensions 70 mm / 100 mm / 28 mm (2.76 in x 3.94 in x 1.10 in)
Weight 73g ( 0.16 lb )
Standards and Certifications (DoC)
CE-EMC EN 55032
EN 55035
EN 61000-3-2
EN 61000-3-3
CE-RED EN 301 908
EN 300 328
EN 301 489-1 / -17 / -52
EN 62368-1
CE-LVD EN 62368-1
FCC SDoC Part 15B
FCC ID Part 15C
Page 6

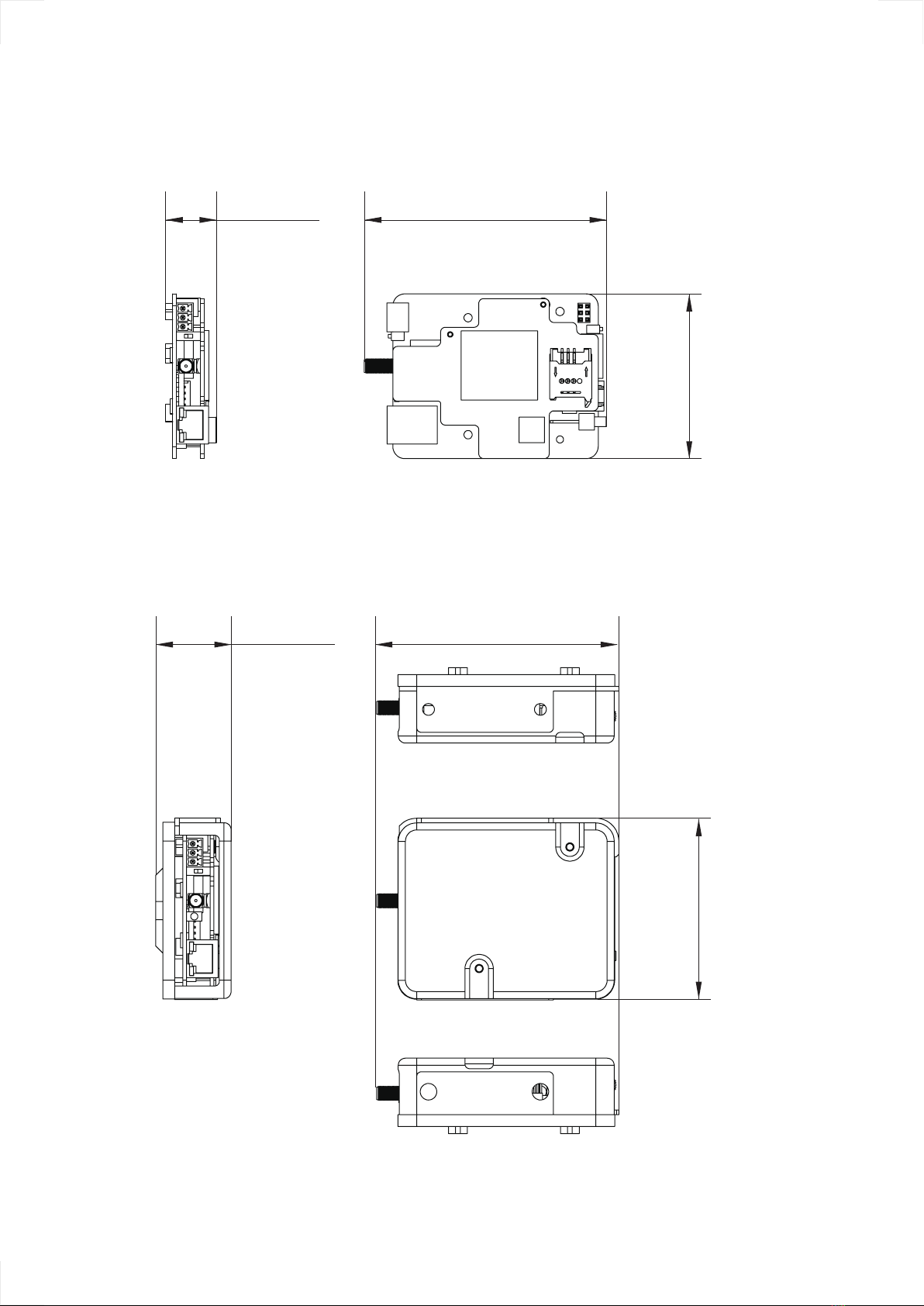

Dimensions and Interfaces
Dimensions without DIN rail housing
0.83 in
(21 mm)
3.98 in
(101 mm)
2.72 in
(69 mm)
Dimensions with DIN rail housing
1.26 in
(32 mm)
4.06 in
(103 mm)
3.03 in
(77 mm)
Page 7
Dimensions and Interfaces
Ethernet Port
AUX Port
Module Socket
Terminating Resistance Switch
6-PIN Port A:
Internal wire-box installation
(see installation option 1)
5-PIN Port B:
External DAS box installation
(see installation options 2a and 2b)
A
A+ B- G
Vin GND A+ B- G
B
Terminating Resistance Switch
Default
1
ON
Caution:
If the length of either the cable connecting to the RS485 port or the AUX port
of the gateway is over 1000 meters, the switch for the 120 ohm terminating
resistor corresponding to the port must be set to ON.
Power Switch
POWER ON
Caution:
Before configuring the gateway,
ensure the power switch is set to ON.
Page 8
Connector for 4G antenna
SIM Card Slot
Note:
Confirm the gateway model by checking the model number and SN listed on the label on top of the
gateway card.
The FlexOM Gateway V2 cards must have an Internet connection to enable remote data
communications via the CPS Portal.
The standard FlexOM Gateway V2 requires an Internet connection via the Ethernet port.
The FlexOM-4G Gateway V2 includes a pre-installed SIM card and 5-year 4G cellular plan.
The FlexOM-4G Gateway V2 may not use, be configued with, or be activated with a third-party
SIM card.
Internet Interface:
Ethernet
Internet Interface:
4G wireless
(FlexOM-4G V2 only)
Dimensions and Interfaces
Page 9
The FlexOM Gateway V2 requires a connection to the Internet using Ethernet. Any LAN
firewall ports must be opened before commissioning the FlexOM Gateway V2.
The following ports must be opened both ways (for incoming and outgoing
communications):
TCP 1884 with destination IP 47.254.52.209
(mqtt.chintpowersystems.com)
Internet Interface: Ethernet (FlexOM Gateway V2)
Internet Interface: 4G (FlexOM-4G Gateway V2 only)
The FlexOM-4G Gateway V2 includes a pre-installed SIM card and is compatible with
AT&T, T-mobile, and Verizon networks. The standard 4G cellular data plan period is 5
years.
Once the FlexOM-4G Gateway V2 is powered on and the 4G antenna has been installed
(see page 26), it will automatically select and connect to the provider network with the
strongest or most stable signal.
Dimensions and Interfaces
